Precision Syringe Pump for Lab Research | Non-Pulsing, Stepper-Driven, Pre-Configured for Animal Studies & Microfluidics

Product Description (For Product Page)

(Product Hero Section – Brief Overview)

Precision Redefined. Ready for Discovery.
Eliminate setup complexity and flow inconsistency with our purpose-built precision syringe pump. Engineered for demanding laboratory applications, it delivers truly non-pulsing, ultra-stable micro-flow rates critical for microfluidics, mass spectrometry infusion, electrospinning, and stereotaxic brain injections in rodents. Unlike generic linear stages, key experimental parameters for rat and mouse studies are pre-calculated and integrated, offering unparalleled “arrive-and-inject” convenience and reliability.

(Key Features Bullet Points)

• TRUE NON-PULSING FLOW: Advanced stepper motor control and mechanical design ensure exceptionally smooth, pulse-free fluid delivery, essential for sensitive assays and stable electrospinning.

• ARRIVE-AND-INJECT CONVENIENCE: Pre-configured with optimized parameters for common rodent stereotaxic protocols, drastically reducing setup time and calibration errors.

• BROAD APPLICATION READY: Out-of-the-box compatibility with syringes from 1mL to 50mL, making it versatile for microfluidics (μL/min), chemical infusion (mL/hr), and electrospinning.

• LAB-GRADE EASE OF USE: Intuitive interface for direct input of flow rate (μL/min to mL/min) and total infusion volume. Functionality far exceeds that of a repurposed generic linear slide.

• ROBUST & RELIABLE: Built around a high-precision stepper motor and linear slide system within a rigid chassis, ensuring long-term positional accuracy and repeatability.

(Detailed Description Sections)

Why This Pump, Not a Generic Slide?
While both use stepper motors, this pump is a complete, integrated fluid delivery solution. The firmware is optimized for smooth micro-flow profiles, the mounting is designed for syringes and tubing, and critical pre-sets save you hours of calculating and testing injection speeds and volumes for live animal work. It’s the difference between a component and a dedicated instrument.

Technical Specifications & Setup Guidance

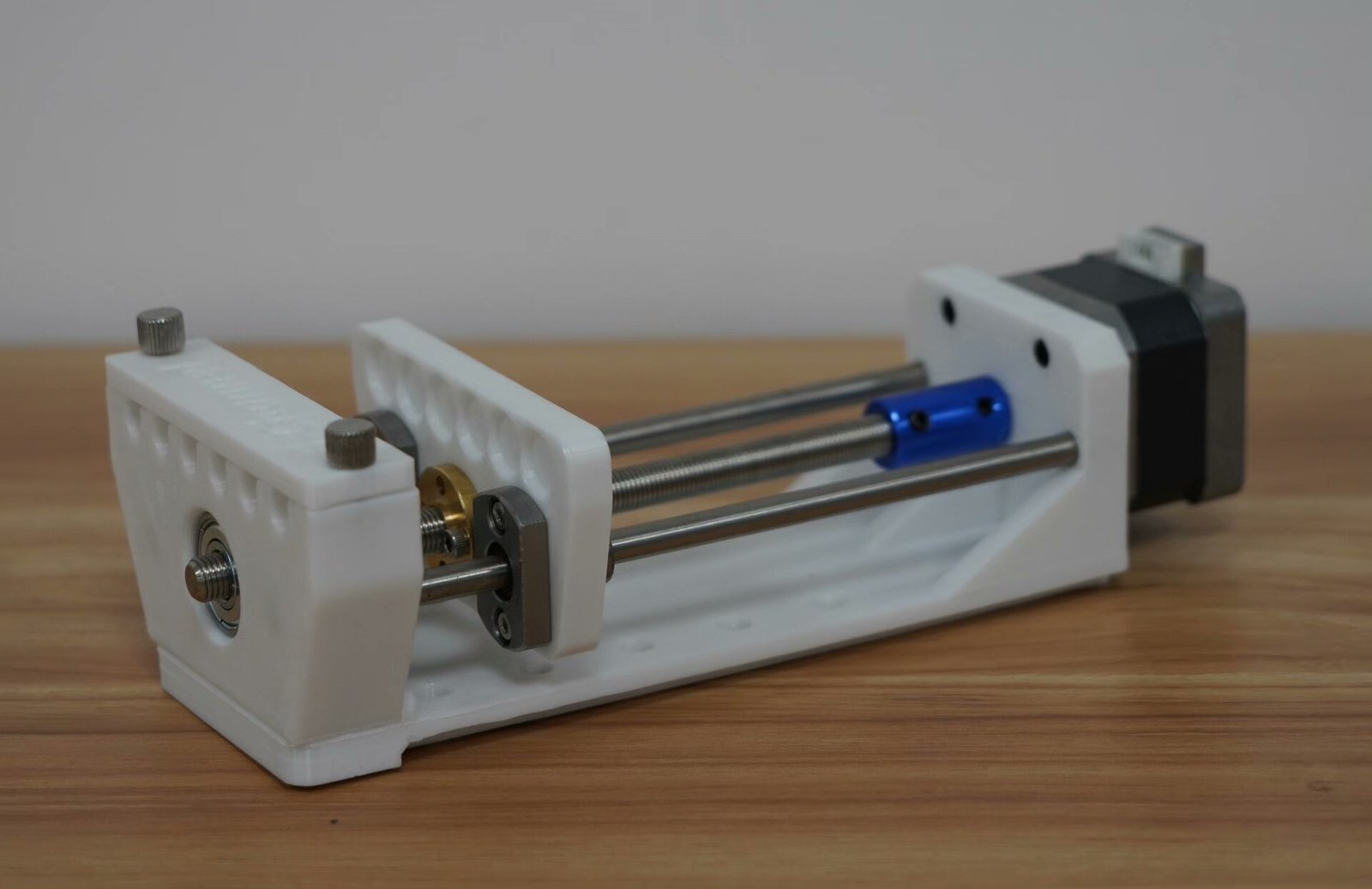

• Drive Mechanism: Precision Stepper Motor with High-Resolution Linear Slide

• Flow Performance: Non-pulsing, stable flow across its range.

• Syringe Compatibility: 1mL, 5mL, 10mL, 20mL, 50ml standard luer-lock syringes (syringe not included).

• Flow Rate Range: From μL/min to mL/min (exact range depends on syringe size).

• Key Pre-Sets: Includes optimized default settings for rat and mouse intracerebral/ intraperitoneal infusion protocols (e.g., common flow rates, total volumes).

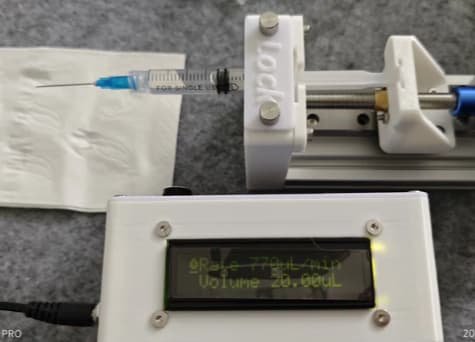

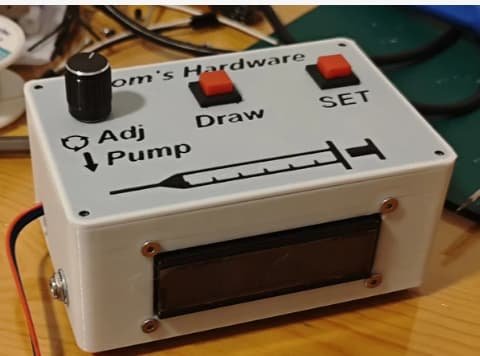

• Control: Digital interface for setting flow rate and total volume with start/stop/pause functions.

• Critical Recommendation: When using a 1mL syringe, the minimum stable flow rate is recommended to be ≥ 1μL/min to ensure accuracy and prevent stiction issues.

Core Applications:

1. Neuroscience & Pharmacology: Precise, hands-free stereotaxic infusion of viruses, drugs, or tracers into rodent brains.

2. Analytical Chemistry: Stable mobile phase addition or sample infusion for Mass Spectrometry (MS).

3. Materials Science: Consistent polymer solution feed for Electrospinning nanofiber production.

4. Microfluidics & Organ-on-a-Chip: Providing steady, pulse-free flow for cell culture media or reagent perfusion.

5. General Lab Use: Any application requiring accurate, automated syringe-driven fluid delivery.

What’s Included:

• 1x Precision Syringe Pump Main Unit

• 1x Universal Syringe Clamp/Adapter

• 1x Power Adapter

• 1x User Manual with Protocol Quick-Start Guide
