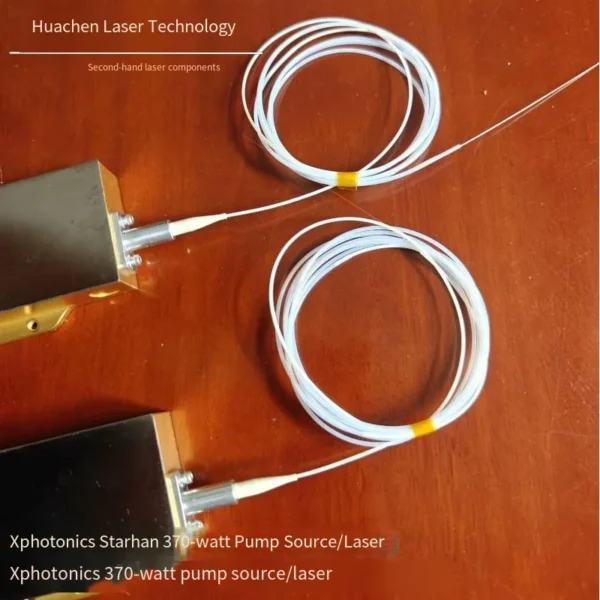

Xphotonics Xinghan 370W Laser Pump Source Module – 976nm Wavelength, Customizable Output
Price range: $210.00 through $275.00
MAX Innovation 130W Laser Pump Source Module – 915nm Wavelength, 14.8V DC Input
10
People watching this product now!
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Price range: $92.00 through $210.00
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description

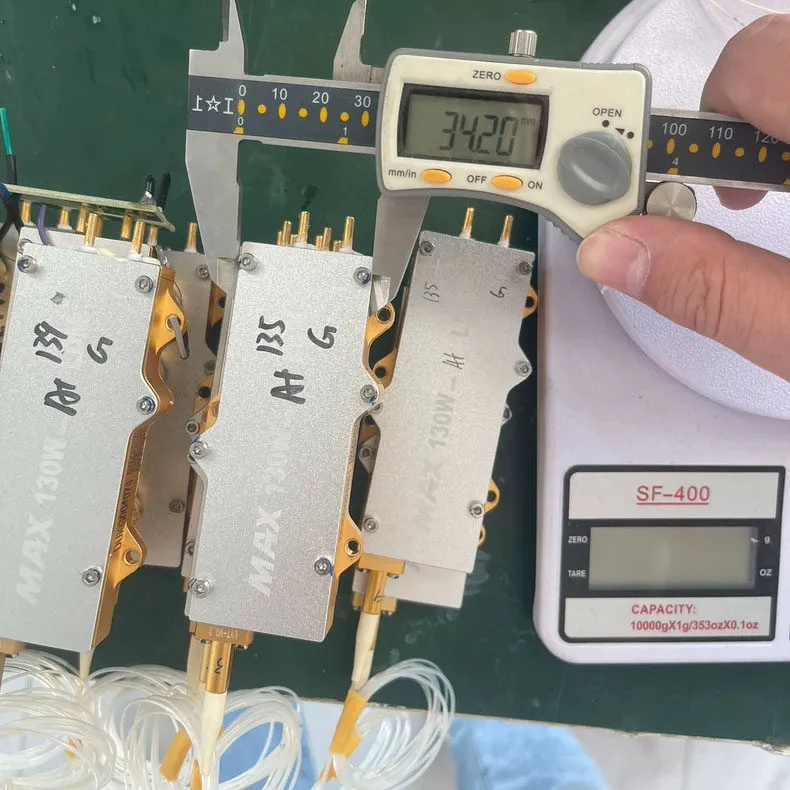

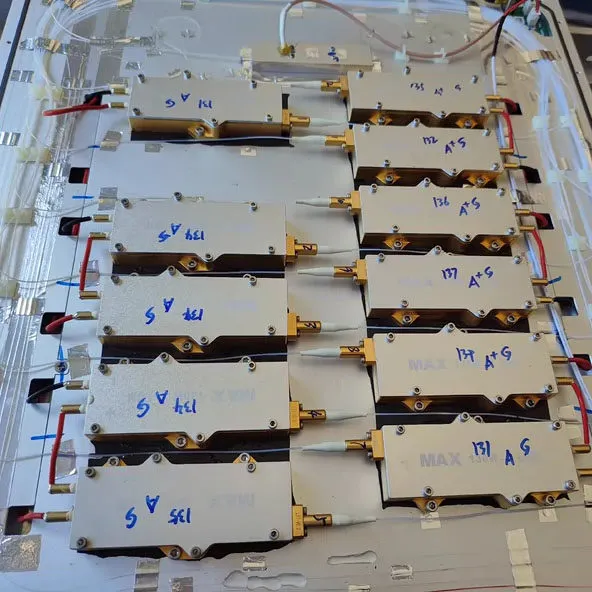

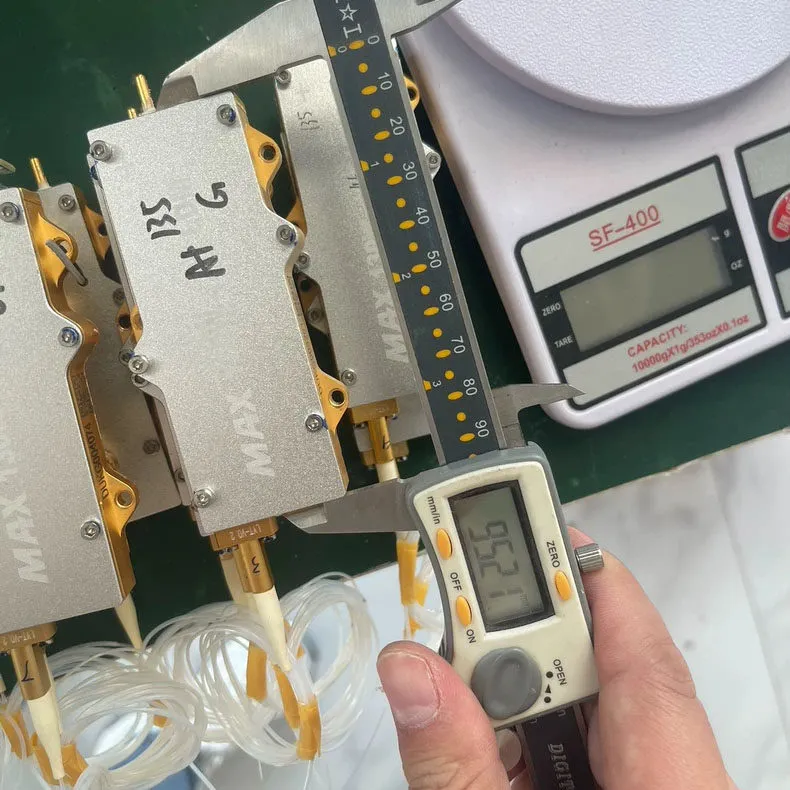

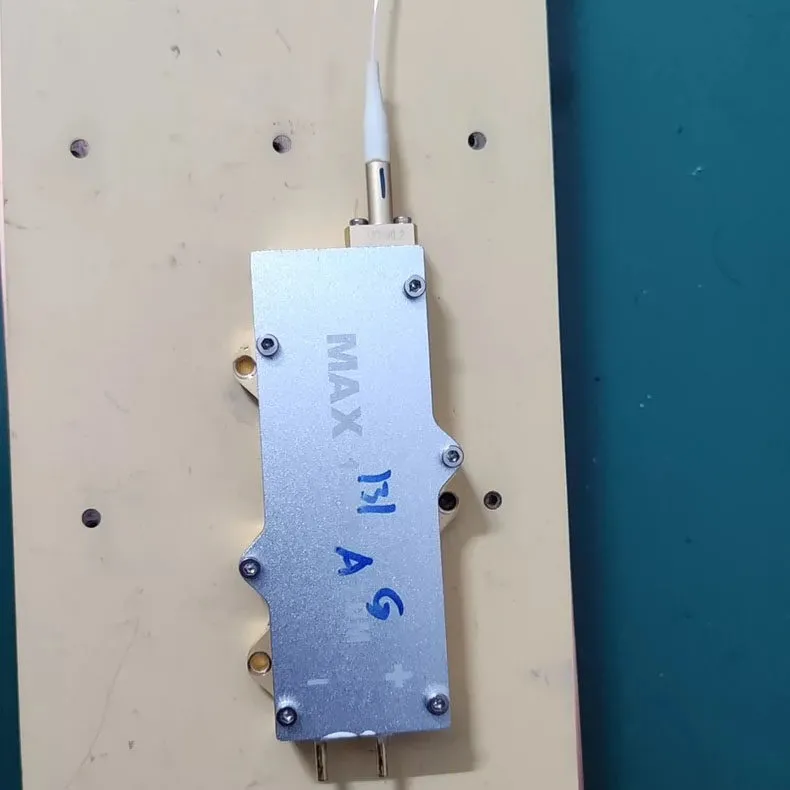

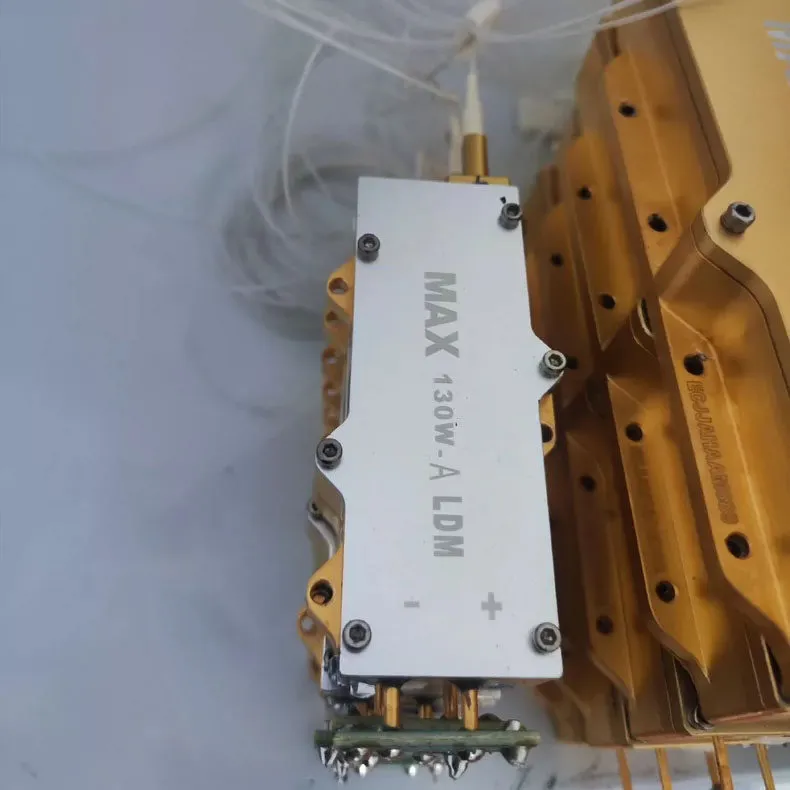

The MAX Innovation 130W Laser Pump Source Module is a high-performance, pre-owned laser diode array designed for pumping ytterbium-doped fiber lasers in cutting, welding, and research applications. It delivers a stable 130W infrared output at 915nm, optimized for high absorption efficiency in fiber laser systems. This refurbished unit is ideal for professionals and advanced hobbyists building or modifying laser systems in controlled environments.
Core Features
- High-Efficiency Pumping: 915nm wavelength provides maximum absorption efficiency in ytterbium-doped fiber lasers, ensuring optimal system performance.
- Compact Design: The slim, lightweight form factor makes it easy to integrate into space-constrained laser rigs and custom builds.
- Thermal Management Ready: Designed to work with optional aluminum/copper heat sinks or water cooling systems for continuous, reliable operation.
- Industrial-Grade Reliability: Built by MAX Innovation, a trusted leader in fiber laser technology, ensuring consistent performance in demanding applications.
- Multiple Output Options: Available with bare fiber, armored fiber + SMA905 connector, or armored fiber + collimating lens for flexible integration.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | MAX Innovation 130W Laser Pump Source Module |
| Wavelength | 915nm ±1nm (infrared) |
| Power Output | 130W (nominal) |
| Fiber Core Diameter | 0.305mm (305μm, multimode) |
| Power Supply | 14.8V DC @ 15A (requires dedicated high-current power source) |
| Maximum Current | ≤15A (strict current control is critical) |
| Dimensions | Compact form factor (exact dimensions available upon request) |
| Housing Material | High-thermal-conductivity aluminum + gold-plated copper base |
| Primary Applications | Pumping fiber laser cutting/welding systems, research projects, and custom laser builds |
| Condition | Refurbished (pre-owned, tested and verified for performance) |
| Operation Requirement | Trained laser professionals or advanced users with technical expertise |
SKU Options
| SKU | Configuration |
|---|---|
| MAX-130W-BARE | 130W Laser Pump Source, bare fiber output |
| MAX-130W-ARMORED | Module + armored fiber + SMA905 quick connector |
| MAX-130W-COLLIMATED | Module + armored fiber + collimating lens |
| MAX-130W-DIRECT | 130W Laser Pump Source, direct output (no fiber) |
Why Choose This MAX Innovation Pump Source?
- Trusted Performance: MAX Innovation is a leading provider of fiber laser technology, ensuring exceptional reliability and output stability.
- Cost-Effective Solution: Refurbished units deliver professional-grade performance at a fraction of the cost of new modules.
- Flexible Integration: Multiple output options let you select the perfect setup for your laser system, from bare fiber to a fully collimated solution.
- DIY-Friendly: Perfect for advanced hobbyists and researchers looking to build or modify their own high-power laser systems.
Important Safety & Usage Notes
- Current Control: Strictly maintain current at ≤15A. Exceeding this limit will cause irreversible damage, thermal runaway, and power degradation.
- Thermal Management: A robust heat sink or water cooling system is required for prolonged operation to prevent overheating.
- Laser Safety: Always wear appropriate laser safety goggles (OD 4+ for 915nm) when operating. Never point the beam at people, animals, or reflective surfaces.
- Pre-Owned Terms: This is a refurbished, as-is unit. It is tested for functional performance but sold without return or exchange.
- Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
