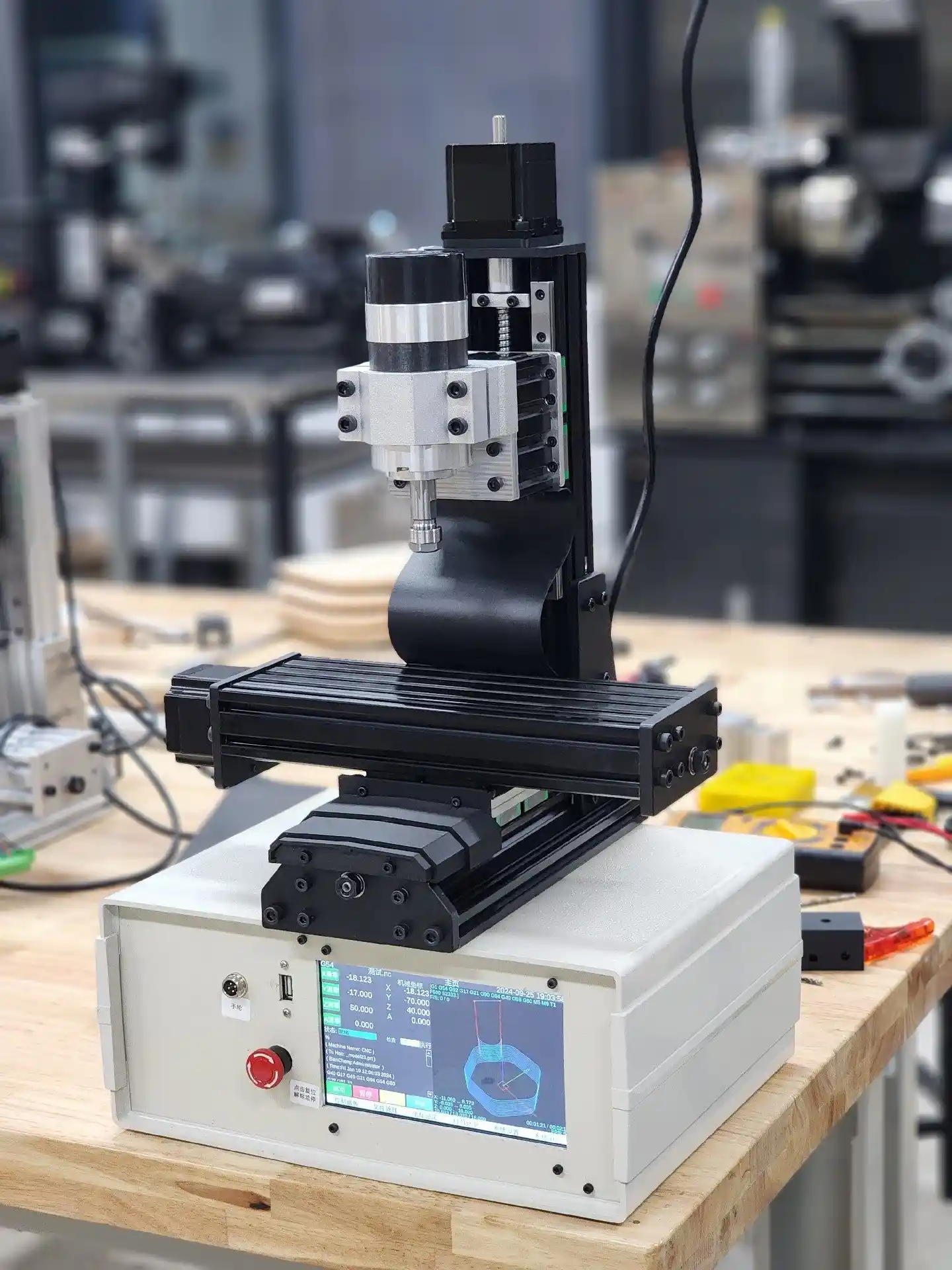

Manual 4th-Axis CNC 3040 Engraving & Milling Machine | 400W Spindle, C7 Ball Screws, 160x92x100mm Travel

Product Description (For Product Page)

(Product Hero Section)

From Desktop to Micro-Workshop.
This isn’t just a small engraver; it’s a serious, precision-engineered 3040-format CNC milling machine built with components worthy of much larger industrial tools. Featuring manual rotary 4th-axis capability, C7-grade ball screws, and a powerful 400W brushless spindle, it’s designed for the maker, jeweler, or engineer who demands exceptional accuracy and rigid performance in a compact, desktop footprint.

(Key Features Bullet Points)

• PRECISION ENGINEERED: Equipped with C7 precision ball screws on all three linear axes, delivering a theoretical positioning error of just 0.0045mm over its travel for exceptional accuracy.

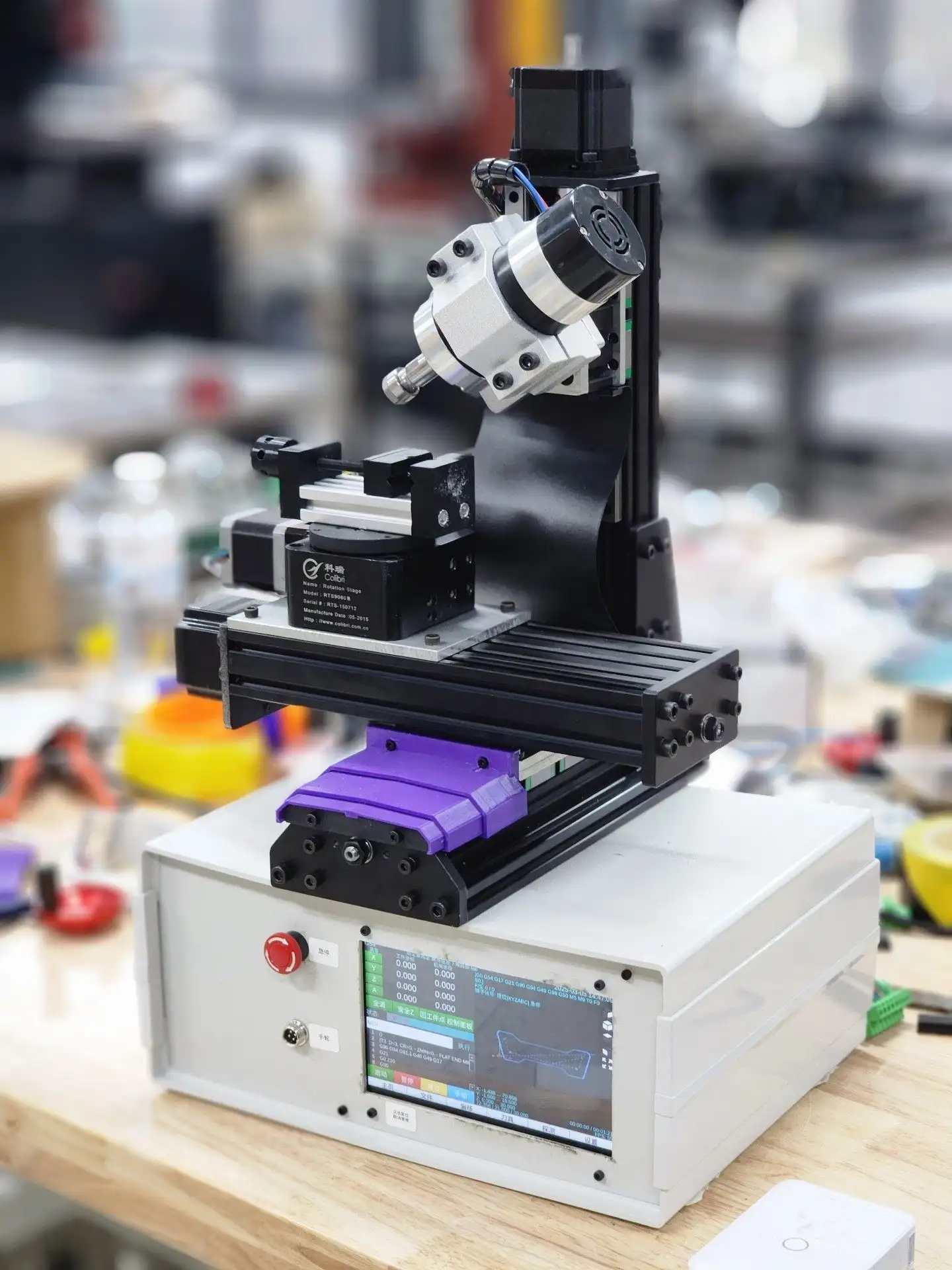

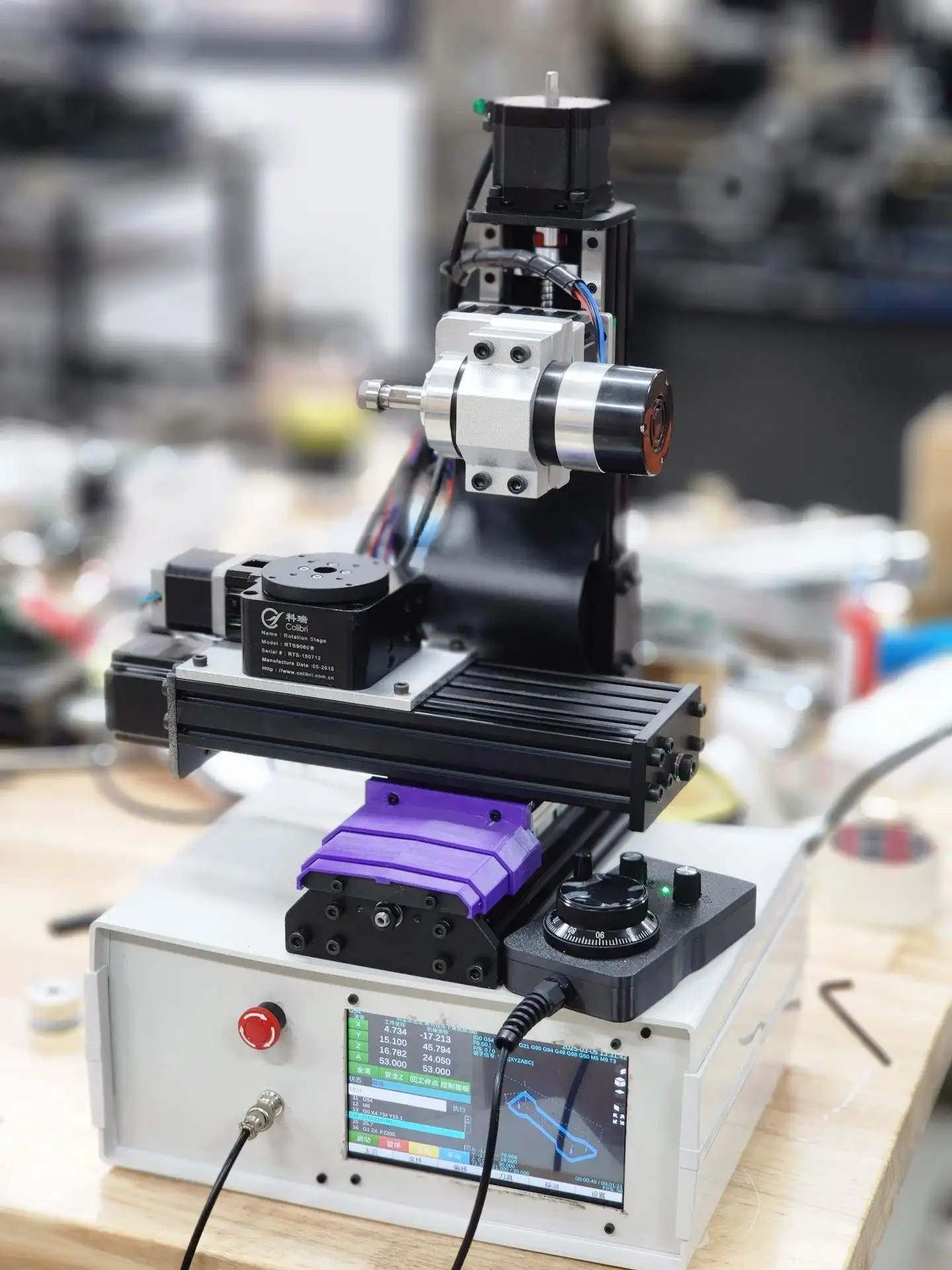

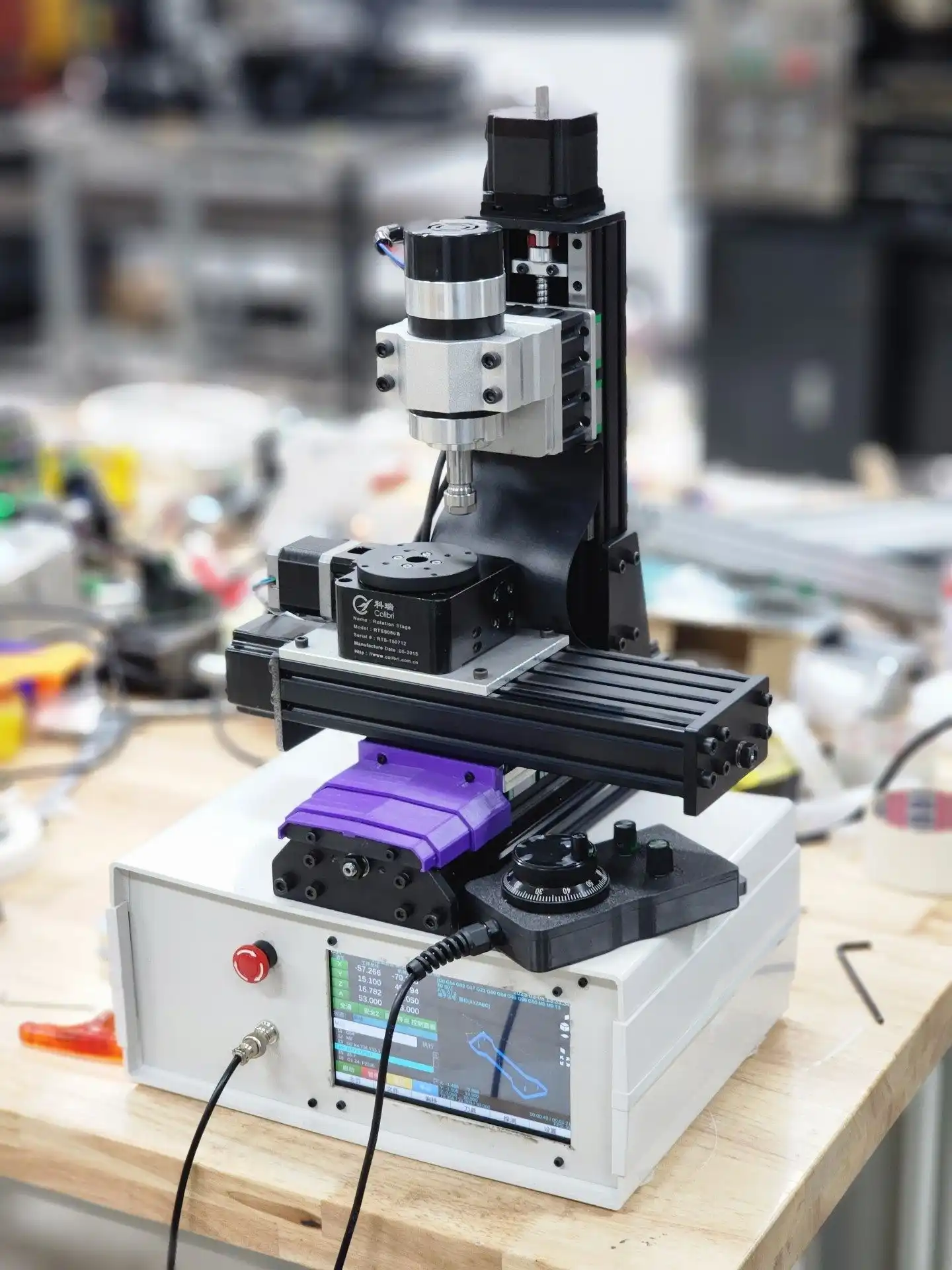

• MANUAL 4TH-AXIS READY: Includes a high-quality manual rotary axis, enabling intricate cylindrical engraving, fluting, and 3D contouring on small workpieces that would be impossible on a standard 3-axis machine.

• INDUSTRIAL-GRADE RIGIDITY: Built on a foundation of 3-axis linear guides supported by 12 individual bearing blocks, ensuring minimal deflection and vibration for clean, precise cuts.

• POWERFUL & ACCURATE SPINDLE: Driven by a 400W brushless, air-cooled spindle with a runout tolerance of 0.007mm at the tool taper, guaranteeing fine surface finishes and prolonged tool life.

• SERIOUS DRIVE SYSTEM: Powered by NEMA 23 (57 frame) stepper motors for reliable torque and precise motion control across its entire 160x92x100mm working envelope.

(Detailed Description Sections)

Built for the Discerning Creator
This machine bridges the gap between hobbyist toys and industrial equipment. The choice of C7 ball screws—uncommon in this size class—signals a commitment to precision. The inclusion of a manual 4th axis opens a world of creative and technical possibilities, from signet rings and pens to custom gears and artistic sculptures, all within a footprint that fits on a sturdy bench.

Technical Specifications:

• Working Area (X, Y, Z): 160mm x 92mm x 100mm

• Overall Dimensions: ~350mm (W) x 360mm (D) x 620mm (H) (with control box stacked)

• Linear Motion: 3-axis linear guide rails with 12 slider blocks.

• Lead Screws: C7 Grade Precision Ball Screws on X, Y, and Z axes.

• Spindle: 400W Brushless Air-Cooled Spindle, ER11 Collet. Runout: ≤0.007mm.

• Stepper Motors: NEMA 23 (57 frame), 1.8° step angle.

• Control System: Compatible with standard CNC controllers (e.g., Mach3, GRBL-based). Specify if included.

• 4th Axis: Manual Rotary Axis included (worm gear or direct manual indexing type).

What This Machine Can Do (Typical Materials):

• Soft Metals: Aluminum, brass, copper.

• Plastics & Composites: Acrylic, PC, ABS, carbon fiber sheets, PCB.

• Hardwoods & Modeling Materials: Walnut, maple, MDF, modeling wax.

• Applications: Precision parts, jewelry, circuit boards, mold making, detailed signage, prototyping.
