The Foundation of Your Automation.

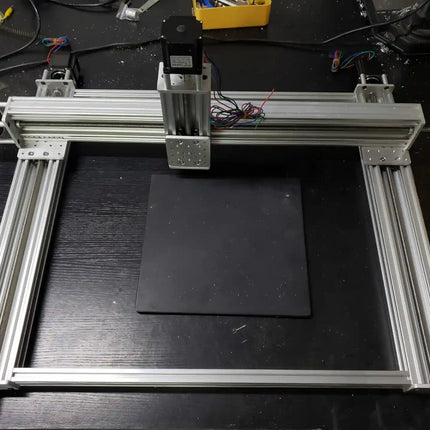

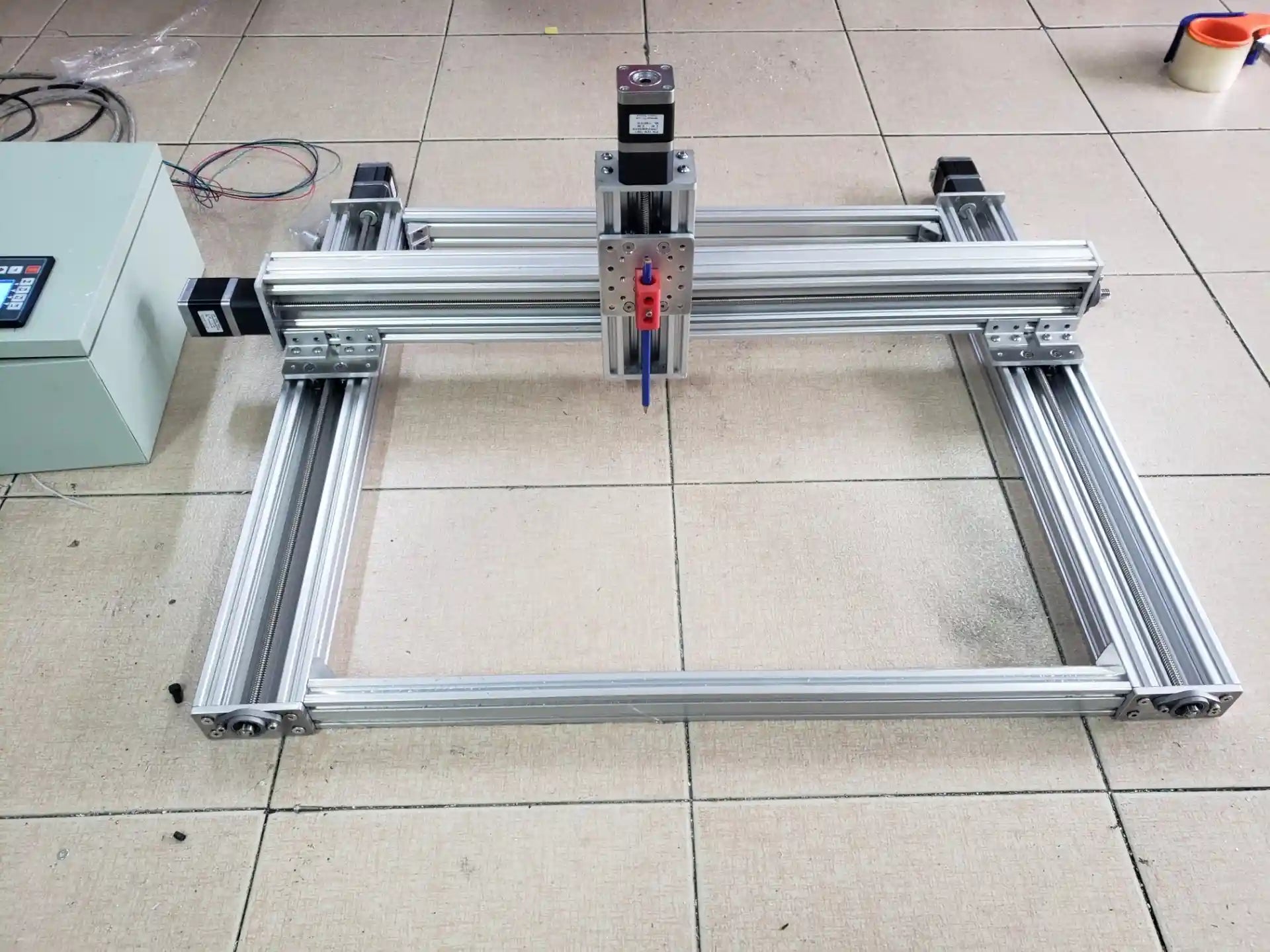

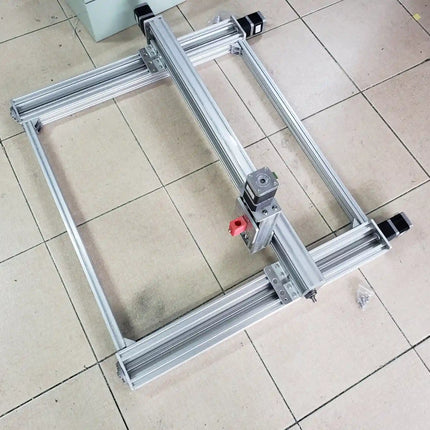

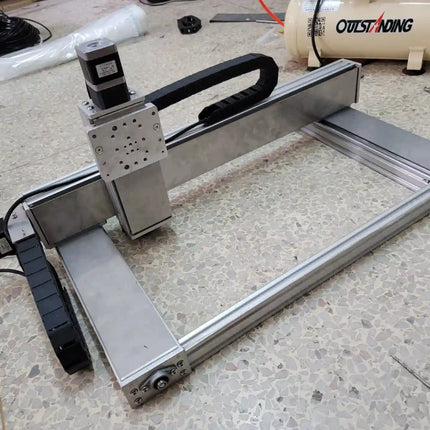

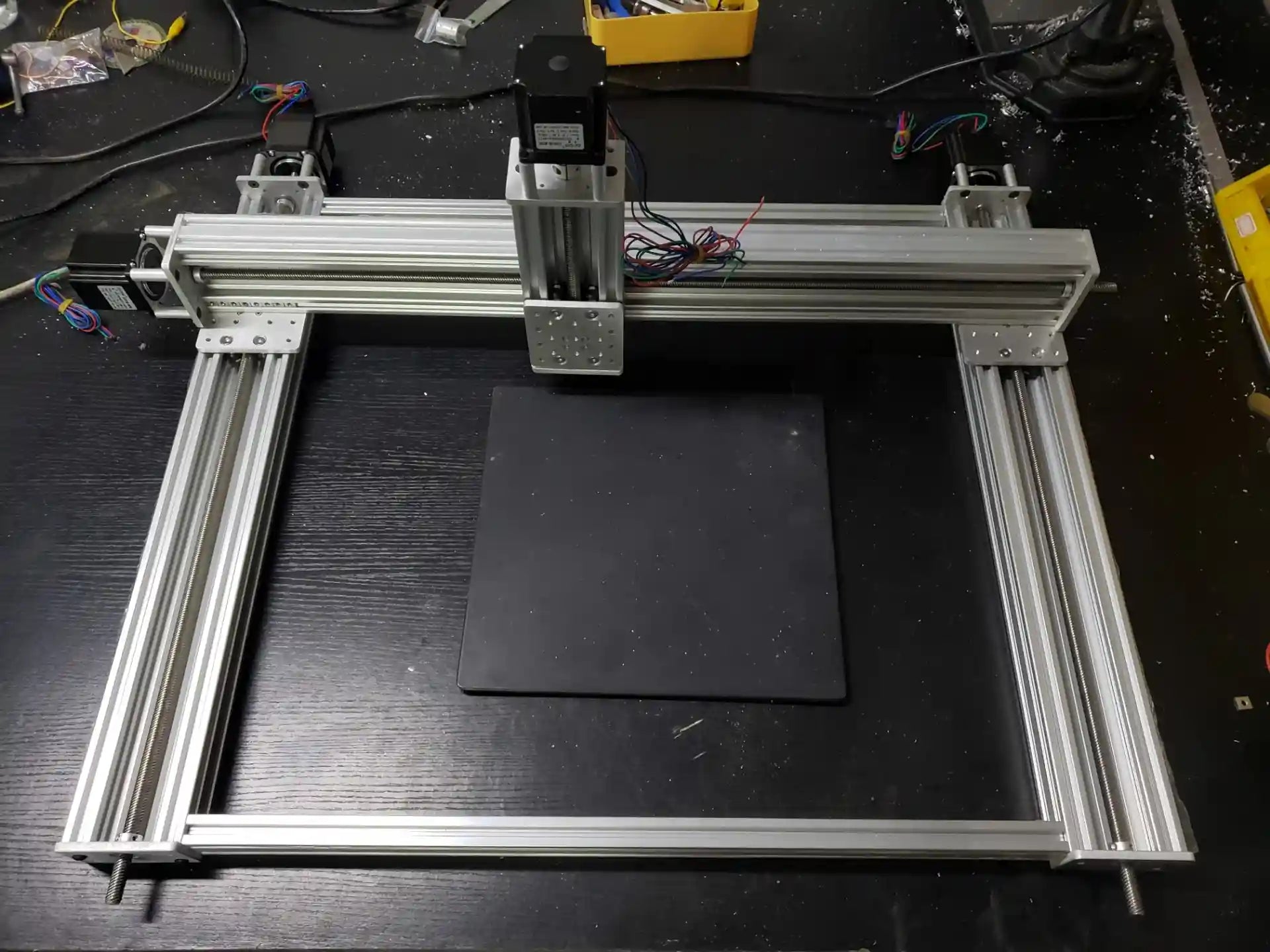

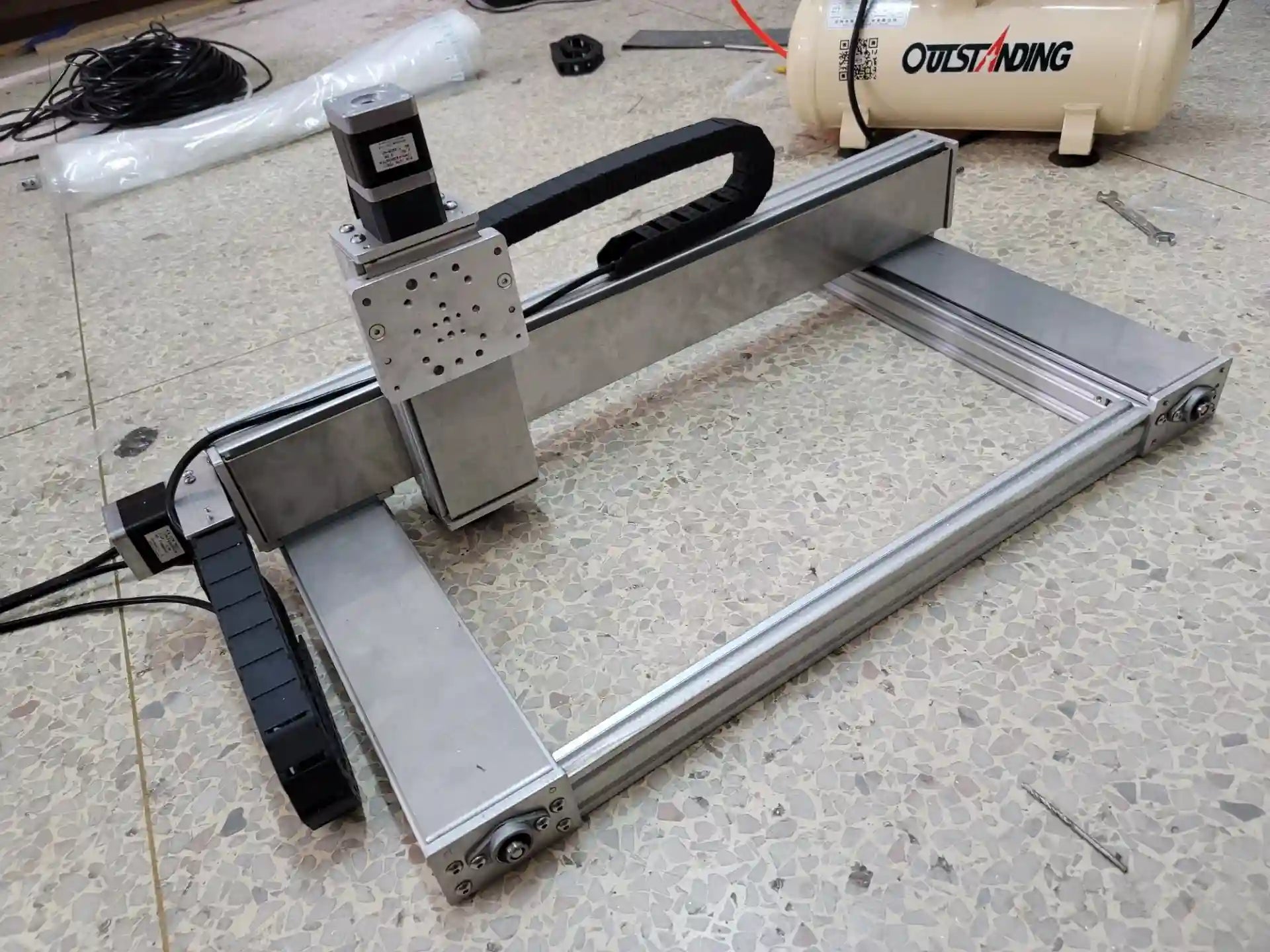

This is the core mechanical framework for building professional-grade automated systems. Engineered with precision ball screws, dual anti-backlash nuts, and heavy-duty linear bearing carriages, this gantry stage delivers high-speed, high-precision, and zero-backlash linear motion. Available with 42 or 57 frame stepper motors and fully customizable travel lengths, it’s the ideal platform for constructing automated dispensers, soldering machines, CNC routers, or custom lab equipment.
(Key Features Bullet Points)
-

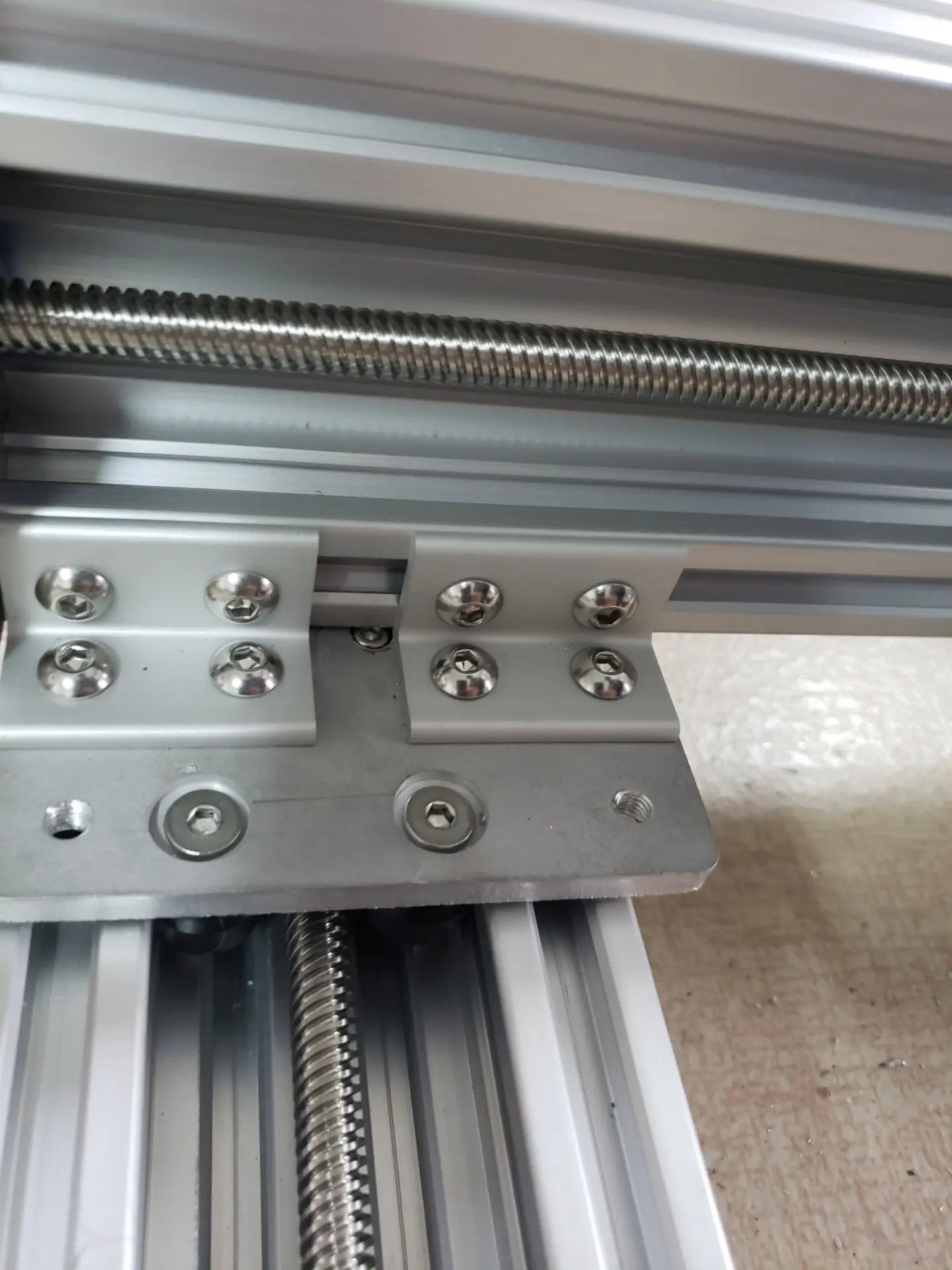

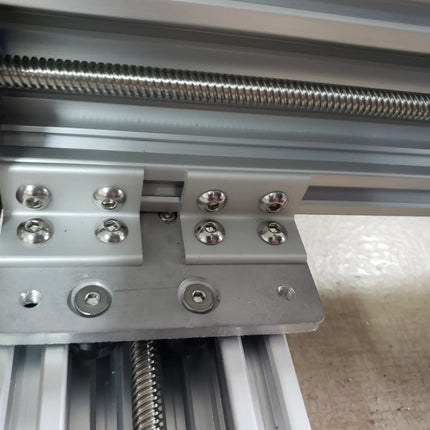

INDUSTRIAL-GRADE PRECISION: Features ground ball screws (T8/T10) paired with dual copper anti-backlash nuts to eliminate play and ensure repeatable positioning accuracy.
-
SUPERIOR GUIDANCE & RIGIDITY: Utilizes linear bearing blocks on hardened steel rails instead of simple bushings on rods, providing higher load capacity, minimal deflection, and support for longer travel spans.
-
HIGH-SPEED PERFORMANCE: Capable of rapid movement with the 57-frame motor & T10 screw combo reaching speeds up to 280mm/s, maximizing throughput in production setups.
-

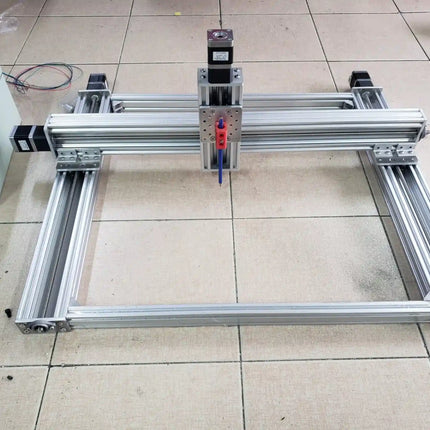

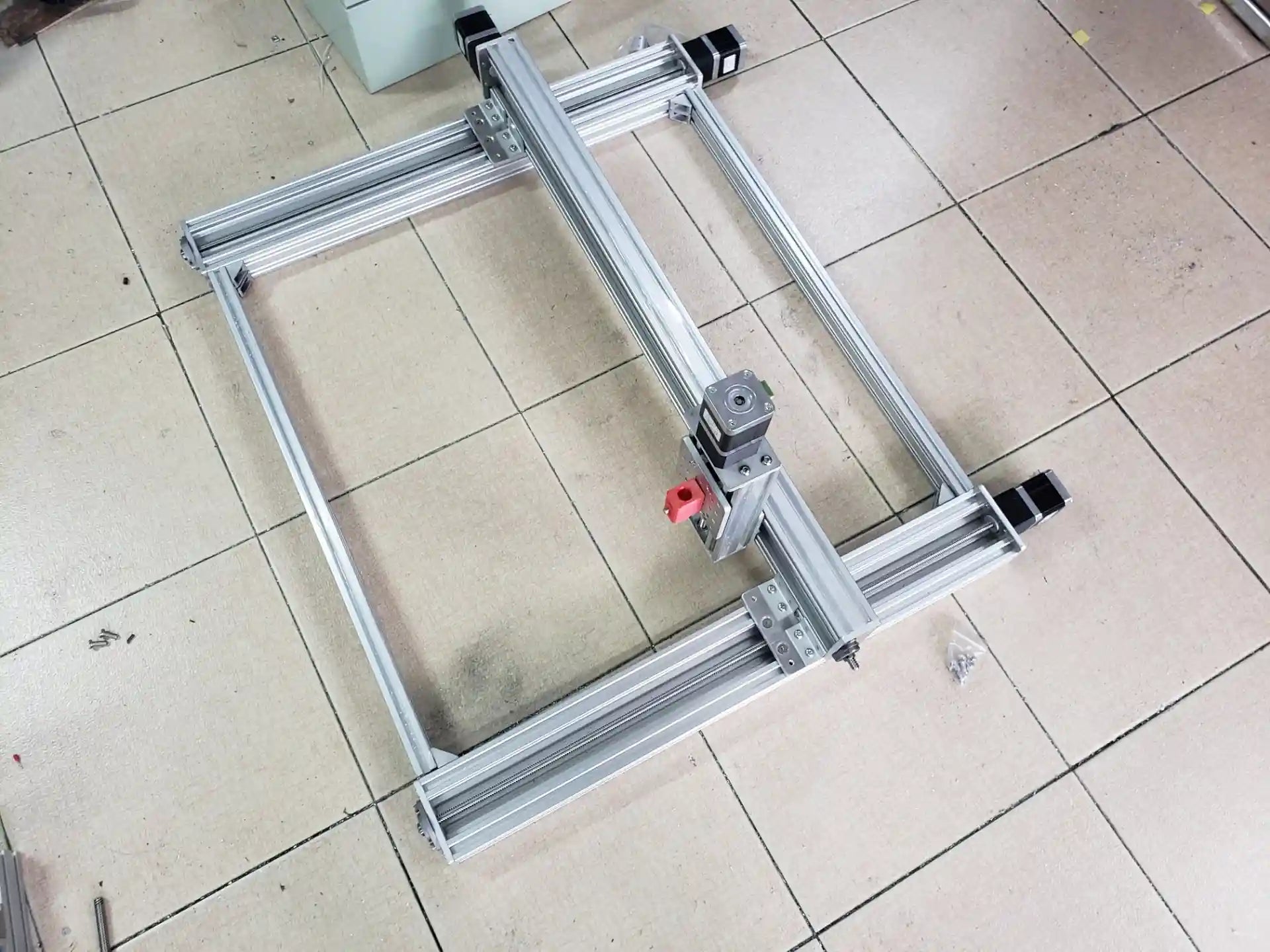

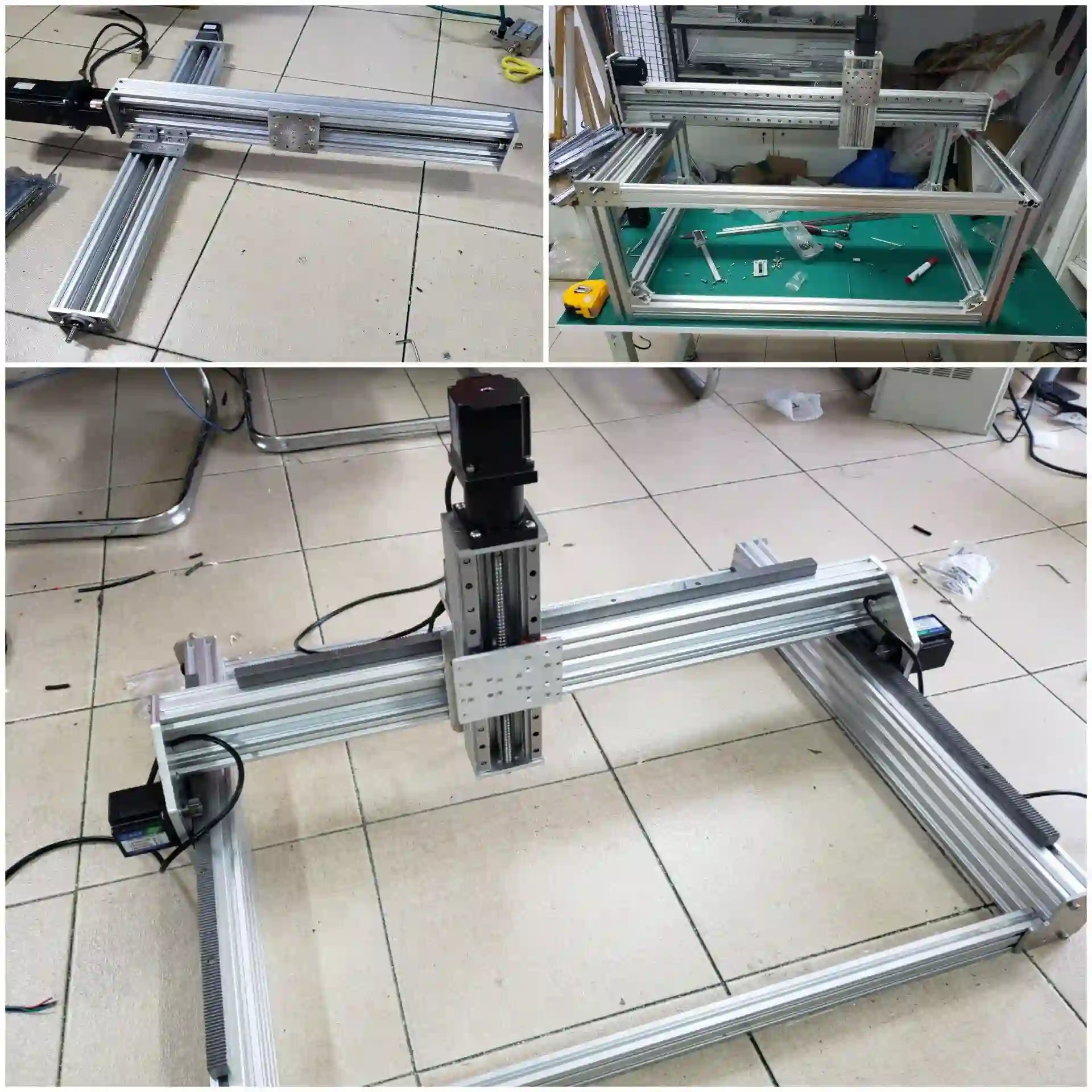

MODULAR & CUSTOMIZABLE: Available as a 3-axis (XYZ) or 4-axis (XYZ + Rotary C-Axis) system. Travel lengths are fully customizable – you specify the dimensions, we build it.
-
MULTI-APPLICATION READY: The perfect motion core for precision dispensing (glue, solder paste), automated soldering, light CNC milling, laser engraving, and pick-and-place systems.
(Detailed Description Sections)
Engineered for Demanding Motion Control
This system is designed from the ground up for stability and accuracy. The combination of pre-loaded ball screws and profiled linear guides eliminates the slop and “springiness” found in lower-cost rod-based systems, allowing for sharper contours, more consistent dispensing beads, and reliable high-speed operation.
Standard Configuration Options & Pricing Basis
All systems are built-to-order based on your required travel (X, Y, Z).
What’s Typically Included in a Gantry Kit:
-
All mechanical frame and structural components.
-
Linear guide rails and bearing blocks for all axes.
-
Precision ball screws with dual anti-backlash nuts.
-
Stepper motors (NEMA 17/42 or NEMA 23/57 as specified).
-
Motor mounts and coupling.
-
All necessary mounting hardware.
What You NEED to Provide/Source Separately:
-

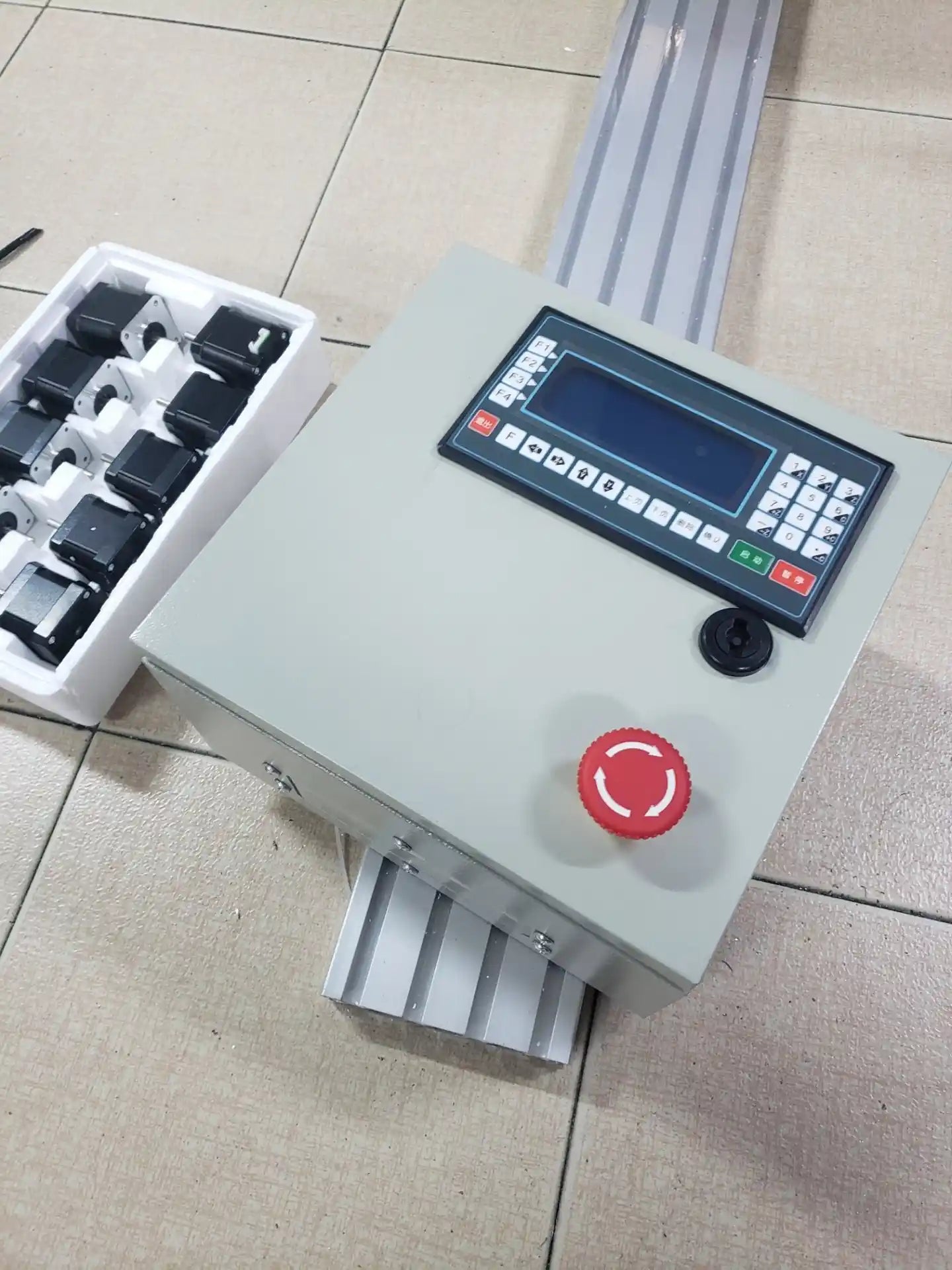

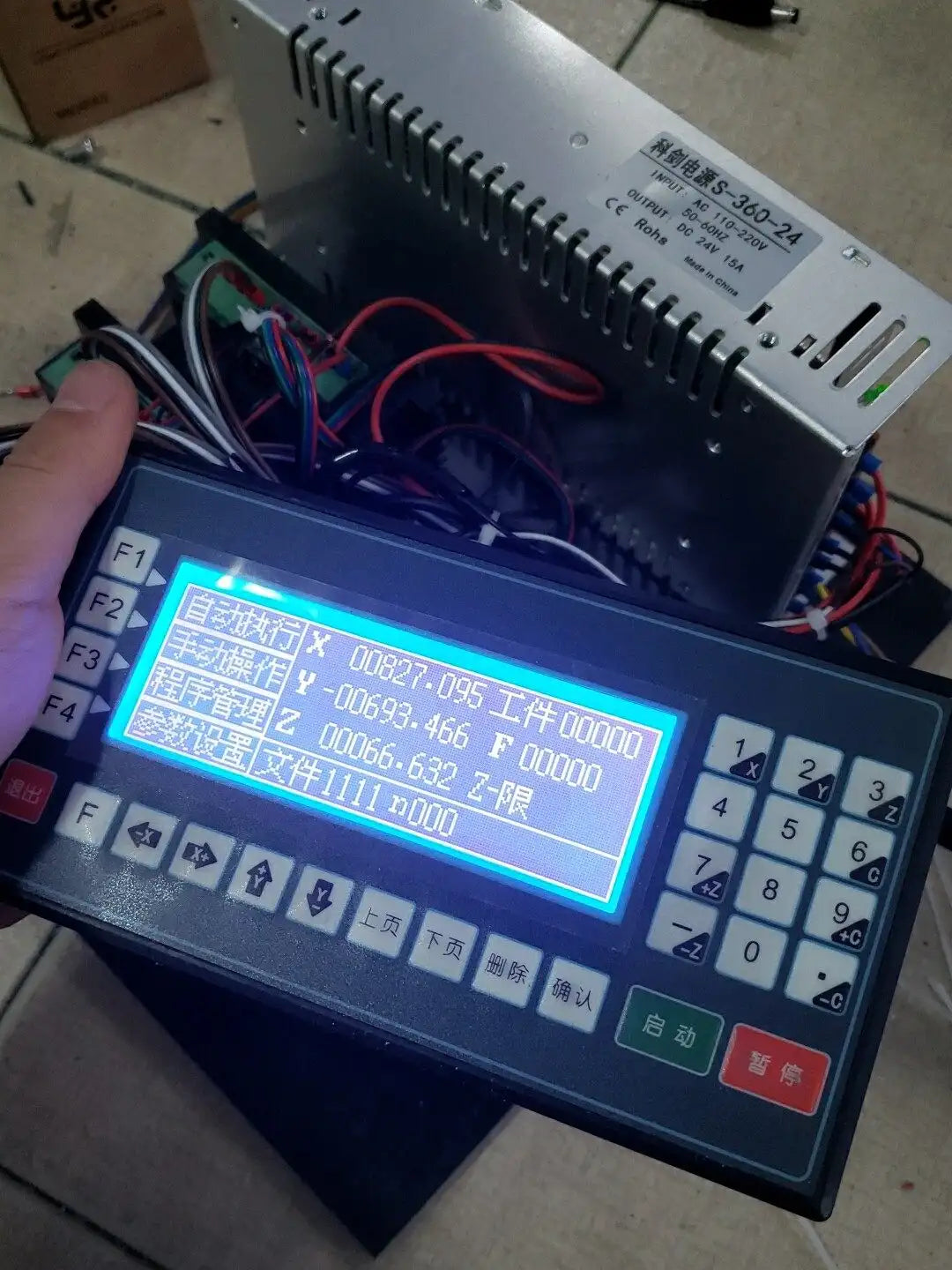

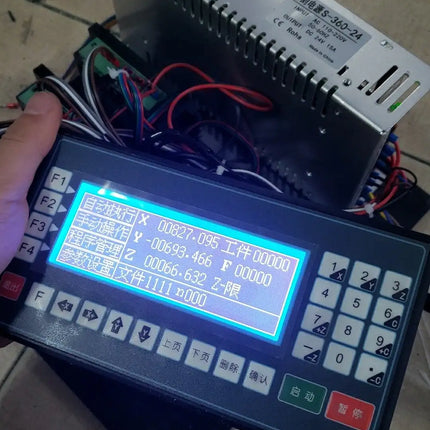

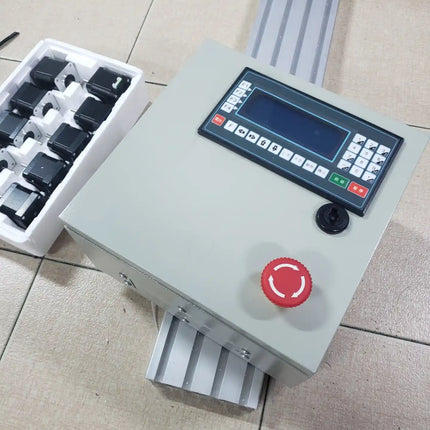

Motion Controller & Drivers: (e.g., CNC controller like Mach3/GRBL, or PLC).
-
Power Supply: For motors and controller.
-
End-Effector Tooling: Spindle, dispenser valve, soldering iron, laser head, etc.
-
Software & Wiring: To program and operate the complete system.
Ideal For:
-
Automation Engineers & Integrators: Building custom production or testing equipment.
-
Advanced Makers & Prototypers: Creating a high-performance DIY CNC or specialized machine.
-
Research & Development Labs: Needing precise, programmable XYZ motion for experiments.
(Call to Action)
Stop compromising with inadequate motion platforms. Build your next machine on a foundation of precision and speed.
Contact us today with your desired travel dimensions and application for a customized quotation.
