Description

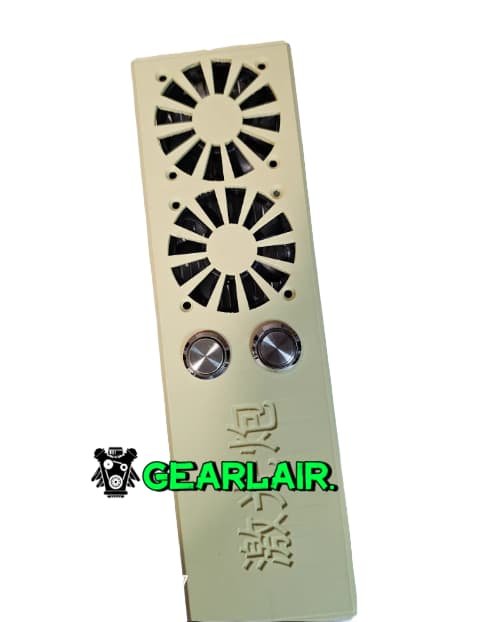

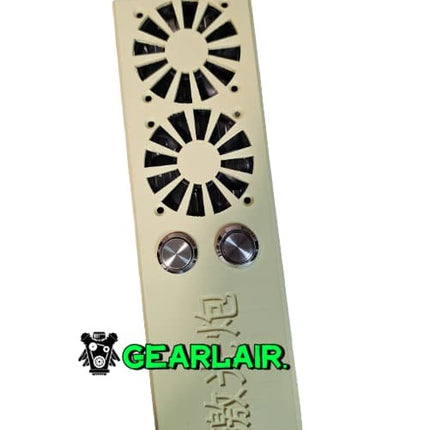

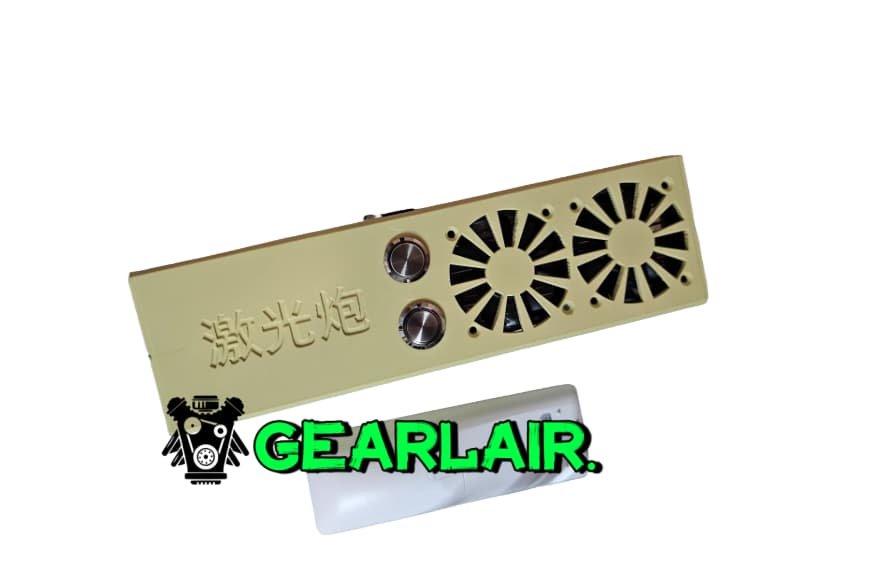

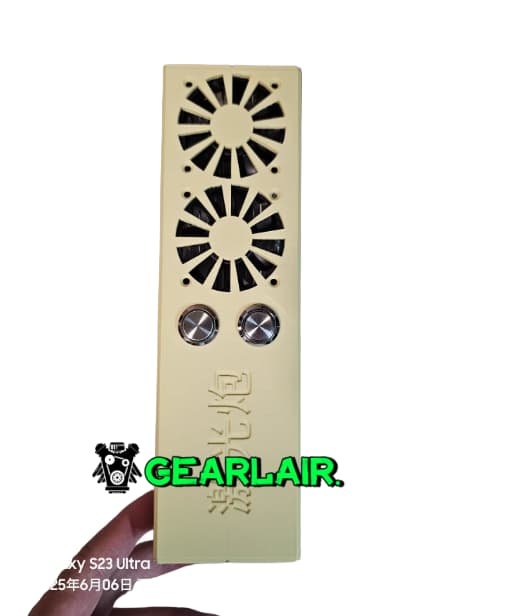

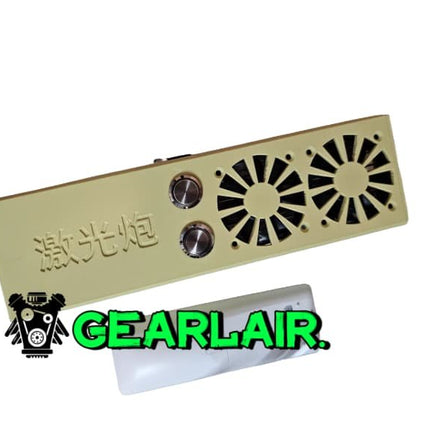

120W Aluminum Alloy Handheld Laser Device
Designed for advanced optical experiments, technology demonstrations, and controlled research applications, this 120W handheld laser device combines a rigid aluminum-alloy housing with a 15× adjustable zoom lens and an integrated thermal-management system.
The compact 52 × 52 × 180 mm design houses four high-capacity Samsung 50S 5000mAh cells, a 20A battery protection board, constant-current drive electronics, heat-pipe cooling, and a digital power display.
Key Features
- 120W high-power laser system
- Aluminum alloy housing
- 15× adjustable zoom optical lens
- 4 × Samsung 50S 5000mAh lithium batteries
- 20A battery protection board
- Constant-current laser drive
- Automatic over-temperature protection
- Built-in heat-pipe cooling system

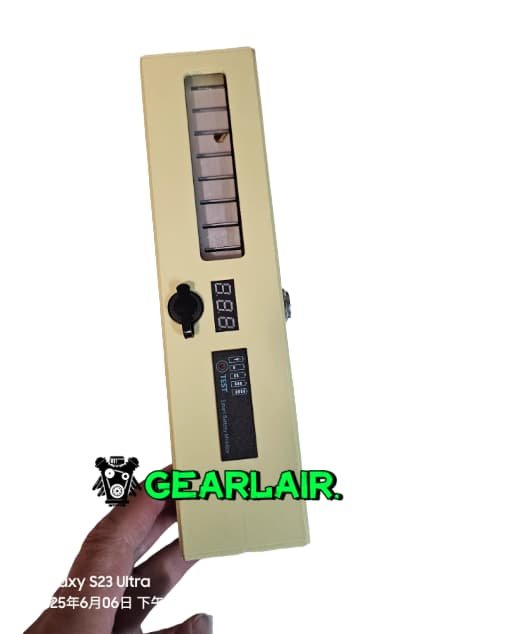

- Digital power/voltage display
- 110mW red coaxial aiming module
- DC charging interface
- Charger included

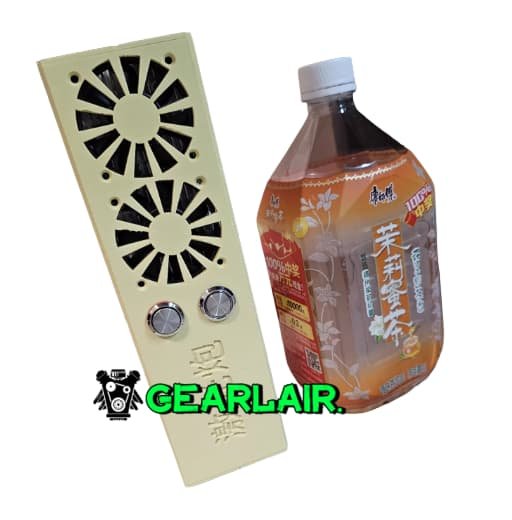

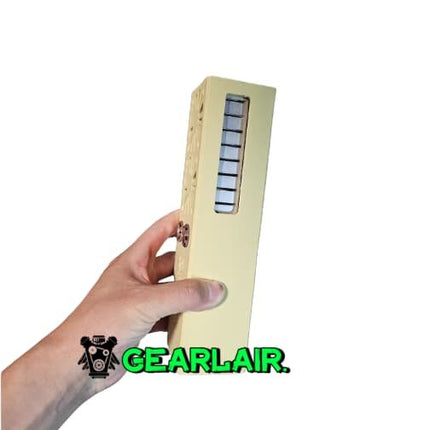

- Compact 52 × 52 × 180 mm body
Advanced Thermal Management

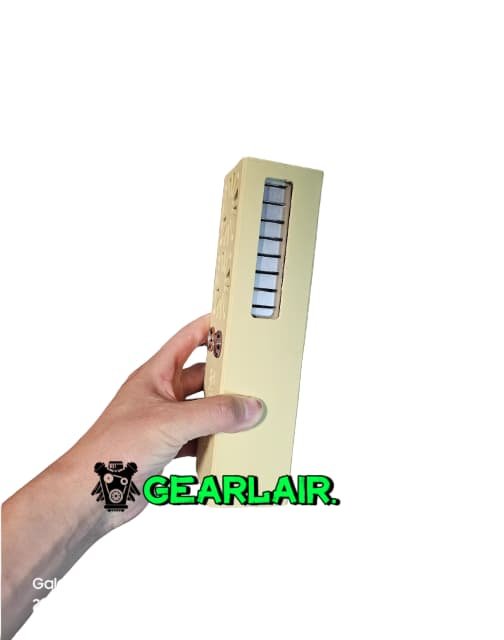

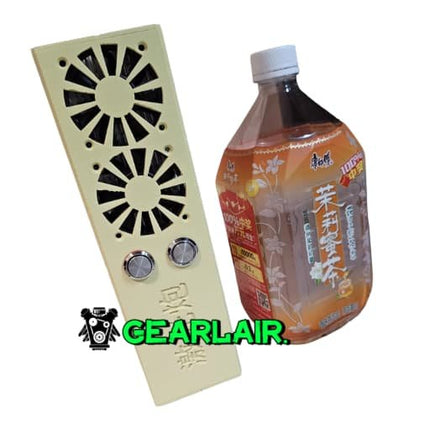

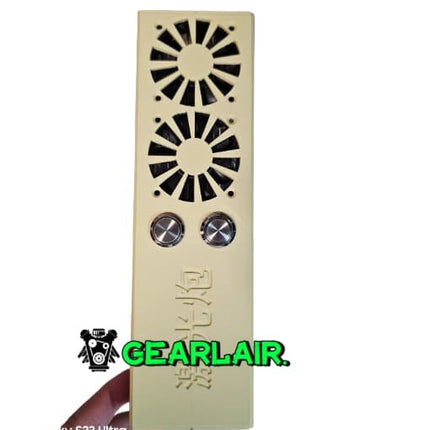

The internal heat-pipe cooling system is designed to transfer heat away from the high-power laser module during operation.
An integrated thermal protection system automatically interrupts laser operation when the internal temperature becomes too high. After the device cools to a suitable temperature, operation can resume.
This protection system is intended to help reduce thermal stress on the laser module and internal electronics.
Battery & Status Indicator
The device uses four Samsung 50S 5000mAh cells together with a 20A battery protection board.

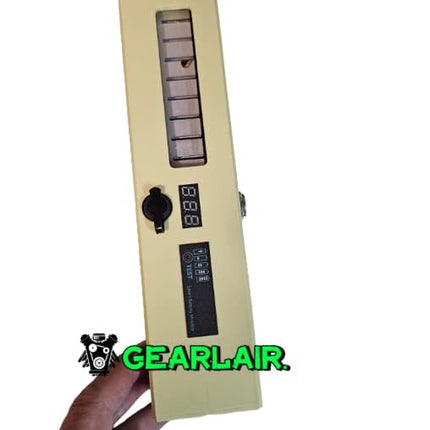

The rear indicator provides a simple battery-status reference:
-
Green: Full charge
-
Yellow: Approximately half charge
-
Red: Low/no charge
-
Yellow indicator during operation: Indicates the system is active
-
No yellow indicator during attempted operation: Thermal protection may have been triggered; allow the device to cool before further use.
A full charge provides approximately 30 minutes of total intermittent runtime, depending on operating conditions.
Recommended Operating Pattern
For thermal management, short operating bursts of approximately 10 seconds are recommended, followed by appropriate cooling intervals.
The device incorporates automatic thermal shutdown and should not be operated continuously for extended periods. If the thermal protection system activates, stop operation and allow the device to cool naturally.
Optical System
The integrated 15× zoom lens provides adjustable optical focusing, while the 110mW red coaxial aiming module provides a visible reference for alignment.
Because the main laser output may be invisible depending on its wavelength, the red aiming beam should not be treated as an indication that the primary laser beam is safe.
Specifications
| Specification |
Details |
| Laser Power |
120W |
| Housing |
Aluminum Alloy |
| Optical Lens |
15× Zoom |
| Battery |
4 × Samsung 50S 5000mAh |
| Battery Protection |
20A BMS |
| Drive System |
Constant-Current Drive |
| Cooling |
Heat-Pipe Thermal Management |
| Thermal Protection |
Automatic Over-Temperature Shutdown |
| Aiming System |
110mW Red Coaxial Aiming |
| Charging |
DC Input |
| Charger |
Included |
| Dimensions |
52 × 52 × 180 mm |
| Approx. Total Runtime |
Up to 30 minutes intermittent use |
Important Safety Information
This is a high-power laser system, not a conventional laser pointer. Improper operation can cause severe eye injury, skin injury, fire, or damage to equipment.
- Never point the laser toward people, animals, vehicles, aircraft, or occupied areas.
- Never look directly into the optical output or reflected beam.
-
Use certified laser safety eyewear appropriate for the actual wavelength and power of the laser module.
- Avoid mirrors, polished metals, glass, and other reflective surfaces.
- Keep combustible materials away from the optical output.
- Do not bypass the thermal protection system.
- Do not modify or disassemble the laser module, battery pack, or protection circuitry.
- Operate only in a controlled environment with appropriate safety measures.
- Keep the device away from children and unauthorized users.
