Description
520nm Green Laser Module – Compact Stainless Steel Design
Product Overview
This compact 520nm green laser module features a stainless steel housing, coated optical components, and a multi-mode control system. Designed for qualified professional users, it combines a small form factor with a high-output green laser source for specialized industrial applications.

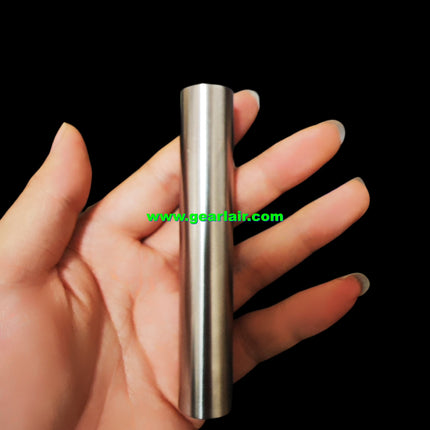

With a body measuring approximately 18 × 100 mm, this module is designed for applications where compact dimensions and controlled optical output are important.
Key Features
1. 520nm Green Laser Output

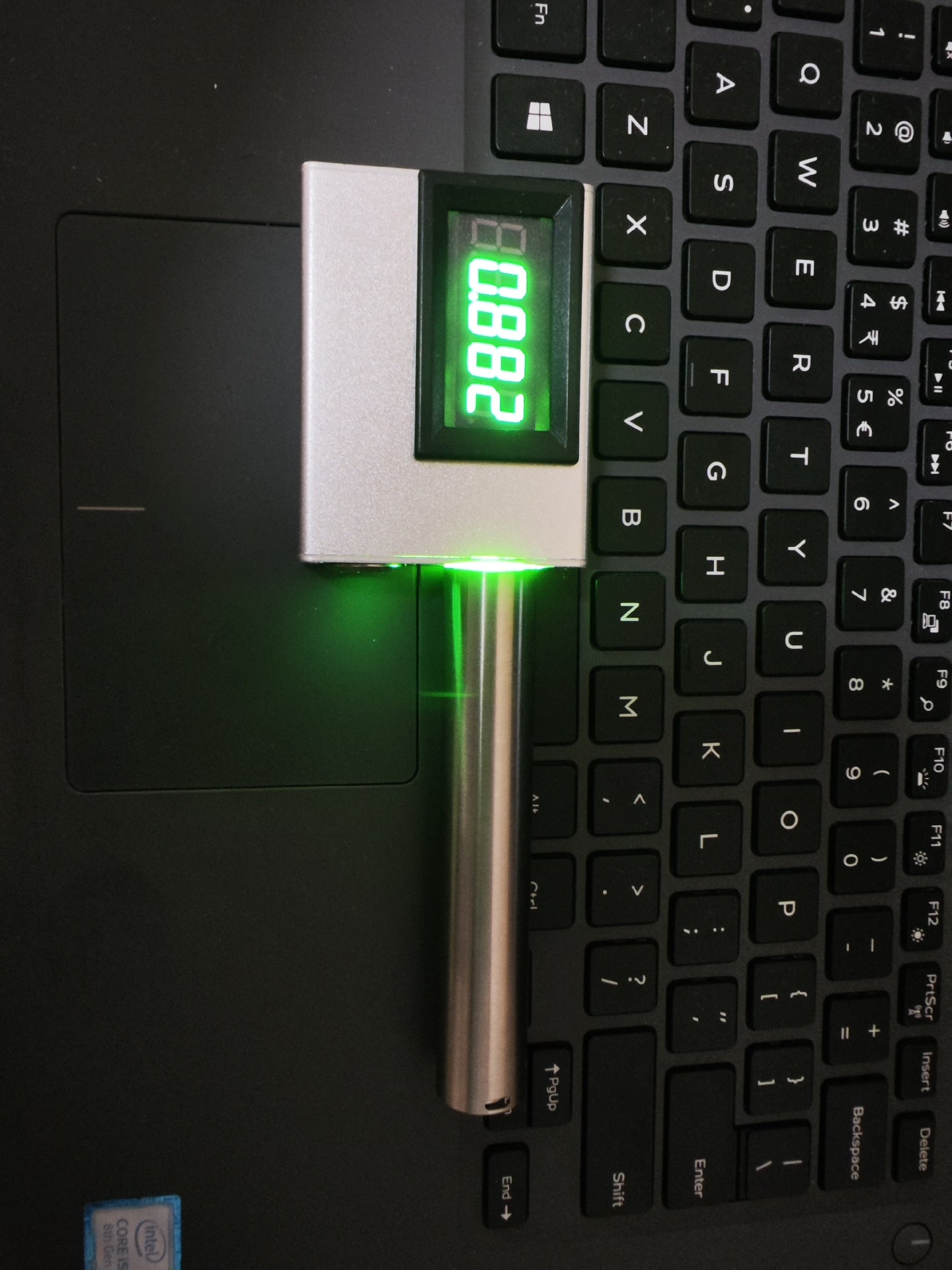

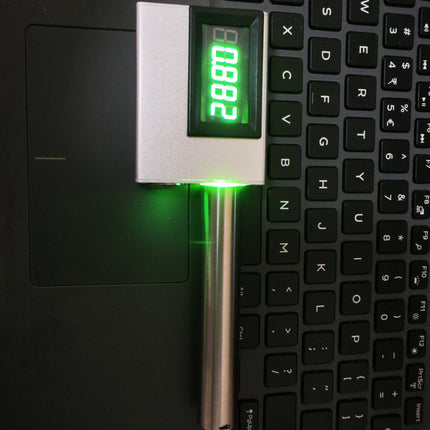

Uses a 520nm green laser diode, with a standard output specification of approximately 800–900mW and a maximum rated output of up to 1W. Actual output depends on the specific configuration and operating conditions.

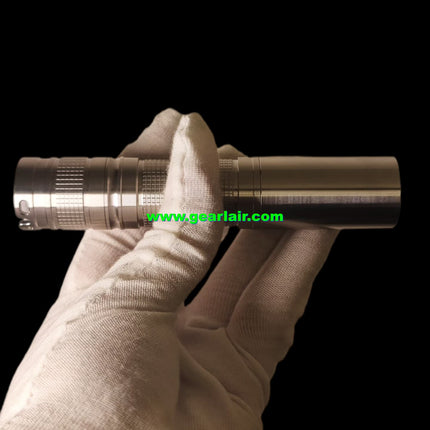

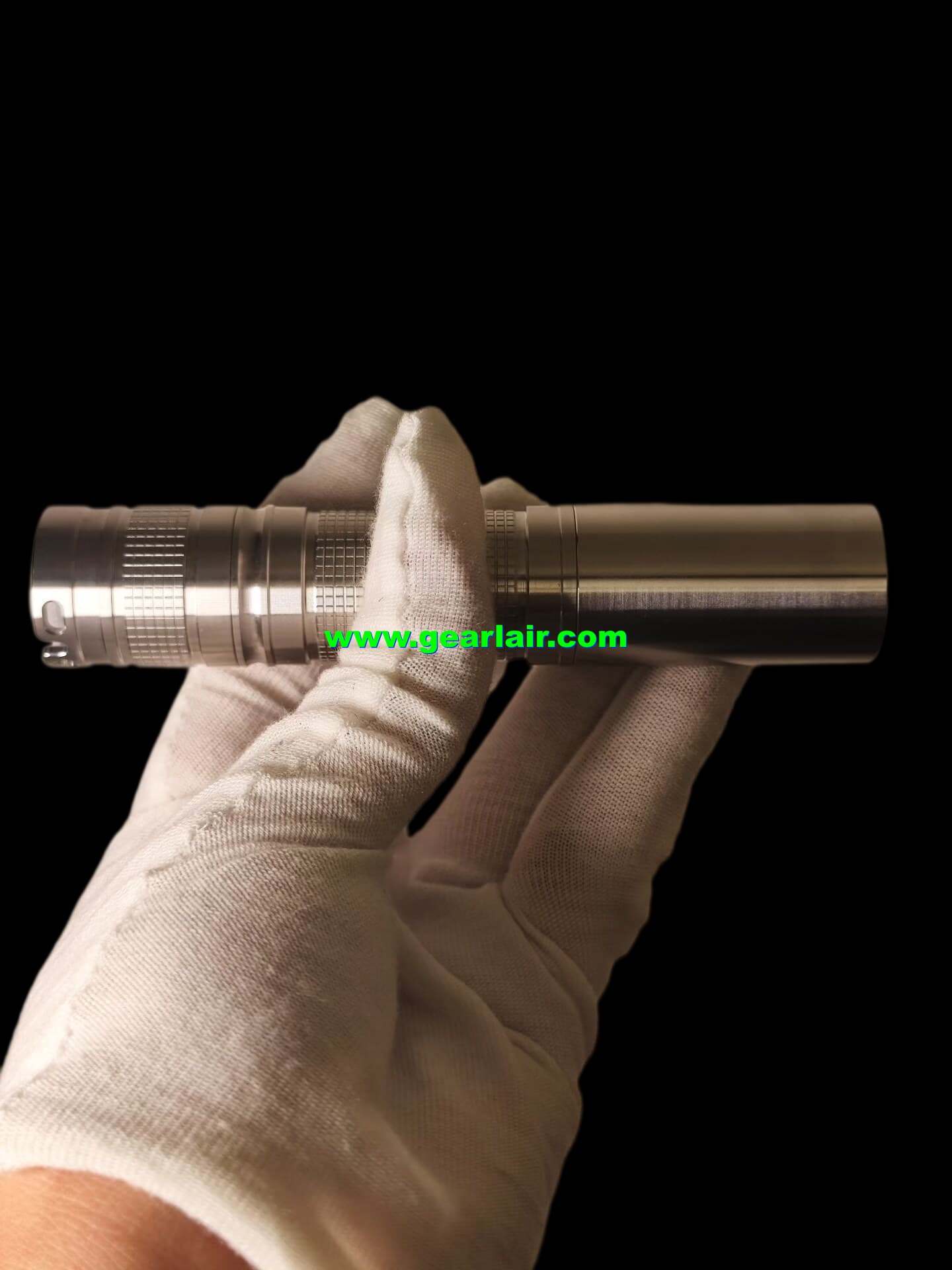

2. Stainless Steel Housing

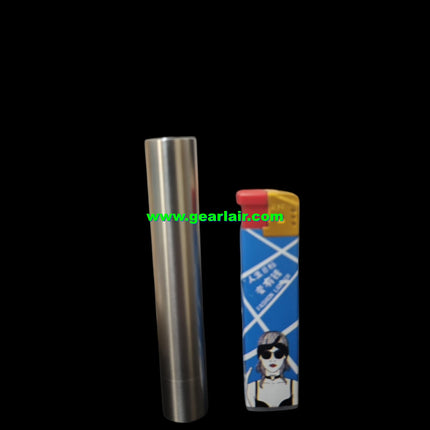

The stainless steel enclosure provides a solid metallic structure and a compact form factor suitable for integration into compatible professional equipment.
3. Five Operating Modes
The five-mode configuration includes:
-
100% output
-
50% output
-
15% output
-
Strobe mode
-
SOS mode
After activation, briefly pressing the switch cycles through the available modes. A single-mode version is also available, providing full output when switched on.

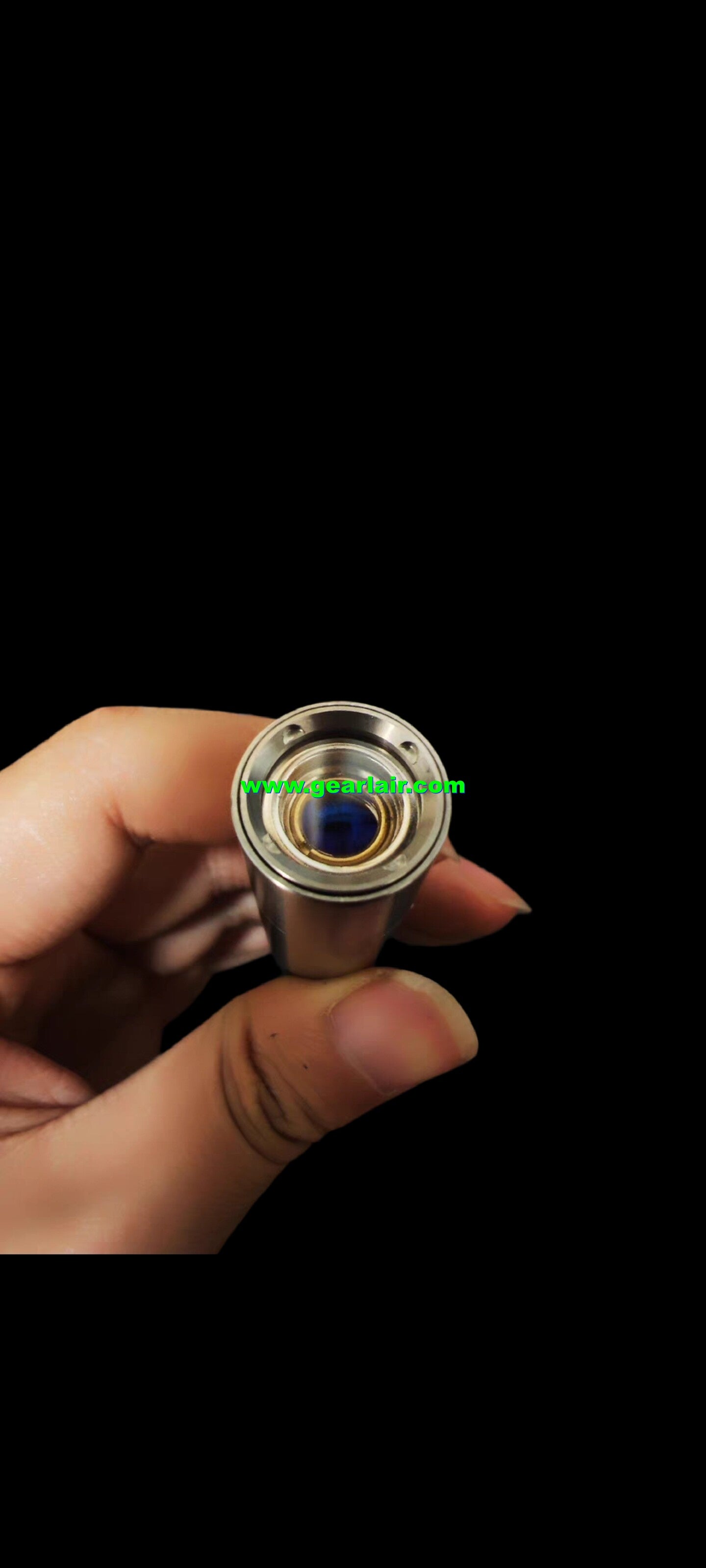

4. Coated Optical Components

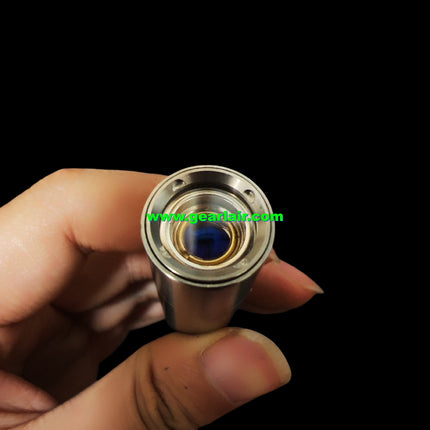

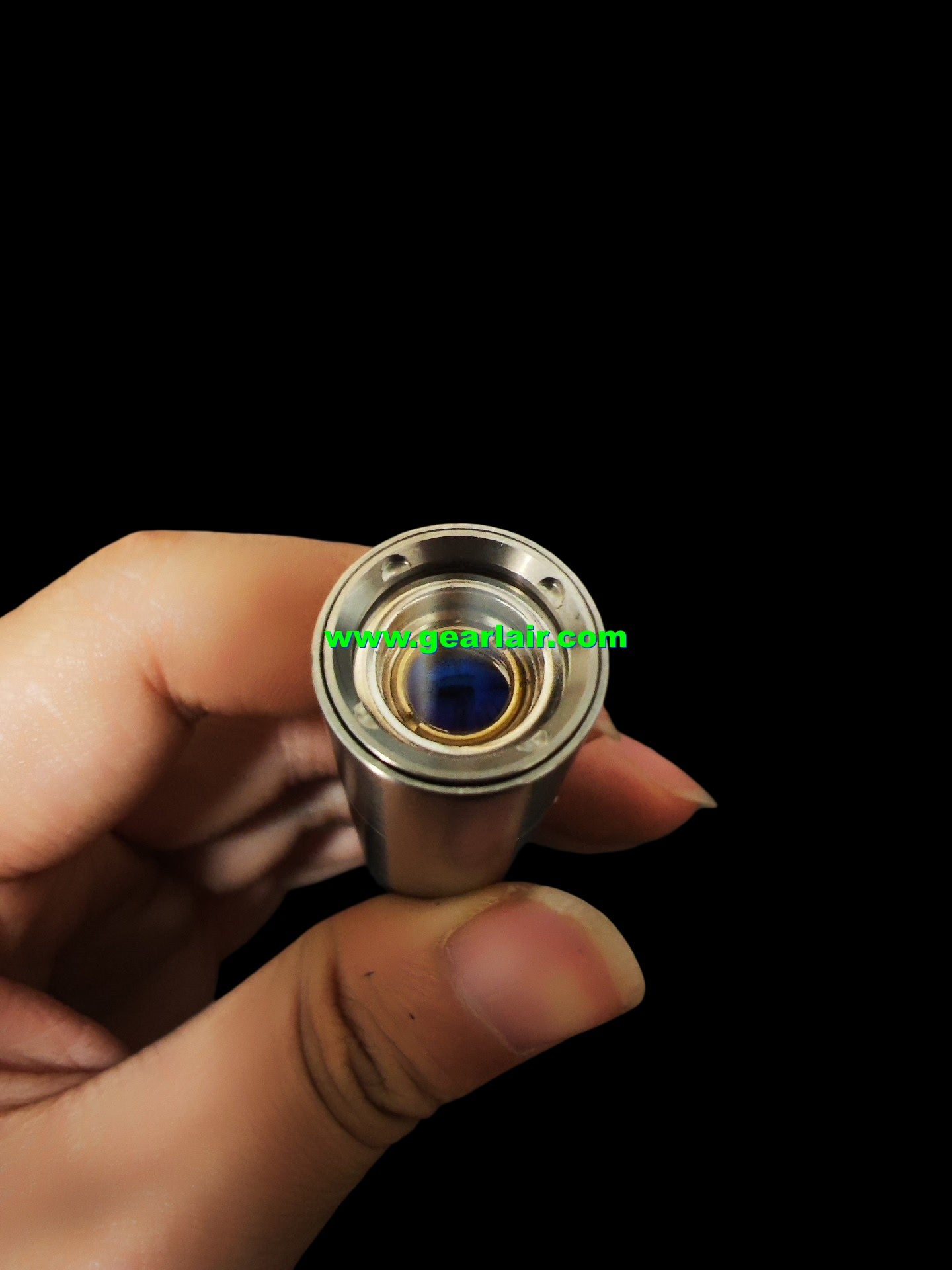

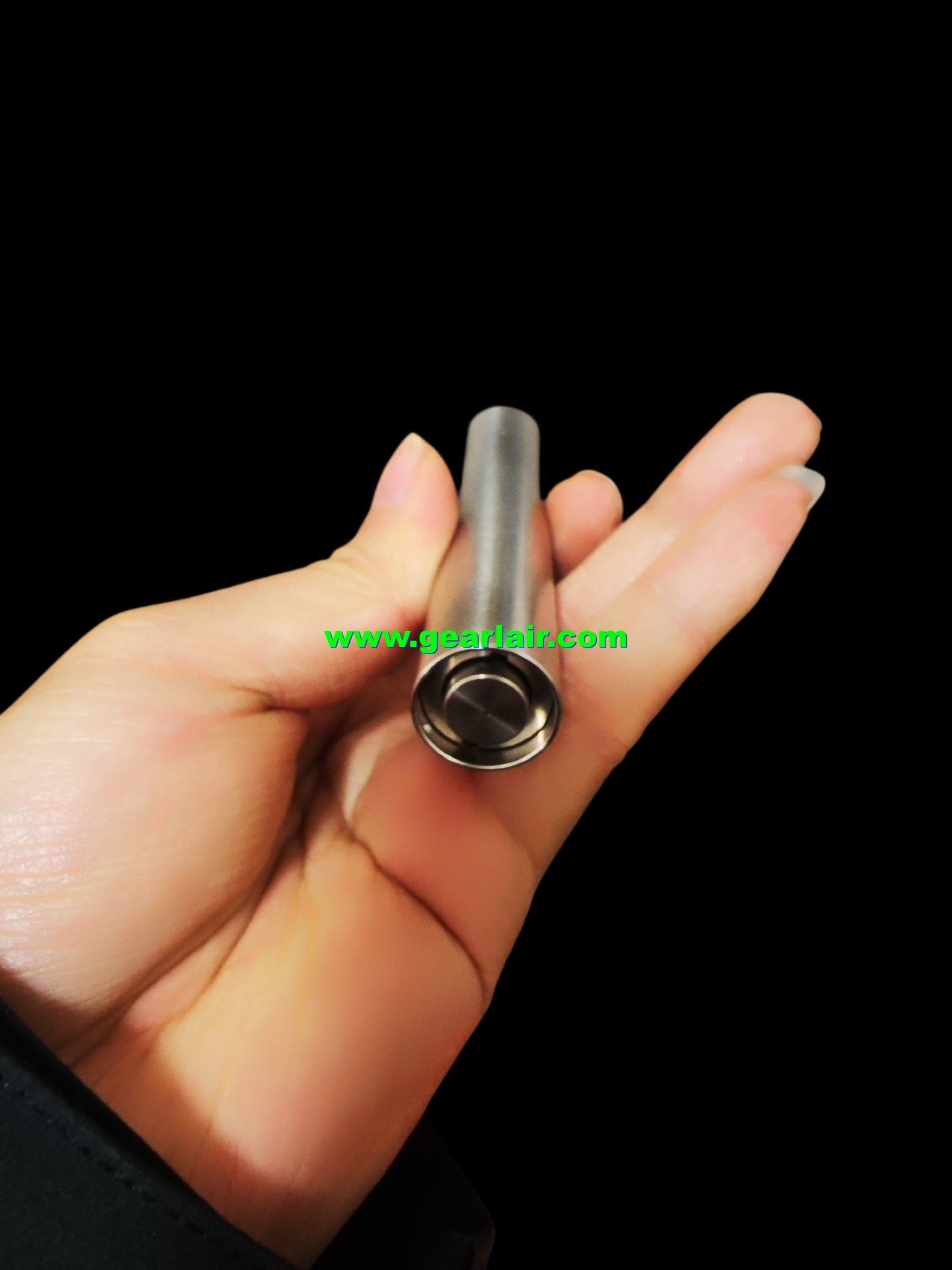

The optical assembly uses an aspheric coated lens designed to reduce unwanted scattering. An AR-coated protective dust window helps protect the optical path.

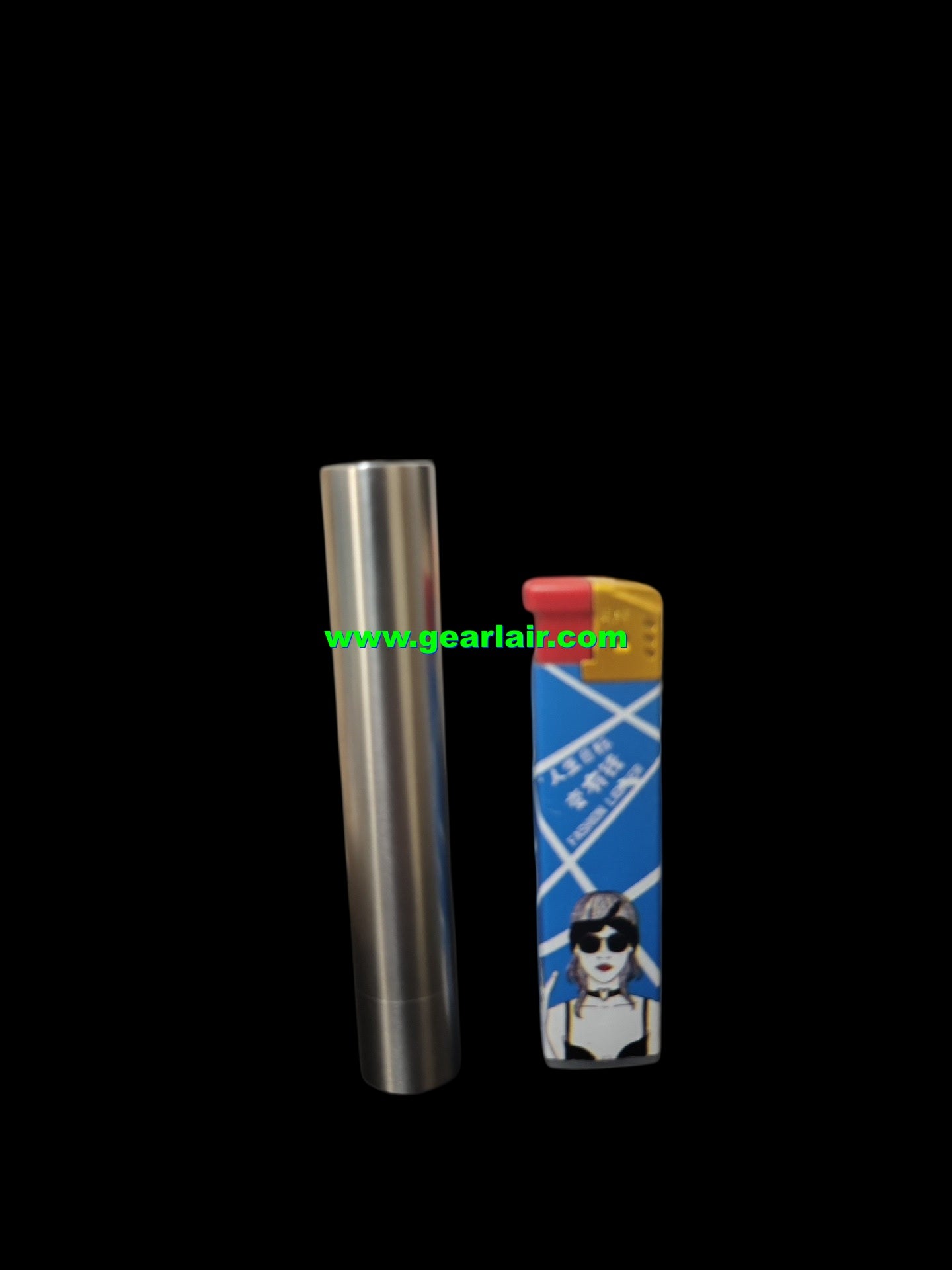

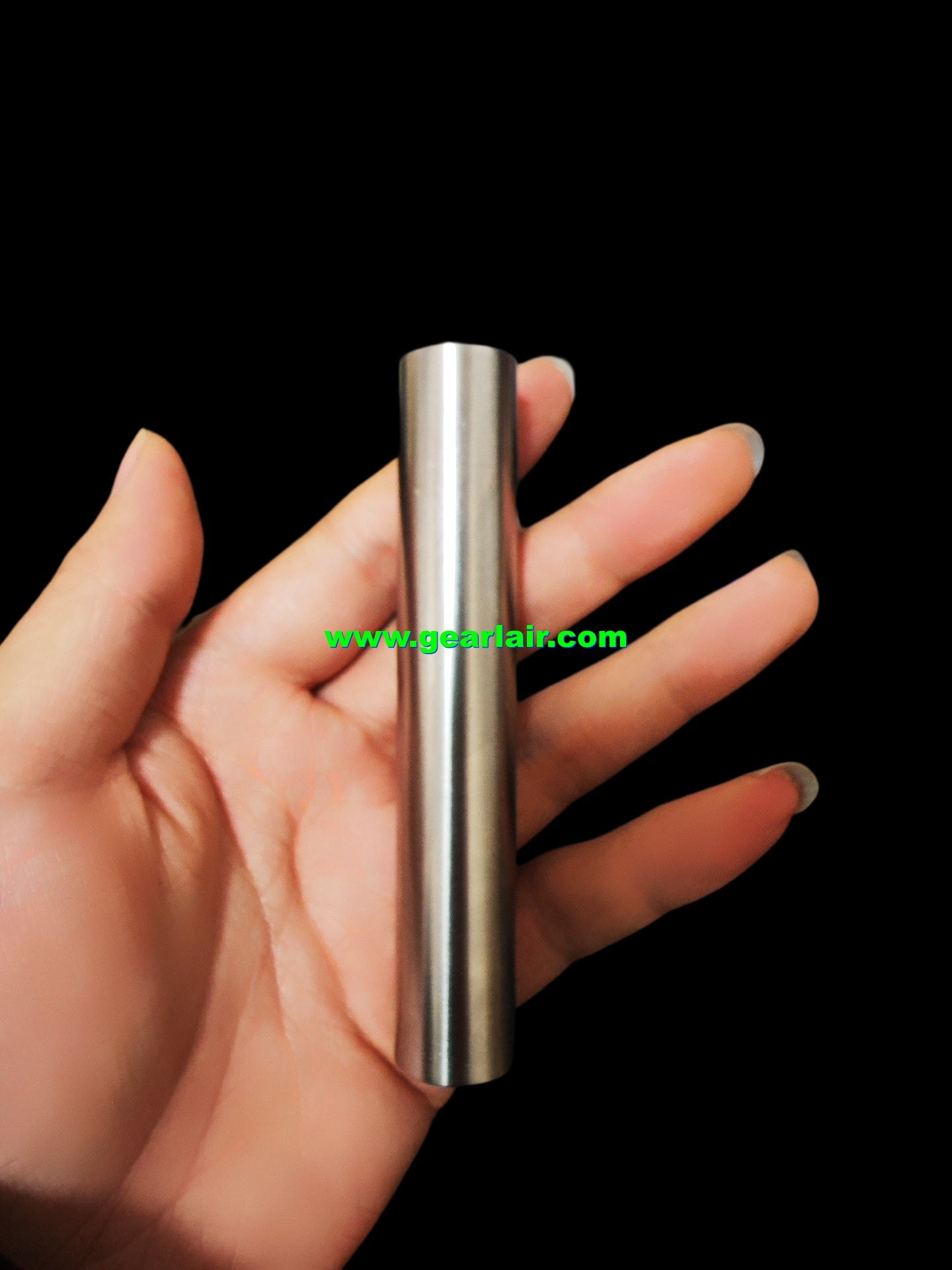

5. Compact Dimensions
-

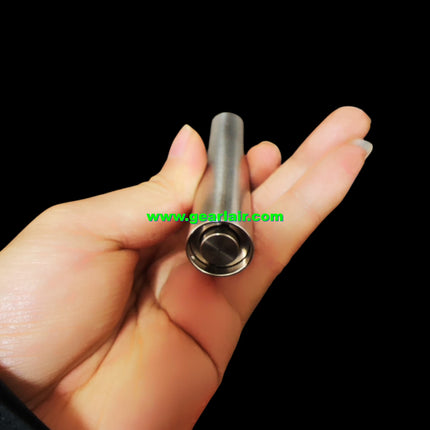

Body diameter: approximately 18mm
-
Body length: approximately 100mm
-
Power source: 14500 high-drain rechargeable battery
-
Approximate electrical power consumption: 10W
-
Focus: Fixed; not adjustable
-
Water resistance: Limited splash resistance only; not suitable for immersion
Intended Professional Applications
Potential applications include:
-
Industrial construction alignment and positioning tasks
-
Optical path alignment and lighting-effect calibration in controlled film-production environments
-
Specialized optical testing and compatible equipment integration
Application suitability must be verified by qualified personnel. The product is not intended for general-purpose lighting, personal defense, or recreational use.
Important Laser Safety Notice
This is a high-output laser device capable of causing serious and potentially permanent eye injury.
-
Never look directly into the laser aperture or expose anyone to the direct or reflected beam.
-
Operation is restricted to trained, qualified personnel following an appropriate laser safety procedure.
-
Use wavelength-appropriate protective eyewear selected for the device's verified output and optical specifications.
-
Do not operate toward roads, public spaces, residential areas, aircraft, vehicles, or occupied areas.
-
Keep the device inaccessible to minors.
-
Do not modify the device or bypass its safety features.
-
Verify applicable laser safety, workplace, and local regulatory requirements before use.
Quality Inspection & After-Sales Service
Each new module is powered on and function-tested before shipment.
For verified component defects reported within one month of receipt, one complimentary inspection and repair service is provided, subject to technical assessment and the applicable warranty terms. After the one-month period, repair service is available with charges limited to replacement parts costs under the stated service policy.
Please contact our support team with your order number and a description of the issue before sending a product for inspection.
Technical Specifications
| Specification |
Details |
| Wavelength |
520nm |
| Standard optical output |
Approximately 800–900mW |
| Maximum rated output |
Up to 1W |
| Housing |
Stainless steel |
| Dimensions |
Approximately 18 × 100mm |
| Battery |
14500 high-drain battery |
| Electrical power consumption |
Approximately 10W |
| Operating modes |
5 modes or single-mode option |
| Focus |
Fixed |
| Optical components |
Coated aspheric lens and AR-coated dust window |
| Water resistance |
Limited splash resistance; no immersion |
Note: Confirm the exact output power, battery compatibility, electrical specifications, laser classification, and applicable safety certifications for the actual production unit before purchase or integration.
