Description

The Raycus A-Series 400W Infrared Laser Module represents the pinnacle of compact, high-power laser technology, specifically engineered for precision camera laser systems and industrial applications requiring exceptional beam quality. With an ultra-small 135μm core diameter achieving maximum power efficiency for its size class, this lightweight series laser delivers 400W of infrared power with remarkable beam characteristics. Designed for integration into automated vision systems, laser marking equipment, and specialized industrial processing tools, this module combines high power density with precise beam control in a compact form factor.

Key Features

  • High Power Density: 400W infrared output from ultra-compact 135μm fiber core

  • Exceptional Beam Quality: M² < 1.1 for precision applications requiring tight focus

  • Compact Design: Lightweight series optimized for integration into space-constrained systems

  • Camera-Compatible: Specifically designed for synchronization with imaging systems

  • Efficient Cooling: Advanced thermal management for stable long-term operation

  • Rapid Modulation: High-speed control suitable for dynamic processing applications

  • Industrial Reliability: Built for continuous operation in manufacturing environments

  • Easy Integration: Standard optical and electrical interfaces

Technical Specifications

Category Specification Details
Optical Performance Output Power 400W Continuous Wave (CW)
Wavelength 1064nm ± 3nm (Infrared)
Beam Quality (M²) < 1.1
Fiber Core Diameter 135μm (Ultra-small core option)
Alternative Core Size 155μm available
Numerical Aperture (NA) 0.08 (Low NA for excellent focusability)
Spectral Width < 5nm FWHM
Polarization Random (Unpolarized)
Power Stability < ±2% over 8 hours
Pointing Stability < 10 μrad/°C
Electrical Specifications Input Voltage 48V DC (Standard)
Operating Current 10A (Maximum)
Power Consumption < 1.2 kW at full power
Control Interface Analog (0-10V), PWM (0-100kHz), TTL
Modulation Bandwidth DC to 50 kHz
Response Time < 10 μs rise/fall time (10-90%)
Mechanical Specifications Module Dimensions 250mm × 150mm × 80mm (L × W × H)
Weight 3.5 kg (Lightweight design)
Fiber Connector QBH or SMA905 (Optional)
Fiber Length Standard 3m (Custom lengths available)
Cooling Requirement Air-cooled (Integrated fan) or Water-cooled option
Operating Temperature 10°C to 40°C
Storage Temperature -20°C to 60°C
Humidity Range 10% to 85% non-condensing
Performance Characteristics Focus Spot Size < 30μm (with appropriate focusing optics)
Depth of Field Adjustable based on optical configuration
Maximum Processing Speed Up to 10 m/s (Material dependent)
Warm-up Time < 2 minutes to stabilized operation
Lifetime > 30,000 hours MTBF
Duty Cycle 100% continuous operation

SKU Details

Power & Core Diameter Configuration

SKU Code Power Output Core Diameter Beam Quality Primary Application
SKU-RC-400W-135 400W 135μm M² < 1.1 High-precision marking, camera systems
SKU-RC-400W-155 400W 155μm M² < 1.2 General precision processing
SKU-RC-300W-135 300W 135μm M² < 1.05 Ultra-high precision applications
SKU-RC-500W-155 500W 155μm M² < 1.3 Higher power precision work

Connector & Interface Options

SKU Code Connector Type Fiber Length Interface Features
SKU-CON-QBH QBH Quick Disconnect 3m Industrial quick-change, high reliability
SKU-CON-SMA SMA905 Threaded 3m Standard laboratory connection
SKU-CON-D80 High-Power D80 5m For high-power industrial systems
SKU-CON-CUSTOM Custom Configuration Specify Tailored to specific integration needs

System Packages

SKU Code Package Type Included Components Best For
SKU-PKG-BASIC Basic Module Laser head, power supply, 3m fiber Simple integration projects
SKU-PKG-PRO Professional Basic + cooling system, controller, software Full system implementation
SKU-PKG-VISION Camera Integrated Pro package + camera interface, sync module Vision-guided laser systems
SKU-PKG-INDUSTRIAL Industrial All above + safety enclosure, monitoring Factory automation integration

Accessory Packages

SKU Code Accessory Type Contents Purpose
SKU-ACC-FOCUS Focusing Optics Various lenses, mounts, alignment tools Beam focusing optimization
SKU-ACC-COOL Enhanced Cooling High-performance cooler, tubing, controller Extended duty cycle operation
SKU-ACC-CONTROL Advanced Control Software, interface cards, programming tools Process automation
SKU-ACC-MONITOR Monitoring System Power meter, beam profiler, temperature sensors Quality assurance
SKU-ACC-SAFETY Safety Package Enclosure, interlocks, warning systems, PPE Compliance and protection

Applications

Precision Marking & Engraving

  • Serial numbers, barcodes, and QR codes on metals and plastics

  • Medical device marking (UDI compliance)

  • Automotive part identification and traceability

  • Electronics component marking

Camera & Vision Systems Integration

  • Vision-guided laser processing

  • Real-time pattern alignment and correction

  • Automated defect marking and removal

  • Synchronized laser imaging systems

Micro-Processing

  • Stent cutting and medical device manufacturing

  • Precision cutting of thin materials

  • Micro-welding of electronic components

  • Fine feature engraving on jewelry and precision parts

Research & Development

  • Material interaction studies

  • Photonics research

  • Prototype development

  • Scientific instrumentation

Industrial Automation

  • Integrated into robotic workcells

  • In-line manufacturing processes

  • Quality control systems

  • Automated assembly lines

Integration & Compatibility

Optical Integration

  • Compatible with F-theta lenses and galvanometer scanners

  • Works with standard beam delivery optics

  • Easy coupling to beam expanders and collimators

  • Suitable for integration with multi-axis motion systems

Electrical Integration

  • Standard industrial control interfaces

  • Compatible with PLCs and industrial computers

  • Easy connection to safety interlock systems

  • Network connectivity options (Ethernet, Fieldbus)

Software Compatibility

  • Works with standard laser control software

  • Compatible with CAD/CAM systems

  • API available for custom integration

  • Vision system synchronization capabilities

Performance Advantages

Feature Benefit Application Impact
135μm Core Diameter Maximum power density for size Enables smaller spot size, higher precision
M² < 1.1 Beam Quality Near-perfect beam characteristics Superior focusability, cleaner processing edges
Lightweight Design Easy integration into moving systems Suitable for robotic arm mounting
Rapid Modulation High-speed on/off control Enables precise energy deposition control
Camera Synchronization Perfect timing with imaging systems Accurate vision-guided processing

Installation Requirements

Space Requirements

  • Minimum 300mm × 200mm × 100mm installation space

  • Adequate ventilation for heat dissipation

  • Access for fiber routing and connection

  • Service clearance for maintenance

Power Requirements

  • Stable 48V DC power supply (included in packages)

  • Clean electrical ground

  • Surge protection recommended

  • Proper circuit protection

Environmental Conditions

  • Clean environment free from excessive dust

  • Stable temperature (10-40°C recommended)

  • Low vibration installation location

  • Proper fume extraction if processing materials

Safety Requirements

  • Class 4 laser safety precautions

  • Appropriate enclosure or guarding

  • Interlocked safety systems

  • Operator training and protective equipment

Quality Assurance & Testing

Factory Testing Protocol

  • Full power output verification at multiple power levels

  • Beam profile analysis and M² measurement

  • Spectral characteristics verification

  • Modulation performance testing

  • Thermal stability validation

  • Long-term reliability testing

Documentation Provided

  • Complete test report with actual performance data

  • Calibration certificates

  • Compliance documentation

  • Safety certification information

  • Integration guidelines

Warranty & Support

  • Standard 18-month warranty

  • Extended warranty options available

  • Technical support hotline

  • Application engineering assistance

  • On-site service options

Ordering Information

Standard Delivery Package Includes:

  1. Raycus A-Series 400W Laser Module

  2. Power Supply Unit with Cables

  3. Fiber Optic Delivery Cable (Specified Length and Connector)

  4. Basic Control Interface Cables

  5. User Manual and Technical Documentation

  6. Test Reports and Certificates

  7. Mounting Hardware Set

  8. Basic Maintenance Tools

  9. Protective Cover for Storage

Customization Options Available:

  • Special fiber lengths and connectors

  • Custom control interfaces

  • Modified mechanical dimensions

  • Special cooling configurations

  • OEM branding and labeling

  • Application-specific tuning

Lead Time:

  • Standard configurations: 5-7 business days

  • Custom configurations: 10-15 business days

  • Express shipping available

For technical consultation, application engineering support, or custom configuration inquiries, please contact our laser solutions engineering team. We provide comprehensive support from system selection through integration, optimization, and ongoing maintenance.

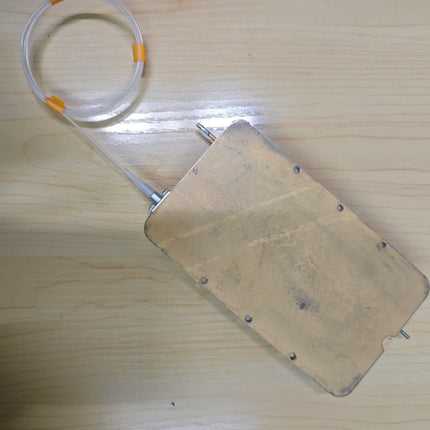

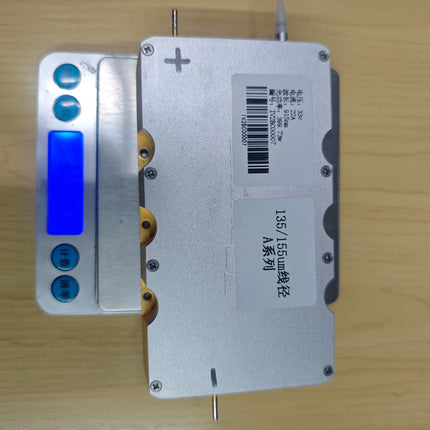

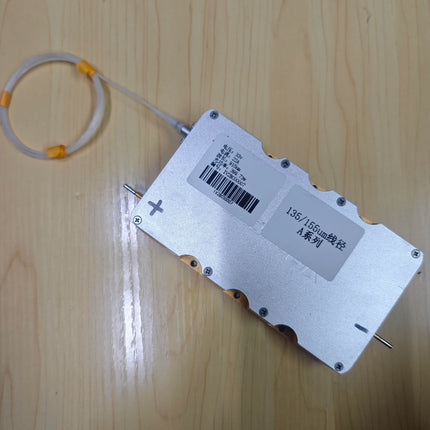

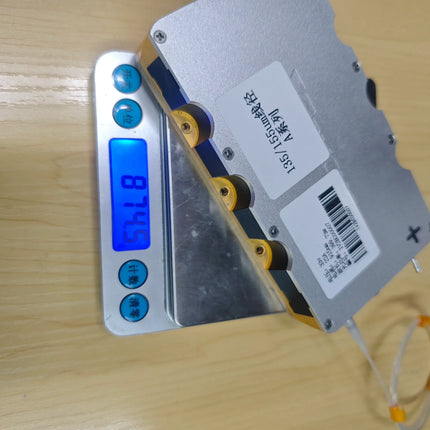

Raycus A-Series 400W Infrared Laser Module – Ultra-Small 135μm Core Diameter with Superior Beam Quality for Camera Laser Systems

Product form

$157.00

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 06, 2026 23:59:00 -0500
    • Free shipping on all orders above 500
    • No hassle returns, 30 days return
