Description

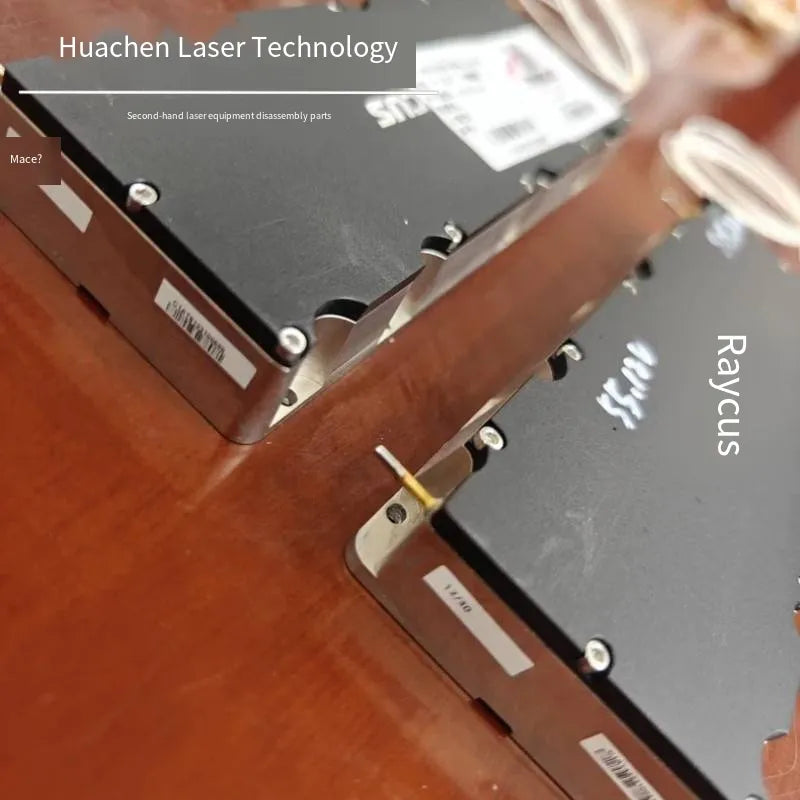

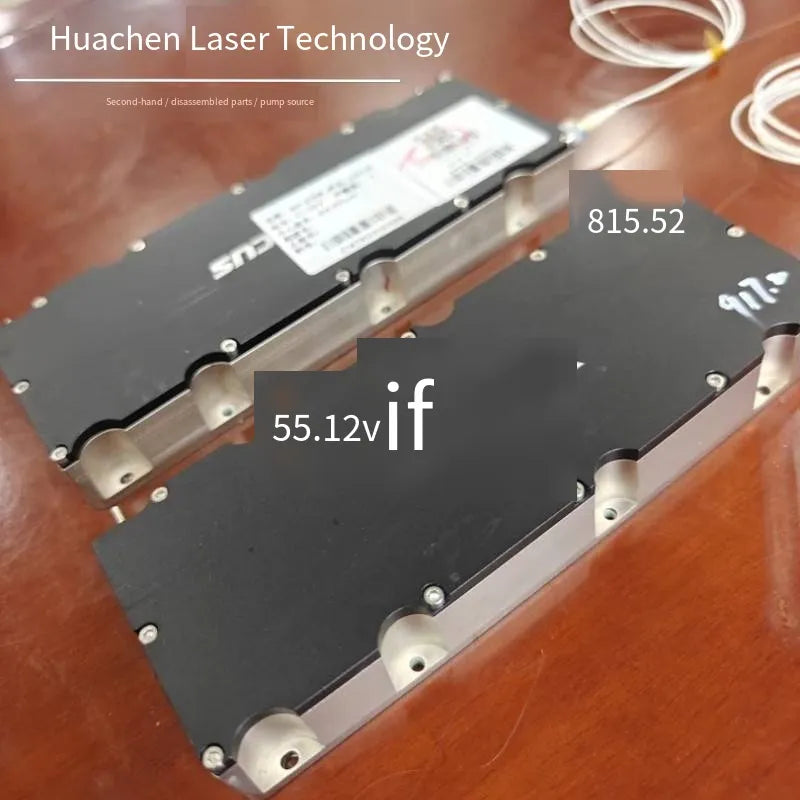

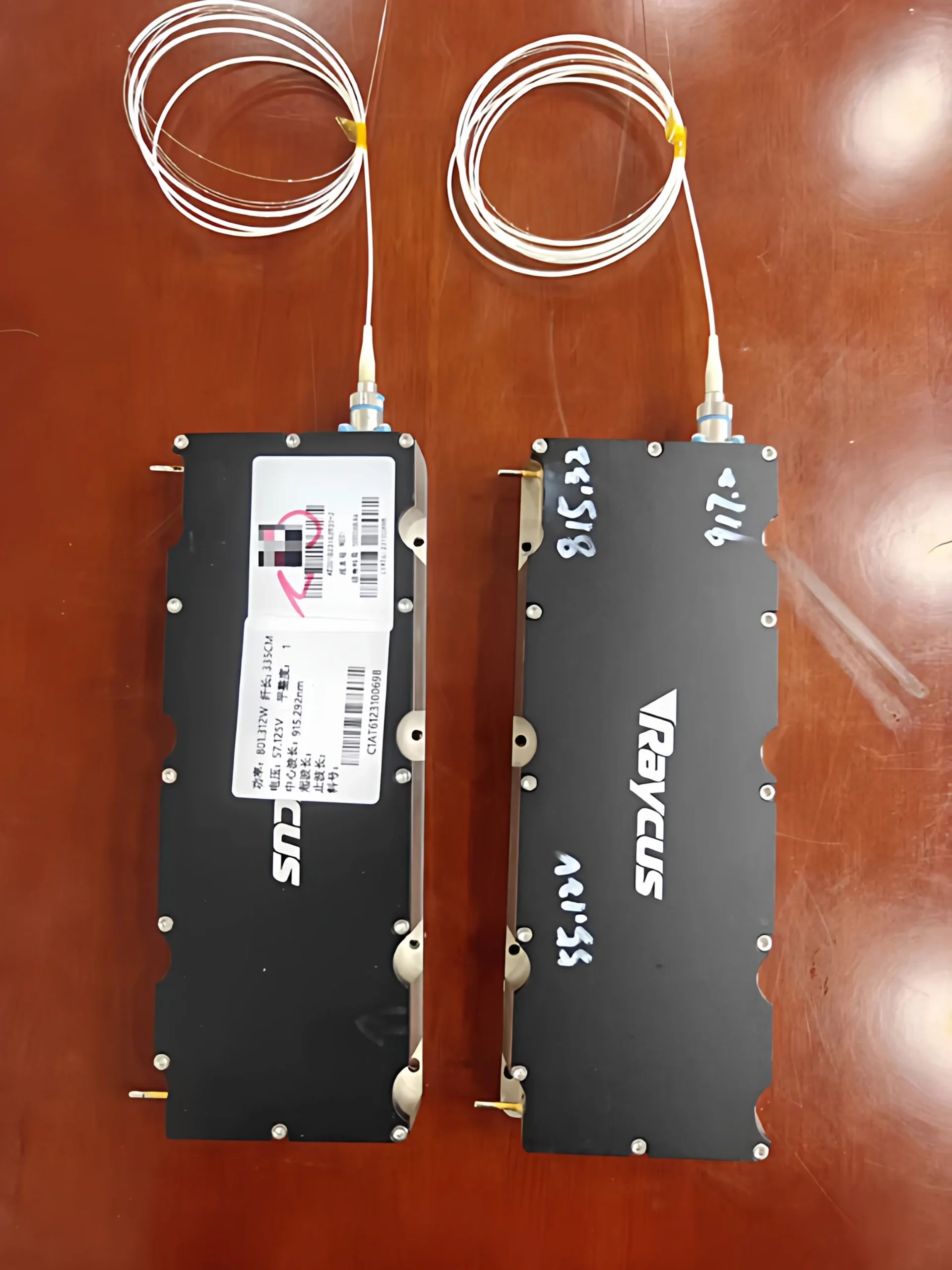

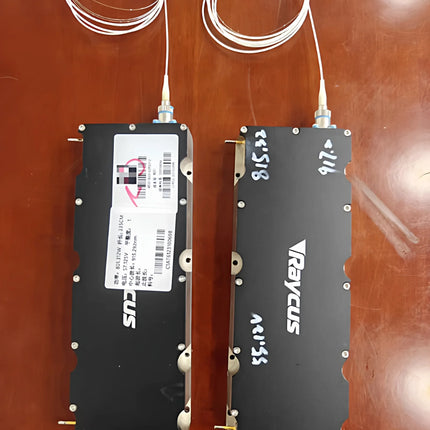

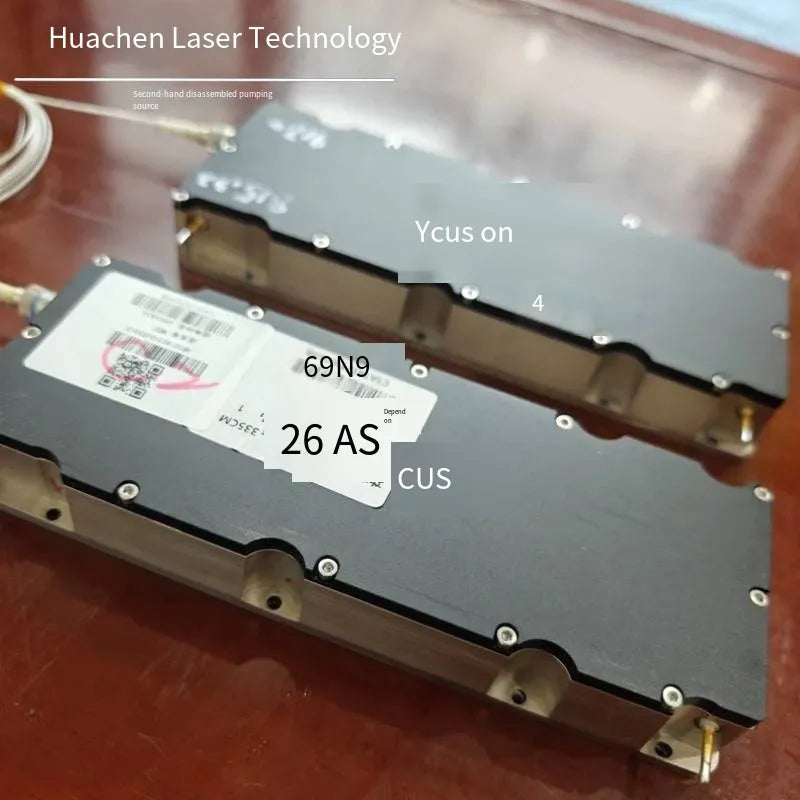

The Raycus 800W Fiber-Coupled Laser Pump Module is a high-power, reliable diode laser source designed for demanding industrial and research applications. Operating at a 915nm wavelength, this module delivers a stable 800W optical output through a standard fiber, making it an ideal pump source for fiber lasers, direct material processing, and high-power system integration. Engineered for durability and performance, it is suitable for continuous operation in rigorous environments.
Product Specifications
Core Performance Parameters
-
Brand / OEM: Raycus / Unbranded OEM Version
-
Model Identification: #000016-0015
-

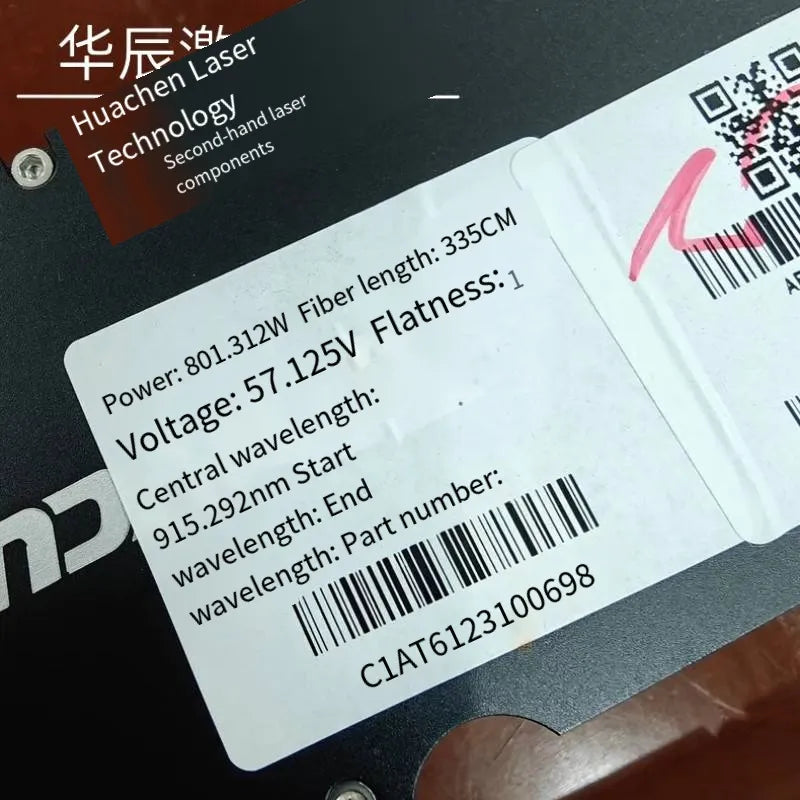

Optical Output Power: 800 W (Continuous Wave, nominal)
-
Wavelength: 915 nm
-
Output: Fiber-Coupled (Fiber included)
-
Operation Mode: Continuous Wave (CW)
Physical & Interface Specifications
-
Fiber Specification: Standard high-power delivery fiber (core/cladding dimensions to be confirmed; e.g., 400μm/440μm, NA 0.22)
-
Cooling Method: Integrated active cooling required (typically water-cooled heat sink)
-
Electrical Interface: High-current input for laser diode driver (external driver required)
-
Control Interface: Analog modulation and TTL enable/disable standard
General Information
Product Features & Benefits
1. High-Power 915nm Output
-
Provides a stable 800W output at 915nm, an optimal wavelength for pumping Yb-doped fiber lasers and for direct industrial processing of materials.
-
High electro-optical efficiency ensures effective power delivery and thermal management.
2. Integrated Fiber Delivery
-
Comes with a robust, factory-coupled output fiber, simplifying system integration and ensuring optimized beam delivery.
-
Enables flexible installation at a distance from the pump module itself.
3. Industrial-Grade Reliability
-
Built for continuous, high-duty-cycle operation in industrial settings such as laser cutting, welding, cladding, and additive manufacturing.
-
Designed with robust thermal management to support long-term stable performance.
4. System Integration Ready
-
Sold as a complete pump module, reducing engineering time for OEMs and system integrators.
-
Compatible with standard high-current laser drivers and industrial chiller systems.
SKU Details
Intended Applications
-
High-Power Fiber Laser Pumping: Primary pump source for multi-kilowatt Yb-doped fiber lasers.
-
Direct Industrial Processing: Used for laser heat treatment, cladding, welding, and cutting of metals and alloys.
-
Additive Manufacturing (3D Metal Printing): As a high-power energy source in laser powder bed fusion or directed energy deposition systems.
-
Research & Development: For high-power photonics experiments, material testing, and prototype system development.
-
Defense & Aerospace: For manufacturing and processing of high-strength, specialized components.
Important Usage & Integration Notes
Technical & Safety Requirements
-
External Driver & Cooling Required: This module requires a compatible, high-current laser diode driver and a closed-loop water cooling system with appropriate flow and temperature control.
-
Class 4 Laser Product: This is an extremely high-power laser source capable of causing severe burns, permanent eye damage, and fire. It must be integrated into a fully interlocked, enclosed safety system compliant with IEC 60825-1 and other relevant laser safety standards.
-
Professional Integration Only: Intended exclusively for qualified engineers, OEMs, and system integrators with expertise in high-power laser systems, thermal management, and laser safety.
Pre-Purchase Consultation
-
This is a high-precision custom component. All application requirements, including desired fiber parameters (length, connector type), cooling specifics, and control interfaces, must be discussed in detail prior to order confirmation.
-
Due to the custom and high-power nature, this product does not support returns, refunds, or general technical support for system design.
Disclaimer
-
The buyer assumes full responsibility for the safe, legal, and effective integration and operation of this module.
-
Specifications are typical values under standard test conditions. Performance in final applications depends on system integration quality, cooling efficiency, and drive stability.
-
The seller/manufacturer is not liable for improper installation, misuse, or any damages arising from the use of this product.
Package Includes
-
1 × Raycus 800W, 915nm Fiber-Coupled Laser Pump Module (with output fiber)
-
Basic mechanical and interface documentation
-
Protective end caps for fiber connectors
