Description

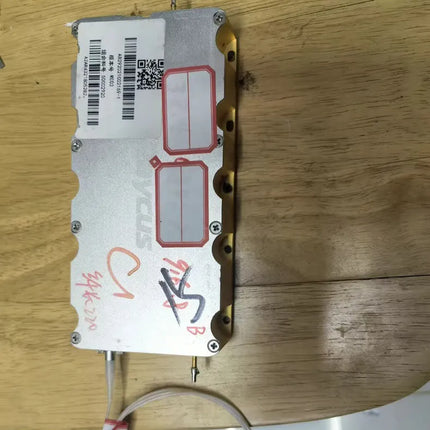

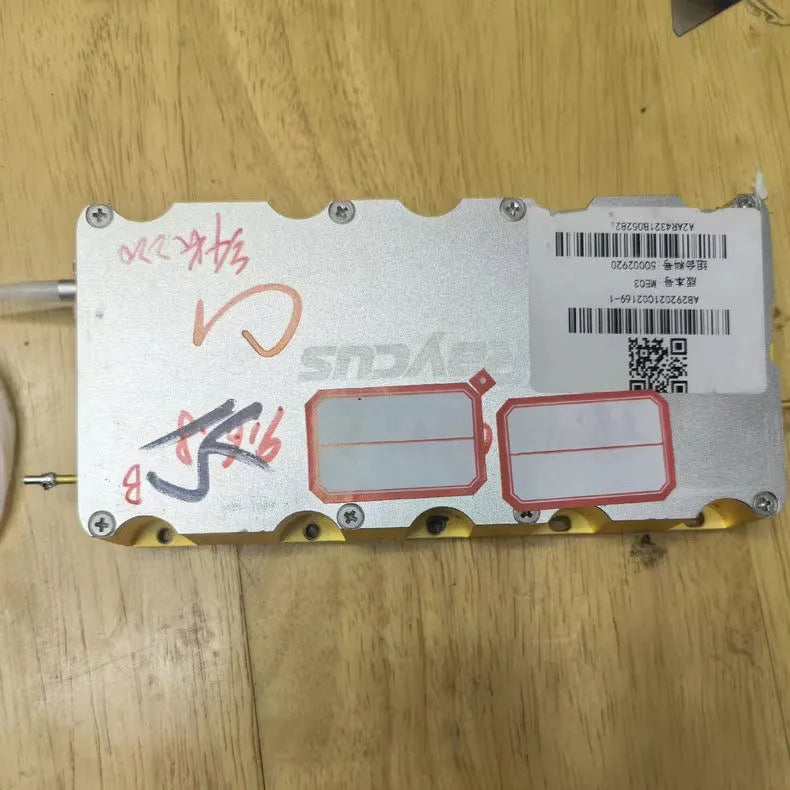

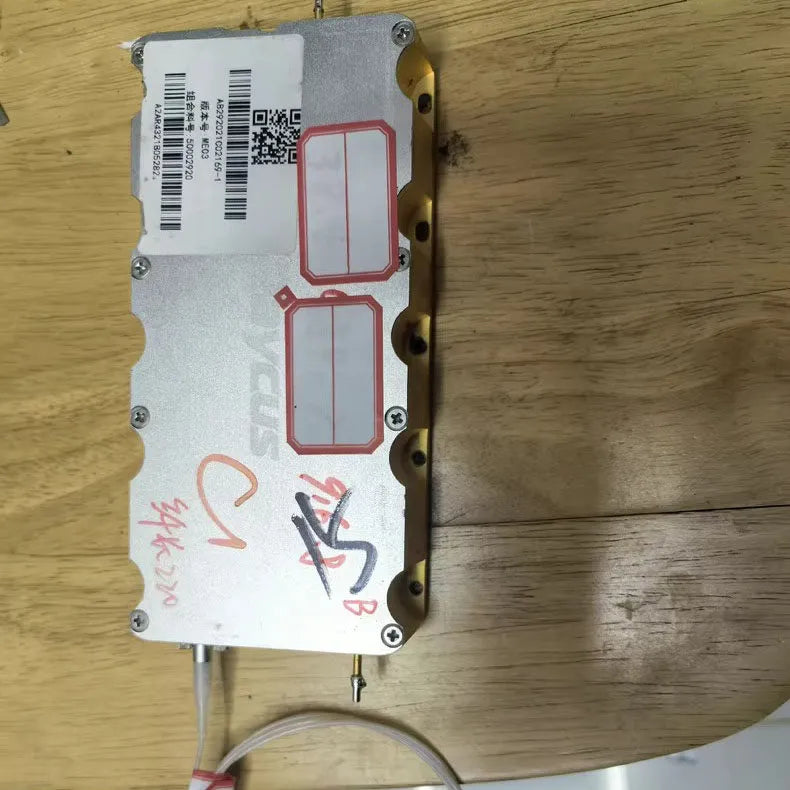

The Raycus 500W 915nm Laser Pump Source Module is a high-power, industrial-grade laser diode array designed for integration into fiber laser cutting, welding, and cleaning systems. It delivers a stable 500W infrared output at 915nm, optimized for pumping high-power ytterbium-doped fiber lasers. This custom refurbished unit features a 200μm core fiber output and is intended for use by trained professionals in controlled industrial or lab environments.
Core Features
-
High-Power Pumping: 500W output at 915nm, the industry standard wavelength for pumping high-power ytterbium-doped fiber lasers used in cutting and welding applications.
-

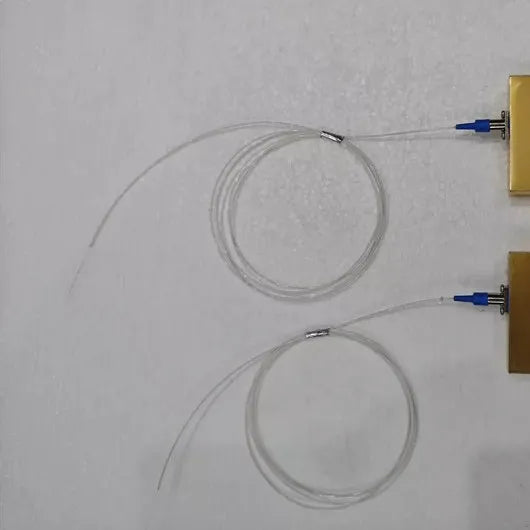

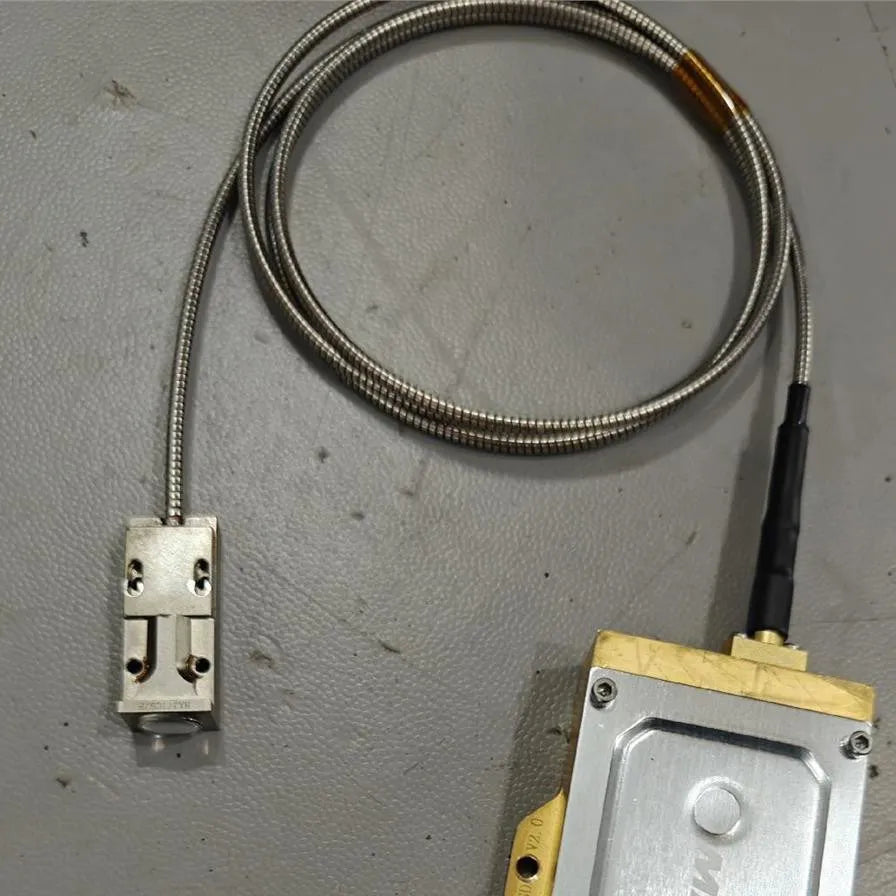

Fiber-Coupled Delivery: Integrated 200μm core multimode fiber ensures precise, low-loss energy transfer to your target laser cavity.
-
Industrial-Grade Reliability: Built by Raycus, a global leader in fiber laser technology, for consistent performance and long lifespan.
-
Compact Design: The module’s slim form factor (150×70×20mm) simplifies installation into custom laser systems.
-
Custom Refurbished Quality: Each unit undergoes rigorous testing to ensure stable output and optimal thermal performance.
Technical Specifications
| Parameter |
Details |
| Product Name |
Raycus 500W 915nm Laser Pump Source Module – Cutting & Welding Laser Systems |
| Wavelength |
915nm ±1nm (infrared) |
| Power Output |
500W (nominal) |
| Fiber Core Diameter |
200μm (multimode) |
| Power Supply |
33V @ 23A (requires dedicated high-current power source) |
| Dimensions |
~150mm × 70mm × 20mm |
| Primary Applications |
Pumping fiber laser cutting, welding, and cleaning systems; scientific research |
| Condition |
Custom refurbished (tested and verified for performance) |
| Operation Requirement |
Trained laser professionals only (requires thermal management expertise) |
SKU Details
| SKU |
|
|
| RAYCUS-500W-915-REF |
500W 915nm Laser Pump Source Module (Refurbished) |
|
| RAYCUS-500W-KIT |
Module + Thermal Compound + Power Cable |
|
Why Choose This Raycus Pump Source?
-
Trusted Performance: Raycus is a leading provider of fiber laser technology, ensuring exceptional reliability and output stability for industrial applications.
-
Optimized for Cutting/Welding: The 915nm wavelength and 500W output are specifically tailored for high-power fiber laser systems used in metal processing.
-
Cost-Effective Solution: Custom refurbished units deliver like-new performance at a fraction of the cost of new modules.
-
Easy Integration: The compact design and standardized interfaces simplify installation into existing laser systems.
Important Safety & Usage Notes
-
Operator Training: This module must be handled and operated by trained laser professionals familiar with high-power diode safety protocols.
-
Thermal Management: A dedicated water cooling system is required for continuous operation to prevent overheating and performance degradation.
-
Current Limitation: Strictly control current to ≤23A; exceeding this limit will cause irreversible damage and performance degradation.
-
Refurbished Terms: This is a custom refurbished, as-is unit. It is tested for functional performance but sold without return or exchange.
-
Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
