Description
The Raycus 400W Semiconductor Continuous Wave Laser Pump Source is a high-power, industrial-grade laser diode array designed for integration into fiber laser cutting, welding, and cleaning systems. It delivers a stable 400W infrared output, optimized for pumping high-power ytterbium-doped fiber lasers. This refurbished unit is ideal for custom laser system builds, DIY research projects, and industrial modifications by trained professionals in controlled environments.
Core Features
-
High-Power Continuous Output: 400W of stable infrared power, optimized for pumping high-power ytterbium-doped fiber lasers used in cutting and welding applications.
-

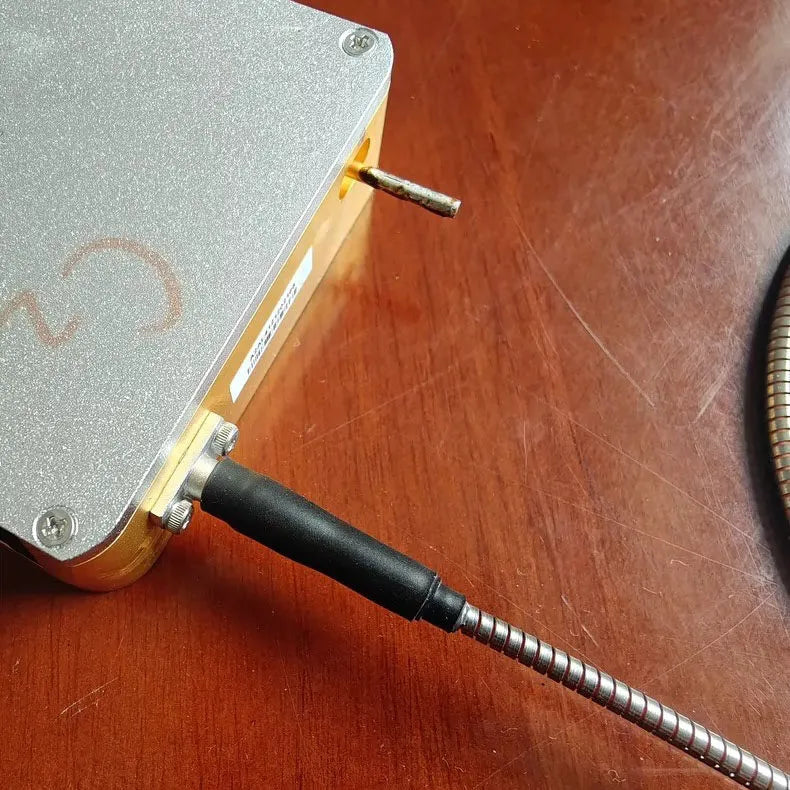

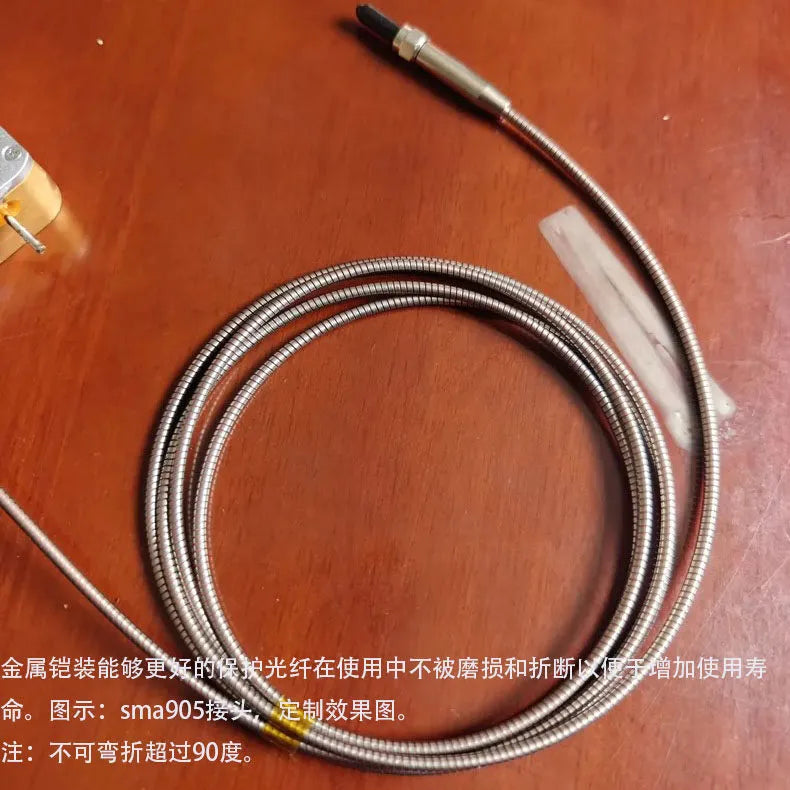

Armored Fiber Protection: Includes a robust armored fiber cable that prevents fiber breakage and damage during installation and operation.
-
SMA905 Quick Connector: Standard SMA905 interface for easy, low-loss connection to your fiber laser system or collimating optics.
-
Collimating Lens Ready: Designed to work with optional collimating lenses (1–2mm spot size, 10–35cm working distance) for precise beam focusing.
-
Industrial-Grade Reliability: Built by Raycus, a trusted leader in fiber laser technology, for consistent performance in demanding applications.
Technical Specifications
| Parameter |
Details |
| Product Name |
Raycus 400W Semiconductor Continuous Wave Laser Pump Source |
| Wavelength |
Typical 915nm (infrared, optimized for fiber laser pumping) |
| Power Output |
400W (nominal continuous wave) |
| Fiber Type |

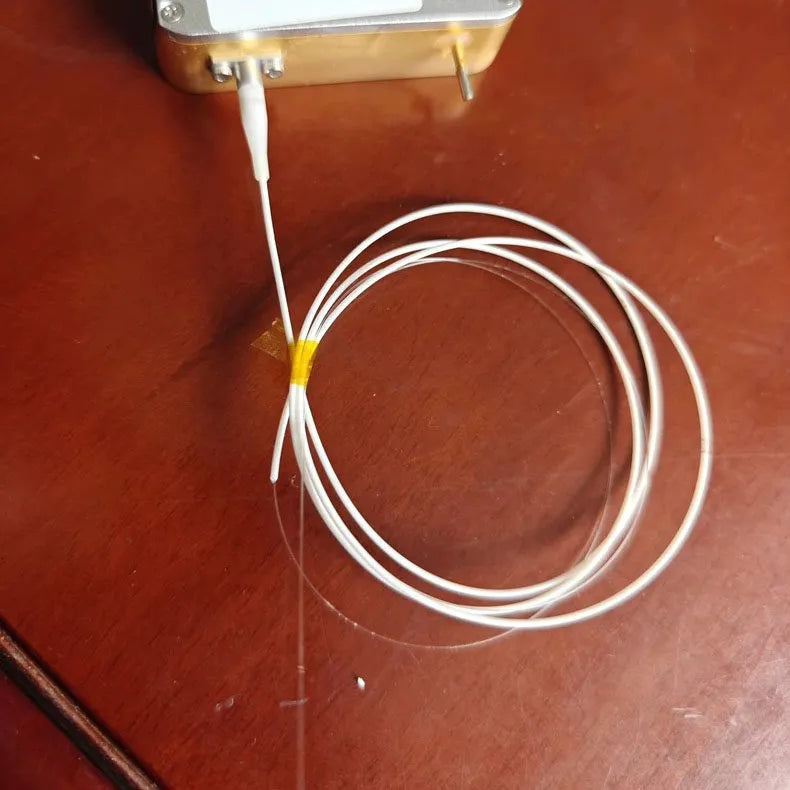

Armored multimode fiber with SMA905 quick connector |
| Collimating Lens Options |
1–2mm spot size, 10–35cm working distance (optional) |
| Primary Applications |
Fiber laser cutting/welding/cleaning systems, DIY research, and custom modifications |
| Condition |
Refurbished (tested and verified for performance) |
| Operation Requirement |
Trained laser professionals only (requires thermal management expertise) |
SKU Details
| SKU |
Configuration |
|
| RAYCUS-400W-CW-REF |
400W Laser Pump Source + Armored Fiber Output |
|
| RAYCUS-400W-KIT |
Module + Thermal Compound + Power Cable |
|
| RAYCUS-400W-COLL |
Module + Collimating Lens Upgrade (1–2mm spot) |
|
Why Choose This Raycus Pump Source?
-
Trusted Performance: Raycus is a leading provider of fiber laser technology, ensuring exceptional reliability and output stability for industrial applications.
-
Flexible Integration: The SMA905 connector and compatibility with collimating lenses make it easy to adapt to custom laser rigs.
-
Cost-Effective Solution: Refurbished units deliver professional-grade performance at a fraction of the cost of new modules.
-
DIY-Friendly: Perfect for advanced hobbyists and researchers looking to build or modify their own high-power laser systems.
Important Safety & Usage Notes
-
Operator Training: This module must be handled and operated by trained laser professionals familiar with high-power diode safety protocols.
-
Thermal Management: A dedicated water cooling system is required for continuous operation to prevent overheating and performance degradation.
-
Laser Safety: Always wear appropriate laser safety goggles (OD 4+ for 915nm) when operating this module. Never point the beam at people, animals, or reflective surfaces.
-
Refurbished Terms: This is a refurbished, as-is unit. It is tested for functional performance but sold without return or exchange.
-
Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
