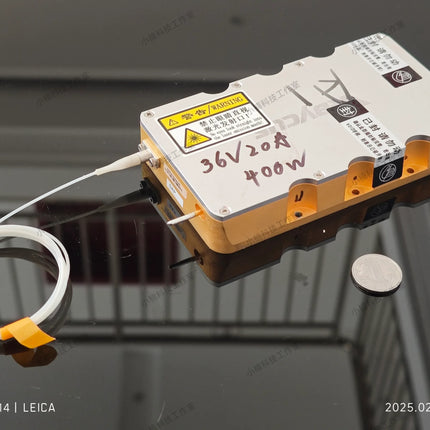

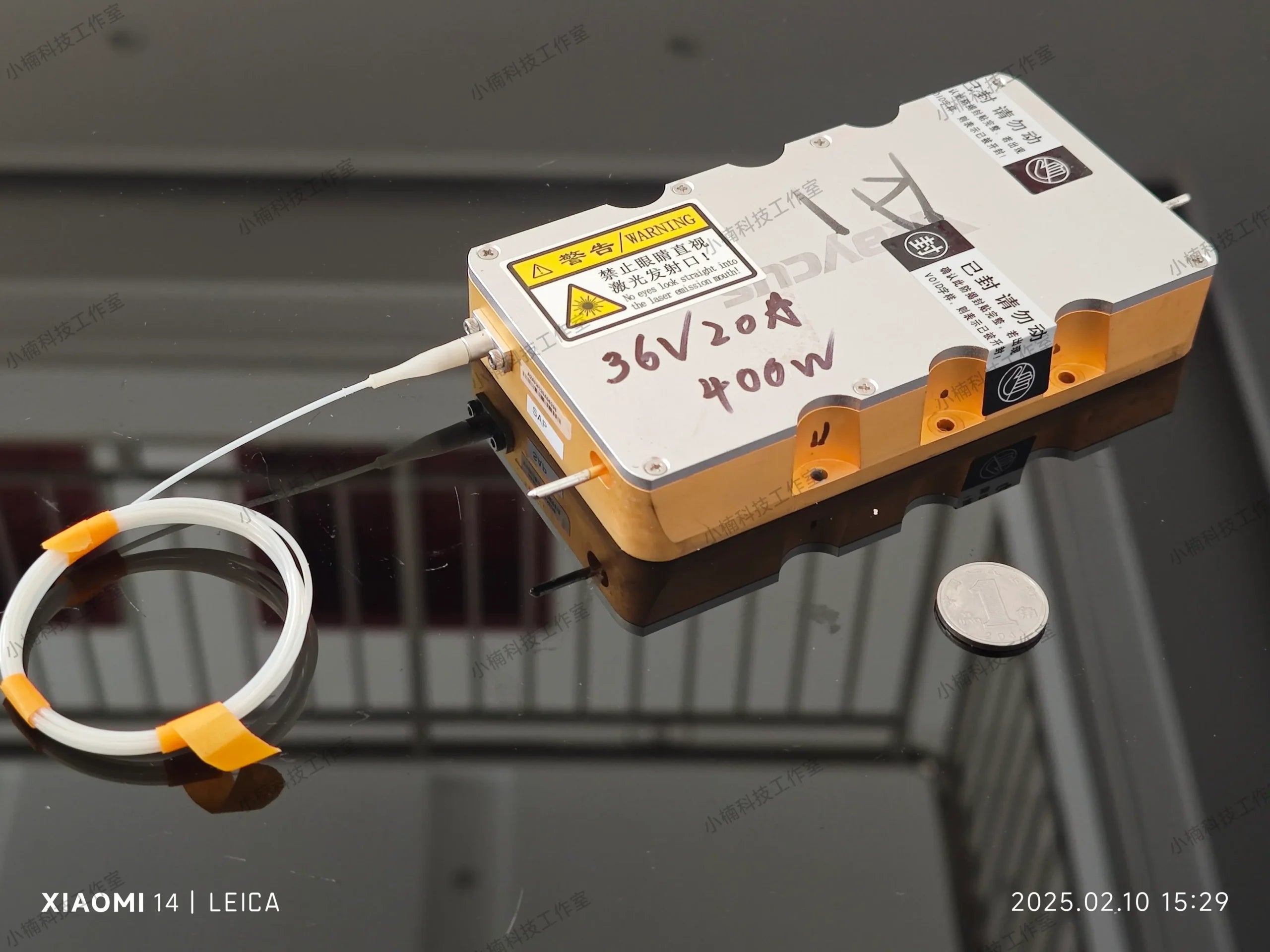

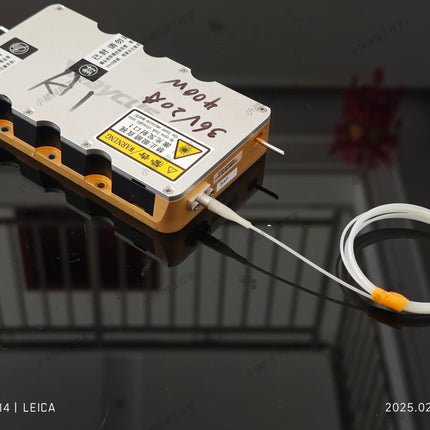

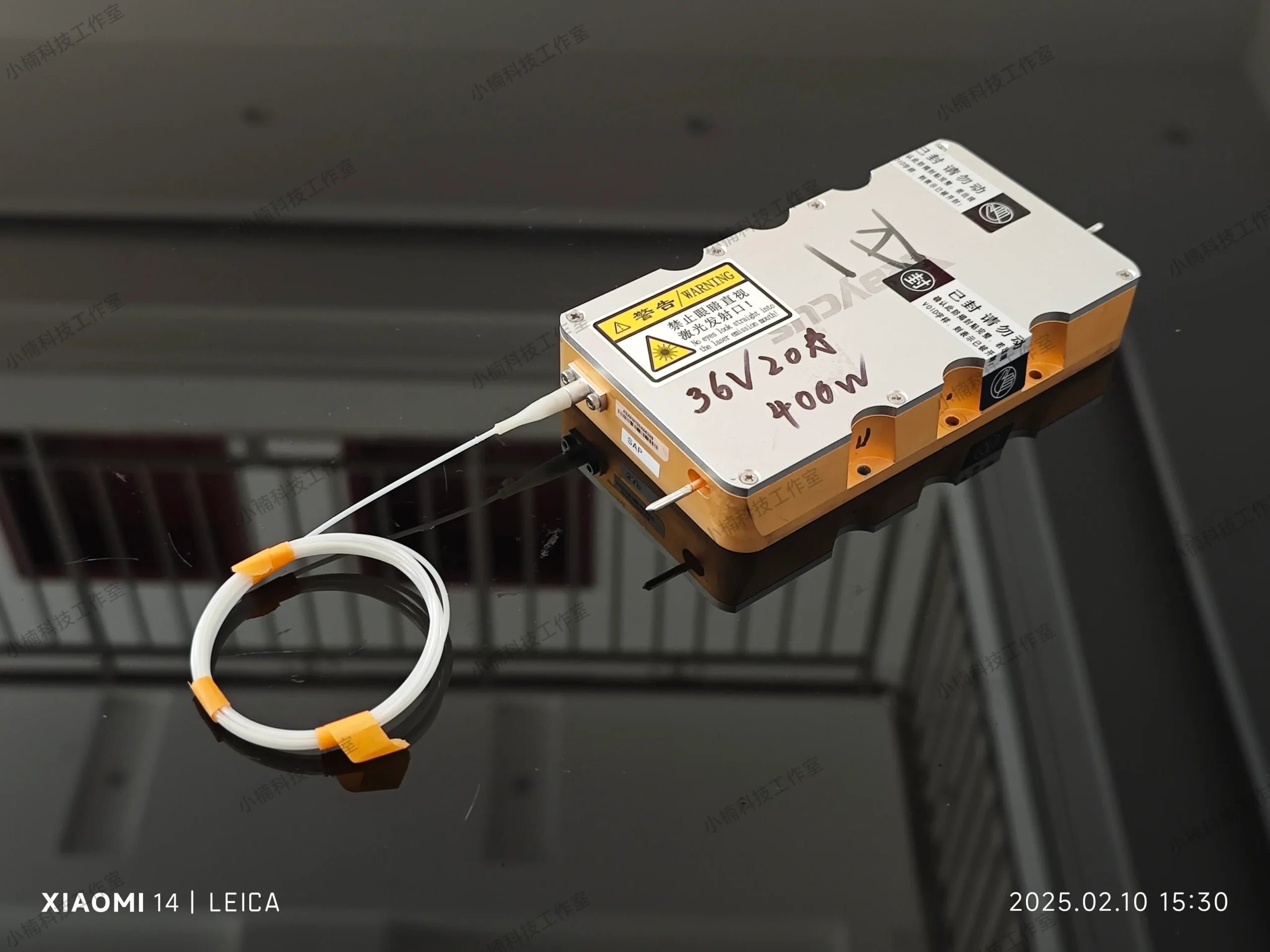

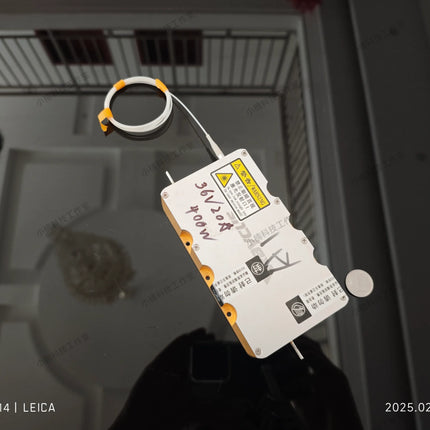

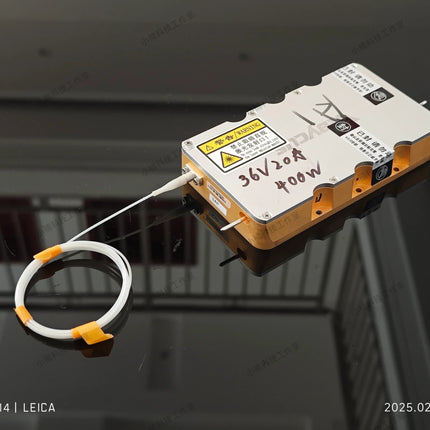

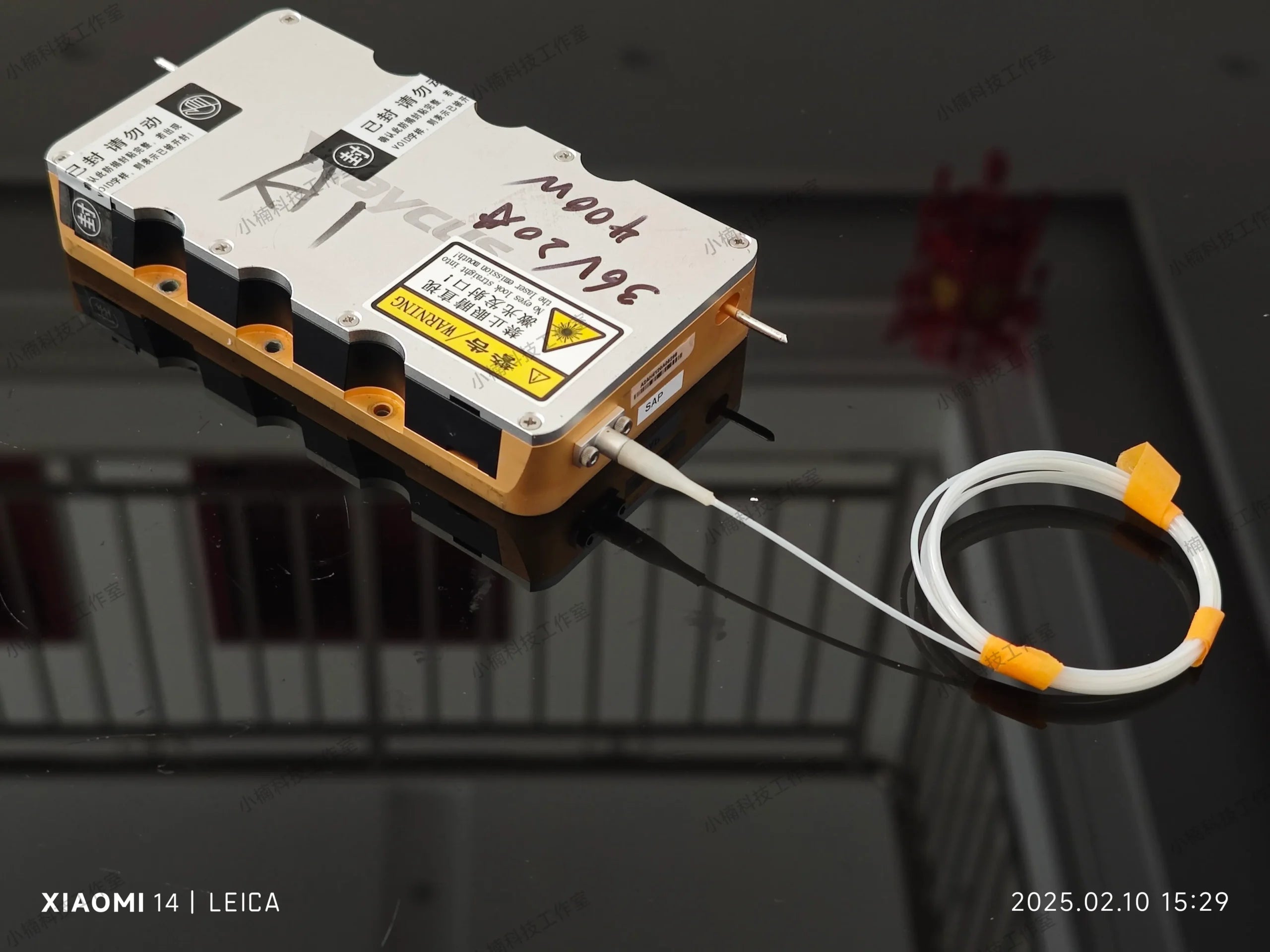

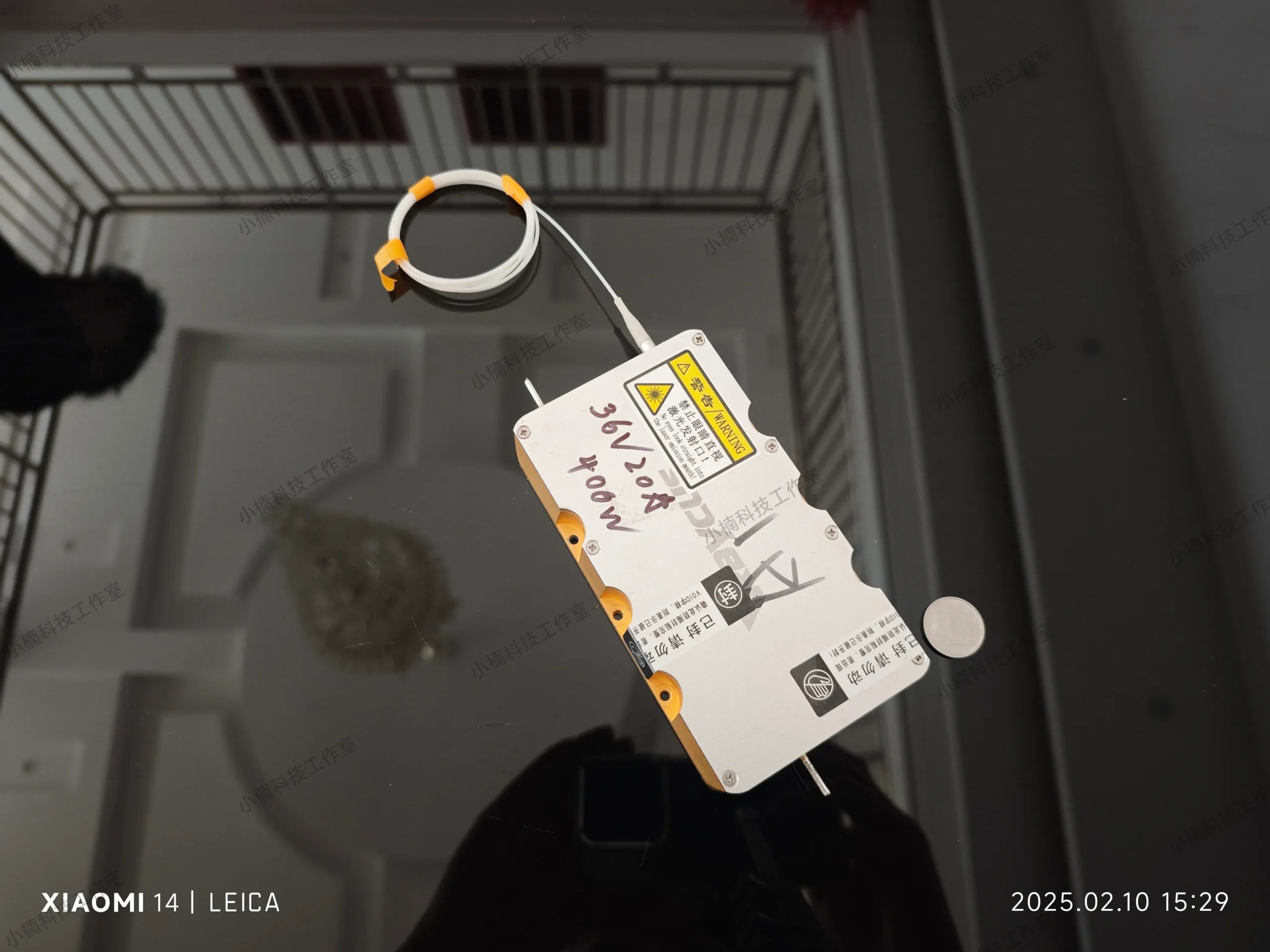

Name: RAYCUS 400W High-Power Infrared Laser Module with Optional Fiber Output – Industrial Grade
Brand: LaserOne
Price: 114.0 USD

Description

A professional 400W infrared laser module from RAYCUS, available in both bare output and fiber-coupled configurations. This industrial-grade laser system operates at 915nm wavelength and is designed for material processing applications requiring high power density. Featuring robust construction and precise thermal management requirements, this module delivers reliable performance for cutting, welding, and surface treatment applications.

Technical Specifications

Optical Performance	Electrical Requirements	Thermal Management
Output Power: 400W Continuous Wave	Operating Voltage: 33V DC	Maximum Case Temperature: 40°C
Wavelength: 915nm ± 3nm (Infrared)	Operating Current: 20A Constant Current Required	Critical Temperature: 45°C (power degradation)
Beam Quality: M² < 30 (Multimode)	Power Input: 660W Electrical (Typical)	Damage Threshold: 65°C (permanent damage risk)
Output Options: Bare output or fiber-coupled	Driver Type: Constant Current Source Required	Cooling Method: Active Heatsink Mandatory
Fiber Option: Standard SMA905 connector	Power Stability: Dependent on driver quality	Heat Dissipation: > 300W at full power
Visible Output: Invisible (IR) - camera required	Control Interface: Analog/PWM optional	Operating Ambient: 8°C to 40°C
Spectral Width: < 5nm FWHM	Safety Features: Over-temperature protection	Storage Temperature: 8°C to 40°C
Beam Divergence: Dependent on configuration	Electrical Isolation: Recommended	Humidity Range: < 15% RH storage

Mechanical Specifications	Performance Characteristics	Material Compatibility
Module Dimensions: 150mm × 100mm × 50mm	Rise Time: < 100ms (with proper driver)	Effective Materials: Wood, dark paper, steel, dark plastics
Weight: 2.5 kg (without heatsink)	Modulation: Suitable for PWM control	Incompatible Materials: Copper, aluminum, mirrors
Housing Material: Anodized aluminum	Warm-up Time: < 3 minutes	Processing Distance: Close-range only (not for distance)
Mounting: Standard M4 pattern	Expected Lifetime: > 10,000 hours	Safety Distance: Maintain safe working distance
Connector Type: Screw terminals (power)	Duty Cycle: 100% with proper cooling	Spark Protection: Required for metal processing
Protection Rating: Not waterproof/dustproof	Beam Visibility: Infrared camera required	Surface Cleaning: Regular optical maintenance needed
Fiber Bend Radius: > 50mm minimum	Output Verification: Test report provided	Electrostatic Protection: Short circuit during storage

Configuration Options

Laser Module Variants	Fiber Options	Accessory Packages
SKU-LM-400W-BARE: 400W bare output module	SKU-FIBER-NONE: No fiber (bare output)	SKU-ACC-HEATSINK: High-performance heatsink
SKU-LM-400W-FIBER: 400W with fiber output	SKU-FIBER-SMA: 1.5m fiber with SMA905	SKU-ACC-DRIVER: Constant current power supply
SKU-LM-300W-BARE: Lower power 300W version	SKU-FIBER-QBH: Industrial QBH connector	SKU-ACC-COOLING: Active cooling system
SKU-LM-500W-FIBER: Higher power 500W option	SKU-FIBER-CUSTOM: Custom length/type	SKU-ACC-SAFETY: Protective eyewear and enclosure

Power Supply Options	Optical Accessories	Monitoring & Control
SKU-PS-33V20A: 33V/20A constant current driver	SKU-OPT-FOCUS: Focusing lens assembly	SKU-MON-TEMP: Temperature monitoring system
SKU-PS-33V30A: Higher capacity 33V/30A driver	SKU-OPT-COLLIMATOR: Beam collimation optics	SKU-MON-POWER: Inline power meter
SKU-PS-DUAL: Dual output for redundancy	SKU-OPT-PROTECT: Protective window/cover	SKU-CTRL-PWM: PWM controller module
SKU-PS-INDUSTRIAL: Industrial-grade with monitoring	SKU-OPT-ALIGN: Alignment tools and fixtures	SKU-CTRL-ANALOG: Analog control interface

Application Guidelines

Suitable Applications	Operating Procedures	Safety Requirements
Material cutting (wood, plastics, thin metals)	1. Install adequate heatsink/cooling	Class 4 laser safety precautions
Surface engraving and marking	2. Connect constant current power supply	Protective eyewear (appropriate wavelength)
Industrial welding applications	3. Verify thermal interface application	Beam enclosure or safety perimeter
Heat treatment processes	4. Gradually ramp power while monitoring temperature	Interlock systems for automated setups
Research and development testing	5. Maintain case temperature below 40°C	Warning signs and indicators
Educational demonstrations	6. Regularly clean optical surfaces	Emergency stop capability
Prototype development	7. Monitor for power degradation	Proper ventilation for fumes/smoke
Tool and die manufacturing	8. Short circuit terminals during storage	Fire extinguisher accessible

Material Processing Notes	Maintenance Requirements	Troubleshooting Guide
Wood: Excellent absorption	Daily: Check cooling system operation	Low power: Verify temperature control
Steel: Good for cutting/welding	Weekly: Clean optical surfaces	Overheating: Improve cooling capacity
Dark plastics: Effective processing	Monthly: Inspect electrical connections	Connection issues: Check terminals
Dark paper/leather: Suitable	Quarterly: Verify power output	Fiber damage: Inspect bend radius
Copper/aluminum: NOT recommended	Annually: Complete system inspection	Driver problems: Verify constant current
Mirrors/reflective surfaces: Avoid	As needed: Replace thermal compound	Optical damage: Clean or replace optics
Composite materials: Test first	Storage: Short circuit, low humidity	Safety systems: Test interlocks regularly

Installation & Setup

System Requirements	Cooling Solutions	Power Supply Setup
Constant current driver (33V, 20A minimum)	Active heatsink with > 300W capacity	Stable 33V DC constant current source
Adequate heatsink mounting surface	Water cooling recommended for continuous use	Proper wiring gauge for 20A current
Thermal interface material	Temperature monitoring with safety cutoff	Fusing and circuit protection
Safety enclosure or workspace	Ambient temperature control (8-40°C)	Grounding and electrical safety measures
Infrared camera for beam viewing	Adequate airflow for heat dissipation	Power sequencing and soft-start
Personal protective equipment	Regular maintenance of cooling components	Voltage/current monitoring capability
Fire safety equipment	Backup cooling for critical applications	Emergency power disconnect

Step-by-Step Installation	Operation Best Practices	Storage & Handling

Mount laser module to heatsink | Start with low power, gradually increase | Store in controlled environment (8-40°C)
Apply thermal compound evenly | Monitor case temperature continuously | Maintain low humidity (<15% RH)
Connect power supply with correct polarity | Keep optical surfaces clean and protected | Short circuit positive/negative terminals
Install safety interlocks and emergency stop | Maintain safe distance from target material | Use anti-static packaging materials
Set up temperature monitoring system | Use camera to visualize infrared beam | Avoid mechanical shock or vibration
Test cooling system operation | Document performance regularly | Regular inspection during storage
Perform gradual power ramp test | Establish maintenance schedule | Battery removal if applicable
Verify beam output and alignment | Train all operators on safety procedures | Proper labeling and documentation

Quality Assurance

Testing & Documentation	Compliance & Safety	Performance Validation
Pre-shipment power testing	Laser Class 4 certification	Power output verification
Thermal performance validation	Electrical safety standards	Wavelength measurement
Beam profile documentation	Material compliance (RoHS)	Stability testing over time
Functional testing video	Environmental regulations	Reliability and lifetime estimation
Complete test report provided	Industry-specific certifications	Real-world application testing
Component traceability	Workplace safety compliance	Comparative performance data
Alignment verification	Export compliance documentation	Customer application validation

Warranty & Support	Technical Resources	Service Options
90-day functional warranty	Detailed technical datasheets	Email technical support
Technical support available	Application notes and guides	Phone consultation services
Repair and service options	Integration best practices	On-site support (available)
Spare parts availability	Troubleshooting documentation	Calibration services
Performance guarantee	Video tutorials and demos	Training programs
Return policy (defective items)	Community forums and knowledge base	Extended warranty options
Customer success stories	Software and firmware updates	Priority support packages

Package Contents

Standard Package Includes:	Optional Additions:	Documentation Provided:
RAYCUS 400W Laser Module	High-performance heatsink	Complete user manual
Basic mounting hardware	Constant current power supply	Technical specification sheet
Test report and performance data	Fiber optic cable assembly	Safety guidelines and procedures
Shipping protection materials	Cooling system components	Application notes
Basic safety information	Protective enclosure	Warranty information
Component identification guide	Monitoring equipment	Compliance certificates
Storage guidelines	Alignment tools	Test results and calibration data

Important Usage Notes:

This is an infrared laser (915nm) - invisible to naked eye, requires camera for visualization
Constant current power supply mandatory - DO NOT connect directly to batteries
Active cooling essential - temperature critical for performance and lifespan
Close-range applications only - not designed for distance projection
Specific material compatibility - test unknown materials at low power first
Regular maintenance required - especially optical surface cleaning
Professional installation recommended - requires technical expertise
Safety paramount - Class 4 laser requires proper safeguards

For specific application requirements, custom configurations, or technical consultation, please contact our engineering support team for expert guidance on integrating this high-power laser module into your system.
