Description

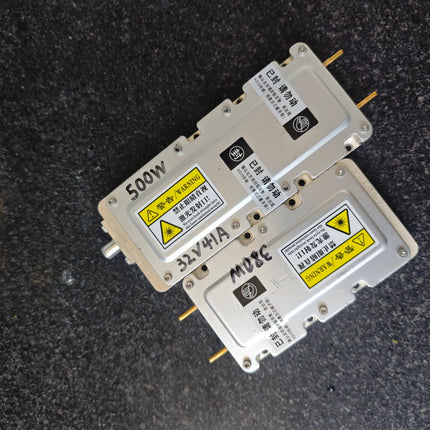

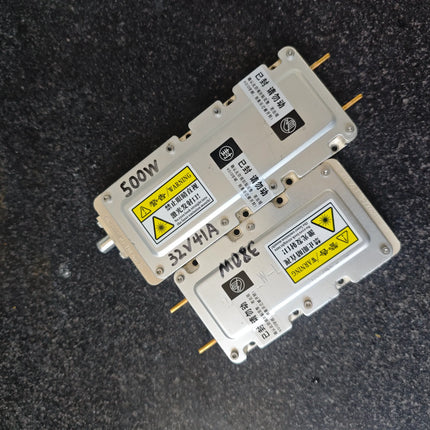

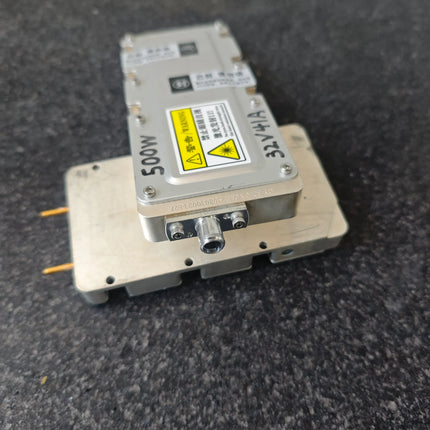

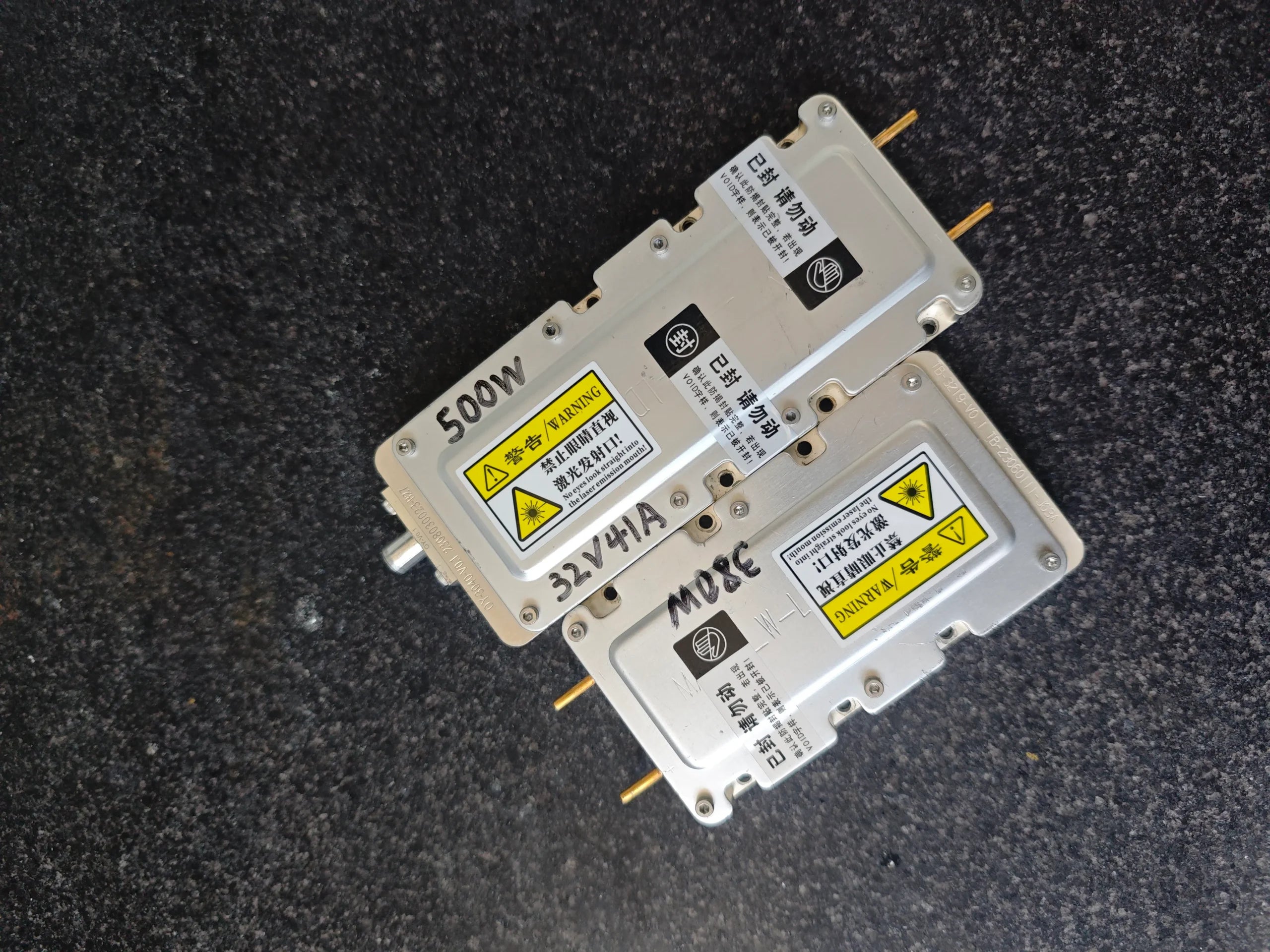

Introducing the next generation of Raycus direct-diode laser modules, engineered for superior power density and reliability. This series features two optimized form factors: a compact 380W unit and an extended 500W version, both delivering high-efficiency 915nm infrared output. Designed as dedicated "photonic engines" for integration into professional laser cutting, welding, cladding, and marking systems, they offer OEMs and system integrators a robust, ready-to-use core light source with industry-leading performance.
Technical Specifications
-

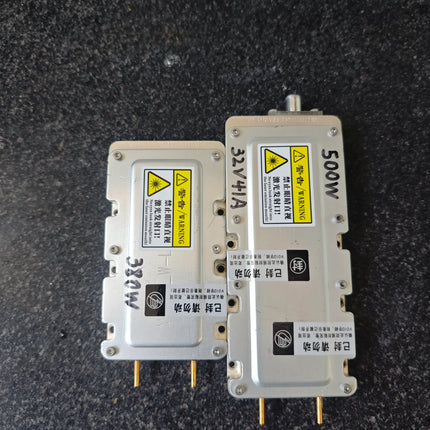

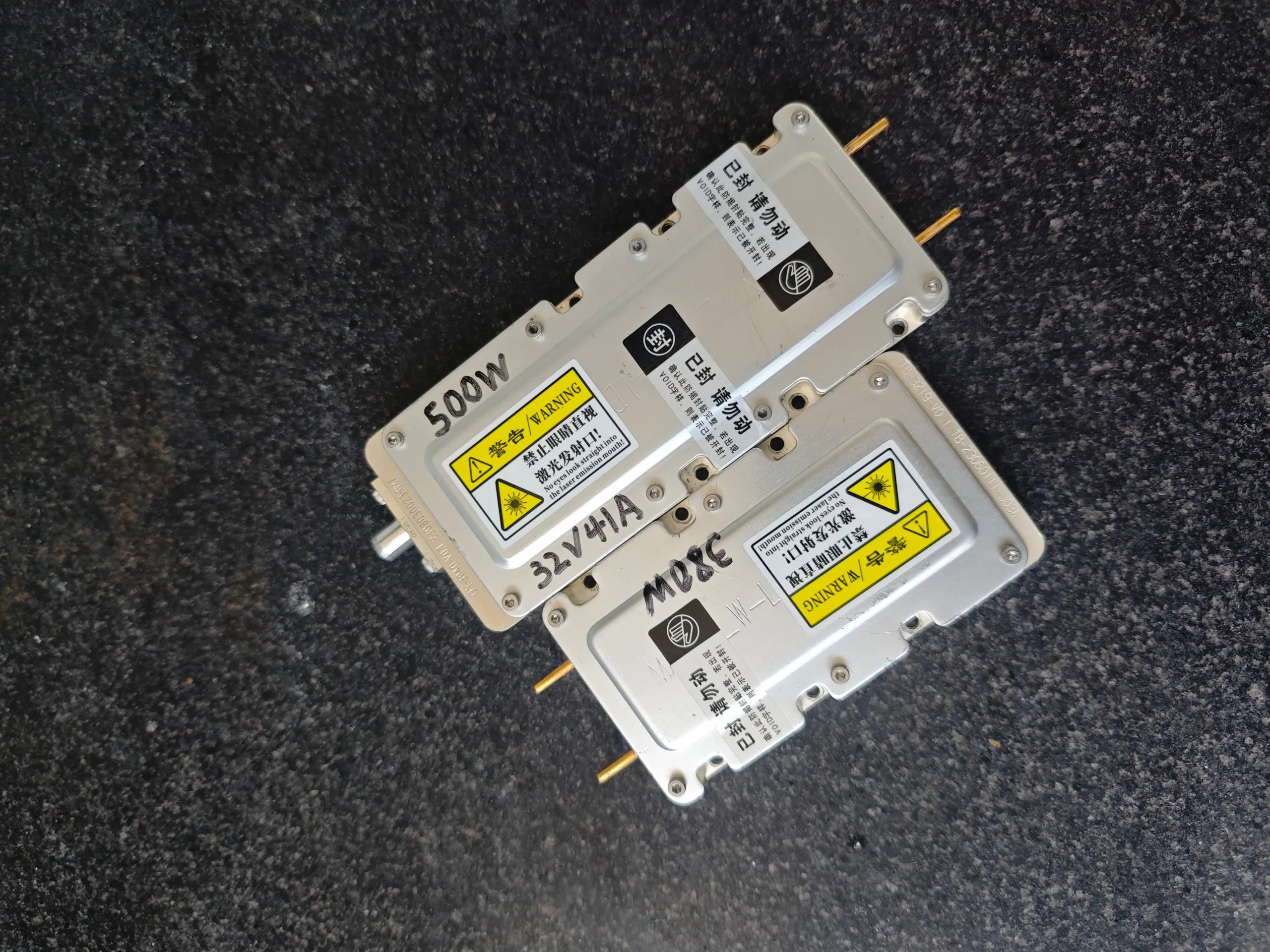

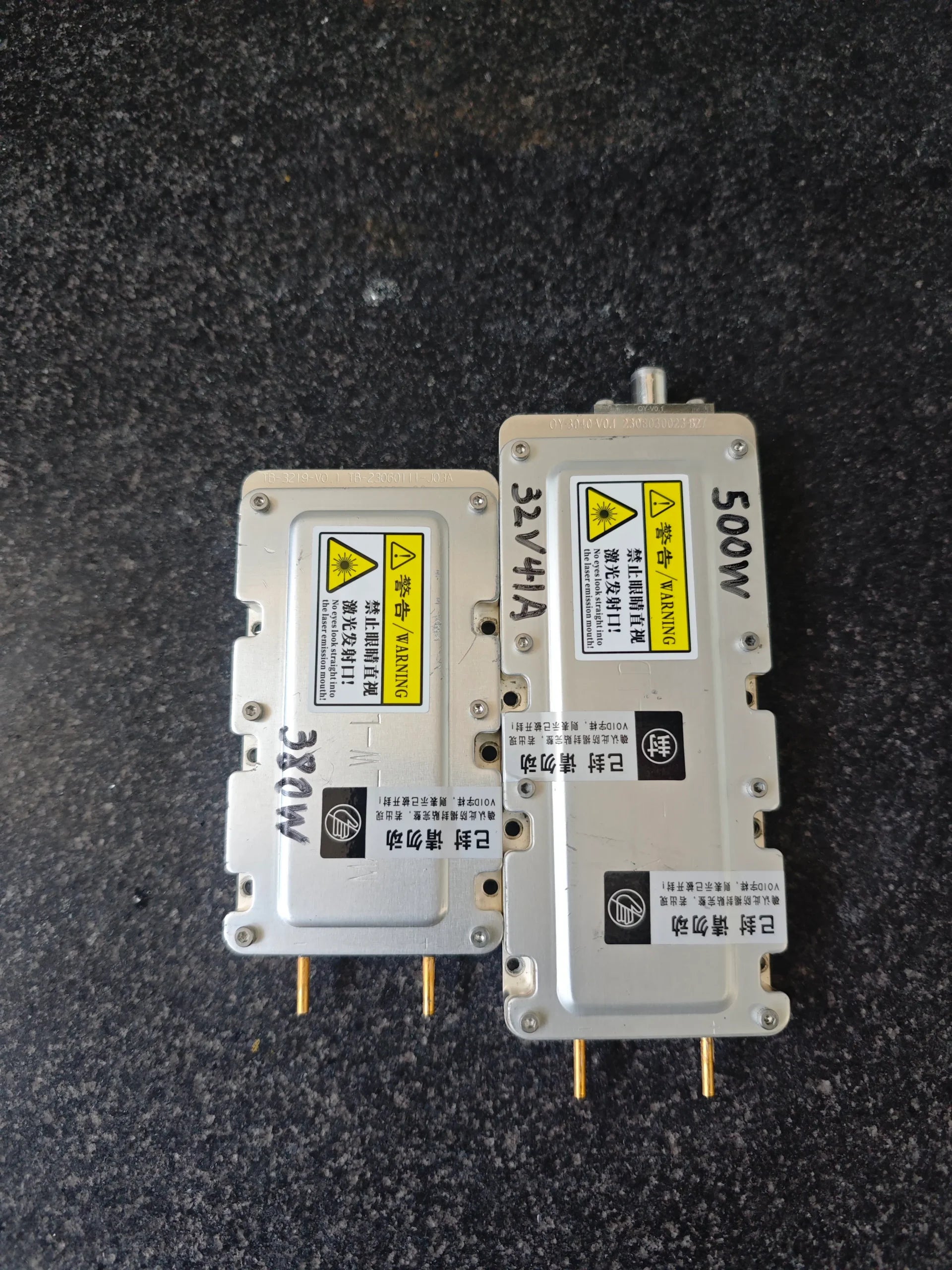

Model Variants:
-
Model RLD-NG-380 (Compact): Original design, optimized for space-constrained integration.
-
Model RLD-NG-500 (Extended): High-power variant with enhanced thermal management for maximum output.
-
Optical Performance (Both Models):
-
Wavelength: 915nm (±3nm)
-
Beam Quality (BPP): < 25 mm·mrad (fiber-coupled output, dependent on core size)
-
Power Stability: < ±2%
-
Spectral Width (FWHM): < 6nm
-
Output Power & Electrical:
-
Thermal Management (CRITICAL):
-
Cooling Method: Mandatory active water cooling.
-
Coolant Temperature: 15°C - 25°C recommended.
-
Flow Rate: > 3 L/min for RLD-NG-380; > 4 L/min for RLD-NG-500.
-
Max Case Temp (Operating): 35°C (for rated power and lifespan).
-
Fiber Delivery Options (Configurable):
-
Core Diameters Available: 200µm, 400µm, 600µm, 1000µm.
-
Fiber Connector: SMA-905, QBH, or D80.
-
Standard Length: 3 meters.
-
Physical & Interface:
-
Housing: Industrial hard-anodized aluminum.
-
Control Interface: Analog (0-5V) / TTL modulation enable. Includes interlock, temperature monitor, and fault signals.
-

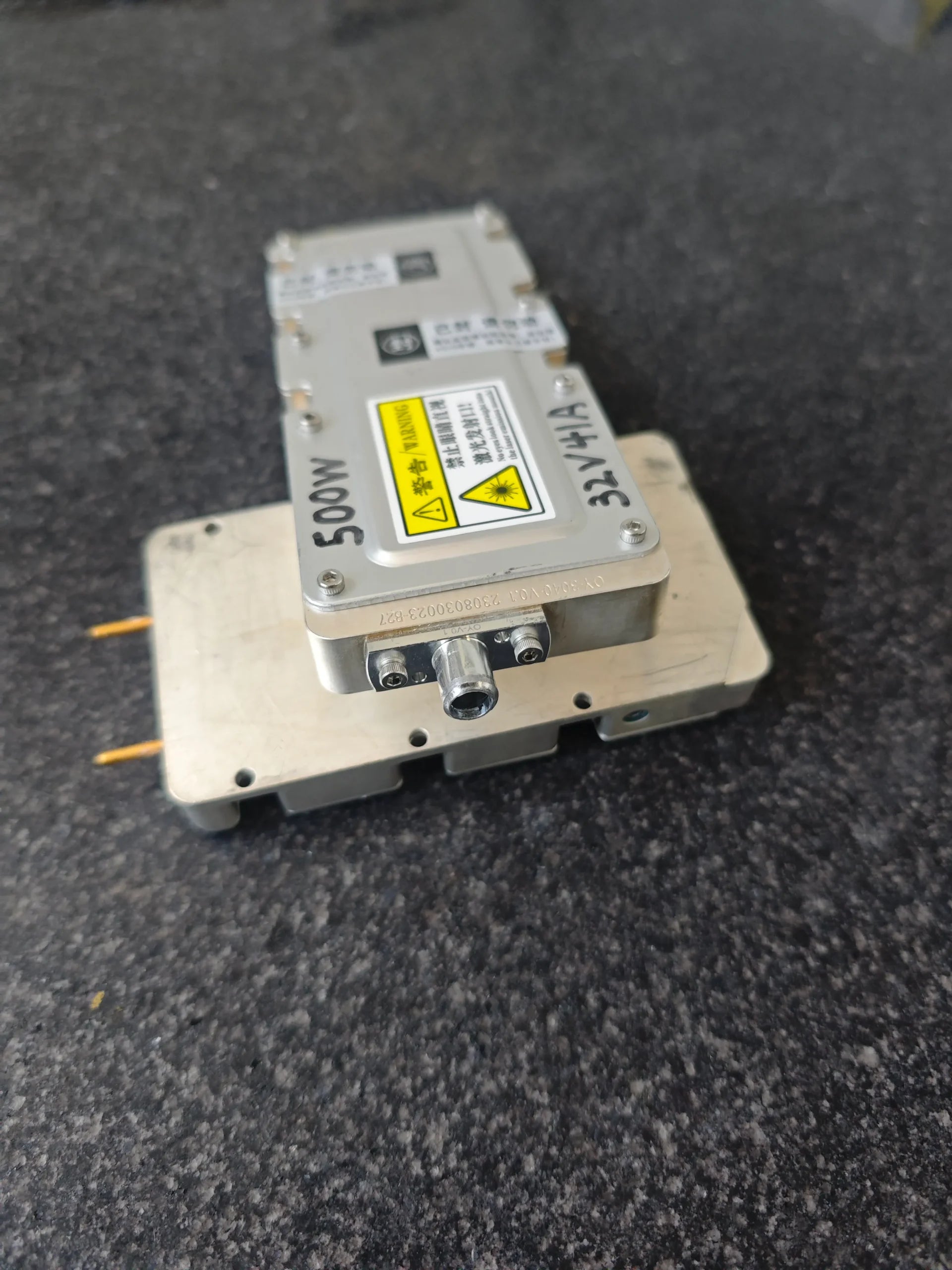

Connectors: Water In/Out (¼" NPT), Power Input, Signal Port, Fiber Output.
Key Features & Advantages
-
Next-Gen Performance: Leverages latest diode chip and packaging technology for improved efficiency and power density.
-
Dual-Power Flexibility: Choose the compact 380W module for space efficiency or the 500W module for maximum raw power in the same product family.
-
Compact (380W): Ideal for multi-head systems, portable equipment, or upgrades where footprint is critical.
-
Extended (500W): Designed for high-throughput industrial stations demanding top-tier power.
-
Optimized Thermal Design: Advanced internal cooler design ensures even heat extraction, critical for stability at high power levels.
-
Robust Industrial Design: Built for 24/7 operation in manufacturing environments with comprehensive protection circuits.
-
Plug-and-Play Integration: Standardized mechanical, electrical, and fluid interfaces simplify system design and assembly.
Applications
-
Metal Processing: Cutting and welding of thin to medium gauge steels.
-
Laser Cladding & Additive Manufacturing: For surface coating and 3D metal deposition.
-
Plastic Welding & Cutting: High-speed processing of polymers and composites.
-
Laser Marking & Engraving: Deep engraving on metals and ceramics.
-
Pumping: As a pump source for fiber or solid-state laser systems.
Package Contents
-
1 x Raycus RLD-NG-380 or RLD-NG-500 Laser Module
-
1 x Fiber Optic Cable (with selected core and connector)
-
1 x Set of Water Cooling Fittings
-
1 x Operation & Safety Manual
-
1 x Test Report (Power/Wavelength)
Ordering Information (SKU Table)
Manufacturer: Raycus Laser
Designed for integration by professionals. Proper cooling, driving, and safety measures are essential for operation.
