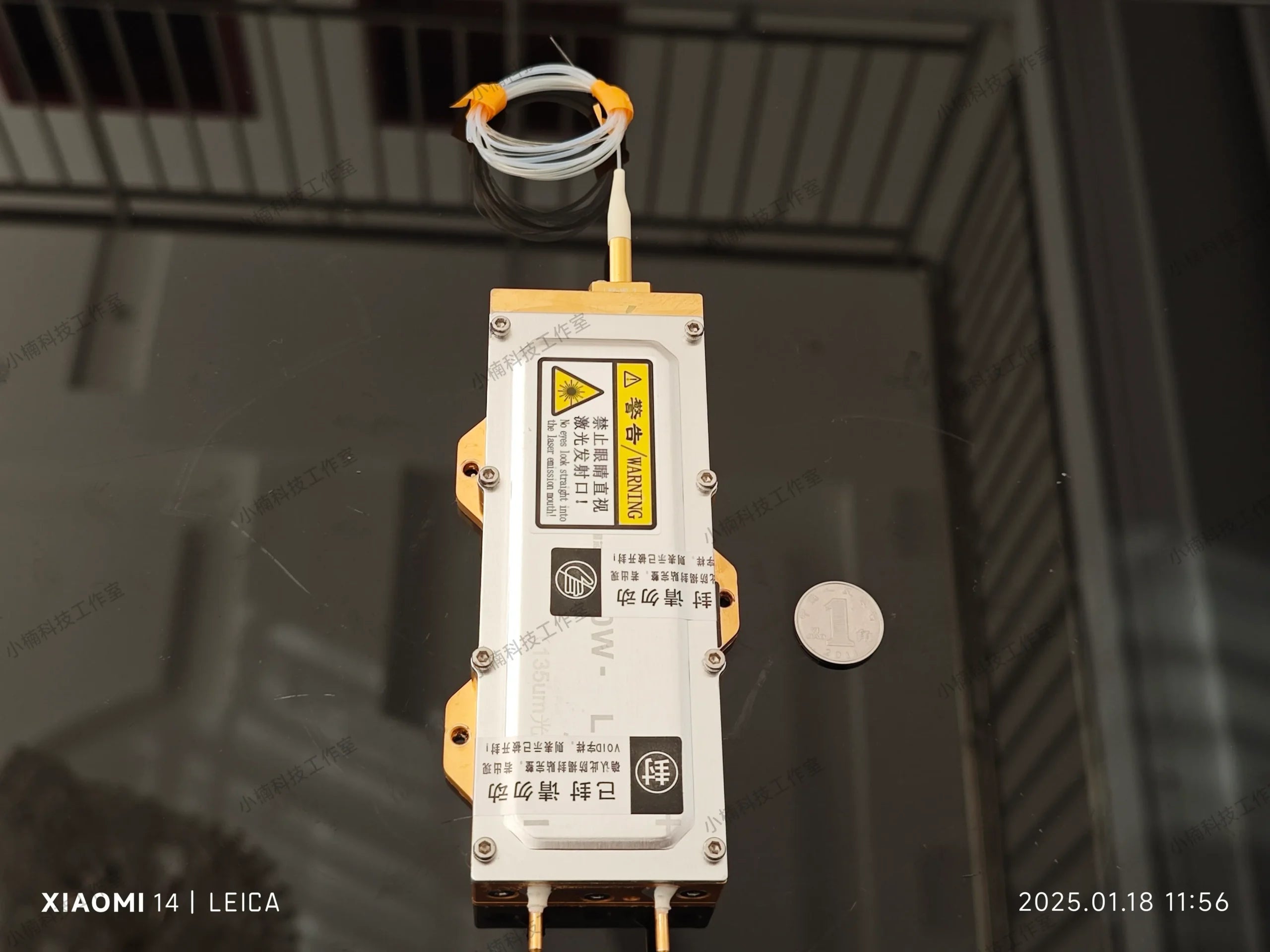

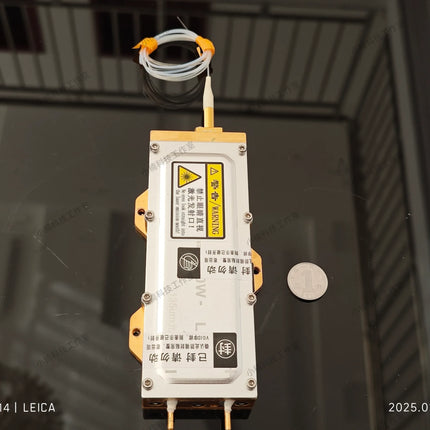

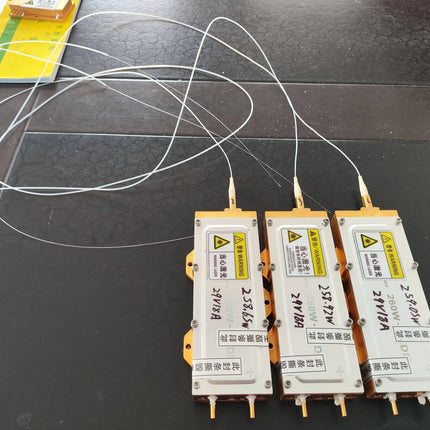

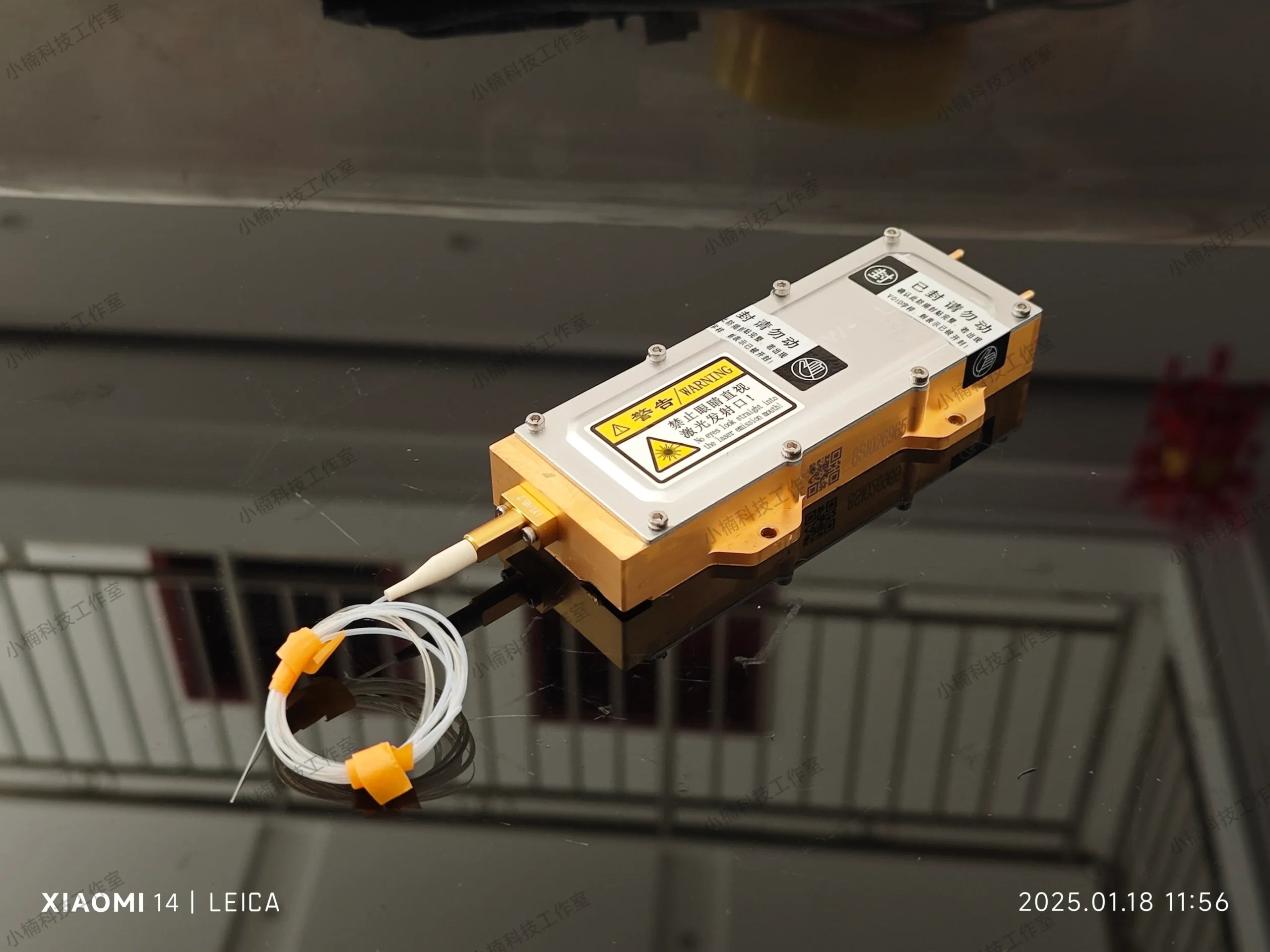

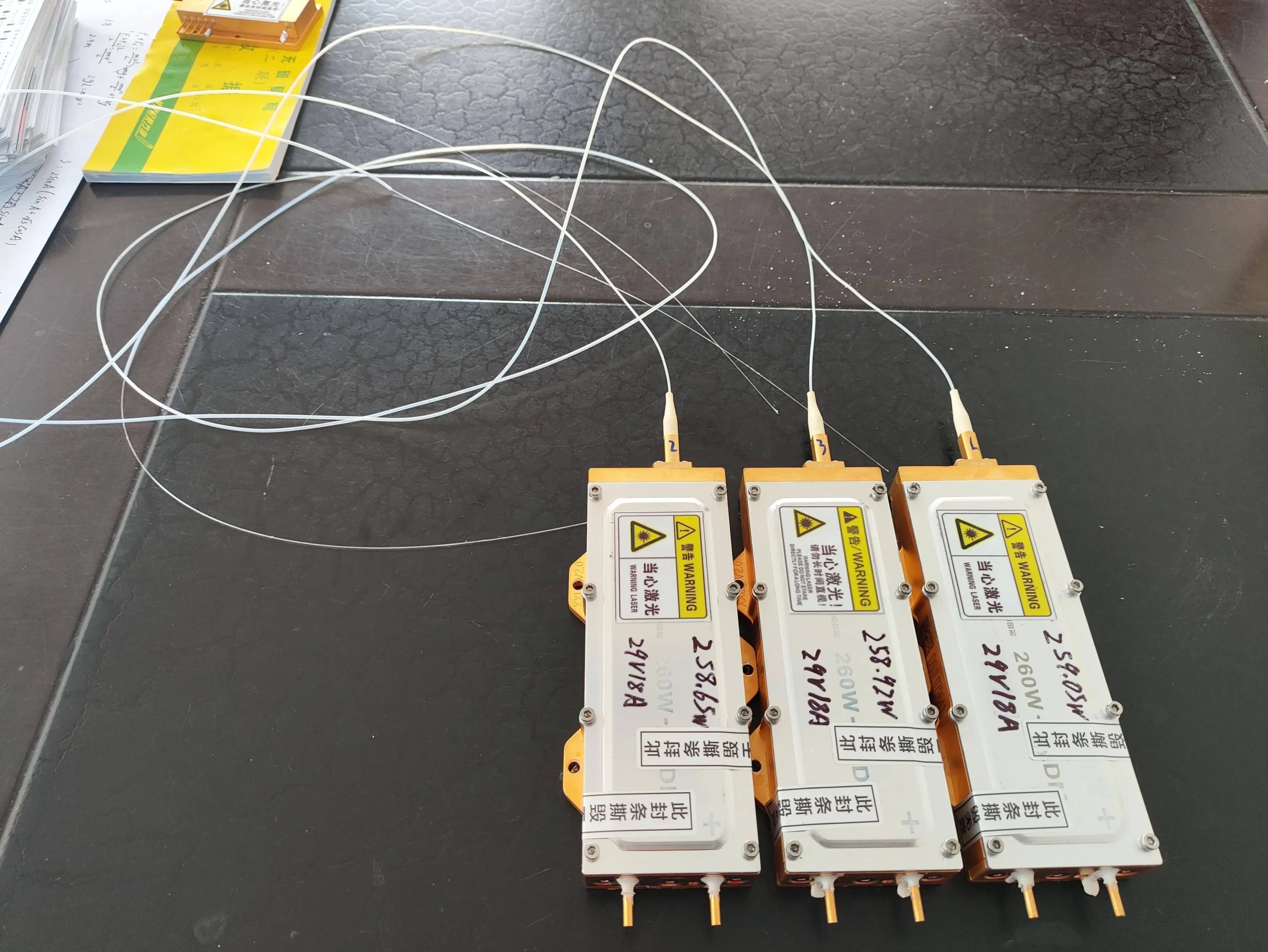

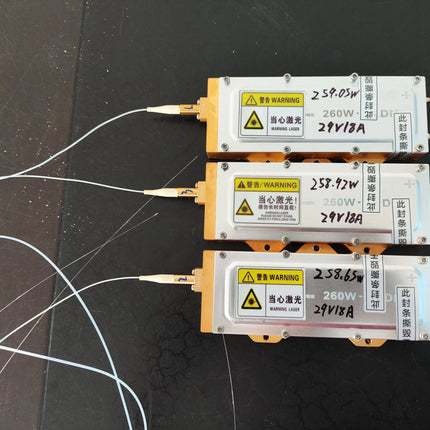

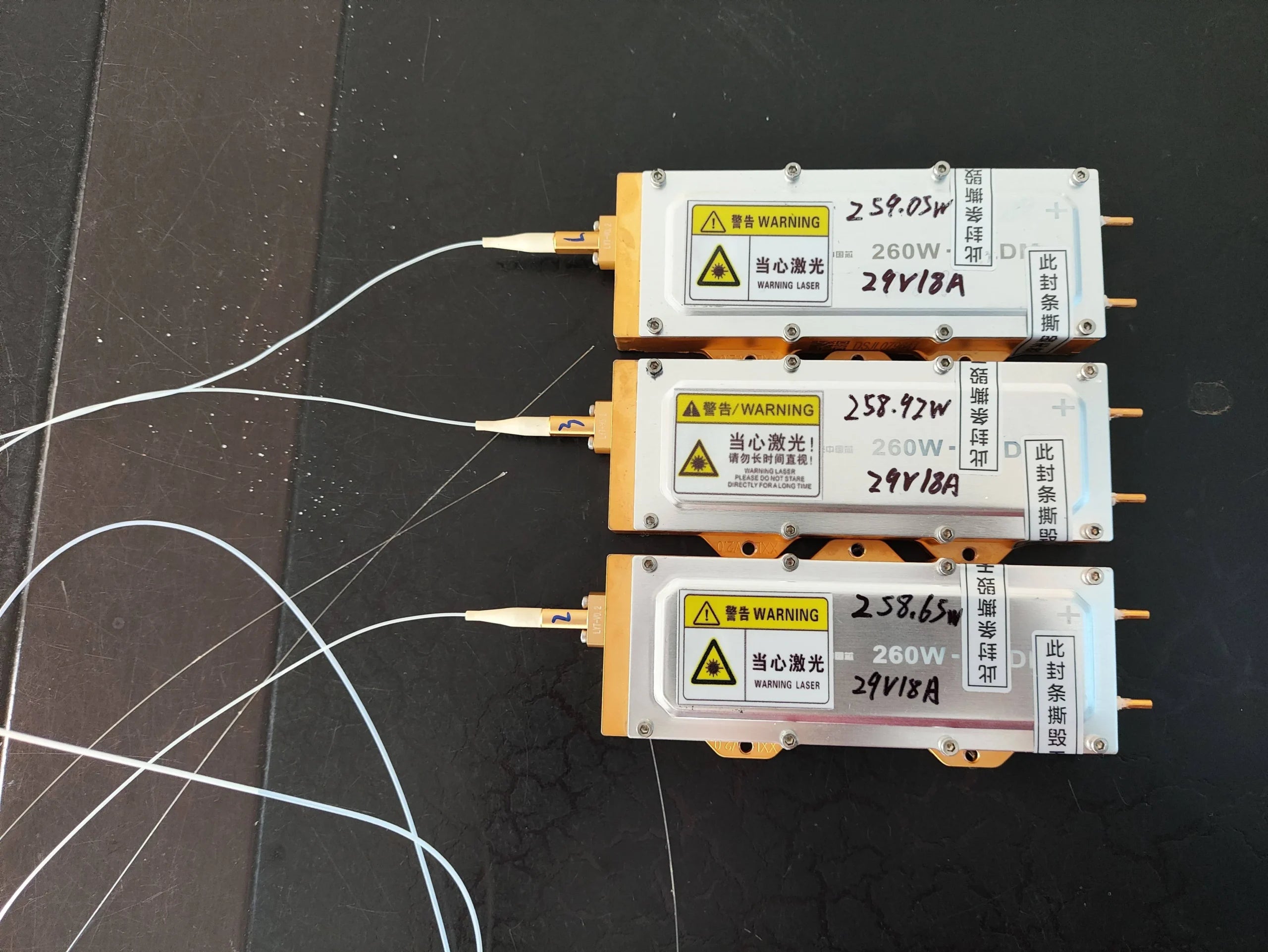

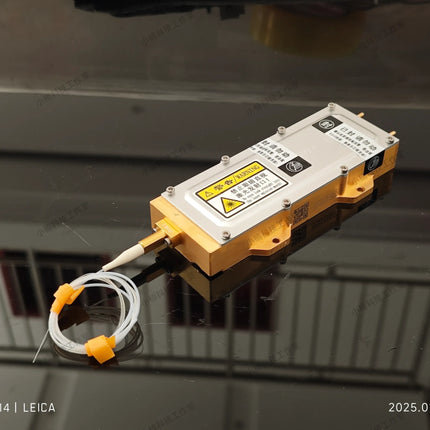

Name: Raycus 260W Industrial Laser Diode Module SKU Series: RLD-260-9XX
Brand: LaserOne

Description

The Raycus 260W Direct Diode Laser Module is engineered for industrial-grade precision and reliability. This high-performance laser module delivers a stable 260W optical output, making it an ideal solution for cutting, welding, marking, and surface treatment applications. Designed with robust thermal management and efficient power conversion, it ensures consistent performance in demanding production environments. Its compatibility with standard cooling systems and straightforward integration make it a versatile choice for OEM machinery and custom laser systems.

Technical Specifications

Optical Performance:
- Output Power: 260W (nominal)
- Wavelength: 915nm, 940nm, or 976nm (selectable upon ordering)
- Beam Quality (BPP): ≤ 20 mm·mrad (typical, fiber-coupled output)
- Power Stability: < ±2.5%
- Spectral Width (FWHM): < 5nm
Electrical Parameters:
- Operating Current: 16A DC (constant current mode required)
- Threshold Current: ~3A
- Operating Voltage: ~2V (typical at 16A)
- Slope Efficiency: > 1.5 W/A
- Input Power Requirements: Constant current driver capable of 16A minimum, with voltage compliance up to 2.5V.
Fiber Delivery System (Optional/Configurable):
- Fiber Core Diameter: 200µm, 400µm, 600µm
- Fiber Connector: SMA-905, QBH, or D80
- Fiber Length: 2m, 5m, 10m (standard options)
Thermal & Environmental:
- Cooling Requirement: Active liquid cooling mandatory.
- Coolant Temperature: 15°C - 25°C recommended.
- Flow Rate: > 2 L/min.
- Maximum Case Temperature: 40°C (for optimal lifespan and stability).
- Operating Ambient Temperature: 10°C to 40°C.
- Storage Temperature: -10°C to 60°C.
Physical & Interface:
- Dimensions: [To be specified based on actual housing, e.g., 120mm x 80mm x 40mm]

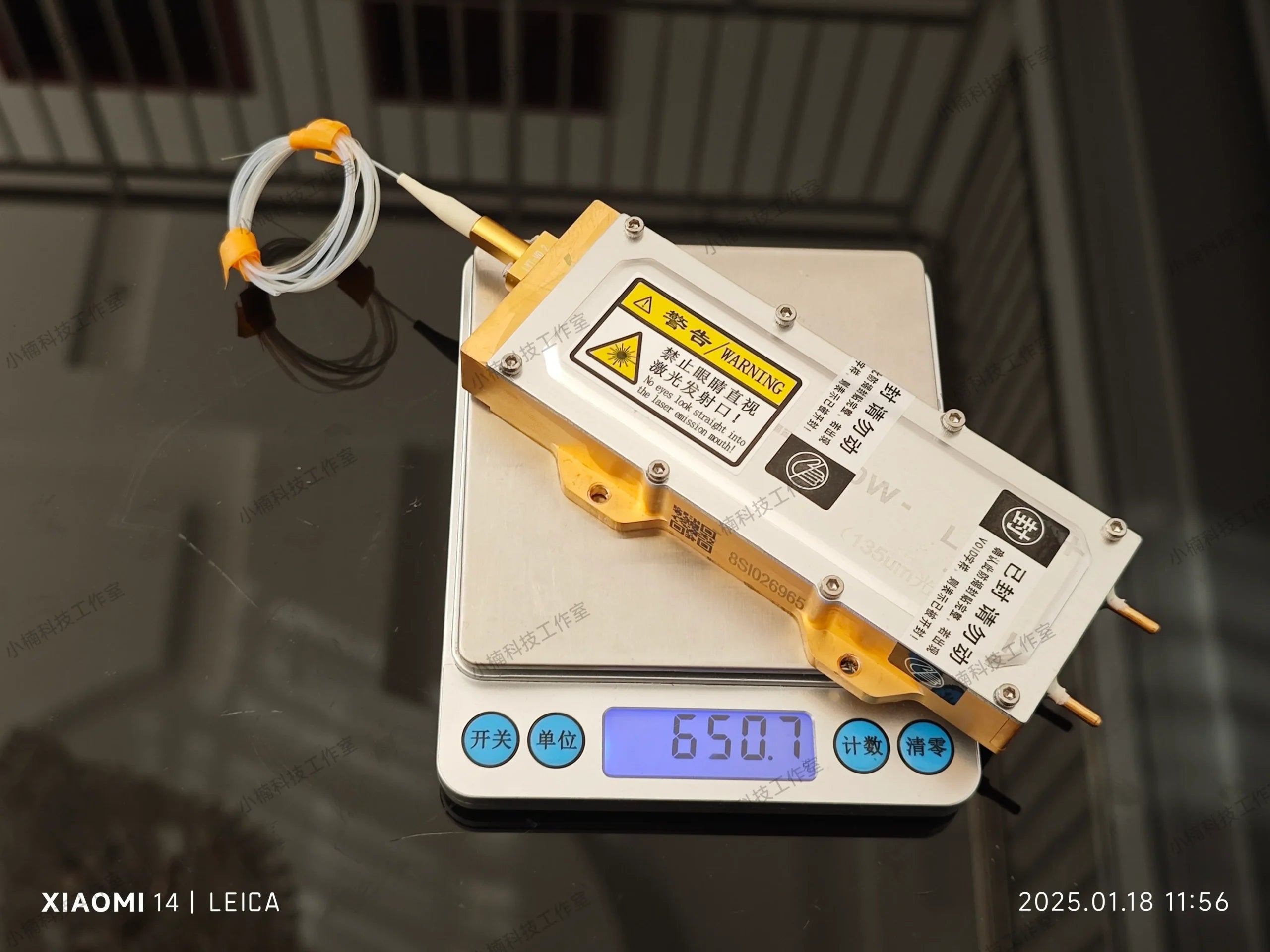

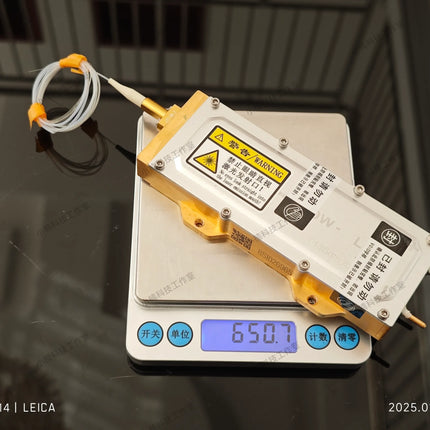

- Weight: [To be specified, e.g., 1.2 kg]
- Control Interface: Analog (0-5V) or TTL modulation. Interlock and temperature sensor signals.
- Connectors: Power input, control signal, water in/out, fiber port.

Key Features & Benefits

Industrial Reliability: Built with Raycus's proven diode stacking and packaging technology for long-term operational stability (typical lifetime > 15,000 hours).
High Electro-Optic Efficiency: Advanced design minimizes waste heat, reducing cooling demands and total cost of ownership.
Precision Current Control: Requires and is optimized for constant current drivers, ensuring precise power output and protecting the diode from current spikes.
Robust Thermal Design: Integrated high-performance micro-channel cooler maintains diode temperature within safe limits for consistent power and wavelength.
Flexible Configuration: Available in multiple wavelengths and with various fiber delivery options to match specific material absorption characteristics and application needs.
Comprehensive Protection: Built-in safeguards include temperature monitoring, water flow detection, and reverse polarity protection.

Operational Instructions (Summary)

Power Up: Ensure the constant current driver is correctly set. Upon energizing, the module will reach its stable operating point of approximately 16A and 2V within 2 seconds.
Normal Operation: Under proper drive conditions and cooling, the module will deliver 260W of optical power. Monitor case temperature to ensure it remains below 40°C.
Cooling is Critical: Active liquid cooling must be active before and during operation. Coolant temperature should be maintained between 15°C and 25°C for optimal performance and lifetime. Operation without adequate cooling will cause immediate and irreversible damage.
Environmental Conditions: Operate in an ambient temperature below 40°C. Ensure the module is free from condensation and contaminants.

Applications

Metal cutting and welding (thin sheet)
Plastic welding and cutting
Laser marking and engraving (metals, plastics, coated surfaces)
Additive manufacturing (cladding, DED)
Brazing and soldering
Pumping for fiber or solid-state lasers

Package Contents

1 x Raycus 260W Laser Diode Module
1 x Data Sheet and Safety Manual
(Optional) 1 x Fiber optic cable with specified connector and length

Ordering Information (SKU Table)

SKU Code	Wavelength	Fiber Option	Connector	Notes
RLD-260-915-B	915nm	Bare Output (No Fiber)	N/A	For direct integration into custom optics
RLD-260-976-200	976nm	200µm Core, 2m Length	SMA-905	Standard high-brightness output
RLD-260-940-400	940nm	400µm Core, 5m Length	QBH	Standard for welding/cladding
RLD-260-976-600-Q	976nm	600µm Core, 10m Length	QBH	For high-power delivery with lower brightness

Manufacturer: Raycus (Represented by XiaoJu Tech Studio) Specifications are subject to change. Consult the official data sheet for the most current information before system integration.
