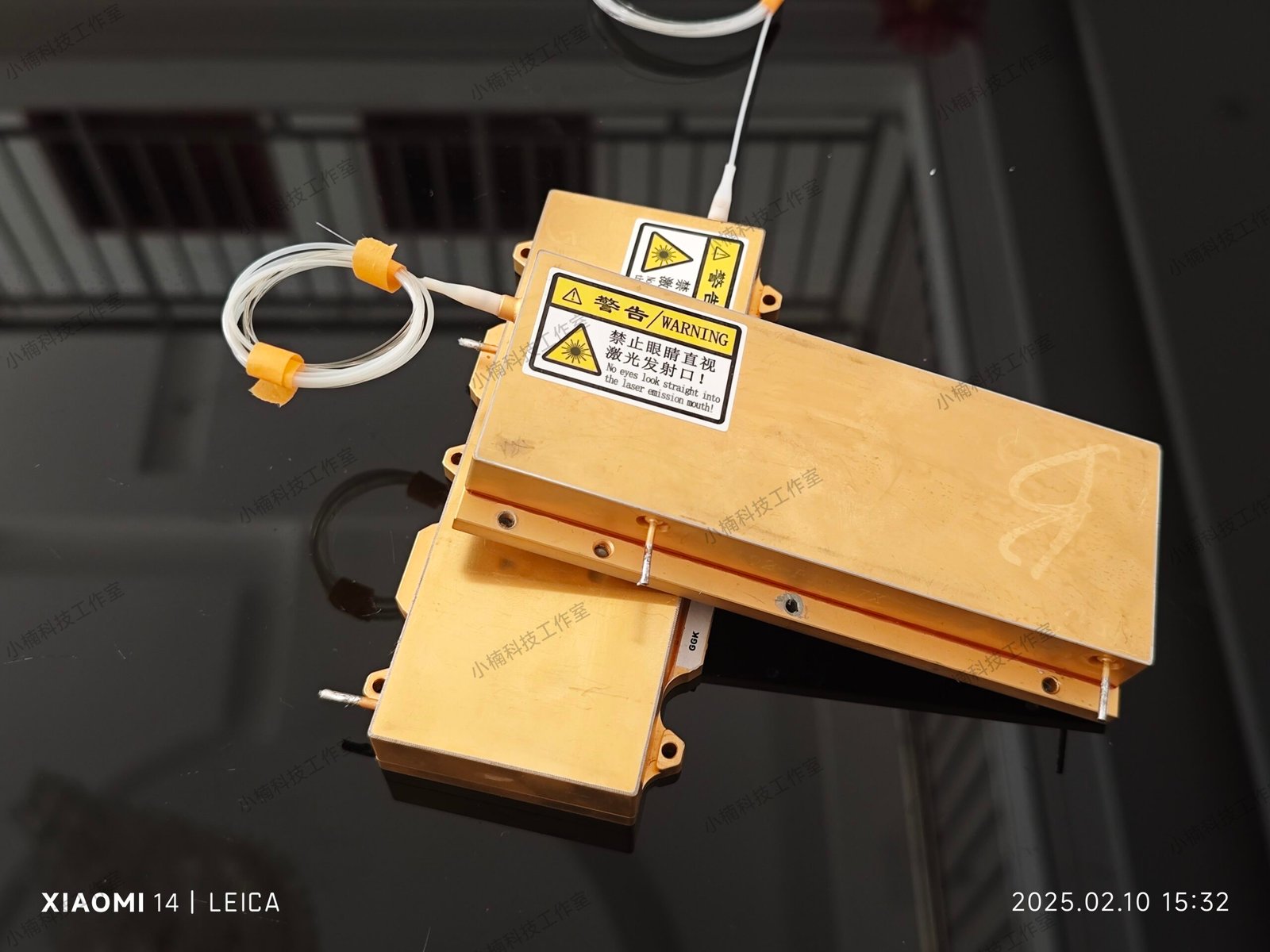

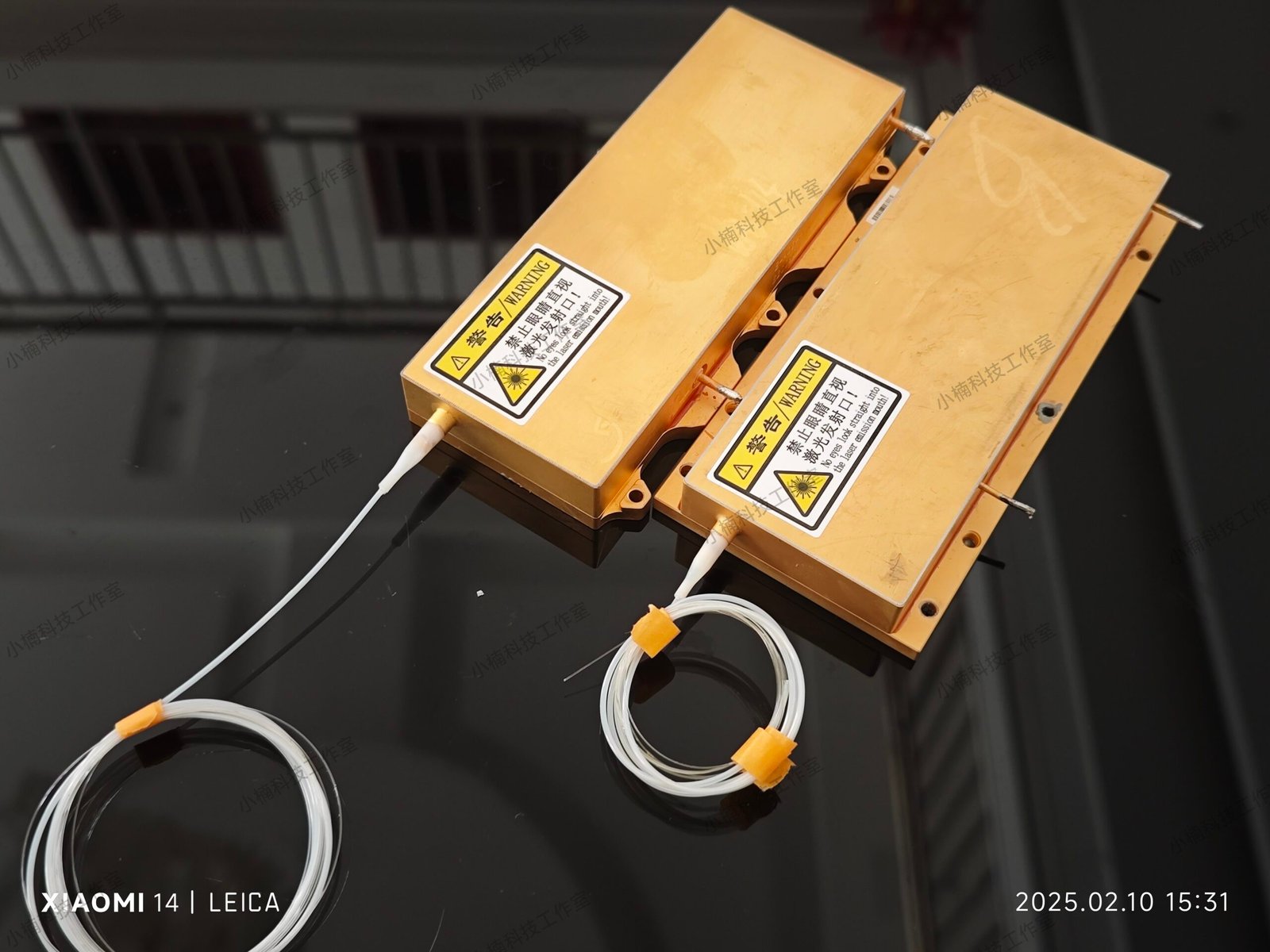

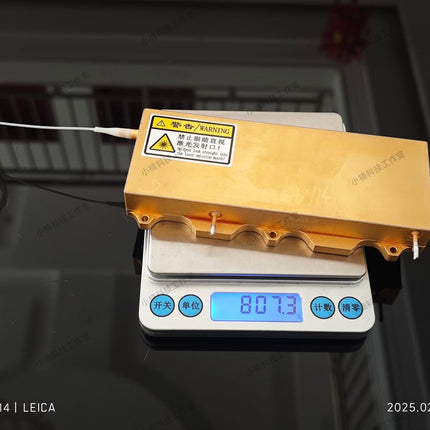

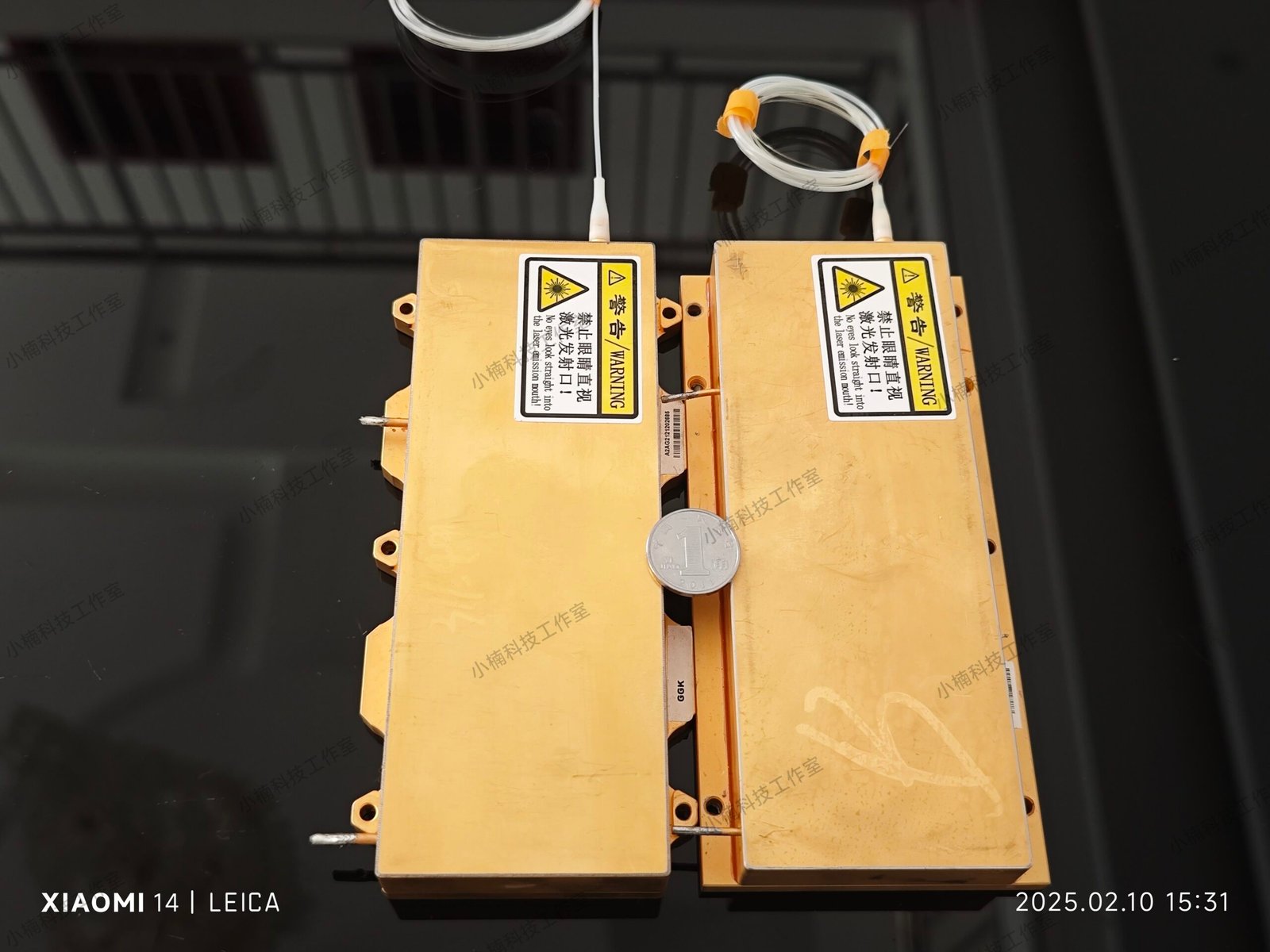

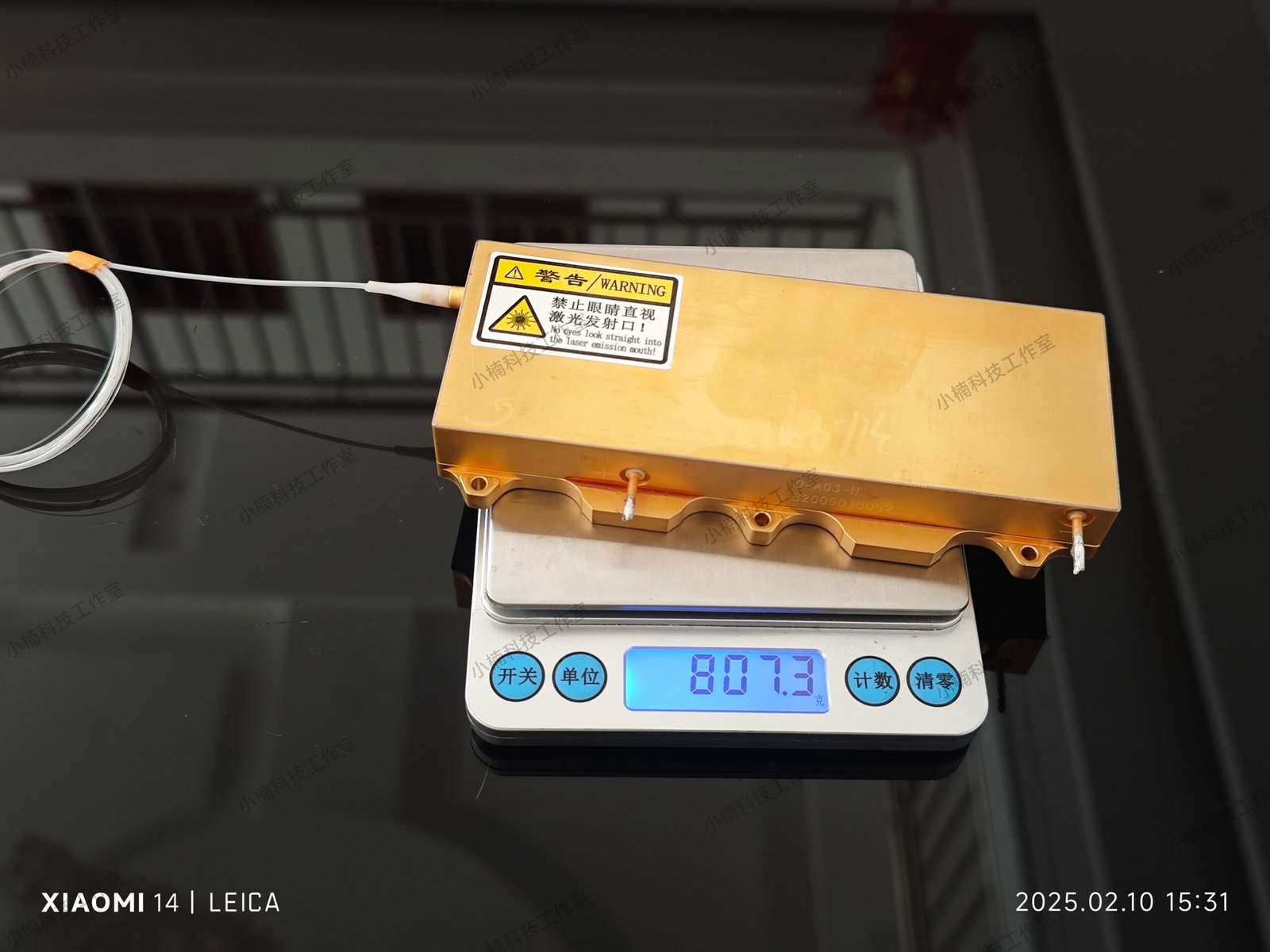

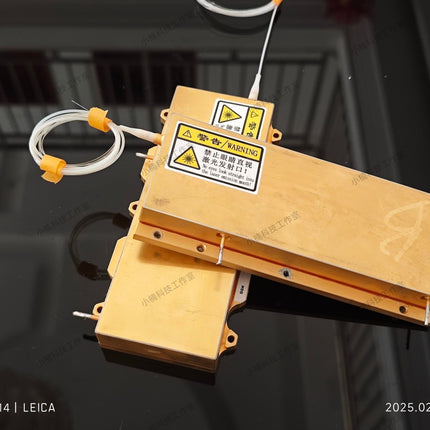

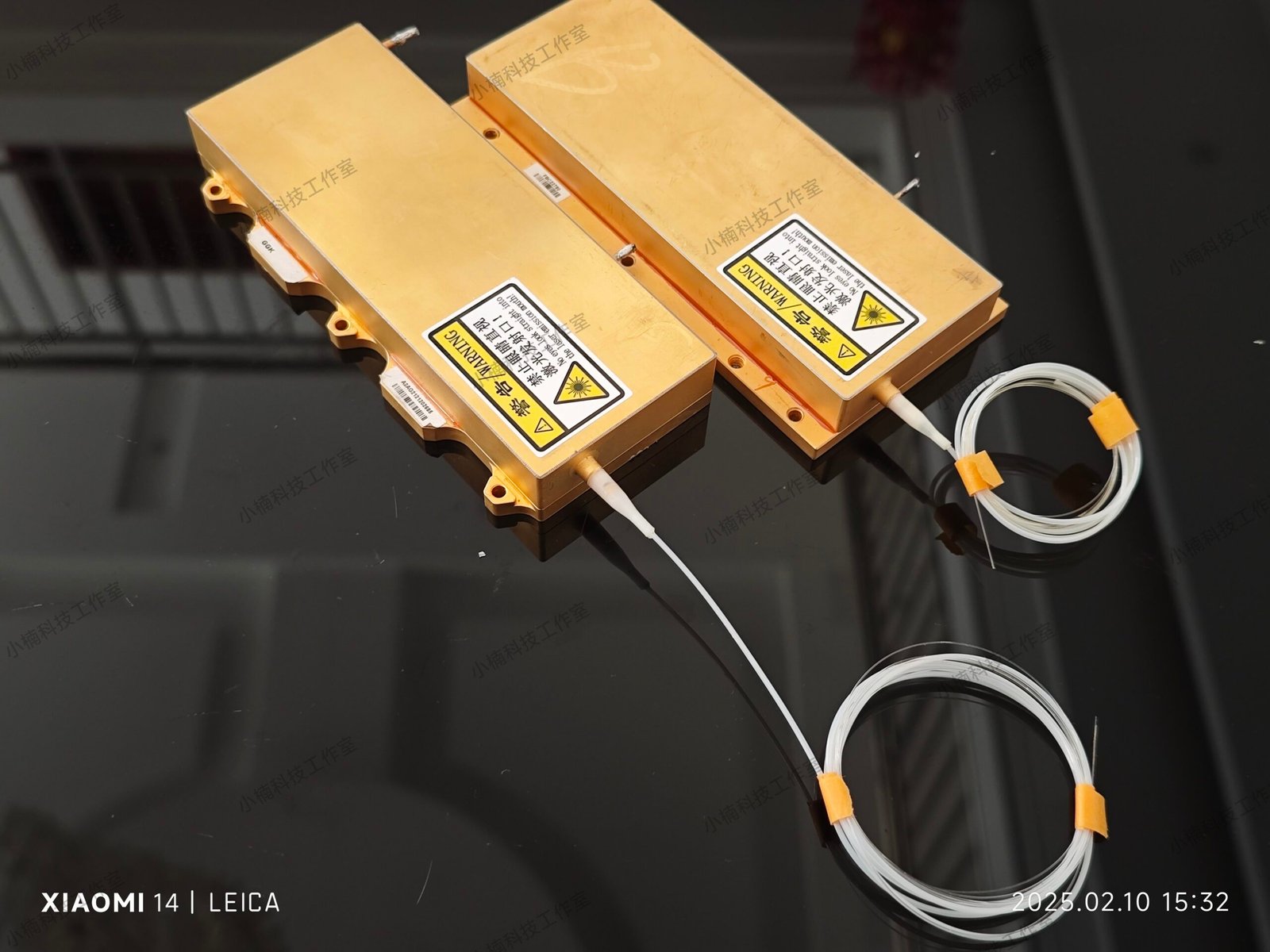

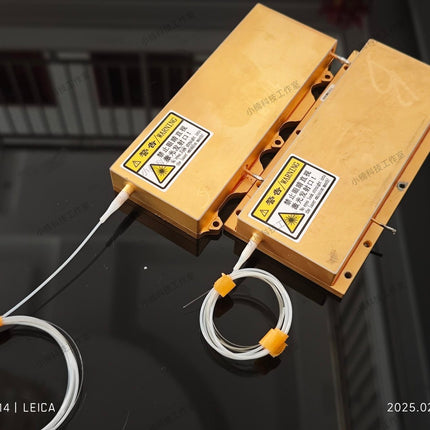

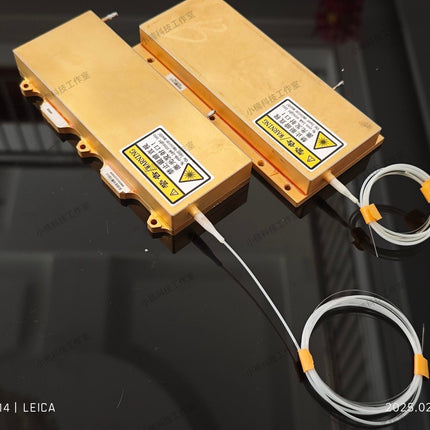

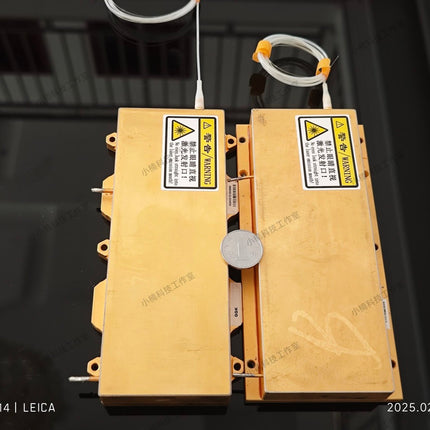

Name: Raycus 260W 915nm Fiber-Coupled Diode Laser Pump Source - B-Stock
Brand: LaserOne

Description

This listing offers a fully functional Raycus 260W high-power infrared diode laser module, sold as a B-stock or refurbished unit ideal for R&D, prototyping, repair, and budget-conscious industrial applications. As a decommissioned or repaired pump source, it provides substantial cost savings while delivering robust 260W optical output at 915nm wavelength. The module comes with a standard fiber pigtail and is perfect for users experienced with integrating high-power laser diodes into cooling systems and drive electronics.

Important Note: This is a used/refurbished industrial component. It requires proper handling, appropriate supporting equipment (constant current driver, active cooling), and strict adherence to operational guidelines to function safely and reliably.

Technical Specifications & Condition

Optical Output:
- Power: 260W nominal (tested before shipping, report provided).
- Wavelength: 915nm (±3nm). Invisible infrared light – exercise extreme caution.
- Spectral Width: < 5nm FWHM (typical).
Electrical Input:
- Drive Requirement: Constant Current (CC) DC Source.
- Operating Voltage: ~2V (typical).
- Operating Current: ~18A DC.
- Threshold Current: ~3A (approx.).
- Warning: Cannot be connected directly to a battery or voltage source without current regulation.
Fiber Output:
- Type: Standard low-cost silica fiber (jacket may show signs of prior use).
- Core Diameter: Typically 400µm or 600µm (varies per unit, specified in test report).
- Connector: Standard output ferrule (bare fiber or simple connector, depending on unit). Note: Fiber is fragile. Replacements are available.
Thermal Management (CRITICAL):
- Cooling: Mandatory external heatsink/active liquid cooling required during operation.
- Max Case Temperature: 40°C during operation for stable power. Power degrades above 45°C.
- Critical Temperature: 65°C – risk of permanent catastrophic failure.
Physical & Environmental:
- Condition: Used/Refurbished. Cosmetics may vary. Fully tested for power output.
- Optics: May be bare emitter (collimated version) or fiber-coupled. Includes protective window/lens where applicable.
- Storage: Store with positive/negative terminals shorted to prevent ESD damage. Environment: 8-40°C, <15% humidity recommended.

Key Features & Package Contents

High Power, Low Cost: Access 260W of infrared laser power at a fraction of the cost of a new unit.
Pre-Shipment Testing: Each unit comes with a specific test report and video demonstrating optical power output.
Industrial Proven: Built on Raycus's reliable diode platform, suitable for demanding applications.
Package Includes:
1. One Raycus 260W Laser Diode Module (condition as described).
2. Fiber optic pigtail attached (length and condition vary).
3. Pre-shipment test report and video documentation.
4. Basic safety and operation guidelines sheet.

Critical Operational & Safety Warnings

FOR EXPERIENCED USERS ONLY. INVISIBLE INFRARED BEAM HAZARD – CLASS 4 LASER PRODUCT.

Thermal Management: You must provide an adequate heatsink or water-cooling plate. Monitor temperature continuously. Operation without cooling causes instant failure.
Drive Electronics: Must use a constant current laser diode driver (18A, compliance voltage >2.5V). Incorrect driving destroys the diode.
Beam Hazard: Output is invisible 915nm IR. Always use appropriate IR sensor cards or a camera to visualize the beam. Never look into the beam or its reflections.
Material Compatibility: Effective on wood, dark paper, steel, and some dark plastics. DO NOT use on copper, aluminum, or mirrored surfaces – high reflectivity can damage the laser diode.
Fiber Handling: The attached fiber is a consumable. Avoid sharp bends. If the output end burns, it can be re-cleaved with a fiber cleaver. Handle with care.
Optics Protection: Keep optics clean and free of dust/water. Maintain distance when processing metals to avoid splatter damaging the output lens/fiber tip.
Storage: Always short the input pins together when not in use to prevent Electrostatic Discharge (ESD) damage.

Applications (Ideal For)

Prototyping high-power laser systems.
Replacing a failed pump module in existing equipment.
DIY and research projects requiring substantial IR laser power (cutting, welding experiments).
Educational demonstrations (with strict safety protocols).
Thermal processing of compatible materials.

Ordering Information (SKU Details)

SKU Code	Description	Condition	Primary Use	Notes
RLD-260-915-FC-REF	Raycus 260W, 915nm, Fiber-Coupled	Used/Refurbished	Replacement, R&D, Prototyping	Standard listing. Unit specifics in test report.
RLD-260-915-BARE-REF	Raycus 260W, 915nm, Collimated Output	Used/Refurbished	Direct integration into custom optics	"Lens head" version. Requires precise collimation.

Disclaimer: This is a used industrial component sold "as tested." It is not suitable for beginners. By purchasing, the buyer acknowledges understanding the operational requirements and inherent risks of handling high-power, invisible laser diodes. Strict adherence to the provided guidelines is mandatory for safe operation. Warranty is limited to non-function upon arrival as demonstrated in the pre-ship test video. Damage from improper use, cooling failure, or electrical mishandling is not covered.
