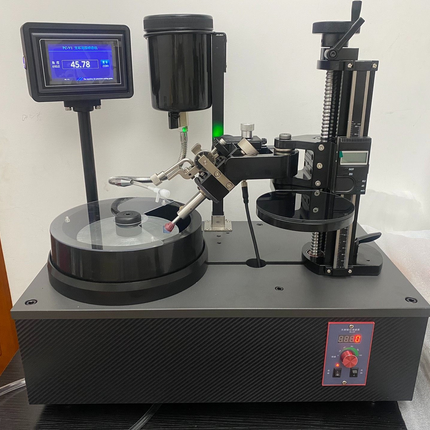

Precision, Quantified. Turn Mastery into a Repeatable Process.
Engineered for the modern gem artisan, this machine transforms intuition into data. It combines patented hardware angle stops, high-resolution digital readouts (0.01°/0.01mm), and a robust 500W brushless motor to deliver unmatched speed, stability, and repeatability. Designed for both dedicated studios and passionate self-learners, it makes achieving professional-grade facets and polishes a precise, accessible, and almost effortless art form.
(Key Features Bullet Points)
-
QUANTIFIED DIGITAL CONTROL: Features a digital angle display (0.01° resolution) and a digital height scale (0.01mm resolution, memory-retentive), eliminating guesswork for perfect facet indexing and depth control.
-
DUAL LIMIT SYSTEM FOR CONFIDENCE: Unique patented mechanical hard stops provide absolute, tactile angle references, while the high-resolution sensor also acts as a soft limit, ensuring flawless repeatability between cutting and polishing stages.
-
HIGH-SPEED, ULTRA-STABLE PLATFORM: Powered by a 500W brushless DC motor (0-3000+ RPM) with digital speed readout and forward/reverse control. Built on a hard-anodized, precision-milled 6061 aluminum table with <0.003mm spindle runout.
-
EXPERT-LEVEL PRECISION MECHANICS: Incorporates high-precision ball screws and linear guides for the Z-axis, and premium imported bearings throughout, resulting in smooth, vibration-free operation critical for fine polish.
-
DESIGNED FOR EFFICIENT WORKFLOW: The intuitive, precise adjustment mechanisms allow rapid, error-free switching between complex facet cutting and broad polishing, dramatically improving productivity.
(Detailed Description Sections)
Where Engineering Meets the Lapidary Art
This machine is built for those who understand that true craftsmanship is supported by impeccable tools. The dual-limit system is revolutionary: set your precise angle digitally, then lock it in with the physical hard stop for unwavering consistency across dozens of identical facets. The robust 25kg construction absorbs vibration, allowing the high-power motor to run smoothly at any speed, from aggressive pre-forming to the final polish.
Technical Specifications & Build Quality
-
Angular System: Digital encoder with display. Resolution: 0.01°. Absolute accuracy: ±0.1°. Patented mechanical hard stop system.
-
Height (Z-Axis) System: Digital height gauge with memory. Resolution: 0.01mm. Driven by high-precision ball screw and linear slide.
-
Drive System: 500W Brushless DC Motor. Digital RPM display. Forward/Reverse.
-
Spindle & Runout: Expert-tuned spindle assembly. Radial runout <0.003mm. Face runout <0.001mm.
-
Construction: Main table: Hard-anodized 6061-T6 aluminum, precision milled. All bearings: Premium imported brands.
-
Weight & Footprint: Approx. 25kg, providing solid stability.
Ideal User Profile:
-
Professional Gem Studios: Demanding a machine that ensures batch consistency and reduces setup time for complex designs.
-
Serious Hobbyists & Self-Taught Cutters: Seeking a "no-compromise" tool that provides clear feedback and shortens the path to mastery.
-
Design-Oriented Cutters: Who create custom geometric cuts and require reliable, precise angular replication.
-
Anyone Frustrated by the Limitations of traditional, analog machines.
What's Included (Core System):
-
1x Main Faceting/Polishing Machine with Digital Readouts
-
1x 500W Brushless Motor & Speed Controller
-
1x Mast, Spindle, and Index Gear Assembly
-
1x Full Set of Faceting Handpieces (e.g., 96-index)
-
Assorted Dops, Tooling, and Wrenches
-
(Peripheral items like loupes or specific laps may be separate)
(Call to Action)
Stop approximating. Start executing with digital certainty and mechanical confidence.
Elevate your lapidary work to an exact science. Inquire today for detailed specifications and availability.
