Description

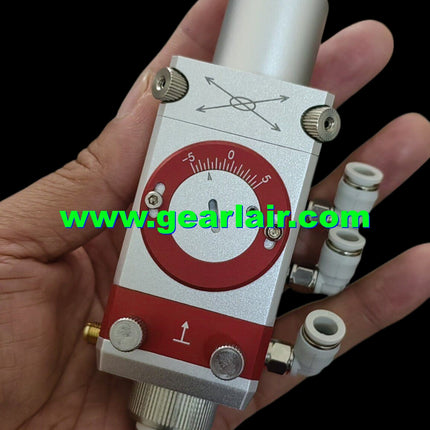

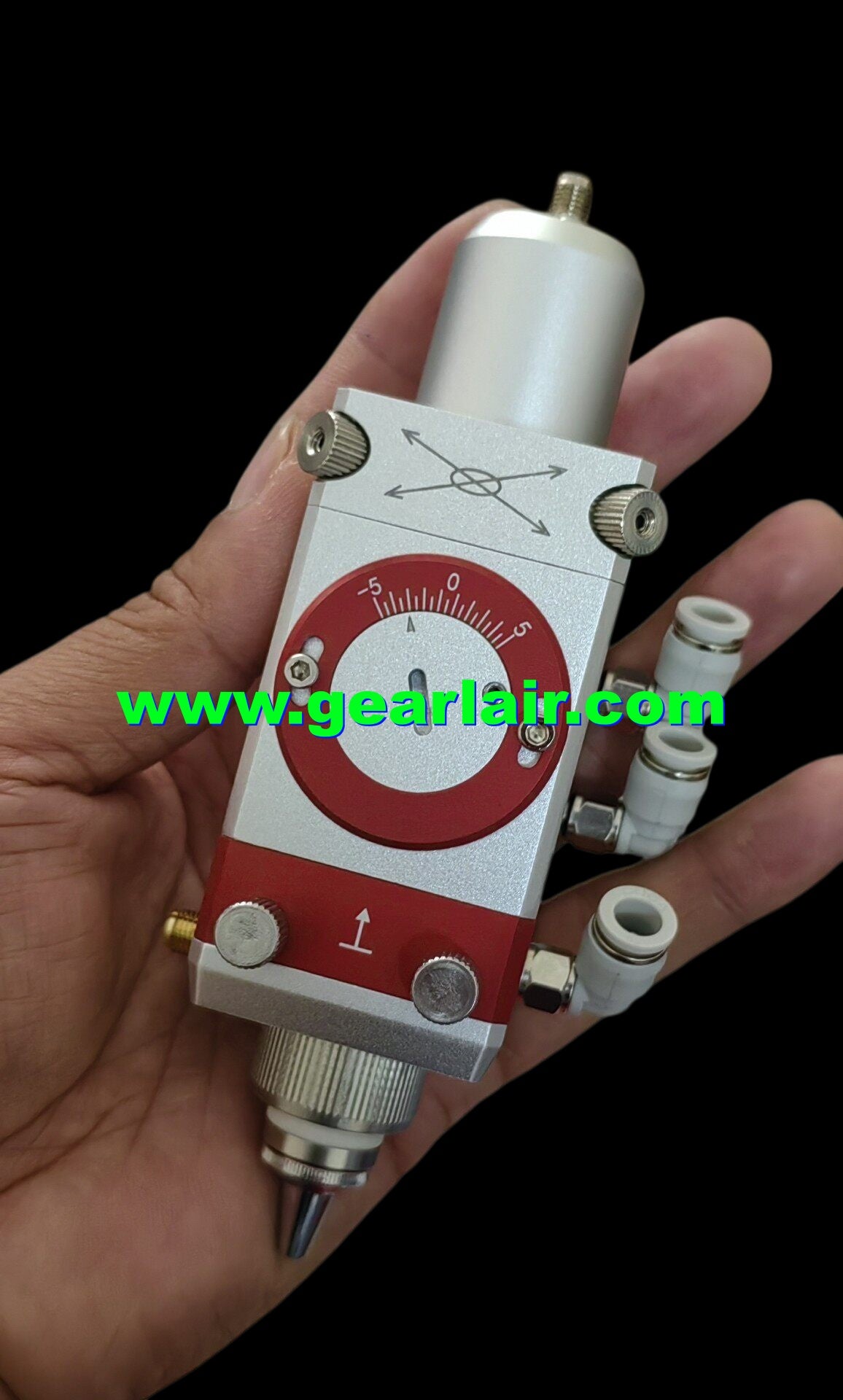

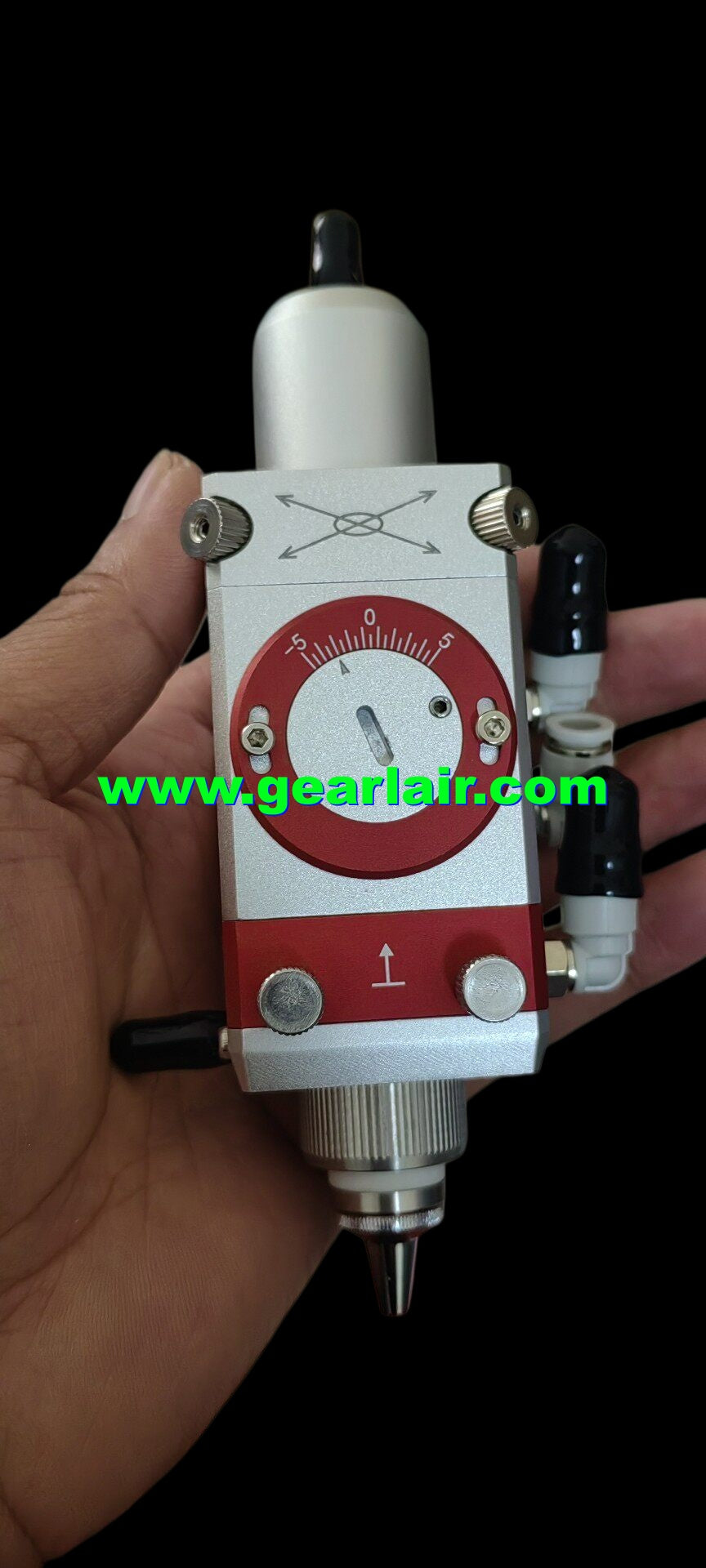

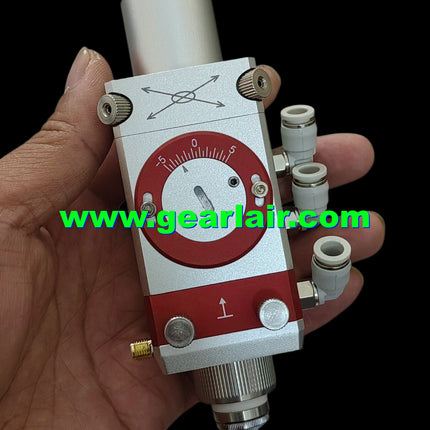

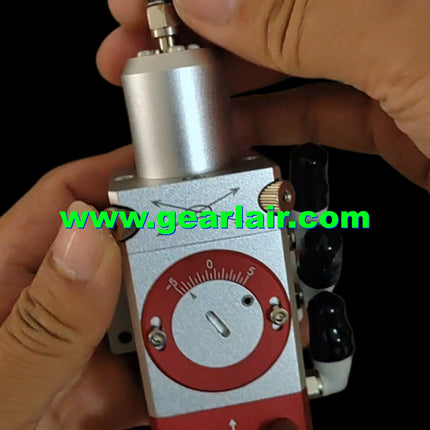

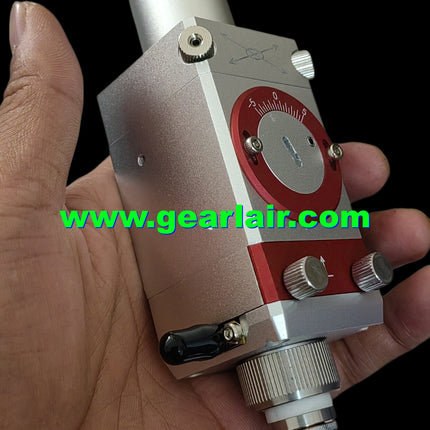

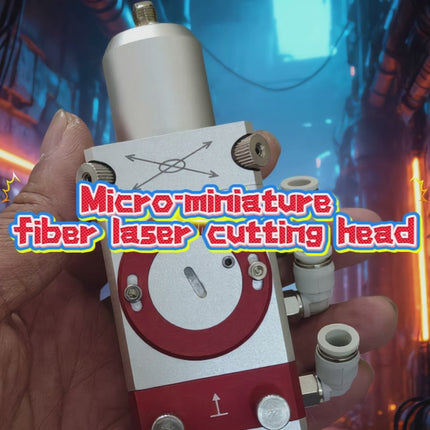

Designed specifically for DIY laser cutter builders, makers, and small workshops. This micro mini fiber laser cutting head packs professional-grade features into an incredibly compact, lightweight body (just 415g). It supports standard fiber lasers with an SMA905 connector, includes capacitive height sensing, manual focus adjustment, and a fast-change protective window – all at an affordable price. Perfect for building your own desktop metal cutter.

Key Features

Ultra-Compact & Lightweight

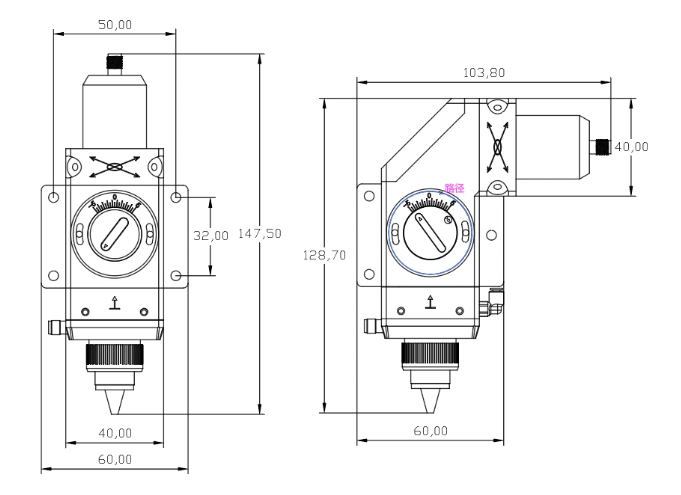

  • Dimensions: 150×70×60 mm

  • Net weight: only 415g – ideal for desktop gantries and small motion systems.

High Power Support (DIY-Friendly)

  • Supports single laser pump power up to 2000W (1000W version also available)

  • Standard SMA905 fiber connector – easy to connect to common fiber laser sources.

Wide Wavelength Compatibility

  • Factory-tuned for 915–1064nm (common fiber laser range) – no lens change needed.

  • To use other wavelengths, simply replace the coating-matched collimating/focusing lenses to minimize reflection loss.

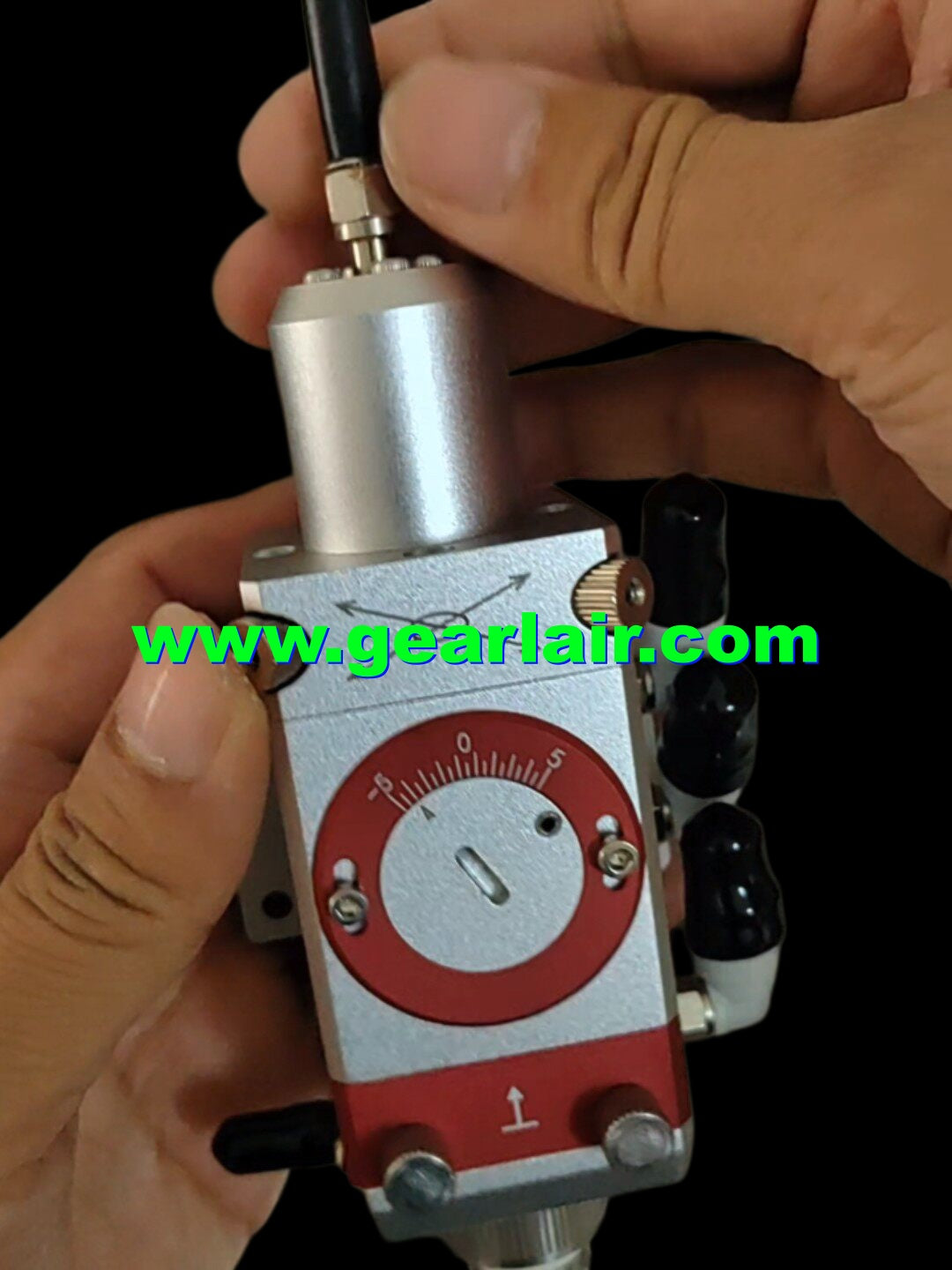

Spot Centering + Manual Focus Adjustment

  • Built-in spot centering function.

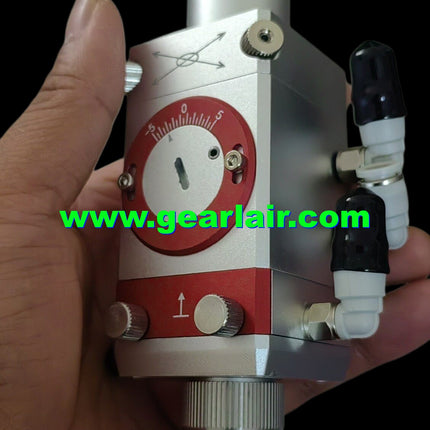

  • ±5mm manual fine focus – easily find the optimal focal point for clean cuts and efficient engraving.

Capacitive Sensor for Auto Height Follow

  • Integrated capacitive sensing module allows automatic Z-axis height tracking.

  • Maintains consistent cutting quality on uneven materials or during vibrations.

Drawer-Style Protective Window

  • Quick-change design – no need to disassemble the whole head.

  • Replace the protective window in seconds, minimizing downtime.

Standard Nozzle & Flexible Air/Water Cooling

  • Uses standard interchangeable nozzles – easy to swap diameters for different materials.

  • Air tube: OD 6mm, recommended pressure 7–15 bar (or 10–15 bar for heavy use).

  • Water cooling: OD 6mm, flow rate ≥50 L/min recommended for sustained high-power operation.

Optics (Standard Configuration)

  • Collimating lens: D20F40

  • Focusing lens: D20F70

  • Protective window: D20×2mm

Cutting Capability & Applications

  • Designed for cutting & engraving: steel (mild steel, stainless steel) up to 3mm thickness.

  • Typical DIY uses: custom metal parts, model making, small signage, sheet metal prototyping, education labs, maker projects.

  • For thicker materials or industrial-scale cutting, please use a professional high-power industrial laser cutter.

Important Notes

  • This product is intended for DIY / light industrial use, not fully automated heavy-duty industrial systems.

  • When switching to a wavelength other than 1064nm, both the collimating and focusing lenses must be replaced with the corresponding anti-reflective/high-transmission coatings.

  • For best performance with capacitive auto-follow, pair with a servo or closed-loop Z-axis control system.


Short Description (for product listing or card view)

Tiny fiber cutting head for DIY. Supports 2000W, SMA905, capacitive auto-follow, ±5mm focus, quick-change window. Build your own laser cutter that slices through 3mm steel. Affordable, capable, and compact.

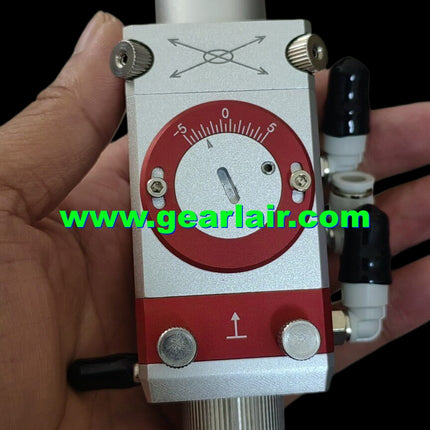

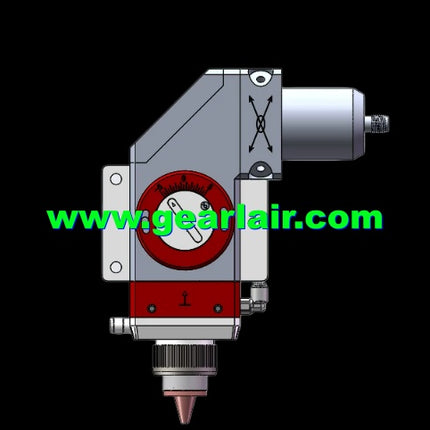

Micro Mini Fiber Laser Cutting Head for DIY – 2000W, SMA905, Capacitive Auto-Follow, Focus Adjustable

Product form

$480.00

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 05, 2026 23:59:00 -0500
    • Free shipping on all orders above 500
    • No hassle returns, 30 days return

    Description


    Designed specifically for DIY laser cutter builders, makers, and small workshops. This micro mini fiber laser cutting head packs professional-grade features into an incredibly compact, lightweight body (just 415g). It supports standard fiber lasers with an SMA905 connector, includes capacitive height sensing, manual focus adjustment, and a fast-change protective window – all at an affordable price. Perfect for building your own desktop metal cutter.

    Key Features

    Ultra-Compact & Lightweight

    • Dimensions: 150×70×60 mm

    • Net weight: only 415g – ideal for desktop gantries and small motion systems.

    High Power Support (DIY-Friendly)

    • Supports single laser pump power up to 2000W (1000W version also available)

    • Standard SMA905 fiber connector – easy to connect to common fiber laser sources.

    Wide Wavelength Compatibility

    • Factory-tuned for 915–1064nm (common fiber laser range) – no lens change needed.

    • To use other wavelengths, simply replace the coating-matched collimating/focusing lenses to minimize reflection loss.

    Spot Centering + Manual Focus Adjustment

    • Built-in spot centering function.

    • ±5mm manual fine focus – easily find the optimal focal point for clean cuts and efficient engraving.

    Capacitive Sensor for Auto Height Follow

    • Integrated capacitive sensing module allows automatic Z-axis height tracking.

    • Maintains consistent cutting quality on uneven materials or during vibrations.

    Drawer-Style Protective Window

    • Quick-change design – no need to disassemble the whole head.

    • Replace the protective window in seconds, minimizing downtime.

    Standard Nozzle & Flexible Air/Water Cooling

    • Uses standard interchangeable nozzles – easy to swap diameters for different materials.

    • Air tube: OD 6mm, recommended pressure 7–15 bar (or 10–15 bar for heavy use).

    • Water cooling: OD 6mm, flow rate ≥50 L/min recommended for sustained high-power operation.

    Optics (Standard Configuration)

    • Collimating lens: D20F40

    • Focusing lens: D20F70

    • Protective window: D20×2mm

    Cutting Capability & Applications

    • Designed for cutting & engraving: steel (mild steel, stainless steel) up to 3mm thickness.

    • Typical DIY uses: custom metal parts, model making, small signage, sheet metal prototyping, education labs, maker projects.

    • For thicker materials or industrial-scale cutting, please use a professional high-power industrial laser cutter.

    Important Notes

    • This product is intended for DIY / light industrial use, not fully automated heavy-duty industrial systems.

    • When switching to a wavelength other than 1064nm, both the collimating and focusing lenses must be replaced with the corresponding anti-reflective/high-transmission coatings.

    • For best performance with capacitive auto-follow, pair with a servo or closed-loop Z-axis control system.


    Short Description (for product listing or card view)

    Tiny fiber cutting head for DIY. Supports 2000W, SMA905, capacitive auto-follow, ±5mm focus, quick-change window. Build your own laser cutter that slices through 3mm steel. Affordable, capable, and compact.
