Description

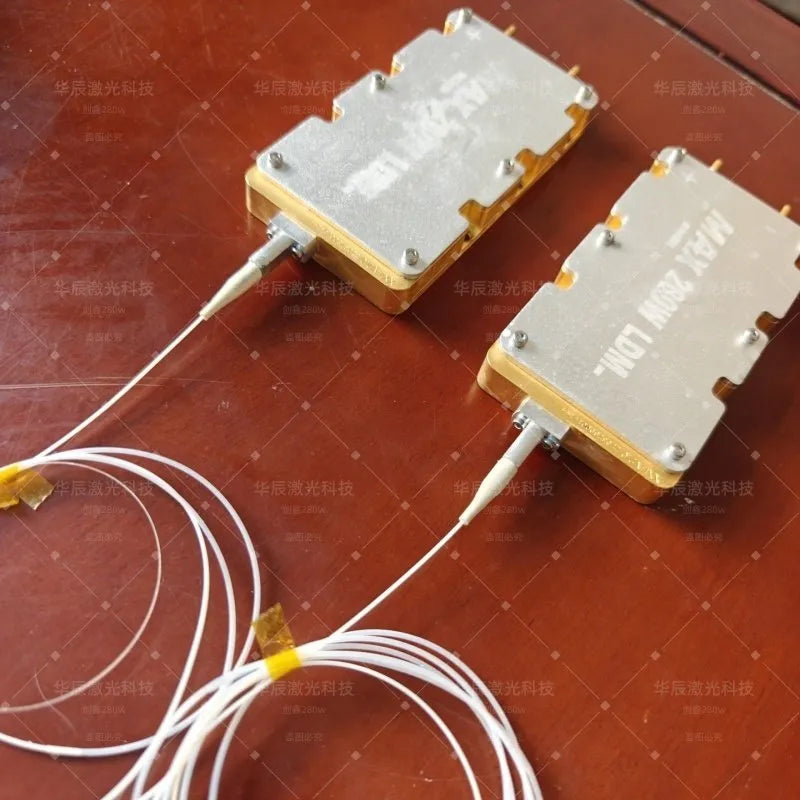

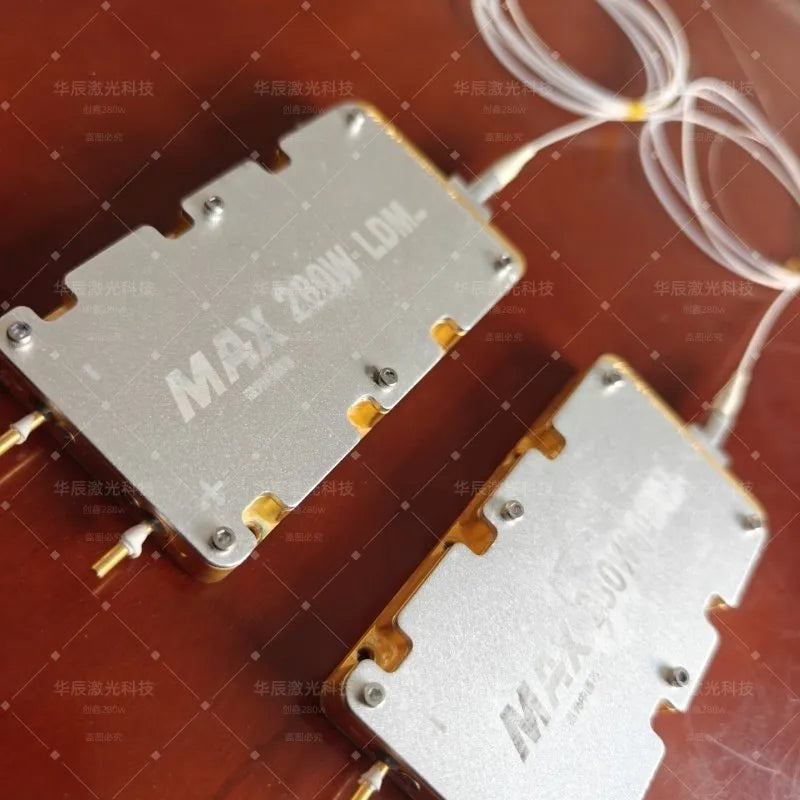

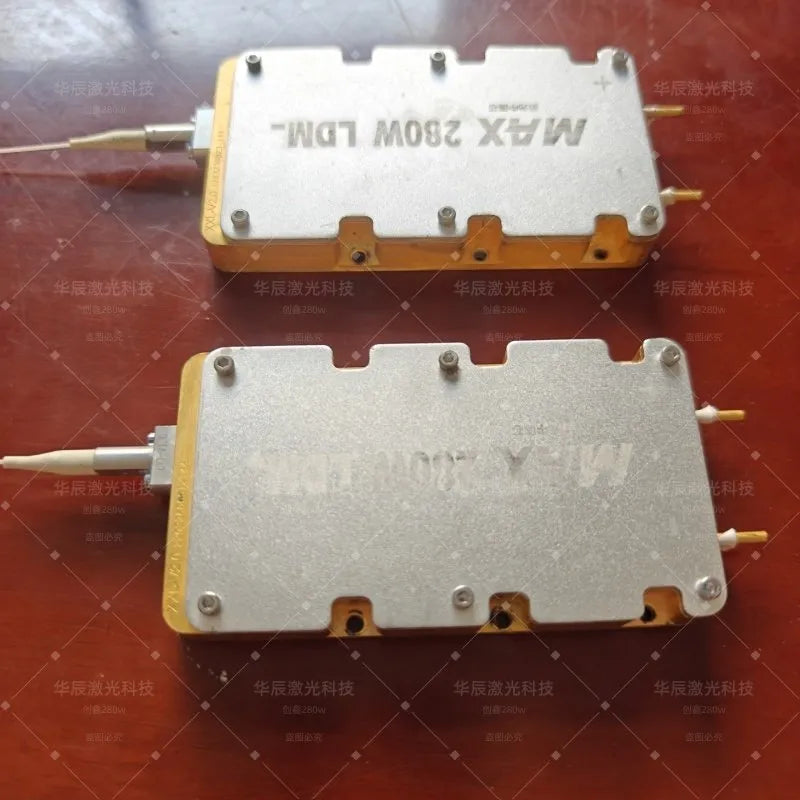

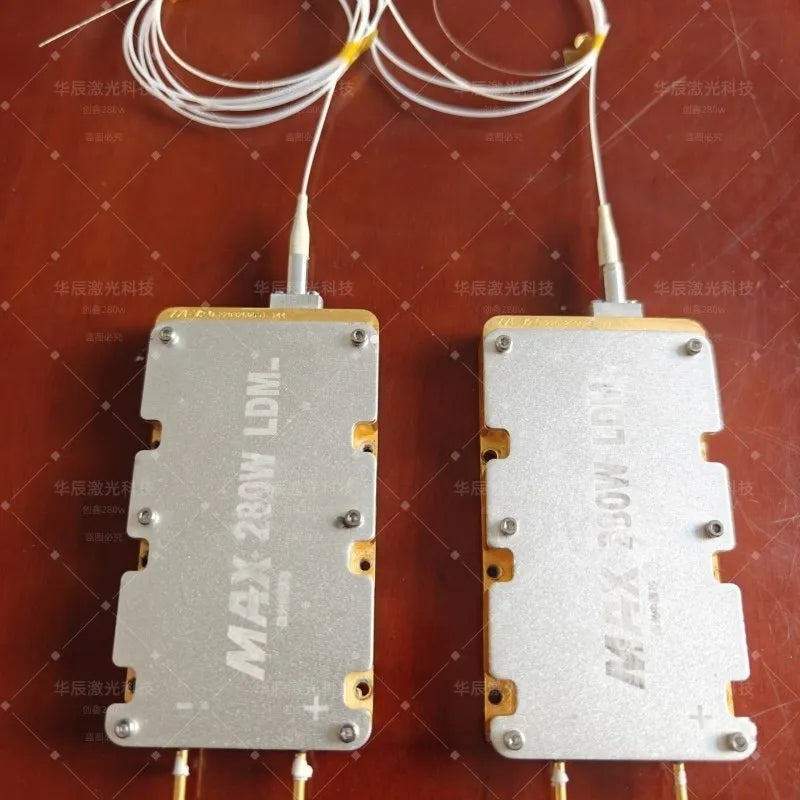

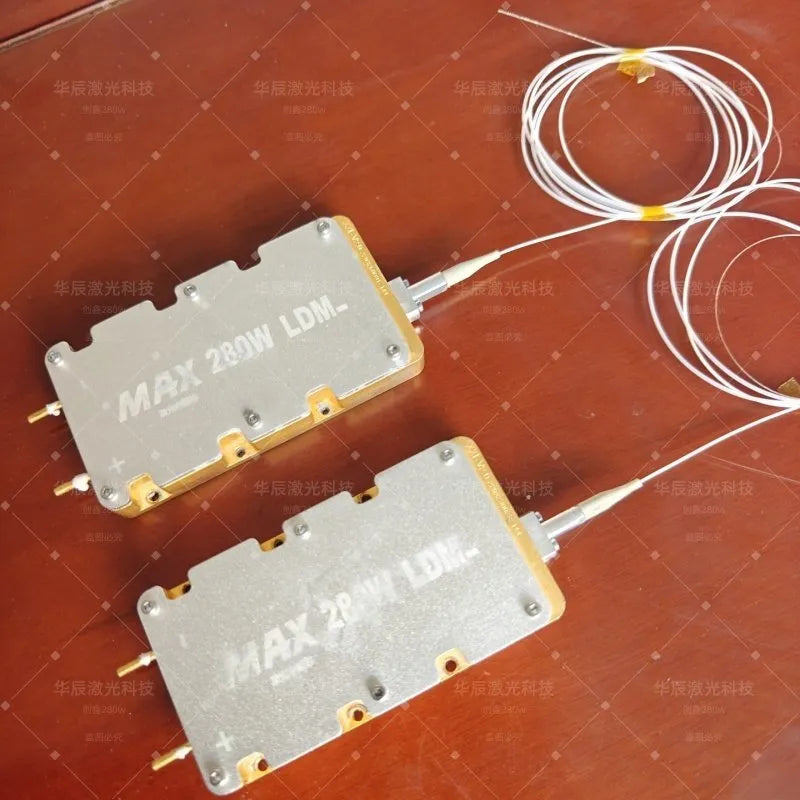

The MAX Innovation 280W Ultra-Slim Laser Pump Source Module is a compact, high-power laser diode array designed for integration into fiber laser cutting, welding, and cleaning systems. It delivers a stable 280W infrared output, optimized for pumping high-power ytterbium-doped fiber lasers. This refurbished, pre-owned unit features a slim profile and 1.5m fiber output, making it ideal for space-constrained laser systems and custom builds by professional users and advanced hobbyists.
Core Features
-
Ultra-Slim Design: Its low-profile housing saves critical space in compact laser rigs and custom installations.
-
High-Efficiency Pumping: Optimized infrared wavelength (typically 915nm/976nm) provides maximum absorption efficiency in ytterbium-doped fiber lasers.
-
Long Fiber Output: 1.5m multimode fiber offers flexible positioning and low-loss energy transfer to your target laser cavity.
-
Multiple Output Configurations: Choose from bare fiber, armored fiber with SMA905 quick connector, or armored fiber with collimating lens for precise beam focusing.
-
Industrial-Grade Reliability: Built by MAX Innovation, a trusted leader in fiber laser technology, ensuring consistent performance in demanding applications.
-
Pre-Shipment Testing: Each unit undergoes a functional test to confirm 280W output and reliability.
Technical Specifications
| Parameter |
Details |
| Product Name |
MAX Innovation 280W Ultra-Slim Laser Pump Source Module |
| Power Output |
280W (nominal; tested and verified) |
| Fiber Length |
1.5m (multimode, 200μm core) |
| Collimating Lens Specs |
1–2mm spot size, 35cm working distance |
| Fiber Bend Limit |
≤90° (to prevent signal loss and damage) |
| Operating Temperature |
≤45°C (requires active cooling) |
| Housing Material |
High-thermal-conductivity aluminum + gold-plated copper base |
| Primary Applications |
Pumping fiber laser cutting/welding/cleaning systems, custom laser builds, and research projects |
| Condition |
Refurbished (pre-owned, tested and verified for performance) |
| Operation Requirement |
Trained laser professionals or advanced users with technical expertise |
SKU Options
| SKU |
Configuration |
| MAX-280W-SLIM-BARE |

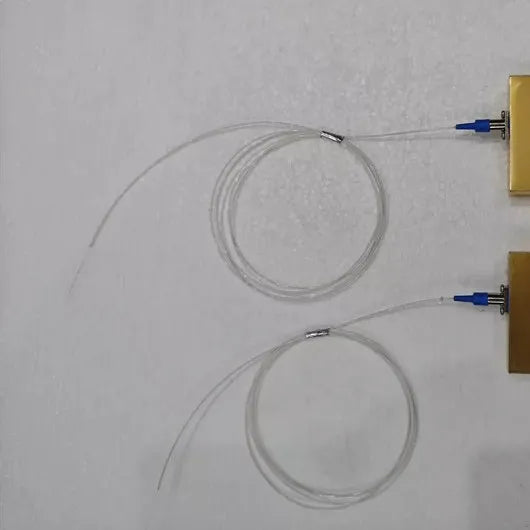

280W Ultra-Slim Laser Pump Source + 1.5m bare fiber |
| MAX-280W-SLIM-ARMORED |

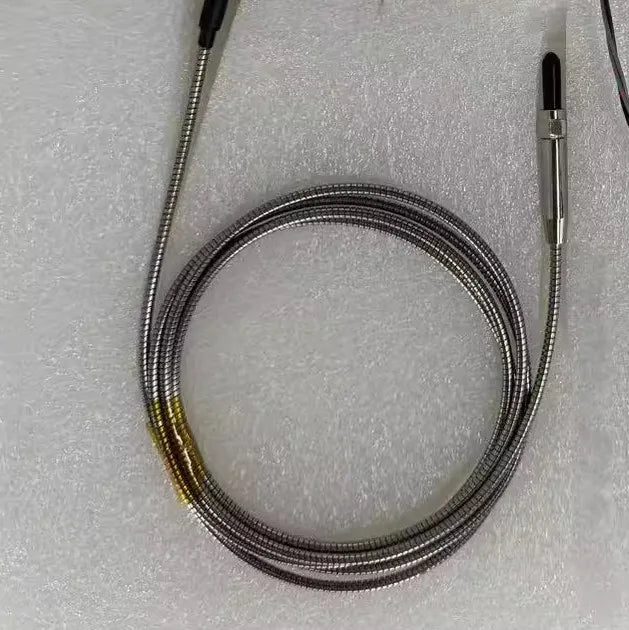

Module + 1.5m armored fiber + SMA905 quick connector |
| MAX-280W-SLIM-COLLIMATED |

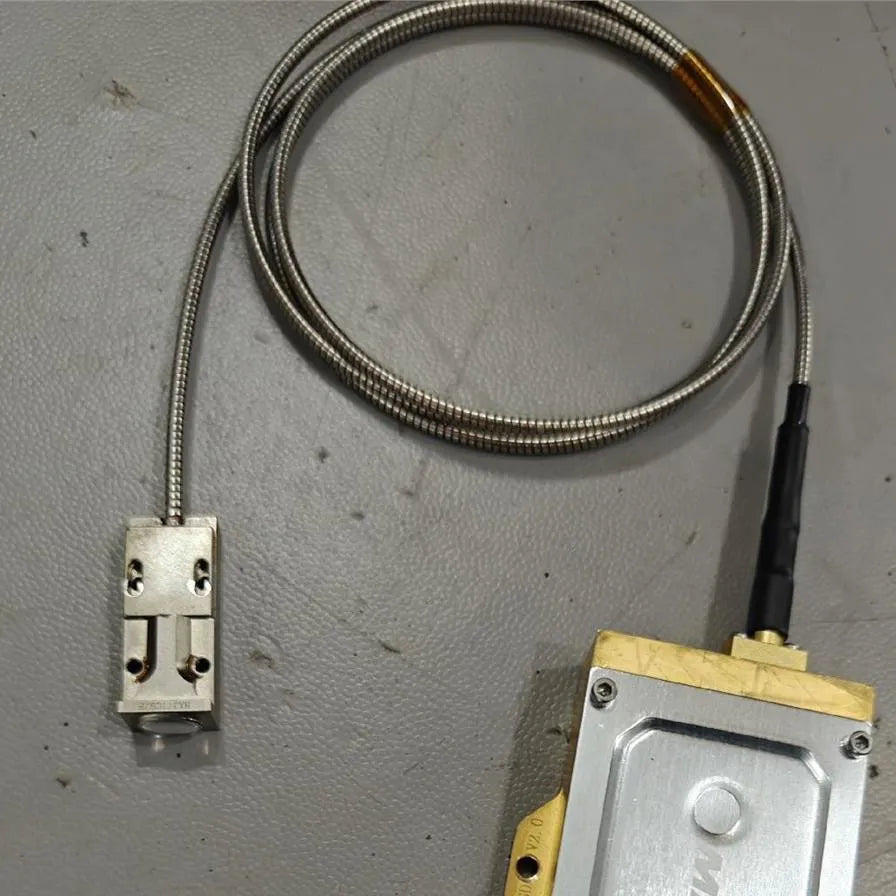

Module + 1.5m armored fiber + collimating lens (1–2mm spot, 35cm working distance) |
Why Choose This MAX Innovation Pump Source?
-
Space-Saving Design: The ultra-slim profile is perfect for compact laser systems and installations where space is at a premium.
-
Trusted Performance: MAX Innovation is a leading provider of fiber laser technology, ensuring exceptional reliability and output stability.
-
Flexible Integration: Multiple configurations and a 1.5m fiber output let you easily adapt this module to your specific laser system requirements.
-
Cost-Effective Solution: Refurbished units deliver professional-grade performance at a fraction of the cost of new modules.
Important Safety & Usage Notes
-
Thermal Management: A robust active cooling system (air or water) is required to maintain temperatures ≤45°C and prevent thermal runaway.
-
Laser Safety: Always wear appropriate laser safety goggles (OD 4+ for infrared wavelengths) when operating. Never point the beam at people, animals, or reflective surfaces.
-
Fiber Care: Ensure the optical fiber remains free of dust, splashes, and debris. Avoid bending beyond the 90° limit to prevent signal loss and damage.
-
Pre-Owned Terms: This is a refurbished, as-is unit. It is tested for functional performance but sold without return or exchange.
-
Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
