Description

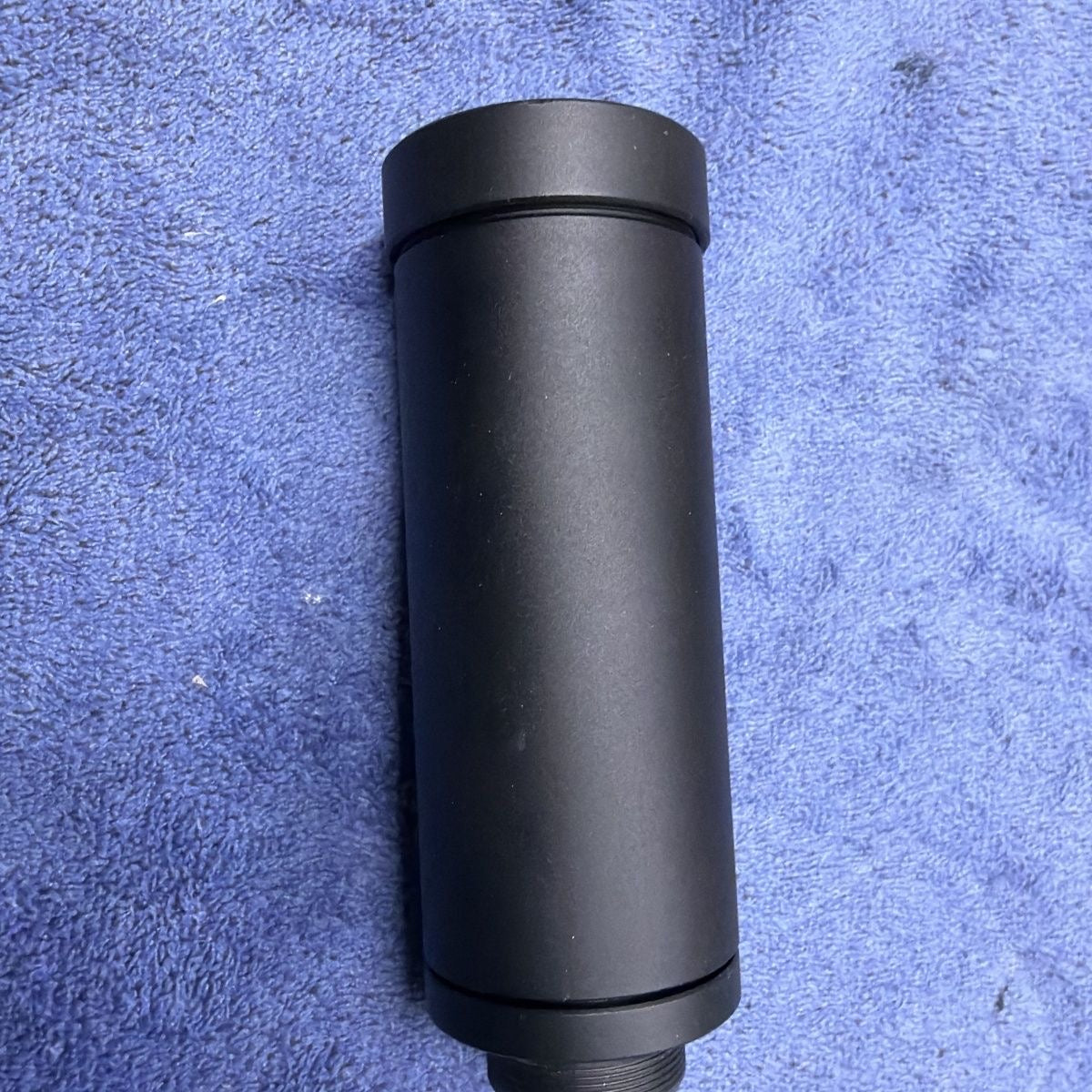

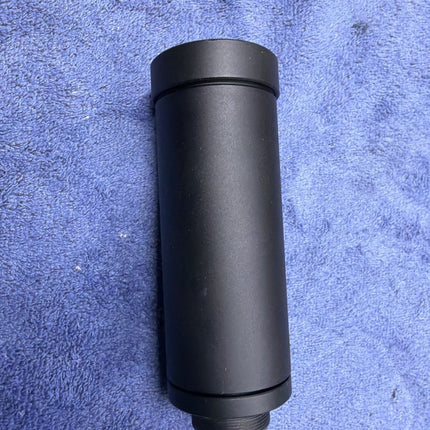

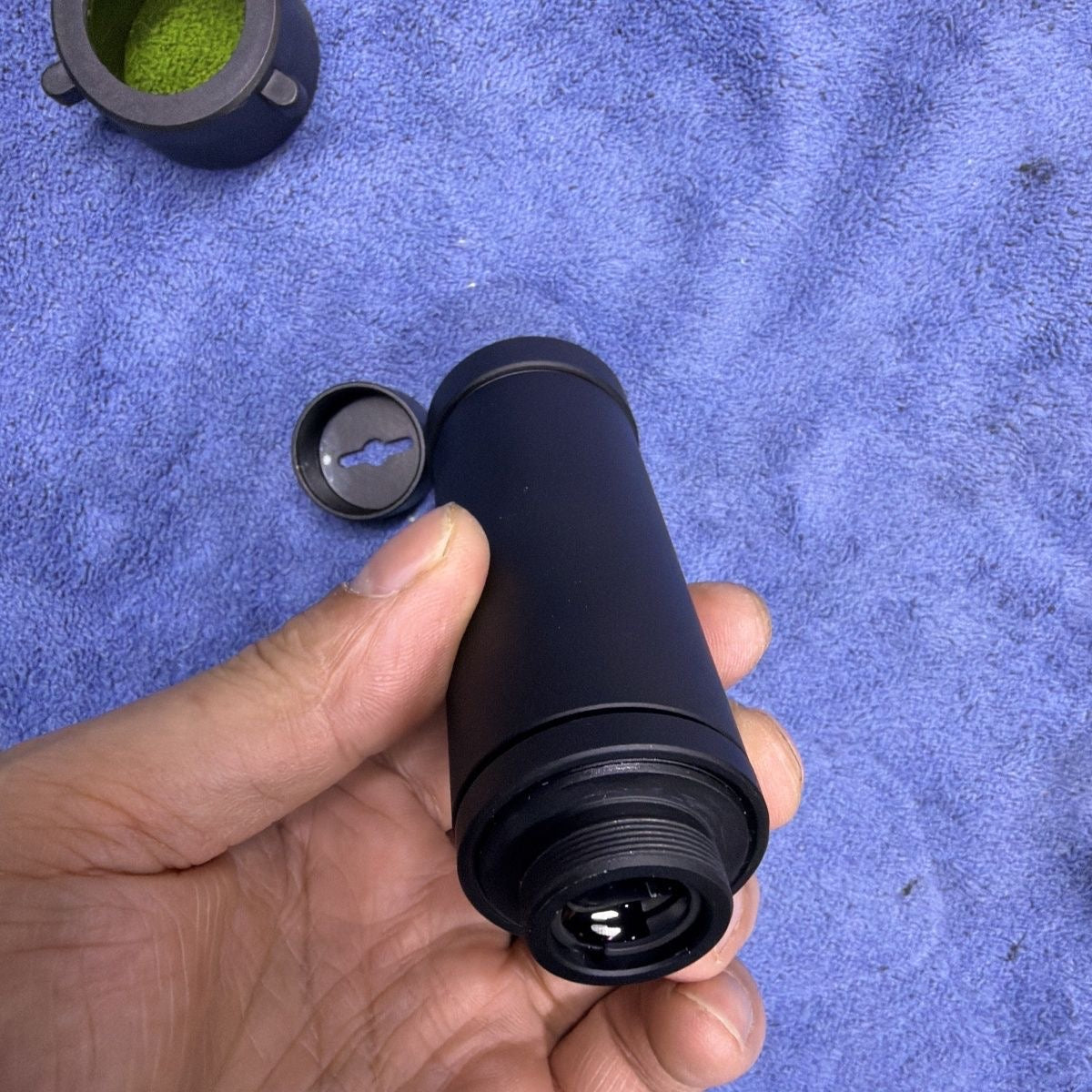

Laser Pumped Telescopic (Pull-Out) Lens, 10x Laser Beam Expander
Tested with the following:
IPG 7080: 9091921m ~ 8m
Ruike 120W: 1m ~ 10m
Chuangxin 130W: 1m ~ 15m
Chuangxin 260W: 1m ~ 20m

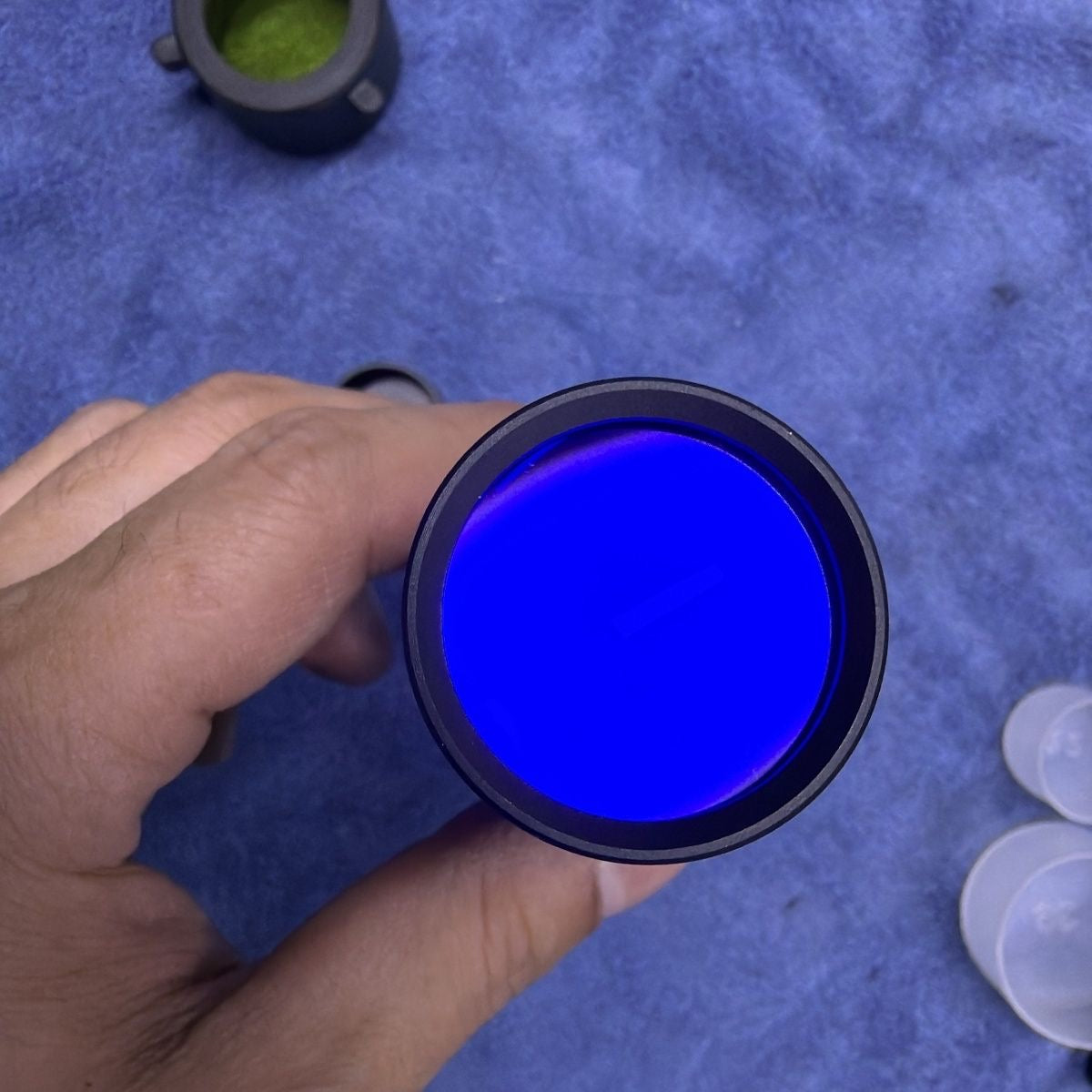

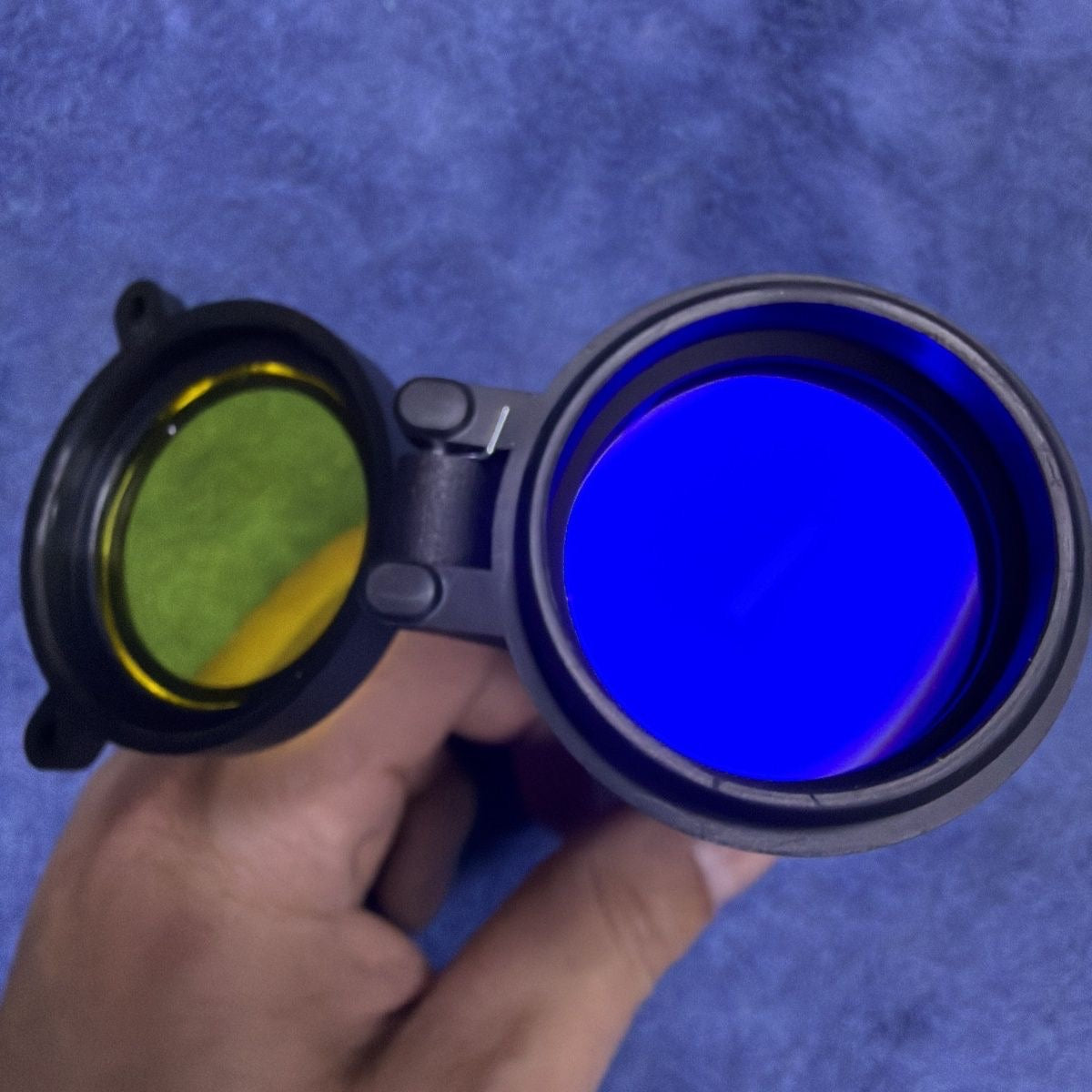

Suitable only for use below 300W. With 400W or 500W lasers, the lens barrel may overheat—thus not recommended for high-power applications. The lens features a highly reflective coating optimized for wavelengths between 900–1000 nm, ideal for common laser wavelengths such as 915, 974, and 976 nm. It is also designed to support coaxial red and green light, significantly improving transmission efficiency.

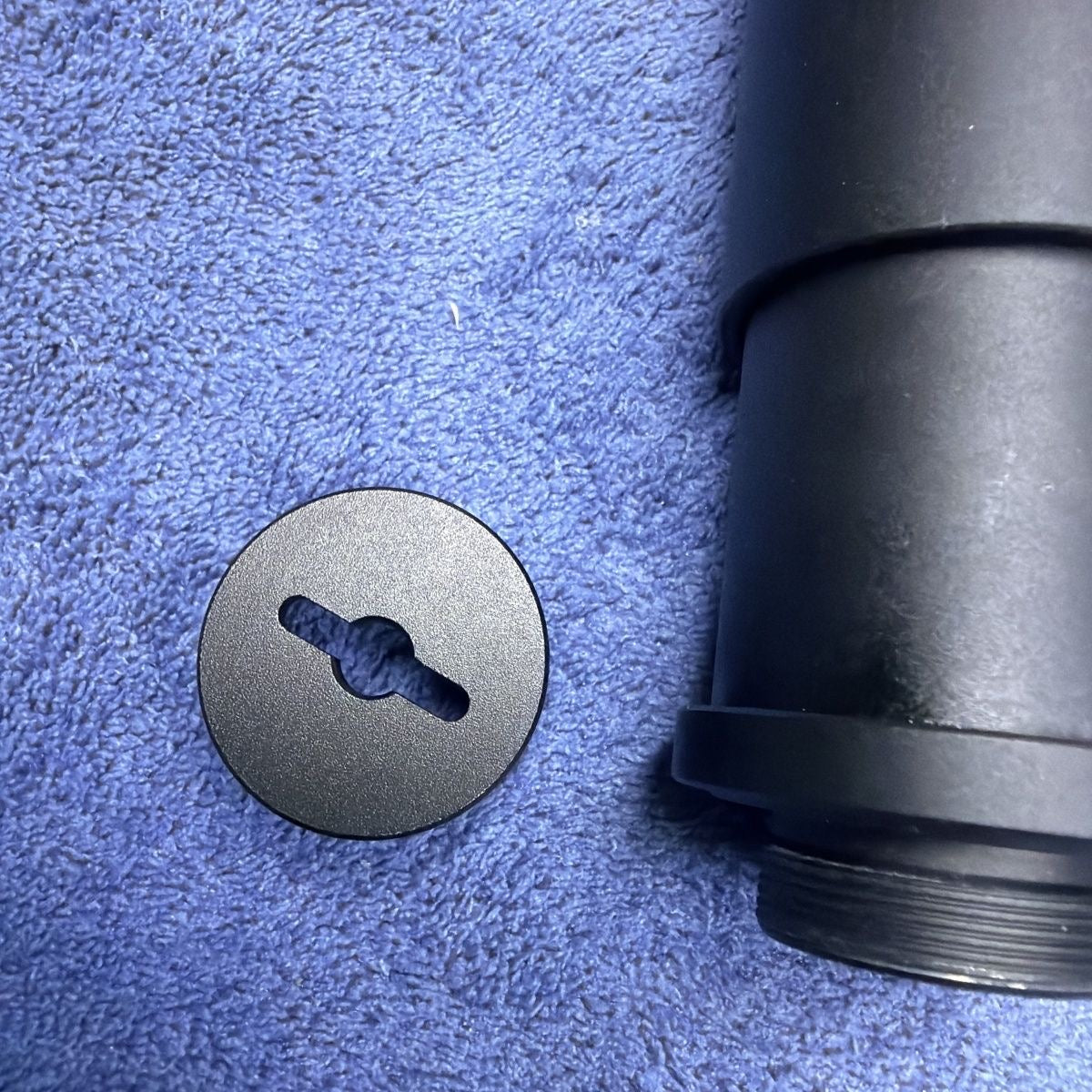

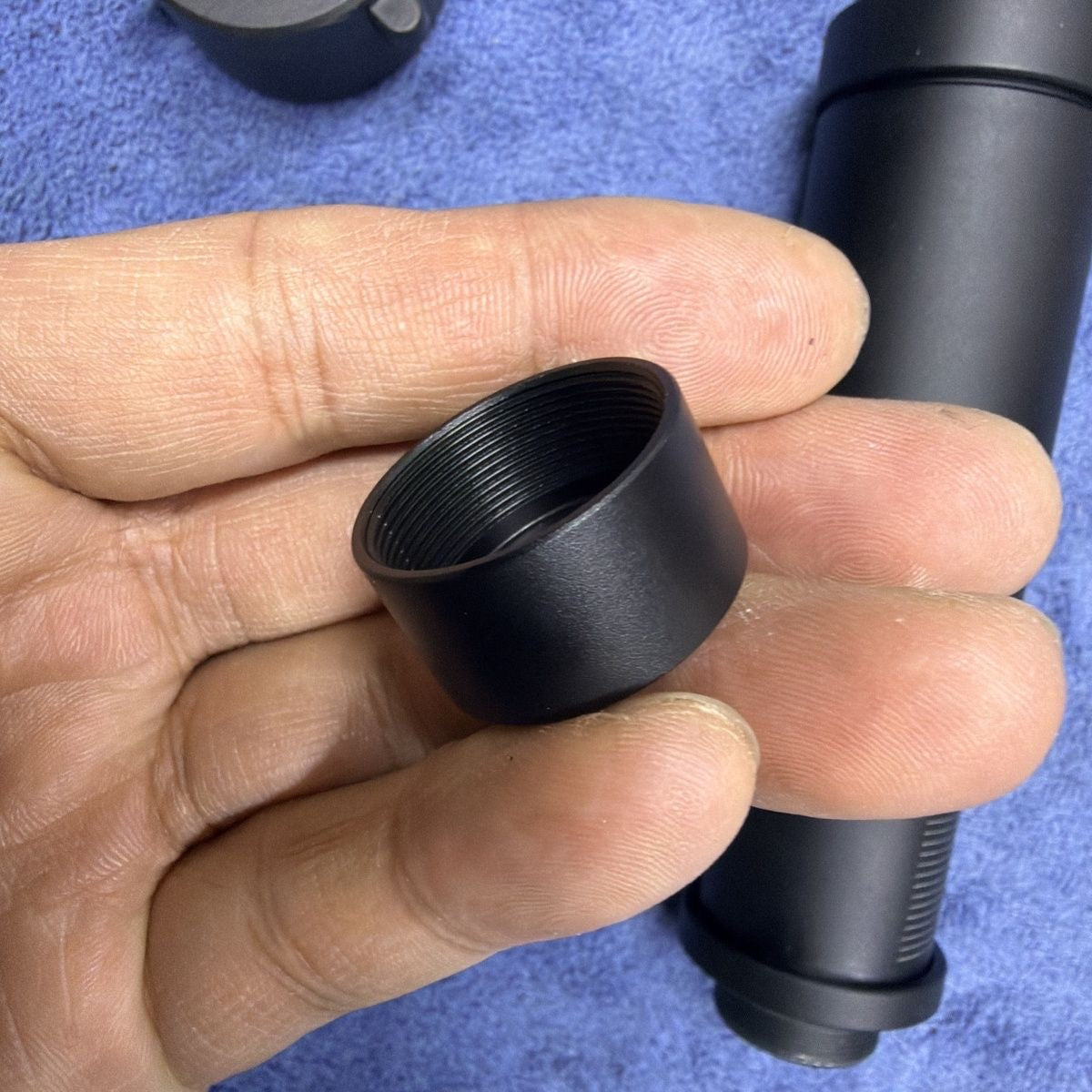

Lens base specifications: M22×0.75 (central aperture diameter 5mm; mounting screw hole with horizontal slot suitable for 2mm screws).

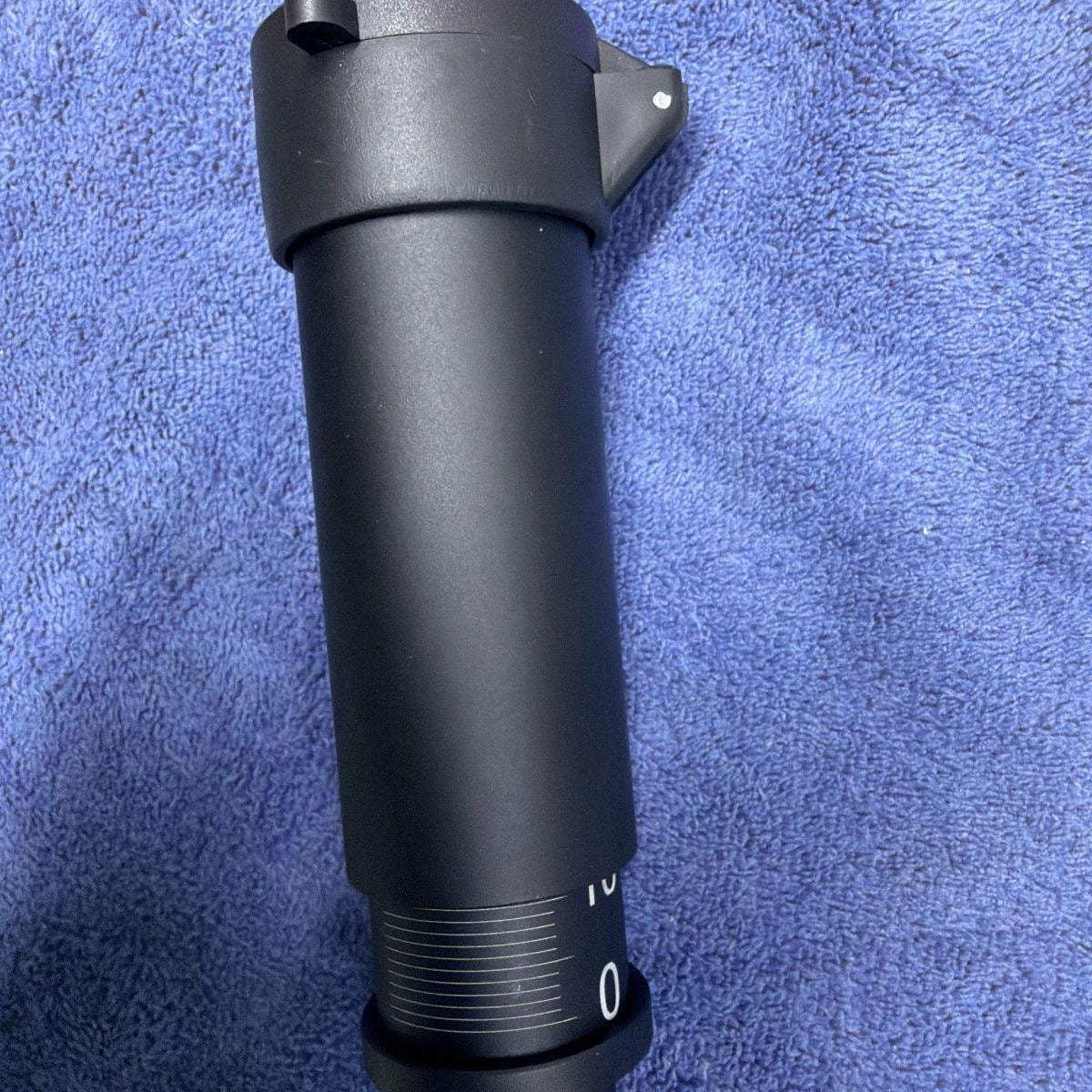

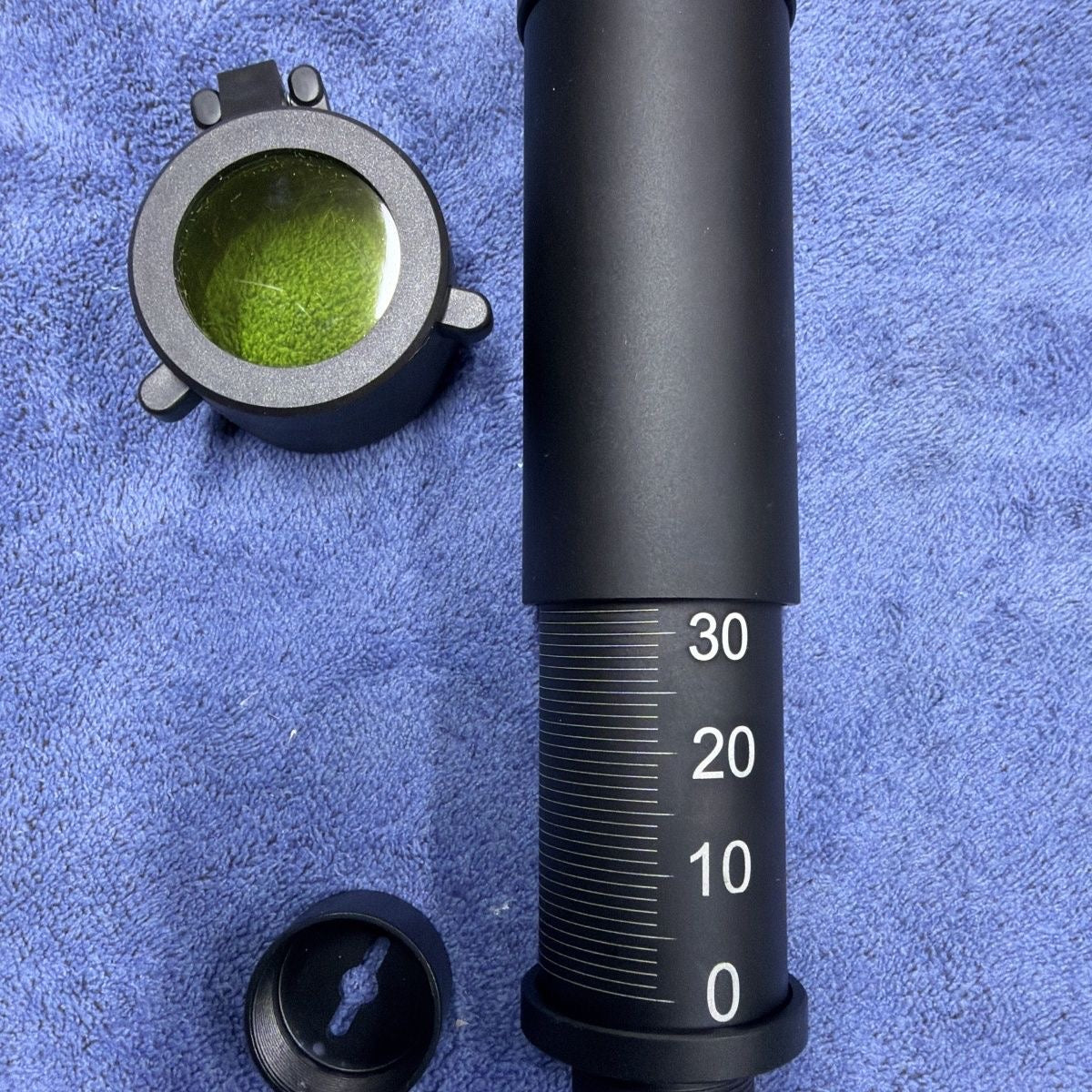

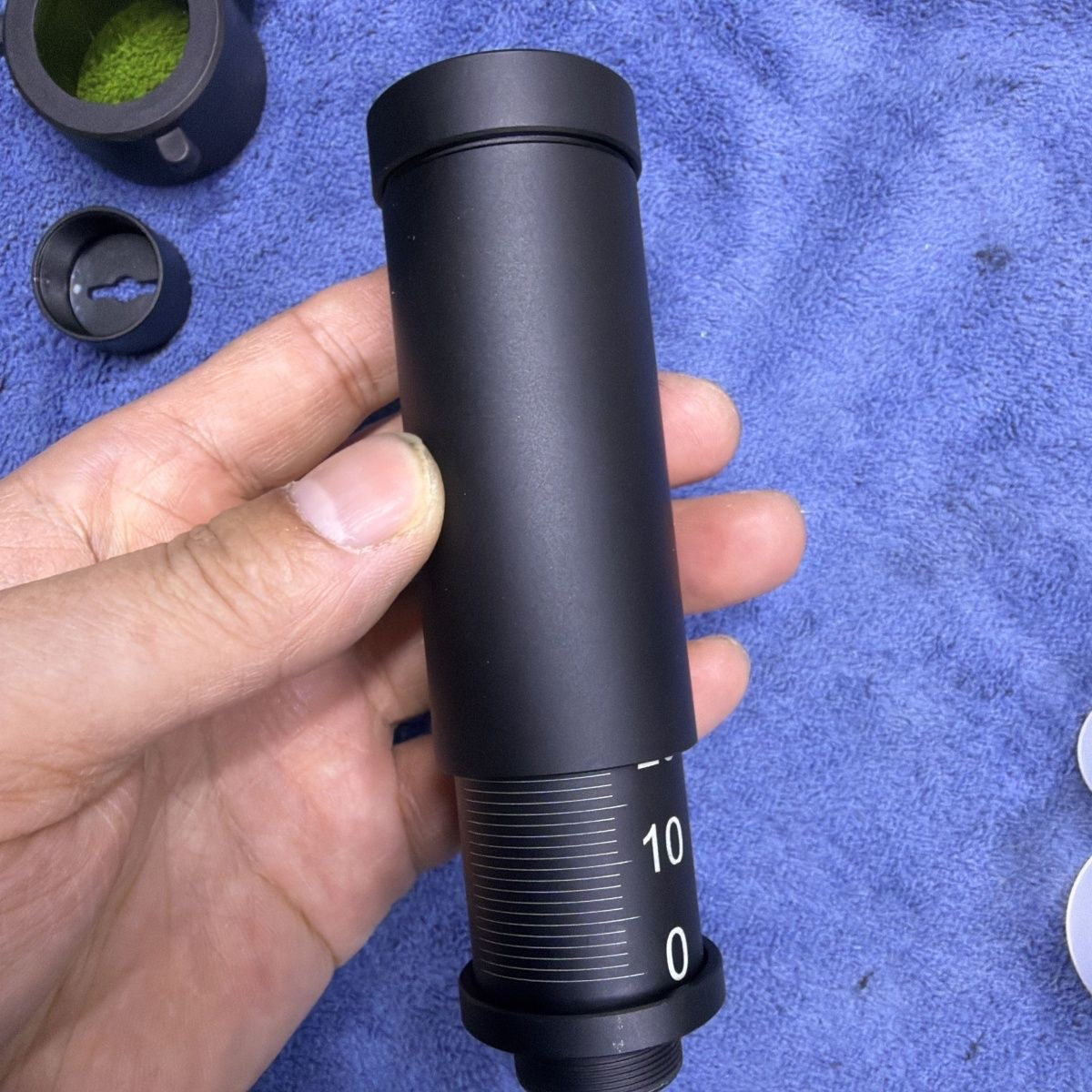

Note: The markings on the lens do not represent exact distances but serve as reference marks to remember approximate focusing positions during adjustment. Since each laser source has different beam divergence characteristics, these marks help ensure consistent alignment. When equipped with coaxial red or green light, adjusting spot size becomes much easier.

Laser Pumped Telescopic (Pull-Out) Lens, 10x Laser Beam Expander

Product form

$99.00

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 05, 2026 23:59:00 -0500
    • Free shipping on all orders above 500
    • No hassle returns, 30 days return

    Description

    Laser Pumped Telescopic (Pull-Out) Lens, 10x Laser Beam Expander
    Tested with the following:
    IPG 7080: 9091921m ~ 8m
    Ruike 120W: 1m ~ 10m
    Chuangxin 130W: 1m ~ 15m
    Chuangxin 260W: 1m ~ 20m

    Suitable only for use below 300W. With 400W or 500W lasers, the lens barrel may overheat—thus not recommended for high-power applications. The lens features a highly reflective coating optimized for wavelengths between 900–1000 nm, ideal for common laser wavelengths such as 915, 974, and 976 nm. It is also designed to support coaxial red and green light, significantly improving transmission efficiency.

    Lens base specifications: M22×0.75 (central aperture diameter 5mm; mounting screw hole with horizontal slot suitable for 2mm screws).

    Note: The markings on the lens do not represent exact distances but serve as reference marks to remember approximate focusing positions during adjustment. Since each laser source has different beam divergence characteristics, these marks help ensure consistent alignment. When equipped with coaxial red or green light, adjusting spot size becomes much easier.
