Description

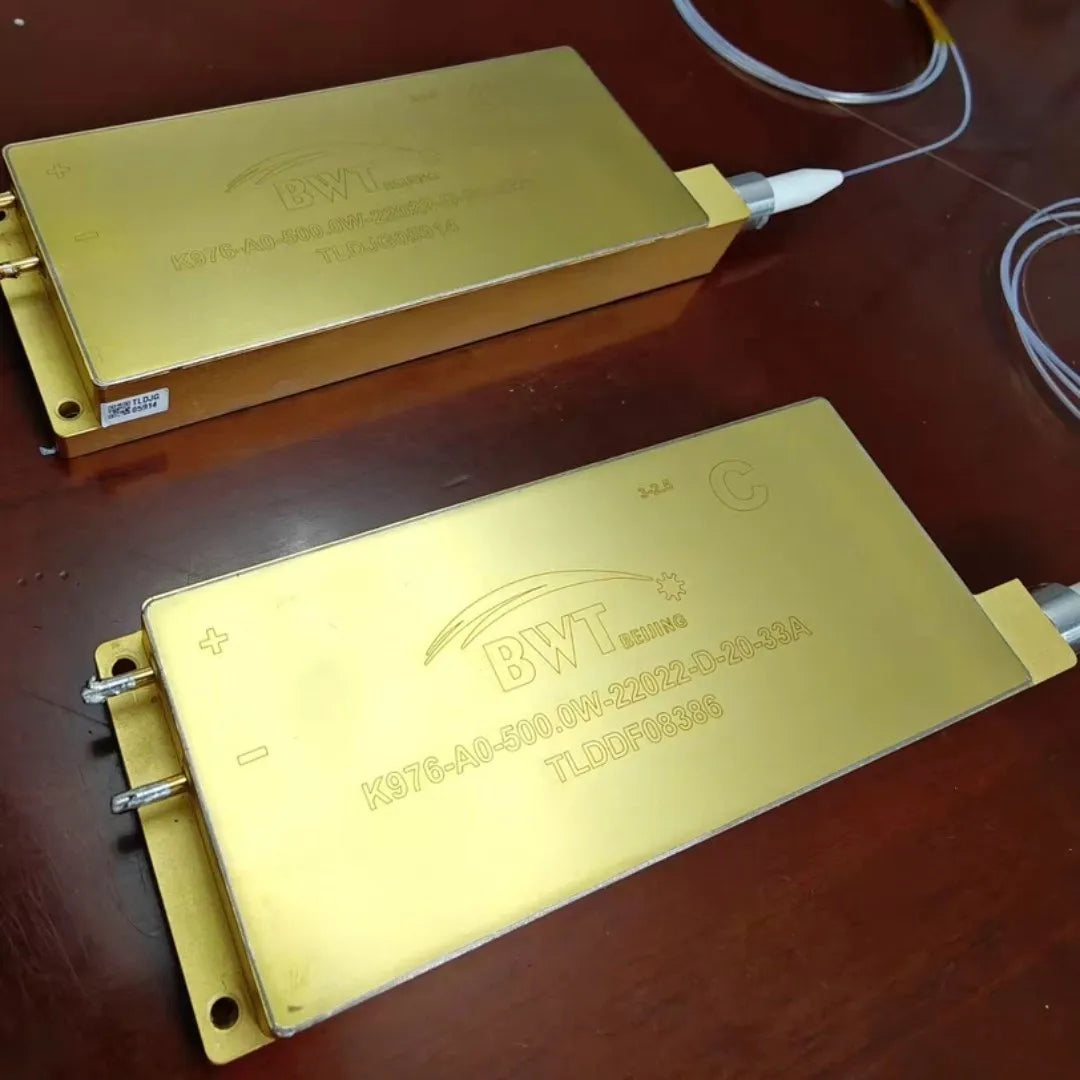

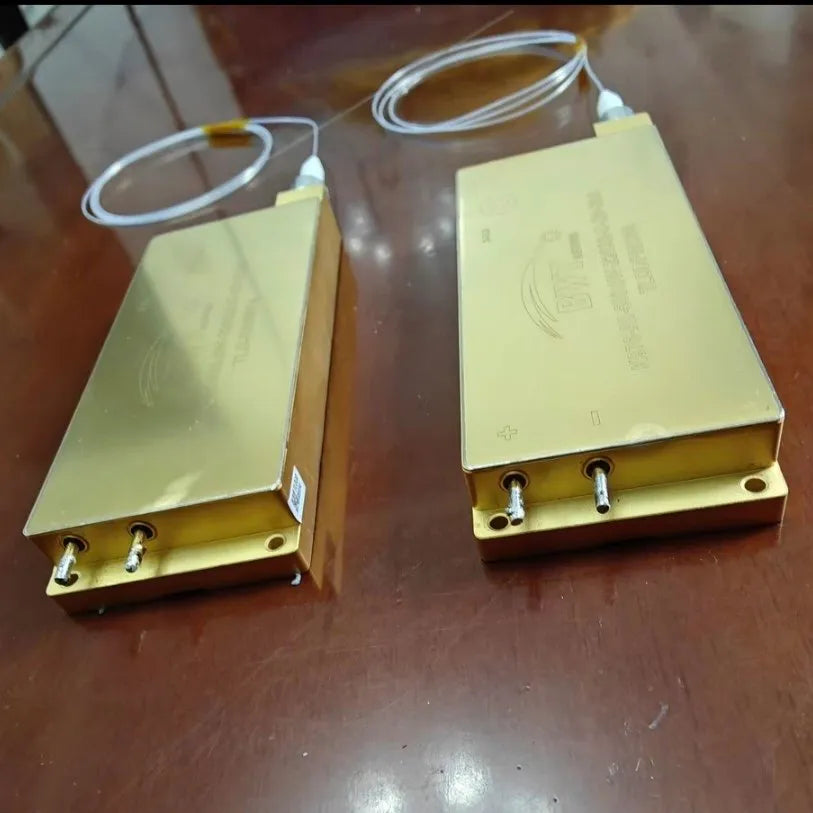

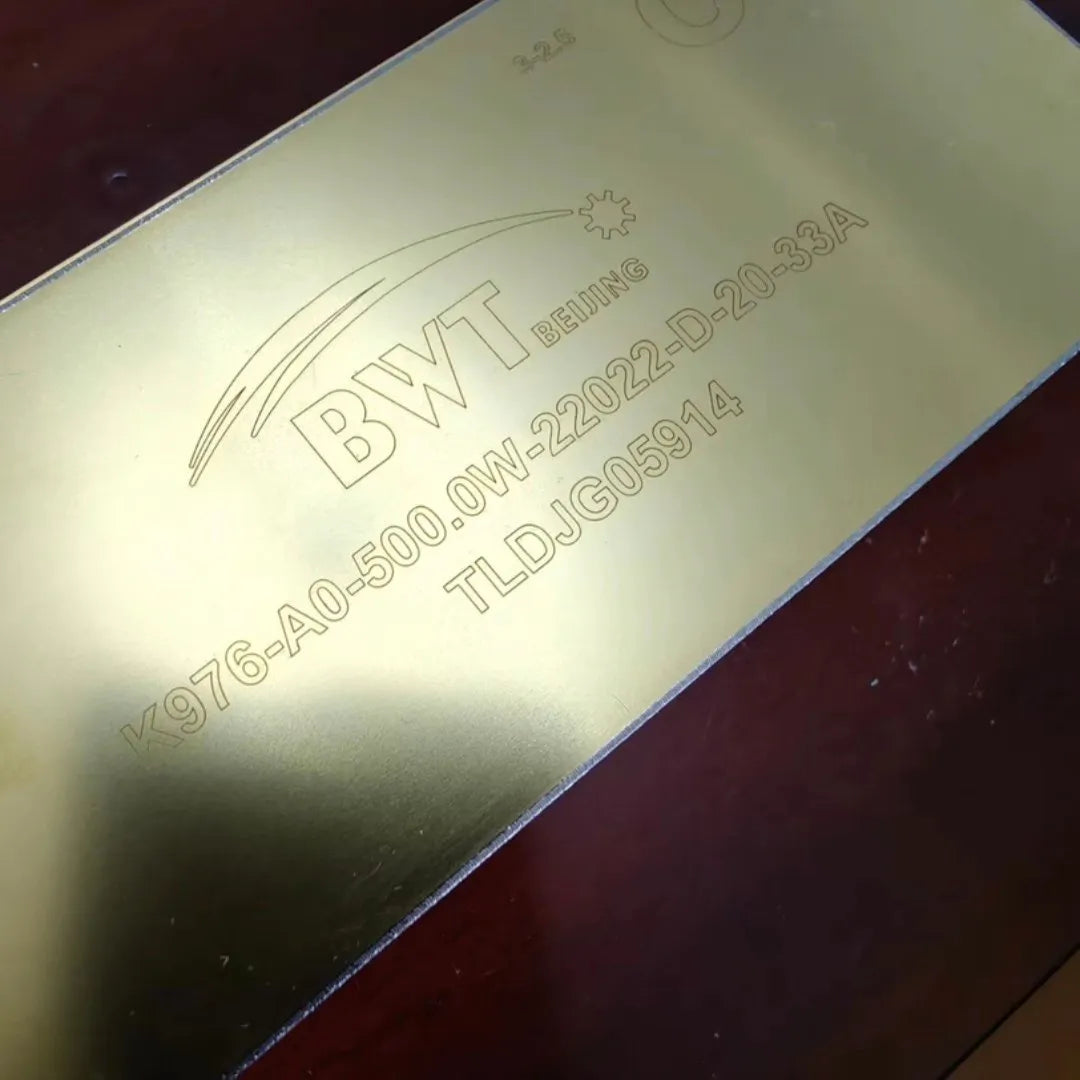

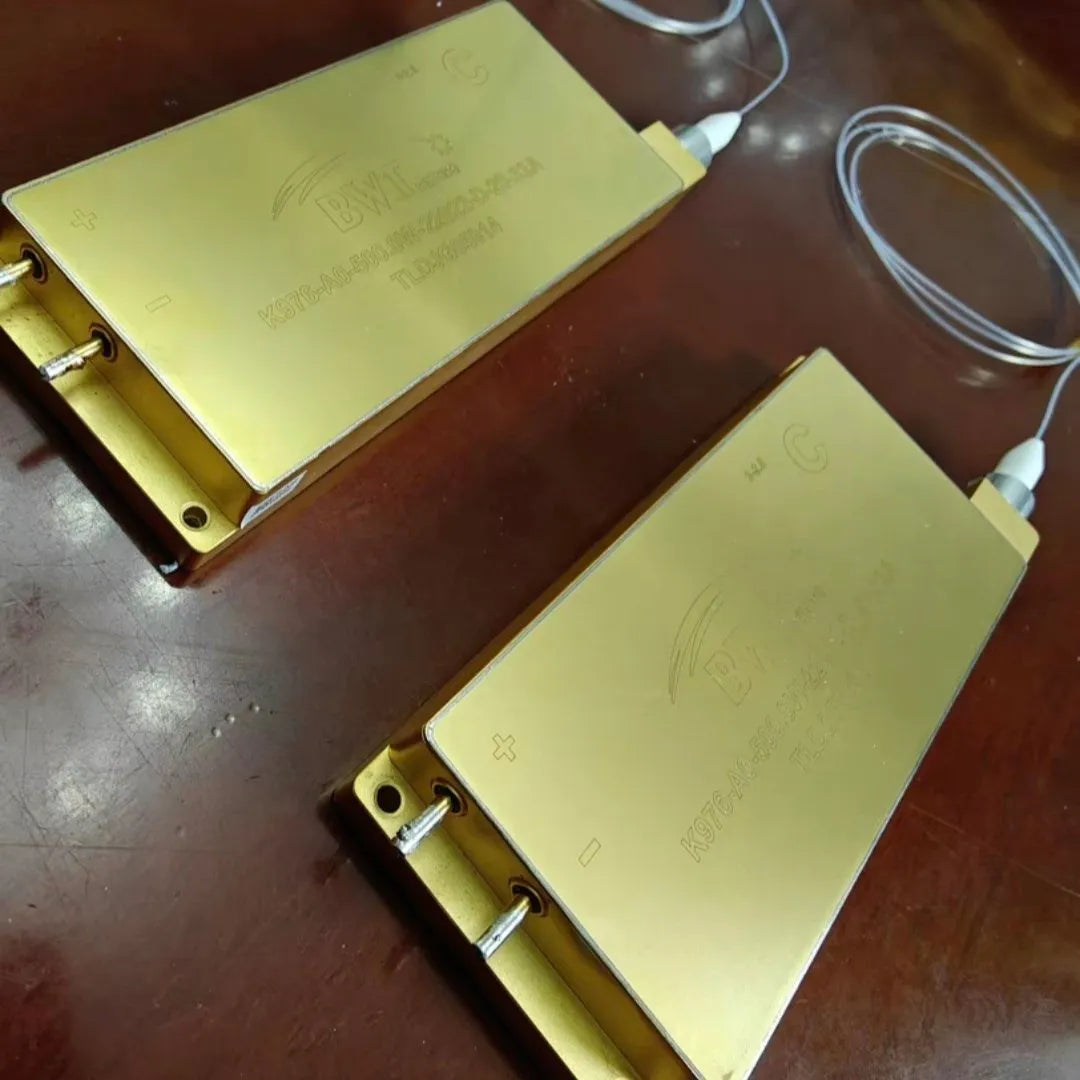

The High-Power Fiber-Coupled Laser Diode Module is an advanced multi-wavelength laser system designed for industrial material processing, cutting, welding, and surface treatment applications. Available in 450W and 500W configurations, this system integrates multiple laser wavelengths including visible and infrared outputs with integrated beam combining technology. Featuring advanced fiber coupling, intelligent power management, and efficient cooling systems, this module delivers reliable, high-performance laser output for demanding manufacturing and research applications.

Key Features

  • Multi-Power Options: 450W and 500W configurations available

  • Multi-Wavelength Output: Combined visible and infrared laser wavelengths

  • Advanced Fiber Coupling: High-efficiency fiber delivery system with low loss

  • Intelligent Power Management: Automatic power adjustment and monitoring

  • Efficient Thermal Control: Advanced cooling system for stable operation

  • Dual-Color Beam Combination: Integrated beam combining optics

  • Environmental Design: Eco-friendly materials and energy-efficient operation

  • Safety Integration: Comprehensive safety features and interlocks

  • Easy Integration: Standard interfaces for industrial system integration

Technical Specifications

Optical Specifications:

  • Total Output Power: 450W or 500W configurations (selectable)

  • Wavelength Components:

    • High-Frequency (Visible): 450nm blue wavelength, high brightness

    • Mid-Power (Near-IR): 500W infrared component, material processing optimized

    • Low-Frequency Enhancement: 7.6W low-frequency modulation capability

  • Beam Combining: Dichroic mirror combination of multiple wavelengths

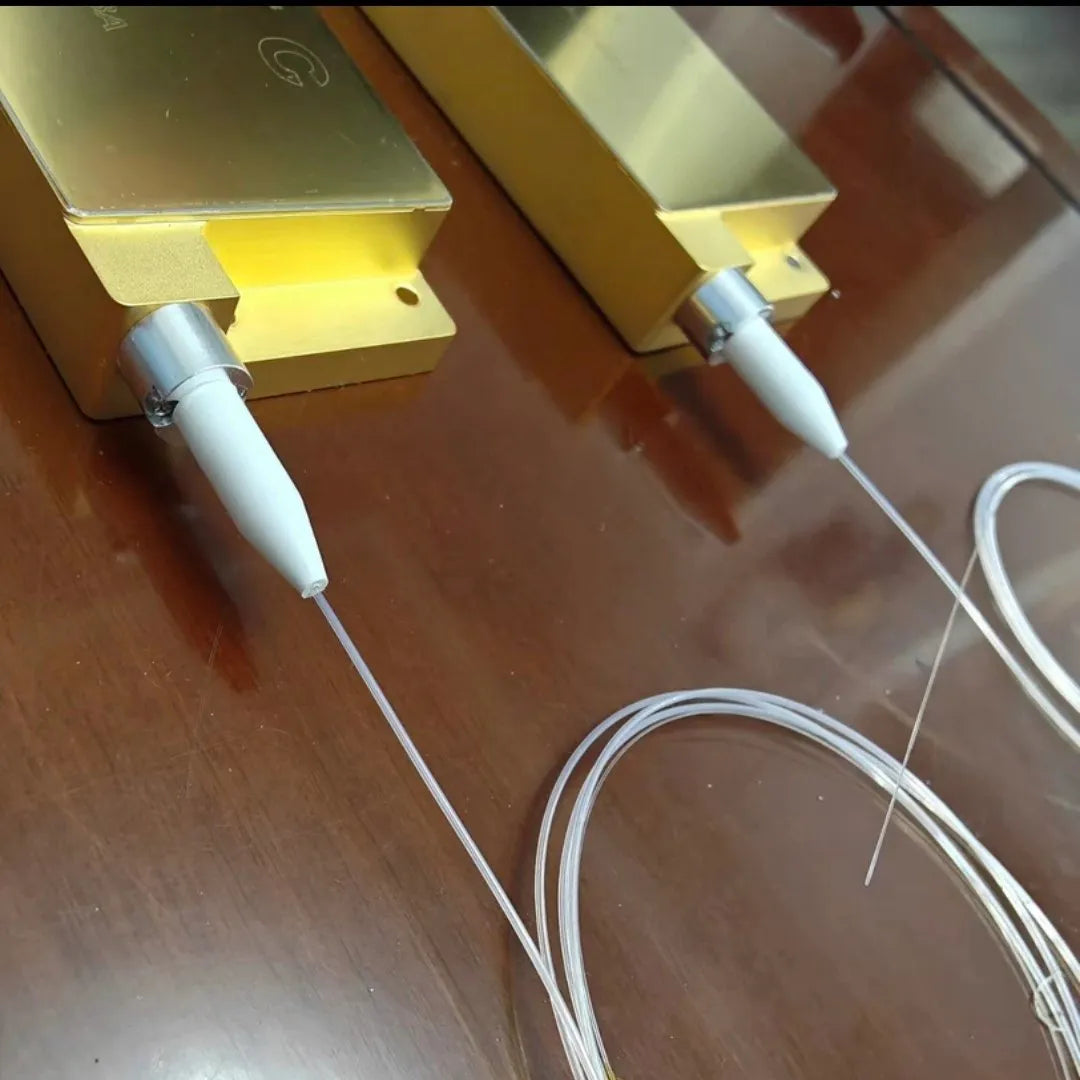

  • Fiber Output: Standard SMA905 or QBH connector options

  • Fiber Core Diameter: 400μm, 600μm, or 1000μm options

  • Numerical Aperture: 0.22 NA (standard)

  • Beam Parameter Product: < 25 mm·mrad

  • Spectral Characteristics:

    • Visible Component: 450nm ±5nm

    • IR Component: 915nm or 976nm (specify)

    • Low-Frequency Modulation: Programmable 1Hz-1kHz

  • Polarization: Random (unpolarized) output

Electrical Specifications:

  • Input Power Requirements:

    • 220V AC, 50/60Hz, three-phase (industrial configuration)

    • 110V AC, 60Hz, single-phase (optional)

  • Power Consumption: < 3.5 kVA at maximum output

  • Power Factor: > 0.95

  • Efficiency: > 35% wall-plug efficiency

  • Control Interface:

    • Analog: 0-10V power control

    • Digital: PWM, RS-232, Ethernet

    • Fieldbus: Profinet, Ethernet/IP (optional)

  • Safety Circuits: Interlock, emergency stop, temperature monitoring

Mechanical Specifications:

  • Module Dimensions: 400mm × 300mm × 200mm (L × W × H)

  • Weight: Approximately 15 kg

  • Cooling System: Integrated water-to-air heat exchanger

  • Coolant Requirements: Deionized water, 5-30°C inlet temperature

  • Flow Rate: 8-12 L/min at 2-4 bar pressure

  • Environmental Rating: IP54 protection class

  • Mounting: Standard 19" rack mount or custom mounting options

  • Connectors: Industrial waterproof connectors for power and control

  • Cable Length: Standard 3m fiber output (custom lengths available)

Performance Specifications:

  • Power Stability: < ±2% over 8 hours continuous operation

  • Wavelength Stability: < ±1nm over operating temperature range

  • Beam Pointing Stability: < 50 μrad/°C

  • Rise Time: < 100 μs to 90% power

  • Fall Time: < 150 μs to 10% power

  • Modulation Bandwidth: DC to 100 kHz (small signal)

  • Lifetime: > 20,000 hours MTBF

  • Warm-up Time: < 5 minutes to stabilized operation

Acoustic & Thermal Performance:

  • Acoustic Output: < 65 dB at 1 meter

  • Heat Dissipation: Efficient thermal management system

  • Operating Temperature: 15°C to 35°C ambient

  • Storage Temperature: -10°C to 50°C

  • Humidity Range: 10% to 80% non-condensing

SKU Details

Power Configuration:

  • SKU-LDM-450W: 450W total output power system

  • SKU-LDM-500W: 500W total output power system

  • SKU-LDM-450W-VIS: 450W with enhanced visible component

  • SKU-LDM-500W-IR: 500W with enhanced infrared component

Fiber Delivery Options:

  • SKU-FIBER-400UM: 400μm core diameter, 0.22 NA fiber

  • SKU-FIBER-600UM: 600μm core diameter, 0.22 NA fiber

  • SKU-FIBER-1000UM: 1000μm core diameter, 0.22 NA fiber

  • SKU-FIBER-CUSTOM: Custom fiber specifications available

Connector Configurations:

  • SKU-CONN-SMA905: Standard SMA905 fiber connector

  • SKU-CONN-QBH: Industrial QBH quick-disconnect connector

  • SKU-CONN-D80: High-power D80 fiber connector

  • SKU-CONN-CUSTOM: Custom connector configurations

Complete System Packages:

  • SKU-SYS-BASIC: Basic laser module with standard features

  • SKU-SYS-PRO: Professional package with enhanced controls and monitoring

  • SKU-SYS-INDUSTRIAL: Industrial package with full safety integration

  • SKU-SYS-RESEARCH: Research package with full characterization data

Accessory Packages:

  • SKU-ACC-COOLING: Enhanced cooling system package

  • SKU-ACC-CONTROL: Advanced control and monitoring system

  • SKU-ACC-SAFETY: Complete safety enclosure and interlock system

  • SKU-ACC-MOUNTING: Comprehensive mounting and alignment kit

  • SKU-ACC-MAINTENANCE: Annual maintenance and service package

  • SKU-ACC-TRAINING: Installation and operation training package

Applications

Material Processing:

  • Metal Cutting: Stainless steel, carbon steel up to specified thickness

  • Laser Welding: Automotive, aerospace, and electronics applications

  • Surface Treatment: Hardening, annealing, cladding

  • Additive Manufacturing: Laser metal deposition and repair

  • Marking & Engraving: Product marking and serialization

Specialized Applications:

  • Medical Device Manufacturing: Precision cutting and welding

  • Automotive Industry: Component processing and assembly

  • Electronics Manufacturing: Micro-processing and component fabrication

  • Research & Development: Material science and photonics research

  • Aerospace: Lightweight material processing and component repair

Enhanced Capabilities:

  • Multi-Material Processing: Combined wavelengths for different materials

  • Hybrid Processing: Sequential or simultaneous multi-wavelength operation

  • Process Monitoring: Integrated sensors for quality control

  • Automation Ready: Compatible with robotic and CNC systems

Installation Requirements

Electrical:

  • Stable three-phase power supply

  • Proper grounding and electrical protection

  • Circuit breaker and disconnect switch

  • Surge protection for sensitive electronics

Cooling:

  • Chilled water system or cooling tower

  • Water quality monitoring and filtration

  • Flow and temperature monitoring

  • Proper piping and connections

Environmental:

  • Clean, temperature-controlled environment

  • Adequate ventilation for heat dissipation

  • Proper fume extraction for material processing

  • Sufficient space for operation and maintenance

Safety:

  • Laser safety enclosure Class 1 requirements

  • Emergency stop circuits and safety interlocks

  • Proper warning signs and indicators

  • Fire suppression system for processing area

Operation & Control

Manual Operation:

  • Front panel controls for basic operation

  • Power adjustment and wavelength selection

  • Status indicators and fault diagnosis

  • Manual override for maintenance

Automated Control:

  • PLC integration capability

  • Computer control via Ethernet or serial interface

  • Recipe management for different materials

  • Process monitoring and data logging

Remote Monitoring:

  • Network connectivity for remote access

  • Real-time performance monitoring

  • Predictive maintenance alerts

  • Historical data analysis

Performance Testing & Validation

Factory Testing:

  • Full power output verification

  • Wavelength and spectral characterization

  • Beam quality and fiber coupling efficiency

  • Thermal performance and stability testing

Quality Assurance:

  • Each unit individually tested and documented

  • Performance certification provided

  • Calibration traceability to national standards

  • Environmental testing for reliability

Field Validation:

  • Installation support and commissioning

  • On-site performance verification

  • Process optimization for specific applications

  • Training for operators and maintenance staff

Package Includes

  • 1 × High-Power Fiber-Coupled Laser Diode Module

  • 1 × Fiber Delivery Cable (specified length and connector)

  • 1 × Power Supply and Control Unit

  • 1 × Cooling System Unit

  • 1 × Control Panel with Display

  • 1 × Set of Connection Cables and Hoses

  • 1 × Installation and Mounting Hardware

  • 1 × Comprehensive User Manual

  • 1 × Quick Start Guide

  • 1 × Safety Documentation Package

  • 1 × Performance Test Certificate

  • 1 × Basic Tool Kit for Maintenance

Support & Services

Technical Support:

  • Pre-sales application engineering

  • Installation and commissioning support

  • Operational training and certification

  • Technical documentation and manuals

Maintenance Services:

  • Preventative maintenance programs

  • Emergency repair services

  • Spare parts inventory and supply

  • Performance optimization services

Upgrade Options:

  • Power upgrade packages

  • Enhanced control systems

  • Additional safety features

  • Process monitoring enhancements

For detailed application specifications, custom configurations, or technical consultation regarding integration into your manufacturing process, please contact our industrial laser solutions team. We provide comprehensive support from system selection through installation, commissioning, and ongoing operation and maintenance.
