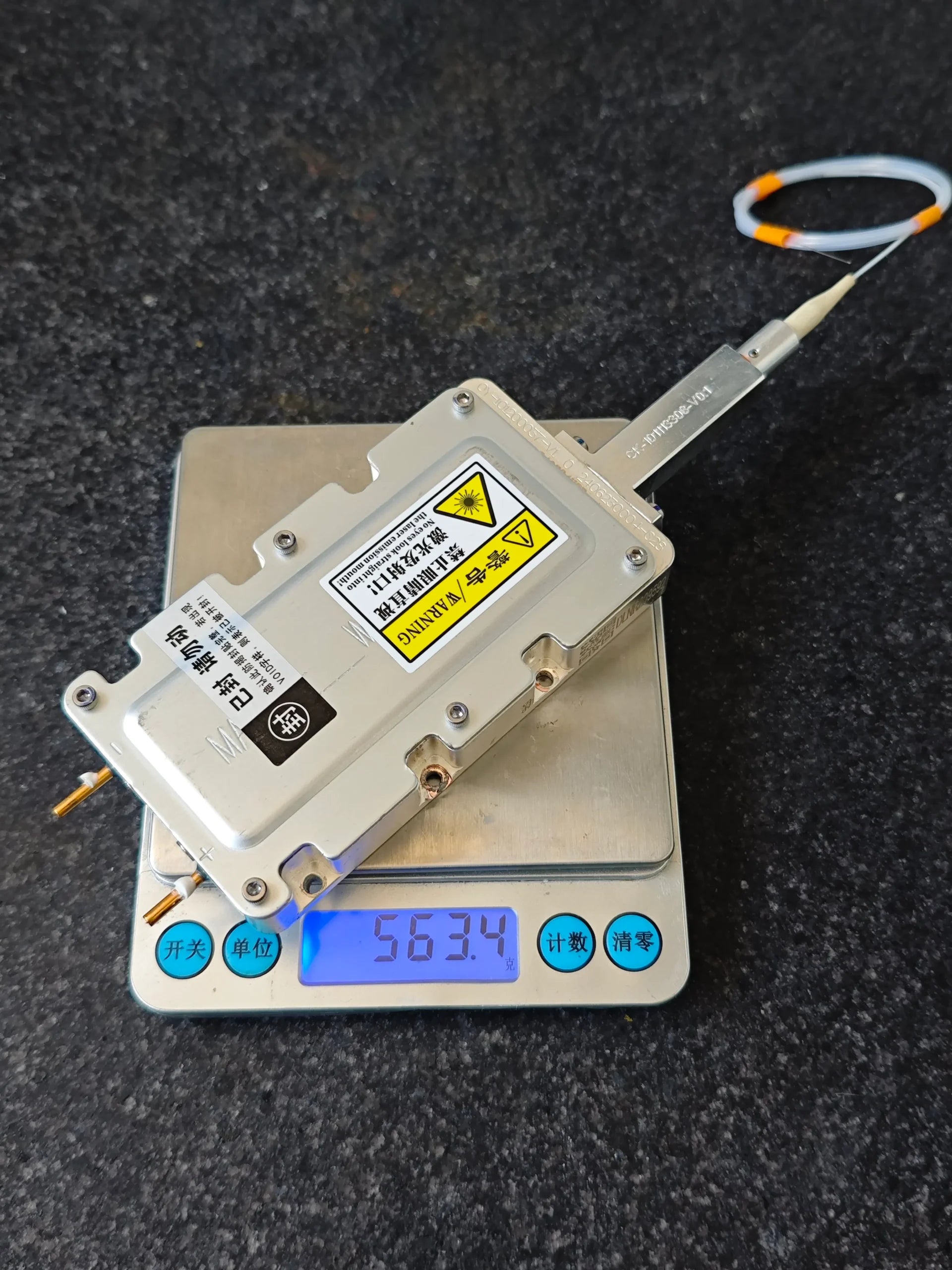

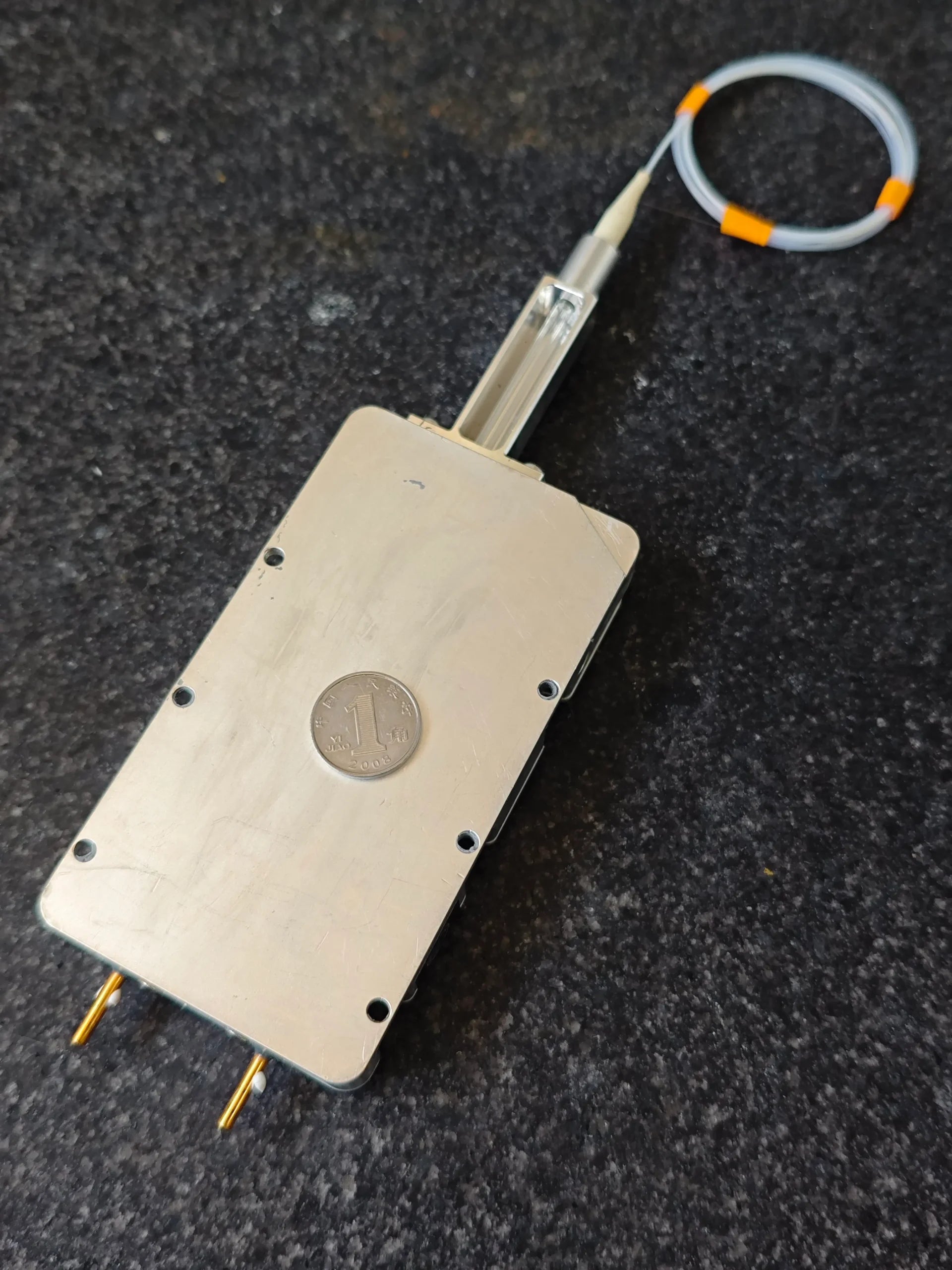

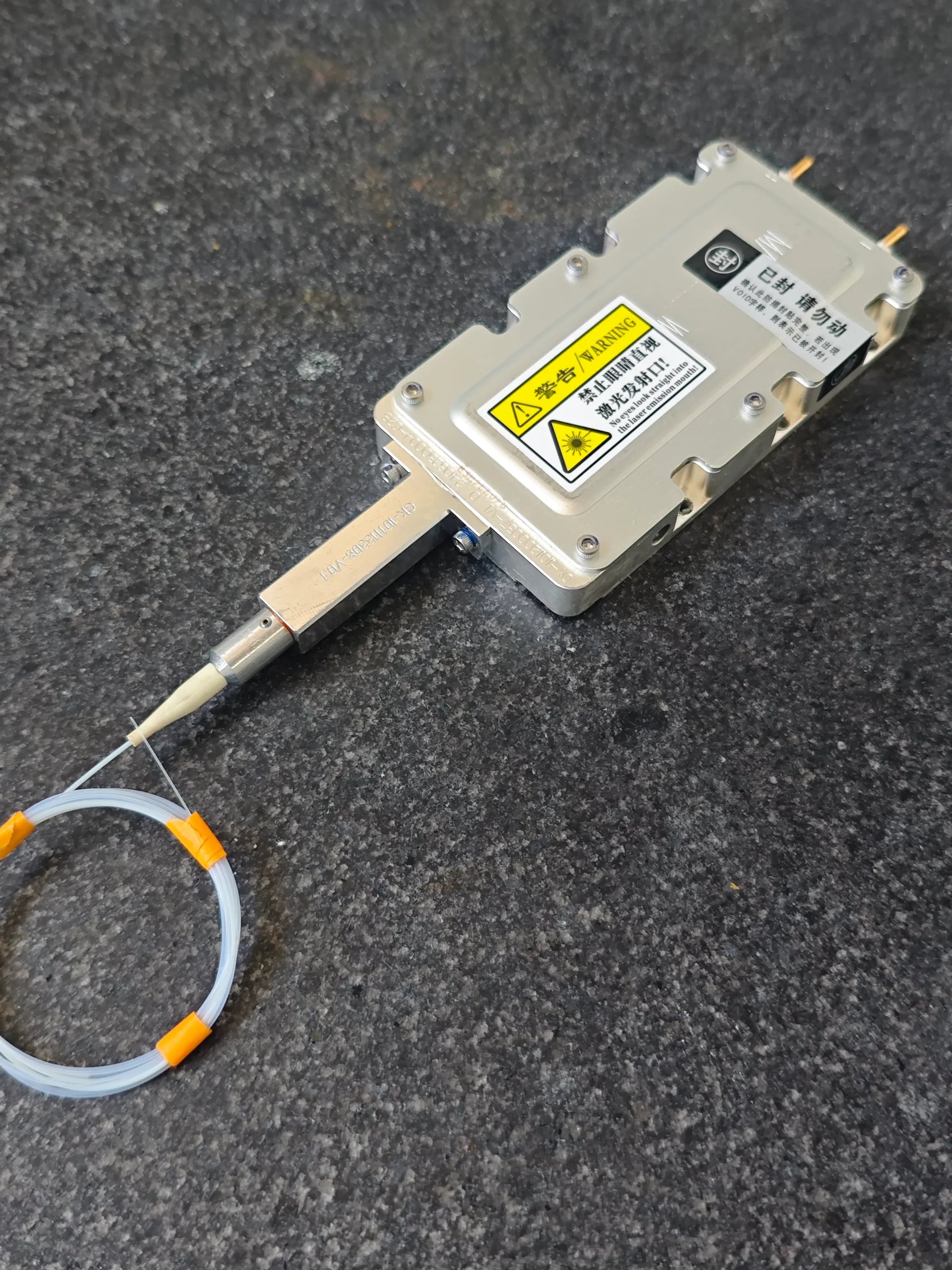

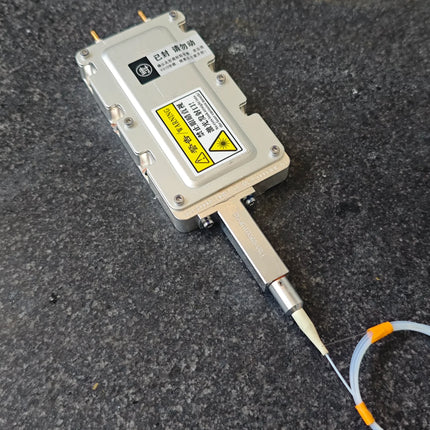

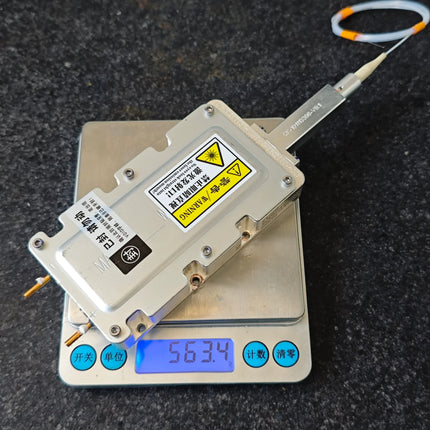

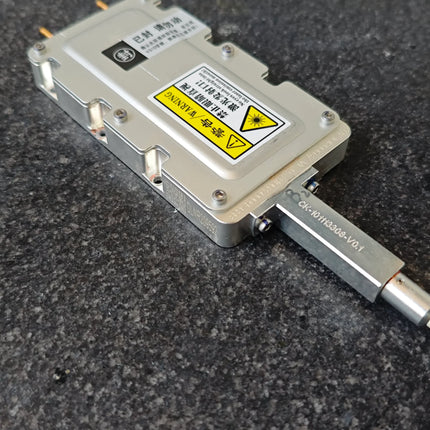

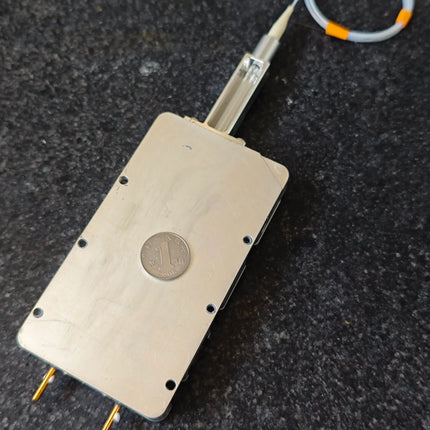

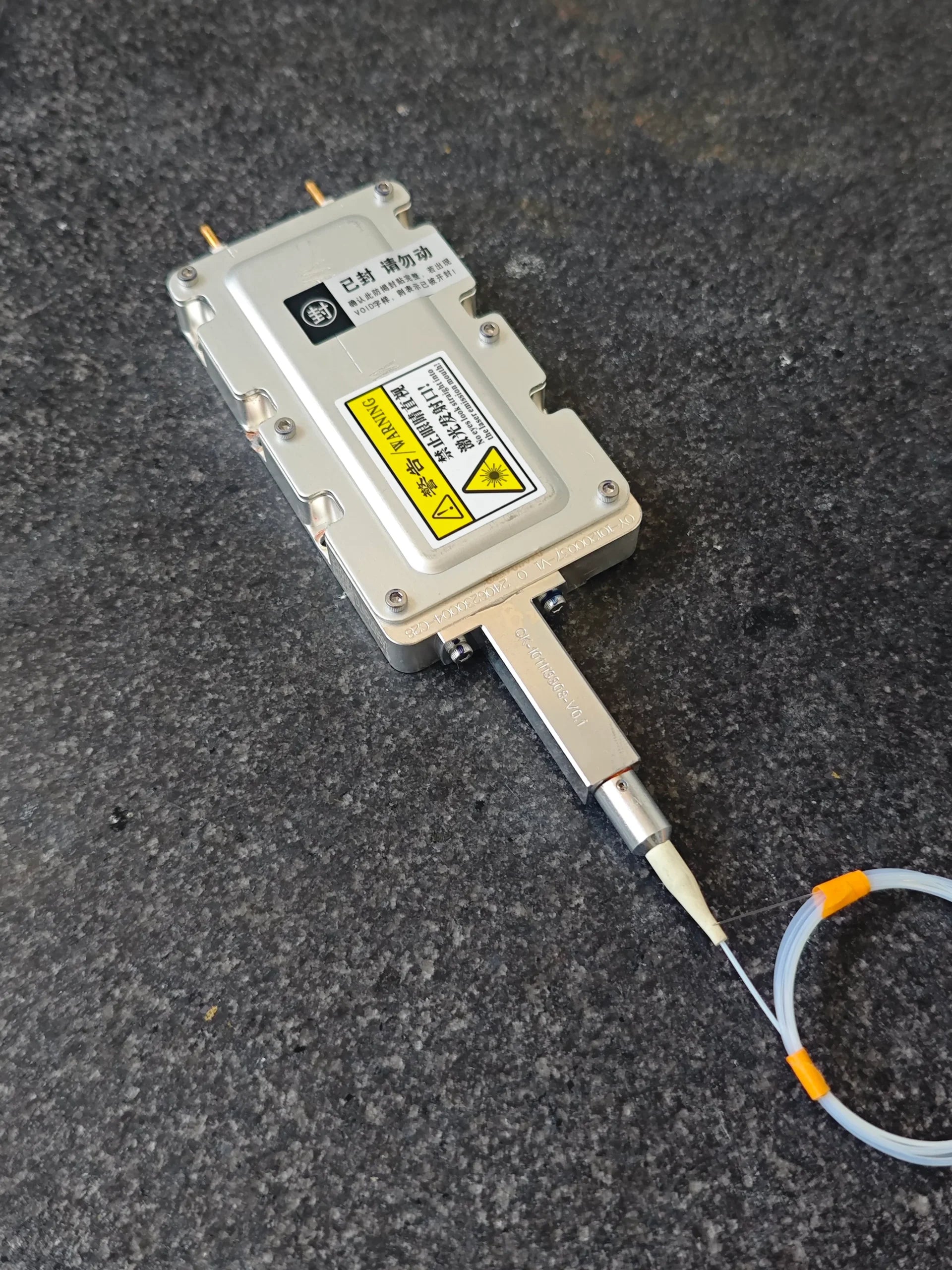

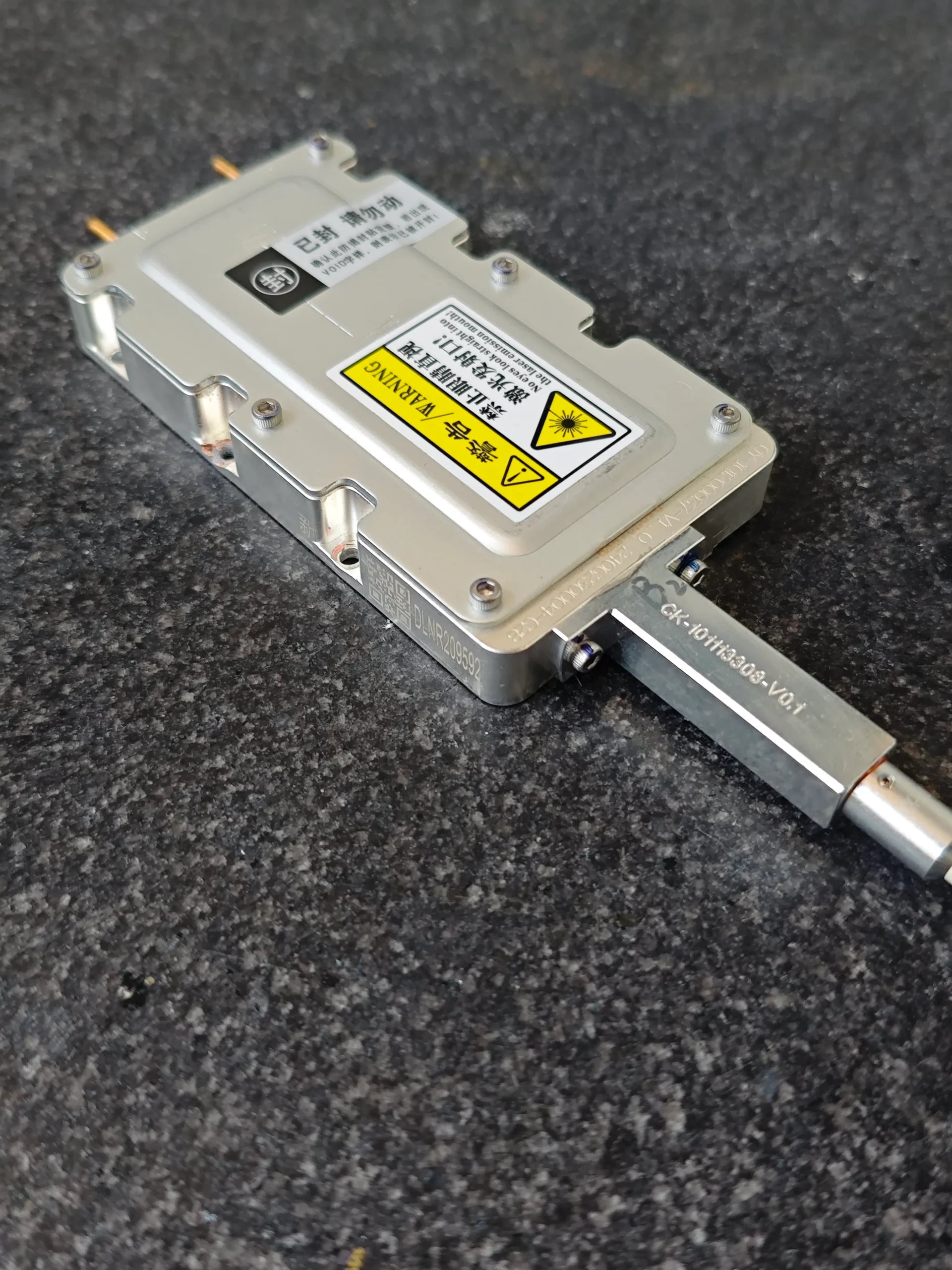

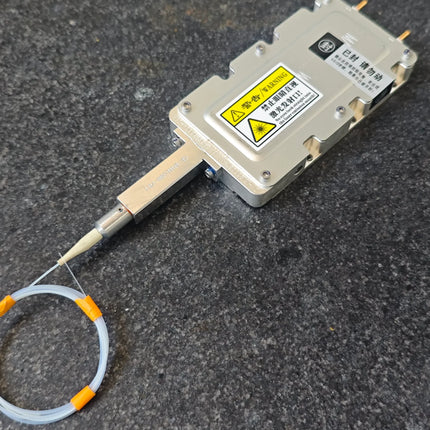

Name: High-Power Compact Laser Diode Module – 380W, 976nm, 200/220µm Fiber
Brand: LaserOne
Price: 108.0 USD

Description

This 380W compact laser diode module represents the latest innovation in high-power, space-efficient laser technology. Designed specifically for integration into laser engraving systems, cutting machines, and specialized industrial equipment, it delivers exceptional power density and reliability in a significantly reduced footprint. The optimized thermal management and robust construction make it ideal for applications where both performance and form factor are critical.

Technical Specifications

Optical Performance
- Output Power: 380W (nominal)
- Wavelength: 976nm (±3nm)
- Beam Quality (BPP): < 15 mm·mrad
- Power Stability: < ±3%
Fiber Delivery System
- Available Core Diameters: 200µm or 220µm (selectable)
- Fiber Length: Standard 2m (Custom lengths available upon request)
- Connector Type: Standard SMA-905 (QBH/Eyepiece optional)
- Fiber Type: High-power, low-OH silica fiber with protective jacket
Electrical & Operational Parameters
- Operating Voltage: 24V DC
- Current Range: 0-25A
- Threshold Current: < 8A
- Slope Efficiency: > 1.1 W/A
Physical & Environmental
- Dimensions: [Specify compact dimensions, e.g., 150mm x 80mm x 40mm]
- Cooling Requirement: Active water cooling (Flow rate: > 2 L/min, Temperature: 15-25°C)
- Operating Temperature: 10°C – 35°C
- Storage Temperature: -20°C – 60°C
- Relative Humidity: 10% – 80% (non-condensing)
Control & Interface
- Control Signal: Analog 0-5V / PWM
- Interfaces: Power IN, Water IN/OUT, Control Port, Interlock
- Protections: Over-current, Over-temperature, Water flow monitoring, Fiber interlock

Product Features & Advantages

High Power Density: Achieves 380W output from a compact chassis, enabling integration into space-constrained "laser gun" style or portable equipment.
Dual Fiber Option: Offers flexibility with a choice between 200µm (for higher power density) or 220µm (for higher tolerance and robustness) delivery fibers.
Advanced Thermal Design: Proprietary micro-channel cooling architecture ensures efficient heat dissipation, critical for stability and long diode lifetime in compact enclosures.
Optimized for Machine Integration: Simplified electrical and cooling interfaces allow for straightforward integration into OEM laser processing systems.
Robust Construction: Engineered with industrial-grade components to withstand vibrations and demanding operational environments.

Typical Applications

Laser Material Processing: Precision cutting, welding, and surface cladding of thin metals and alloys.
Marking & Engraving: High-speed deep engraving on coated metals, ceramics, and certain plastics.
Additive Manufacturing: As a heat source in selective laser melting (SLM) or cladding systems.
Specialized Equipment: Integration into handheld or robotic "laser gun" apparatus for remote processing.
Research & Development: A reliable source for photothermal, pumping, and other high-power optical experiments.

Package Contents

1 x 380W Compact Laser Diode Module
1 x Fiber Optic Cable (200µm or 220µm core, 2m length with SMA-905 connectors)
1 x Set of Water Cooling Quick-Connect Fittings
1 x Operation and Safety Manual

Ordering Information (SKU Table)

SKU Code	Power	Wavelength	Fiber Core	Connector	Notes
LD-380-200-SMA	380W	976nm	200µm	SMA-905	Standard Model
LD-380-220-SMA	380W	976nm	220µm	SMA-905	Standard Model
LD-380-200-QBH	380W	976nm	200µm	QBH	On request
LD-380-220-QBH	380W	976nm	220µm	QBH	On request

Manufactured by XiaoJu Technology Studio. Specifications are subject to change for continuous product improvement.
