Description

A robust 400W industrial laser source module operating at 915nm wavelength, featuring a durable 200/220μm output fiber. This high-power laser is engineered for material processing, industrial manufacturing, and demanding applications requiring stable, high-power infrared laser output. Designed for reliable performance in factory environments with excellent beam quality and power stability.

Technical Specifications

Optical Performance • Output Power: 400W Continuous Wave (CW) • Wavelength: 915nm ± 5nm • Spectral Width: < 4nm FWHM • Beam Quality: M² < 25 • Fiber Core/Clad: 200/220μm • Numerical Aperture: 0.22 NA • Fiber Length: Standard 3m (customizable) • Connector Type: SMA905 or QBH • Power Stability: < ±3% over 8 hours • Polarization: Random (unpolarized) • Pointing Stability: < 0.5 mrad/°C

Electrical & Thermal • Operating Current: 8-10A • Operating Voltage: 48V DC • Power Consumption: < 500W • Cooling Method: Water cooling required • Flow Rate: 2-4 L/min • Inlet Temperature: < 25°C • Operating Temperature: 10°C - 35°C • Storage Temperature: -10°C - 50°C • Thermal Resistance: < 0.4°C/W • Control Interface: 0-10V analog / PWM / TTL

Mechanical Specifications • Module Dimensions: 200mm × 150mm × 80mm • Weight: 3.2 kg • Housing Material: Anodized aluminum • Mounting: Standard M6 mounting pattern • Protection Rating: IP40 • Fiber Protection: Armored optional • Connectors: Industrial waterproof connectors • Cable Management: Integrated strain relief

Performance Characteristics • Rise Time: < 100ms • Modulation Frequency: Up to 50kHz • Warm-up Time: < 5 minutes • Expected Lifetime: > 20,000 hours • MTBF: > 40,000 hours • Duty Cycle: 100% continuous • Beam Parameter Product: < 12 mm·mrad • Focus Spot Size: ~200μm with standard optics

Key Features & Applications

Industrial Processing Material Compatibility System Integration
Metal cutting & welding up to 3mm mild steel Optimal for steel, stainless steel, titanium Compatible with standard laser cutters
Surface hardening & cladding applications Good absorption in most metals Easy integration with CNC systems
Deep engraving & marking on metals Effective on plastics, ceramics Works with galvo scanners & F-theta lenses
3D printing & additive manufacturing Limited effectiveness on copper, aluminum Industrial bus interfaces (Ethernet, Profibus)
Specialized Applications Technical Advantages Quality & Reliability
Medical device manufacturing High power density for efficient processing Industrial-grade components throughout
Automotive component processing Stable wavelength for consistent absorption Redundant cooling paths
Aerospace part marking Excellent wall-plug efficiency (>40%) Over-temperature protection
Research & development Compact design for space-constrained setups Vibration-resistant construction
Pump source for fiber lasers Minimal maintenance requirements Long component lifetime

SKU Configuration

Power & Wavelength Options • SKU-LS-400W-915: 400W, 915nm, standard configuration • SKU-LS-500W-915: 500W higher power version • SKU-LS-400W-976: 976nm wavelength alternative • SKU-LS-300W-915: 300W lower power option

Fiber & Connector Variants • SKU-FIB-200-3M: 200/220μm, 3m length, SMA905 connector • SKU-FIB-200-5M: 200/220μm, 5m length, QBH connector • SKU-FIB-400-3M: 400/440μm larger core option • SKU-FIB-ARMORED: Armored fiber version for harsh environments

Complete System Packages • SKU-PKG-BASIC: Laser module + basic cooling + power supply • SKU-PKG-PRO: Complete with controller, chiller, safety features • SKU-PKG-DUAL: Two modules for combined 800W output • SKU-PKG-INDUSTRIAL: Full industrial enclosure with automation interface

Accessory Sets • SKU-ACC-COOLING: High-performance water chiller system • SKU-ACC-CONTROL: Advanced PID temperature/power controller • SKU-ACC-FOCUS: Beam delivery & focusing optics kit • SKU-ACC-SAFETY: Laser safety enclosure with interlocks • SKU-ACC-MONITOR: Real-time power & temperature monitoring

Installation & Operation

System Requirements • Power Supply: 48V DC, 15A minimum capacity • Cooling System: Water chiller (1kW capacity) • Electrical: Proper grounding, surge protection • Environment: Clean, temperature-controlled area • Safety: Class 1 enclosure recommended • Ventilation: Adequate airflow for heat dissipation

Setup Procedure

  1. Mount module securely with proper heat sinking

  2. Connect cooling system with verified flow

  3. Wire power supply with correct polarity

  4. Connect control interfaces and safety interlocks

  5. Align output fiber to processing optics

  6. Perform gradual power ramp-up procedure

  7. Verify performance with power meter

Optimal Operation Guidelines • Maintain water temperature below 25°C • Monitor power stability regularly • Keep fiber bends above minimum radius (50mm) • Clean optical surfaces periodically • Log operating hours for maintenance scheduling • Perform regular system calibration

Quality Assurance

Manufacturing Standards • ISO 9001 certified production • Component traceability system • Batch testing and quality control • Environmental stress screening

Testing Protocol • Full power characterization at multiple levels • Spectral analysis and wavelength verification • Long-term stability testing (24+ hours) • Thermal performance validation • Mechanical vibration and shock testing • Fiber integrity and connector testing

Documentation Provided • Individual performance test report • Calibration certificates • Safety compliance documentation • Material certification (RoHS, REACH) • Integration and wiring diagrams • Maintenance and troubleshooting guide

Package Contents

Standard Delivery Includes: • 400W 915nm Laser Module Assembly • 3m 200/220μm Fiber Optic Cable • Basic Mounting Hardware Set • Electrical Connection Cables • Cooling System Interface Fittings • Comprehensive User Manual • Performance Test Certificate • Protective Shipping Packaging

Optional Additions Available: • Enhanced Cooling System Package • Precision Power Controller • Beam Delivery Optics Set • Safety Enclosure Components • Remote Monitoring System • Extended Warranty Coverage • Installation Support Services • Operator Training Materials

Support & Services

Technical Resources • Detailed application notes • Integration best practices guide • Troubleshooting database • Software and firmware updates • Community forum access • Video tutorial library

Customer Support • 12-month comprehensive warranty • Email/phone technical support • On-site installation assistance available • Priority replacement service • Custom engineering consultations • Regular maintenance reminders

Order Processing • Standard items: 3-5 business days shipment • Custom configurations: 7-10 days • Worldwide shipping with tracking • Flexible payment options available • Volume discount pricing • OEM/contract manufacturing services

For application-specific configurations, performance requirements, or integration assistance, our engineering team provides expert consultation to ensure optimal system performance and reliability for your industrial laser applications.

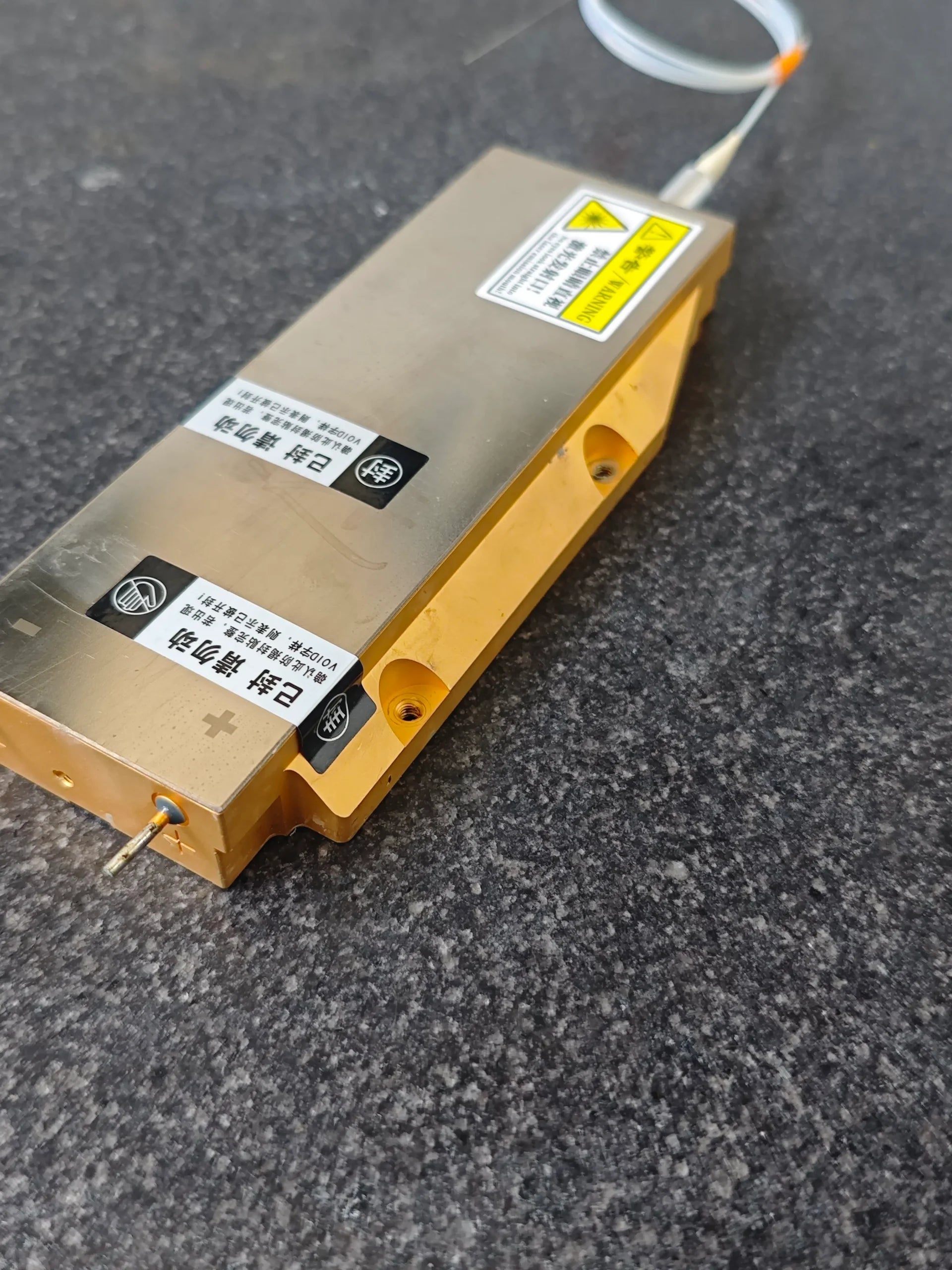

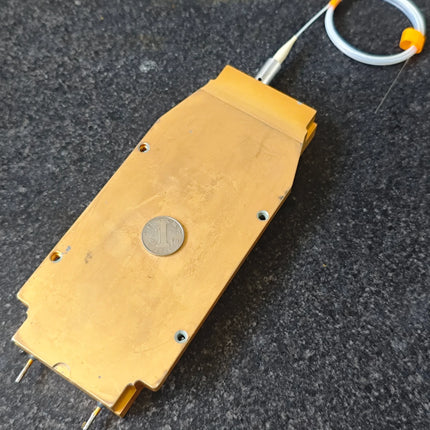

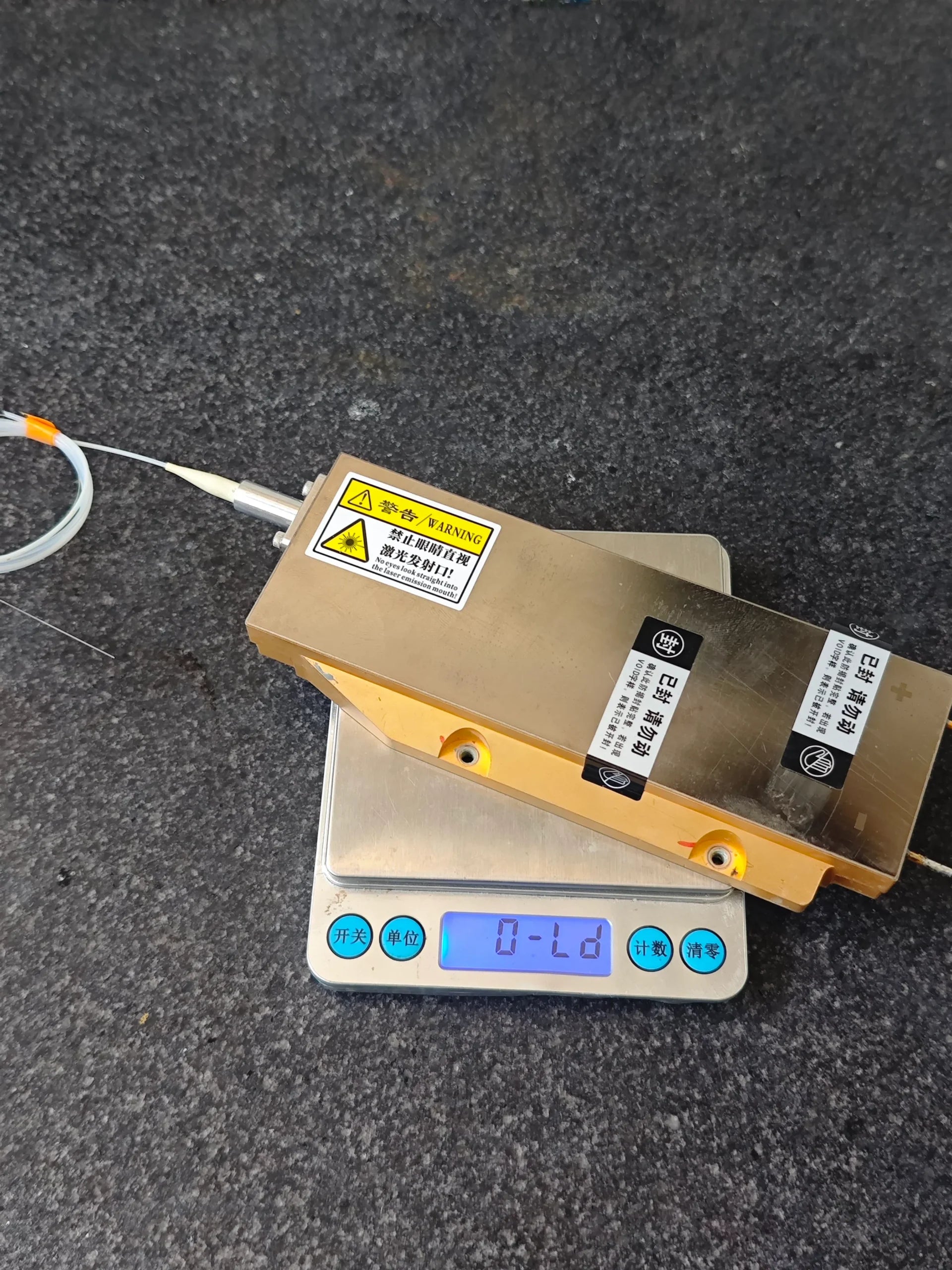

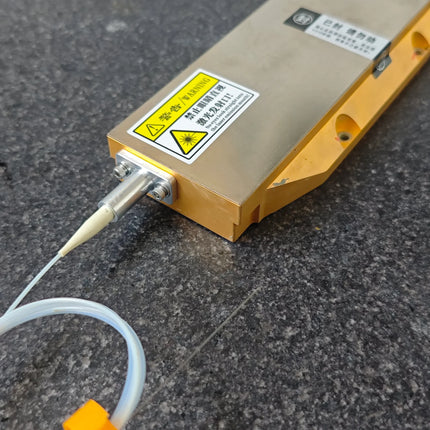

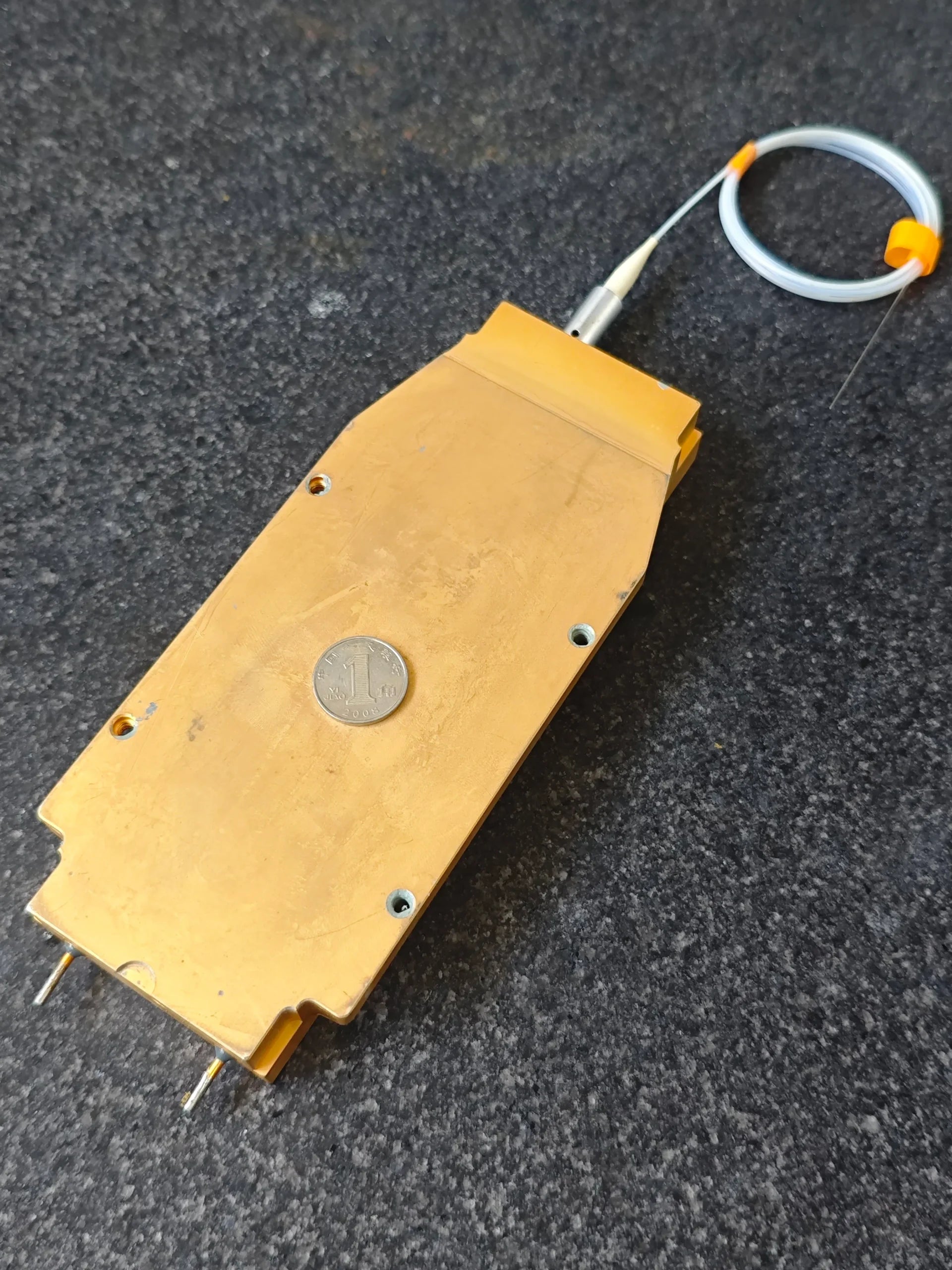

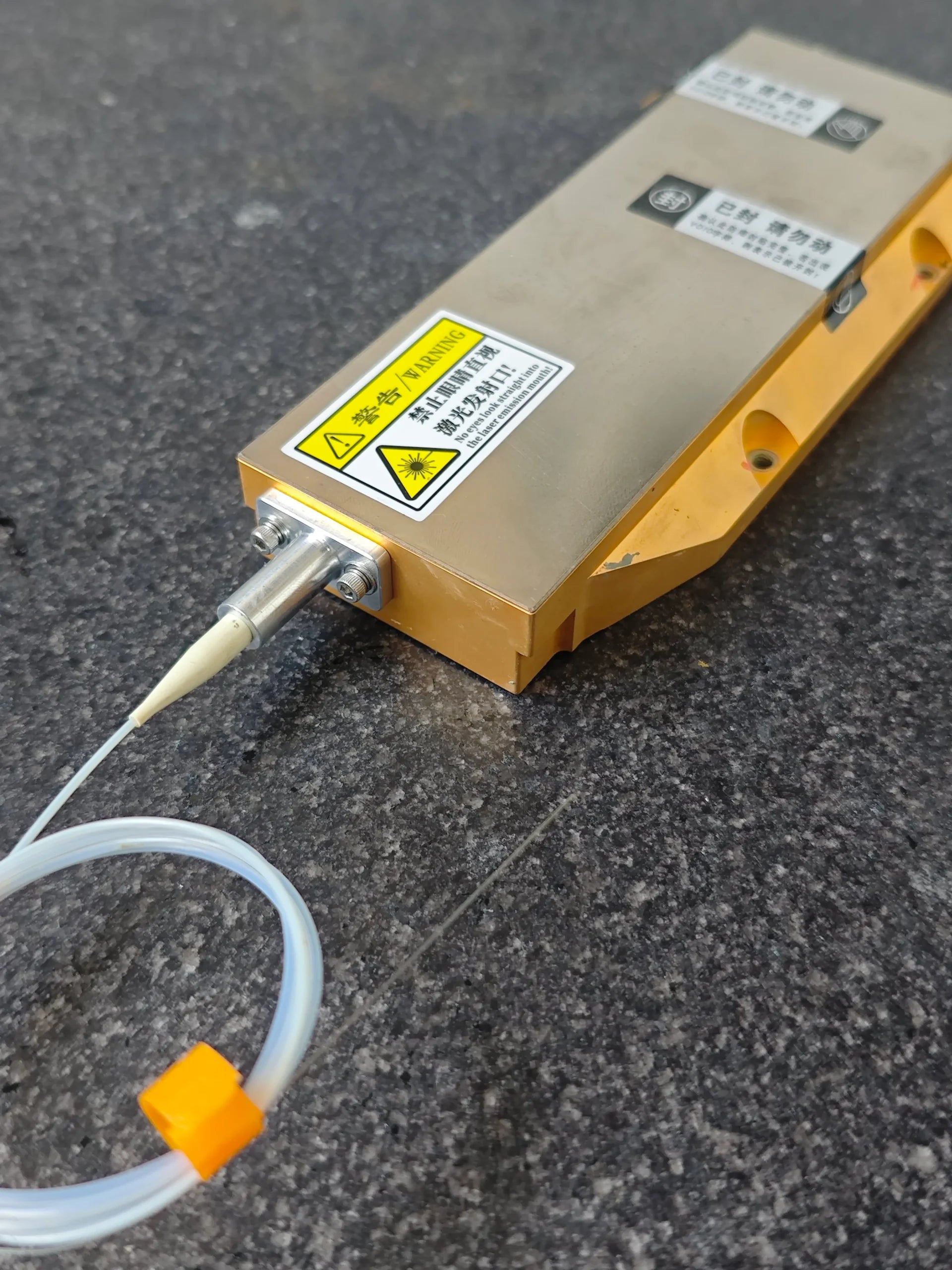

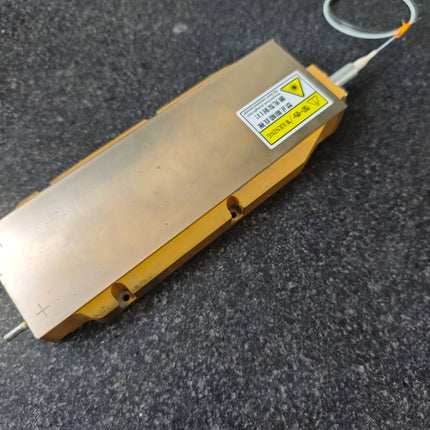

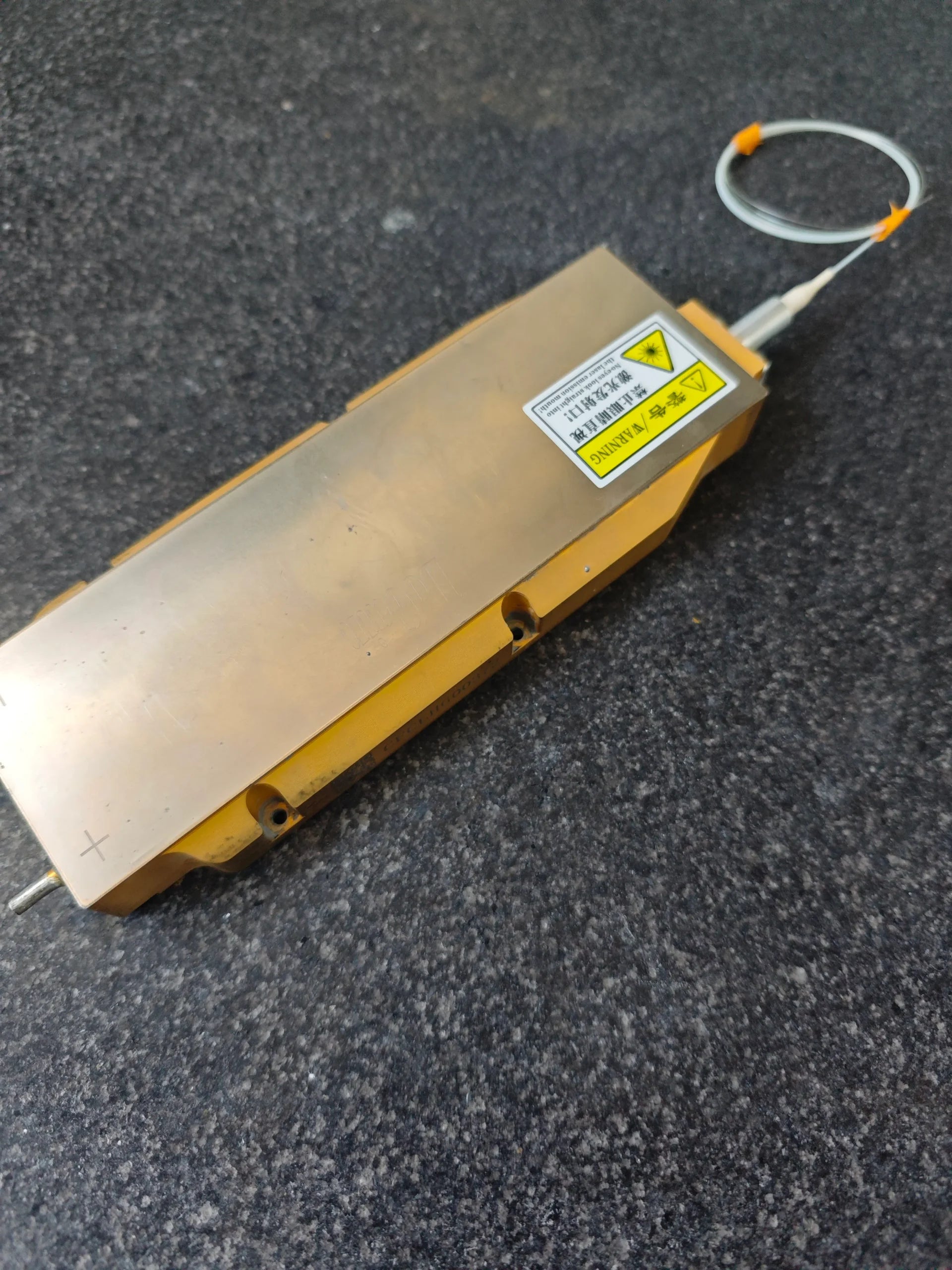

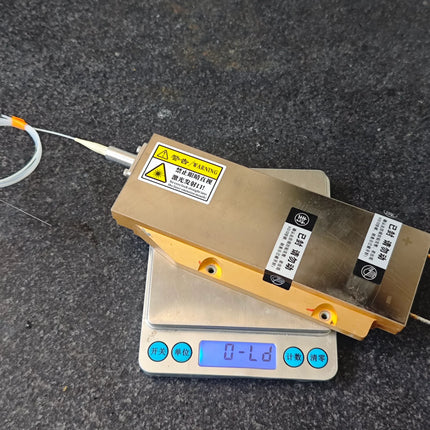

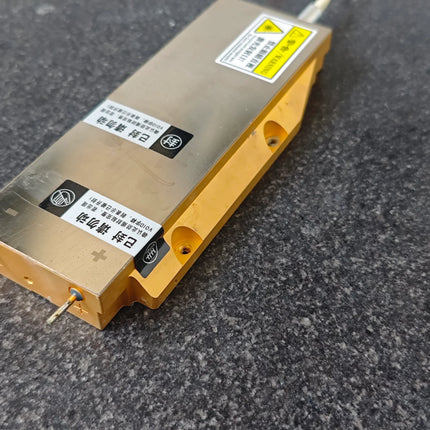

High-Power 400W 915nm Laser Source Module with 200/220μm Fiber – Industrial Grade

Product form

$125.00

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 06, 2026 23:59:00 -0500
    • Free shipping on all orders above 500
    • No hassle returns, 30 days return

    Description

    A robust 400W industrial laser source module operating at 915nm wavelength, featuring a durable 200/220μm output fiber. This high-power laser is engineered for material processing, industrial manufacturing, and demanding applications requiring stable, high-power infrared laser output. Designed for reliable performance in factory environments with excellent beam quality and power stability.

    Technical Specifications

    Optical Performance • Output Power: 400W Continuous Wave (CW) • Wavelength: 915nm ± 5nm • Spectral Width: < 4nm FWHM • Beam Quality: M² < 25 • Fiber Core/Clad: 200/220μm • Numerical Aperture: 0.22 NA • Fiber Length: Standard 3m (customizable) • Connector Type: SMA905 or QBH • Power Stability: < ±3% over 8 hours • Polarization: Random (unpolarized) • Pointing Stability: < 0.5 mrad/°C

    Electrical & Thermal • Operating Current: 8-10A • Operating Voltage: 48V DC • Power Consumption: < 500W • Cooling Method: Water cooling required • Flow Rate: 2-4 L/min • Inlet Temperature: < 25°C • Operating Temperature: 10°C - 35°C • Storage Temperature: -10°C - 50°C • Thermal Resistance: < 0.4°C/W • Control Interface: 0-10V analog / PWM / TTL

    Mechanical Specifications • Module Dimensions: 200mm × 150mm × 80mm • Weight: 3.2 kg • Housing Material: Anodized aluminum • Mounting: Standard M6 mounting pattern • Protection Rating: IP40 • Fiber Protection: Armored optional • Connectors: Industrial waterproof connectors • Cable Management: Integrated strain relief

    Performance Characteristics • Rise Time: < 100ms • Modulation Frequency: Up to 50kHz • Warm-up Time: < 5 minutes • Expected Lifetime: > 20,000 hours • MTBF: > 40,000 hours • Duty Cycle: 100% continuous • Beam Parameter Product: < 12 mm·mrad • Focus Spot Size: ~200μm with standard optics

    Key Features & Applications

    Industrial Processing Material Compatibility System Integration
    Metal cutting & welding up to 3mm mild steel Optimal for steel, stainless steel, titanium Compatible with standard laser cutters
    Surface hardening & cladding applications Good absorption in most metals Easy integration with CNC systems
    Deep engraving & marking on metals Effective on plastics, ceramics Works with galvo scanners & F-theta lenses
    3D printing & additive manufacturing Limited effectiveness on copper, aluminum Industrial bus interfaces (Ethernet, Profibus)
    Specialized Applications Technical Advantages Quality & Reliability
    Medical device manufacturing High power density for efficient processing Industrial-grade components throughout
    Automotive component processing Stable wavelength for consistent absorption Redundant cooling paths
    Aerospace part marking Excellent wall-plug efficiency (>40%) Over-temperature protection
    Research & development Compact design for space-constrained setups Vibration-resistant construction
    Pump source for fiber lasers Minimal maintenance requirements Long component lifetime

    SKU Configuration

    Power & Wavelength Options • SKU-LS-400W-915: 400W, 915nm, standard configuration • SKU-LS-500W-915: 500W higher power version • SKU-LS-400W-976: 976nm wavelength alternative • SKU-LS-300W-915: 300W lower power option

    Fiber & Connector Variants • SKU-FIB-200-3M: 200/220μm, 3m length, SMA905 connector • SKU-FIB-200-5M: 200/220μm, 5m length, QBH connector • SKU-FIB-400-3M: 400/440μm larger core option • SKU-FIB-ARMORED: Armored fiber version for harsh environments

    Complete System Packages • SKU-PKG-BASIC: Laser module + basic cooling + power supply • SKU-PKG-PRO: Complete with controller, chiller, safety features • SKU-PKG-DUAL: Two modules for combined 800W output • SKU-PKG-INDUSTRIAL: Full industrial enclosure with automation interface

    Accessory Sets • SKU-ACC-COOLING: High-performance water chiller system • SKU-ACC-CONTROL: Advanced PID temperature/power controller • SKU-ACC-FOCUS: Beam delivery & focusing optics kit • SKU-ACC-SAFETY: Laser safety enclosure with interlocks • SKU-ACC-MONITOR: Real-time power & temperature monitoring

    Installation & Operation

    System Requirements • Power Supply: 48V DC, 15A minimum capacity • Cooling System: Water chiller (1kW capacity) • Electrical: Proper grounding, surge protection • Environment: Clean, temperature-controlled area • Safety: Class 1 enclosure recommended • Ventilation: Adequate airflow for heat dissipation

    Setup Procedure

    1. Mount module securely with proper heat sinking

    2. Connect cooling system with verified flow

    3. Wire power supply with correct polarity

    4. Connect control interfaces and safety interlocks

    5. Align output fiber to processing optics

    6. Perform gradual power ramp-up procedure

    7. Verify performance with power meter

    Optimal Operation Guidelines • Maintain water temperature below 25°C • Monitor power stability regularly • Keep fiber bends above minimum radius (50mm) • Clean optical surfaces periodically • Log operating hours for maintenance scheduling • Perform regular system calibration

    Quality Assurance

    Manufacturing Standards • ISO 9001 certified production • Component traceability system • Batch testing and quality control • Environmental stress screening

    Testing Protocol • Full power characterization at multiple levels • Spectral analysis and wavelength verification • Long-term stability testing (24+ hours) • Thermal performance validation • Mechanical vibration and shock testing • Fiber integrity and connector testing

    Documentation Provided • Individual performance test report • Calibration certificates • Safety compliance documentation • Material certification (RoHS, REACH) • Integration and wiring diagrams • Maintenance and troubleshooting guide

    Package Contents

    Standard Delivery Includes: • 400W 915nm Laser Module Assembly • 3m 200/220μm Fiber Optic Cable • Basic Mounting Hardware Set • Electrical Connection Cables • Cooling System Interface Fittings • Comprehensive User Manual • Performance Test Certificate • Protective Shipping Packaging

    Optional Additions Available: • Enhanced Cooling System Package • Precision Power Controller • Beam Delivery Optics Set • Safety Enclosure Components • Remote Monitoring System • Extended Warranty Coverage • Installation Support Services • Operator Training Materials

    Support & Services

    Technical Resources • Detailed application notes • Integration best practices guide • Troubleshooting database • Software and firmware updates • Community forum access • Video tutorial library

    Customer Support • 12-month comprehensive warranty • Email/phone technical support • On-site installation assistance available • Priority replacement service • Custom engineering consultations • Regular maintenance reminders

    Order Processing • Standard items: 3-5 business days shipment • Custom configurations: 7-10 days • Worldwide shipping with tracking • Flexible payment options available • Volume discount pricing • OEM/contract manufacturing services

    For application-specific configurations, performance requirements, or integration assistance, our engineering team provides expert consultation to ensure optimal system performance and reliability for your industrial laser applications.
