Description

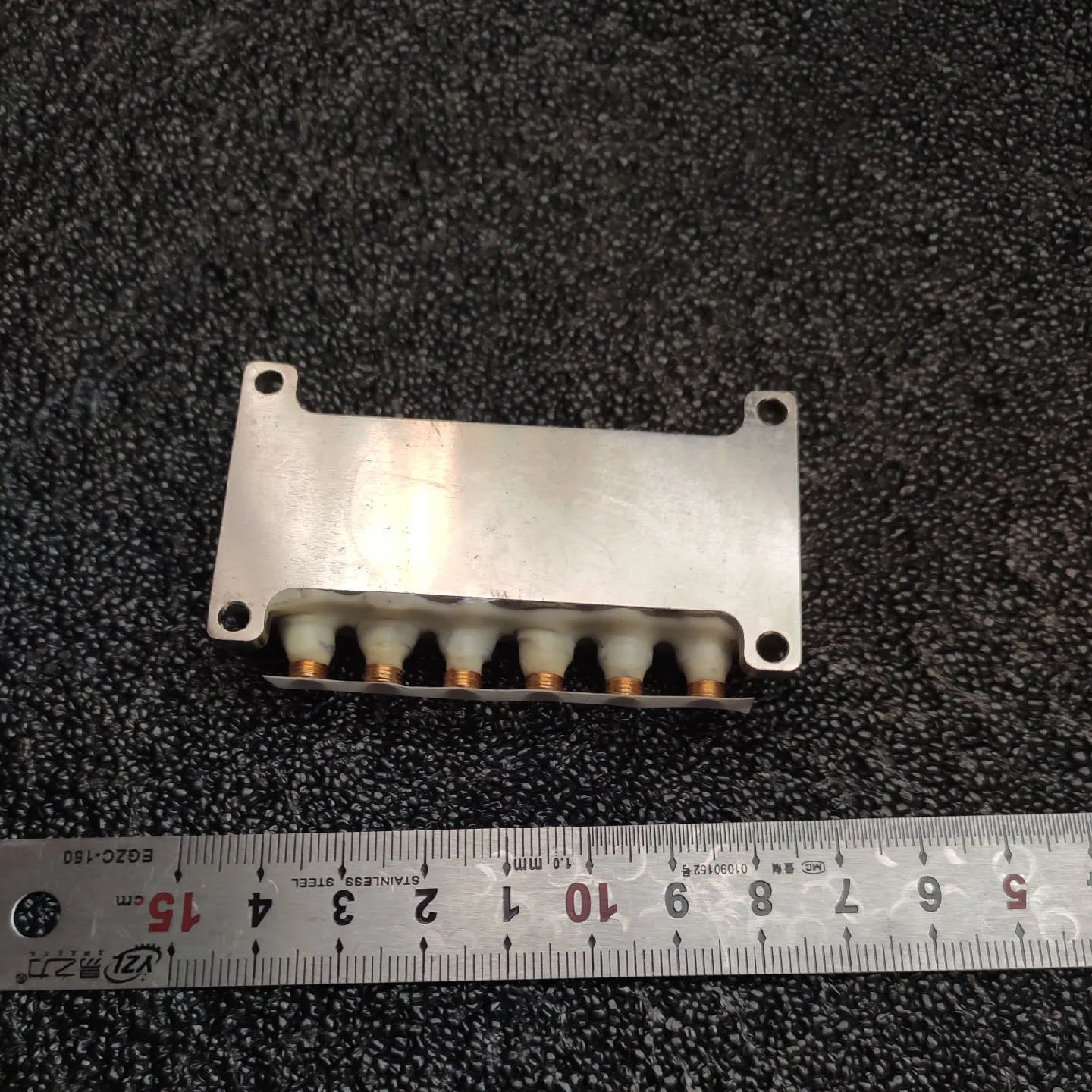

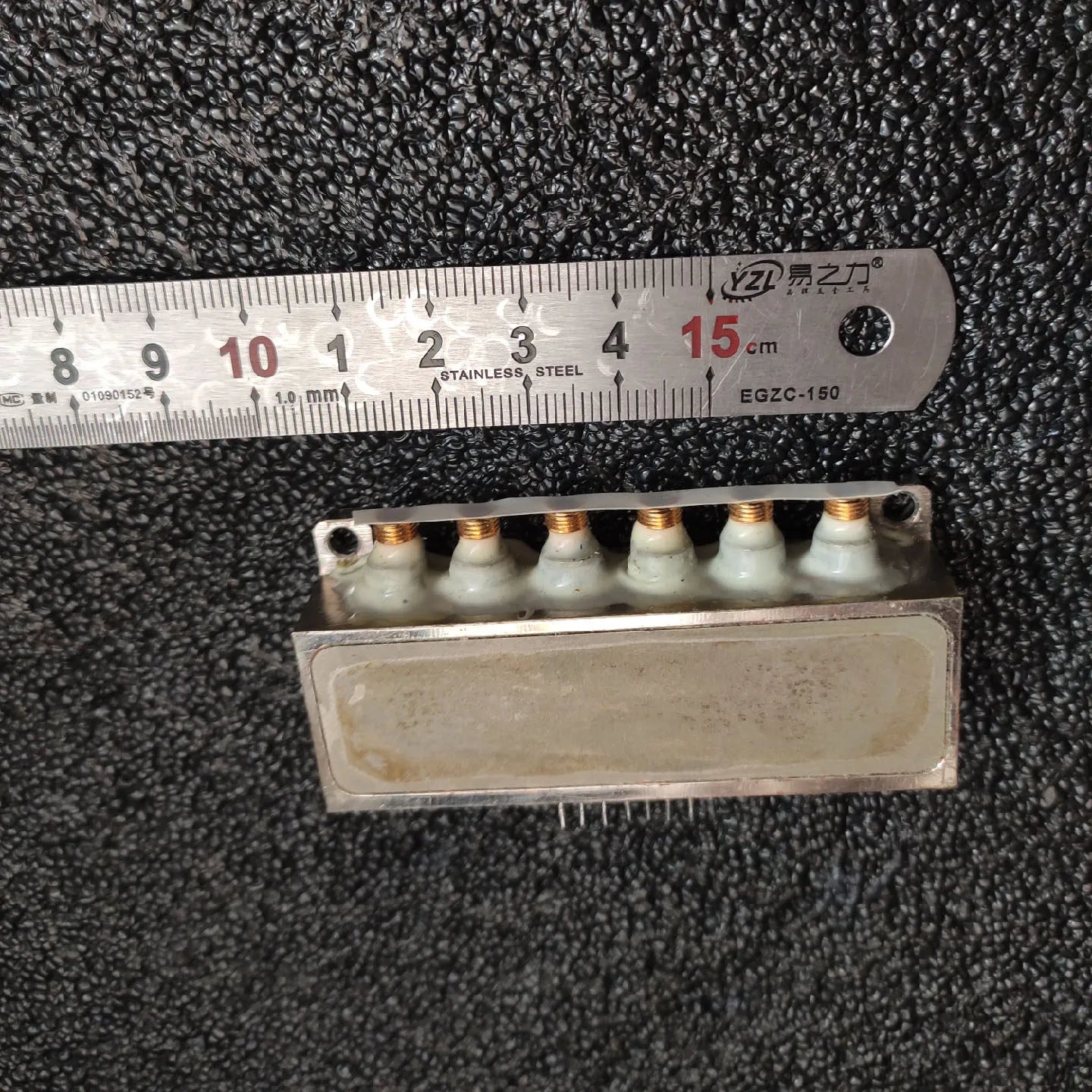

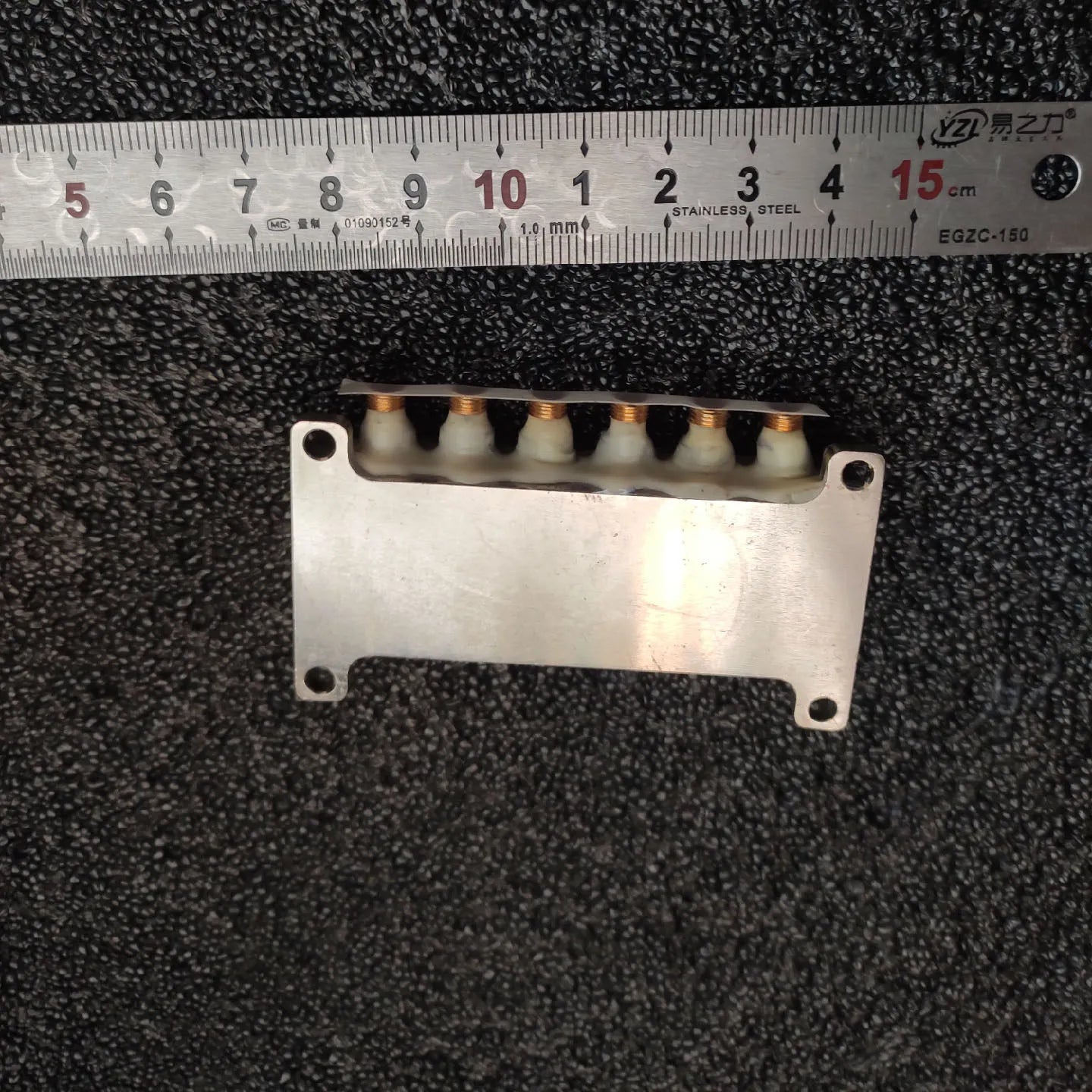

This high-precision fiber coupled red laser module is engineered for industrial alignment, sensing, and scientific research applications. With 6 independent FC output ports, each delivering a minimum of 0.2W at 635nm, it provides stable, uniform red laser output through a 200μm core fiber. Fully tested before shipment, it is ideal for system integrators, R&D labs, and OEMs requiring a reliable multi-channel red laser source.
📊 Key Features & Specifications
-
Wavelength: 635nm (red visible laser)
-
Output Power: ≥0.2W per channel (6 channels total)
-
Fiber Core Diameter: 200μm
-
Connector Type: FC/PC (6 independent output ports)
-
Optical Performance:
- Stable power output with <2% variation per channel
- Uniform beam profile across all ports
-
Mechanical Design: Compact aluminum housing for thermal stability
-
Quality Assurance: Each unit undergoes pre-shipment testing to verify ≥0.2W output per channel
-
Condition: Custom-made, new unit
🛠️ SKU Details
| SKU Code |
Configuration |
Quantity |
| RLM-635-6FC-200UM |
635nm, 6×FC ports, 200μm core, ≥0.2W per channel |
Made-to-order |
🎯 Applications
- Multi-point laser alignment in industrial machinery
- Optical sensing and metrology systems
- Scientific research and laboratory experiments
- Laser-based inspection and quality control
- Custom OEM integration for medical and industrial devices
💡 Why Choose Our Red Laser Module?
-
Guaranteed Power Output: Each channel is tested to deliver ≥0.2W for consistent performance
-
Multi-Channel Design: 6 independent FC ports enable flexible system integration
-
Precision Engineering: High-quality fiber coupling ensures minimal power loss and uniform beam quality
-
Compact & Durable: Aluminum housing provides excellent heat dissipation for long-term reliability
-
Customizable: Available with alternative fiber core diameters and connector types on request
📦 Package Includes
1 x 635nm Fiber Coupled Red Laser Module (6 FC ports)
1 x Power cable (compatible with standard 24V DC power supplies)
1 x Test report verifying ≥0.2W output per channel
1 x Anti-static packaging for safe handling
⚠️ Important Notes
-
Custom Order Policy: This is a made-to-order product. No cancellations or returns are accepted after production begins.
-
Non-Returnable: Due to the precision nature of optical components, this product is non-returnable once delivered.
-
Technical Expertise: Installation and operation require knowledge of fiber optic systems and laser safety protocols.
