Description

✅ Advanced Multi-Function Button Control

Hold button 4s to power on. Initial 30% duty cycle. Single tap to shift 60% / 100% brightness. Continuous hold for smooth 4s linear 3-channel stepless dimming.

Short press triggers color cycle: Green → Red → Blue → Green+Red → RGB Mix → Green+Red, switching interval 1/9s.

Double tap activates random strobe mode: 3 channels independent 10–26Hz random frequency, 10%–20% random duty cycle. Triple tap to power off. Modes support free interruption and switching.
✅ Intelligent Thermal & Low Voltage Protection

Red channel ≥46°C: current limited to 60%

Green & Blue channel 50°C~54°C: power reduced to 70%

Temperature over 55°C: 6 flashes per second for 4s then automatic shutdown

Voltage below 10.8V: 3 flashes per second for 4s then automatic shutdown
✅ MLC Array Laser Configuration

Row1: 5pcs 7W Green Laser

Row2: 5pcs 20W Blue Laser

Row3+Row4: Red laser array, total 15W

Test condition: Constant current test under 25℃ lab environment. Compact structure, optimized algorithm extends laser service life.
✅ Important Safety & Custom Order Terms

⚠️ Do NOT look directly into laser beam or reflected light. Professional laser safety goggles REQUIRED. Never aim at people, animals or vehicles.

Keep away from flammables. Do not operate long time inside sealed or explosive environments.

For adult use only. Keep away from children. No unauthorized circuit modification or removal of heat protection.

Auto shutdown protection cannot be manually disabled.

This is custom-made product with complicated assembly & calibration. Please watch demo video before ordering. Once assembly starts, 67% total order amount will be charged for order cancellation due to high cost of laser cores.

Long Description 详情正文完整版

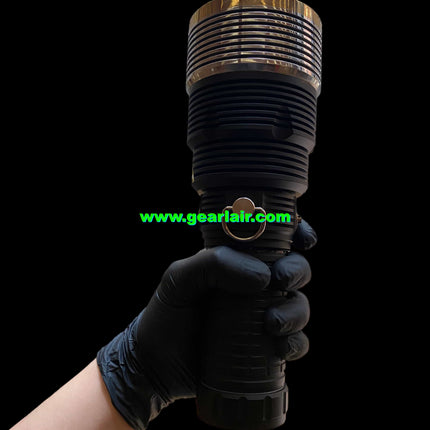

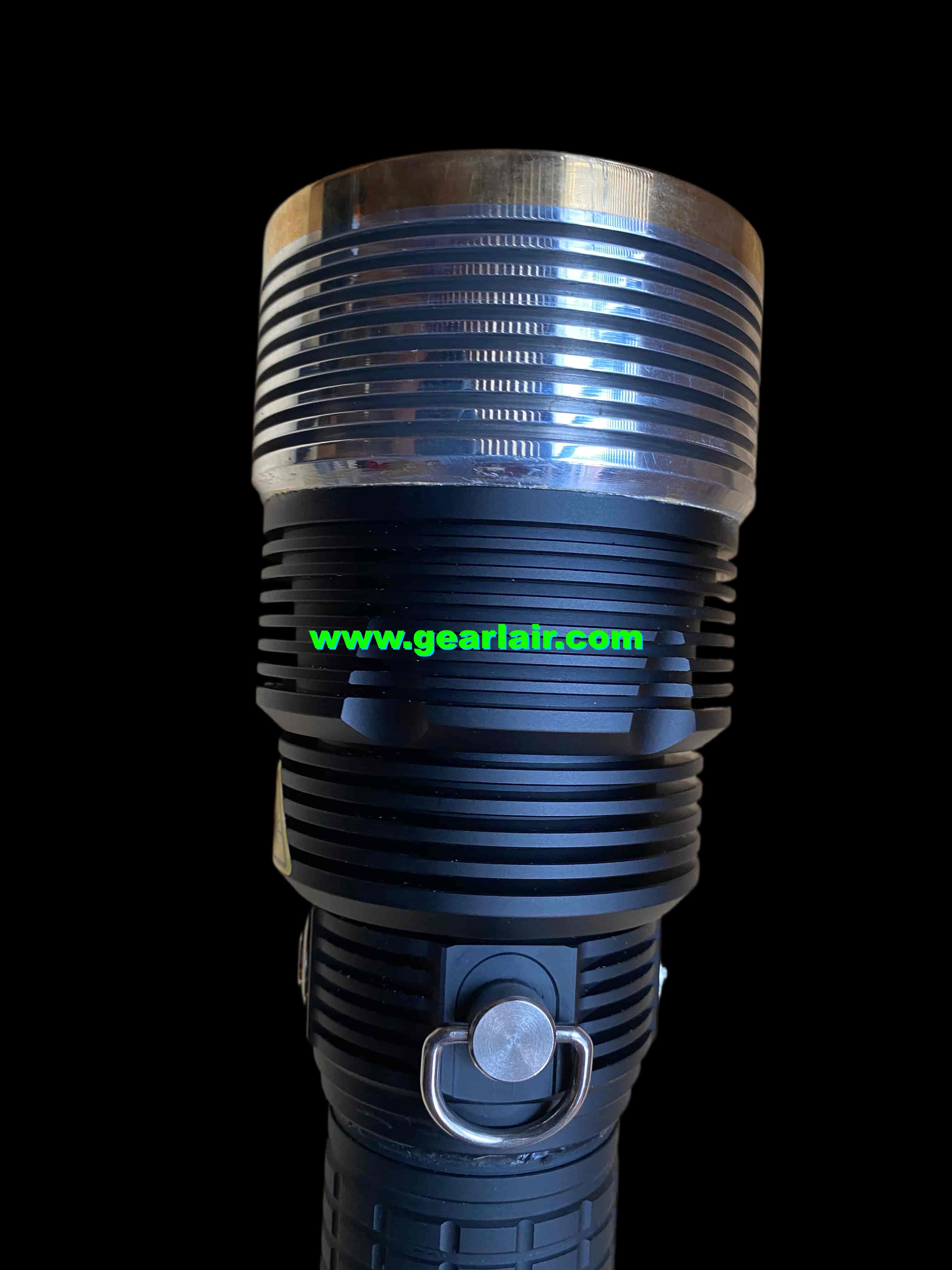

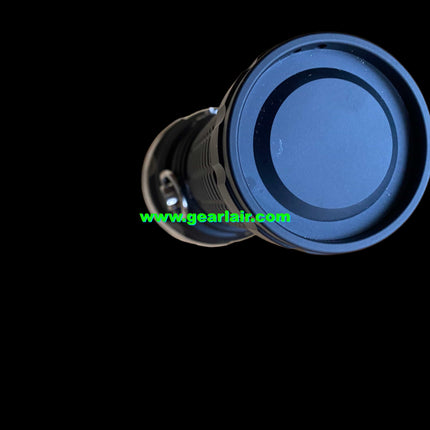

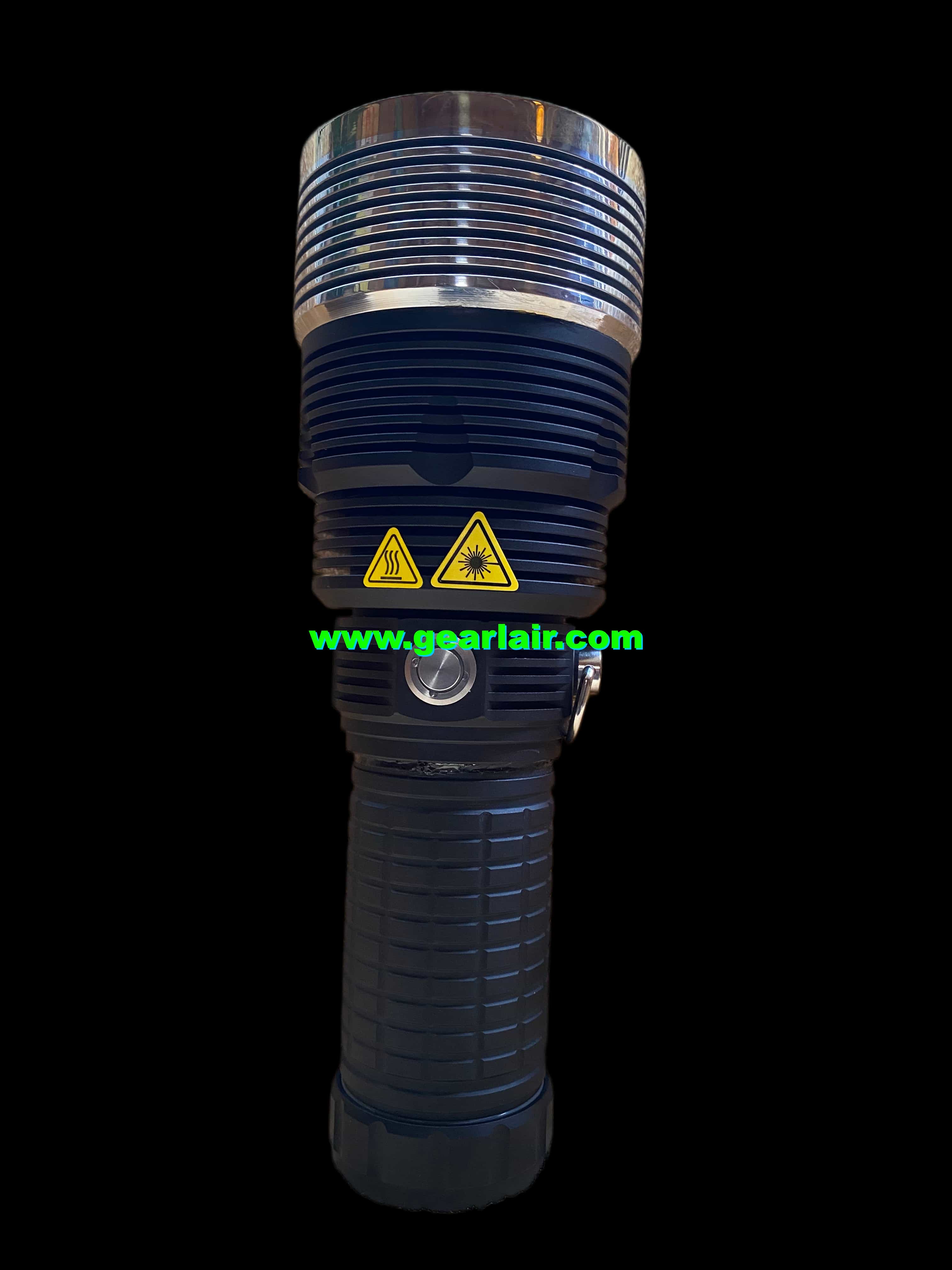

Custom MLC Array RGB Multi-Channel Laser System

This customized multi-color laser module adopts MLC array layout with independent 3-channel constant current drive. Equipped with rich adjustable lighting modes, linear stepless dimming, random strobe and color cycle effects. Built-in multi-layer temperature sensing and low voltage protection system to protect laser chips.

Operation Logic

Hold the switch for 4 seconds to boot up, 3 channels start at 30% duty cycle.

Single press: switch to 60% duty cycle; press again for 100% duty cycle.

Hold continuously to realize synchronous stepless dimming for all three channels. The full linear dimming process lasts 4 seconds.
Short press triggers automatic color circulation: Green → Red → Blue → Green+Red → RGB mixed light → Green+Red, switching every 1/9 second.

Double tap activates independent random strobe on 3 channels. Each channel runs random frequency 10–26Hz with random 10%–20% duty cycle. Triple tap to shut down. All modes support instant interruption and free switching.

Protection System

  • Red channel temperature ≥46℃: output current drops to 60%
  • Green & Blue channel 50℃~54℃: power limited to 70%
  • Over 55℃: 6 flashes per second for 4 seconds, then forced shutdown
  • Input voltage below 10.8V: 3 flashes per second for 4 seconds, auto shutdown

Laser Hardware Specs

MLC array laser layout

Row1: 5 × 7W Green Laser

Row2: 5 × 20W Blue Laser

Row3 & Row4: Red laser array, total 15W

Performance tested via constant current method under 25℃ laboratory environment.

Notice: Compact size limits heat dissipation compared with large desktop water cooling systems. Exclusive intelligent algorithm effectively extend laser working lifespan.

Safety Notice & Custom Order Policy

  1. Never stare directly at laser beam or reflected light. Professional laser protective goggles must be worn during operation. Do not aim beam toward human beings, animals and vehicles.
  2. Stay away from paper, cloth and other combustibles. Avoid long-time operation in sealed space or flammable & explosive surroundings.
  3. Only for adults. Store out of children’s reach. Unauthorized circuit modification and removal of heat protection are forbidden.
  4. Automatic protection under over-temperature and low voltage conditions. Do not attempt to bypass safety functions.
  5. This is custom product. Assembly and calibration take massive time. Watch demo video before placing order. If you cancel order after assembly begins, 67% of total payment will be withheld to cover material and labor cost. Laser cores are high-cost precision components, thank you for understanding.

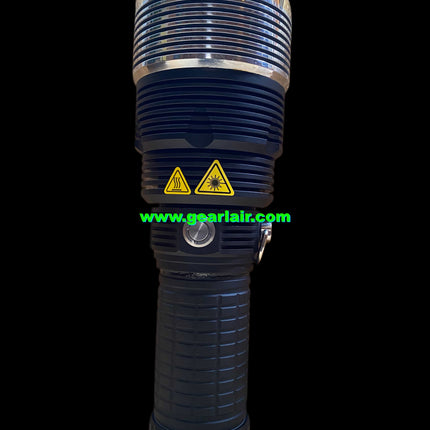

Custom MLC Array Multi-Color Laser Module RGB Beam Projector, Intelligent Temperature Control, 3 Channel Adjustable PWM Driver
