Description

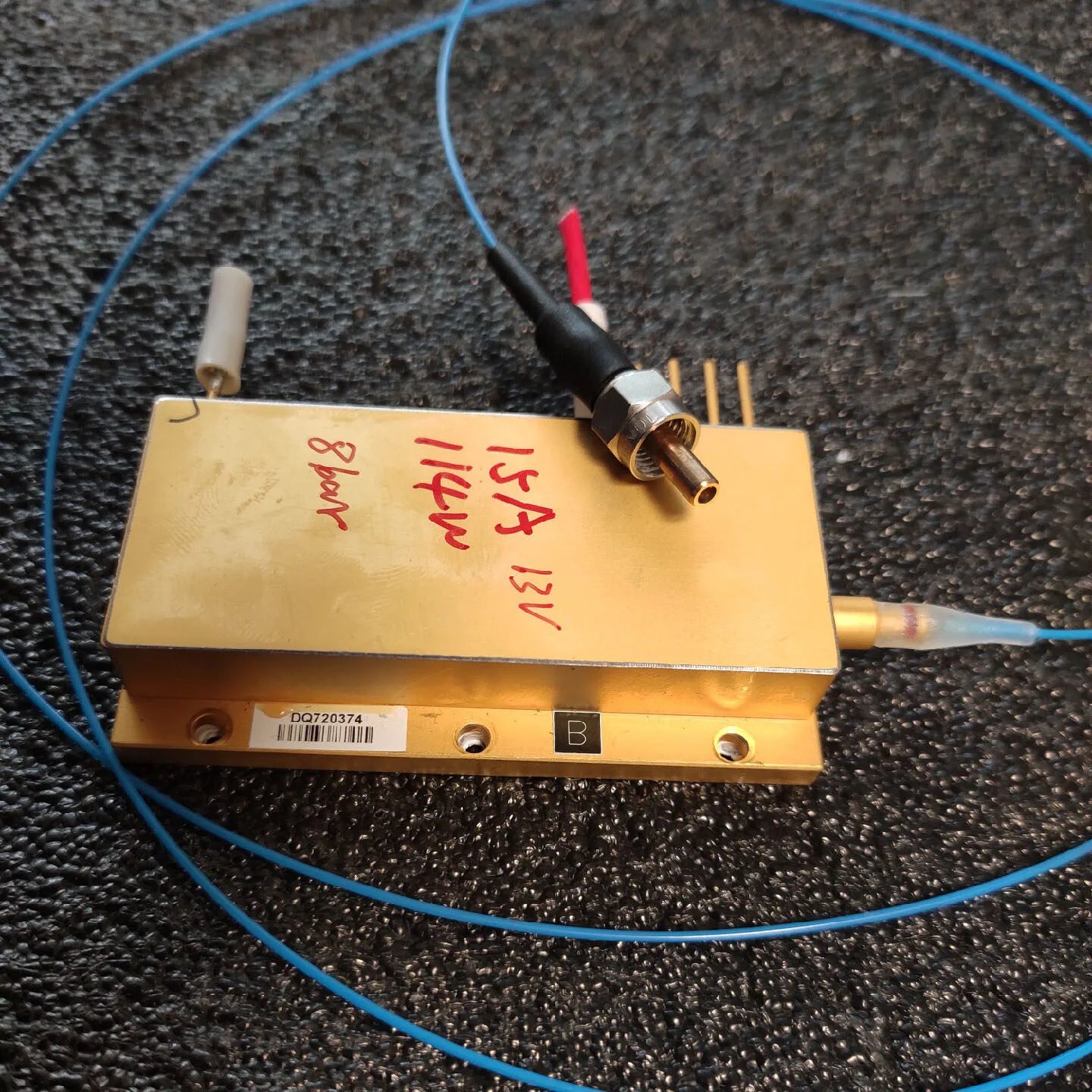

The Custom 114W 915nm Fiber-Coupled Laser Pump Source is a professional-grade laser diode module designed for scientific research, fiber laser system integration, and optical experimentation. It delivers a stable 114W infrared output at 915nm, optimized for pumping 1064nm infrared and 532nm green laser systems. This custom-built unit features a 1m fiber output (200μm core) with an SMA905 connector, ensuring precise, low-loss energy delivery for your optical system. It is intended for use by trained professionals in controlled lab or industrial environments.
Core Features
-
High-Efficiency Pumping: 915nm wavelength is the industry standard for pumping 1064nm and 532nm laser systems, offering high absorption efficiency.
-
Fiber-Coupled Delivery: 1m multimode fiber (200μm core) with an SMA905 copper air-gap connector ensures low-loss energy transfer.
-
Gold-Plated Thermal Interface: High-thermal-conductivity gold-plated copper housing ensures efficient heat dissipation for continuous operation.
-

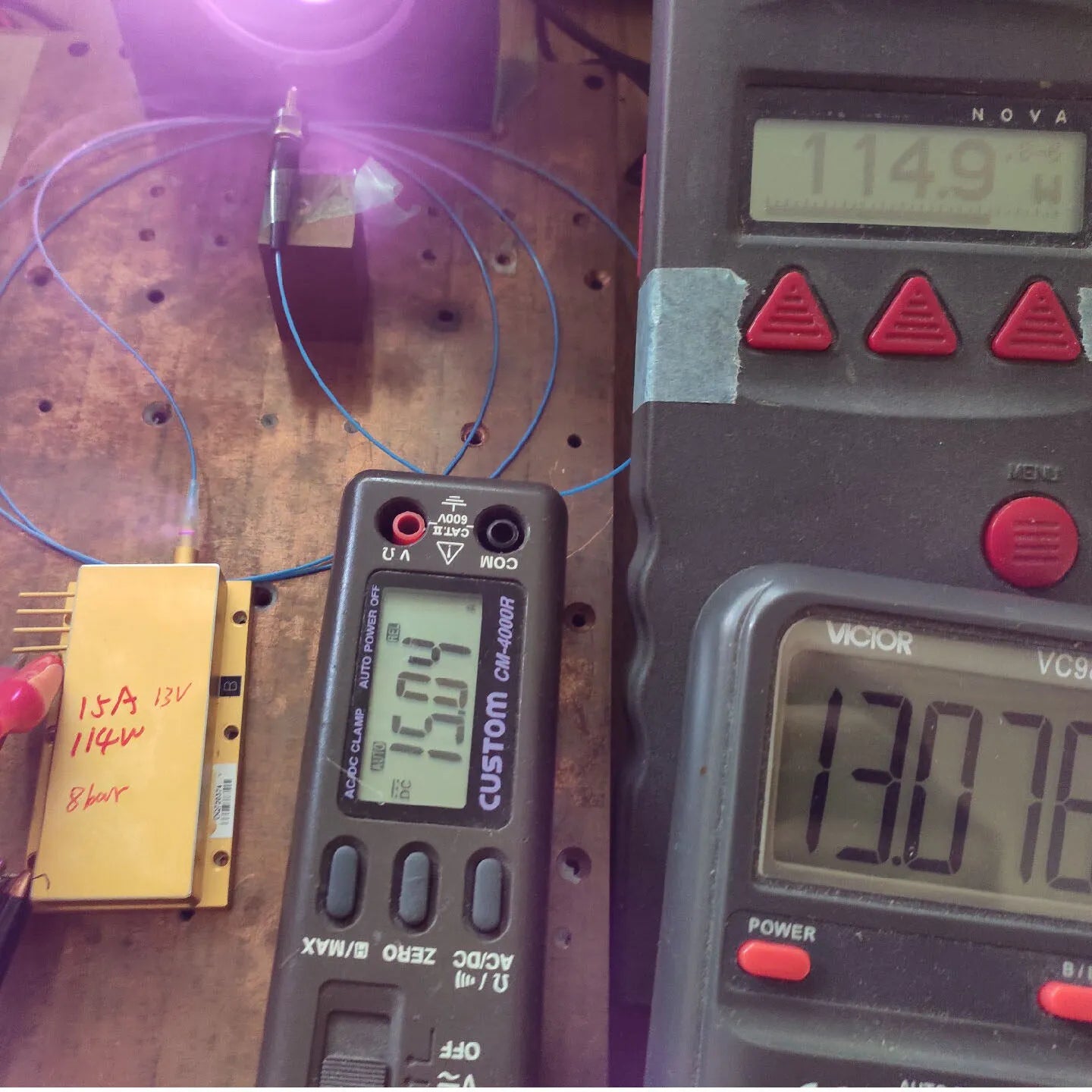

Custom-Built Reliability: Each unit undergoes rigorous testing to ensure stable output (114W nominal) and optimal thermal performance.
-
Modification-Friendly: Optional collimating lens upgrades are available for custom integration.
Technical Specifications
| Parameter |
Details |
| Product Name |
Custom 114W 915nm Fiber-Coupled Laser Pump Source |
| Wavelength |
915nm ±1nm (infrared) |
| Power Output |
114W (nominal; full power tested) |
| Fiber Core Diameter |
200μm (multimode) |
| Fiber Length |
1m |
| Connector Type |
SMA905 copper air-gap connector |
| Maximum Current |
15A |
| Maximum Voltage |
13V |
| Housing Material |
Gold-plated copper (high thermal conductivity) |
| Primary Applications |
Pumping 1064nm/532nm laser systems, scientific research, optical experimentation |
| Condition |
Custom-built and tested (as-new performance) |
| Operation Requirement |
Trained laser professionals only (requires thermal management expertise) |
SKU Details
| SKU |
Configuration |
Price |
| PUMP-114W-915-CUSTOM |
114W 915nm Laser Pump Source + 1m Fiber Output |
$399.99 |
| PUMP-114W-KIT |
Module + Thermal Compound + Power Cable |
$429.99 |
| PUMP-114W-UPGRADE |
Module + Collimating Lens Upgrade |
$449.99 |
Why Choose This Custom Pump Source?
-
Trusted Performance: Built with high-quality components and tested to deliver stable, reliable output for critical applications.
-
Precision Delivery: The SMA905 connector and 200μm core fiber ensure low-loss energy transfer to your laser system.
-
Efficient Cooling: The gold-plated thermal interface ensures stable performance even during continuous operation.
-
Flexible Integration: Optional upgrades allow you to customize the module for your specific laser system requirements.
Important Safety & Usage Notes
-
Operator Training: This module must be handled and operated by trained laser professionals familiar with high-power diode safety protocols.
-
Thermal Management: A robust heat sink and active cooling system are required for continuous operation to prevent overheating (keep temperature ≤35°C).
-
Laser Safety: Always wear appropriate laser safety goggles (OD 4+ for 915nm) when operating this module. Never point the beam at people, animals, or reflective surfaces.
-
Custom Terms: This is a custom-built, as-is unit. It is tested for functional performance but sold without return or exchange.
-
Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
