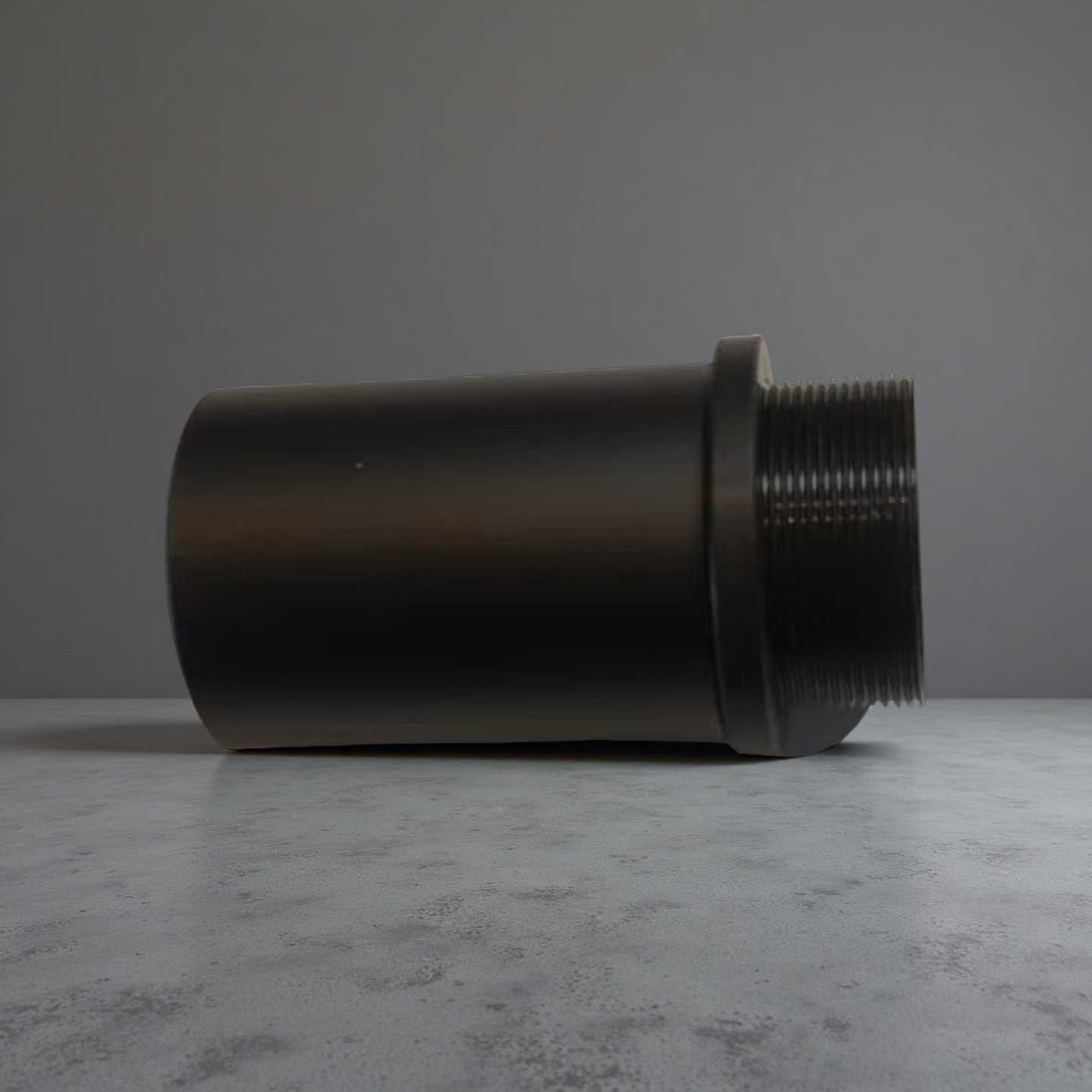

Name: Compact BeamLens Pro D25/M22 Series
Brand: LaserOne
SKU: lens10
Price: 89.0 USD
Availability: InStock

Description

Primary Product Name: Compact BeamLens Pro D25/M22 Series

Model Numbering Example: BeamLens Pro-3X-532-M22

(This clearly indicates the product family, magnification, primary wavelength, and thread type.)

2. Product Detail Page Design Framework

1. Core Headline & Value Proposition

"BeamLens Pro D25/M22: Compact Power, Scalable Performance" A miniature beam expander/reducer designed for integration into space-constrained systems. Offering a wide range of off-the-shelf magnifications from 1.2X to 12X for precise beam control across visible and NIR spectra.

2. Key Features (Icon-Based Presentation)

Wide Magnification Range
- Icon: 📈
- Text: Choose from 1.2X, 1.5X, 2X, 2.5X, 3X, 4X, 6X, 10X, to 12X. Standard stock availability for rapid deployment.
Compact & Robust Design
- Icon: 🔩
- Text: Features a compact 45mm length with a standard M22x0.75 thread for easy and secure integration into OEM systems.
Broad Spectral Compatibility
- Icon: 🌈
- Text: Optimized for two primary bands: Visible (400-700nm) and Near-IR (800-1100nm), covering a wide array of laser sources.
High-Quality Optics
- Icon: ⚡
- Text: Utilizes precision 16mm (input) and 20mm (output) lenses, ensuring high throughput and minimal wavefront distortion.

3. Detailed Product Specifications Table

Parameter Category	Specification Details
Product Series	Compact BeamLens Pro D25/M22 Series
Magnification	In Stock: 1.2X, 1.5X, 2X, 2.5X, 3X, 4X, 6X, 10X, 12X Custom: Other magnifications available (Contact Support)
Input Beam Diameter	Max 12 mm
Output Beam Diameter	Max 18 mm
Lens Size	Input: 16 mm, Output: 20 mm
Housing Diameter	25 mm
Connection Thread	M22 x 0.75
Total Length	~45 mm
Operating Wavelengths	400 - 700 nm, 800 - 1100 nm

4. Application Scenarios (Visual Showcase)

Scenario 1: Laser Scanning & LiDAR
- Visual Suggestion: Diagram of a beam expanding before a scanning galvanometer.
- Caption: "Reduce divergence for improved long-range resolution in scanning and ranging systems."
Scenario 2: Microscopy & Bio-Imaging
- Visual Suggestion: A beam entering a microscope objective.
- Caption: "Precisely size your beam to overfill microscope objectives for optimal resolution and confocal performance."
Scenario 3: Material Processing
- Visual Suggestion: Close-up of a laser engraving a fine pattern.
- Caption: "Control spot size and depth-of-field for precision in micro-machining and marking applications."

5. Call to Action & Ordering Information

Title: Select Your Configuration

Text: "Browse our standard magnifications in stock. Require a different magnification? Please contact our support team for custom solutions."

Configuration Note: "When ordering, please specify your desired Magnification and primary Operating Wavelength."

This structure ensures all technical details are clear while marketing the product's versatility and compact advantage effectively.
