Description
The Coherent 12W 808nm Fiber-Coupled Laser Module is a professional-grade, refurbished laser diode designed for scientific research, laser system integration, and optical experimentation. It delivers a stable 12W infrared output at 808nm, optimized for pumping 355nm UV, 473nm blue, 532nm green, and 1064nm infrared laser systems. Built with Coherent’s industry-leading technology, this module features a fiber-coupled output and gold-plated thermal interface for reliable performance in controlled lab or industrial environments. It is intended for use by trained laser professionals.
Core Features
-
High-Efficiency Pumping: 808nm wavelength is the industry standard for pumping a wide range of laser systems, including 355nm, 473nm, 532nm, and 1064nm lasers.
-
Fiber-Coupled Delivery: Ensures precise, low-loss energy transfer to your target laser cavity.
-

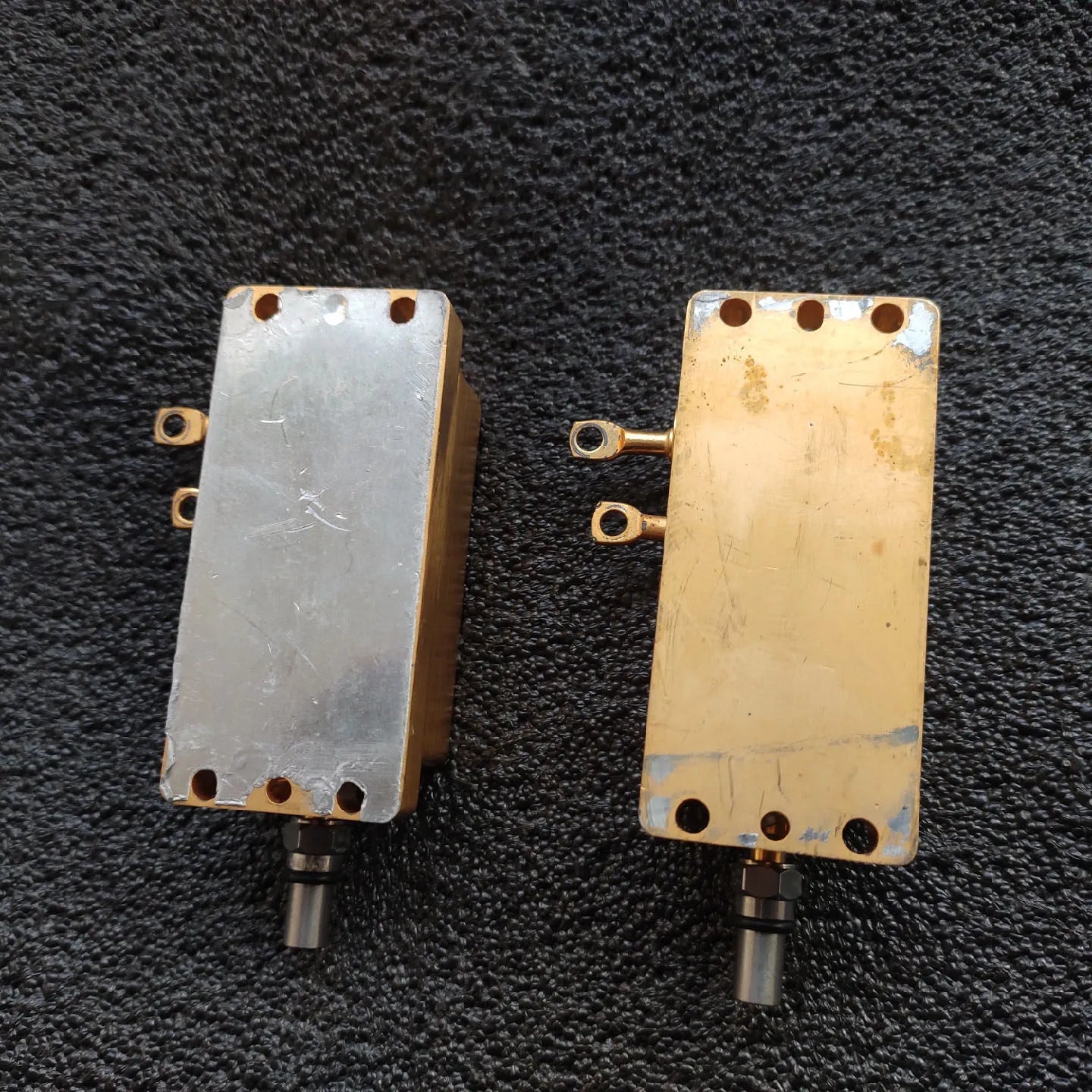

Gold-Plated Thermal Interface: High-thermal-conductivity gold-plated copper housing ensures efficient heat dissipation for stable continuous operation.
-

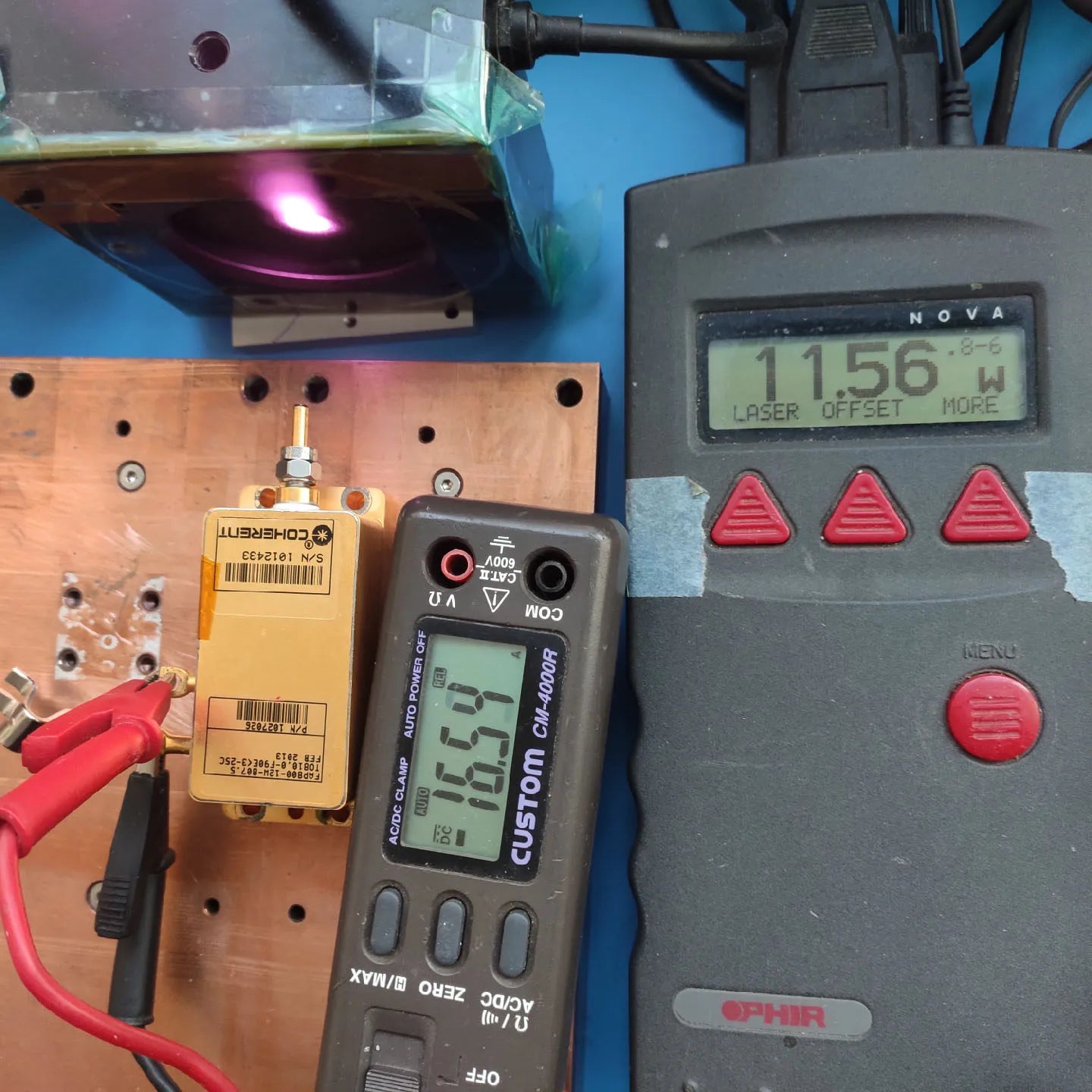

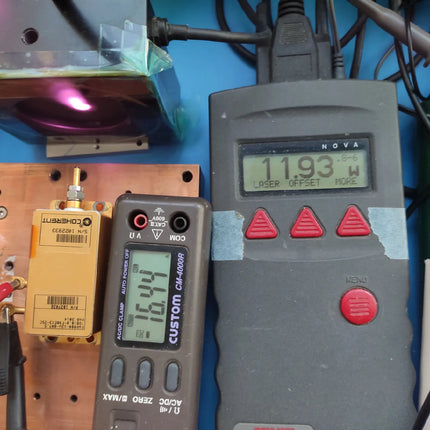

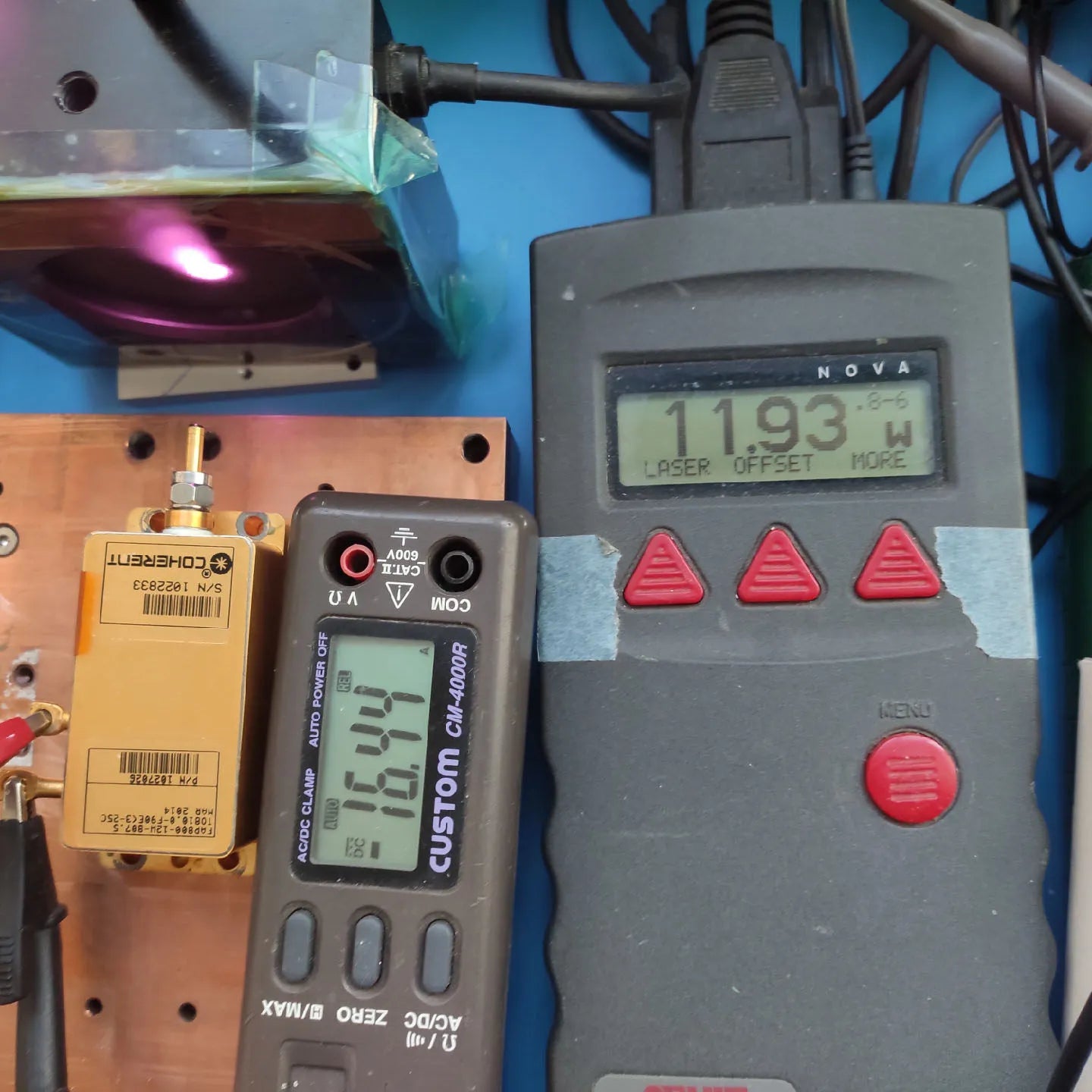

Refurbished Reliability: Each unit undergoes rigorous testing to ensure stable output (tested at 16.5A for full 12W power) and optimal thermal performance.
-
Modification-Friendly Design: The front-mounted ribbon cable can be easily removed or retained for flexible system integration.
Technical Specifications
| Parameter |
Details |
| Product Name |
Coherent 12W 808nm Fiber-Coupled Laser Module |
| Wavelength |
808nm ±1nm (infrared) |
| Power Output |
12W (nominal; tested at 16.5A for full power) |
| Operating Current |
16.5A (tested) |
| Fiber Type |
Multimode fiber-coupled output |
| Housing Material |
Gold-plated copper (high thermal conductivity) |
| Primary Applications |
Pumping 355nm/473nm/532nm/1064nm laser systems, scientific research, optical experimentation |
| Condition |
Refurbished (tested and verified for performance) |
| Operation Requirement |
Trained laser professionals only (requires thermal management expertise) |
SKU Details
| SKU |
Configuration |
|
| COHERENT-808-12W |
12W 808nm Fiber-Coupled Laser Module (Refurbished) |
|
| COHERENT-808-12W-KIT |
Module + Thermal Compound + Power Cable |
|
Why Choose This Coherent Laser Module?
-
Trusted Performance: Coherent is a global leader in laser technology, ensuring exceptional reliability and output stability.
-
Versatile Pumping: The 808nm wavelength is ideal for pumping a wide range of laser systems, making it a versatile choice for research and integration projects.
-
Efficient Cooling: The gold-plated thermal interface ensures stable performance even during continuous operation.
-
Cost-Effective Solution: Refurbished units deliver professional-grade performance at a fraction of the cost of new modules.
Important Safety & Usage Notes
-
Operator Training: This module must be handled and operated by trained laser professionals familiar with high-power diode safety protocols.
-
Thermal Management: A robust heat sink and active cooling system are required for continuous operation to prevent overheating and performance degradation.
-
Refurbished Terms: This is a refurbished, as-is unit. It is tested for functional performance but sold without return or exchange.
-
Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
