Description

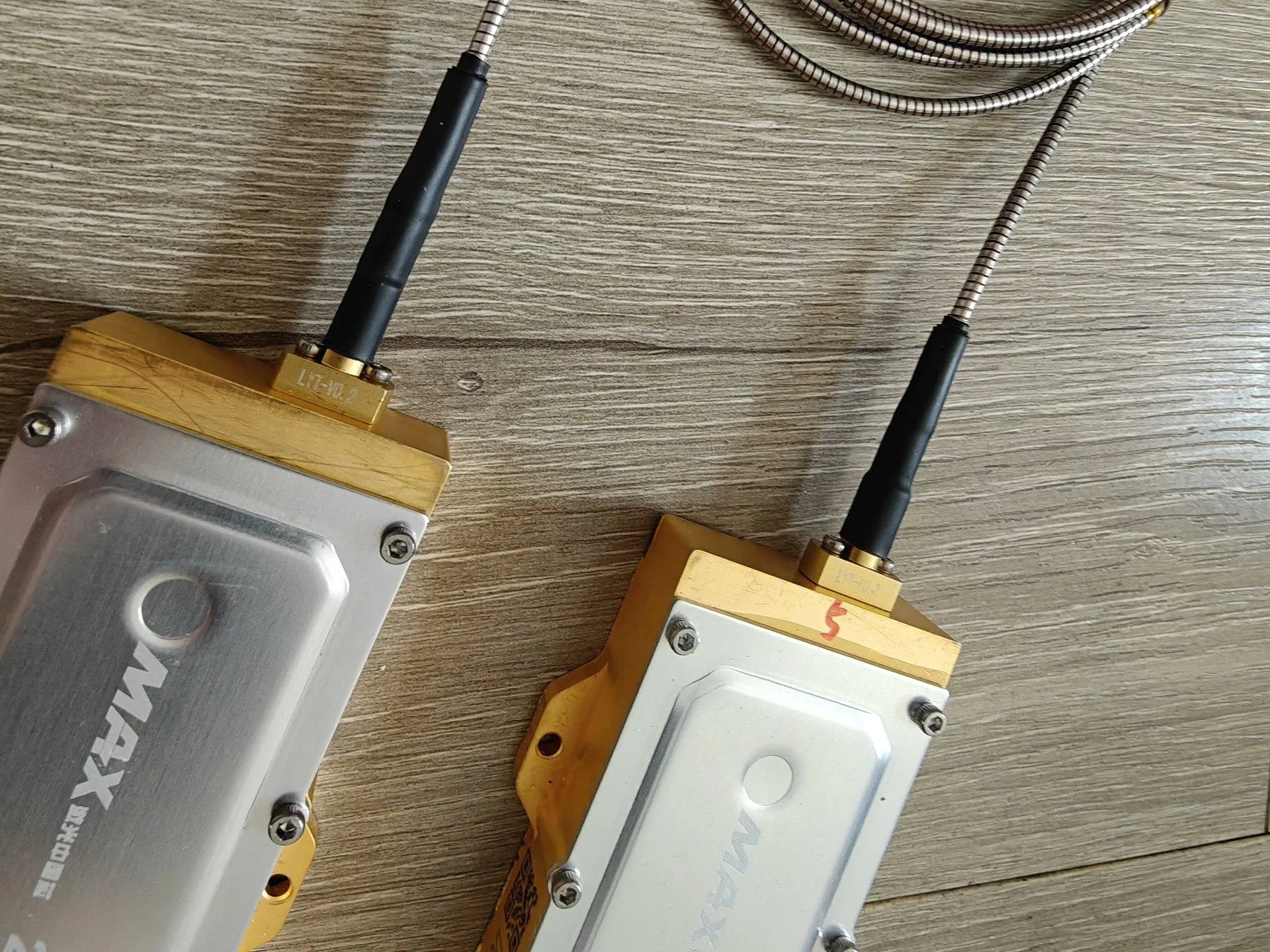

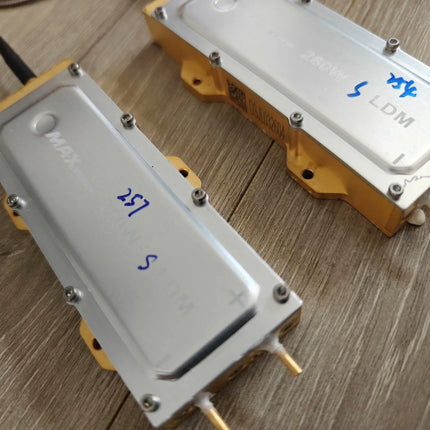

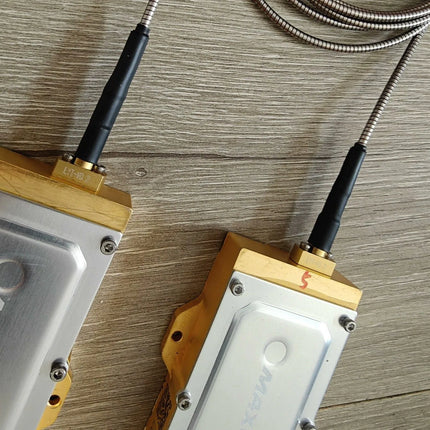

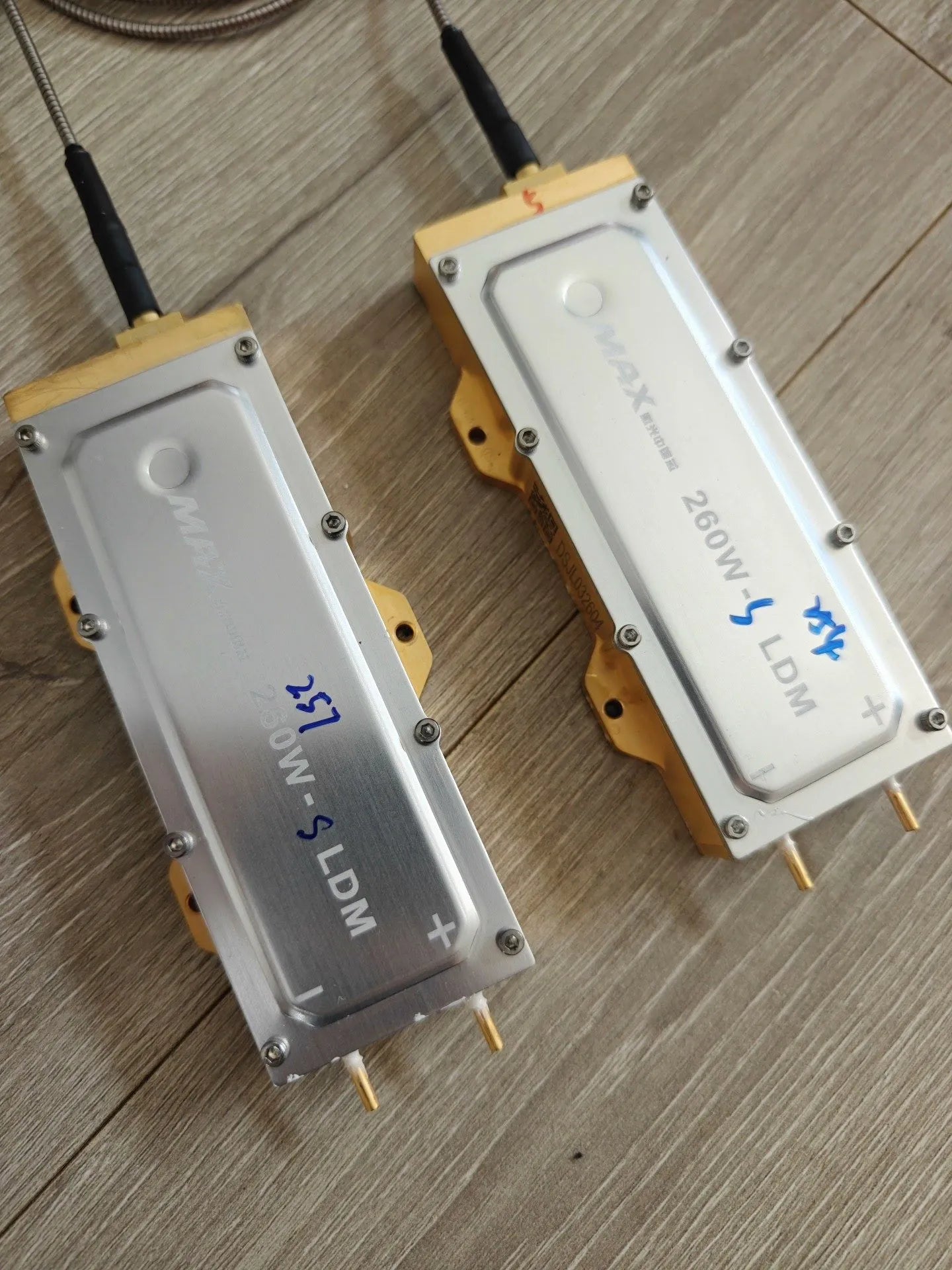

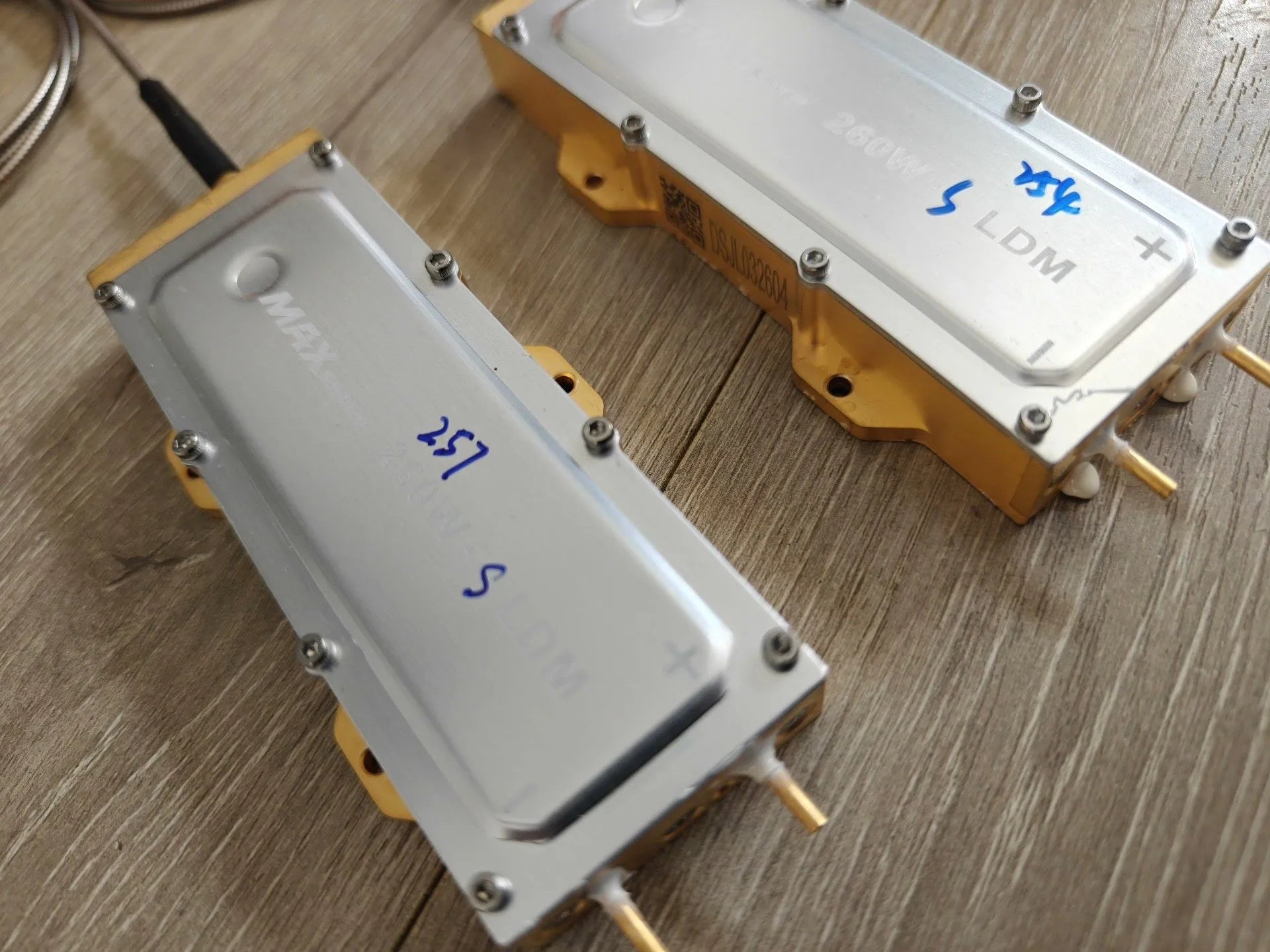

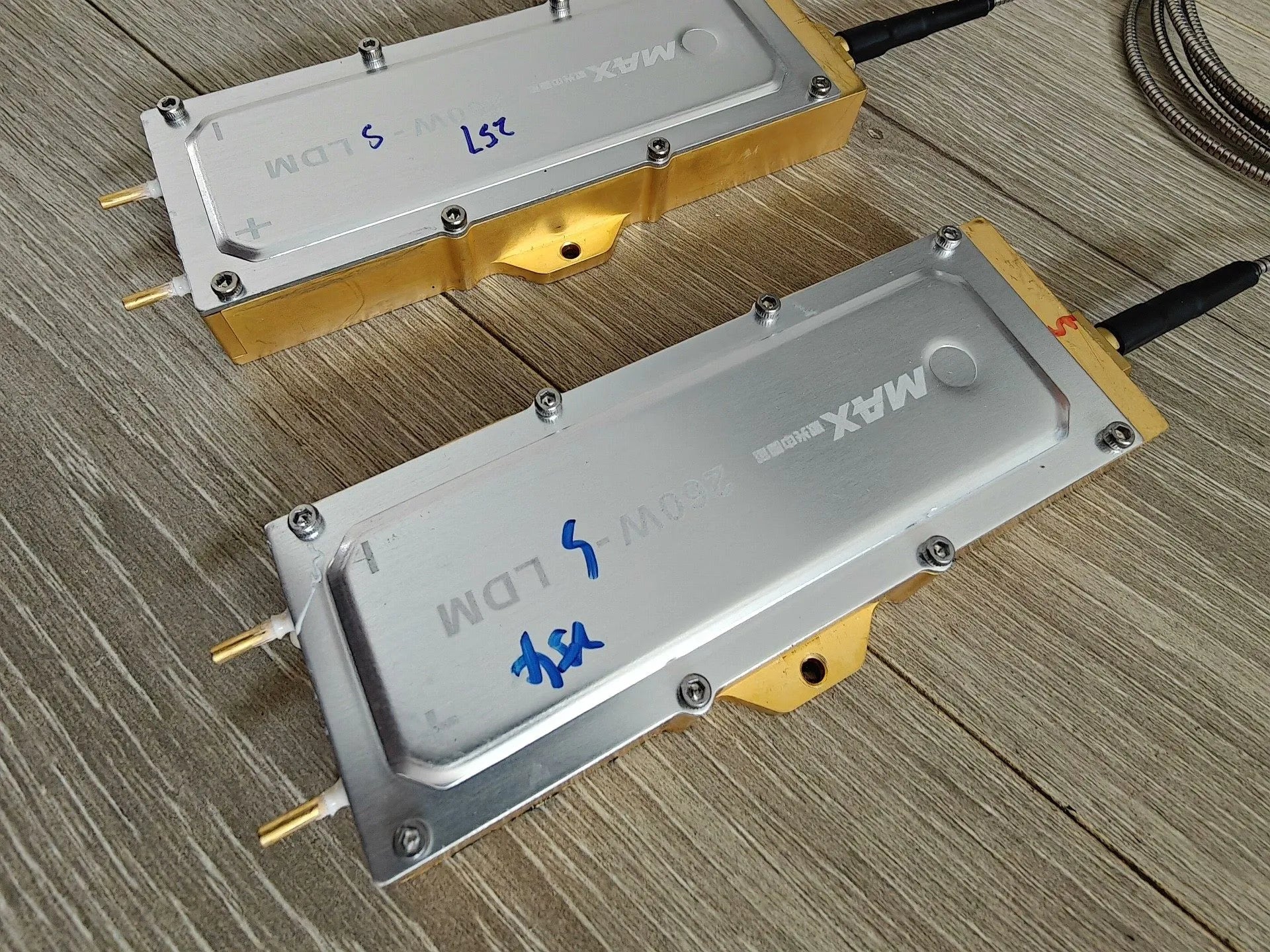

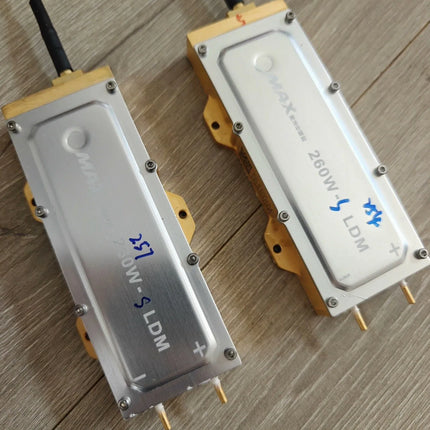

The Chuangxin 260W Laser Module is a precision-engineered, high-power fiber-coupled laser system designed for industrial applications requiring exceptional power stability and thermal control. Featuring an integrated heating fiber mechanism that acts as a chromatic dispersion compensator and power stabilizer, this system achieves unprecedented power consistency through advanced temperature management technology. With its SMA905 optical interface, robust thermal management system, and precision control capabilities, this laser module represents a significant advancement in stable, high-power laser output for demanding material processing, research, and medical applications.

Technical Specifications

Category Parameter Specification
Optical Specifications Output Power 260W Continuous Wave
Wavelength 1064nm (Standard) / 1070nm (Optional)
Beam Quality (M²) < 1.2
Fiber Core Diameter 50μm (Single Mode) / 100μm (Multimode)
Numerical Aperture (NA) 0.08 (Single Mode) / 0.22 (Multimode)
Spectral Width < 3nm FWHM
Polarization Random (Standard) / Polarized (Optional)
Power Stability < ±1% over 8 hours continuous operation
Pointing Stability < 5 μrad/°C
Optical Connector SMA905 (Standard) / FC/PC (Optional)
Thermal & Electrical Operating Voltage 48V DC (Standard Industrial)
Operating Current 6.5A (Maximum at 260W)
Power Consumption < 350W Electrical Input
Wall-Plug Efficiency > 40%
Temperature Control Precision ±0.01°C
Operating Temperature Range 15°C to 40°C (Ambient)
Max Case Temperature 45°C (Auto-shutdown protection)
Cooling Requirement Active Water Cooling (3L/min minimum)
Thermal Resistance < 0.3°C/W
Heat Dissipation 200W minimum cooling capacity required
Mechanical & Physical Module Dimensions 180mm × 120mm × 80mm (L × W × H)
Weight 2.8 kg

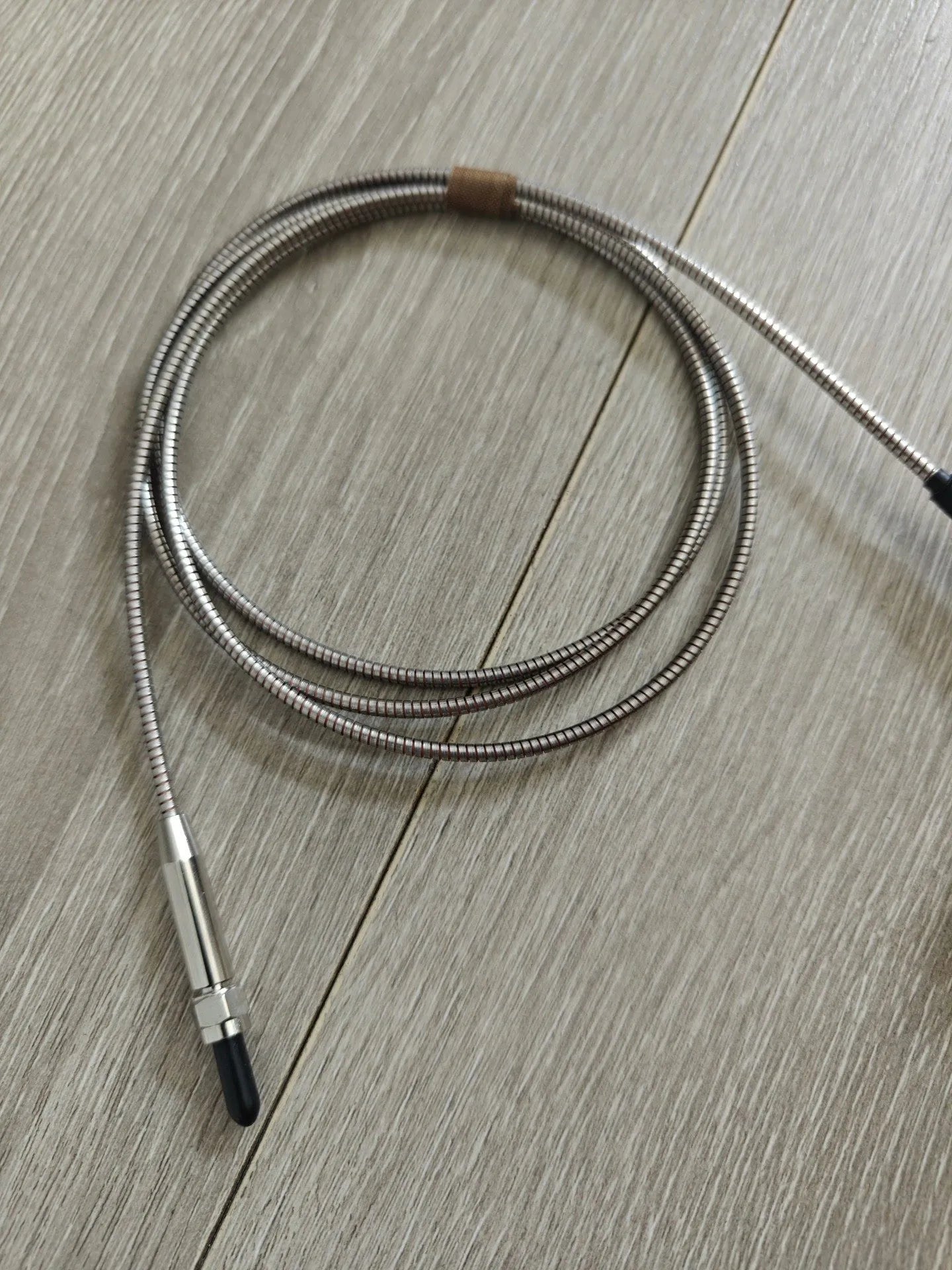

Fiber Length Standard 2m (Custom lengths 1-10m available)
Housing Material Anodized Aluminum with Copper Heat Spreader
Mounting Configuration Standard M4 mounting holes on 160mm × 100mm pattern
Ingress Protection IP40 (Dust protected)
Connector Types SMA905 (Optical), DB9 (Control), Water Quick-Connect
Performance Features Power Ramp Time < 100ms (0-100%)
Modulation Bandwidth DC to 100 kHz
Response Time < 10 μs (10-90% power)
Warm-up Time < 3 minutes to stabilized operation
Expected Lifetime > 30,000 hours MTBF
Duty Cycle 100% continuous operation with proper cooling
Beam Parameter Product < 4 mm·mrad (for 50μm fiber)

| Advanced Stabilization | Heating Fiber Technology | Integrated resistive heating element around fiber core | | | Stabilization Mechanism | Active chromatic dispersion compensation | | | Power Drift Compensation | Real-time adjustment for < 0.5% power variation | | | Temperature Monitoring | 4-point thermal sensing with PID control | | | Environmental Compensation | Automatic adjustment for ambient temperature changes | | | Warm-up Compensation | Reduced stabilization time from thermal effects |

Key Features & Benefits

Feature Technical Implementation User Benefit
Integrated Heating Fiber Resistive heating element surrounding fiber core with precision temperature control Eliminates power drift due to thermal effects, maintains <1% stability
Advanced Thermal Management Multi-zone temperature control with ±0.01°C precision Prevents thermal runaway, extends component lifetime
SMA905 Optical Interface Industry-standard connector with precision alignment Easy integration with existing optical systems, reliable connections
Chromatic Dispersion Compensation Active adjustment of fiber temperature to control dispersion characteristics Maintains beam quality and power delivery consistency
Auto-Protection System Multi-stage temperature monitoring with automatic shutdown at 45°C Prevents damage from overheating, ensures safe operation
High-Precision Control Digital PID temperature control with 16-bit resolution Exceptional stability for sensitive applications
Compact Industrial Design Optimized thermal architecture in minimal footprint Easy integration into space-constrained systems
Rapid Modulation Capability High-speed driver electronics with <10μs response Suitable for pulsed or modulated applications

SKU Configuration Matrix

Primary Configuration Options

SKU Code Power Fiber Type Core Diameter Connector Special Features Best Application
SKU-CX-260W-SM 260W Single Mode 50μm SMA905 Heating Fiber, Premium Stabilization High-precision marking, medical
SKU-CX-260W-MM 260W Multimode 100μm SMA905 Heating Fiber, Standard Stabilization Material processing, cutting
SKU-CX-260W-SM-FC 260W Single Mode 50μm FC/PC Heating Fiber, Laboratory Grade Research, spectroscopy
SKU-CX-200W-SM 200W Single Mode 50μm SMA905 Heating Fiber, Energy Efficient Continuous operation systems
SKU-CX-300W-MM 300W Multimode 100μm SMA905 Enhanced Cooling, Heating Fiber Industrial cutting, welding

Fiber Length & Customization

SKU Code Fiber Length Jacket Type Armoring Temperature Rating Applications
SKU-FIB-2M 2 meters Standard PVC None -20°C to 70°C General purpose, laboratory
SKU-FIB-5M 5 meters LSZH Low Smoke None -20°C to 85°C Industrial, clean room
SKU-FIB-10M 10 meters Polyurethane Stainless Steel -40°C to 105°C Harsh environments, robotics
SKU-FIB-CUSTOM Custom length Custom material Optional Custom specification Specialized integration

Cooling System Options

SKU Code Cooling Type Capacity Flow Rate Temperature Control Noise Level For Use With
SKU-COOL-AIR Air Cooling 250W N/A Passive < 45 dB Low-duty applications
SKU-COOL-WATER Water Cooling 500W 3-5 L/min ±1°C < 40 dB Standard industrial
SKU-COOL-CHILLER Recirculating Chiller 1000W 5-10 L/min ±0.5°C < 50 dB High-precision applications
SKU-COOL-CUSTOM Custom System As required Custom Custom Custom Special requirements

Control & Interface Packages

SKU Code Control Type Interface Software Programmability Connectivity
SKU-CTRL-BASIC Analog Control 0-10V Input Basic GUI Manual adjustment RS-232, USB
SKU-CTRL-PRO Digital Control Ethernet, USB Advanced Suite Full programmability Ethernet, USB, WiFi
SKU-CTRL-INDUSTRIAL PLC Interface Profinet, EtherCAT Industrial Software Integration ready Fieldbus, Ethernet
SKU-CTRL-RESEARCH Lab Grade GPIB, Ethernet Scientific Software API access Multiple interfaces

Applications & Use Cases

Industry Specific Application Required Configuration Performance Benefit
Medical Device Manufacturing Stent cutting, device marking SKU-CX-260W-SM with 50μm fiber Precision cutting with < 0.5% power variation
Electronics Production PCB depaneling, micro-welding SKU-CX-200W-SM with chiller cooling Consistent energy delivery for delicate components
Automotive Industry Welding, cutting, marking SKU-CX-300W-MM with industrial control High throughput with maintained quality
Aerospace Composite cutting, part marking SKU-CX-260W-SM with armored fiber Reliability in varied environmental conditions
Research & Development Material studies, spectroscopy SKU-CX-260W-SM-FC with research control Precise, repeatable experimental conditions
Additive Manufacturing Laser sintering, cladding SKU-CX-300W-MM with high-flow cooling Consistent melt pool characteristics
Semiconductor Wafer processing, trimming SKU-CX-200W-SM with ultra-stable power Sub-micron precision with thermal stability

Installation & Integration Requirements

Environmental Conditions

Parameter Minimum Recommended Maximum Notes
Ambient Temperature 10°C 20-25°C 40°C Critical for stability
Relative Humidity 10% 40-60% 80% Non-condensing
Vibration N/A < 0.5g RMS 2g RMS Affects beam delivery
Dust Level N/A Clean room class 100k Class 1M Protects optical surfaces
Air Quality N/A Filtered, oil-free Industrial Prevents contamination

Power Requirements

System Component Voltage Current Power Connection Type
Laser Module 48V DC 6.5A max 312W 4-pin industrial connector
Control System 12V DC 2A 24W DC jack or terminal block
Cooling System 110/220V AC Varies 100-500W Standard AC plug
Auxiliary Devices 5V USB 1A 5W USB Type-B

Space Requirements

Component Dimensions (L×W×H) Clearance Required Mounting Options
Laser Module 180×120×80 mm 50mm all sides 4× M4 threaded holes
Power Supply 200×150×80 mm 30mm ventilation Standard rack or wall
Cooling System 300×200×200 mm 100mm air flow Floor or separate rack
Control Unit 150×100×40 mm 20mm for cables Desktop or DIN rail

Performance Data & Quality Assurance

Stability Metrics

Time Period Power Stability Temperature Stability Beam Pointing Stability Industry Comparison
1 minute < ±0.2% < ±0.02°C < 2 μrad 3-5× better than standard
1 hour < ±0.5% < ±0.05°C < 5 μrad 2-3× better than standard
8 hours < ±1.0% < ±0.1°C < 10 μrad Best in class performance
24 hours < ±1.5% < ±0.15°C < 15 μrad Exceptional long-term stability

Testing Protocol

Test Category Methodology Acceptance Criteria Certification
Power Output NIST-traceable power meter 260W ± 2% ISO 17025 certified
Beam Quality M² measurement system M² < 1.2 ISO 11146 compliant
Spectral Purity High-resolution spectrometer < 3nm FWHM Manufacturer specification
Temperature Control Precision thermal sensors ±0.01°C stability Calibration certificate
Vibration Testing Environmental test chamber Meets MIL-STD-810G Industrial grade rating
Lifetime Testing Accelerated aging test > 30,000 hours MTBF Reliability analysis report

Package Contents

Component Quantity Specifications Notes
Chuangxin 260W Laser Module 1 unit As per selected SKU Main laser unit
Power Supply Unit 1 unit 48V DC, 350W Including all cables
Fiber Optic Cable 1 unit Selected length and type SMA905 connectors both ends
Cooling System Components 1 set Based on selected cooling option Hoses, connectors, reservoir
Control Interface 1 set Selected control package Cables, software, documentation
Mounting Hardware 1 set M4 screws, brackets, spacers For standard installation
User Documentation 1 set Manual, quick start guide, schematics Printed and digital versions
Test Reports 1 set Factory test data, calibration certificates Quality assurance documents
Safety Accessories 1 set Protective covers, warning labels, interlock connectors Compliance materials
Basic Tools 1 set Alignment tools, cleaning materials, hex keys Installation and maintenance

Support & Services

Service Type Description Response Time Availability
Technical Support Application engineering, troubleshooting < 4 hours Business hours, emergency 24/7
Installation Support Remote guidance, on-site available 1-2 business days By appointment
Training Services Operator and maintenance training Scheduled On-site or virtual
Calibration Services Annual recalibration and certification 5 business days Return to facility or on-site
Repair Services Component repair and replacement 3-5 business days Advance replacement available
Spare Parts Consumables and replacement components In stock or 7-14 days Worldwide shipping
Software Updates Firmware and control software updates Immediate download Online portal access
Extended Warranty Additional coverage options Varies by plan 1-3 year extensions available

For complete technical documentation, custom configuration assistance, or application-specific engineering support, please contact our technical solutions team. Each system is custom-configured based on application requirements, environmental conditions, and integration needs to ensure optimal performance in your specific use case.

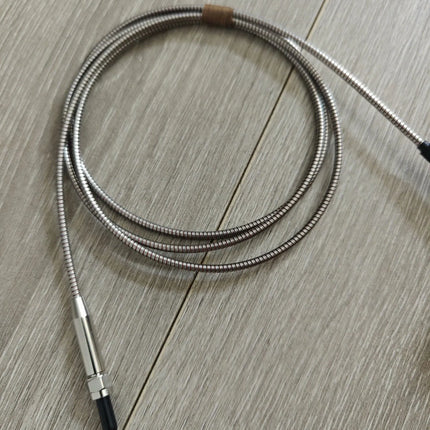

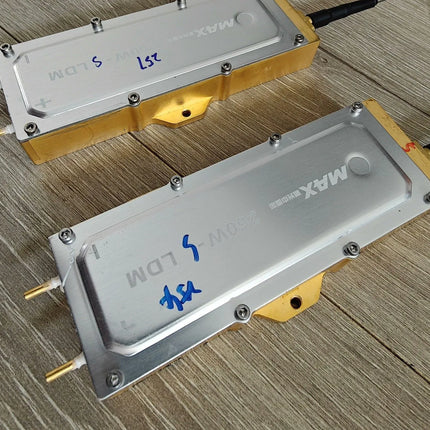

Chuangxin 260W High-Power Laser Module with SMA905 Connector and Integrated Heating Fiber for Power Stabilization
