Description

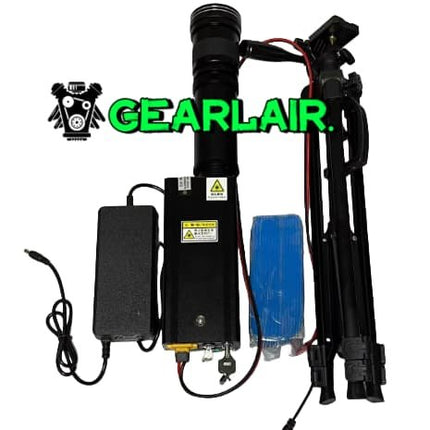

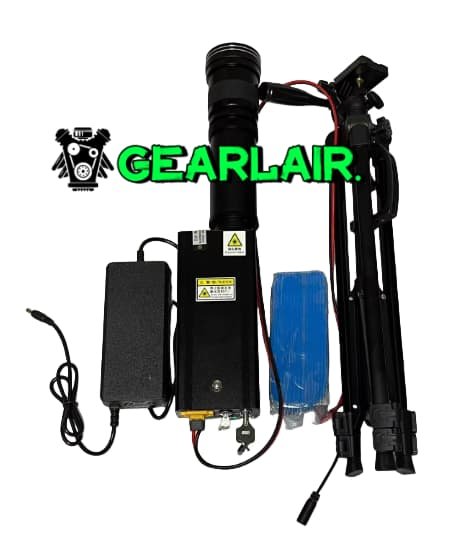

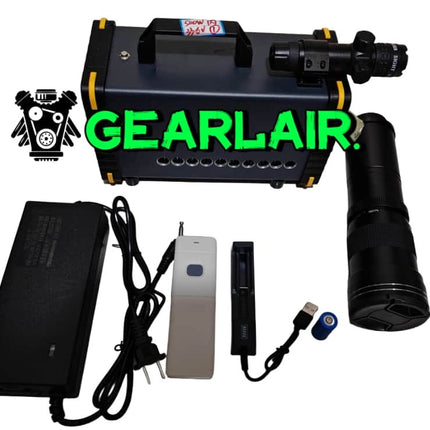

1× Laser main unit

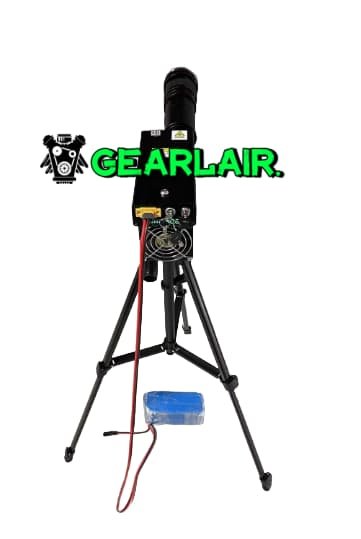

1× Alloy tripod
1× Sight with night vision function
1× Wireless remote controller
1× Battery (Type-C / Type-A interface, 37.8V 40A discharge, OLED power display)
1× Connecting cable

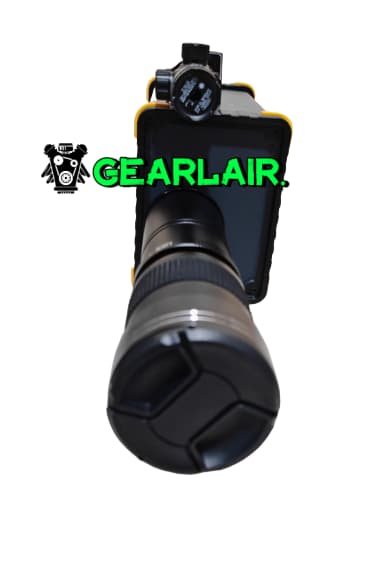

1* 60x lens

Laser Pump Source: BWT Kaplin

  • Optical Power: 500W
  • Wavelength: 976nm invisible laser
  • Output Mode: Straight / Direct beam

Physical & Build

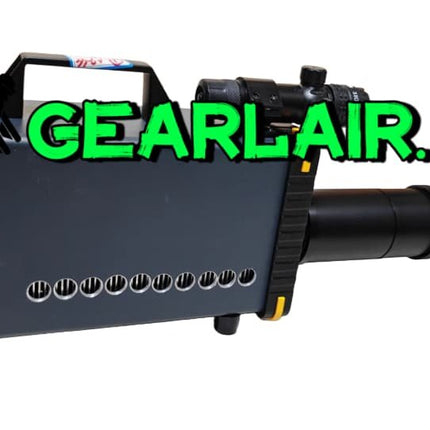

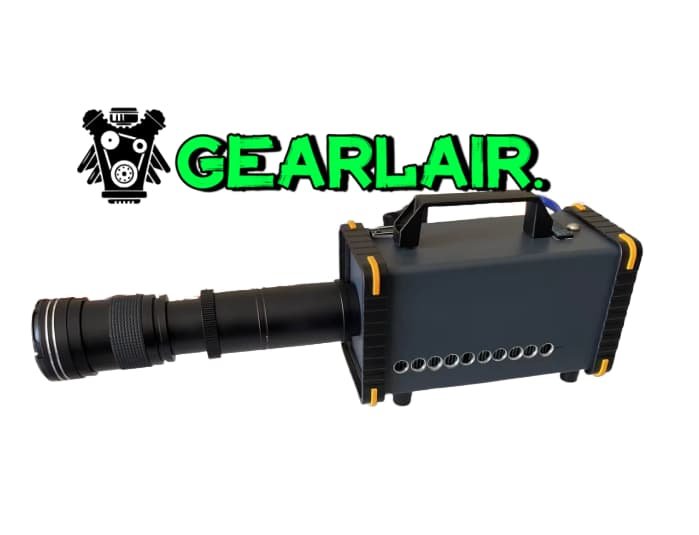

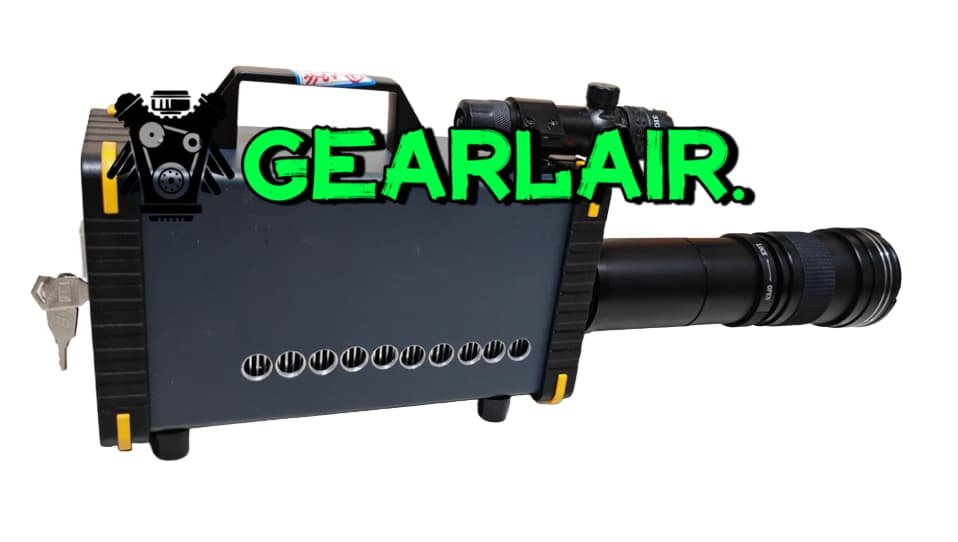

  • Body Material: Aluminum alloy main unit, 3D‑printed battery shell
  • Weight: 6.5kg (without tripod); 7‑8kg (with alloy tripod)
  • Rail: 3×55mm slots
  • Focus: Manual focal length adjustment for different distances
  • Coaxial Green Laser Assist: Switchable (minor deviation at long‑range)

Battery & Power

  • Battery: 18×Samsung 40T 4000mAh, 40A Battery Protection Board
  • Voltage: 37.8V, 40A discharge
  • Charging: Type‑C 45W fast charge; Type‑C output port
  • Display: OLED real‑time power display
  • Battery Warranty: 3‑months; Whole unit warranty: 1‑year (non‑human damage)

Thermal & Safety

  • Temperature Protection: Auto forced power‑off at 45℃
  • Max continuous single‑run: ~3 minutes

Recommendation: Single‑run ≤1 min. After thermal cut‑off, power resumes once temperature drops. Cooling fan must be turned on before laser activation (fan is loud).

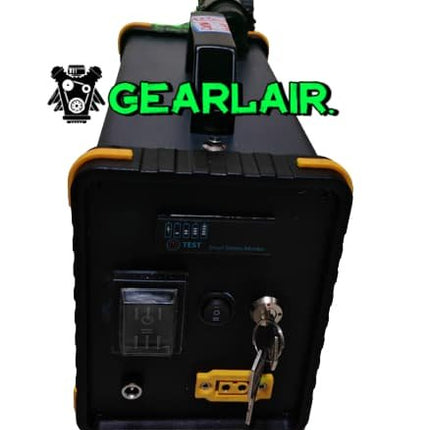

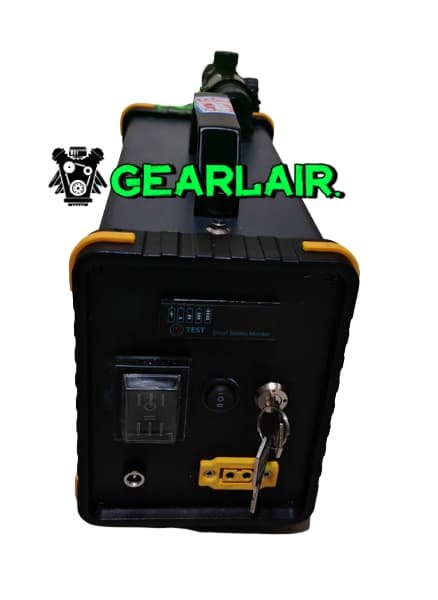

  • Safety Functions: Child‑lock key switch, green light toggle switch

Performance & Test Results

  • 20m: Penetrate Red Bull can
  • 50m: Ignite target in 2 seconds
  • 70m: Ignite target in 4 seconds
  • 85m: Generate smoke on dark brown carton

Note: Poor performance on white / transparent objects; long‑duration ignition achievable. Long‑press output button over 30s triggers thermal protection.

Application Scenarios

Scientific research, teaching, remote fixed‑point incineration, fireworks & firecracker ignition, high‑altitude floating‑object removal.

Not effective for white or transparent items; light‑colored surfaces deliver very weak effect.

Lens Usage Tips

  • Large lens: Use for distance ≥3m (knob focus)
  • Small lens: Use for distance ≥1m (telescopic push‑pull focus)

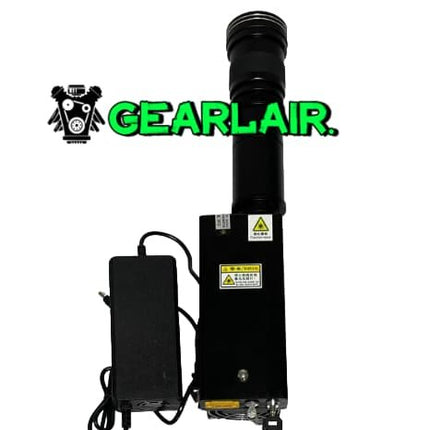

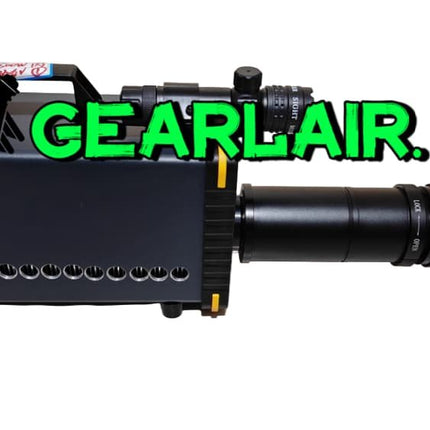

500W BWT Kaplin 976nm Invisible Laser System, Aluminum Alloy Laser Device with OLED Display & Wireless Remote Control for Scientific Research

Product form

$1,299.00

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 02, 2026 23:59:00 -0600
    • Free shipping on all orders above 500
    • No hassle returns, 30 days return

    Description

    1× Laser main unit
    1× Alloy tripod
    1× Sight with night vision function
    1× Wireless remote controller
    1× Battery (Type-C / Type-A interface, 37.8V 40A discharge, OLED power display)
    1× Connecting cable
    1* 60x lens

    Laser Pump Source: BWT Kaplin

    • Optical Power: 500W
    • Wavelength: 976nm invisible laser
    • Output Mode: Straight / Direct beam

    Physical & Build

    • Body Material: Aluminum alloy main unit, 3D‑printed battery shell
    • Weight: 6.5kg (without tripod); 7‑8kg (with alloy tripod)
    • Rail: 3×55mm slots
    • Focus: Manual focal length adjustment for different distances
    • Coaxial Green Laser Assist: Switchable (minor deviation at long‑range)

    Battery & Power

    • Battery: 18×Samsung 40T 4000mAh, 40A Battery Protection Board
    • Voltage: 37.8V, 40A discharge
    • Charging: Type‑C 45W fast charge; Type‑C output port
    • Display: OLED real‑time power display
    • Battery Warranty: 3‑months; Whole unit warranty: 1‑year (non‑human damage)

    Thermal & Safety

    • Temperature Protection: Auto forced power‑off at 45℃
    • Max continuous single‑run: ~3 minutes

    Recommendation: Single‑run ≤1 min. After thermal cut‑off, power resumes once temperature drops. Cooling fan must be turned on before laser activation (fan is loud).

    • Safety Functions: Child‑lock key switch, green light toggle switch

    Performance & Test Results

    • 20m: Penetrate Red Bull can
    • 50m: Ignite target in 2 seconds
    • 70m: Ignite target in 4 seconds
    • 85m: Generate smoke on dark brown carton

    Note: Poor performance on white / transparent objects; long‑duration ignition achievable. Long‑press output button over 30s triggers thermal protection.

    Application Scenarios

    Scientific research, teaching, remote fixed‑point incineration, fireworks & firecracker ignition, high‑altitude floating‑object removal.

    Not effective for white or transparent items; light‑colored surfaces deliver very weak effect.

    Lens Usage Tips

    • Large lens: Use for distance ≥3m (knob focus)
    • Small lens: Use for distance ≥1m (telescopic push‑pull focus)
