VIDEO HT-600 600W Industrial Laser Cleaning & Obstacle Removal System
🔥 KEY FEATURES: 600W Power · 340m Remote Operation · Non-Contact Removal · Designed for High-Voltage Power Line Maintenance
Overview
The HT-600 is an industrial-grade laser de-obstruction device specifically engineered for high-voltage power line maintenance . Integrating advanced pulsed laser technology, it enables efficient obstacle removal from a safe distance of up to 340 meters—fundamentally transforming traditional high-risk manual cleaning methods.
Key Advantages
🔹 Ultra-Long Range Operation Effective working distance up to 340 meters
🔹 Non-Contact Removal Operates without touching live lines—maximum safety
🔹 Multi-Scenario Application Kites, plastic sheets, bird nests, wasp nests, small branches
🔹 Precision Control Exceptional beam quality (M² ≤ 1.2) for accurate targeting

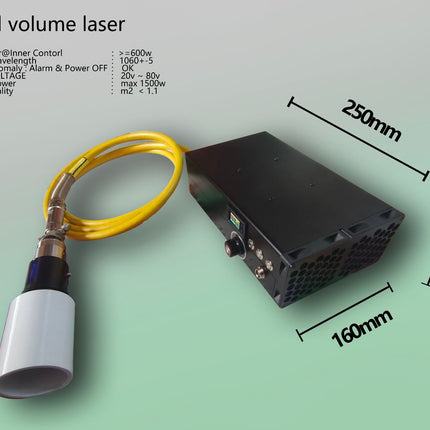

Technical Specifications
Laser System Parameters
Output Power 600W Adjustable
Operating Wavelength 1064nm Infrared Band
Fiber Core Diameter 50μm High Transmission Efficiency
Beam Quality M² ≤ 1.2 (Near-Diffraction-Limited)
Modulation Mode Pulse Modulation, Adjustable Frequency
Power & Electrical Parameters
Input Voltage DC 45V ~ 80V Wide Voltage Design
Input Interface XT60 Industrial Connector
Maximum Current 30A
Power Display Real-time monitoring of Voltage/Current/Power Consumption
Physical & Operational Parameters
Display System Multi-function Display (Voltage, Current, Power, Temperature)
Power Adjustment Rotary Knob for Stepless Adjustment (Clockwise to Increase)
Cooling System High-Efficiency Air Cooling with Dedicated Air Duct
Operating Temperature -10°C ~ 45°C
Core Applications
High-Voltage Power Line Intelligent De-obstruction
340m Remote Removal: Operator works from an absolutely safe position
Multiple Obstacle Types:
Kite strings, plastic films: 3-5 seconds clearance
Bird nests, wasp nests: 10-30 seconds disintegration
Hanging debris: precise severing of attachment points
Small Branch Cutting: Can cut branches up to 2cm in diameter within 50 meters
Note: Must be paired with a high-precision PTZ gimbal system for precise aiming.
Industrial Fabric Cutting (Requires Modification)
Modification Required: Replace beam expander lens with focusing lens
Suitable Materials: Canvas, tarpaulin, industrial fabrics
Cutting Feature: Non-contact cutting with automatically sealed edges (no fraying)
Operation Guide
Control Panel Layout
Power Switch: Main system power
Indicator Switch: Status indicator control
Pulsed Laser Switch: Activates laser emission
Display Screen: Shows real-time operating data
Power Regulator Knob: Stepless power adjustment
Cooling Air Duct Outlet: For heat dissipation
DC Power Input Port (XT60): Connect 48V-80V, 30A DC power supply
Quick-Start Workflow
Connect DC power source (48-80V) to the XT60 input port
Mount the device onto the compatible high-precision PTZ gimbal
Turn on the Power Switch and Indicator Switch
Use the PTZ system to aim the laser at the target obstacle
Gradually turn the Power Regulator Knob clockwise to the desired level
Press and hold the Pulsed Laser Switch to engage the laser. Monitor parameters on the display
⚠️ CRITICAL LASER SAFETY WARNINGS
DANGER - INVISIBLE LASER RADIATION: The 1064nm wavelength is invisible to the human eye.
NEVER point the device at people, animals, vehicles, buildings, or any unintended targets
All operators must wear appropriate Laser Safety Glasses designed for 1064nm
Establish a controlled work zone during operation
Package Contents
HT-600 Laser Main Unit × 1
Standard Beam Expander Lens (for de-obstruction) × 1
DC Power Input Cable (XT60 connector) × 1
Basic Operation Manual × 1
Safety Warning Labels × 1 set
Optional: Focusing Lens (for fabric cutting) – sold separately Required: Compatible High-Precision PTZ Gimbal System – sold separately
Target Industries
Electric Power Utilities: Transmission & distribution line maintenance
Railway Operations: Clearing obstacles near catenary wires
Telecom Infrastructure: Maintaining microwave and communication tower lines
Industrial Cleaning Services: Remote cleaning solutions
Municipal Services: Removing hazardous debris from public infrastructure
