Description
The 5x Laser Beam Expander is a precision optical accessory engineered to enhance the performance of high-power laser systems. Designed for use with fiber lasers, pump lasers, and 1064nm wavelength systems, this beam expander increases beam diameter while reducing divergence, delivering a collimated, uniform output ideal for cutting, engraving, alignment, and research applications. Featuring ZEMAX optical optimization, high-quality coatings, and robust mechanical construction, it ensures exceptional optical clarity and durability.
Key Features
-
5x Beam Expansion: Effectively expands laser beam diameter by a factor of 5 for reduced divergence and improved focusability.
-
ZEMAX Optical Optimization: Designed using advanced optical simulation software to minimize distortion and maximize performance.
-
Broad Compatibility: Suitable for 1064nm fiber lasers, pump lasers, and compatible with SMB905 interface (pre-installed).
-
Adjustable Focus: Allows fine-tuning via telescopic extension and rotational positioning for precise beam control.
-

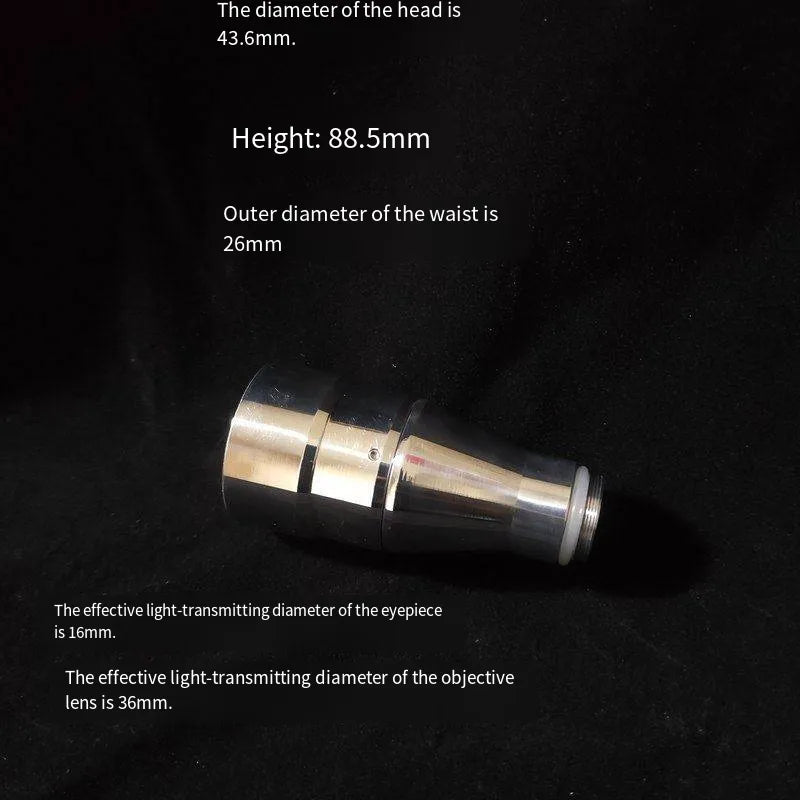

Large Clear Aperture:
-
High-Quality Optical Coatings: Anti-reflective coatings enhance transmission and reduce losses.
-
Durable Construction: Made from stainless steel or metal silver finish, with high mechanical strength and precision threading (M22×0.75).
-
Ideal Pairing: Optimized for use with 行者’s “至强” series high-power laser systems.
Technical Specifications
Available Models & SKUs
Note:
Custom configurations for long-wavelength or dual-mode applications are available upon consultation (priced separately).
Intended Applications
-
Laser Cutting & Engraving: Beam shaping for improved cutting precision and edge quality.
-
Fiber Laser Systems: Compatible with SMB905 interface for seamless integration.
-
Pump Laser Conditioning: Optimizes beam profile for pumping applications.
-
Research & Laboratory Use: Beam expansion for optical experiments, spectroscopy, and photonics.
-
Alignment & Metrology: Provides collimated beams for precision alignment and measurement.
-
LIDAR & Sensing: Suitable for expanded beam applications in remote sensing.
-
Educational Demonstrations: Optics and laser physics teaching aid.

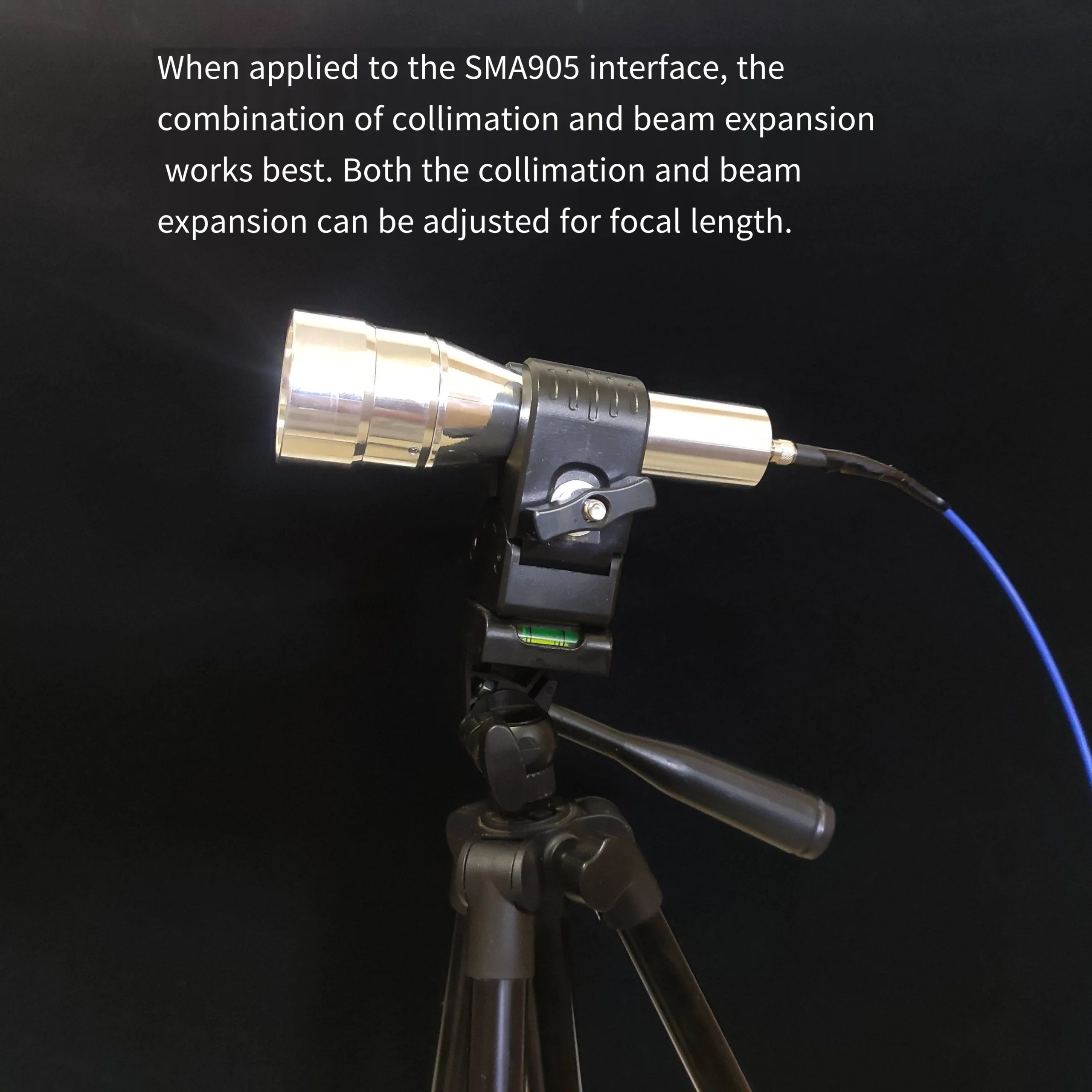

Installation & Compatibility
-

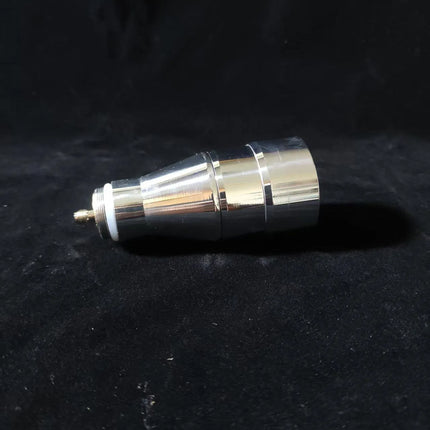

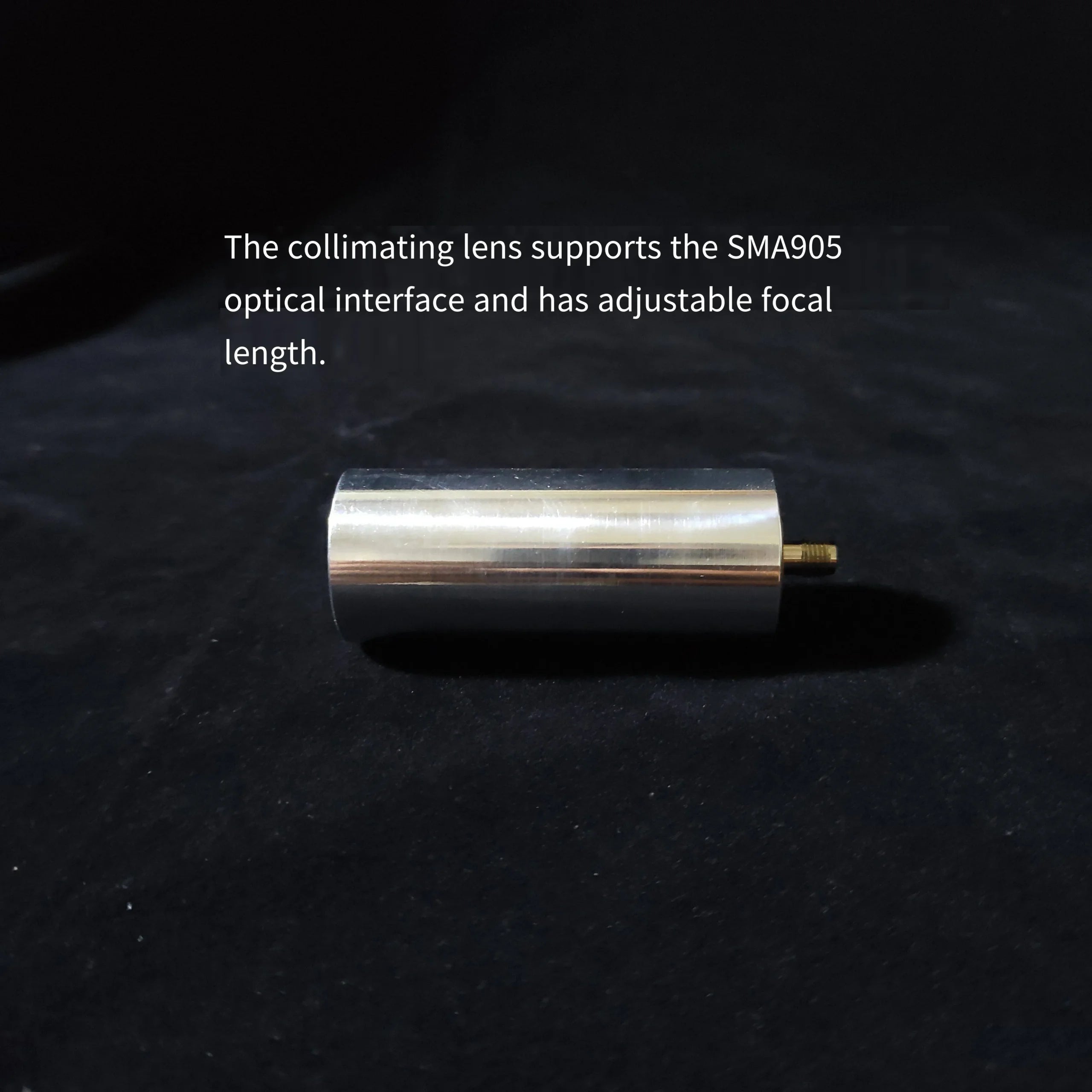

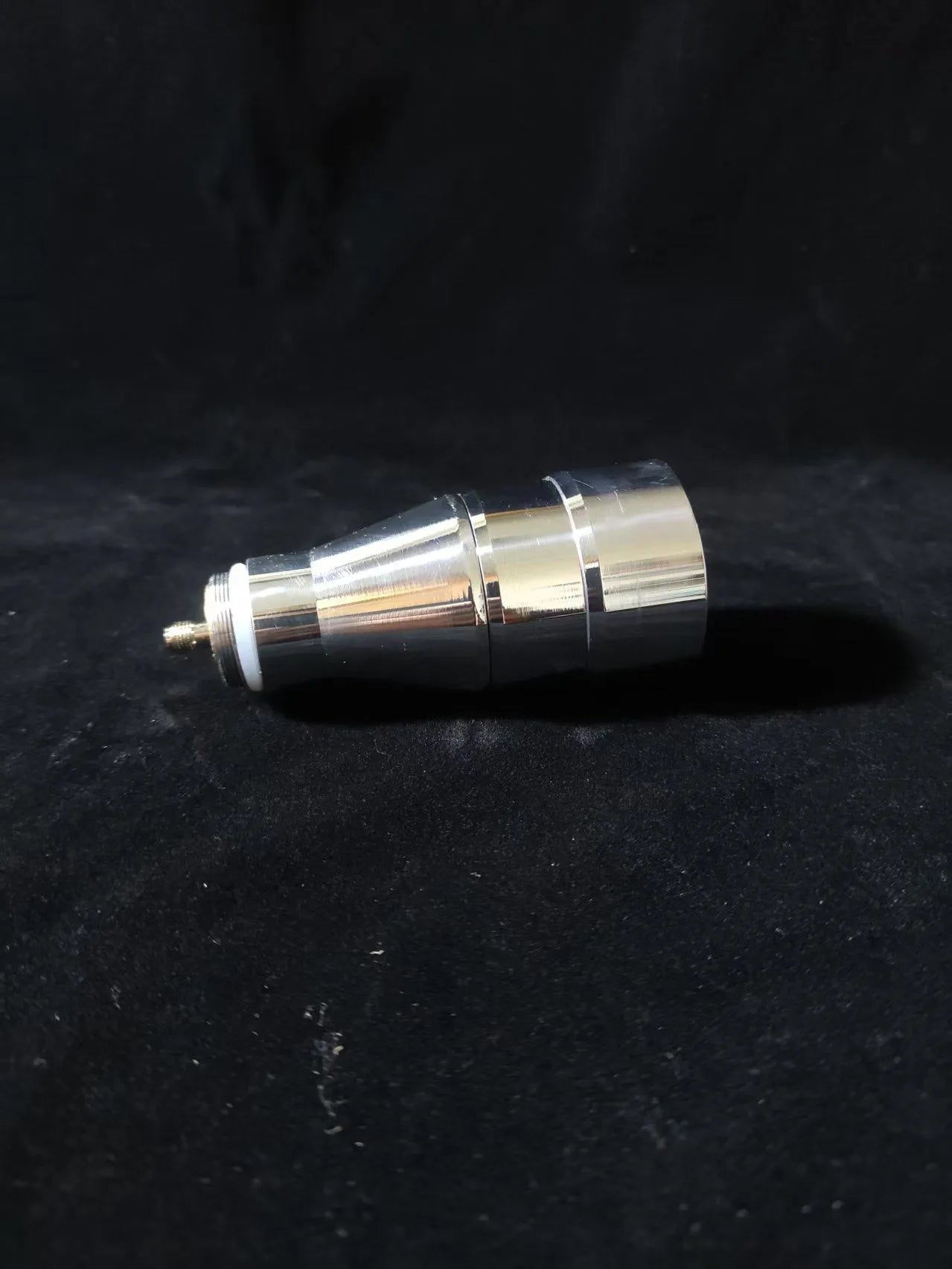

Direct compatibility with lasers featuring SMB905 connectors.
-
M22×0.75 threading allows secure mounting to compatible laser heads or optical rails.
-
Works optimally with series green lasers and other high-power laser systems.
Safety & Handling
-
Optical Precision Instrument: Handle with care to avoid scratches or contamination of optical surfaces.
-
Cleanliness: Use only lens-safe cleaning materials. Avoid touching coated surfaces.
-
Laser Safety: Always use appropriate laser safety eyewear when operating with expanded beams.
-
Professional Use Recommended: Designed for users with optical and laser system experience.
Package Contents
-
1× 5x Laser Beam Expander
-
Protective storage case
-
Interface compatibility guide
-
Basic alignment and usage instructions
Warranty & Support
-
Covered under standard optical component warranty against manufacturing defects.
-
Technical support available for integration and alignment inquiries.
-
Custom optical solutions and consulting services offered for specialized applications.
Ordering Notes
-
Standard models are ready for shipment within 44 hours.
-
Custom configurations require additional lead time and consultation.
-
Due to the precision nature of optical components, returns are generally not accepted unless defective.
