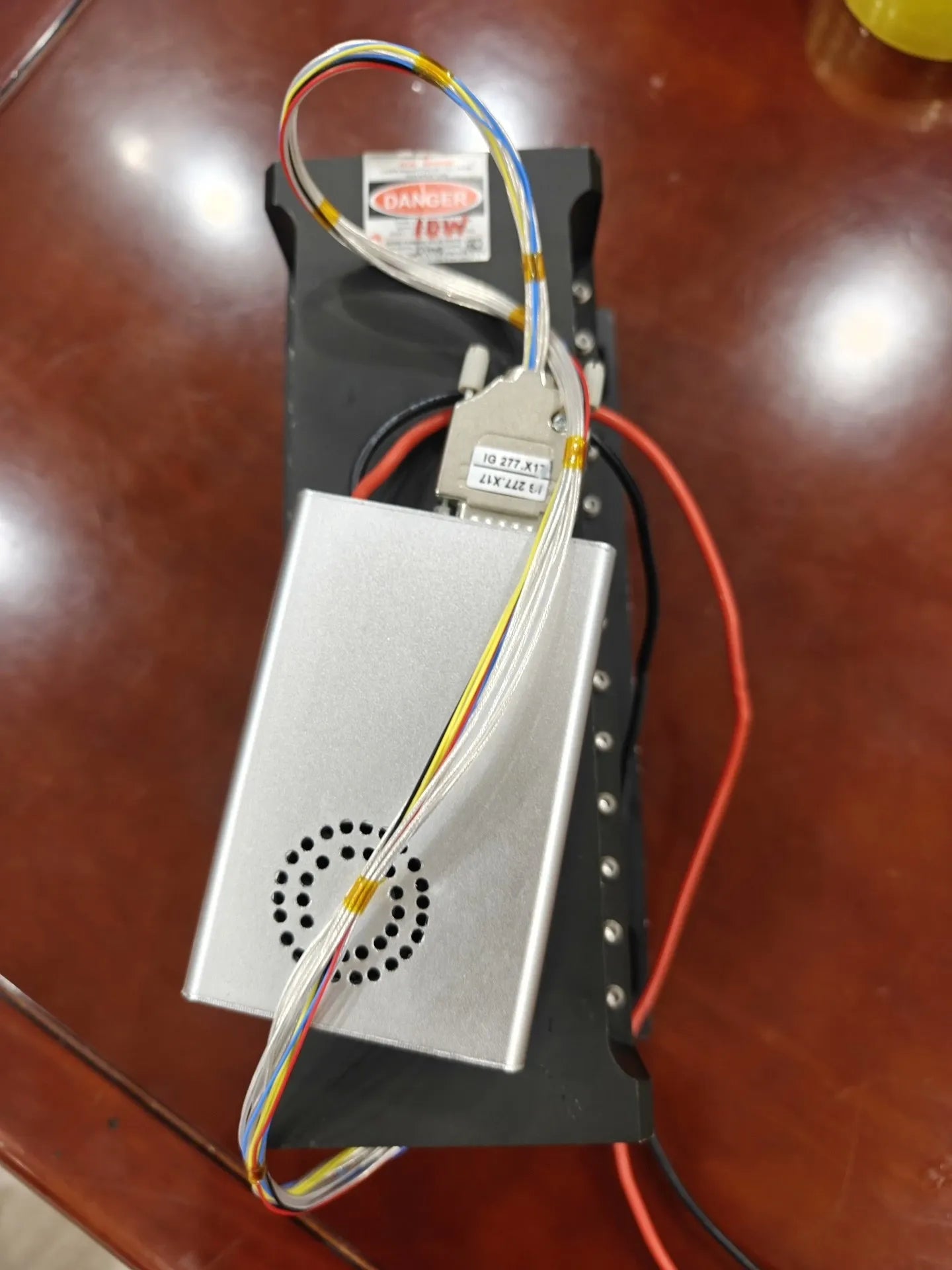

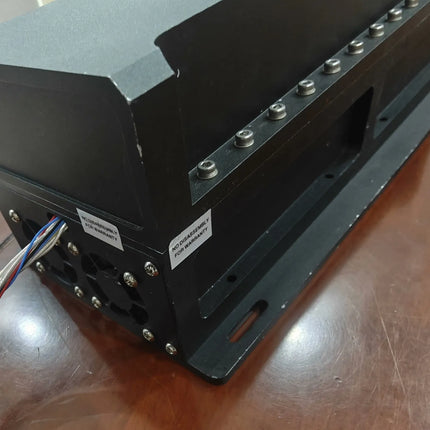

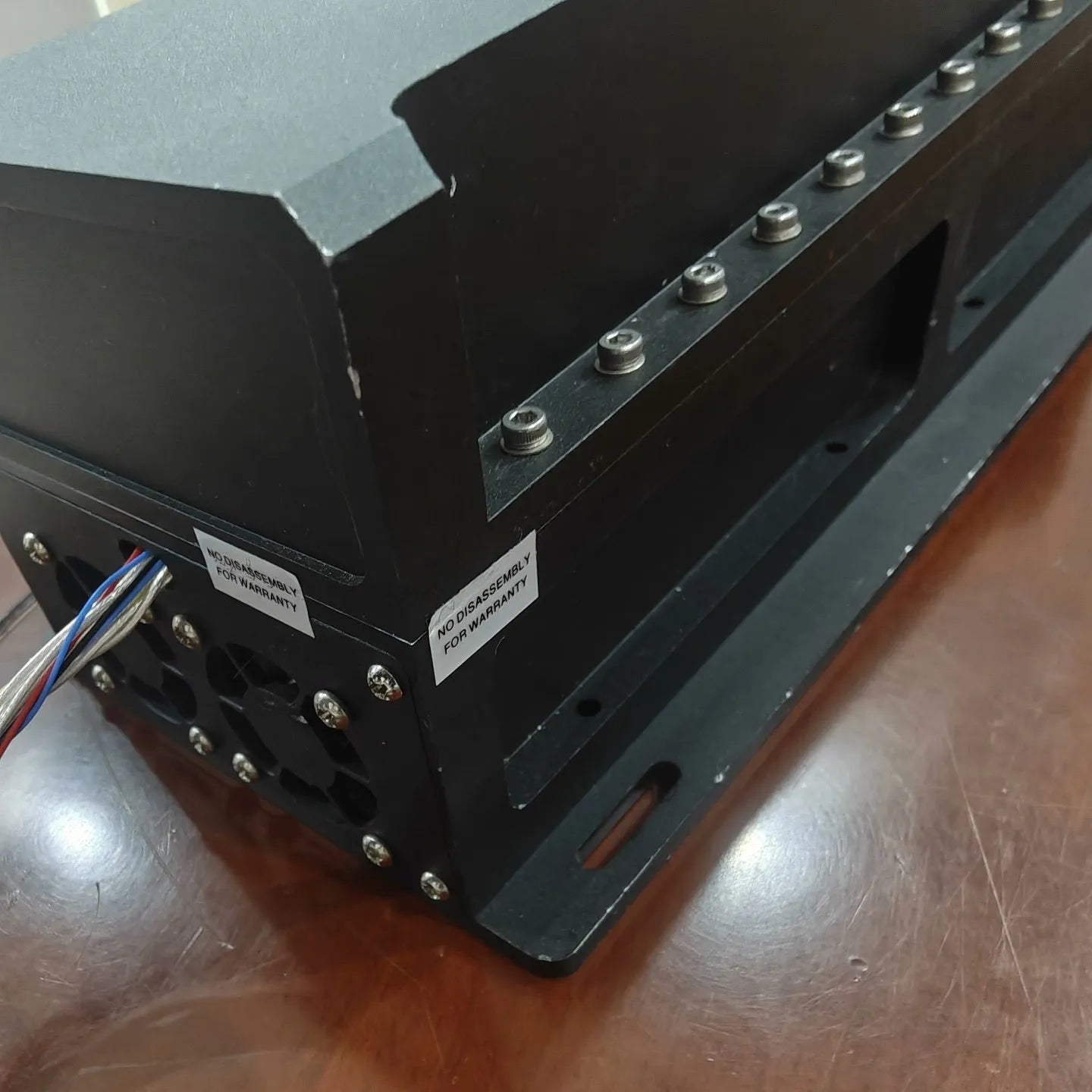

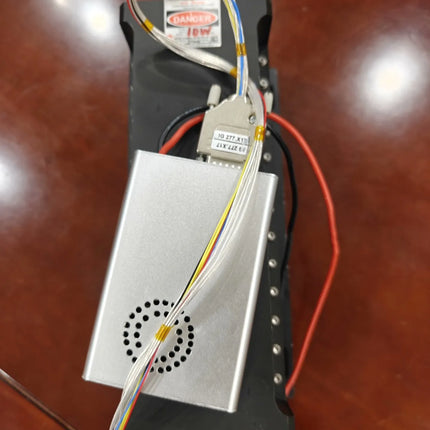

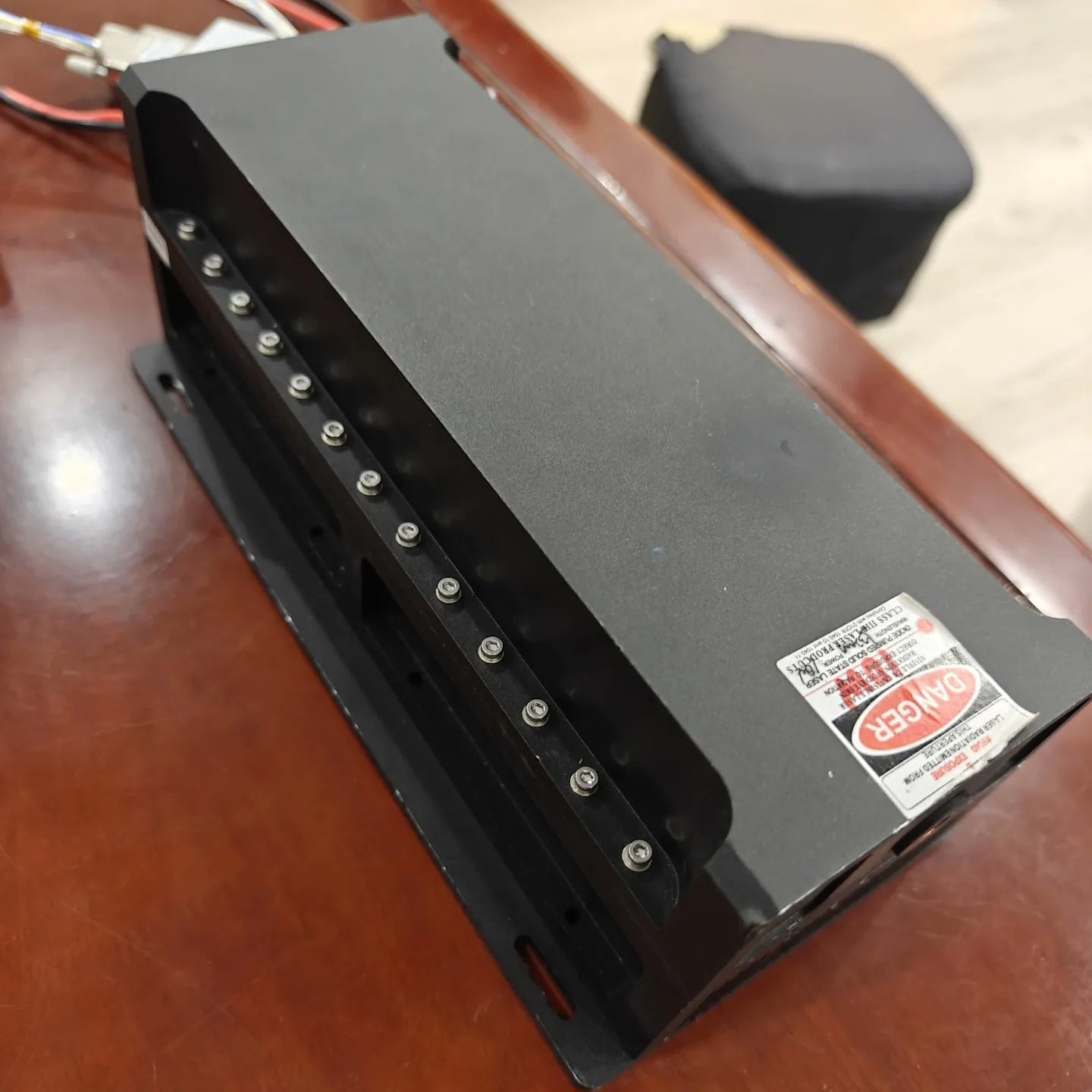

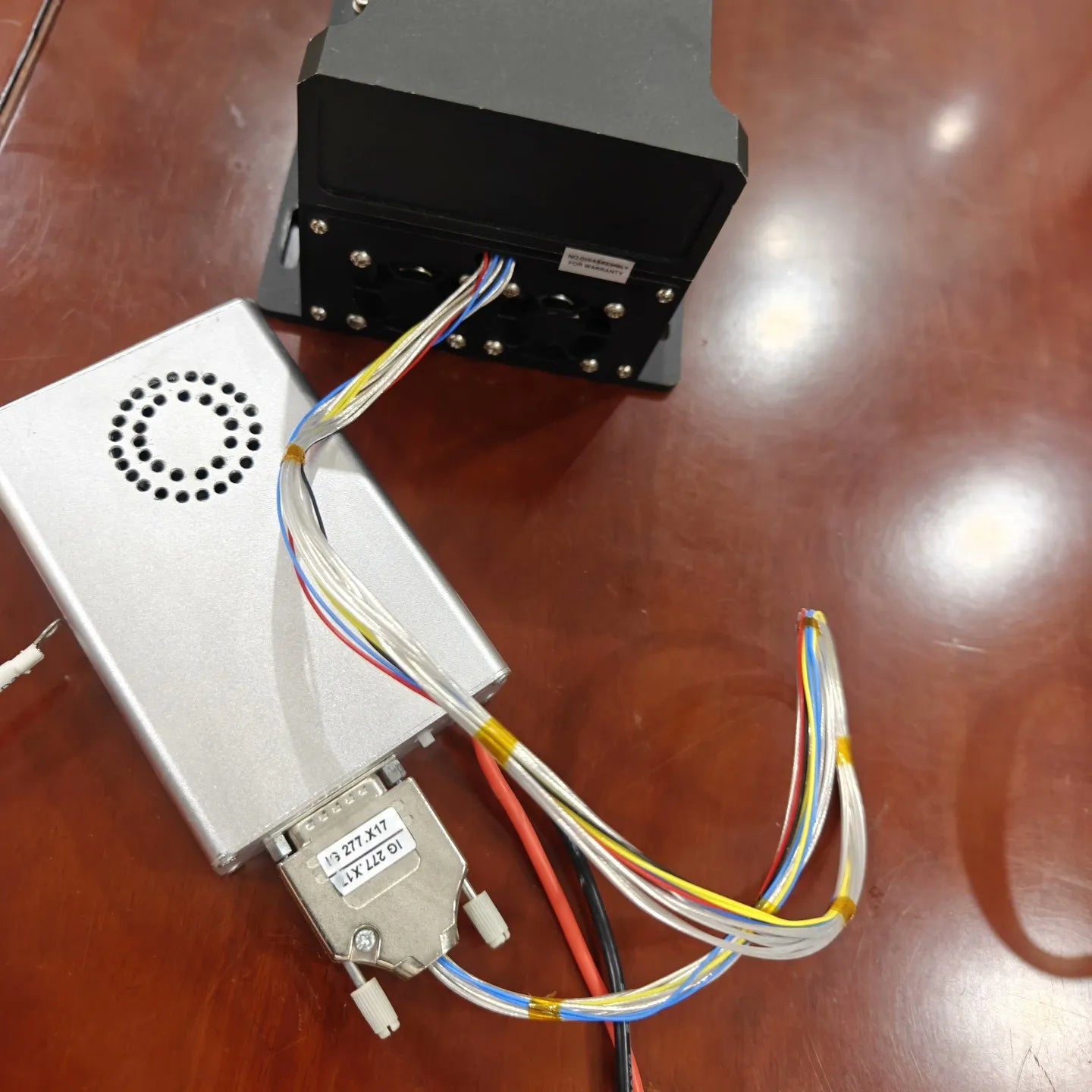

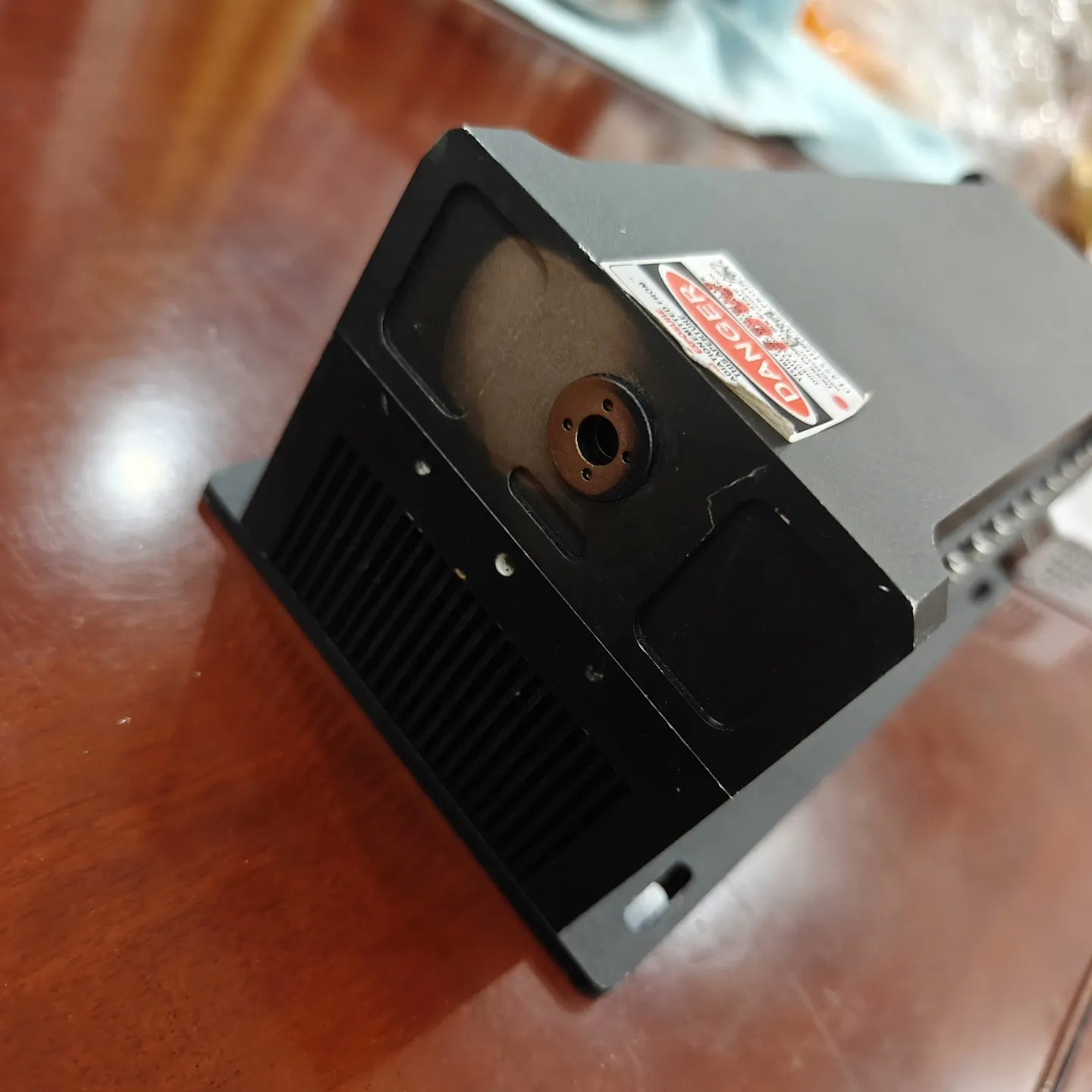

Name: 532nm Green Laser Module | 12V 15A Power Supply | Coarse Beam for Mobile Modification
Brand: LaserOne

Description

his 532nm Green Laser Module from Huachen Laser Optics is engineered for professional integration into mobile modification projects, target indication systems, and customized application scenarios. Designed to produce a highly visible, broad beam rather than a pinpoint spot, it is ideal for applications requiring wide-area illumination or long-range visual signaling in demanding environments. This is a bare, unbranded OEM component intended for engineers, system integrators, and experienced hobbyists with the expertise to handle high-power electrical systems and thermal management. No basic technical support or tutorials are provided.

Technical Specifications

Optical Specifications:
- Wavelength: 532nm (High-visibility Green Light)
- Optical Output Power: High Power Output (Configurable, typically in the multi-watt range for broad beam)
- Beam Type: Coarse / Divergent Beam (Adjustable via included or optional lenses)
- Beam Divergence: Adjustable; designed for wide-area coverage.
- Beam Visibility: Excellent, even in daylight conditions over long distances.
Electrical & Mechanical Specifications:
- Operating Voltage: 12V DC (Nominal)
- Operating Current: Up to 15A Continuous (Requires robust power supply)
- Power Consumption: Up to 180W
- Input Connection: Bare wires or terminal block (specify upon order)
- Laser Diode Type: High-power 532nm DPSS or direct diode module (depending on configuration)
- Module Housing: Anodized aluminum heatsink for passive thermal dissipation.
- Dimensions: Approximately 80mm (L) x 40mm (W) x 40mm (H) (excluding lens assembly).
- Weight: ~300g
Thermal Management:
- Cooling Requirement: Mandatory. The integrated heatsink requires additional active cooling (e.g., mounted fan or external cooling plate) for continuous operation beyond brief periods.
- Duty Cycle: Dependent on applied cooling solution. Consult datasheet for thermal guidelines.
Control & Interface:
- Control Signal: TTL modulation capable (0-5V) for on/off control. Constant current drive is internal.
- Safety Interlock: Not included. Must be implemented by the integrator.

Key Features & Applications

High-Power Green Beam: 532nm wavelength offers one of the brightest visual outputs per watt, perfect for long-range indication.
Designed for Modification: Compact, raw module format allows easy integration into vehicles (cars, drones, boats), custom enclosures, or industrial equipment.
Coarse Beam Output: Optimized for creating a visible "light saber" beam or illuminating a wide area, not for precision pointing or focusing to a tiny spot.
Industrial-Grade Component: Built for durability in field applications. Used by professionals who collaborate with brands like Raycus, RECI, GW, ROFIN, nLight, Max Photonics, etc.
Target Applications:
- Long-Range Target Designation & Signaling
- Mobile Search & Illumination Systems
- Special Effects & Entertainment Lighting
- Custom Security or Deterrent Systems
- Experimental and R&D Projects

Package Contents

1 x 532nm High-Power Laser Module (with primary lens)
1 x Set of mounting screws
Basic electrical specifications sheet

Note: Power Supply, Cooling Fan, Safety Goggles, Enclosure, and Control Circuitry ARE NOT INCLUDED.

Ordering Information (SKU Table)

SKU Code	Description	Beam Type	Divergence	Notes
HLO-532-12V15A-BS	Standard Coarse Beam Module	Coarse / Adjustable	Medium (~5-20 mrad adjustable)	Standard model for wide beam.
HLO-532-12V15A-FB	Ultra-Wide Flood Beam Module	Very Wide Flood	High (> 50 mrad)	For maximum area illumination at shorter range.
HLO-532-12V10A	Lower Current Version	Coarse / Adjustable	Medium	For 10A max power systems (~120W).

⚠️ CRITICAL WARNING – PROFESSIONAL USE ONLY:

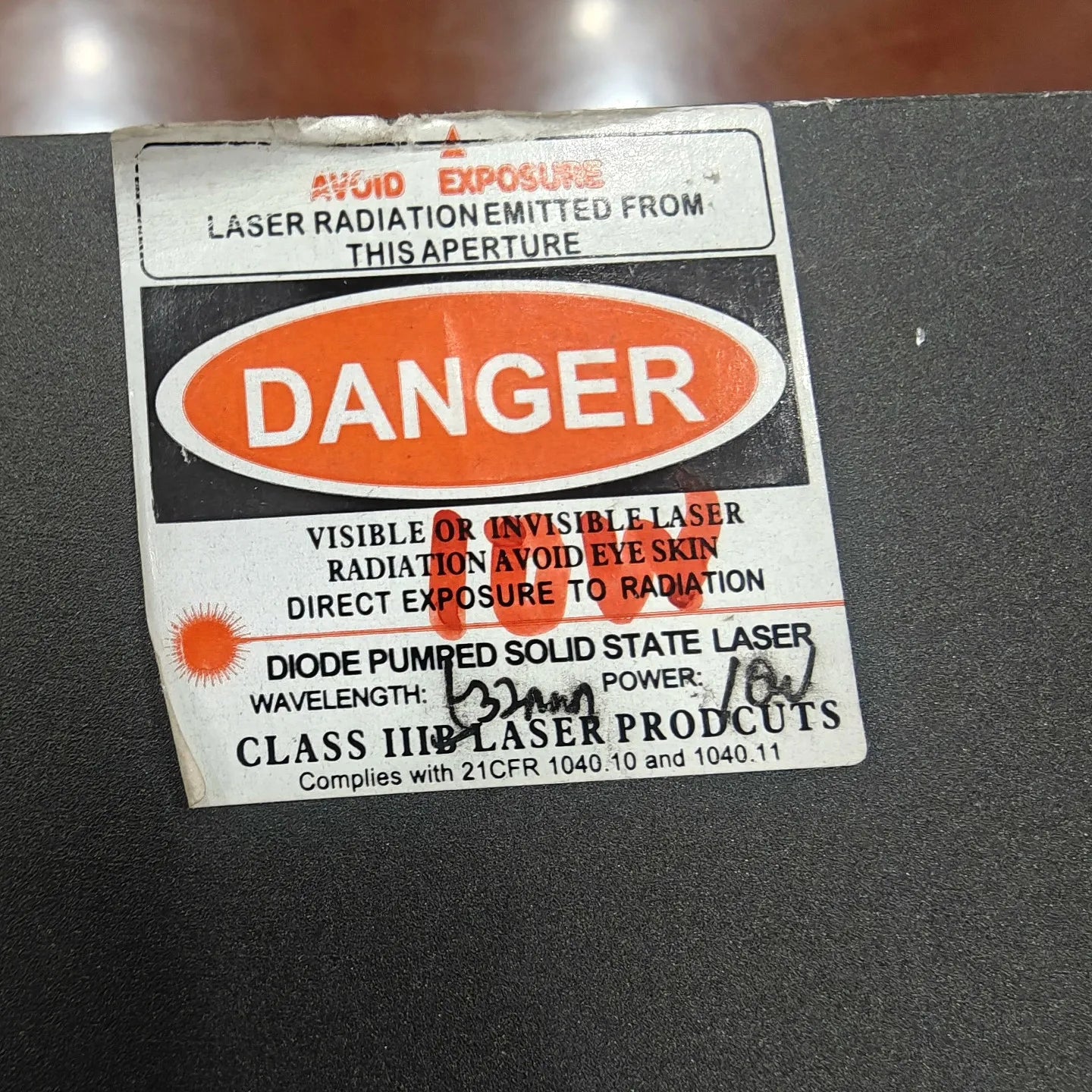

This is a CLASS 3B / CLASS 4 LASER COMPONENT. It can cause permanent eye injury and skin burns. It is not a toy.
You MUST use appropriate laser safety goggles (OD 5+ for 532nm) during handling, testing, and alignment.
Integrator is fully responsible for providing a stable 12V power supply, adequate active cooling, and a secure, interlocked enclosure to achieve a safe final product compliant with local laser safety regulations (e.g., FDA, IEC 60825).
No returns for buyer's lack of knowledge, incorrect integration, or incompatibility.
By purchasing, you confirm you are a qualified professional and accept all responsibility for safe and legal use.

For System Integrators & Engineers. Not for Beginners.
