Description

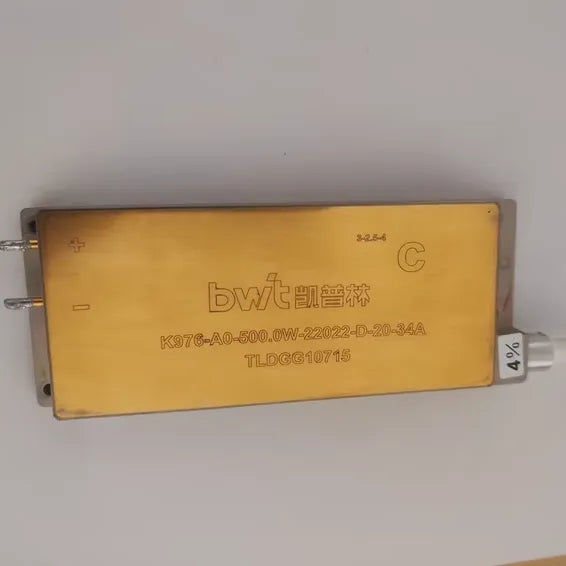

The 500W Kailin Laser Pump Source Module is a professional-grade, refurbished laser diode array designed for scientific research, fiber laser system integration, and specialized industrial applications. It delivers a stable 500W infrared output at 976nm, optimized for pumping high-power ytterbium-doped fiber lasers. This original refurbished unit includes a 1m fiber output (220μm core) for flexible, low-loss energy delivery and is intended for use by trained professionals in controlled lab or industrial environments.
Core Features
-
High-Power Pumping: 500W output at 976nm, the industry standard wavelength for pumping high-power ytterbium-doped fiber lasers.
-
Fiber-Coupled Delivery: Integrated 220μm core multimode fiber (1m length) ensures precise, low-loss energy transfer to your target laser cavity.
-
Gold-Plated Thermal Interface: High-thermal-conductivity gold-plated copper housing ensures efficient heat dissipation for continuous operation.
-
Refurbished Reliability: Original refurbished unit tested to deliver stable performance, providing a cost-effective solution for critical applications.
-
Modification-Friendly: Optional SMA905 connector or collimating lens upgrades are available for custom integration.
Technical Specifications
| Parameter |
Details |
| Product Name |
500W Kailin Laser Pump Source Module – Refurbished, Fiber-Coupled |
| Wavelength |
976nm ±1nm (infrared) |
| Power Output |
500W (nominal) |
| Fiber Core Diameter |
220μm (multimode) |
| Fiber Length |
1m |
| Power Supply |
33V @ 32A (requires dedicated high-current power source) |
| Dimensions |
12.5cm × 4.5cm × 1.8cm |
| Weight |
673g ±2g |
| Housing Material |
Gold-plated copper (high thermal conductivity) |
| Primary Applications |
Pumping high-power fiber lasers, scientific research, industrial material processing |
| Condition |
Refurbished (original unit, tested and verified for performance) |
| Operation Requirement |
Trained laser professionals only (requires thermal management expertise) |
SKU Details
| SKU |
|
|
| KAILIN-500W-REF |
500W Laser Pump Source + 1m 220μm Fiber Output |
|
| KAILIN-500W-KIT |
Module + Thermal Compound + Power Cable |
|
| KAILIN-500W-UPGRADE |
Module + SMA905 Connector Upgrade + Collimating Lens |
|
Why Choose This Kailin Pump Source?
-
Trusted Performance: Kailin is a leading provider of high-power laser diodes, ensuring exceptional reliability and output stability.
-
Cost-Effective Solution: Refurbished original units deliver like-new performance at a fraction of the cost of new modules.
-
Efficient Pumping: 976nm wavelength offers high absorption efficiency in ytterbium-doped fiber lasers, maximizing system performance.
-
Flexible Integration: Optional upgrades allow you to customize the module for your specific laser system requirements.
Important Safety & Usage Notes
-
Operator Training: This module must be handled and operated by trained laser professionals familiar with high-power diode safety protocols.
-
Thermal Management: A dedicated water cooling system is required for continuous operation to prevent overheating and performance degradation.
-
Power Supply: Ensure your power source can deliver a stable 33V @ 32A to avoid damage to the module.
-
Refurbished Terms: This is a refurbished, as-is unit. It is tested for functional performance but sold without return or exchange.
-
Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
