Name: 44mm laser beam expanding lenses are available in 5x, 6x, 8x, 12x, 24x specifications and are all in stock.
Brand: LaserOne
Price: 139.0 USD

Description

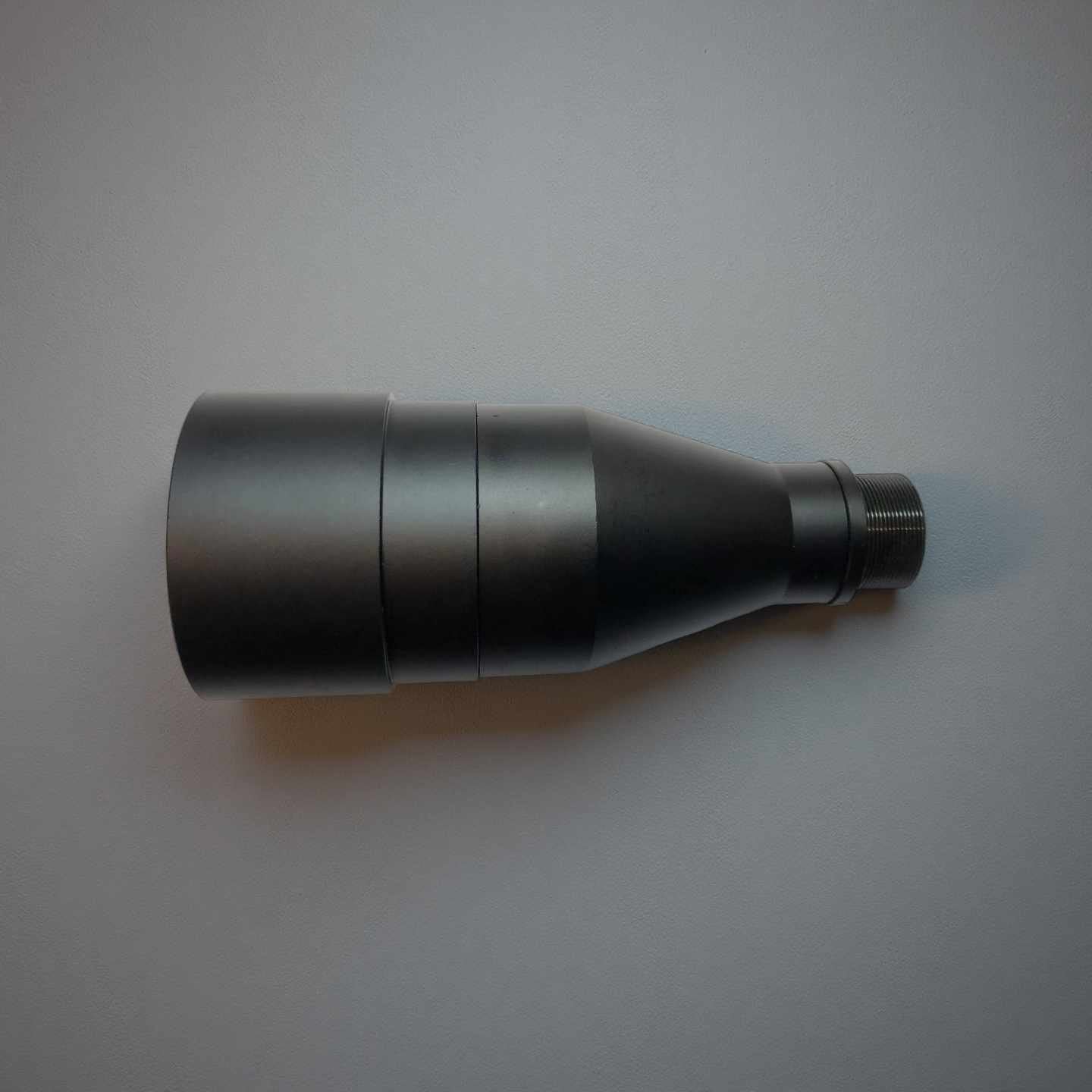

PrecisionBeam C-Series Laser Beam Expanders (44mm Aperture)

2. Model Numbering Convention: Clear "Series-Material-Magnification" structure for easy identification.

Model Examples:

K9 Glass Models:
- PrecisionBeam C-K9-5X
- PrecisionBeam C-K9-8X
Quartz Models (High Power):
- PrecisionBeam C-Q-6X (Q for Quartz)
- PrecisionBeam C-Q-12X

Product Detail Page Framework

1. Core Headline

"PrecisionBeam C-Series: Balanced Performance for Versatile Laser Applications" Featuring a 44mm output aperture, this C-Series beam expander offers readily available magnifications from 5X to 24X. Choose between standard K9 glass or high-power quartz optics for reliable performance across various laser wavelengths and power levels.

2. Key Features

Optimized 44mm Aperture
- Icon: 📏
- Text: Provides an ideal balance between compact size and performance, suitable for a wide range of industrial and research applications.
Multiple Stock Magnifications
- Icon: 🚀
- Text: 5X, 6X, 8X, 12X, and 24X models are in stock for immediate shipment, ensuring quick deployment for your projects.
Dual Material Options
- Icon: 🔍
- Text: Select K9 glass for standard applications or Fused Quartz for high-power setups (532nm, 808nm, 980nm, 1064nm), ensuring optimal performance and durability.
Precision Optical Design
- Icon: ⚙️
- Text: Utilizes 16mm input and 46mm output lenses within a robust housing, handling input beams up to 12mm and delivering high-quality expanded output.

3. Detailed Specifications

Parameter Category	Specifications
Product Series	PrecisionBeam C-Series
Output Aperture	44 mm
Magnification	In Stock: 5X, 6X, 8X, 12X, 24X Custom: Other ratios available (Contact Us)
Lens Material	K9 Glass / Fused Quartz
Max Input Beam Diameter	12 mm
Lens Sizes	Input: 16 mm, Output: 46 mm
Wavelengths	532nm, 808nm, 980nm, 1064nm

4. Application Scenarios

Laser Marking & Engraving
- Caption: "Ideal for improving mark quality and field flatness in galvo-based laser marking systems."
Material Processing
- Caption: "Provides versatile beam sizing for micro-welding, cutting, and surface treatment applications."
Research & Development
- Caption: "A reliable choice for various lab setups, from basic beam expansion to integration into complex optical systems."

5. Selection & Ordering Guide

Title: Configure Your Beam Expander

Guide:

Select Magnification: Choose from our in-stock options (5X, 6X, 8X, 12X, 24X) or inquire about custom ratios.
Choose Lens Material:
- K9 Glass: Standard performance for typical power levels.
- Fused Quartz: Essential for high-power applications (>500W average power or high peak power pulses).

Call to Action:

"For immediate needs, select from our in-stock magnifications. Contact our support team for custom ratio inquiries or assistance selecting the right lens material for your specific laser parameters."
