Description
Product Overview

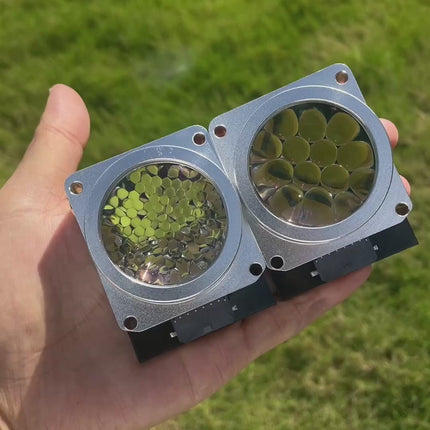

SK-400S high power LED logo projection optical module, professional high concentration light source designed for gobo logo projector, advertising signage projection and stage image lighting. Equipped with matched front optical lens, stable beam output, supports custom color temperature and CRI to meet commercial and industrial projection requirements.
Core Specifications
- Model: SK-400S
- Rated Drive Current: 5.5A | Max Current: 6A
- Max Power: 400W LED optical module
- Full Projection Angle: 56°
- Gobo Opening Diameter: 15mm
- CCT: 8500K customizable
- Typical Ra ≥70 customizable
- Average service life: >20000 Hours
- Max junction temperature: 140°C
- Storage temperature: -30°C ~ 45°C
Key Advantages
- Optimized internal optical structure, stable light uniformity, high light output efficiency
- Built-in NTC thermistor real-time temperature monitoring, overheat protection for long-term continuous work
- Dual channel wiring design, standardized pin assignment, easy driver matching
- Integrated aluminum heat sink structure, excellent thermal dissipation performance
- Strict dimensional tolerance control, convenient mechanical assembly with external housing
- Compatible with custom gobo sheets for logo, pattern and advertising projection
Application Scenarios
Commercial advertising logo projection, stage effect lighting, museum display projection, shopping mall signage projection, outdoor brand image projector equipment, industrial custom projection lighting
Package Includes
1 x SK-400S LED optical module (Front lens not included if customized separately)
