Description

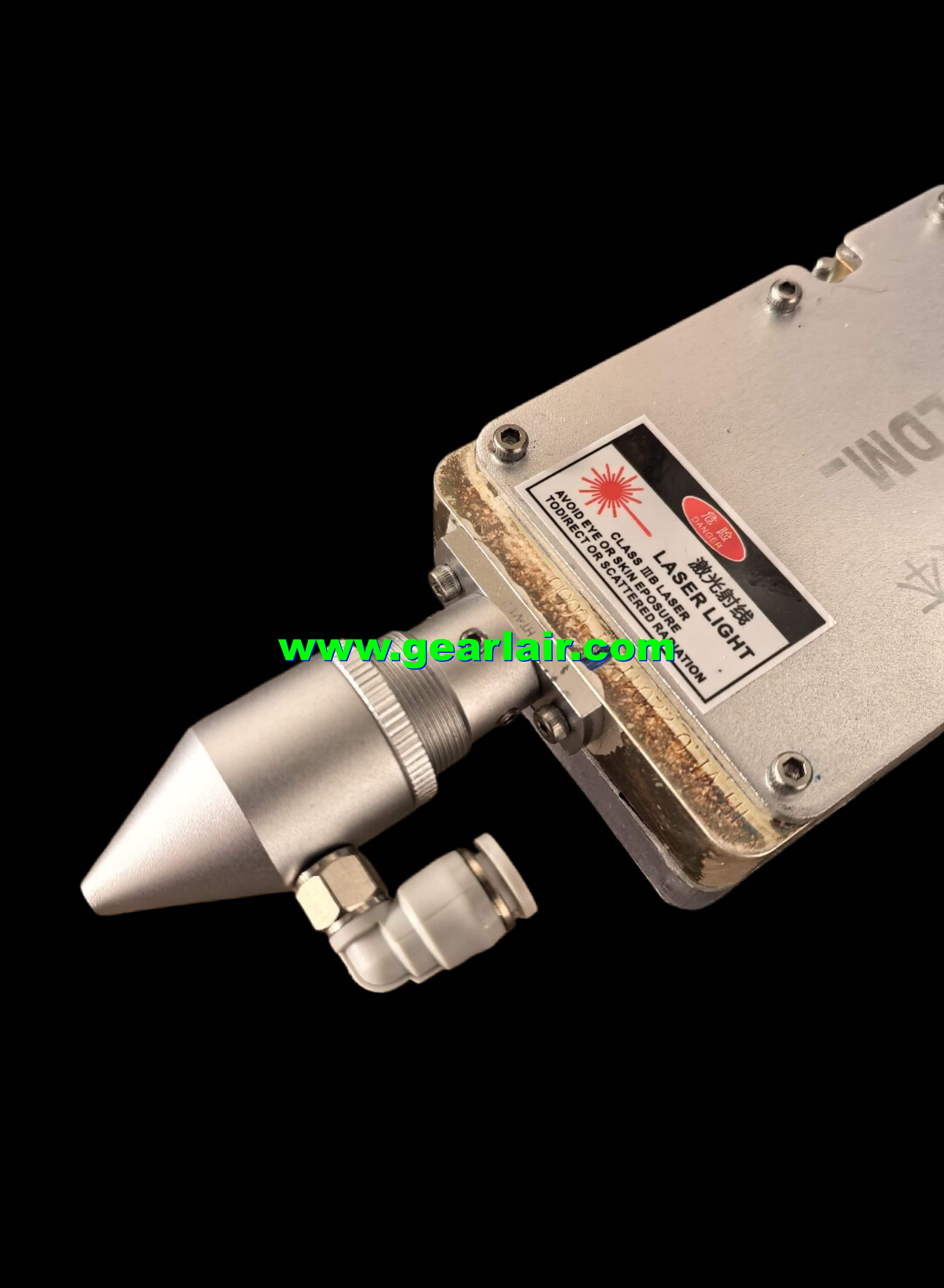

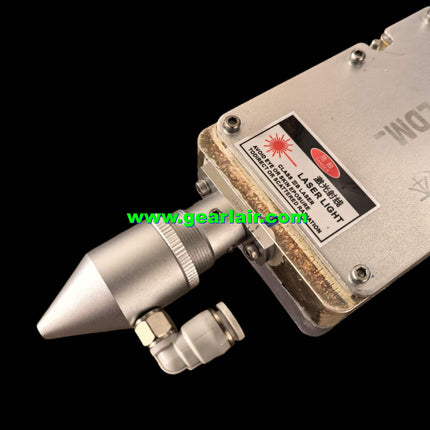

Retrofitting a direct output focusing lens for 3oo-1ooow laser pumpi
ng; the beam expander is a 2X beam expander,which can achieve c
onvergence and beam expansion through fine adjustment; it can be
directly retrofitted with a carbon dioxide reflective optical path, or u
sed for metal heating, thermal curing, and other functions.
After the beam expander, a focusing lens can be connected to prod
uce a smaller and more rounded output focused spot.
Installing a 1oMM diameter fiber optic holder from brands such as C
huangxin and Dugeng, which can be compatible with a simple focu
sing lens, requires removing the two coupling cylindrical lenses insid
e
Design focal length 5mm (distance from focal point to nozzle tip)

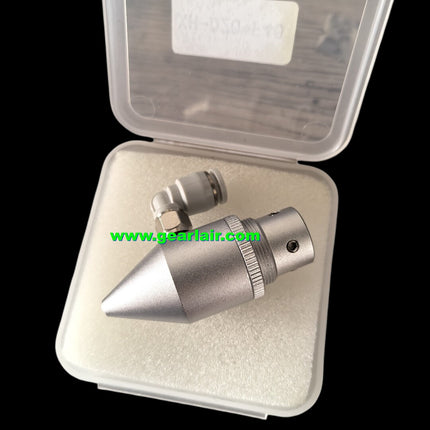

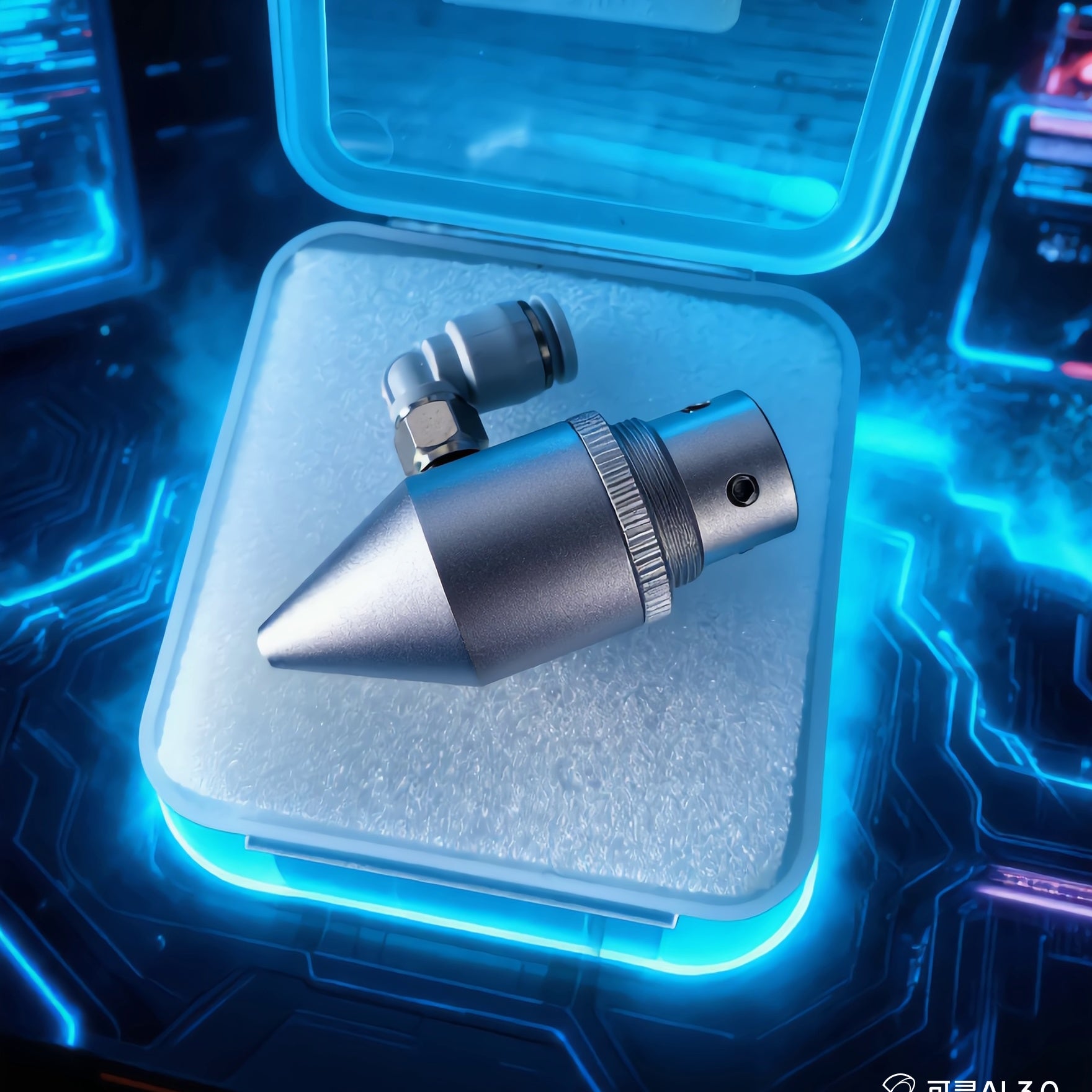

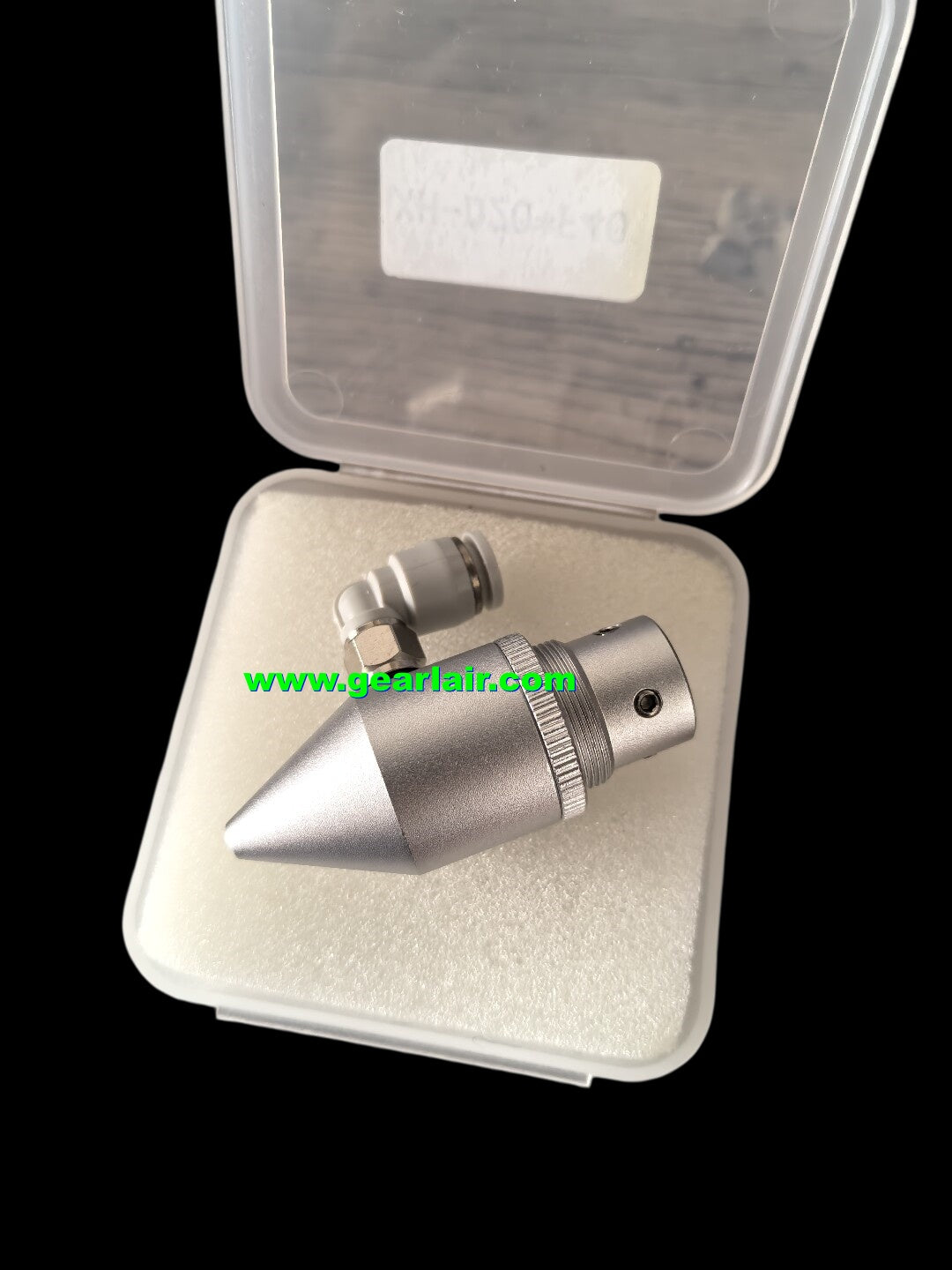

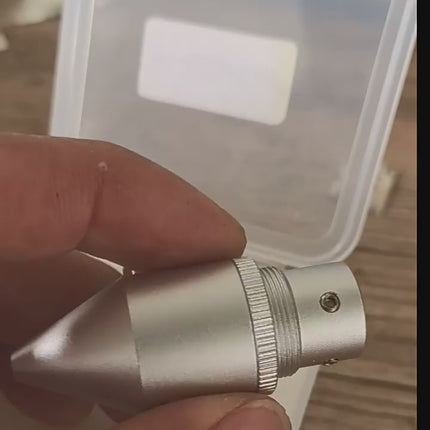

Single focusing lens size: diameter 21mm* length 53mm (excluding
quick-release connector), net weight: 24 grams; single beam expan

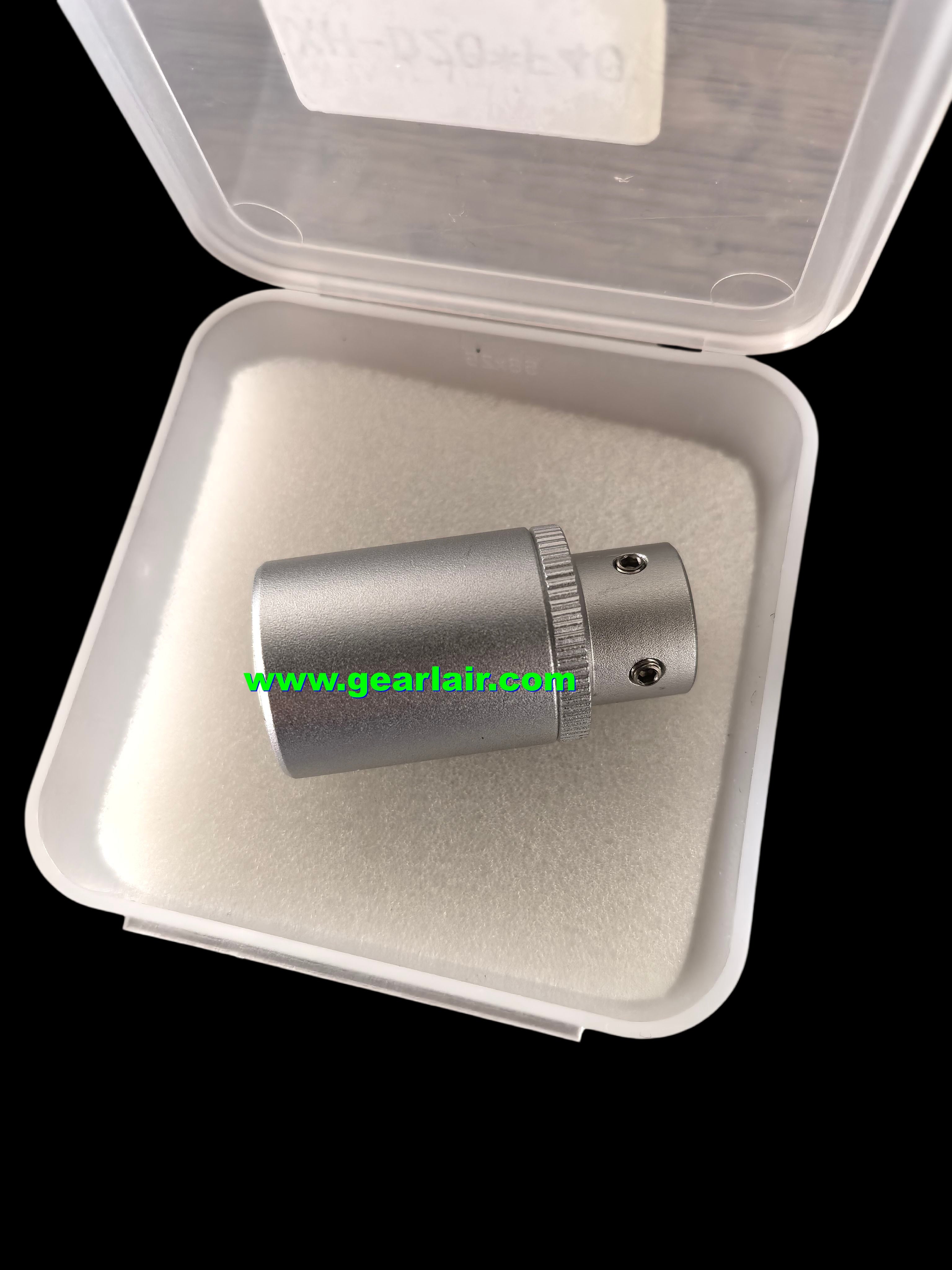

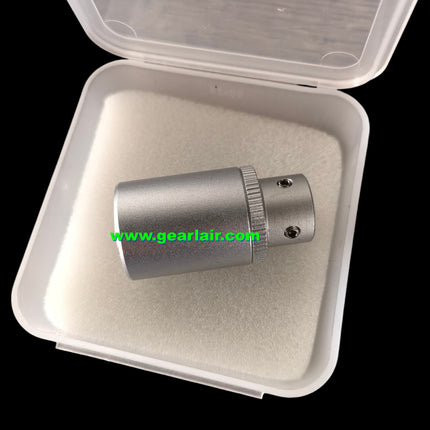

der lens size: diameter 21mm * length 40mm (adjustable), net weig

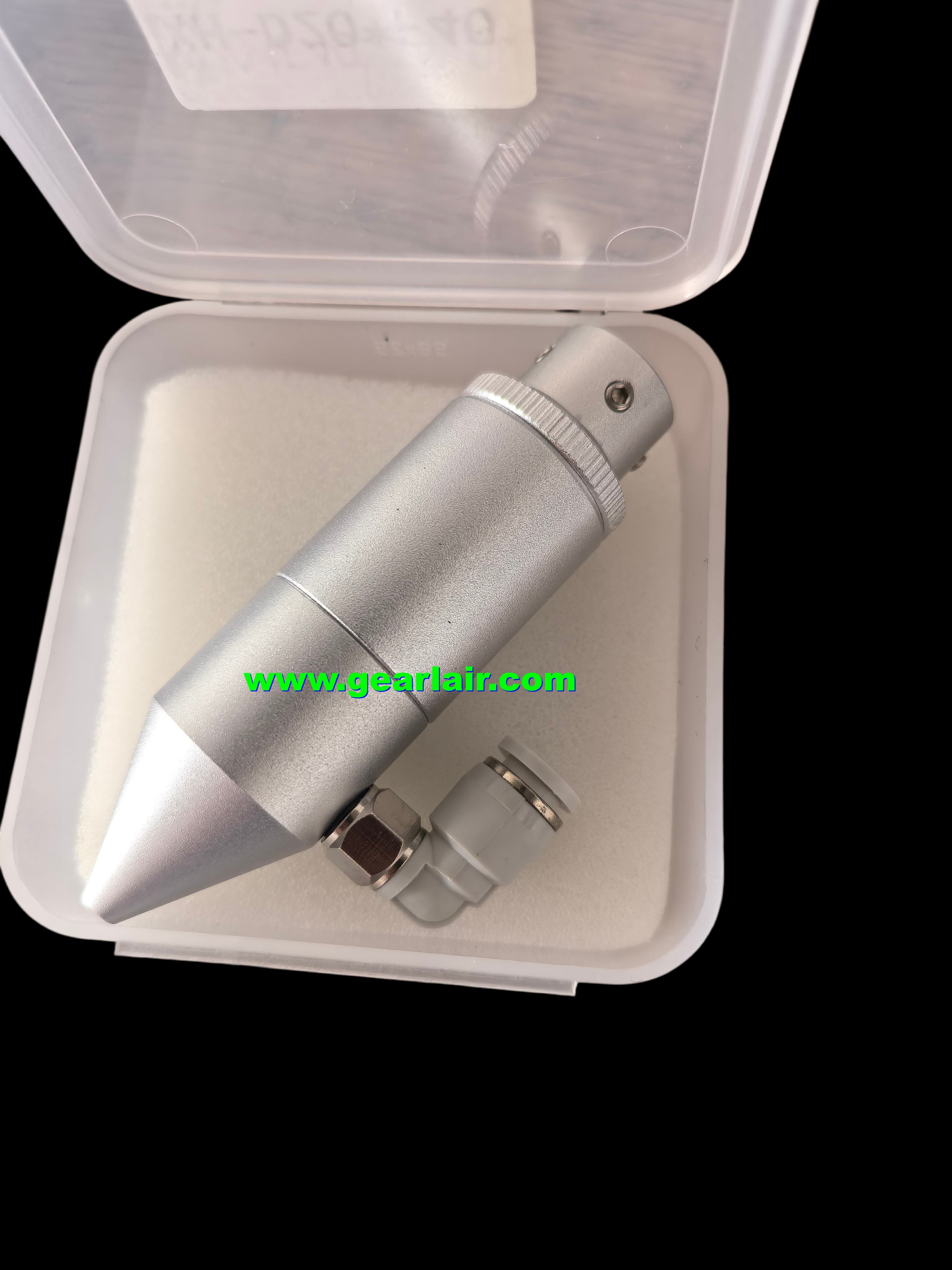

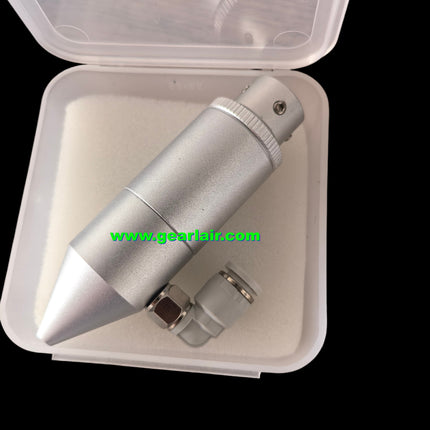

ht: 23 grams; beam expander focusing lens size: diameter 21mm *[
ength 75mm (including adjustable), net weight: 38 grams; all lenses
are equipped with a set of lenses.
Subsequent upgrades and modifications to details may occur witho
ut further notice, and will be subject to the actual product received.
