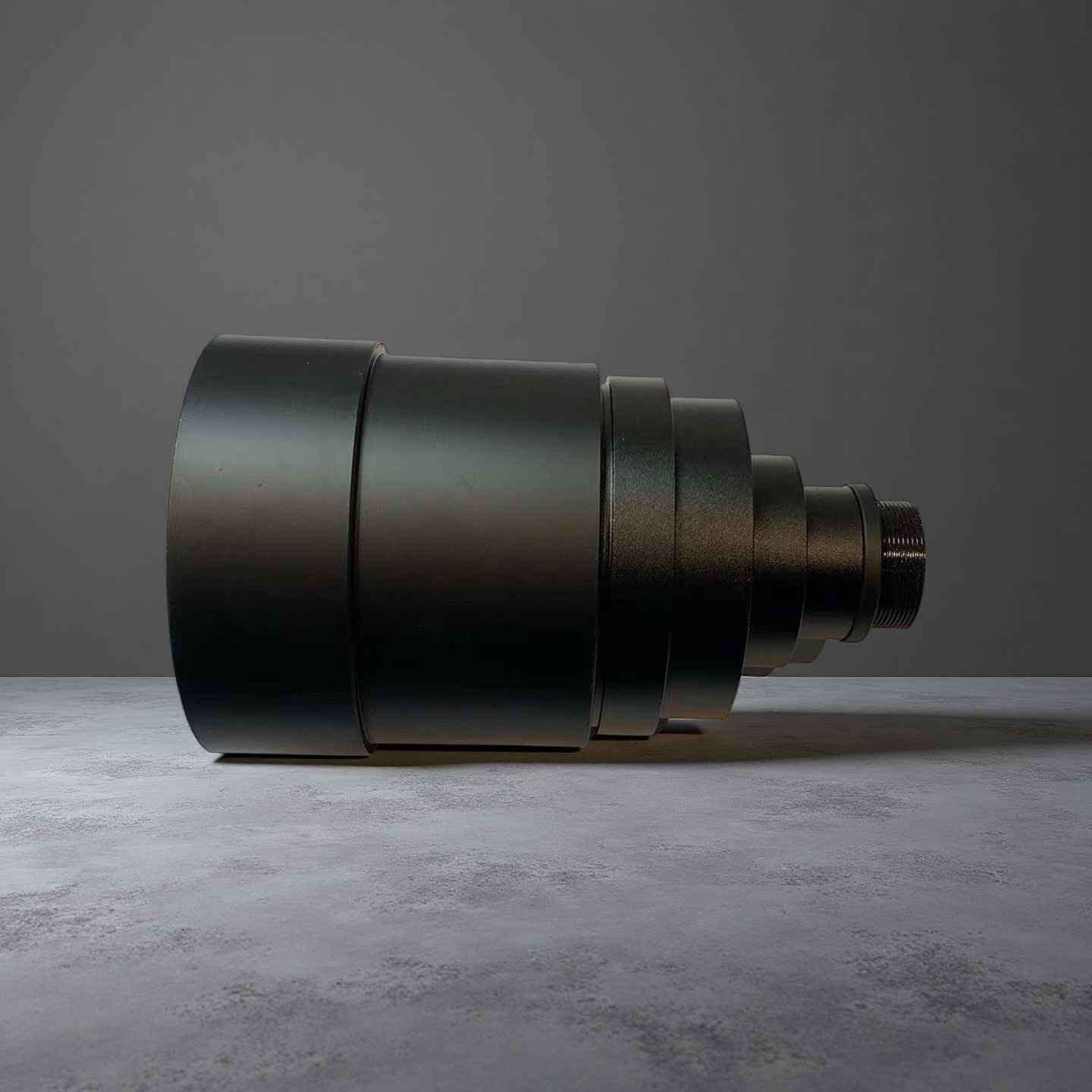

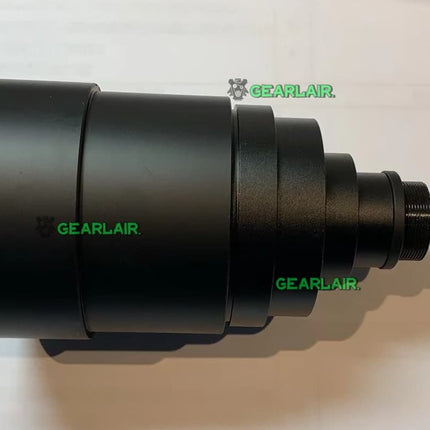

Name: 1550nm wavelength laser beam expander 20x
Brand: LaserOne
Price: 459.0 USD
Availability: InStock

Description

1. Primary Series Name: IR-BeamExpand D-Series 1550nm Laser Beam Expanders

2. Model Numbering Convention: Clear "Series-Magnification" structure.

Model Examples:

IR-BeamExpand D-5X
IR-BeamExpand D-10X
IR-BeamExpand D-20X

Product Detail Page Framework

1. Core Headline

"IR-BeamExpand D-Series: High-Magnification Precision for 1550nm Applications" Engineered for demanding long-range and high-precision applications, this D-Series delivers exceptional 20X beam expansion at 1550nm. With 5X and 10X models shipping within 48 hours, it's ready to enhance your LIDAR, telecommunications, or measurement systems.

2. Key Features

High-Magnification Performance
- Icon: 🔍
- Text: Achieves 20X magnification for applications requiring significant beam expansion and superior collimation over long distances.
Rapid Deployment Options
- Icon: ⚡
- Text: 5X and 10X models ship within 48 hours, providing fast solutions for prototyping and urgent project requirements.
Large Output Capability
- Icon: 📡
- Text: Generates a substantial 60mm output beam (using 62mm lenses), enabling excellent beam quality and low divergence for long-range transmission.
1550nm Wavelength Optimized
- Icon: 🎯
- Text: Precisely calibrated for the 1550nm band, ensuring maximum transmission efficiency and beam integrity for eye-safe laser systems.

3. Detailed Specifications

Parameter Category	Specifications
Product Series	IR-BeamExpand D-Series
Laser Wavelength	1550 nm
Available Magnifications	48-Hour Shipping: 5X, 10X Available: 15X, 20X Custom: Other ratios (Contact Support)
Max Input Beam Diameter	8 mm
Max Output Beam Diameter	60 mm
Lens Sizes	Input: 10 mm, Output: 62 mm

4. Application Scenarios

Long-Range LIDAR Systems
- Caption: "The high 20X magnification significantly reduces beam divergence, extending the effective range and resolution of topographic and atmospheric LIDAR systems."
Free-Space Optical Communication
- Caption: "Maintains signal integrity over extended distances in point-to-point communication links, crucial for high-bandwidth data transmission."
Remote Sensing & Measurement
- Caption: "Ideal for environmental monitoring and precision measurement applications where maintaining a small spot size at long working distances is essential."

5. Selection & Ordering Guide

Title: Select Your 1550nm High-Magnification Solution

Guide:

Choose Magnification: Select from 5X or 10X for 48-hour delivery, or 15X/20X for high-magnification needs
Verify Input Compatibility: Confirm your beam diameter is within the 8mm maximum input specification
Consider Output Requirements: Ensure the 60mm output beam diameter meets your system needs

Call to Action:

High-magnification 1550nm solutions available! Order 5X or 10X models for 48-hour shipment. Contact our technical team for 15X/20X configurations or custom magnification requirements.

1550nm wavelength laser beam expander 20x

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

modle

5X-1550NM
10X-1550NM
15X-1550NM
20X-1550NM

$499.00 $459.00

Guaranteed secure & safe checkout.

Free shipping on all orders above 500

No hassle returns, 30 days return

Description

1. Primary Series Name: IR-BeamExpand D-Series 1550nm Laser Beam Expanders

2. Model Numbering Convention: Clear "Series-Magnification" structure.

Model Examples:

IR-BeamExpand D-5X
IR-BeamExpand D-10X
IR-BeamExpand D-20X

Product Detail Page Framework

1. Core Headline

"IR-BeamExpand D-Series: High-Magnification Precision for 1550nm Applications" Engineered for demanding long-range and high-precision applications, this D-Series delivers exceptional 20X beam expansion at 1550nm. With 5X and 10X models shipping within 48 hours, it's ready to enhance your LIDAR, telecommunications, or measurement systems.

2. Key Features

High-Magnification Performance
- Icon: 🔍
- Text: Achieves 20X magnification for applications requiring significant beam expansion and superior collimation over long distances.
Rapid Deployment Options
- Icon: ⚡
- Text: 5X and 10X models ship within 48 hours, providing fast solutions for prototyping and urgent project requirements.
Large Output Capability
- Icon: 📡
- Text: Generates a substantial 60mm output beam (using 62mm lenses), enabling excellent beam quality and low divergence for long-range transmission.
1550nm Wavelength Optimized
- Icon: 🎯
- Text: Precisely calibrated for the 1550nm band, ensuring maximum transmission efficiency and beam integrity for eye-safe laser systems.

3. Detailed Specifications

Parameter Category	Specifications
Product Series	IR-BeamExpand D-Series
Laser Wavelength	1550 nm
Available Magnifications	48-Hour Shipping: 5X, 10X Available: 15X, 20X Custom: Other ratios (Contact Support)
Max Input Beam Diameter	8 mm
Max Output Beam Diameter	60 mm
Lens Sizes	Input: 10 mm, Output: 62 mm

4. Application Scenarios

Long-Range LIDAR Systems
- Caption: "The high 20X magnification significantly reduces beam divergence, extending the effective range and resolution of topographic and atmospheric LIDAR systems."
Free-Space Optical Communication
- Caption: "Maintains signal integrity over extended distances in point-to-point communication links, crucial for high-bandwidth data transmission."
Remote Sensing & Measurement
- Caption: "Ideal for environmental monitoring and precision measurement applications where maintaining a small spot size at long working distances is essential."

5. Selection & Ordering Guide

Title: Select Your 1550nm High-Magnification Solution

Guide:

Choose Magnification: Select from 5X or 10X for 48-hour delivery, or 15X/20X for high-magnification needs
Verify Input Compatibility: Confirm your beam diameter is within the 8mm maximum input specification
Consider Output Requirements: Ensure the 60mm output beam diameter meets your system needs

Call to Action:

High-magnification 1550nm solutions available! Order 5X or 10X models for 48-hour shipment. Contact our technical team for 15X/20X configurations or custom magnification requirements.
