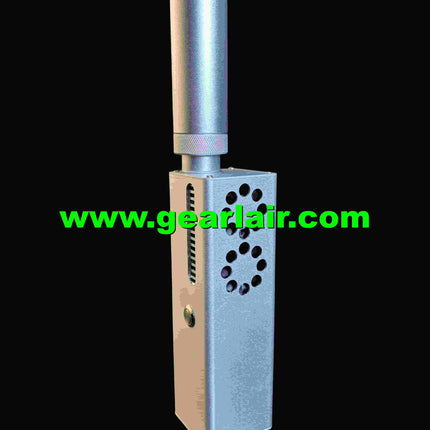

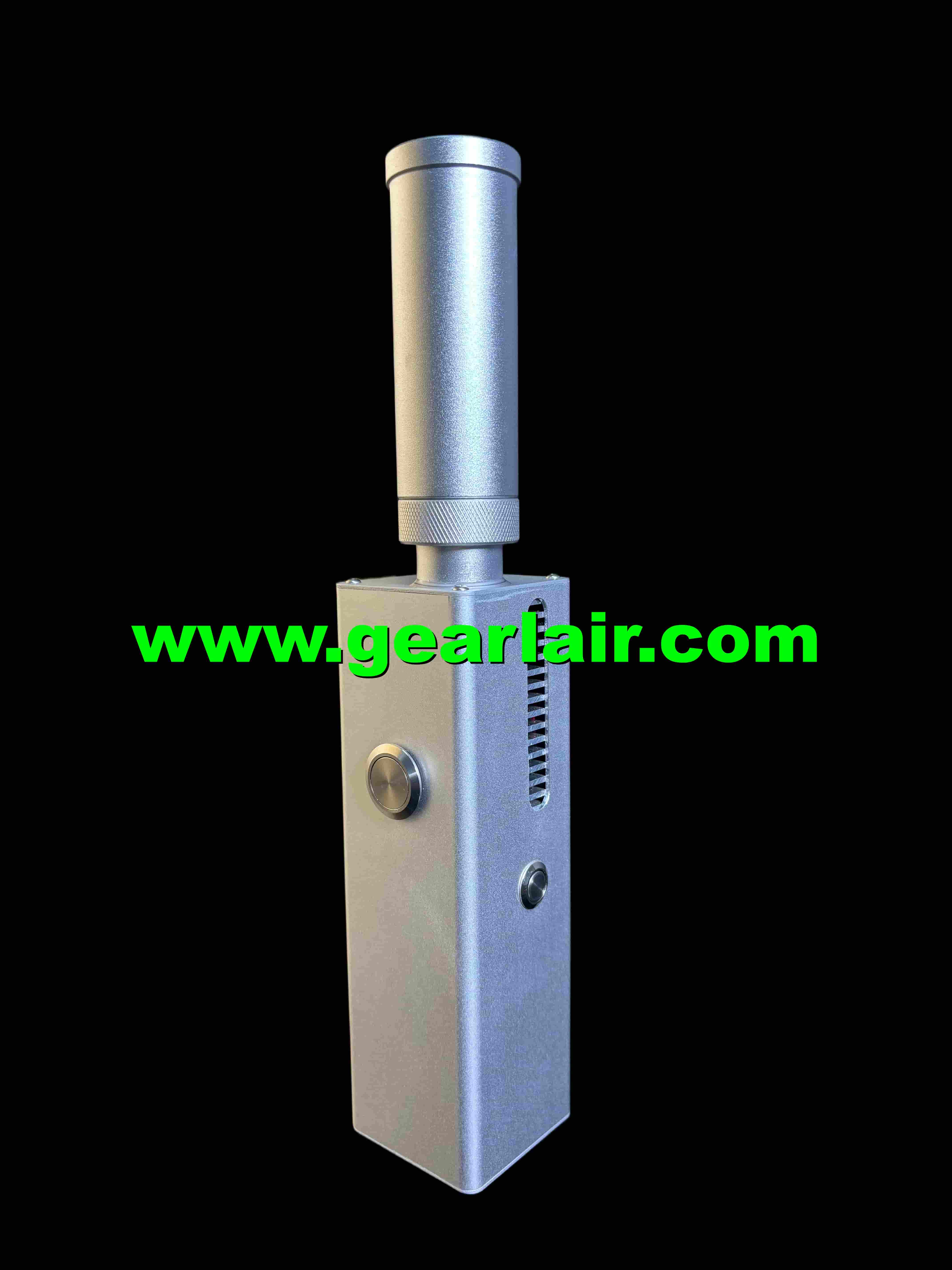

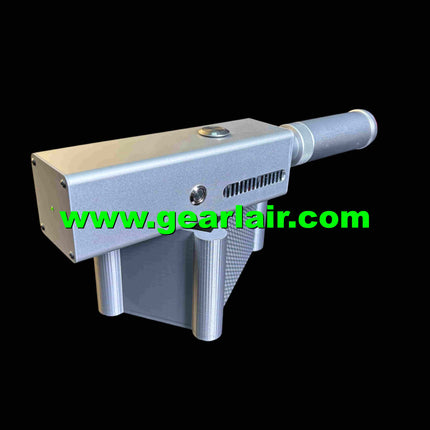

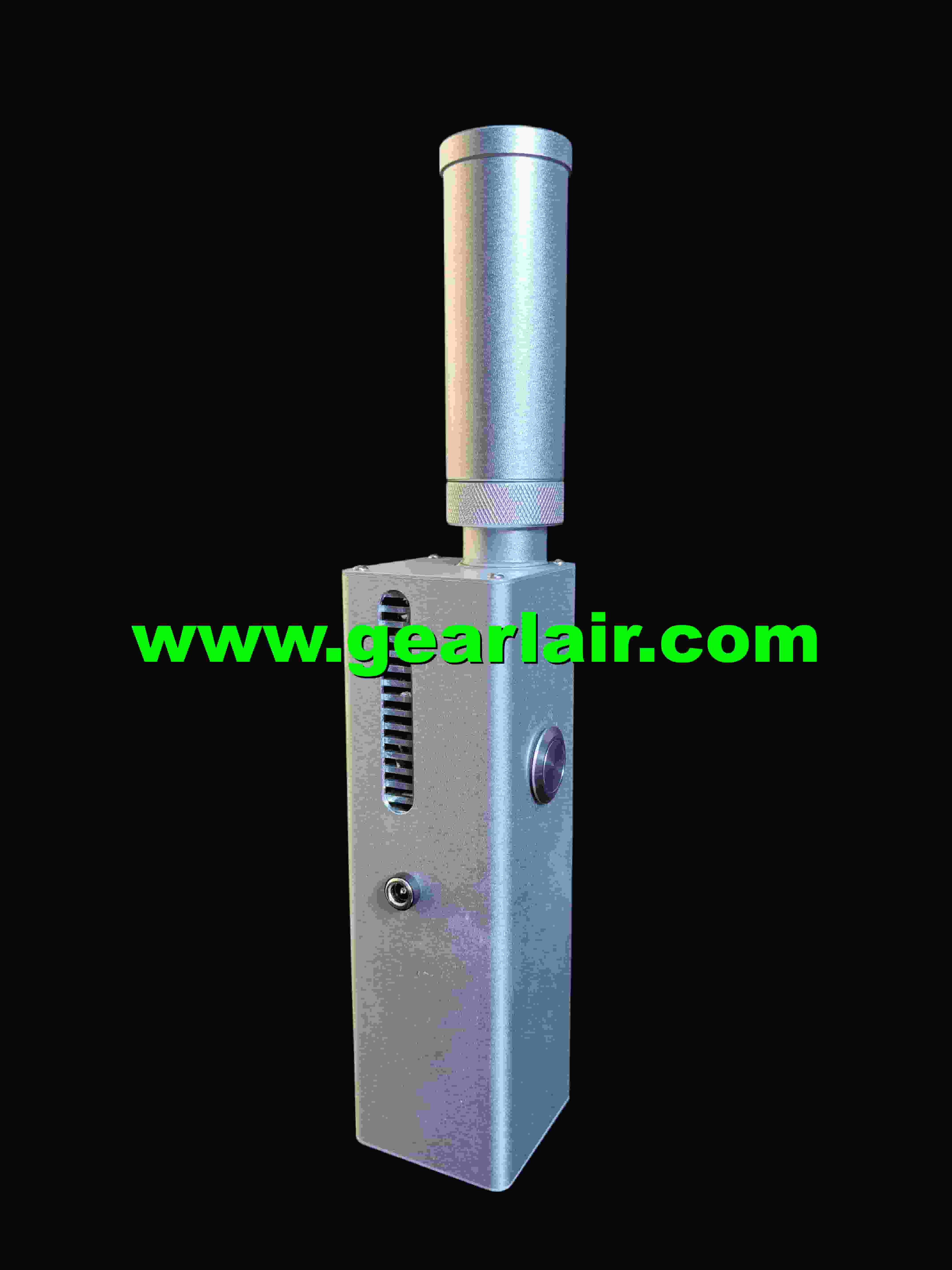

130W Handheld Laser Device Can be used for green light coaxial cable

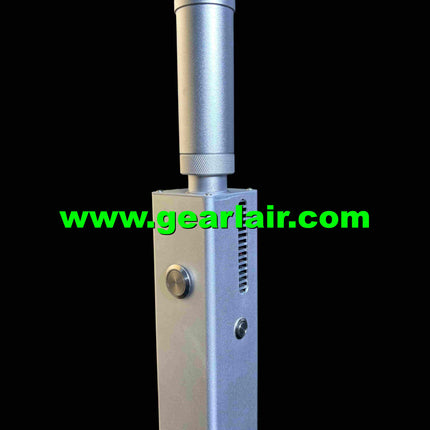

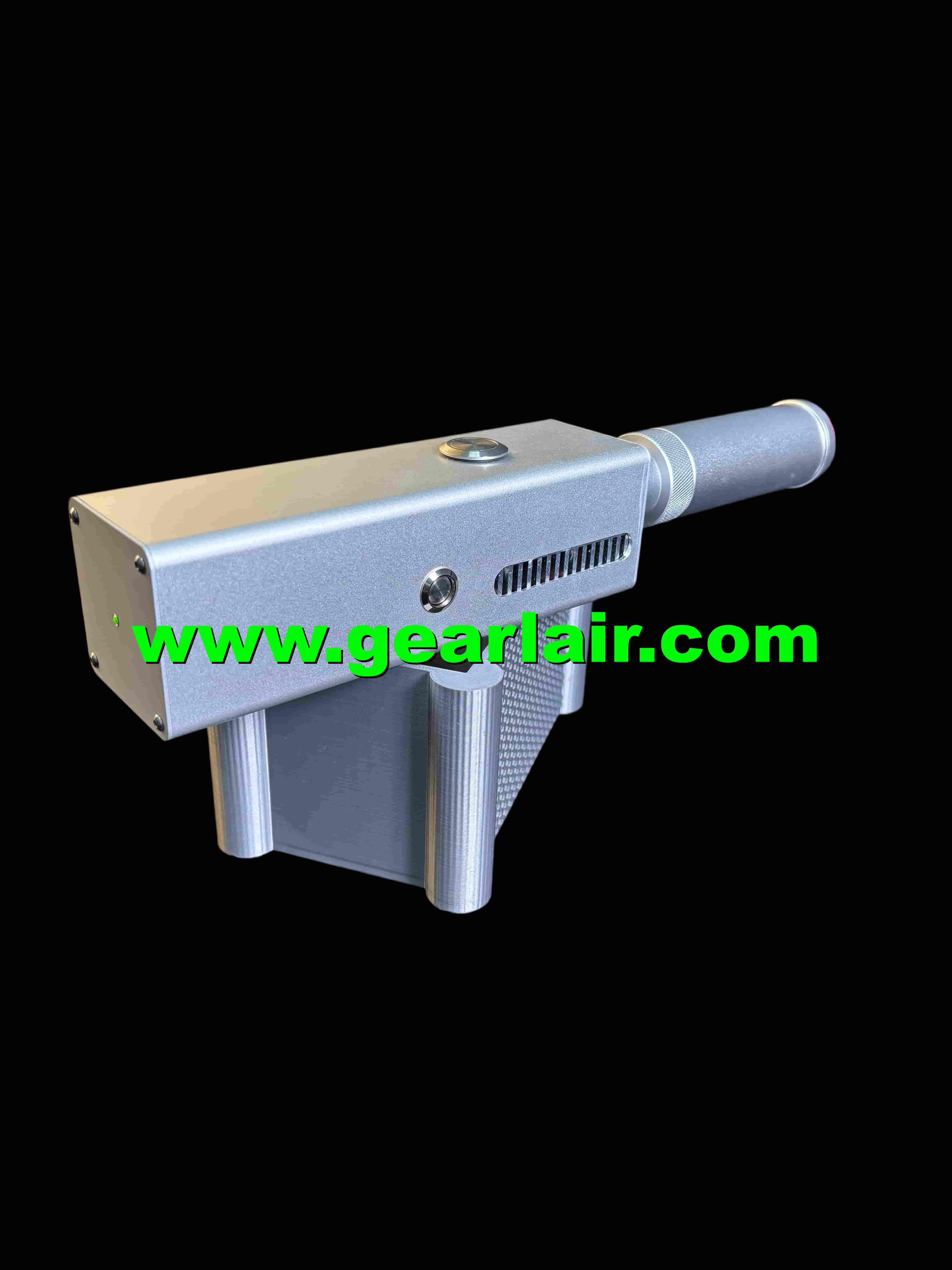

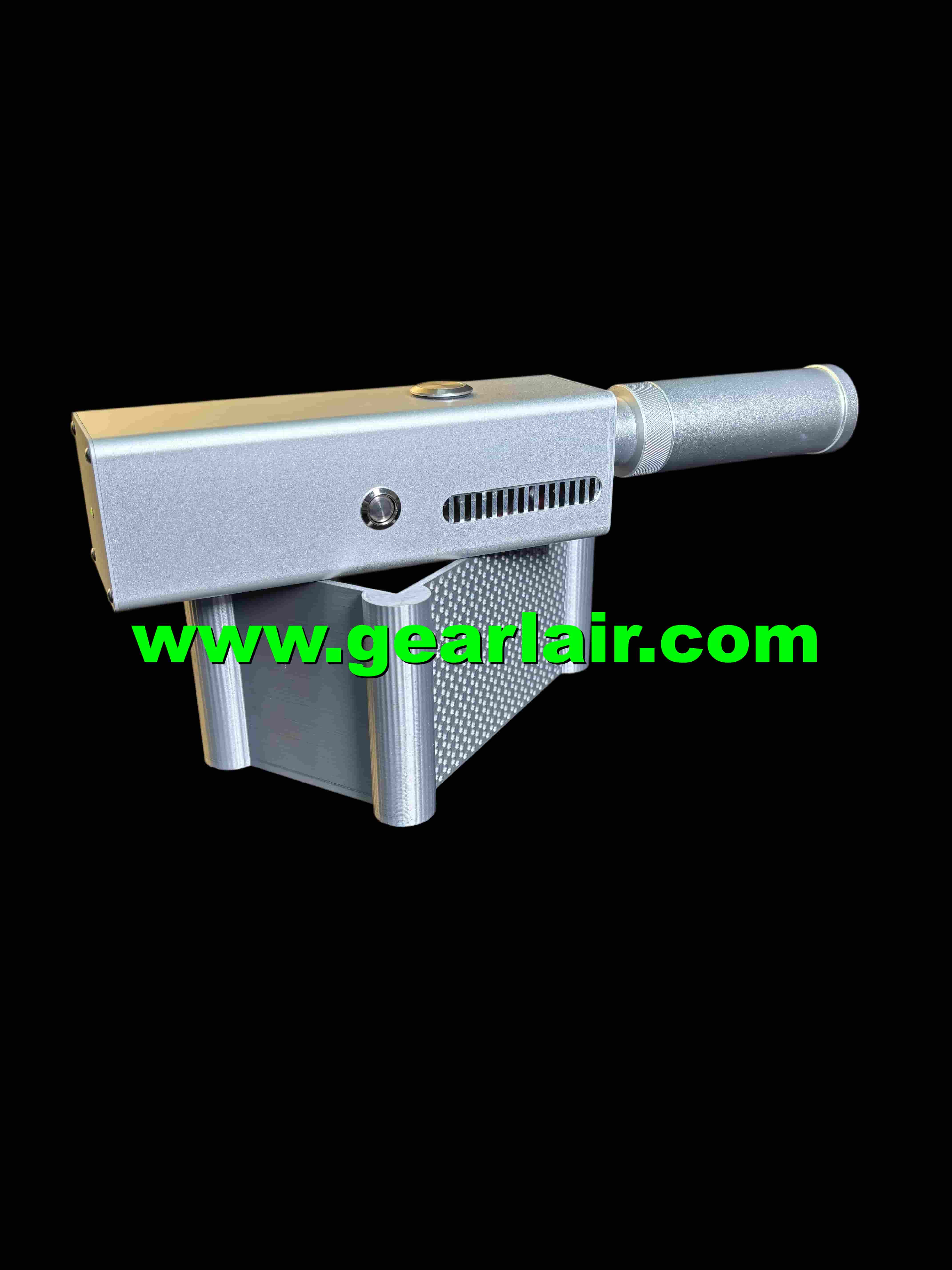

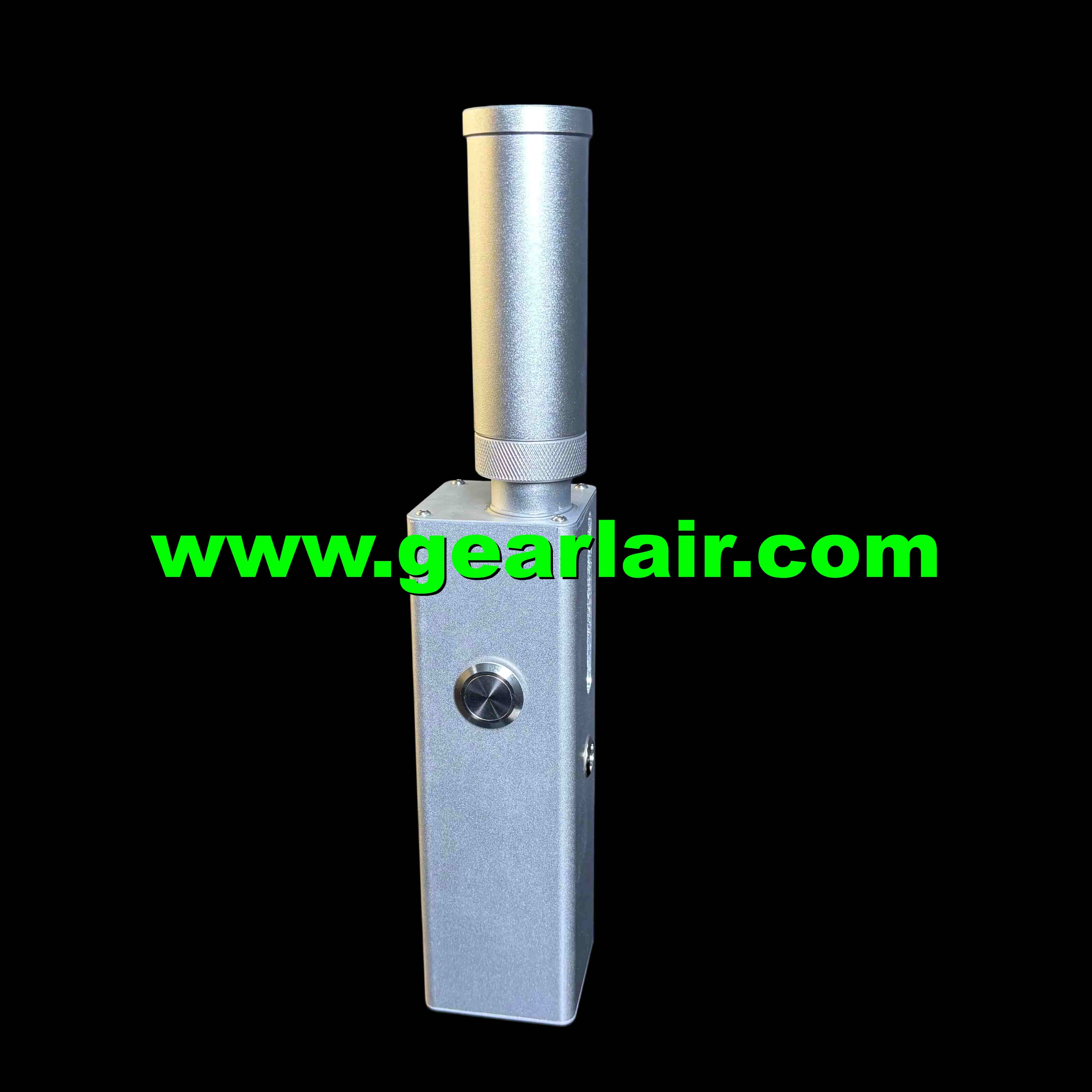

Built for users who need a compact, high-output handheld optical system, this 130W aluminum-alloy model combines an adjustable 15× telescopic lens, high-current battery system, constant-current drive, active cooling, and automatic thermal protection in a portable body.
Key Features
-
130W Output Class — Designed as a high-power portable optical device for suitable professional, experimental, and equipment-development applications.
-

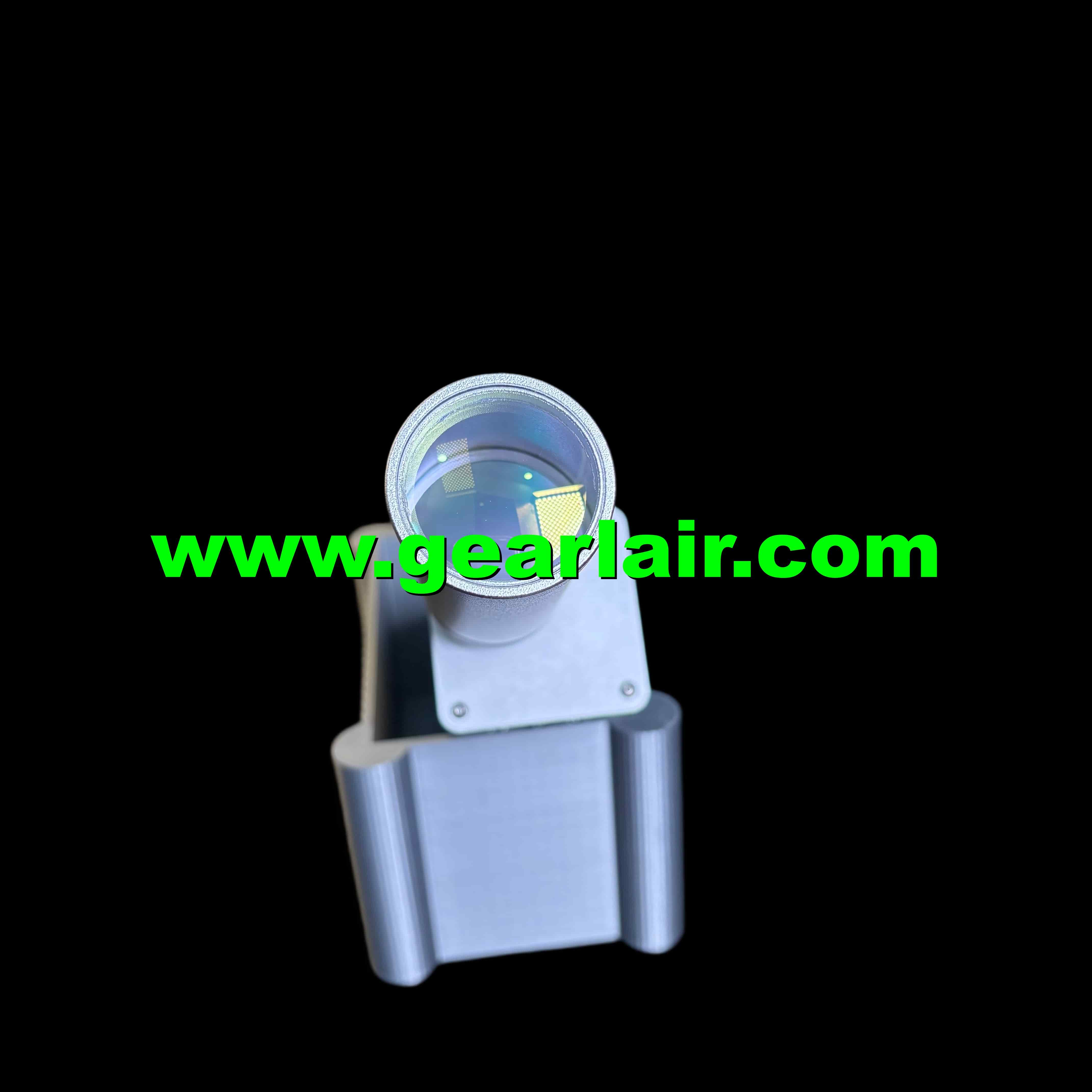

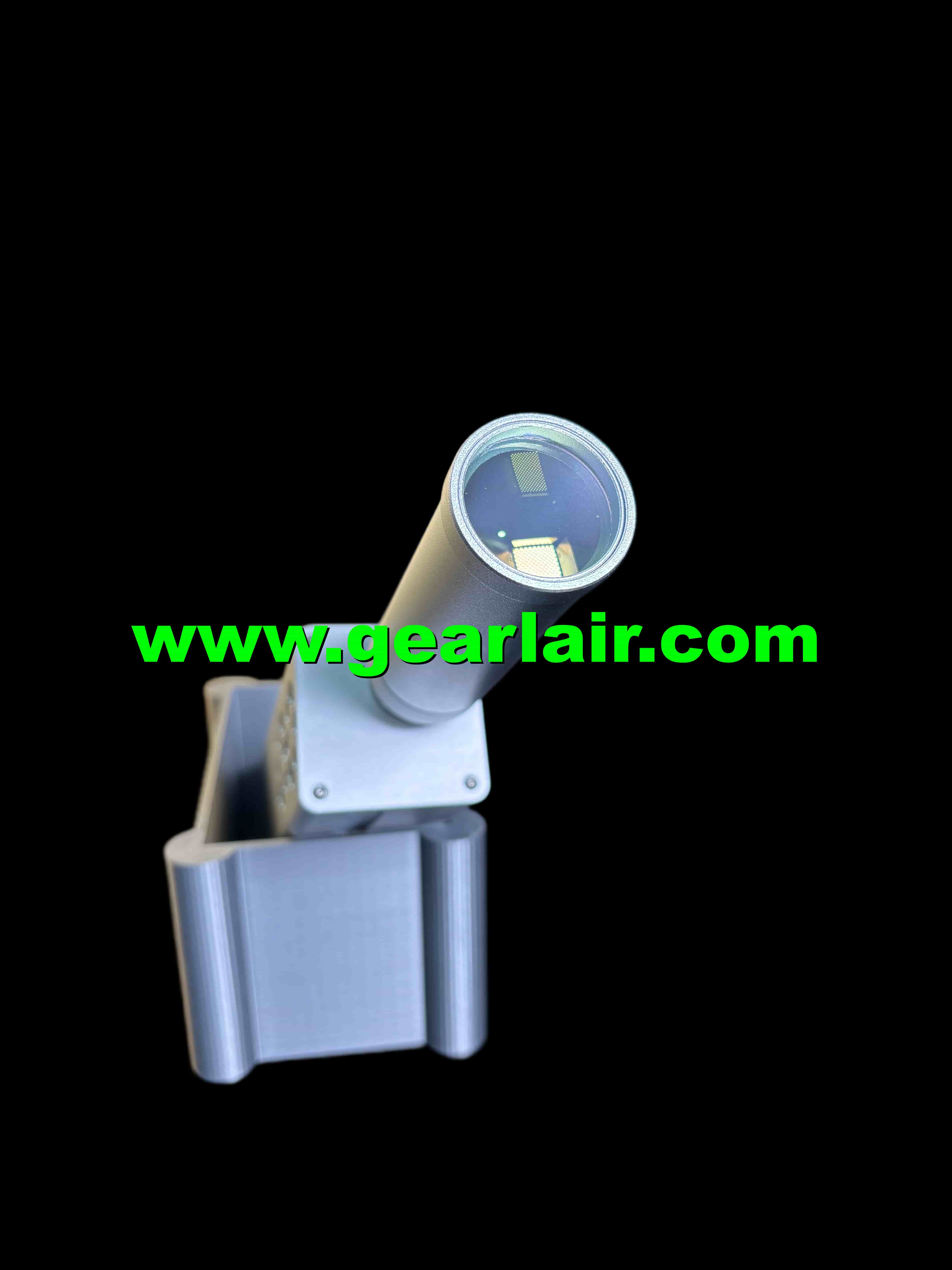

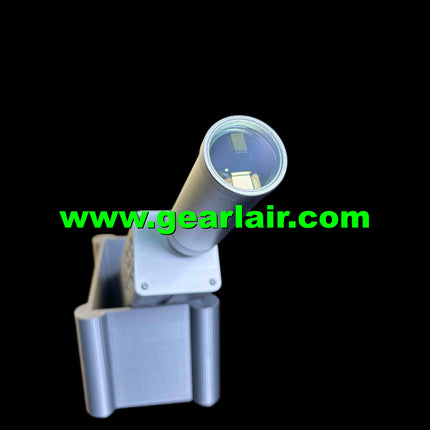

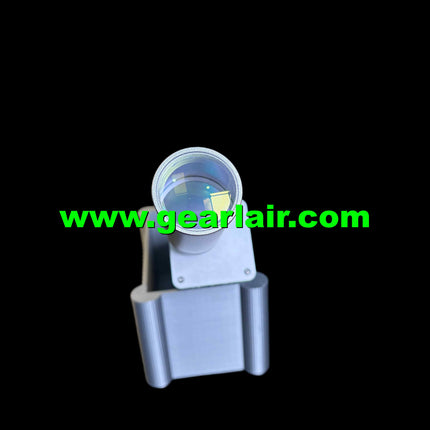

15× Telescopic Lens — Adjustable focusing/zooming optical assembly provides flexible beam adjustment. Lens is not included with the standard configuration.
-

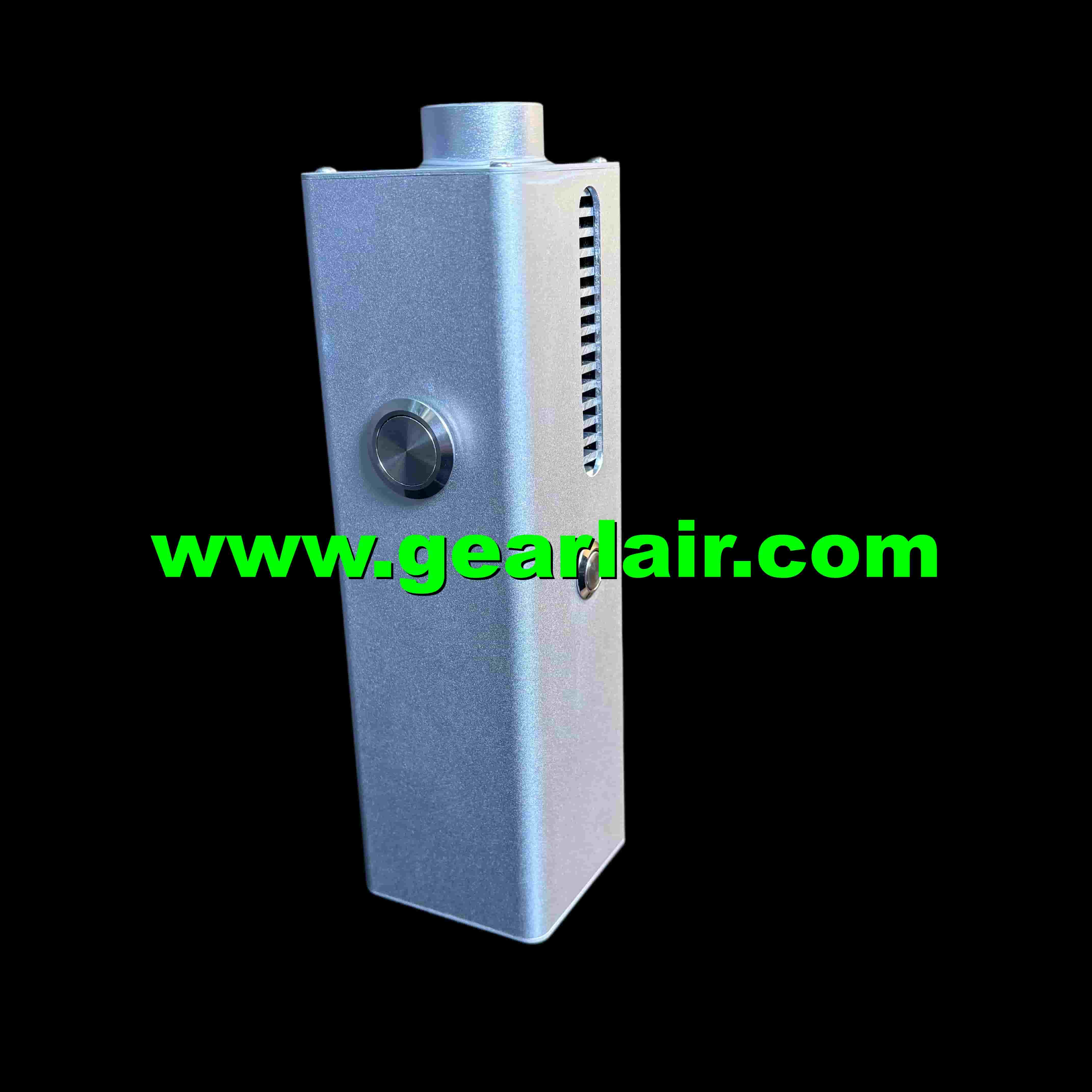

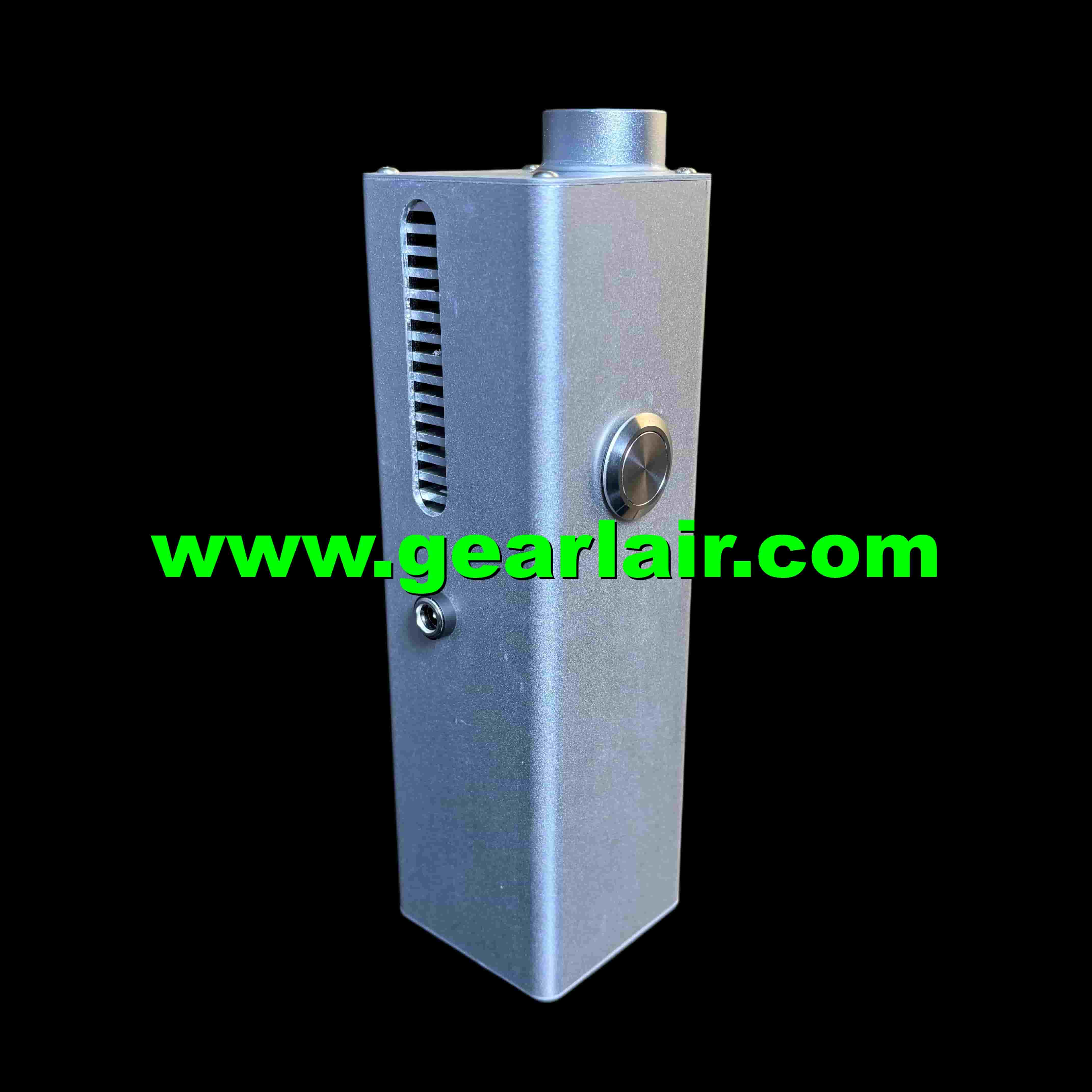

Premium Aluminum-Alloy Housing — Rigid metal construction provides a durable and compact enclosure.
-
High-Current Battery System — Powered by 4 × Samsung 50S 5000mAh cells, combined with a 25A battery protection board.
-
20A Constant-Current Drive — Integrated constant-current driver helps maintain stable system operation.
-

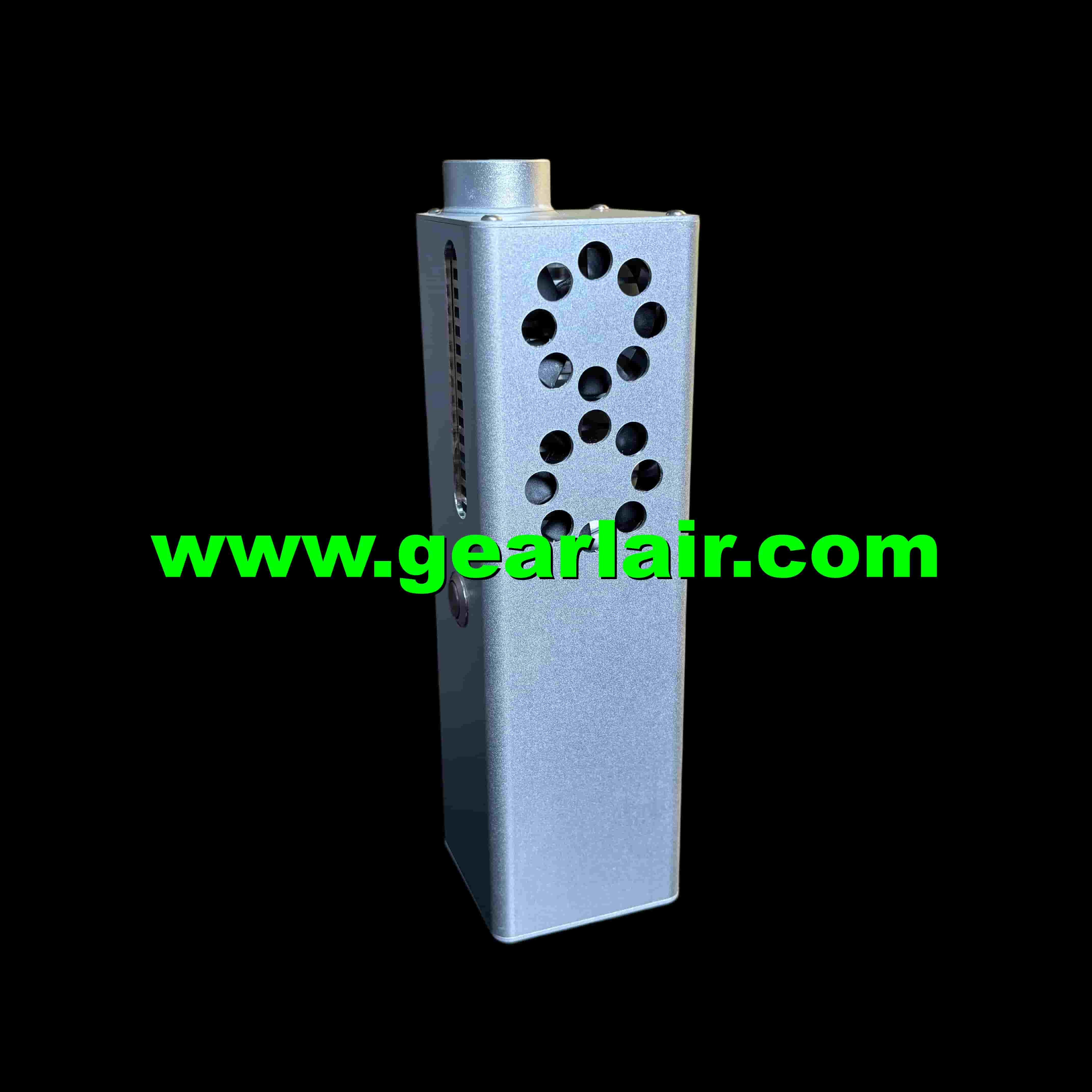

Dual High-Speed Fans — Active cooling with dual high-speed fans and heat-conducting housing helps dissipate heat during operation.
-
Automatic Thermal Protection — The device automatically cuts power when excessive temperature is detected, helping protect the internal components.
-

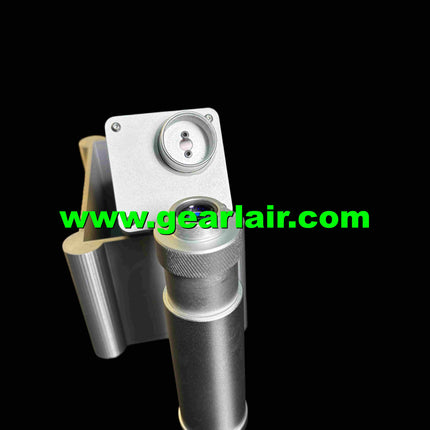

115mW Coaxial Red Alignment Light — Integrated red alignment system assists with optical positioning.
-
3-Color Battery Indicator — The rear indicator provides a quick battery-status reference:
-
Green: Full charge
-
Yellow: Medium charge
-
Red: Low battery
-
DC Charging — Includes a compatible charger for convenient charging.
Battery & Operating Guidance
A full charge provides approximately 1 hour of total operating time, depending on operating conditions.
For thermal management, the device is designed for intermittent operation rather than continuous high-load operation. Individual activation periods should generally be kept short, with approximately 10–15 seconds recommended per activation, followed by sufficient cooling time.
The system can operate for approximately 50 seconds continuously under suitable conditions, but actual runtime and thermal behavior depend on ambient temperature, operating mode, and cooling conditions.
When the internal temperature becomes too high, automatic thermal protection will interrupt operation.
Battery Indicator & Thermal Protection
The rear indicator provides an easy way to monitor the battery:
Green → Full
Yellow → Medium
Red → Low
During activation, the indicator may illuminate yellow. If the device does not activate and the yellow indicator does not illuminate, the system may have entered high-temperature protection. Allow the unit to cool before attempting operation again.
Specifications
| Specification |
Details |
| Output Class |
130W |
| Housing |
Aluminum Alloy |
| Optical System |
15× Telescopic Adjustable Lens |
| Lens |
Not Included |
| Battery |
4 × Samsung 50S 5000mAh |
| Battery Protection |
25A BMS / Protection Board |
| Constant-Current Drive |
20A |
| Cooling |
Dual High-Speed Fans + Heat-Conducting Housing |
| Thermal Protection |
Automatic Over-Temperature Cutoff |
| Alignment Light |
115mW Coaxial Red Light |
| Charging Port |
DC |
| Charger |
Included |
| Device Dimensions |
52 × 52 × 170 mm |
| Package Dimensions |
21 × 11 × 14 cm |
| Product Weight |
Approx. 1.5 kg |
| Approx. Total Runtime |
About 1 hour per full charge |

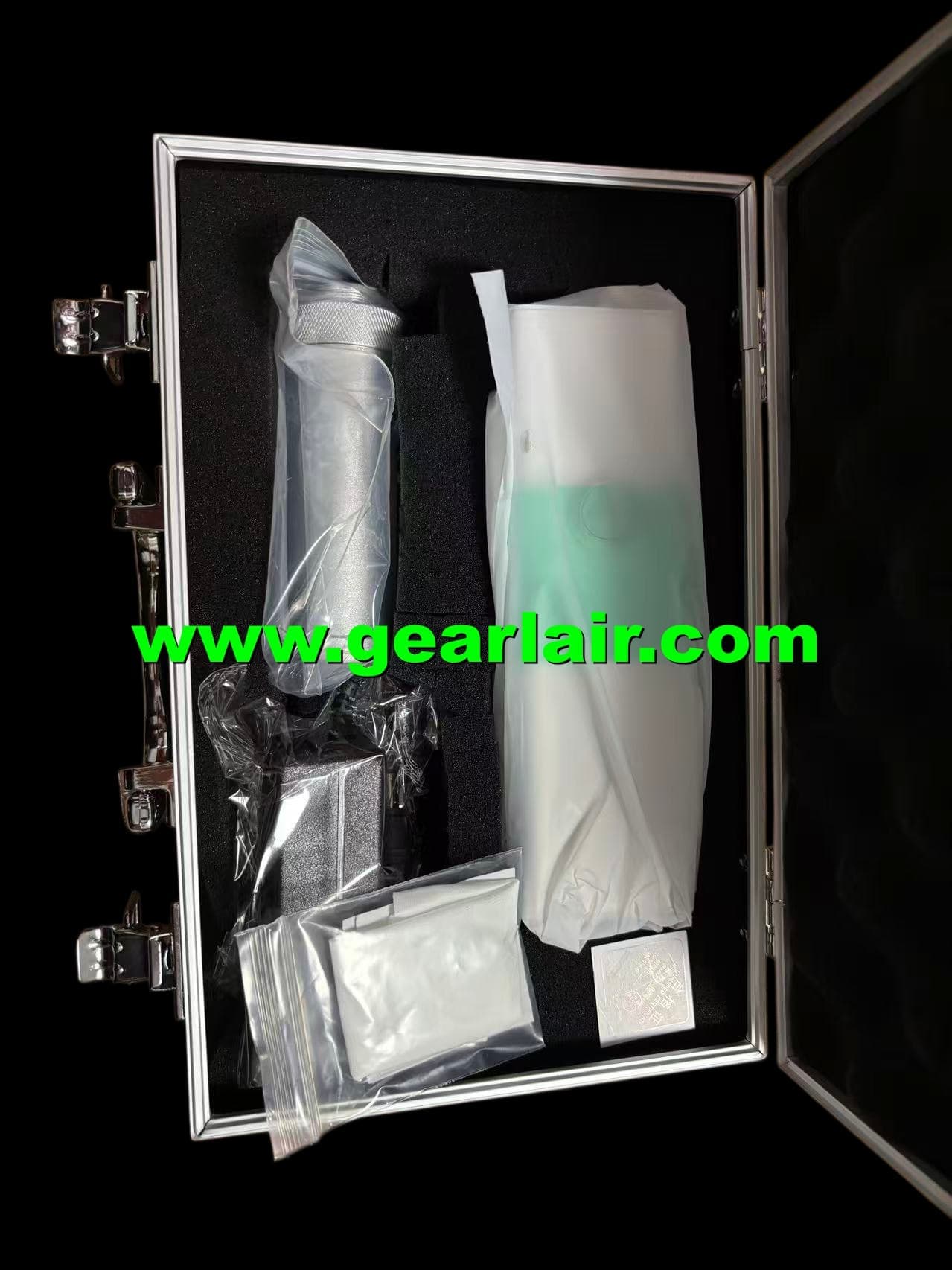

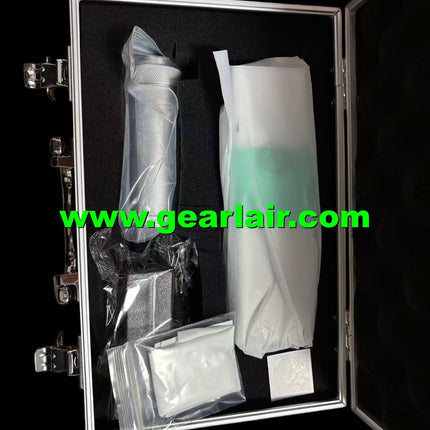

Package Includes
Important Safety Information
This is a high-power optical device and must be handled responsibly. Never point the output toward people, animals, aircraft, vehicles, or reflective surfaces. Avoid direct or reflected exposure to the eyes and use appropriate protective equipment and controlled operating conditions.
The device incorporates automatic thermal protection, but thermal protection should not be treated as a substitute for proper operating intervals and cooling.
Allow the device to cool between activation cycles and discontinue use if abnormal heating, odor, noise, or other unusual behavior occurs.
