Description

Compatible with Ruike, Maxphotonics and IPG laser pumps.
Supports PWM frequency generator control, 0-10V voltage PWM control, and manual/foot single-switch control. Technical support for wiring is available anytime.

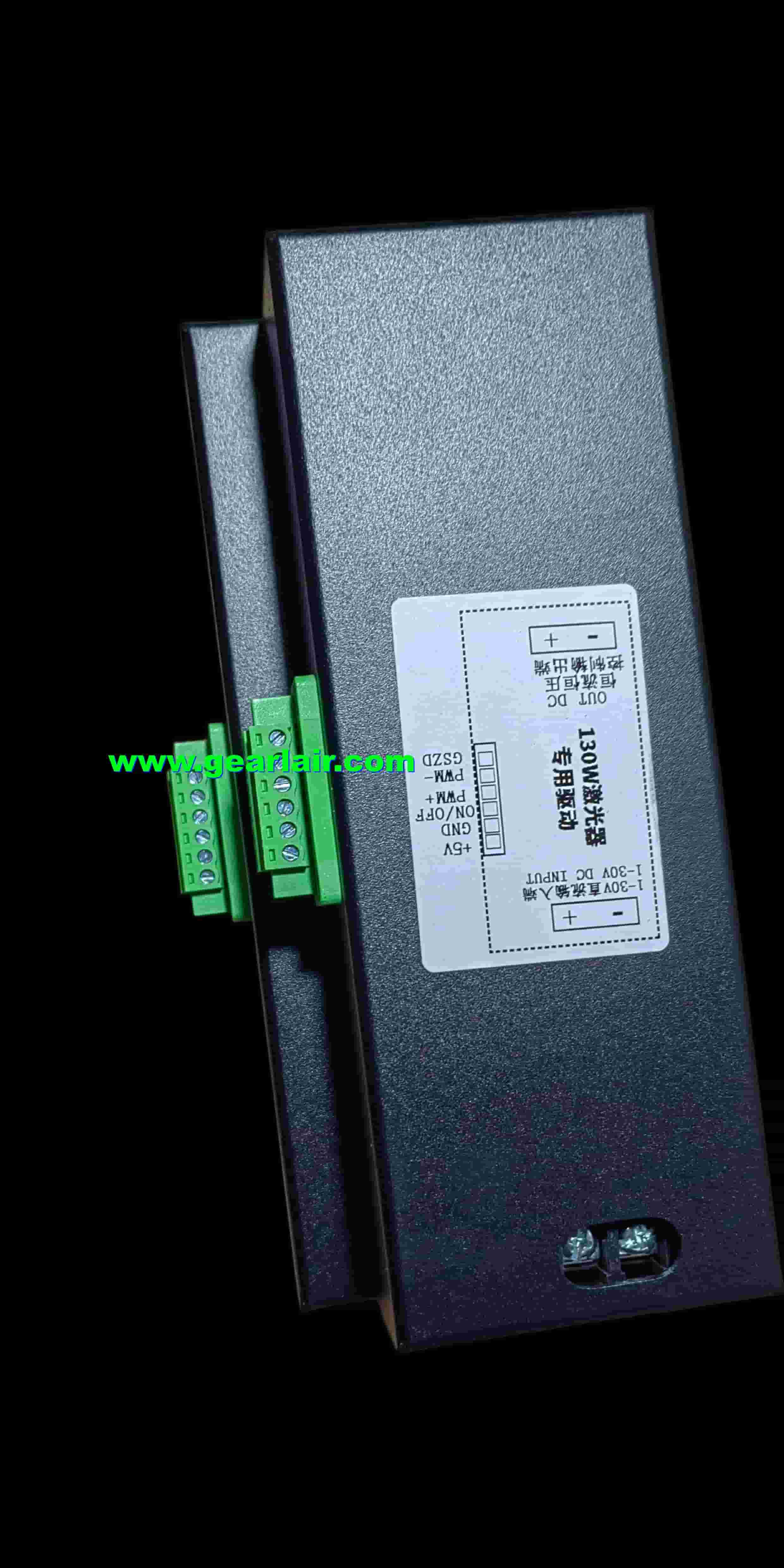

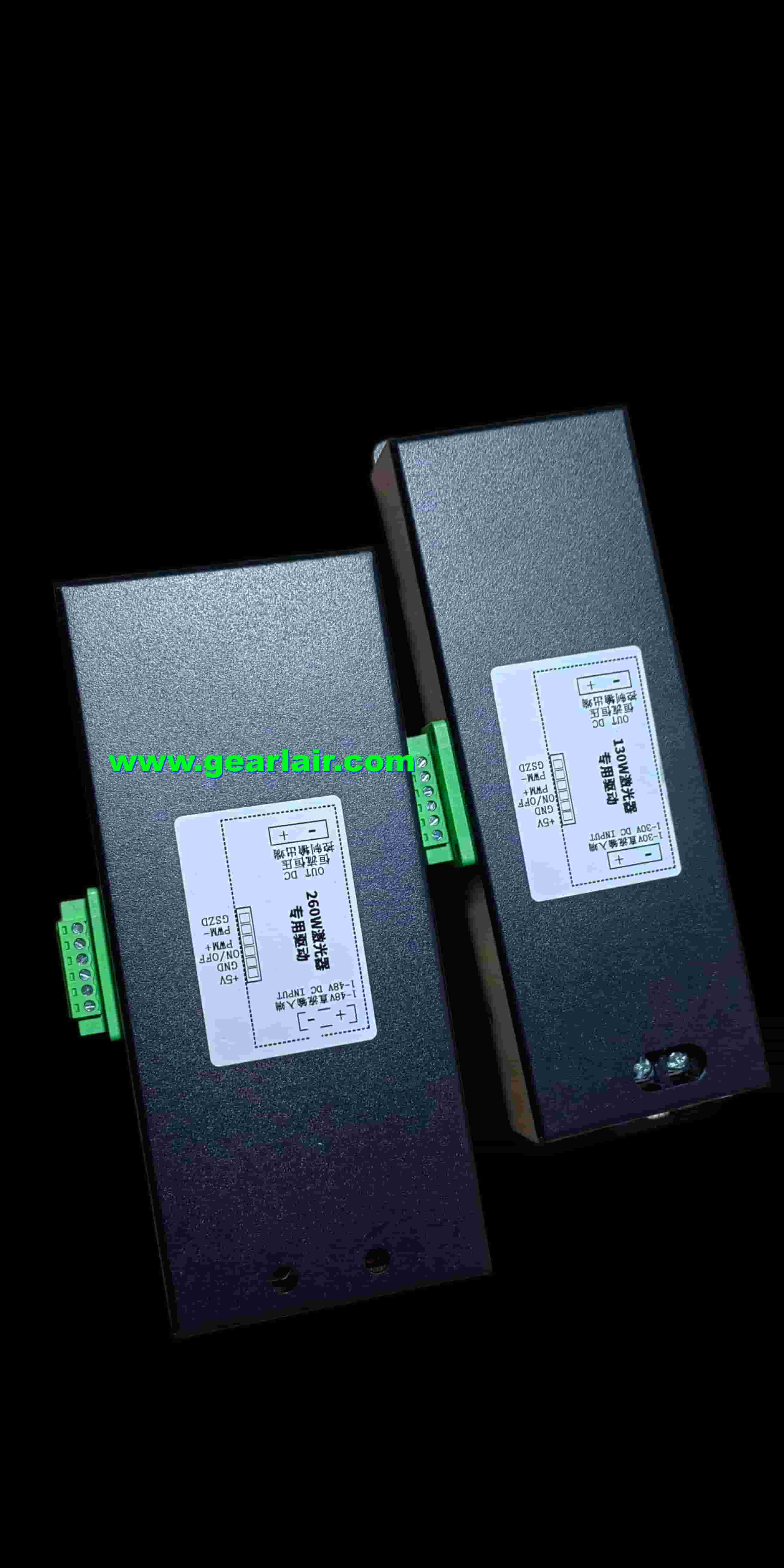

130W Model: Max control 24V/20A, suitable for pumps within 200W.
260W Model: Max control 48V/20A, suitable for pumps within 400W.

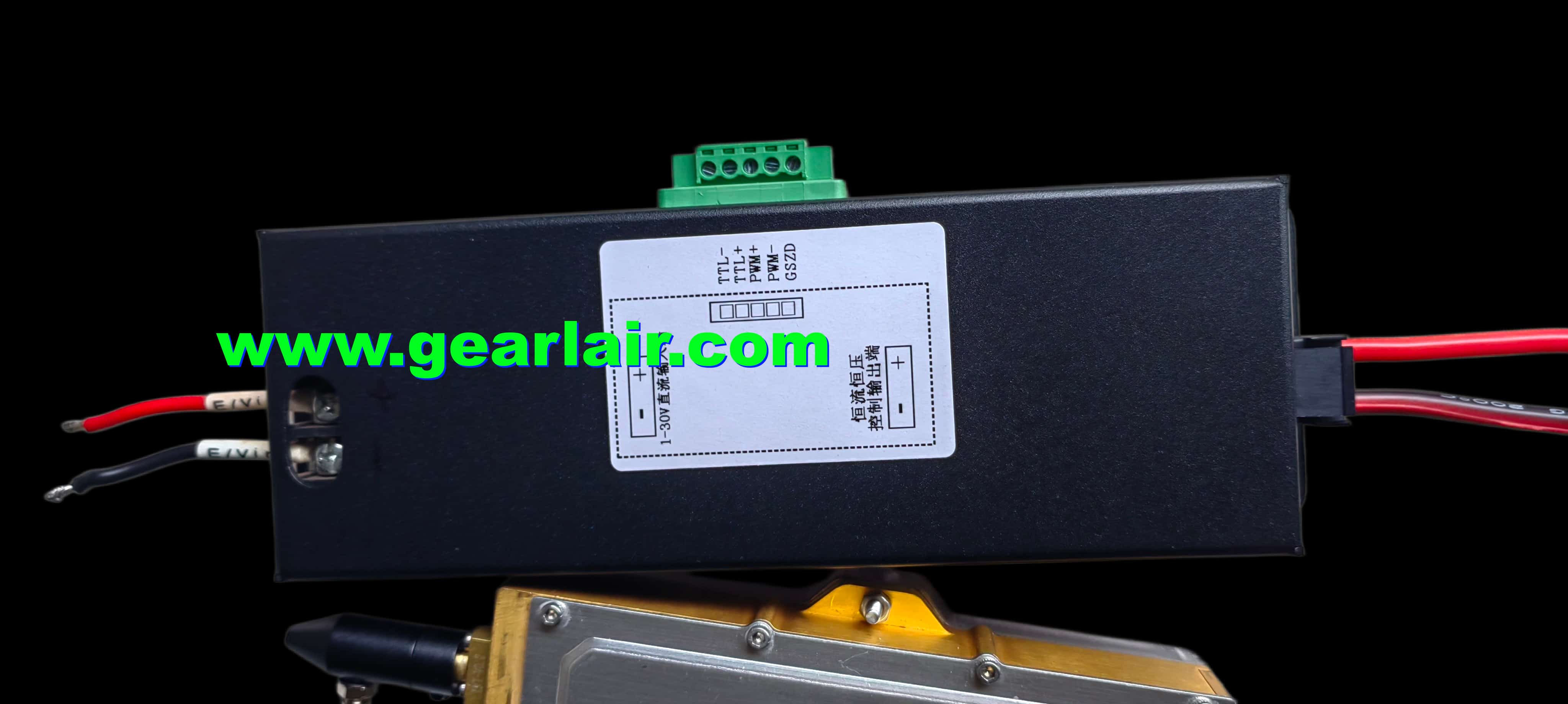

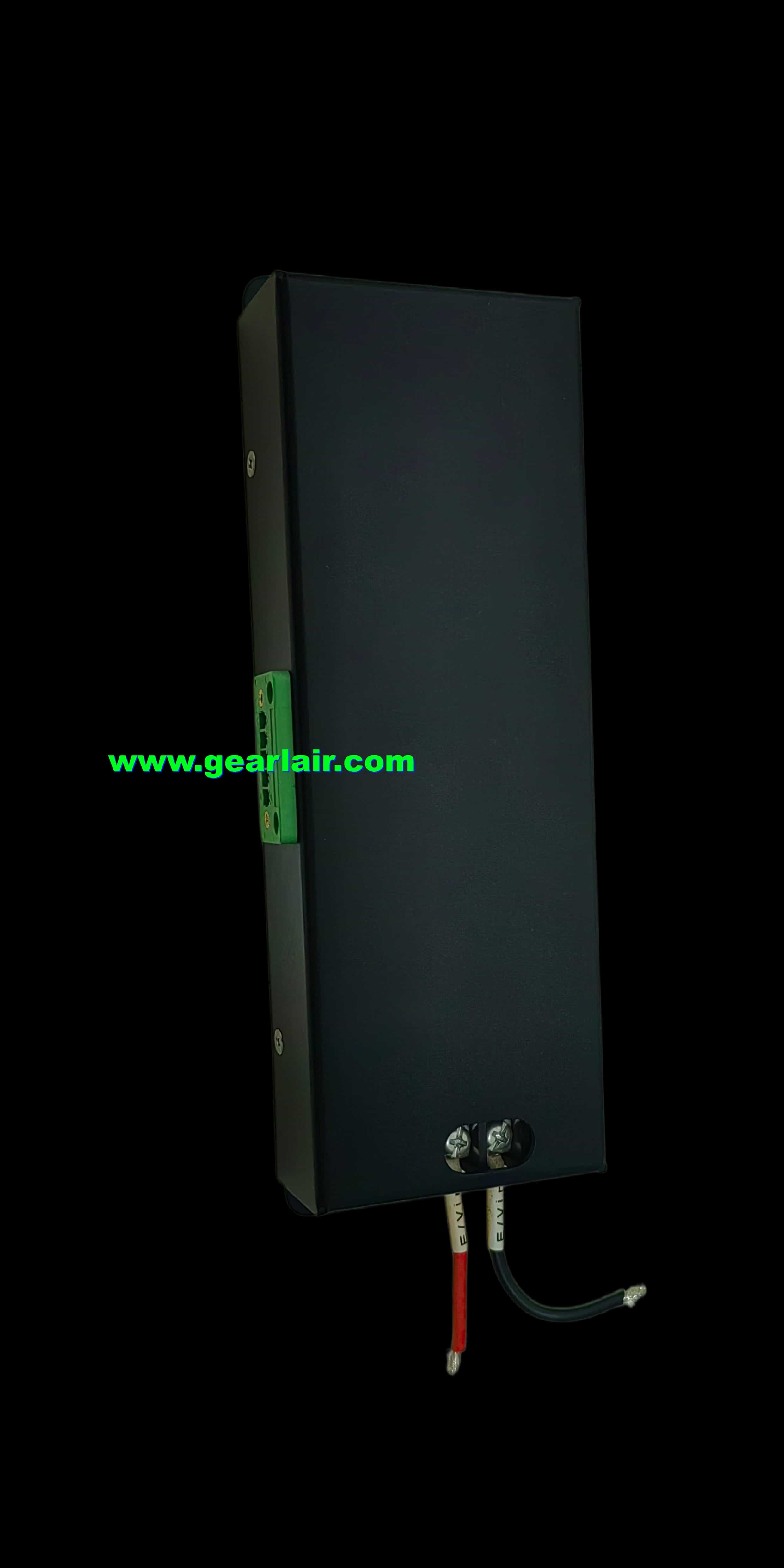

Constant current and constant voltage output; directly connect to the positive and negative poles of the laser.

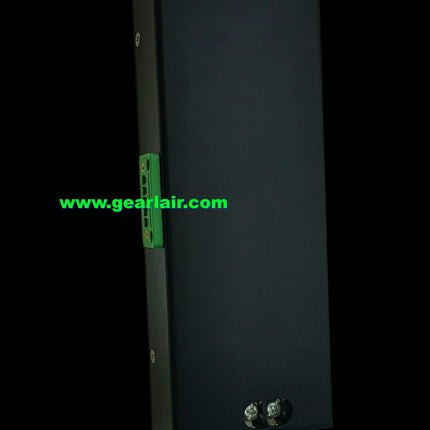

1.5mm aluminum alloy shell, ensuring good heat dissipation and easy installation.

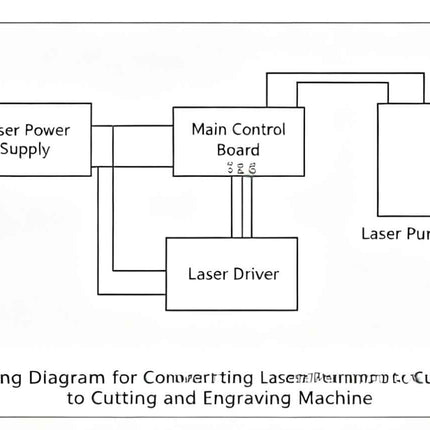

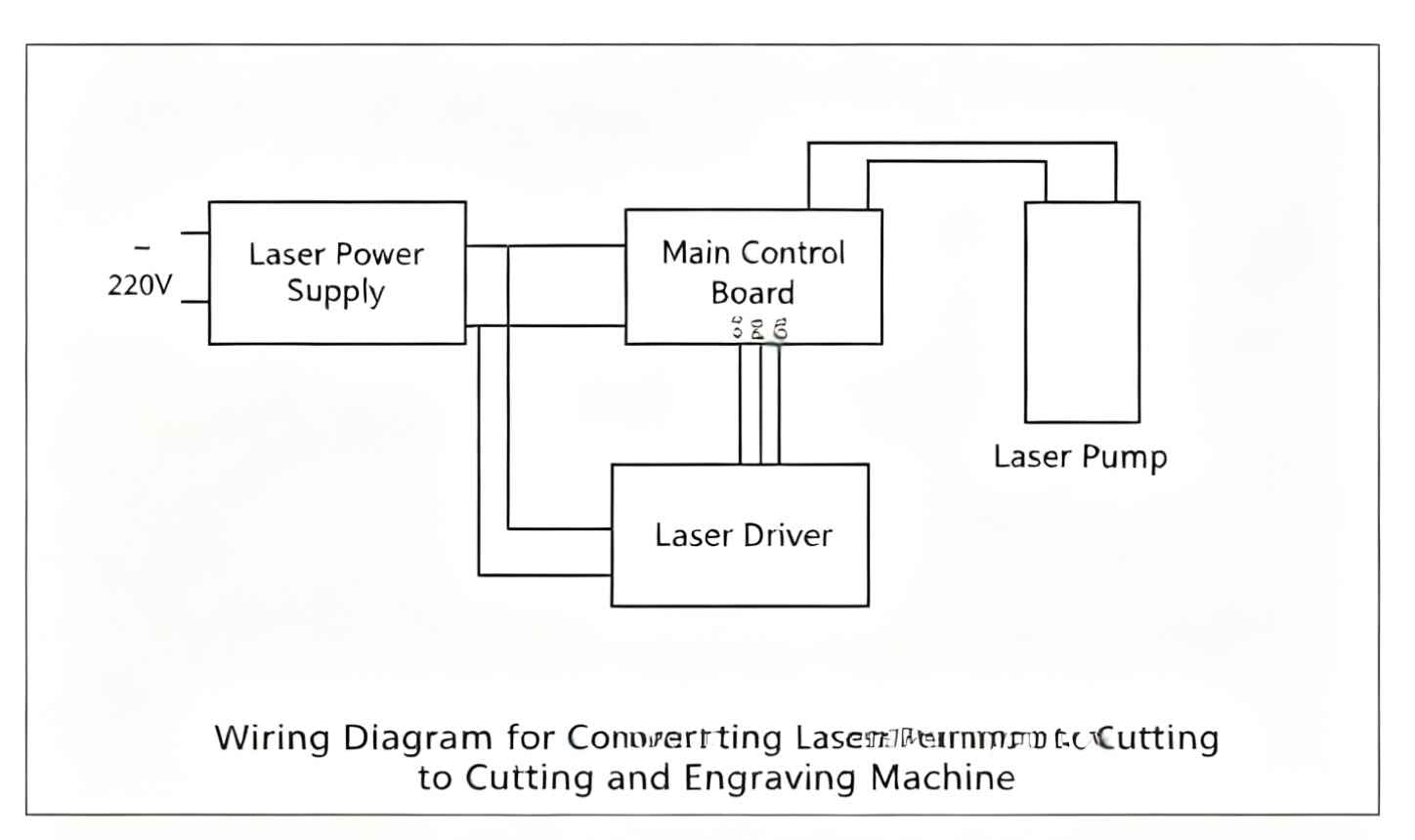

Can be directly connected to CO2 laser engraving and cutting machines to upgrade to semiconductor laser light source, achieving cost reduction.

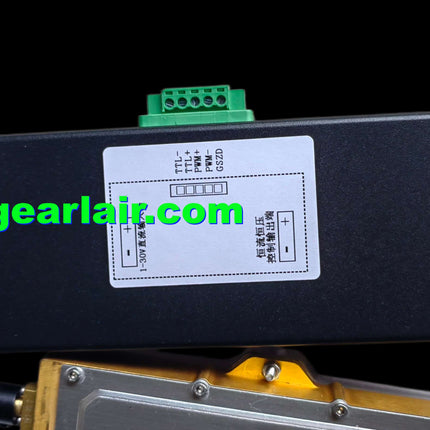

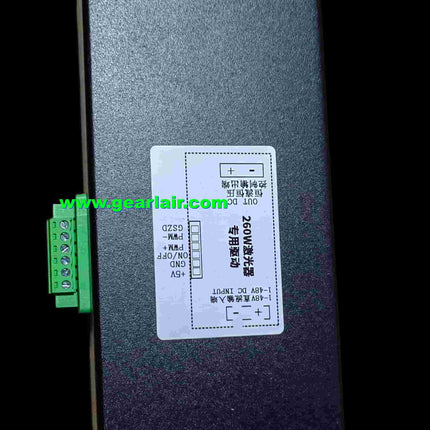

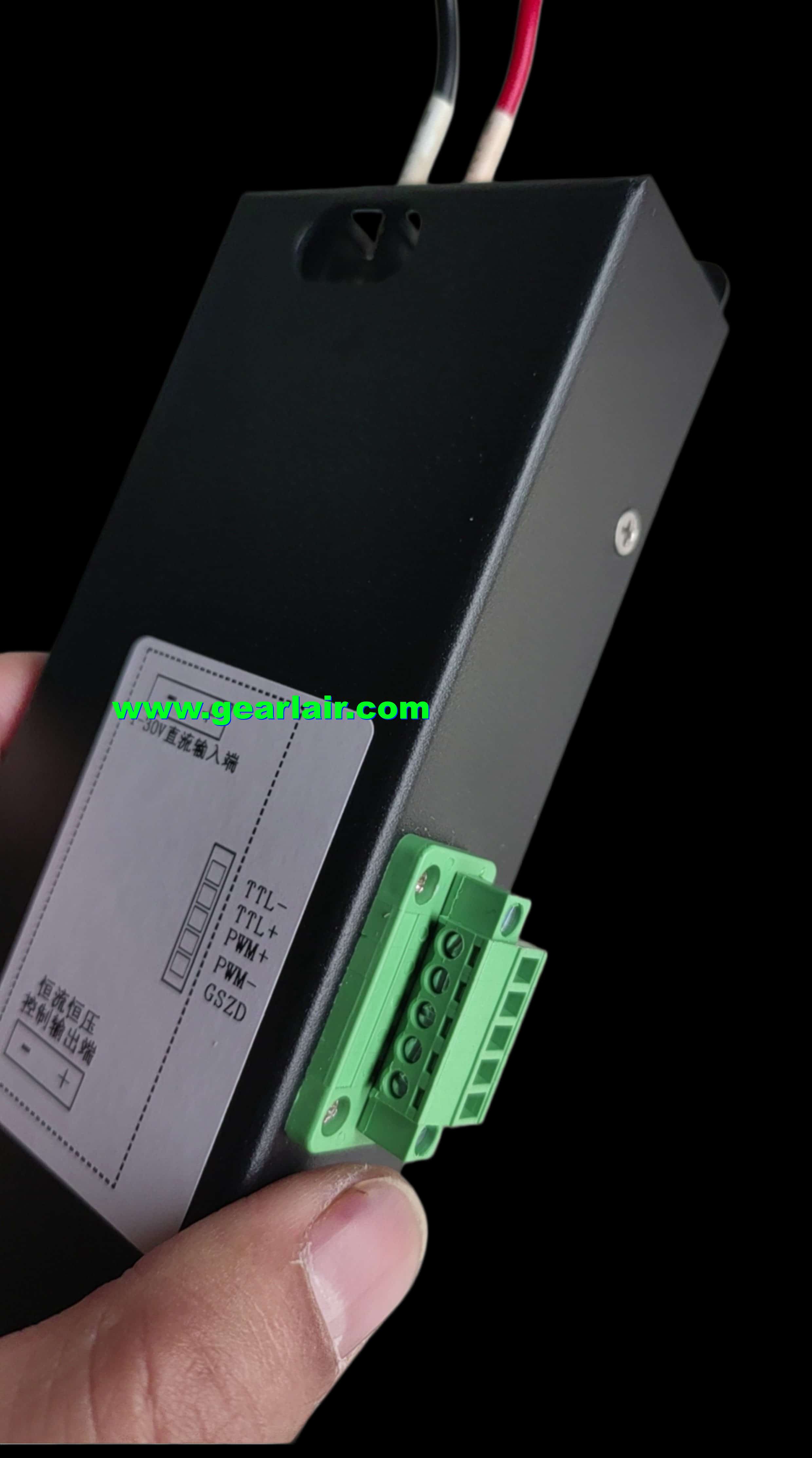

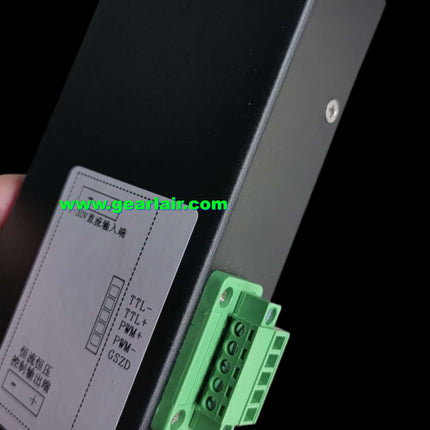

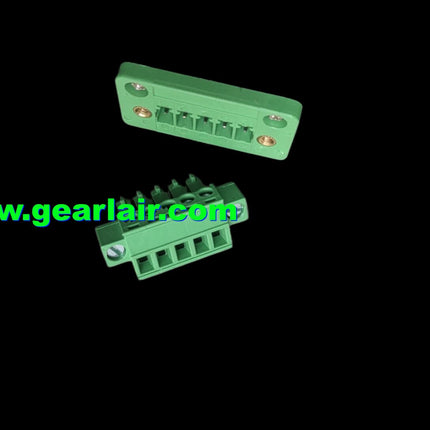

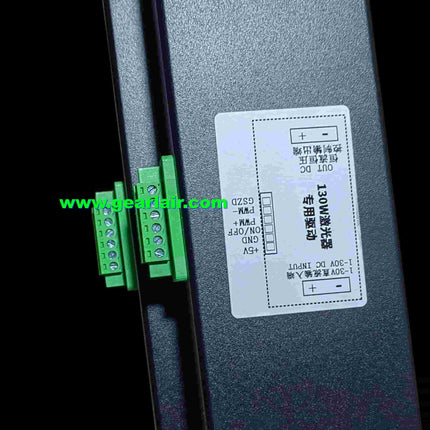

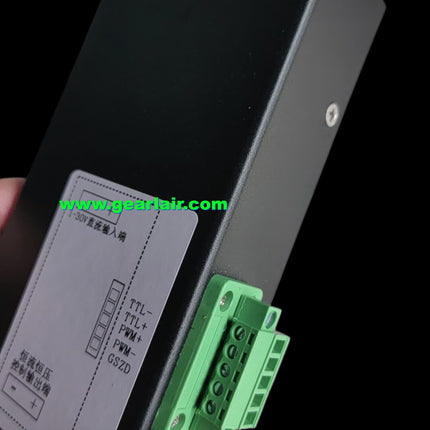

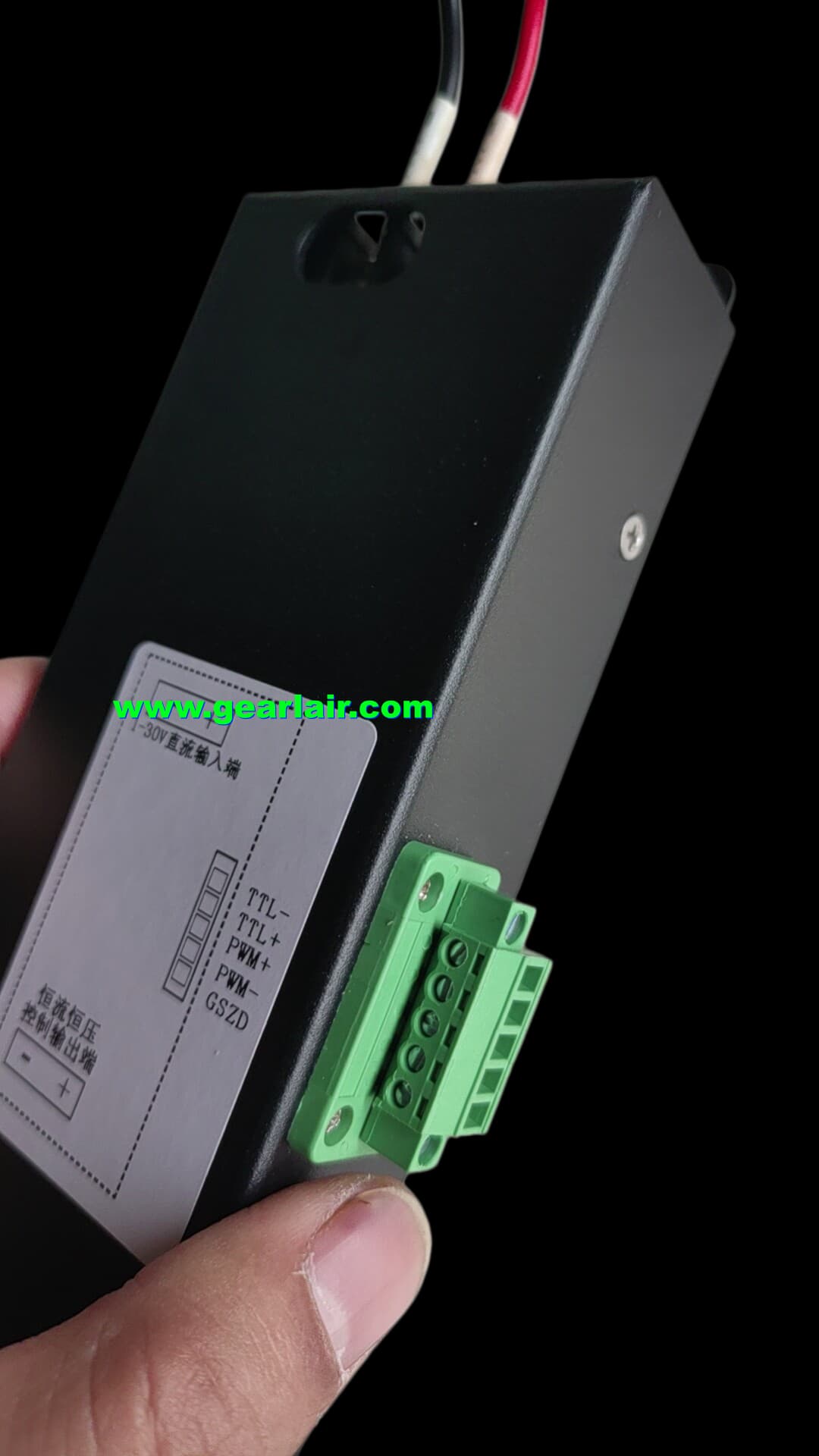

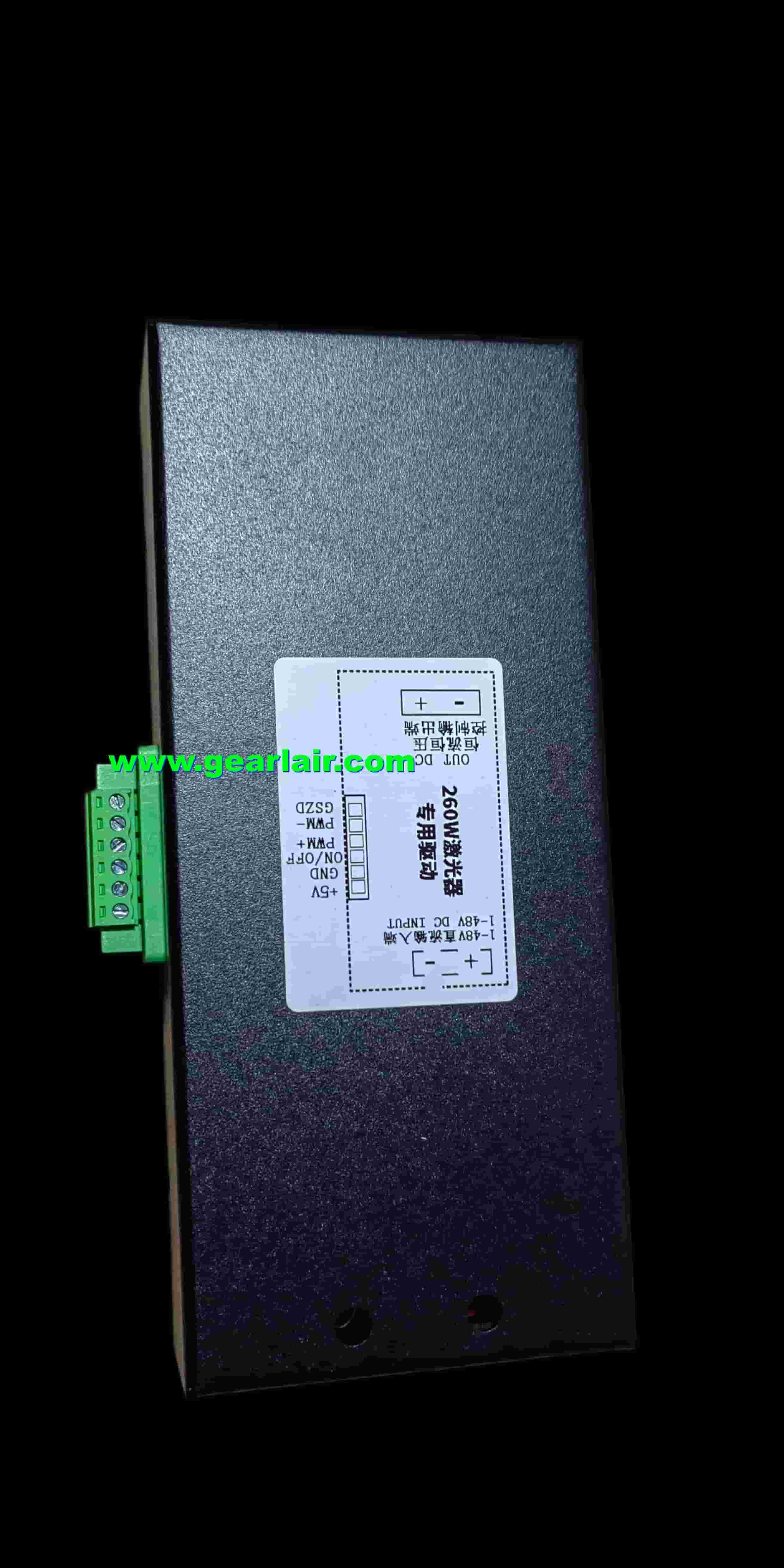

Pin Definitions:
  • +5V: Standby output voltage, for powering PWM signal generators, NOT for loads.
  • GND: Ground, common loop with other signals.
  • ON/OFF: Switch signal terminal, positive voltage to turn on, negative voltage to turn off (1-12V).
  • PWM+: PWM signal input terminal, max support 100KHz.
  • PWM-: Common with GND.
  • GSZD: Reserved signal terminal, leave open.
Three conditions for driver output: 1. Positive voltage at ON/OFF terminal. 2. Frequency (or 0-10V voltage) at PWM+ terminal. 3. Common GND.

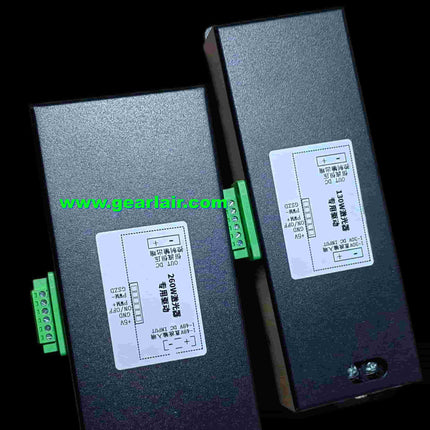

130W/260W Laser Pump Driver for Ruike/Maxphotonics/IPG

Product form

$99.00

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above 500
    • No hassle returns, 30 days return

    Description

    Compatible with Ruike, Maxphotonics and IPG laser pumps.
    Supports PWM frequency generator control, 0-10V voltage PWM control, and manual/foot single-switch control. Technical support for wiring is available anytime.
    130W Model: Max control 24V/20A, suitable for pumps within 200W.
    260W Model: Max control 48V/20A, suitable for pumps within 400W.
    Constant current and constant voltage output; directly connect to the positive and negative poles of the laser.
    1.5mm aluminum alloy shell, ensuring good heat dissipation and easy installation.
    Can be directly connected to CO2 laser engraving and cutting machines to upgrade to semiconductor laser light source, achieving cost reduction.
    Pin Definitions:
    • +5V: Standby output voltage, for powering PWM signal generators, NOT for loads.
    • GND: Ground, common loop with other signals.
    • ON/OFF: Switch signal terminal, positive voltage to turn on, negative voltage to turn off (1-12V).
    • PWM+: PWM signal input terminal, max support 100KHz.
    • PWM-: Common with GND.
    • GSZD: Reserved signal terminal, leave open.
    Three conditions for driver output: 1. Positive voltage at ON/OFF terminal. 2. Frequency (or 0-10V voltage) at PWM+ terminal. 3. Common GND.
