Description
Product Overview
This compact 12V 80W thermoelectric Peltier water chiller is a DIY liquid cooling core module, specially developed for custom cyberpunk phone semiconductor cooling shells, laser diodes, small lab equipment, and miniature electronic heat dissipation projects. Adopting solid-state semiconductor refrigeration technology, it rapidly cools circulating water without bulky compressor structures, supporting full self-assembly and modification for tech hobbyists, mobile gamers, and laser DIY makers.
Core Specifications
- Model: Mini TEC Water Chiller
- Operating Voltage: DC 12V
- Rated Power: 80W

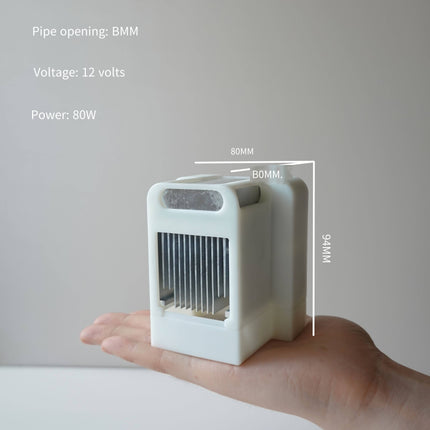

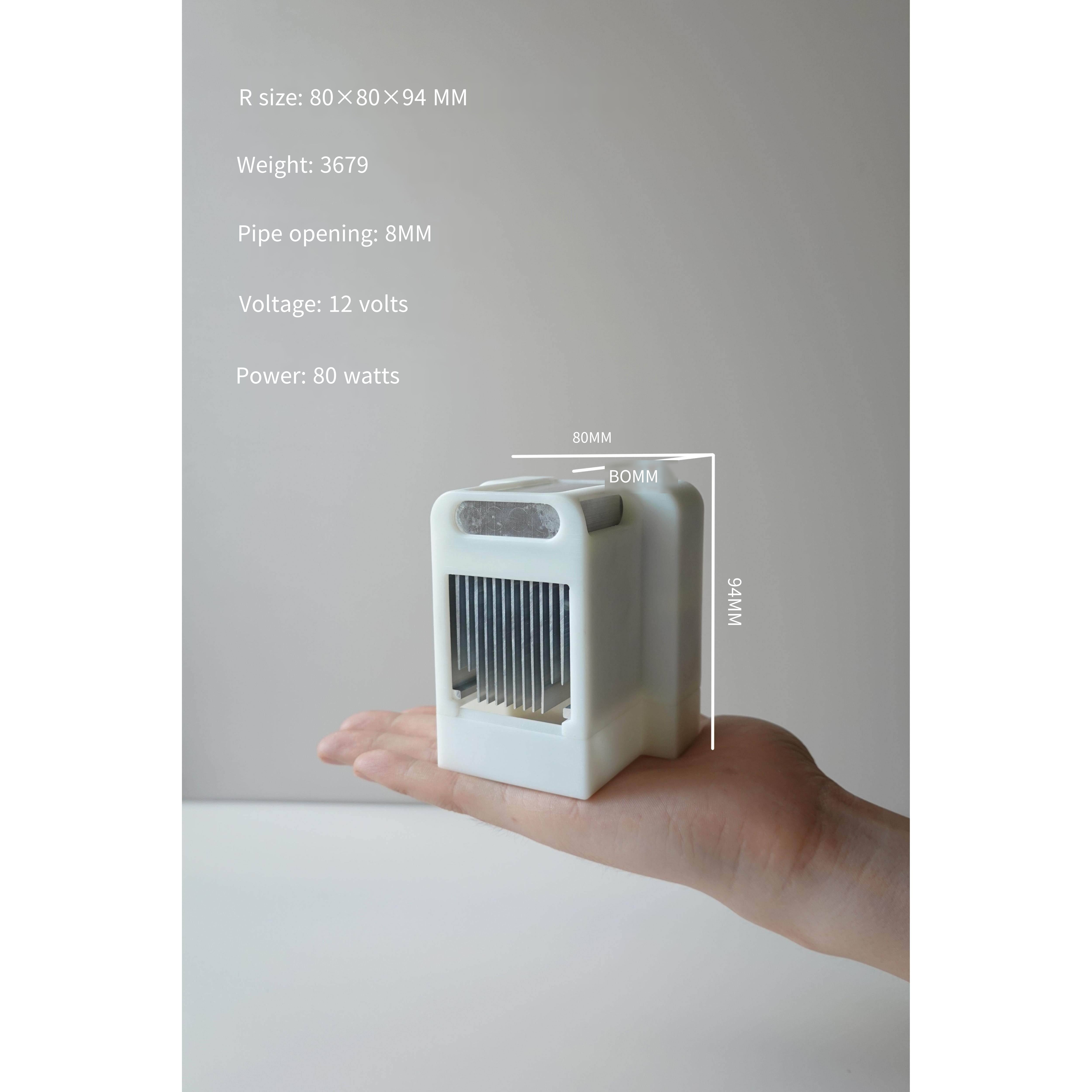

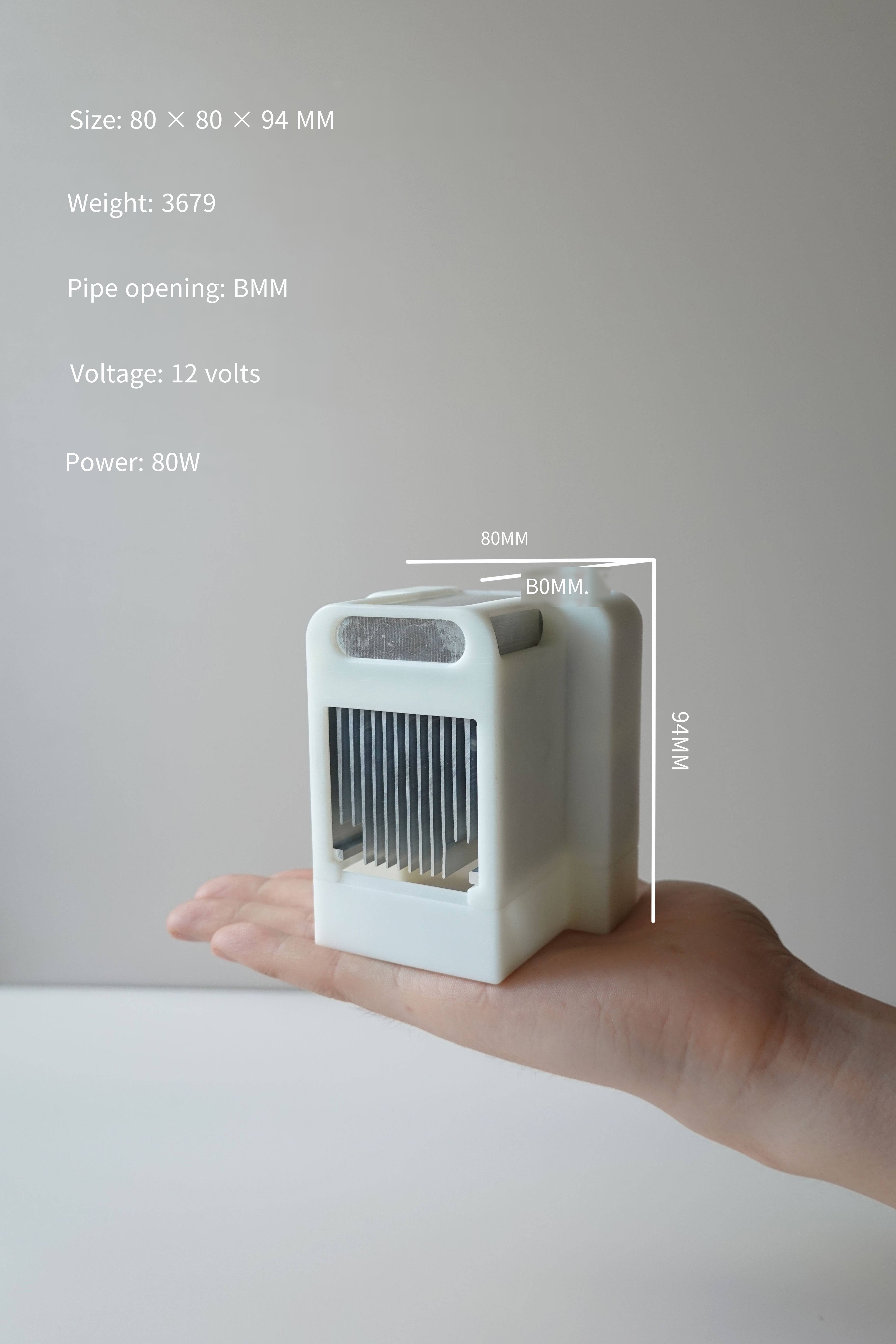

- Dimension: 80×80×94mm
- Net Weight: 367g
- Pipe Port Diameter: 8mm
- Cooling Performance: Outlet water temperature drops 8–20℃ below ambient temperature
- Working Noise: Low-speed silent cooling fan design for long-hour stable operation

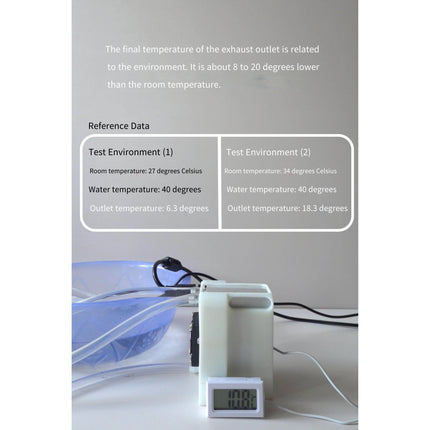

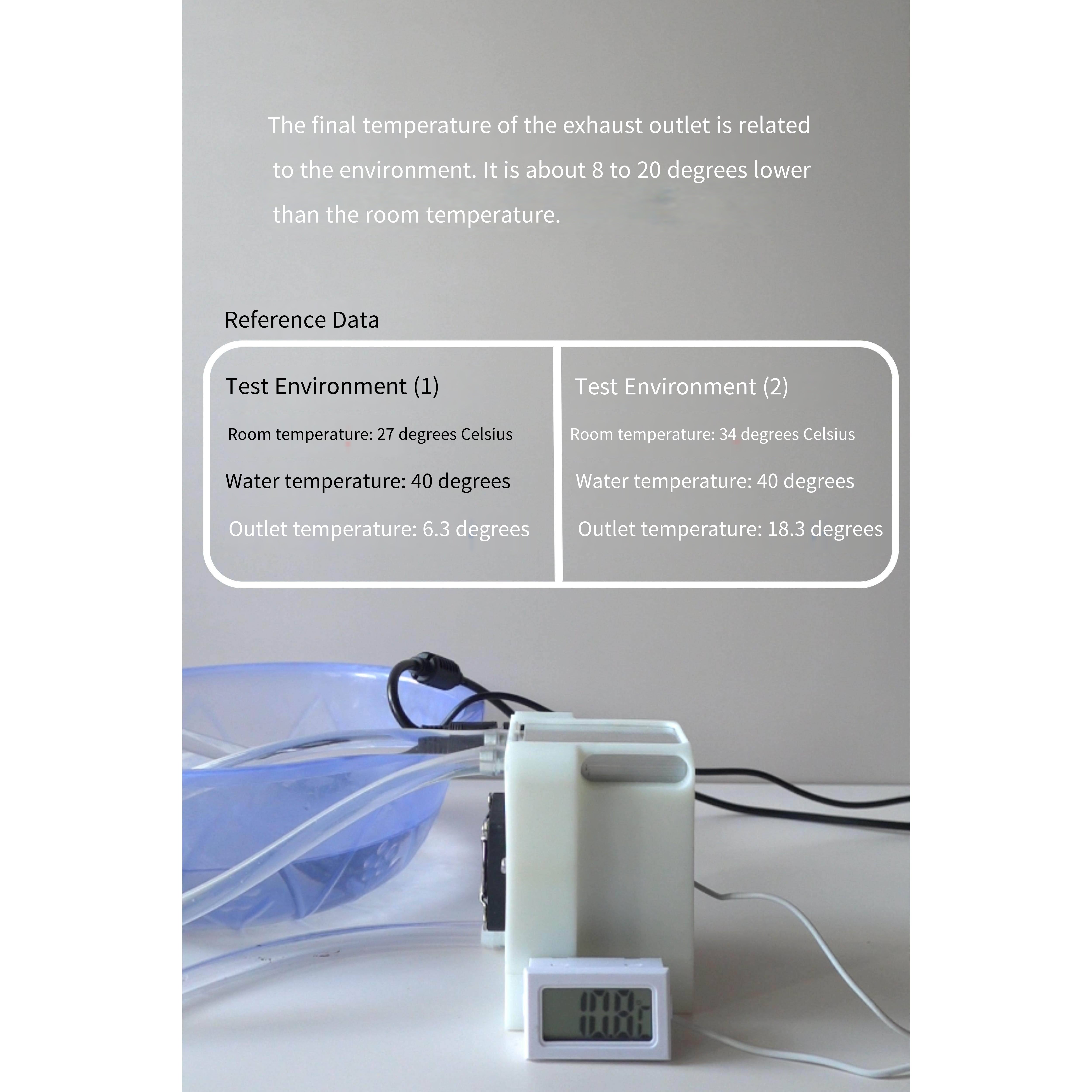

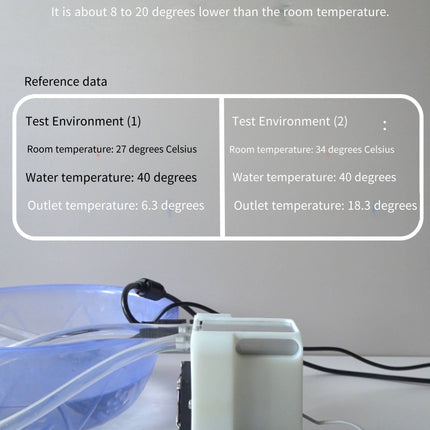

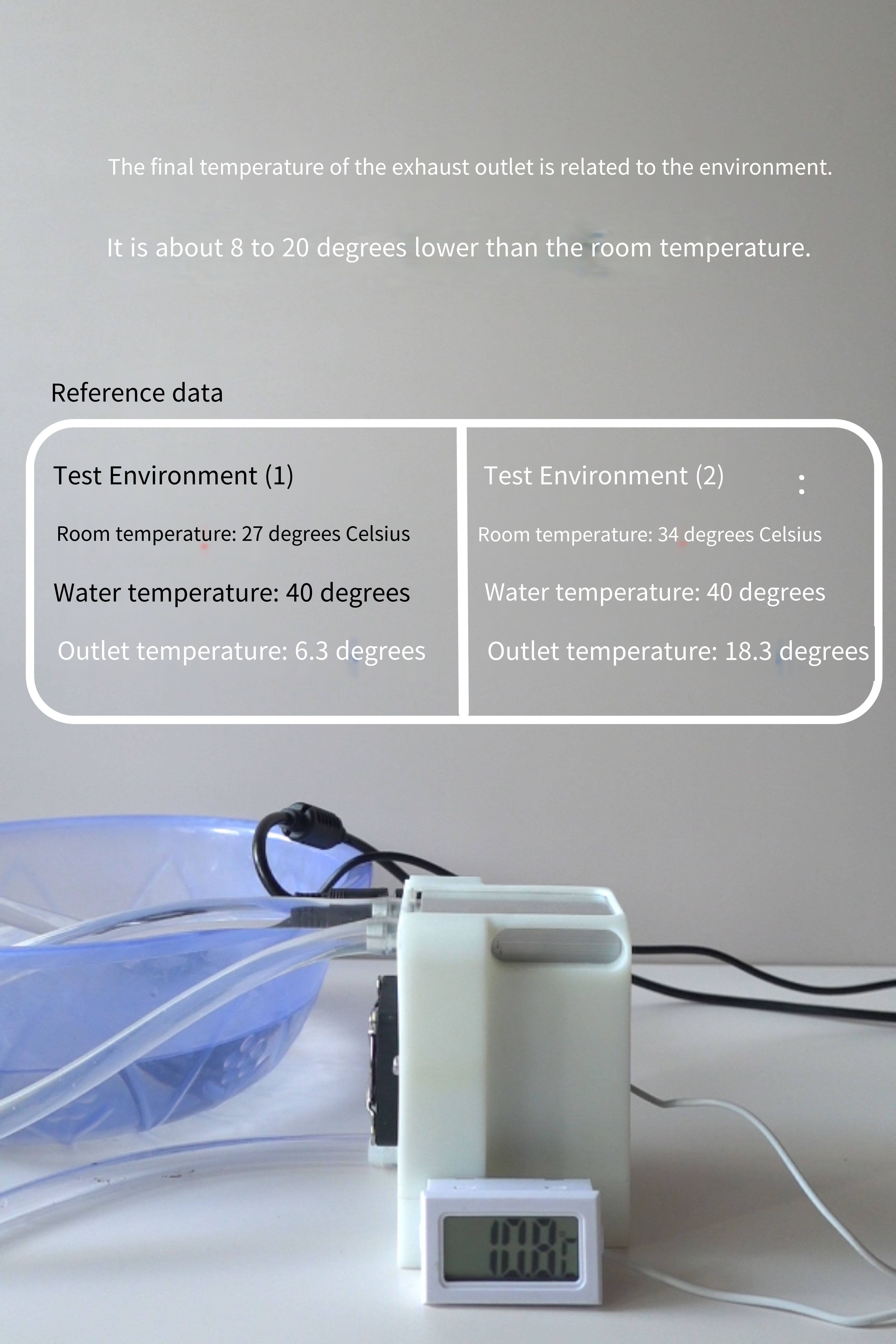

Real Test Cooling Data
Test Environment 1: Ambient 27℃, Water inlet 40℃ → Outlet temperature 6.3℃
Test Environment 2: Ambient 34℃, Water inlet 40℃ → Outlet temperature 18.3℃
Stable refrigeration performance ensures sustained low-temperature circulation for your cooling loop.

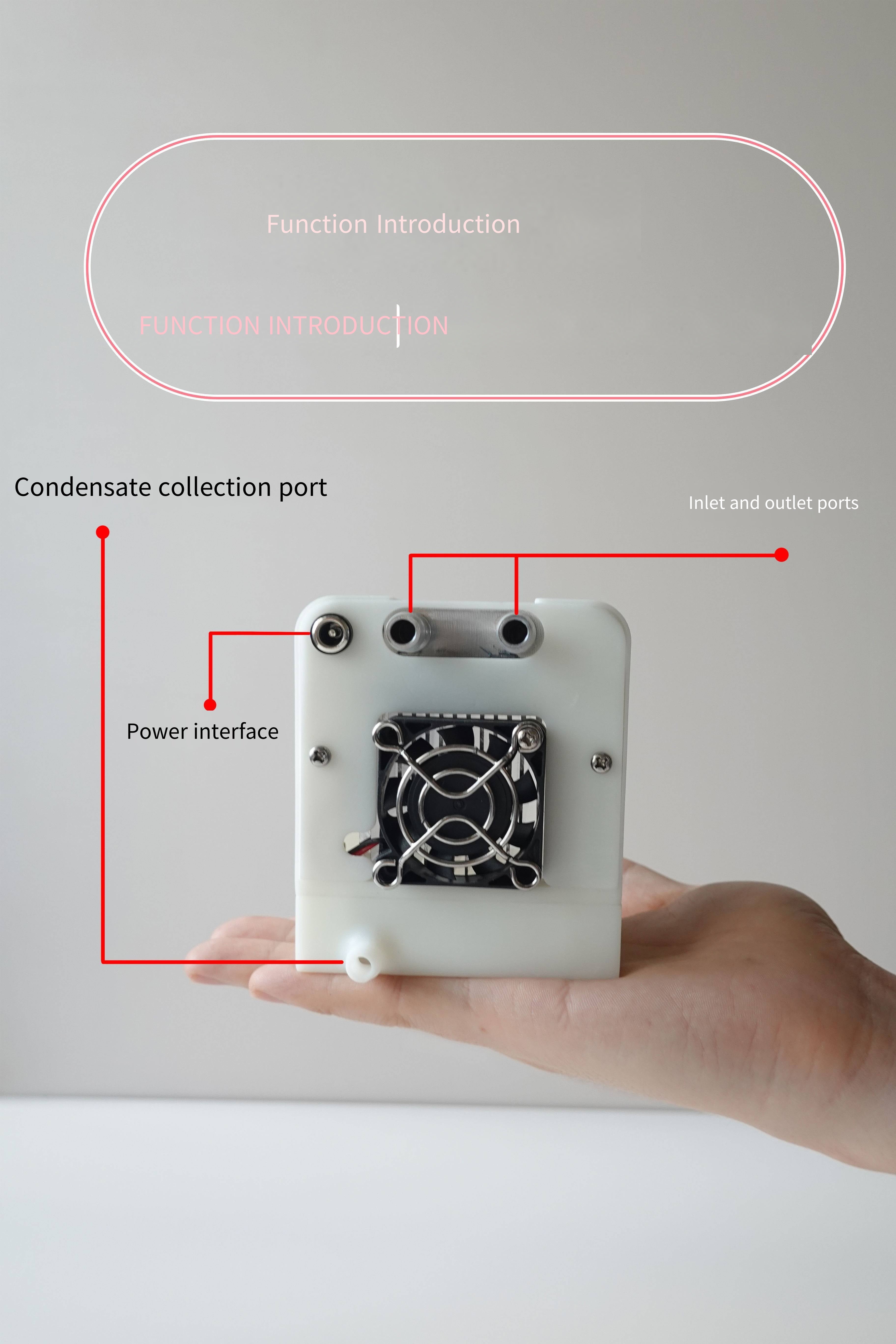

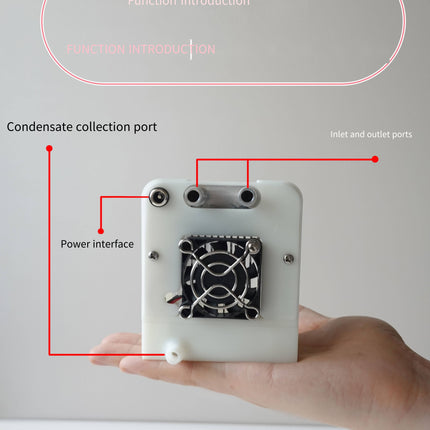

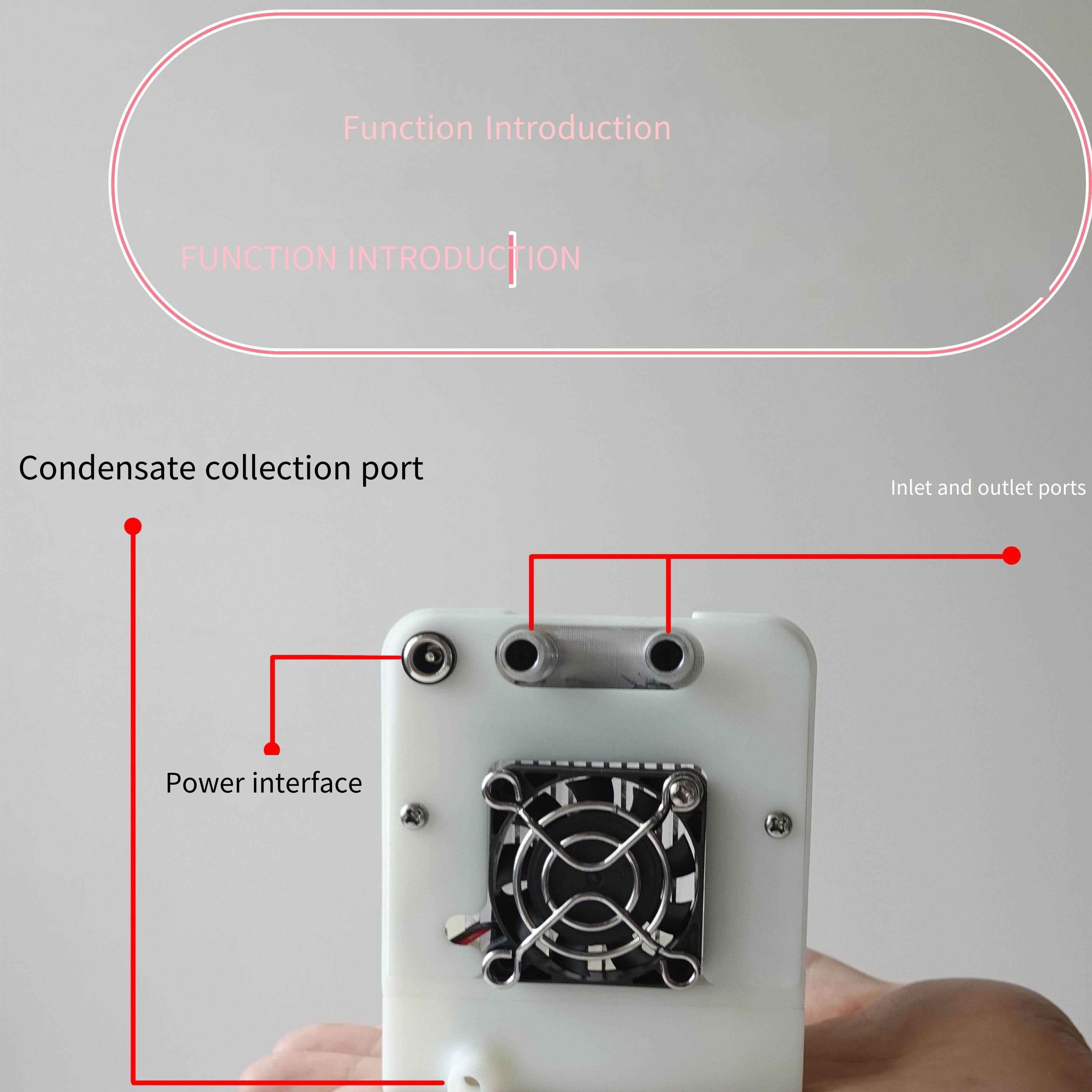

Product Structure Introduction
- Condensation Water Collection Port: Collect condensed water generated during refrigeration to avoid water leakage
- Water Inlet & Outlet Ports: 8mm standard hose interface, easy to connect circulating water pipes
- DC Power Interface: Universal 12V power input port, match supporting power adapter
- Built-in Cooling Radiator Fan: Rapidly discharge heat from the hot side of the Peltier chip to guarantee continuous cooling efficiency
Two Installation Methods (Match Your Diagram)

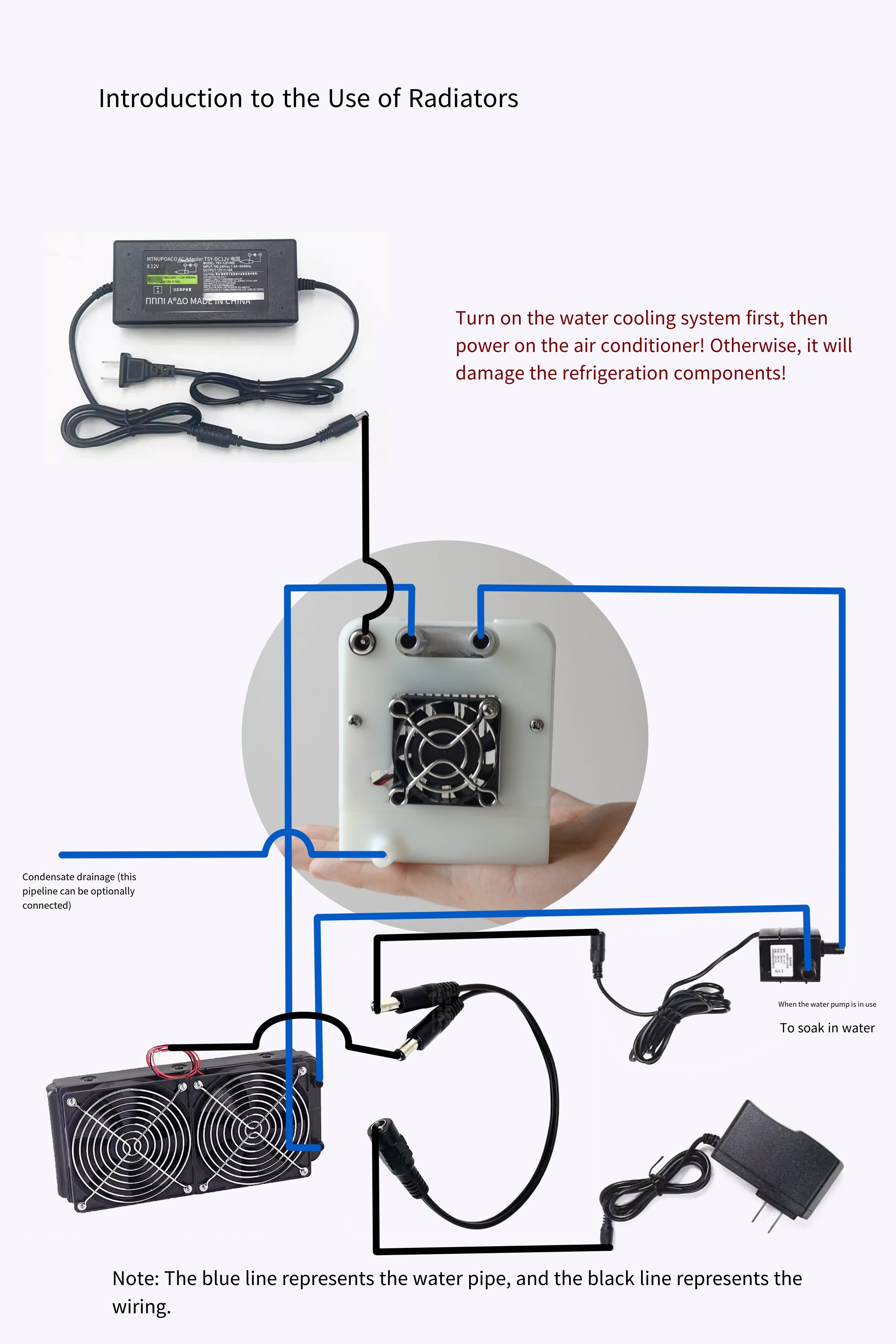

1. Full Set with External Radiator
Connect the water circulation radiator to form a complete closed cooling loop.
Important Note: Turn on the water circulation system first, then power on the chiller, otherwise the refrigeration chip will be damaged without water cooling protection.
Wiring Guide: Blue tubes = water pipelines, black wires = power cables.

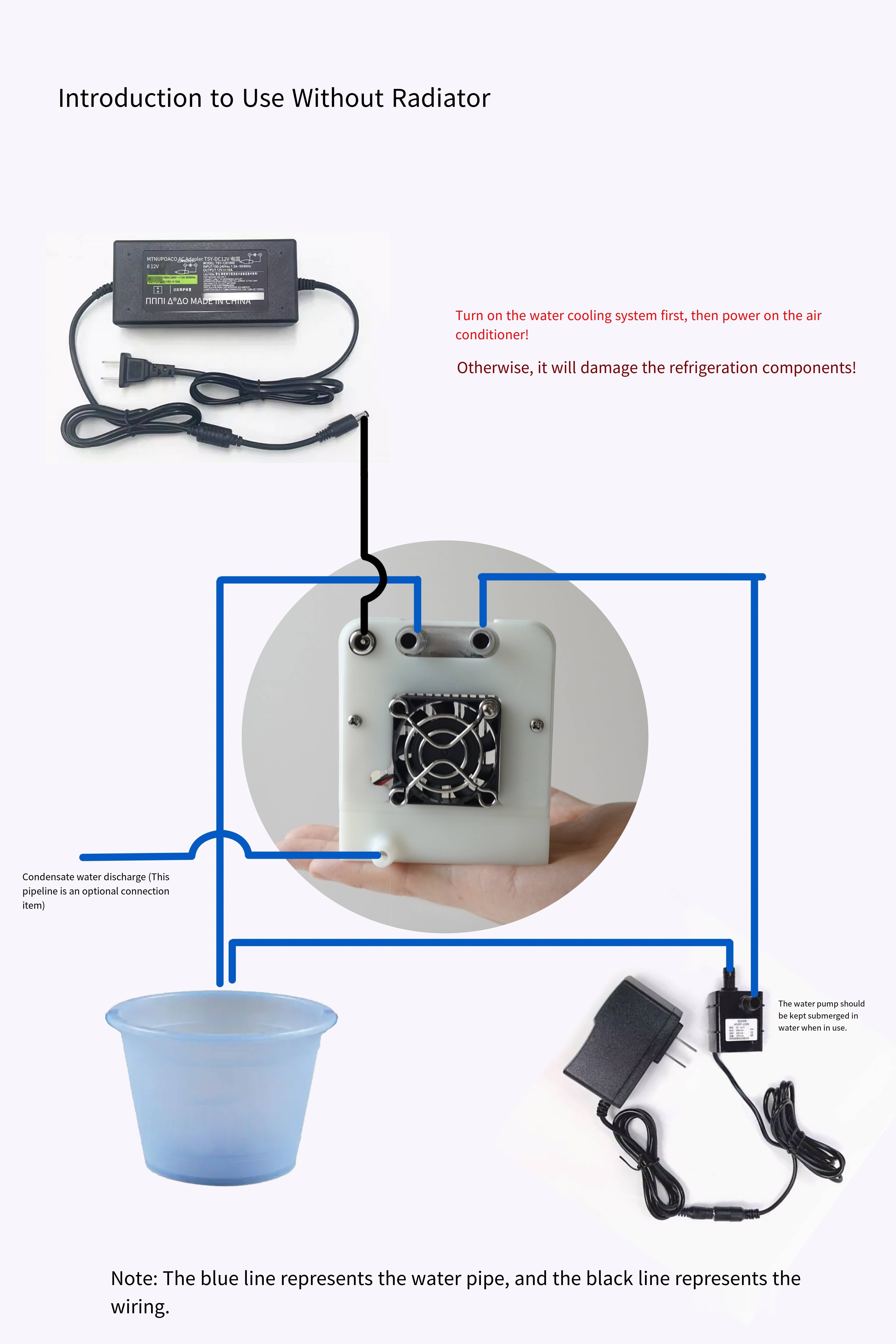

2. Basic Kit Without External Radiator
Match water bucket + water pump to build a simple open circulation cooling system.
Important Warning: Must start water circulation before energizing the unit to prevent Peltier module burnout.
Wiring Guide: Blue tubes for water circulation, black cables for power supply.
Key Advantages
- Ultra-Compact Mini Size
80×80×94mm tiny body, lightweight 367g, easy to embed into custom DIY phone cooling shells, laser fixtures and small experimental equipment.
- Efficient Semiconductor Rapid Cooling
80W high-power Peltier refrigeration chip brings obvious temperature drop, eliminate phone overheating frame drops, laser diode thermal drift and electronic equipment high-temperature failure.
- Full DIY Modifiable Design
Exposed modular structure, reserve all pipeline and power interfaces, freely match water pumps, radiators, water tanks to build personalized cooling systems, perfect for cyberpunk mechanical modification projects.
- Low Noise Continuous Operation
Hydraulic mute cooling fan reduces vibration noise, suitable for live streaming, long-time gaming and laboratory all-day running without noise interference.
- Wide Compatibility
Works for custom gaming phone coolers, laser diode cooling, small aquarium temperature control, beauty instrument heat dissipation, electronic test bench thermal management and more DIY scenarios.
Application Scenarios
- Custom cyberpunk DIY semiconductor cooling phone case for PUBG, mobile game live streaming
- High-power laser diode, engraving laser module constant temperature cooling
- Mini lab experimental equipment, electronic test bench heat dissipation
- Small aquarium, hydroponic tank constant temperature water cooling
- Beauty instrument, miniature medical device thermal control
