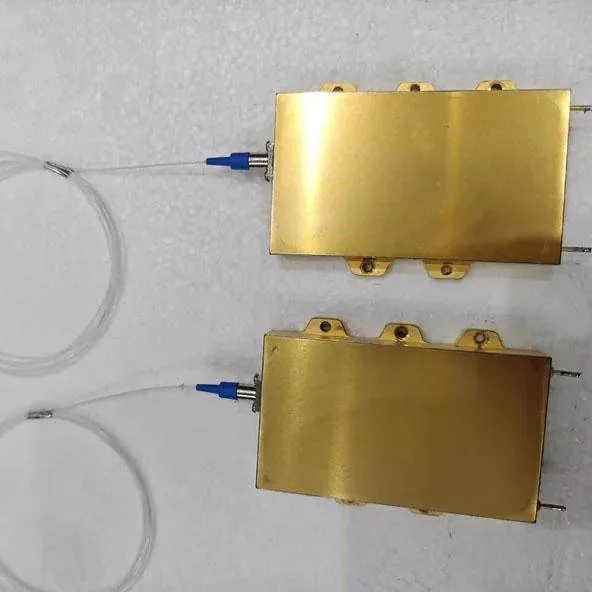

xphotonics Star-Han 200W Laser Diode Pump Module / Laser Source
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Price range: $82.00 through $238.00
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
📊 Key Specifications
| Parameter | Value |
|---|---|
| Brand | Star-Han |
| Output Power | 200W |
| Supply Voltage | 26V DC |
| Operating Current | 15A (Strictly do not exceed this value) |
| Central Wavelength | 915nm |
| Core Diameter | 200μm |
| Connector Type | SMA905 (Standard) |
⚙️ SKU Details
- Standard SKU: xphotonics-200W-915nm-SMA905 (Module + SMA905 Connector)
- Optional SKU 1: xphotonics-200W-915nm-SMA905-Cable (Module + SMA905 Connector + 1m Fiber Cable)
- Optional SKU 2: xphotonics-200W-915nm-SMA905-Lens (Module + SMA905 Connector + Integrated Focusing Lens)
🔍 Product Features & Benefits
- High-Power, Stable Output
Delivers a consistent 200W of optical power at 915nm, ensuring excellent pumping efficiency for your laser system. The module is tested to maintain stable performance even under continuous operation.
- Precision Engineering
The 200μm core diameter is optimized for efficient energy coupling, minimizing loss and maximizing the transfer of pump power to your gain medium.
- Robust & Durable Design

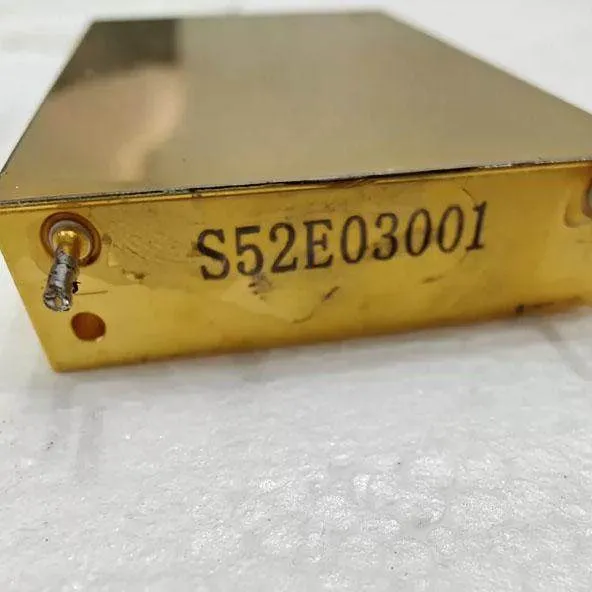

Housed in a compact, gold-plated heatsink enclosure, the module features advanced thermal management to dissipate heat effectively, ensuring long-term reliability and extended lifespan.
- Industry-Standard Connectivity

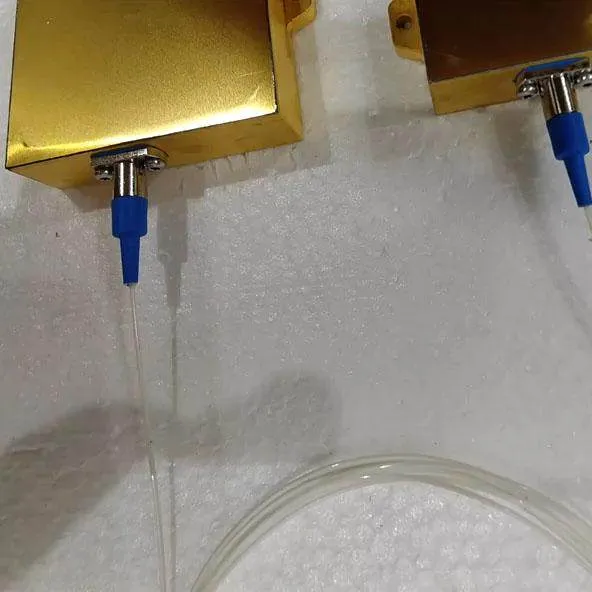

Equipped with a standard SMA905 connector, allowing for easy integration with existing fiber optic cables and laser systems.
⚠️ Important Warnings & Usage Guidelines
- Critical Current Limit: The operating current must not exceed 15A. Overcurrent will cause irreversible damage to the pump diode, leading to “optical decay” (a permanent reduction in output power) and potential module failure.
- Power Supply Requirements: Use a high-quality, regulated 26V DC power supply with sufficient current capacity. Voltage fluctuations or poor power quality can degrade performance and shorten the module’s life.
- Thermal Management: Ensure proper cooling of the heatsink during operation. Inadequate heat dissipation will trigger thermal runaway and accelerate component degradation.
- Inspection & Acceptance: The module undergoes a full functional test and video recording before shipment. Please inspect the package for damage upon delivery. Any issues must be reported immediately, as returns or exchanges are not accepted after installation or use.
🛠️ Application Scenarios
- Fiber laser pumping for cutting, welding, and marking systems
- Solid-state laser pumping for scientific research and medical devices
- Industrial material processing equipment
- Laser-based 3D printing and additive manufacturing
