532nm Green Laser Module | 12V 15A Power Supply | Coarse Beam for Mobile Modification

his 532nm Green Laser Module from Huachen Laser Optics is engineered for professional integration into mobile modification projects, target indication systems, and customized application scenarios. Designed to produce a highly visible, broad beam rather than a pinpoint spot, it is ideal for applications requiring wide-area illumination or long-range visual signaling in demanding environments. This is a bare, unbranded OEM component intended for engineers, system integrators, and experienced hobbyists with the expertise to handle high-power electrical systems and thermal management. No basic technical support or tutorials are provided.

Technical Specifications

• Optical Specifications:

  • Wavelength: 532nm (High-visibility Green Light)

  • Optical Output Power: High Power Output (Configurable, typically in the multi-watt range for broad beam)

  • Beam Type: Coarse / Divergent Beam (Adjustable via included or optional lenses)

  • Beam Divergence: Adjustable; designed for wide-area coverage.

  • Beam Visibility: Excellent, even in daylight conditions over long distances.

• Electrical & Mechanical Specifications:

  • Operating Voltage: 12V DC (Nominal)

  • Operating Current: Up to 15A Continuous (Requires robust power supply)

  • Power Consumption: Up to 180W

  • Input Connection: Bare wires or terminal block (specify upon order)

  • Laser Diode Type: High-power 532nm DPSS or direct diode module (depending on configuration)

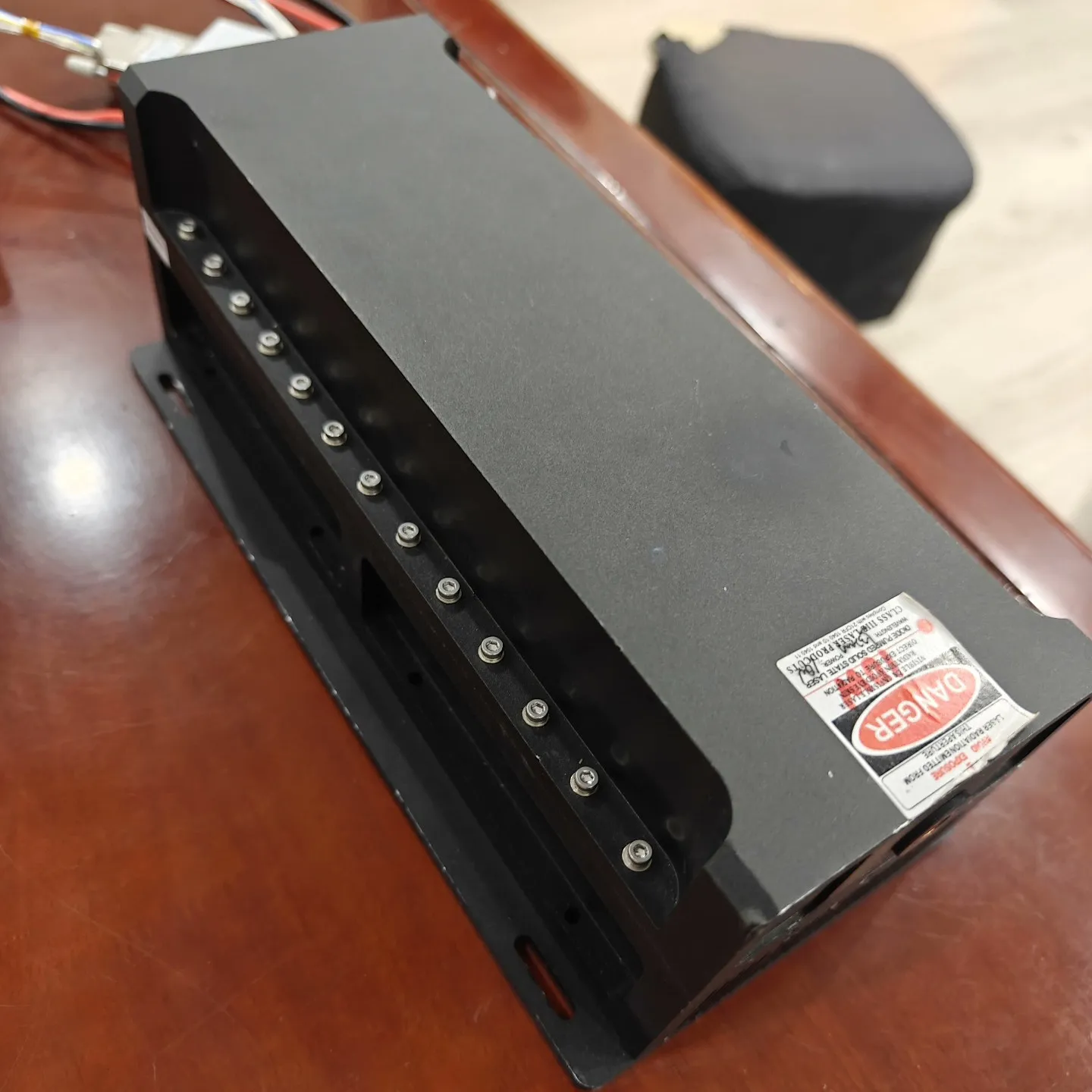

  • Module Housing: Anodized aluminum heatsink for passive thermal dissipation.

  • Dimensions: Approximately 80mm (L) x 40mm (W) x 40mm (H) (excluding lens assembly).

  • Weight: ~300g

• Thermal Management:

  • Cooling Requirement: Mandatory. The integrated heatsink requires additional active cooling (e.g., mounted fan or external cooling plate) for continuous operation beyond brief periods.

  • Duty Cycle: Dependent on applied cooling solution. Consult datasheet for thermal guidelines.

• Control & Interface:

  • Control Signal: TTL modulation capable (0-5V) for on/off control. Constant current drive is internal.

  • Safety Interlock: Not included. Must be implemented by the integrator.

Key Features & Applications

• High-Power Green Beam: 532nm wavelength offers one of the brightest visual outputs per watt, perfect for long-range indication.

• Designed for Modification: Compact, raw module format allows easy integration into vehicles (cars, drones, boats), custom enclosures, or industrial equipment.

• Coarse Beam Output: Optimized for creating a visible “light saber” beam or illuminating a wide area, not for precision pointing or focusing to a tiny spot.

• Industrial-Grade Component: Built for durability in field applications. Used by professionals who collaborate with brands like Raycus, RECI, GW, ROFIN, nLight, Max Photonics, etc.

• Target Applications:

  • Long-Range Target Designation & Signaling

  • Mobile Search & Illumination Systems

  • Special Effects & Entertainment Lighting

  • Custom Security or Deterrent Systems

  • Experimental and R&D Projects

Package Contents

• 1 x 532nm High-Power Laser Module (with primary lens)

• 1 x Set of mounting screws

• Basic electrical specifications sheet

Note: Power Supply, Cooling Fan, Safety Goggles, Enclosure, and Control Circuitry ARE NOT INCLUDED.

Ordering Information (SKU Table)

⚠️ CRITICAL WARNING – PROFESSIONAL USE ONLY:

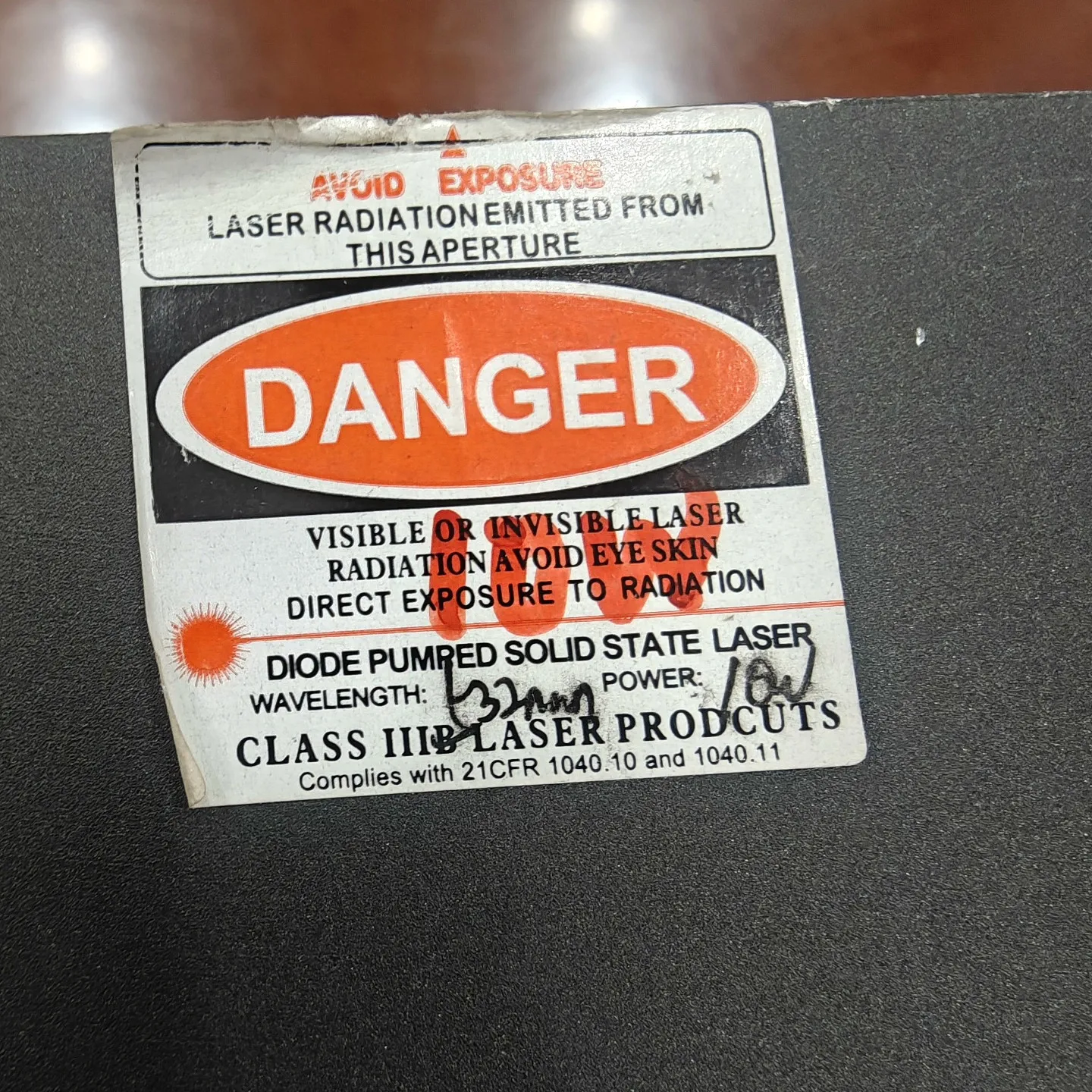

• This is a CLASS 3B / CLASS 4 LASER COMPONENT. It can cause permanent eye injury and skin burns. It is not a toy.

• You MUST use appropriate laser safety goggles (OD 5+ for 532nm) during handling, testing, and alignment.

• Integrator is fully responsible for providing a stable 12V power supply, adequate active cooling, and a secure, interlocked enclosure to achieve a safe final product compliant with local laser safety regulations (e.g., FDA, IEC 60825).

• No returns for buyer’s lack of knowledge, incorrect integration, or incompatibility.

• By purchasing, you confirm you are a qualified professional and accept all responsibility for safe and legal use.

For System Integrators & Engineers. Not for Beginners.
