Suzhou Everbright 380W/400W Laser Pump Source Module – 976nm Wavelength, 200μm Core
19
People watching this product now!
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Price range: $192.00 through $199.00
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description

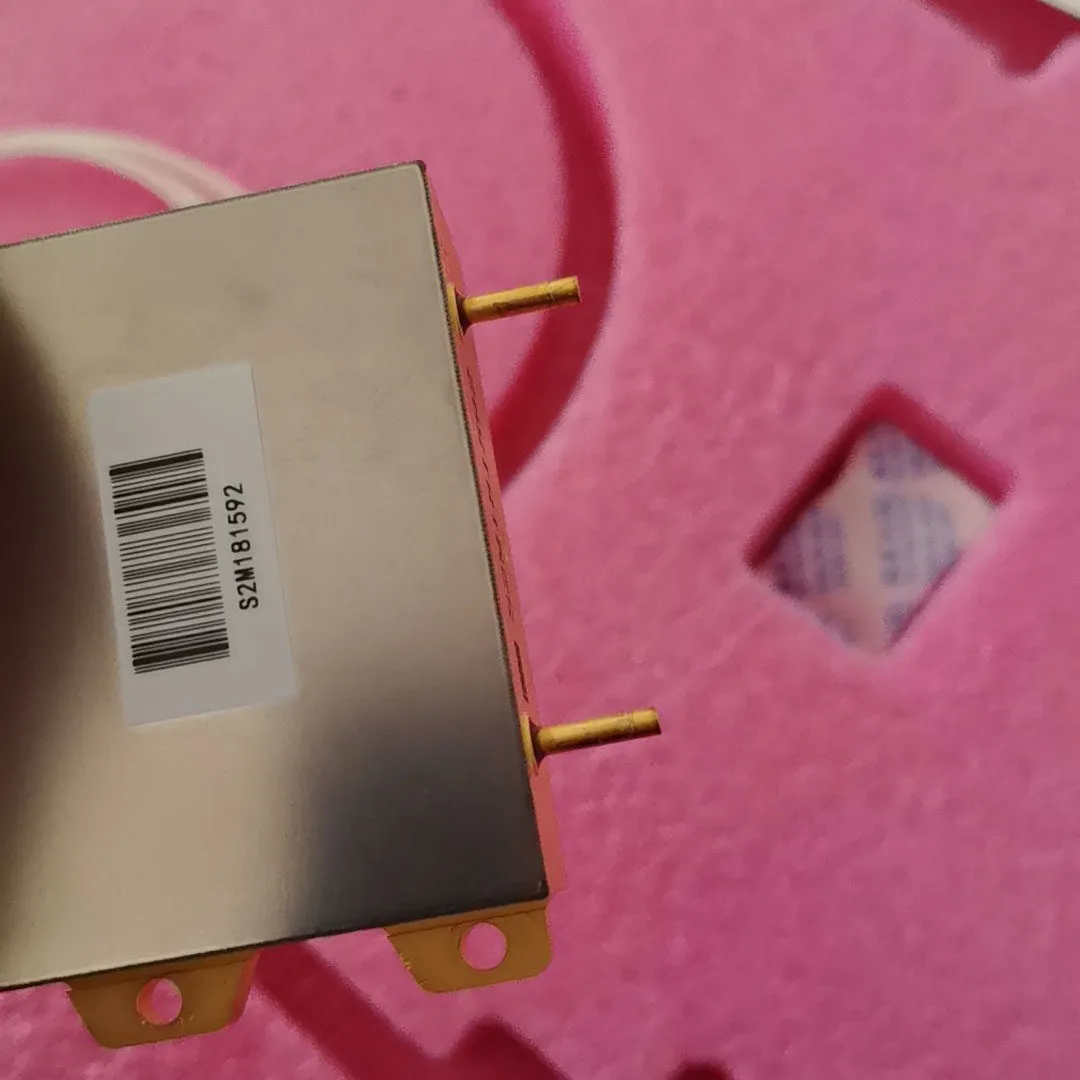

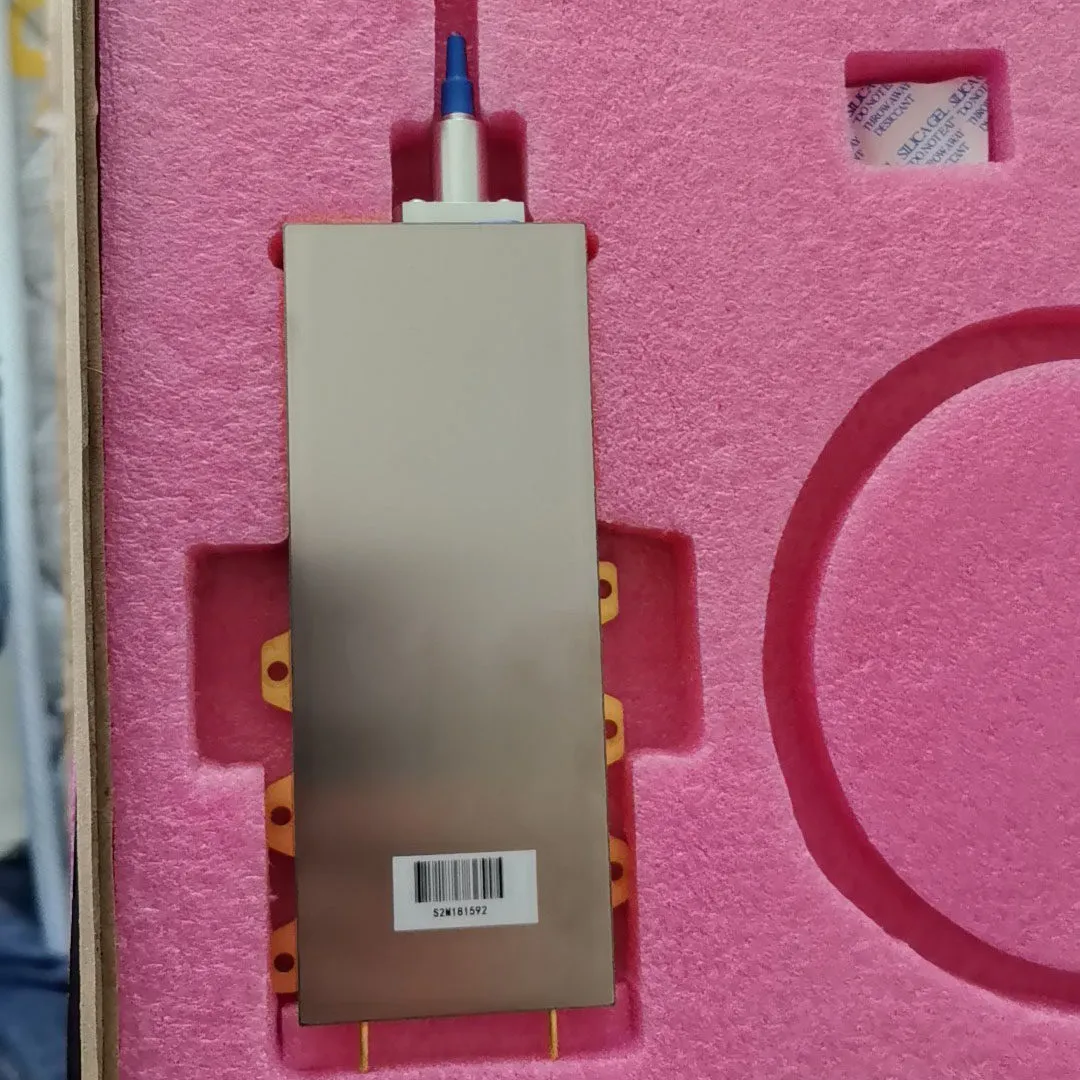

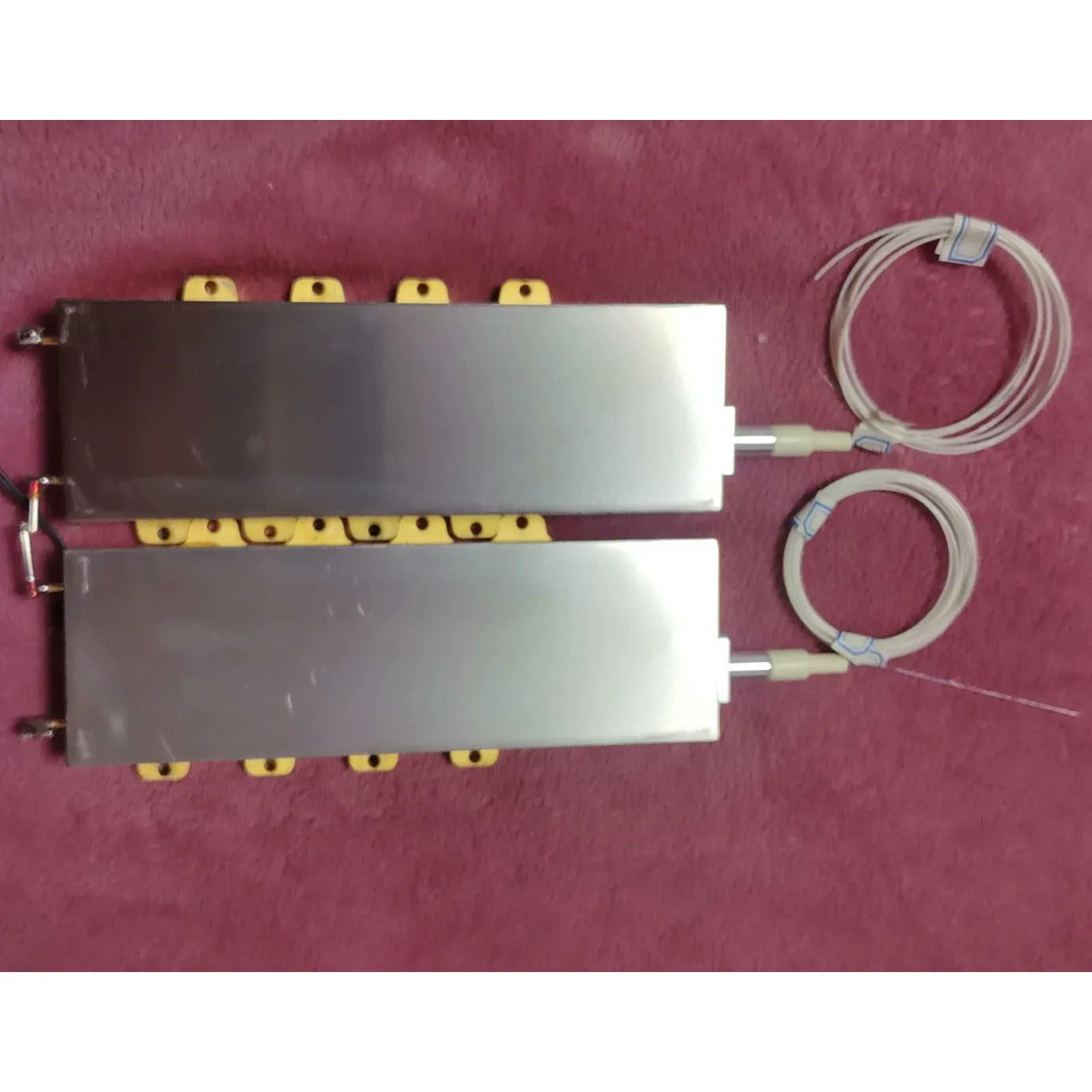

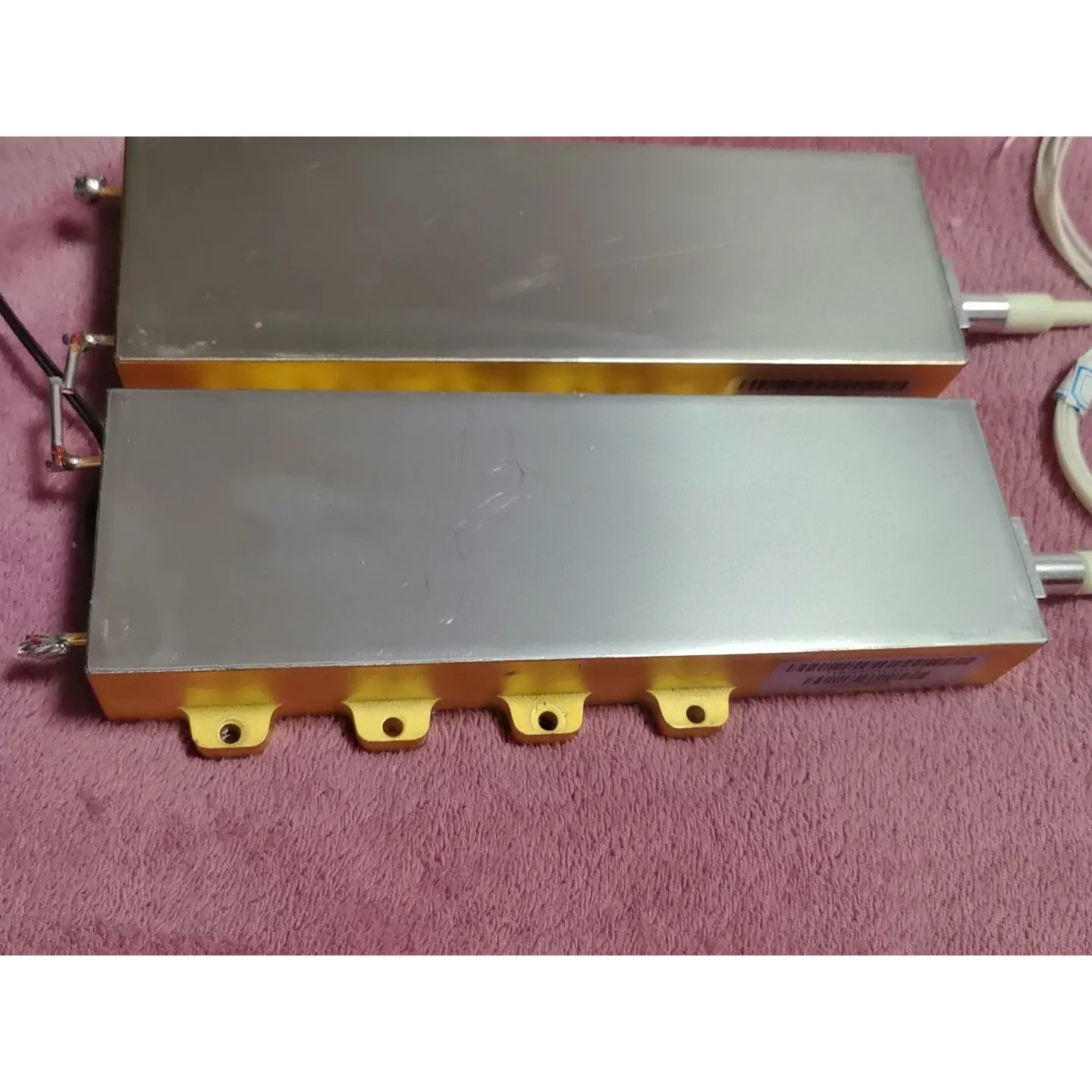

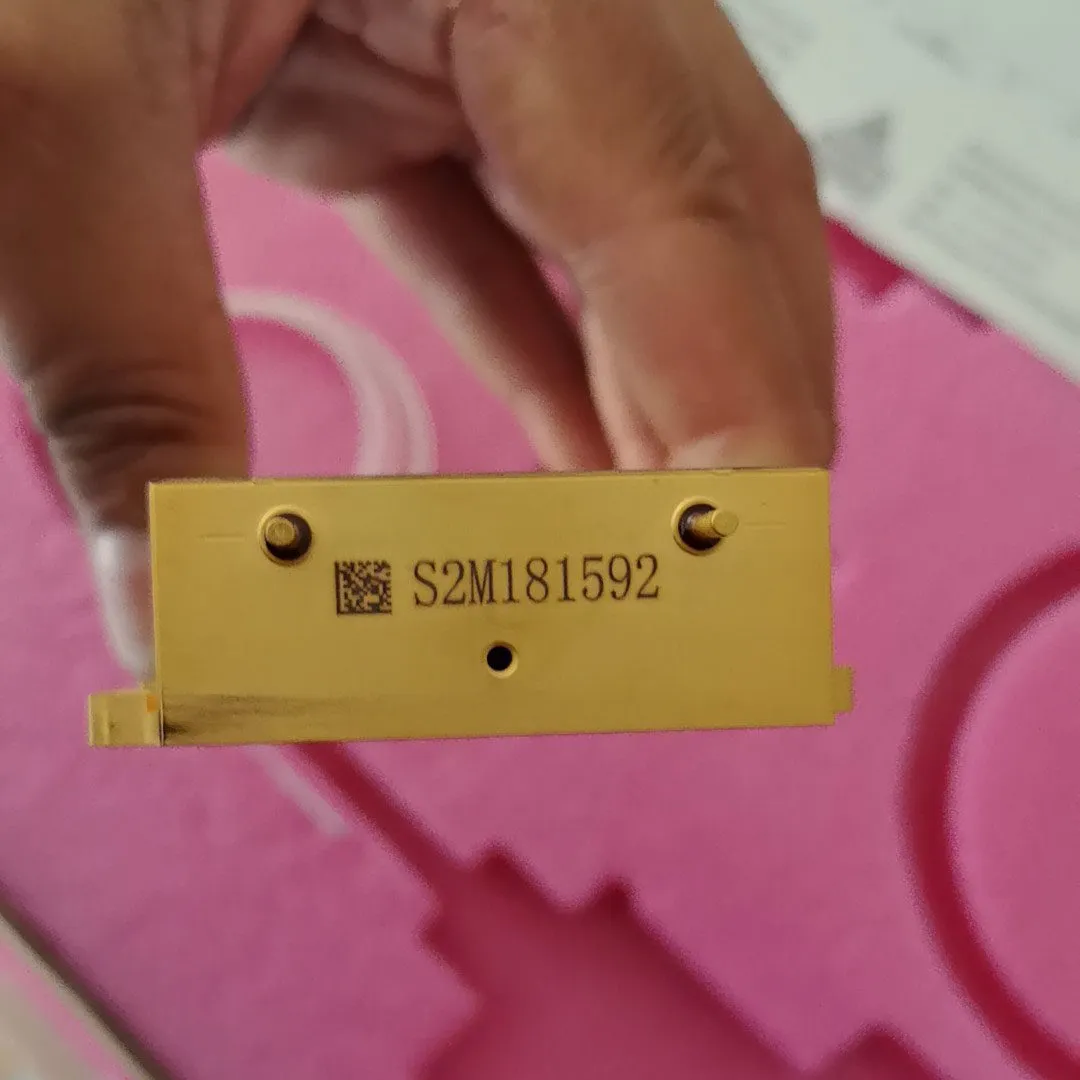

The Suzhou Everbright 380W/400W Laser Pump Source Module is a high-performance, industrial-grade fiber-coupled laser diode designed for pumping ytterbium-doped fiber lasers in cutting, welding, and cleaning systems. It delivers a stable 380W–400W infrared output at 976nm, optimized for high absorption efficiency in fiber laser systems. This new, factory-tested unit is ideal for professional users building or upgrading laser systems in controlled industrial or lab environments.
Core Features
- High-Efficiency Pumping: 976nm wavelength provides maximum absorption efficiency in ytterbium-doped fiber lasers, ensuring optimal system performance.
- Precision Fiber Coupling: 200μm core multimode fiber ensures low-loss energy transfer to your target laser cavity.
- Industrial-Grade Reliability: Built by Suzhou Everbright, a trusted manufacturer of high-power laser components, ensuring consistent performance in demanding applications.
- Factory-Tested Performance: Each unit undergoes rigorous testing and comes with a detailed performance report, confirming output power, wavelength, and efficiency.
- Compact & Robust Design: Rugged aluminum housing with high-thermal-conductivity components ensures efficient heat dissipation and long-term reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Suzhou Everbright 380W/400W Laser Pump Source Module |
| Wavelength | 976nm ±1nm (infrared) |
| Power Output | 380W (nominal) / 400W (peak) |
| Fiber Core Diameter | 200μm (multimode) |
| Fiber Type | Fiber-coupled output (single-emitter design) |
| Operating Temperature | ≤45°C (requires active cooling) |
| Housing Material | High-thermal-conductivity aluminum + gold-plated copper base |
| Primary Applications | Pumping fiber laser cutting/welding/cleaning systems, industrial material processing |
| Condition | New, factory-tested with performance report |
| Operation Requirement | Trained laser professionals only (requires thermal management expertise) |
SKU Options
| SKU | Configuration |
|---|---|
| EVERBRIGHT-380W-STANDARD | 380W Laser Pump Source + 200μm fiber output |
| EVERBRIGHT-400W-STANDARD | 400W Laser Pump Source + 200μm fiber output |
| EVERBRIGHT-400W-ARMORED | Module + armored fiber + SMA905 quick connector |
Why Choose This Suzhou Everbright Pump Source?
- Trusted Performance: Suzhou Everbright is a leading provider of high-power laser components, ensuring exceptional reliability and output stability.
- Factory-Tested Quality: Each unit comes with a detailed performance report, giving you confidence in its specifications and performance.
- Cost-Effective Solution: Delivers professional-grade performance at a competitive price point.
- Ready to Integrate: The pre-coupled fiber and compact design simplify installation into your laser system.
Important Safety & Usage Notes
- Thermal Management: A robust active cooling system (air or water) is required to maintain temperatures ≤45°C and prevent thermal runaway.
- Laser Safety: Always wear appropriate laser safety goggles (OD 4+ for 976nm) when operating. Never point the beam at people, animals, or reflective surfaces.
- Fiber Care: Ensure the optical fiber remains free of dust, splashes, and debris. Avoid bending beyond its minimum radius to prevent signal loss and damage.
- New Unit Terms: This is a new, factory-tested unit. It is covered by the manufacturer’s standard warranty (terms apply).
- Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
