The Core Engine for Precision Fluid Control.
Build your own custom dispensing system with this stepper-driven syringe pump assembly. Designed for laboratory automation, DIY bio-labs, and maker projects, it provides accurate forward/backward control for 1mL to 15mL standard syringes. Built around a robust NEMA 17 stepper motor, precision lead screw, and metal guide rods, it’s reliable and quiet. Choose from a bare mechanical kit or a complete package with controller and PC software to kickstart your project.
(Key Features Bullet Points)
-

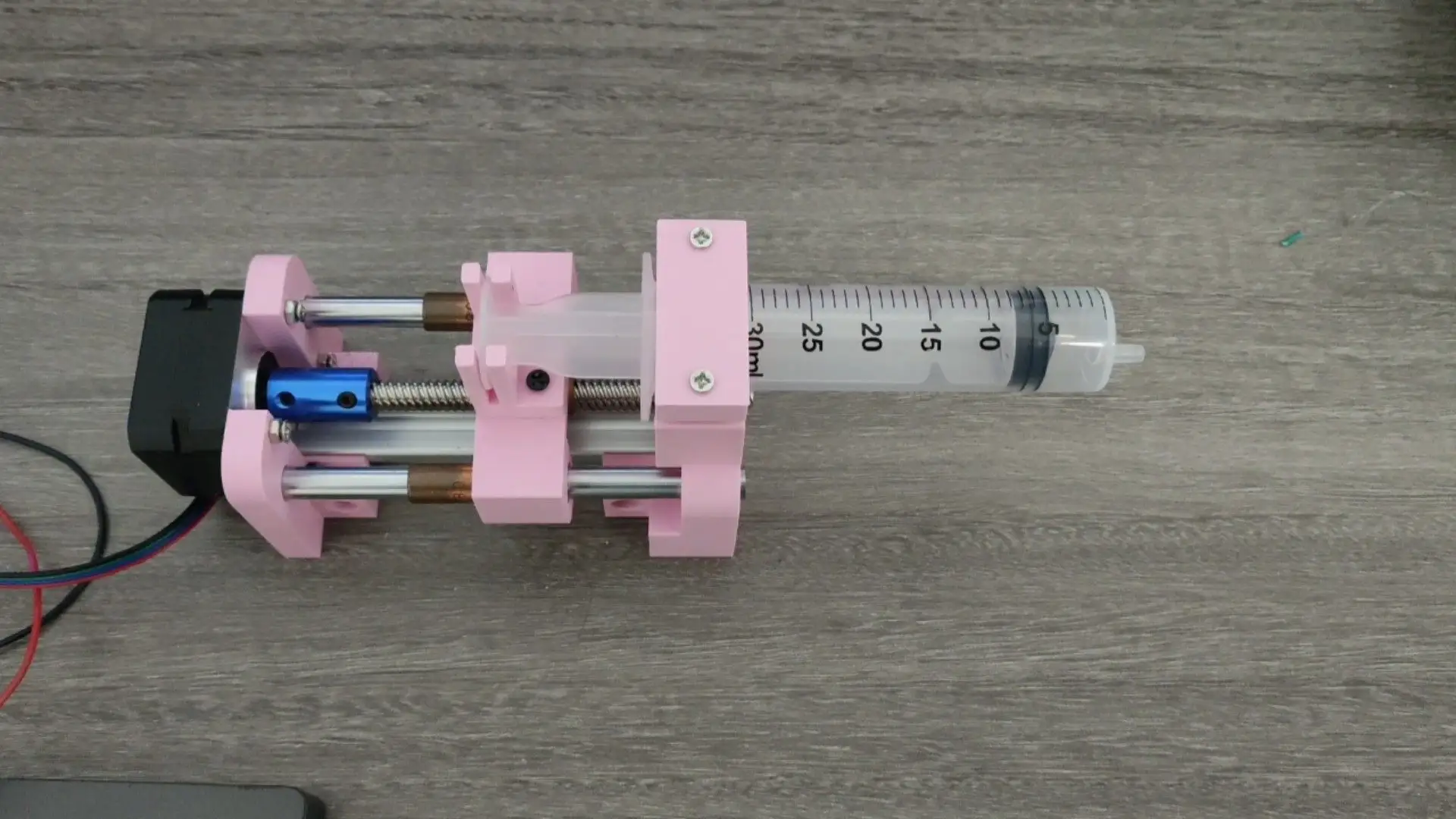

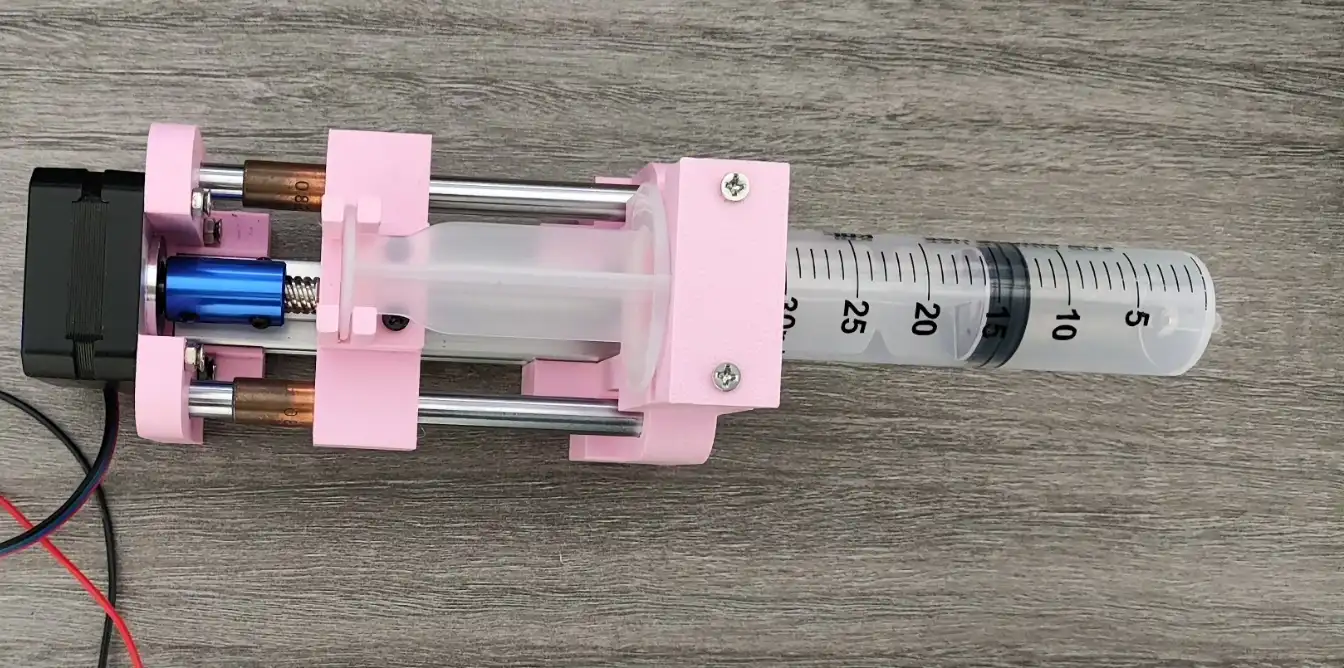

Precision Mechanical Core: Utilizes a NEMA 17 stepper motor, high-precision lead screw, metal linear rods, and self-lubricating bushings for smooth, accurate, and quiet syringe plunger actuation.
-
Flexible Configuration Options: Select your starting point: Bare mechanical assembly, Full electronics kit (with controller, driver, software), or a Complete housed system.
-
Versatile Syringe Support: The adjustable clamp securely holds standard 1mL to 15mL syringes for both infusion and withdrawal tasks.
-
Developer & Maker Friendly: Includes serial port command protocols for deep custom integration. Perfect for embedded systems, lab automation, and educational projects.
-
Modular & Repairable: Main frame is 3D-printed in durable PLA, offering great value, easy modification, and simple part replacement.
(Detailed Description Sections)
Available Configurations – Choose What You Need
| Configuration | What’s Included | Ideal For |
|---|---|---|
| Config 1: Mechanical Assembly | Pump assembly with pre-installed NEMA 17 motor. No controller, driver, or power supply. | Users who have their own stepper drivers (e.g., A4988, DRV8825) and microcontroller (Arduino, Raspberry Pi) and want to write custom control code. |

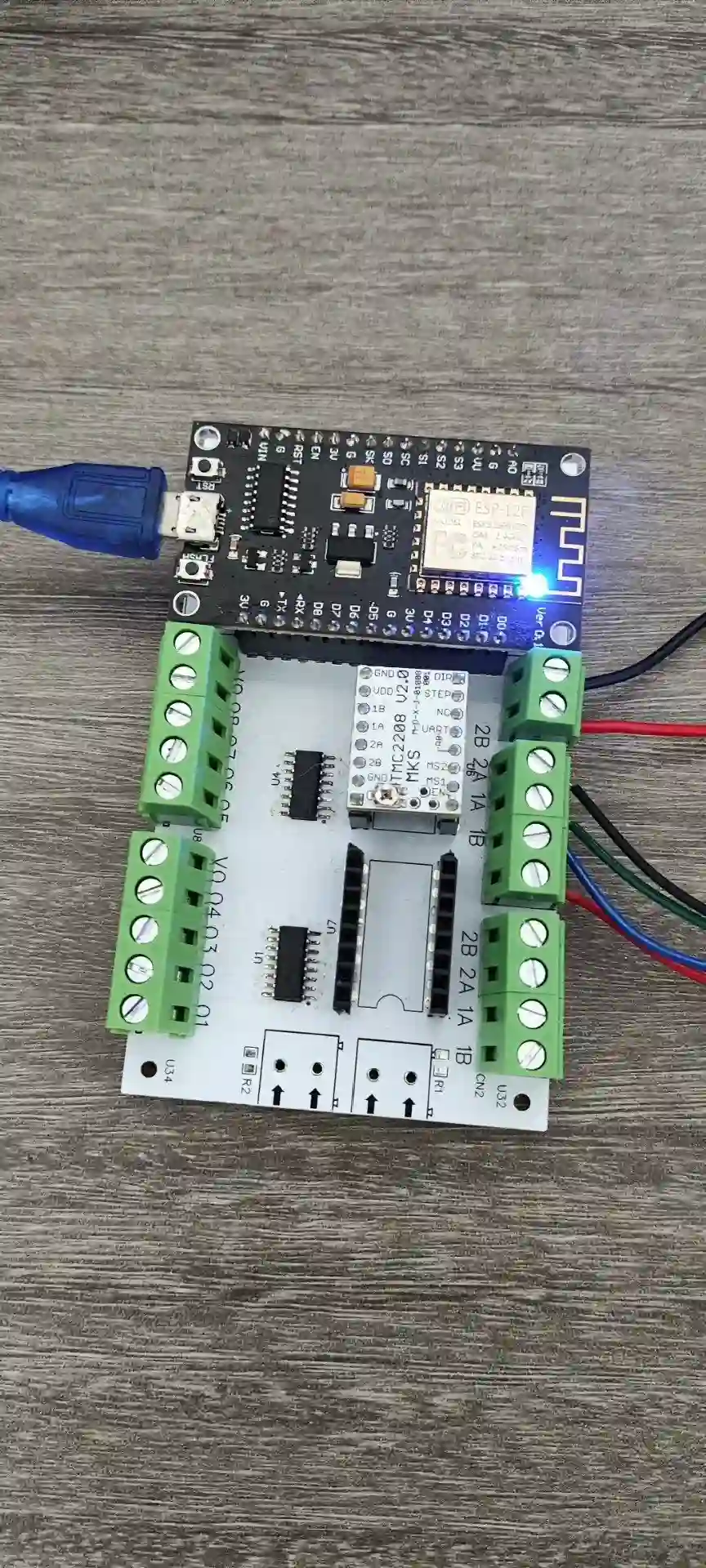

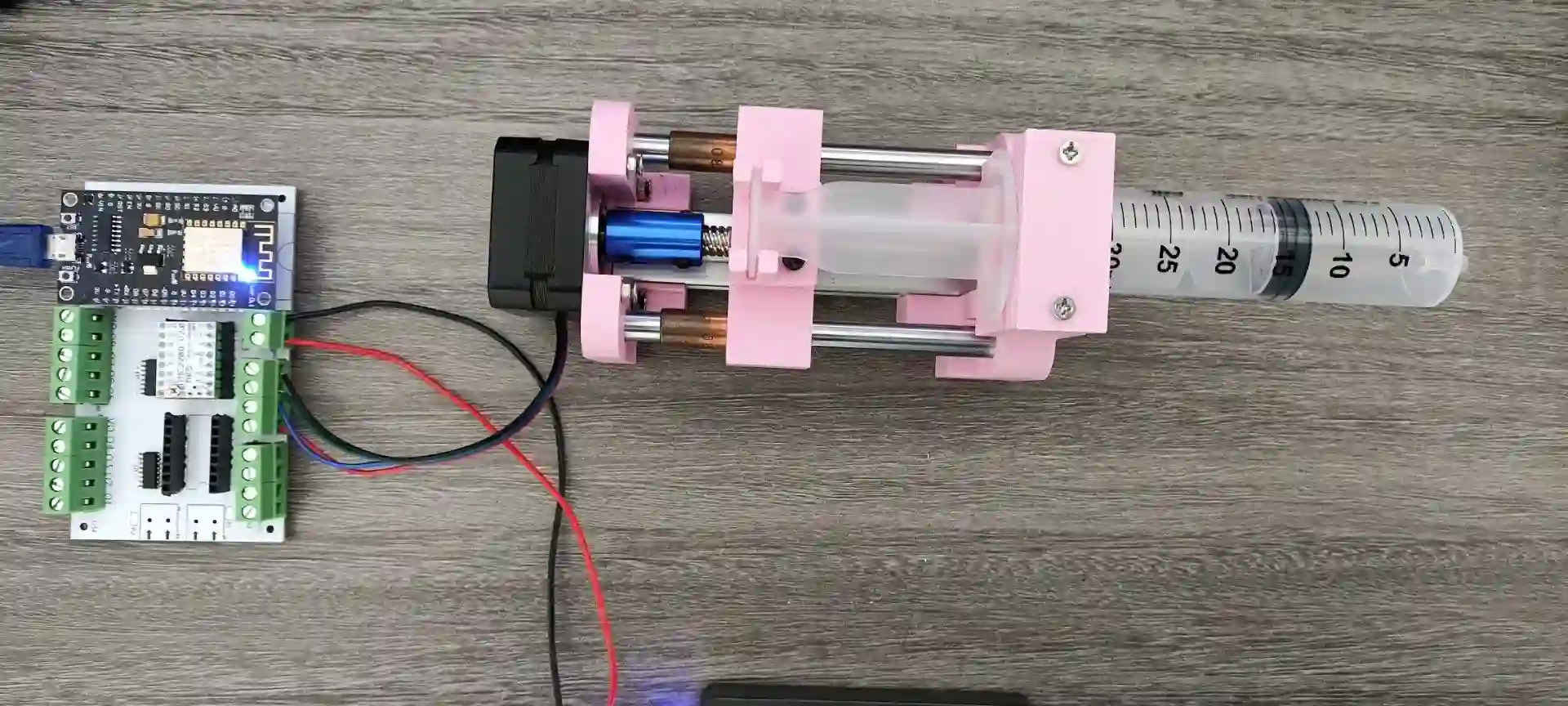

| Config 2: Basic Electronics Kit | Config 1 + Stepper motor controller board + Stepper driver module + Basic PC control software. | Users who need a complete, ready-to-run electronic system to control the pump from a computer via USB. Requires a user-provided 12V power supply and basic wiring. |
| Config 3: Complete System Kit | Config 2 + Protective enclosure for controller/driver + Detailed serial command documentation. | Users who want a more finished product for easier setup and the flexibility to develop custom software using the provided communication protocol. |
Technical Specifications & Requirements
-
Syringe Compatibility: 1mL, 5mL, 10mL, 15ml (and similar diameters within the clamp range).
-
Drive Motor: NEMA 17 Bipolar Stepper Motor (42mm x 42mm).
-
Mechanical Drive: Precision Lead Screw, Metal Guide Rods, Self-Lubricating Bushings.
-
Frame Material: 3D-Printed PLA (Sufficient strength for typical laboratory use).
-

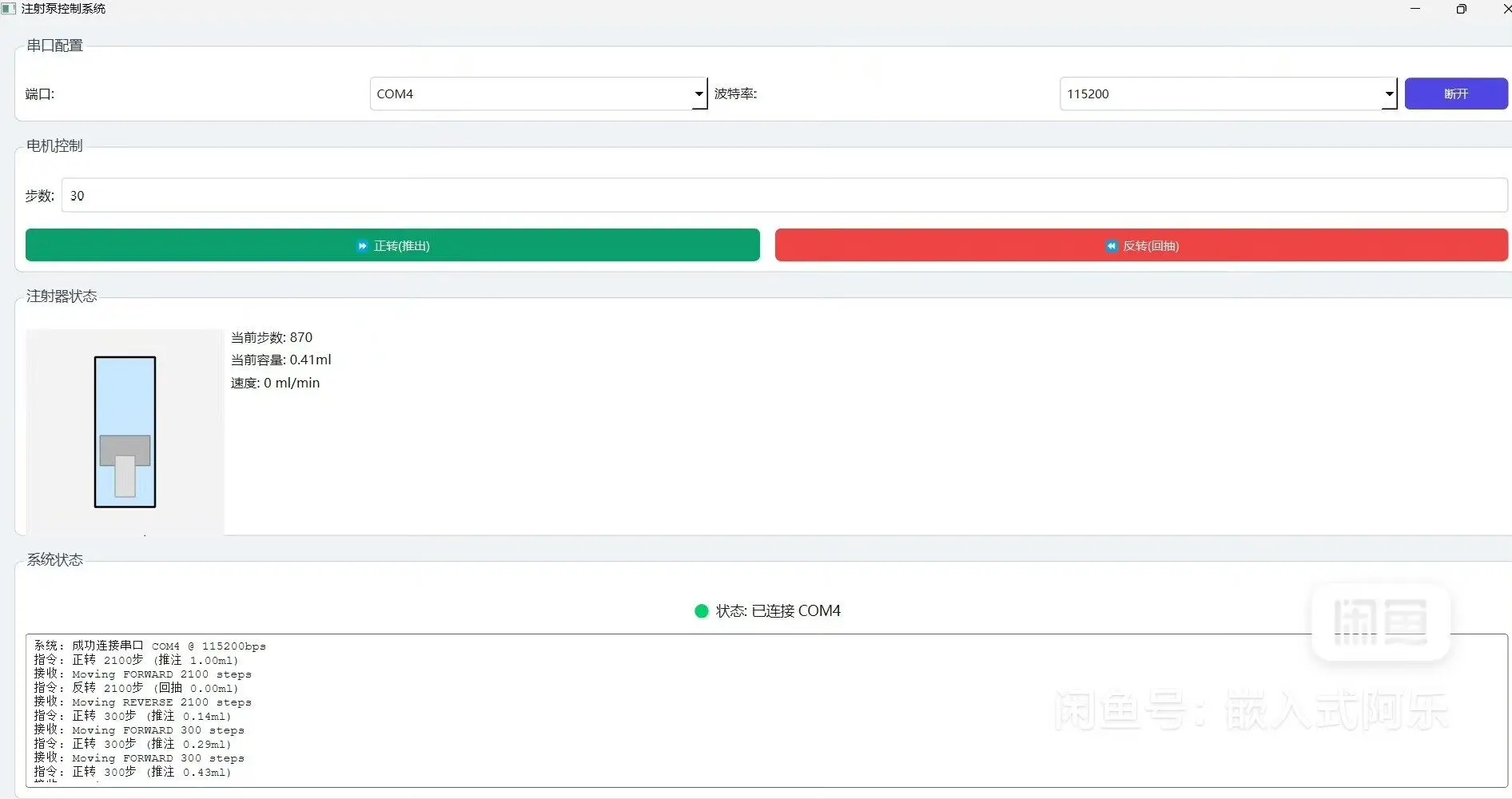

Control Interface (Config 2 & 3): USB/Serial connection to PC. Software allows setting of step count, speed, and direction.
-
Power Requirements (Config 2 & 3): External 12V DC power supply required (Not Included). User must possess basic wiring skills.
-
Open Protocol: Serial command set provided for integration with custom software or microcontrollers.
