ProFocus Series | Adjustable Laser Focus Lens | 6-30cm FL | SMA905

Product Description for Website

Headline:
BeamTuner Pro: Dynamically Adjustable Focus Lens for High-Power Laser Applications

Sub-headline:
Precision at Your Fingertips. Adjust Focal Length from 6cm to 30cm for Unmatched Versatility.

📌 Product Overview

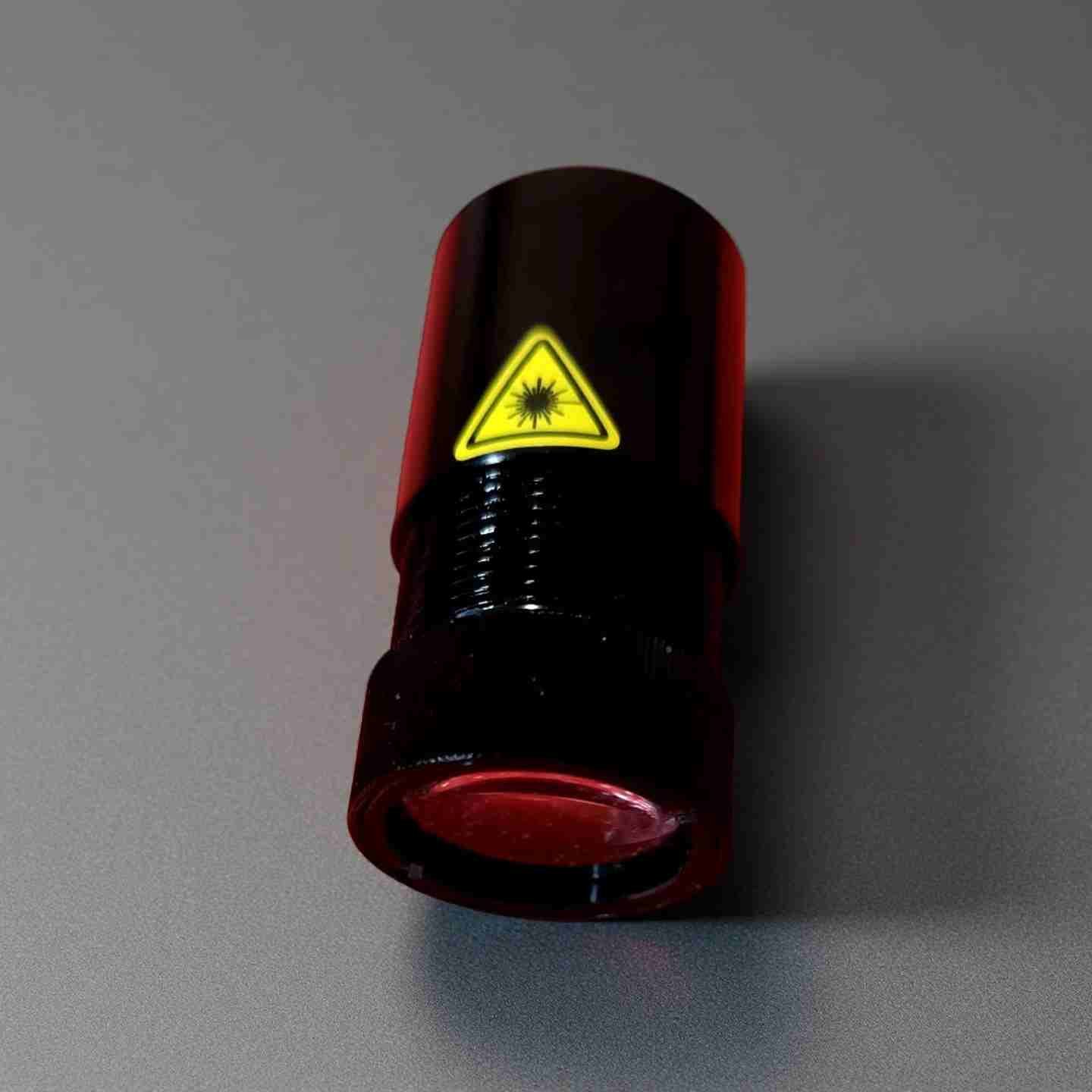

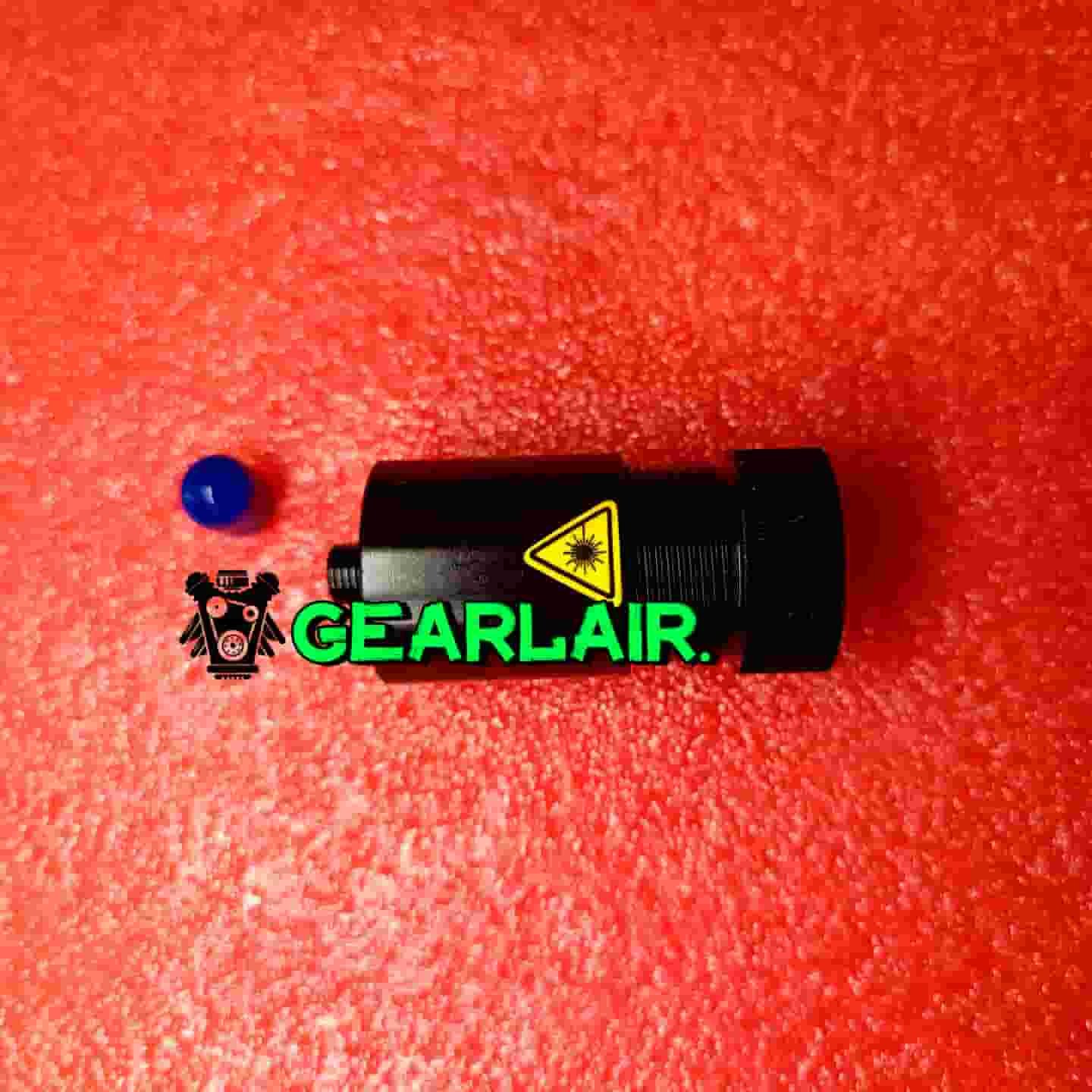

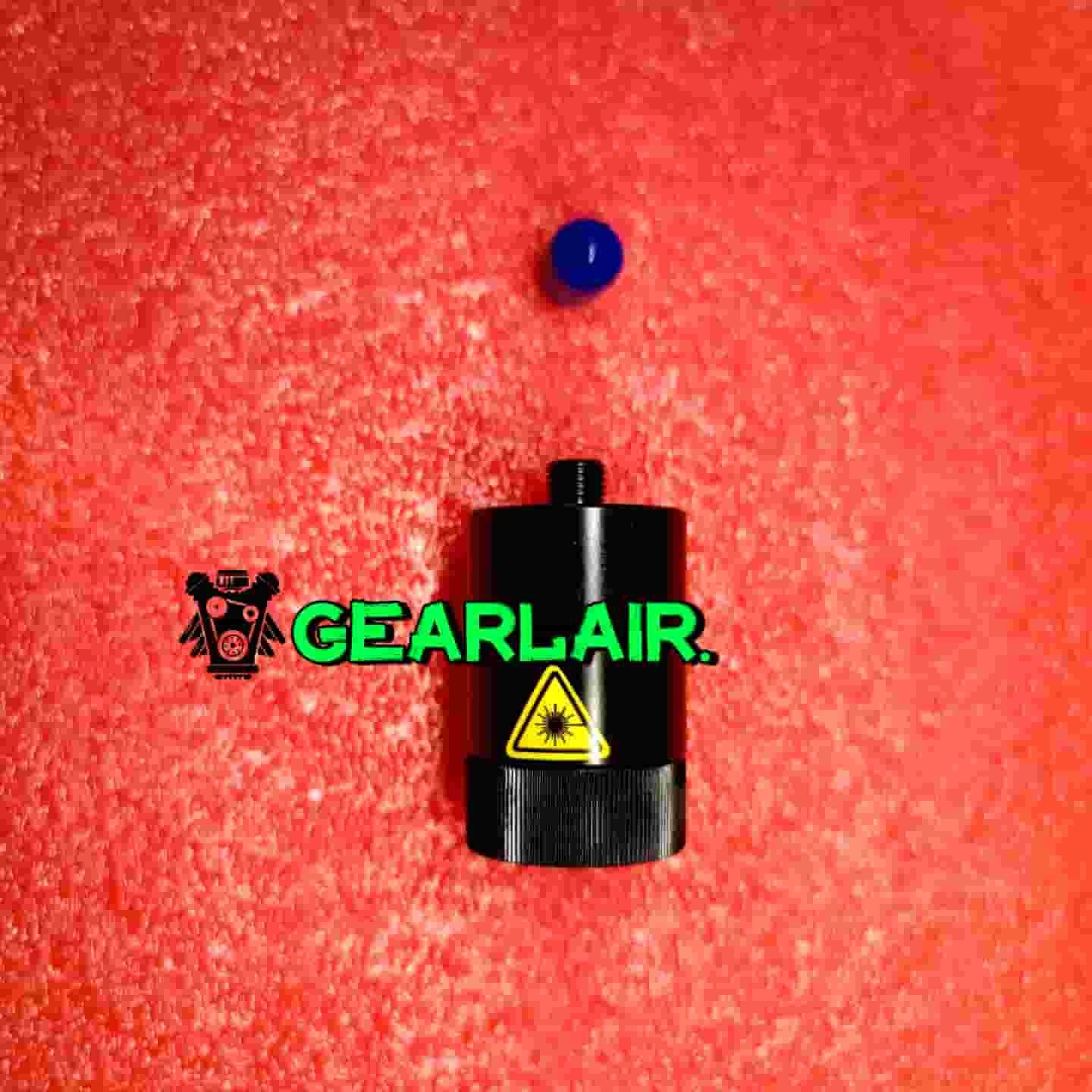

Engineered for high-end industrial laser systems, the BeamTuner Pro focusing lens delivers unparalleled flexibility with a continuously adjustable focal range from 6cm to 30cm. Designed with an SMA905 interface, it seamlessly integrates with your setup. Achieve a highly concentrated energy density for everything from micro-welding to large-area processing by simply tuning the focus. This is the ultimate optical component for serious professionals seeking to elevate their laser processing capabilities.

✨ Key Features & Selling Points

• 🔄 Dynamic Focal Adjustment

  • Effortlessly switch between fine-detail and broad-area processing.

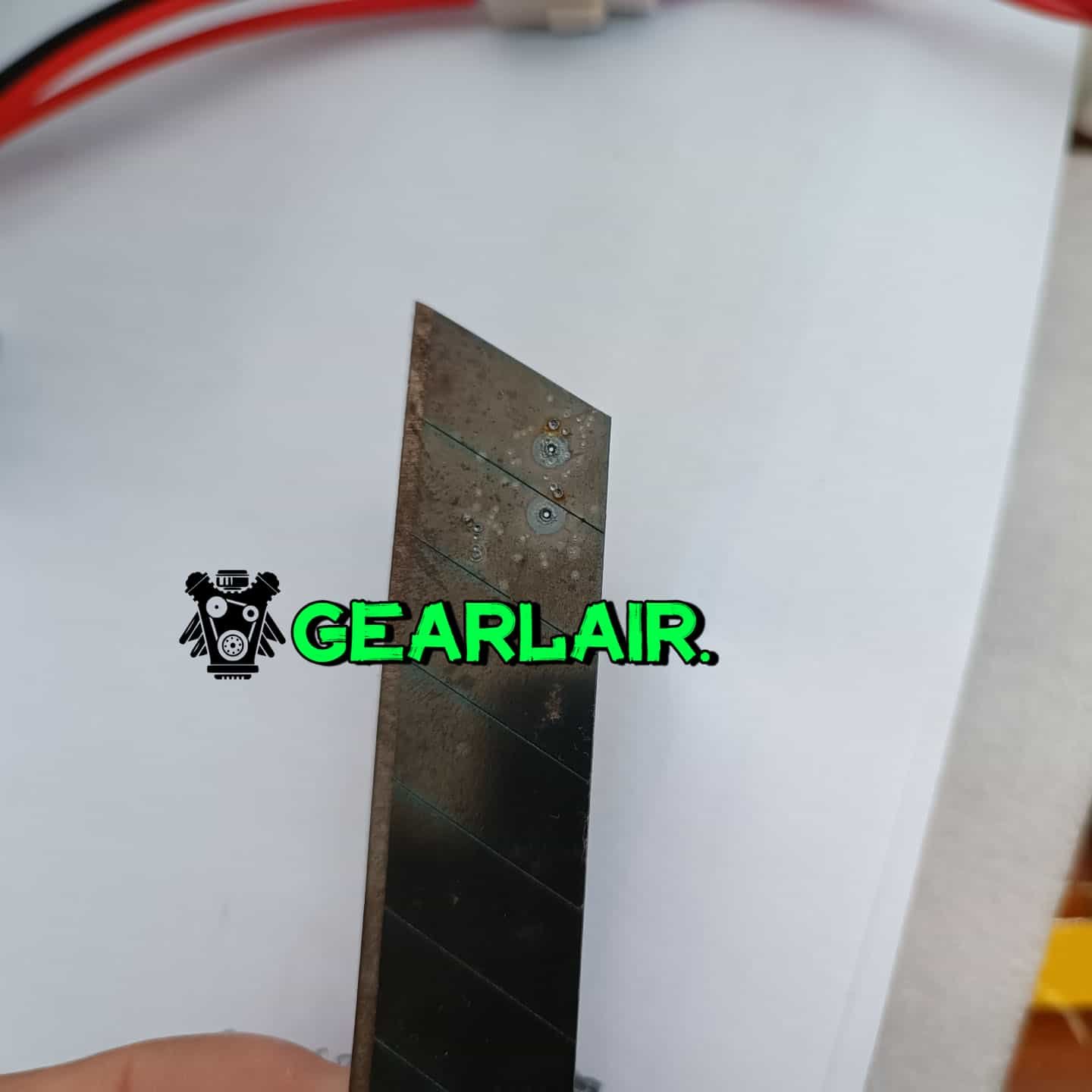

  • ~0.5mm spot @ 6cm FL: Ideal for micro-drilling, fine engraving, and precision soldering.

  • ~1.5mm spot @ 20cm FL: Perfect for plastic welding, surface treatment, and larger-area applications.

• 💎 High Energy Density

  • The spot size decreases with a smaller fiber core diameter, concentrating energy for faster processing, smaller holes, and cleaner results.

• ⚡ High-Power Pulse Operation

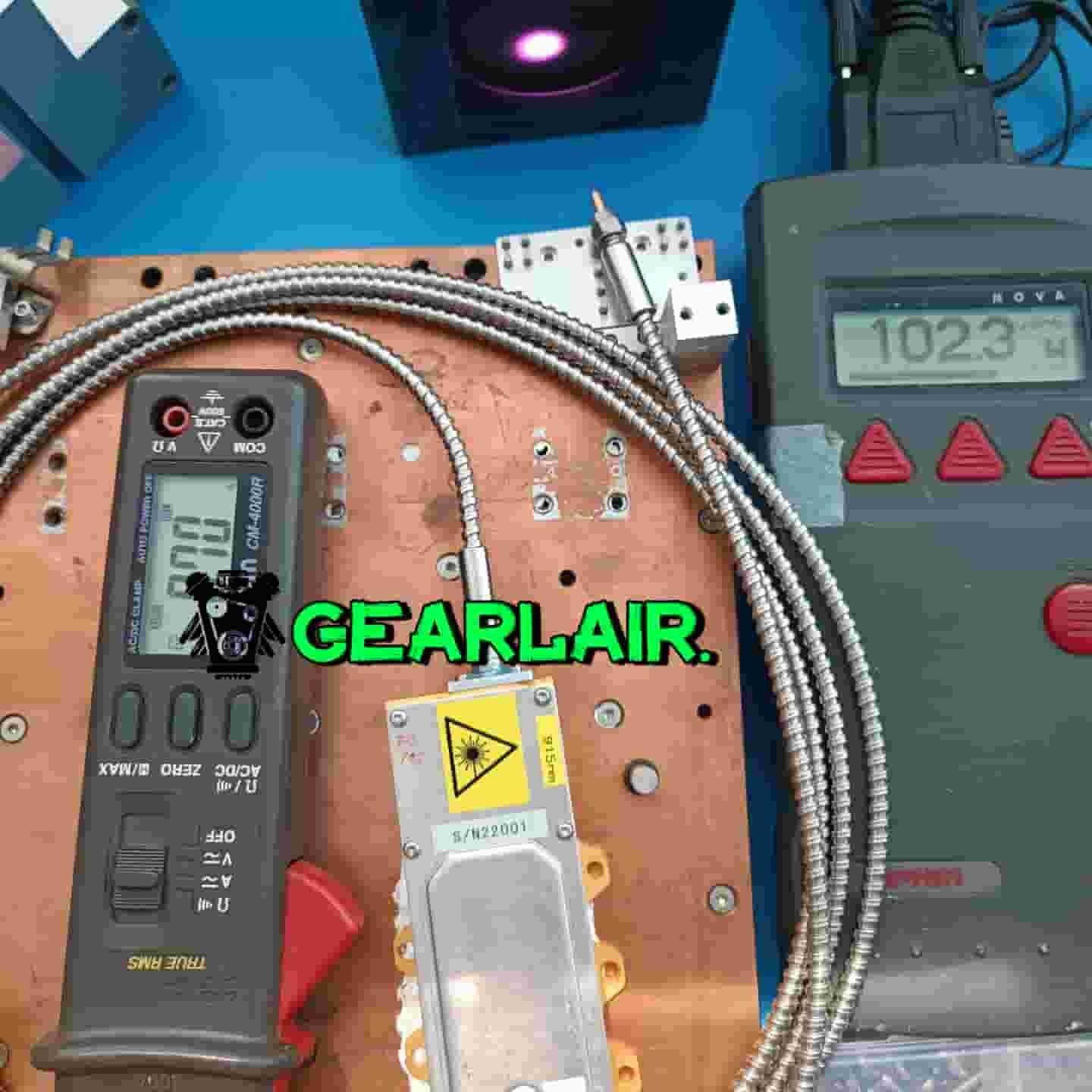

  • Robustly designed for high-power lasers (tested at 100W) operating in pulse mode. Also supports continuous-wave operation at lower powers.

• 🔌 Standard SMA905 Interface

  • Ensures broad compatibility and easy integration with a wide range of laser systems. Plug-and-play simplicity.

• 🎯 Built for Precision Engineering

  • The go-to solution for demanding applications like laser soldering, plastic welding, medical device manufacturing, and non-metal engraving.

📝 Technical Specifications

• Interface: SMA905

• Lens Body Dimensions: 22mm x 33mm

• Adjustable Focal Length: 6cm – 30cm

• Recommended Fiber Core Diameter: 400µm (Smaller core = smaller spot size)

• Power Compatibility: High-Power Pulsed / Low-Power Continuous Wave

• Typical Applications: Laser Welding, Engraving, Marking, Plastic Fusion

⚠️ Important Purchase Notice

• This is a custom, high-precision optical component.

• No returns or refunds are accepted once the order is placed.

• No technical support or tutoring is available due to high engineer workload.

• Ensure this lens fits your application before purchasing. Not for beginners.

• What you are buying: The focusing lens only. Fiber and laser are NOT included.
