Description

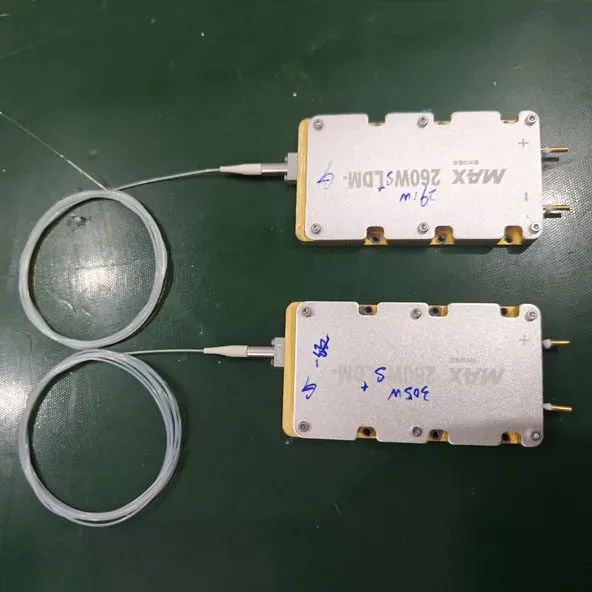

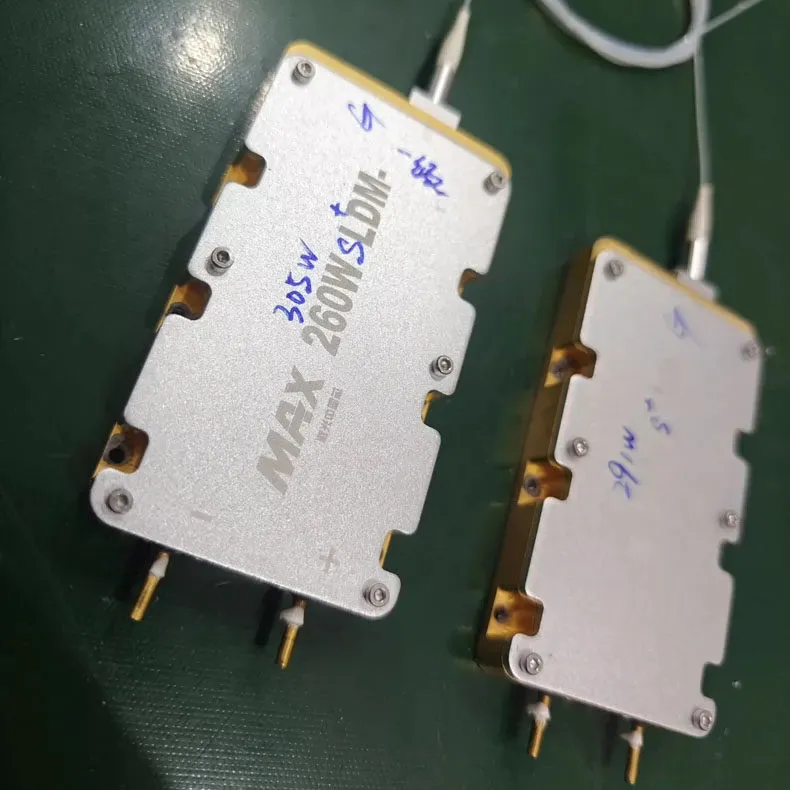

This high-power pump laser generator from MAX Laser is engineered for industrial laser systems, featuring a 260W output that delivers reliable, consistent performance for laser cutting, welding, and marking applications. Built with original Chinese chip technology, it offers exceptional thermal stability and power efficiency, making it a cost-effective upgrade for your laser equipment. The module is available in multiple configurations to suit different fiber and lens interface requirements, ensuring seamless integration into existing setups.
Key Specifications
| Parameter | Value |
|---|---|
| Brand | MAX Laser (Chinese Chip) |
| Output Power | 260W (Typical) / 135W (Core Power) |
| Power Supply | 24V DC, 22A |
| Wavelength | *nm (Infrared, optimized for pumping) |
| Operating Temperature | ≤45°C (requires active cooling) |
| Fiber Bending Radius | ≥90° (recommended to avoid power loss) |
| Fiber Core Diameter | Standard for SMA905 interface |
| Focus Spot Size | 1-2mm (at 35cm working distance, adjustable) |
| Focus Range | 10-35cm (customizable) |
SKU Details
| SKU Code | Configuration | Price |
|---|---|---|
| MAX-260W-BARE | 260W Pump Laser, Bare Fiber Output | $349.99 |
| MAX-260W-SMA | 260W Pump Laser, SMA905 Connector, Metal-Armored Fiber | $369.99 |
| MAX-260W-LENS | 260W Pump Laser, SMA905 Connector + Fixed Focus Lens (35cm) | $389.99 |
| MAX-260W-DIRECT | 260W Pump Laser, Direct Output (No Fiber) | $329.99 |
Features & Benefits
- High Power Density: Delivers 260W of optical power with minimal thermal drift, ensuring stable performance during long-duration industrial operations.
- Multiple Interface Options: Choose from bare fiber, SMA905 connector, or integrated lens configurations to match your system’s requirements.
- Durable Construction: Metal-armored fiber protects against bending and environmental damage, while the compact aluminum housing ensures efficient heat dissipation.
- Plug-and-Play Compatibility: Pre-tested for power stability and wavelength accuracy, the module is ready to integrate into CO₂, fiber, and solid-state laser systems.
- Customizable Focus: The optional fixed-focus lens (35cm default) can be adjusted to 10-35cm, allowing precise control over spot size for cutting, engraving, or welding tasks.
- Cost-Effective Solution: Built with original Chinese chips, this module offers premium performance at a competitive price point, reducing operational costs for small to medium manufacturers.
Applications
- Laser Cutting & Welding: Ideal for pumping high-power fiber lasers used in metal fabrication and automotive manufacturing.
- Laser Marking & Engraving: Provides consistent pumping for marking systems used in electronics, jewelry, and packaging industries.
- Industrial Pumping Systems: Compatible with Nd:YAG, Nd:YVO₄, and other solid-state lasers for material processing and scientific research.
- Laser Cladding: Supports surface coating and repair applications in aerospace and oil & gas sectors.
Important Notes
- Cooling Requirement: The module must be operated at ≤45°C. We recommend using a TEC cooler, copper/aluminum heat sink, or water cooling system for continuous use.
- Optical Safety: Ensure the output aperture remains free of dust, debris, or obstructions to prevent damage to the laser diode or fiber.
- Fiber Handling: Avoid bending the fiber beyond a 90° radius, as this may cause up to 5% power loss.
- Pre-Sale Testing: Each unit undergoes a 24-hour burn-in test and power calibration. A test video is provided before shipment for verification.
- Return Policy: No returns or exchanges are accepted after testing or installation. Novice users are advised to consult technical support before purchase.
Package Includes
1 × MAX 260W Pump Laser Generator (per selected SKU)
1 × User Manual (with installation guide)
1 × Power Cable (24V DC)
1 × Test Report (power and wavelength calibration data)
