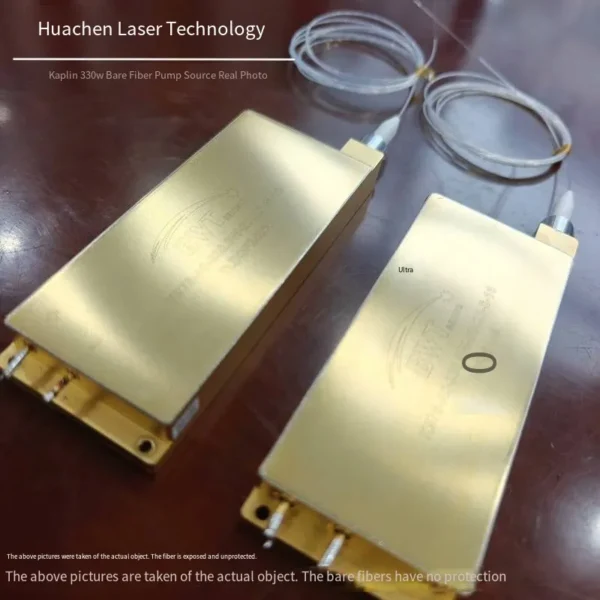

BWT Caplin 330W Laser Pump Source Module – SMA905 Interface, Customizable Options
Price range: $185.00 through $256.00
nLight 210W Laser Pump Source Module – 915nm Wavelength, 200μm Core
Price range: $85.00 through $178.00
MAX Innovation 280W Laser Pump Source Module – 976nm Wavelength, 200μm Core
10
People watching this product now!
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Price range: $100.00 through $221.00
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description

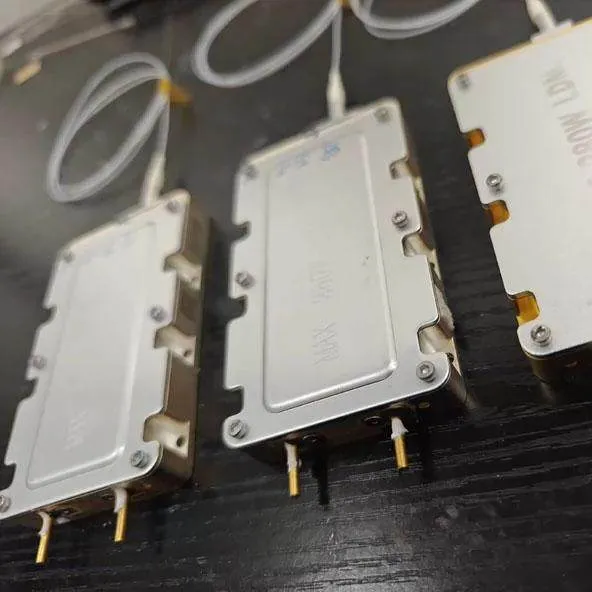

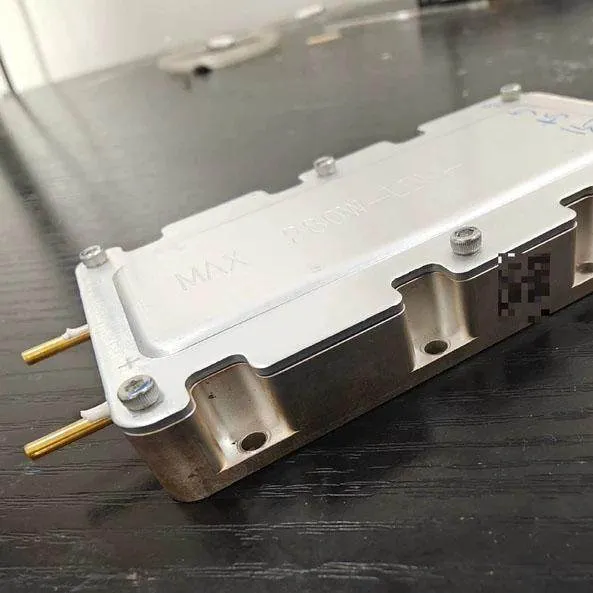

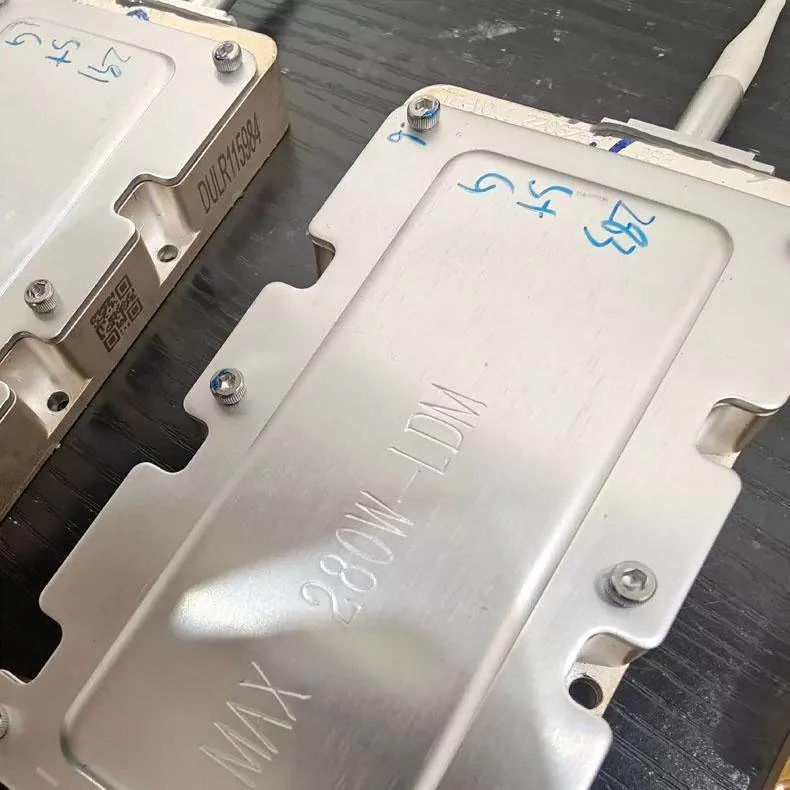

The MAX Innovation 280W Laser Pump Source Module is a high-power, industrial-grade laser diode array designed for integration into fiber laser cutting, welding, and cleaning systems. It delivers a stable 280W infrared output at 976nm, optimized for pumping high-power ytterbium-doped fiber lasers. This refurbished, custom-tested unit offers multiple output configurations and is ideal for professional users and advanced hobbyists building or modifying laser systems in controlled environments.
Core Features
- High-Efficiency Pumping: 976nm wavelength provides maximum absorption efficiency in ytterbium-doped fiber lasers, ensuring optimal system performance.
- Multiple Output Configurations: Choose from bare fiber, armored fiber with SMA905 quick connector, armored fiber with collimating lens, or direct-output (no fiber) options for flexible integration.
- Precision Beam Focusing: Collimating lens option delivers a 1–2mm spot size over a 35cm working distance for precise material processing.
- Robust Fiber Protection: Metal armored fiber prevents breakage and damage during installation and operation, with a bend radius limit of ≤90° for reliability.
- Industrial-Grade Reliability: Built by MAX Innovation, a trusted leader in fiber laser technology, ensuring consistent performance in demanding applications.
- Pre-Shipment Testing: Each unit undergoes a functional test and video verification to confirm 280W output and reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | MAX Innovation 280W Laser Pump Source Module |
| Wavelength | 976nm ±1nm (infrared) |
| Power Output | 280W (nominal; tested and verified) |
| Fiber Core Diameter | 200μm (multimode) |
| Power Supply | 21.5V @ 23A (requires dedicated high-current power source) |
| Collimating Lens Specs | 1–2mm spot size, 35cm working distance |
| Fiber Bend Limit | ≤90° (to prevent signal loss and damage) |
| Operating Temperature | ≤45°C (requires active cooling) |
| Housing Material | High-thermal-conductivity aluminum + gold-plated copper base |
| Primary Applications | Pumping fiber laser cutting/welding/cleaning systems, custom laser builds, and research projects |
| Condition | Refurbished (pre-owned, tested and verified for performance) |
| Operation Requirement | Trained laser professionals or advanced users with technical expertise |
SKU Options
| SKU | Configuration |
|---|---|
| MAX-280W-BARE | 280W Laser Pump Source, bare fiber output |
| MAX-280W-ARMORED | Module + armored fiber + SMA905 quick connector |
| MAX-280W-COLLIMATED | Module + armored fiber + collimating lens (1–2mm spot, 35cm working distance) |
| MAX-280W-DIRECT | 280W Laser Pump Source, direct output (no fiber) |
Why Choose This MAX Innovation Pump Source?
- Trusted Performance: MAX Innovation is a leading provider of fiber laser technology, ensuring exceptional reliability and output stability for industrial applications.
- Flexible Customization: Multiple configurations let you select the perfect setup for your laser system, from bare fiber to a fully collimated solution.
- Cost-Effective Solution: Refurbished units deliver professional-grade performance at a fraction of the cost of new modules.
- Verified Quality: Each unit is tested and video-verified before shipment, giving you confidence in its performance.
Important Safety & Usage Notes
- Current Control: Strictly maintain current at ≤23A. Exceeding this limit will cause irreversible damage, thermal runaway, and power degradation.
- Thermal Management: A robust active cooling system (air or water) is required to maintain temperatures ≤45°C and prevent thermal runaway.
- Laser Safety: Always wear appropriate laser safety goggles (OD 4+ for 976nm) when operating. Never point the beam at people, animals, or reflective surfaces.
- Fiber Care: Ensure the optical fiber remains free of dust, splashes, and debris. Avoid bending beyond the 90° limit to prevent signal loss and damage.
- Pre-Owned Terms: This is a refurbished, as-is unit. It is tested for functional performance but sold without return or exchange.
- Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
