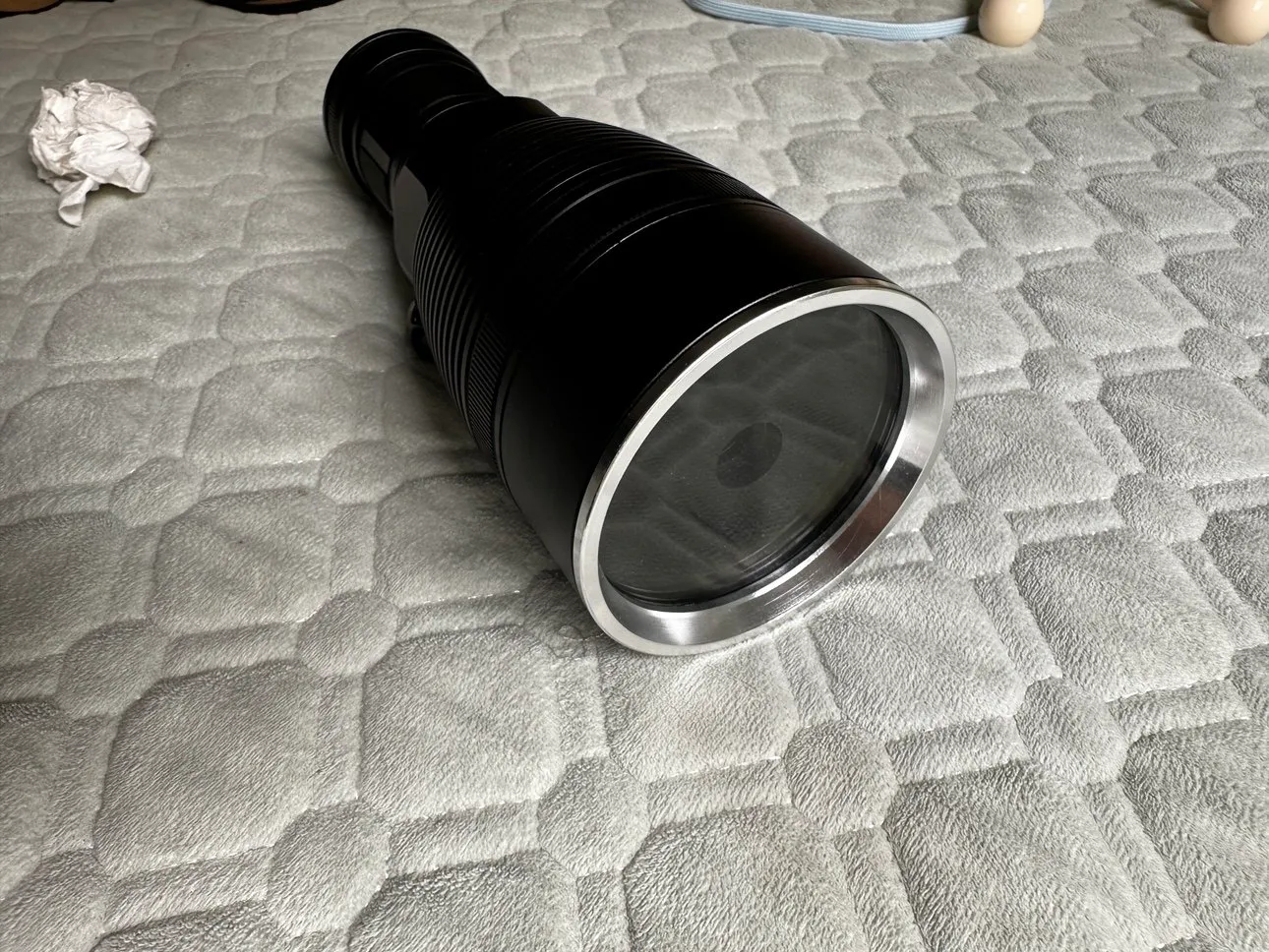

Luminix 3W RGB Laser Flashlight | DIY Customizable High-Power Laser Pointer

Unleash the power of light with the Luminix 3W High-Power RGB Laser Flashlight – an advanced, fully customizable tool for enthusiasts, educators, artists, and DIY builders. This professional-grade handheld laser integrates three high-purity diode lasers (Red, Green, Blue) to produce a stunning, bright white beam or individually selectable colors. Designed for flexibility, it supports user customization of optics, modulation, and power settings, making it the ultimate platform for laser projection, astronomy pointing, visual effects, and experimental optics.

Technical Specifications

• Laser Source & Output:

  • Total Optical Power: ≥3,000mW (3W)

  • Wavelengths & Individual Power:

    • Red (R): 638nm – 1000mW

    • Green (G): 520nm – 1000mW

    • Blue (B): 450nm – 1000mW

  • Beam Divergence: < 1.5 mrad (after factory collimation)

  • Output: Combined white beam or individually addressable RGB colors via control board.

  • Laser Class: Class 4 Laser Product. Invisible and visible laser radiation. Avoid eye or skin exposure.

• Optics & Customization:

  • Lens System: Multi-element collimating lens with adjustable focus (3m to ∞).

  • Beam Combining: Dichroic mirrors for precise RGB beam combination into a single coaxial output.

  • Customizable Elements: Users can access and modify:

    • Focus lens assembly

    • Dichroic mirror alignment (for advanced users)

    • Driver current settings (via potentiometers, requires knowledge)

    • Optional diffraction grating or pattern projector attachments.

• Electronics & Control:

  • Power Supply: 1 x 18650 Lithium-Ion Battery (not included, required).

  • Input Voltage: 3.7V – 4.2V DC

  • Driver: Advanced constant current drivers for each diode with independent thermal protection.

  • Control Interface: On-board microcontroller.

  • Operation Modes:

    • Single Color: Steady Red, Green, or Blue.

    • Combined White: Steady full-power white light.

    • Color Cycle: Automated smooth cycling through RGB spectrum.

    • Strobe / Pulse Mode: Adjustable frequency.

    • Custom Mode: Via optional serial interface for programmable patterns (requires additional module).

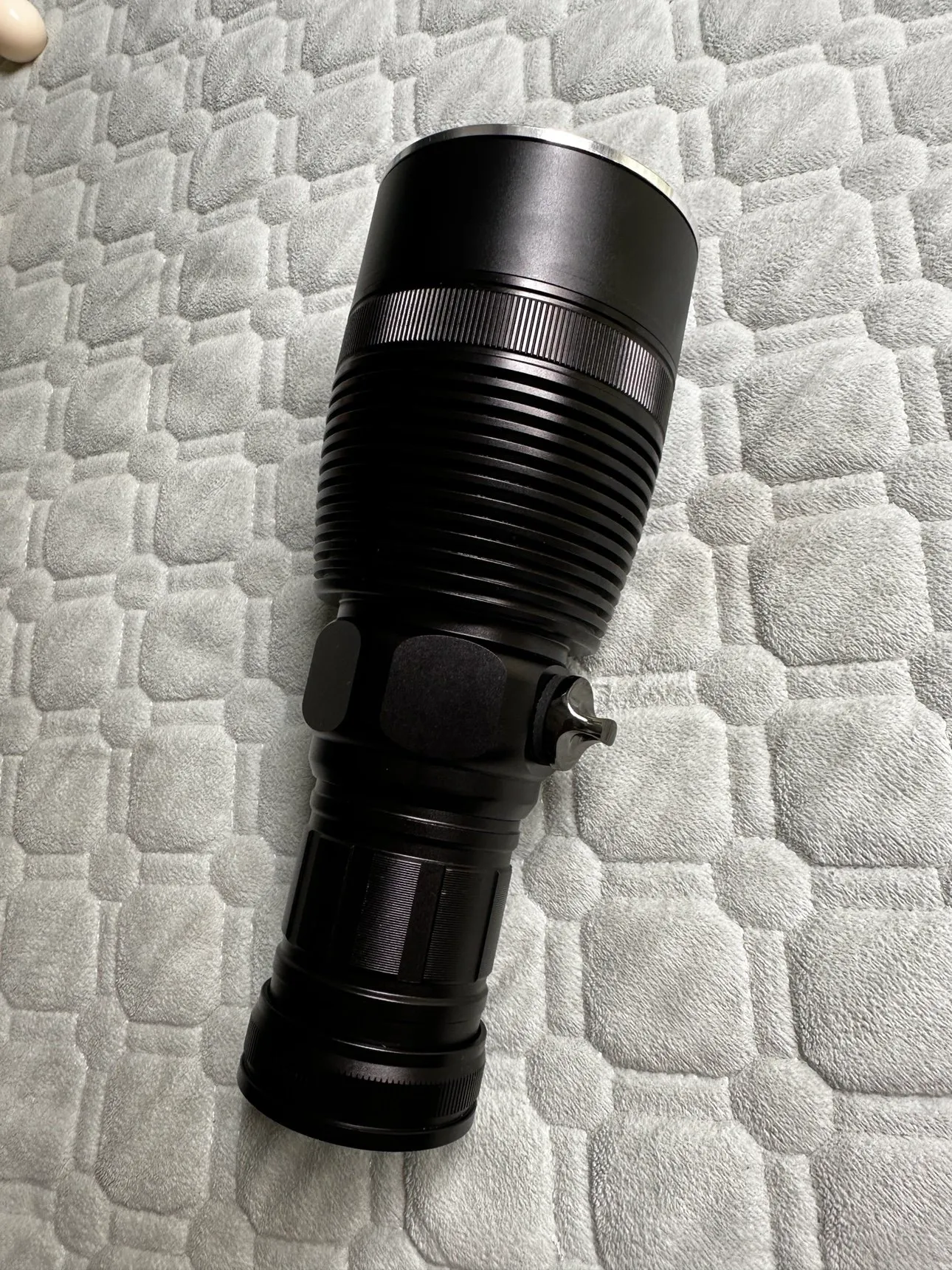

• Physical Construction:

  • Host Material: CNC-machined Aluminum Alloy (body) + High-grade ABS (internal mounts).

  • Dimensions: ~180mm (Length) x 45mm (Head Diameter)

  • Weight: ~500g (without battery)

  • Finish: Anodized matte black, with knurled grip.

  • Switch: Tail-clicky switch (momentary/constant on).

  • Heat Management: Integrated aluminum heat sink with thermal paste. Active cooling not required for duty cycles under 2 minutes.

• Performance & Safety:

  • Maximum Range (Visibility): >5000m (5km+) in clear, dark conditions.

  • Maximum Illumination Distance (Useful): 500m+ for pointing/effect.

  • Run Time: ~30-40 minutes on high mode with a standard 3500mAh 18650.

  • Duty Cycle: 90 seconds ON / 30 seconds OFF recommended for maximum diode lifespan.

  • Safety Features: Key lock (prevents accidental activation), 5-second startup delay, aperture shutter (optional).

Key Features & Applications

• True RGB Color Mixing: Create millions of colors by adjusting individual diode intensity via the control board, perfect for artistic installations or signaling.

• Designed for DIY & Customization: Easy access to internal components allows hobbyists to swap optics, upgrade diodes, or integrate with Arduino/Raspberry Pi for automated shows.

• High-Power & Long Range: The 3W combined output produces one of the brightest handheld laser beams available, with exceptional visibility for outdoor use.

• Professional-Grade Build: Robust metal construction ensures durability and effective heat dissipation during operation.

• Versatile Platform: Ideal for:

  • Laser Enthusiasts & Astronomy: Star pointing, atmospheric beam effects.

  • Visual Artists & Stage Design: Custom light effects, installations.

  • Educators & Researchers: Demonstrations in optics, physics, and photonics.

  • DIY Projects: Integration into custom laser projectors, scanning systems, or interactive art.

Package Contents

• 1 x Luminix 3W RGB Laser Flashlight Host (with installed optics and drivers)

• 1 x Set of Hex Keys for disassembly/access

• 1 x Basic Safety Guide & Quick Start Manual

• 1 x Protective Carry Case

• Note: 18650 Battery and charger are not included due to shipping regulations.

Ordering Information (SKU Table)

⚠️ CRITICAL SAFETY WARNING: This is a CLASS 4 HIGH-POWER LASER. It can cause instant permanent eye damage, ignite materials, and is potentially hazardous if misused. It is not a toy. Buyers must be over 18, understand laser safety (ANSI Z136.1), and use appropriate laser safety goggles (not included). The seller assumes no liability for misuse. By purchasing, you confirm you are aware of and will comply with all local regulations regarding high-power laser ownership and use.

Illuminate Your Imagination. Responsibly. The Luminix 3W RGB Laser Flashlight is a powerful tool for creation and exploration, designed for those who respect its power and embrace its potential.
