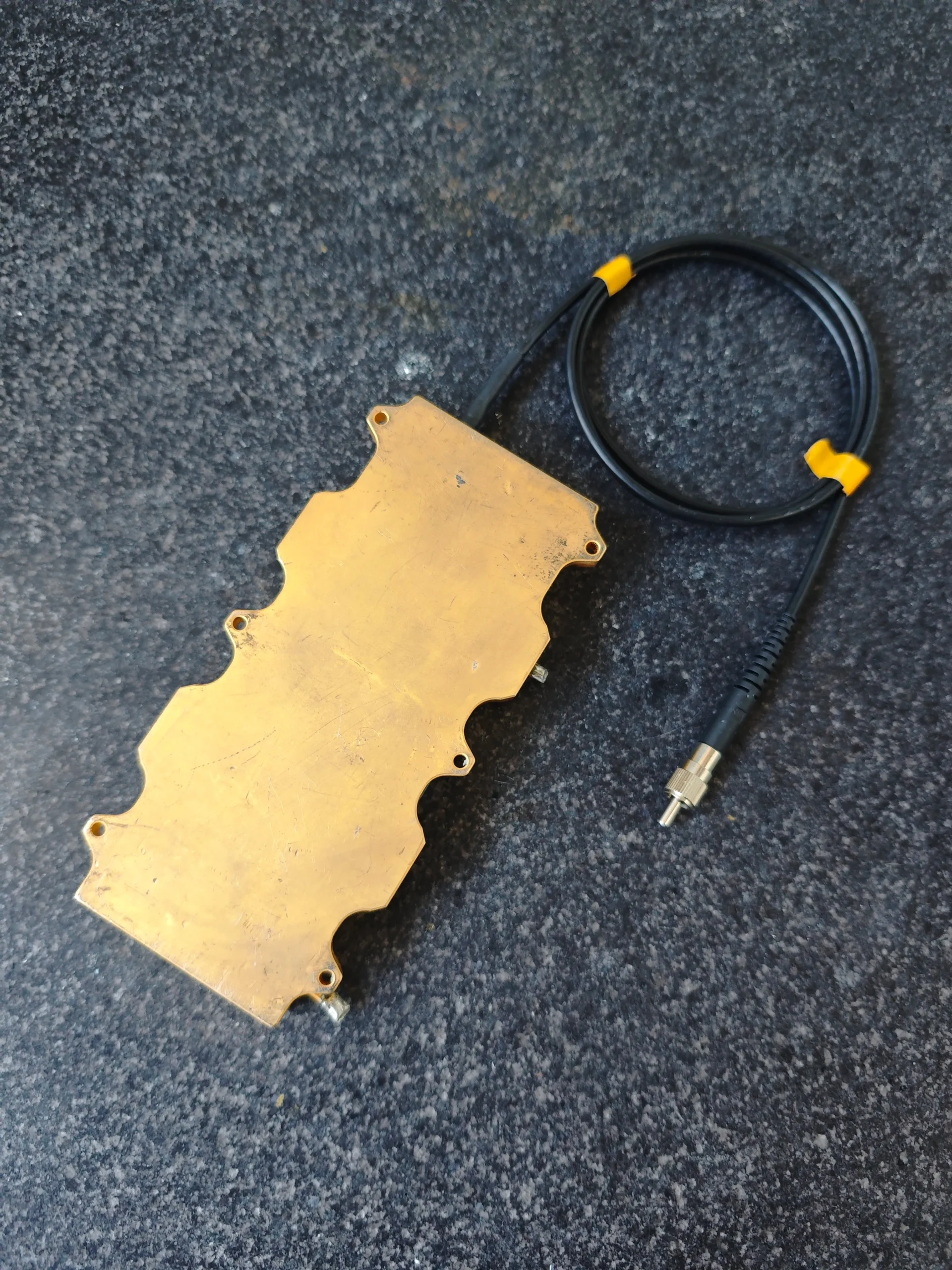

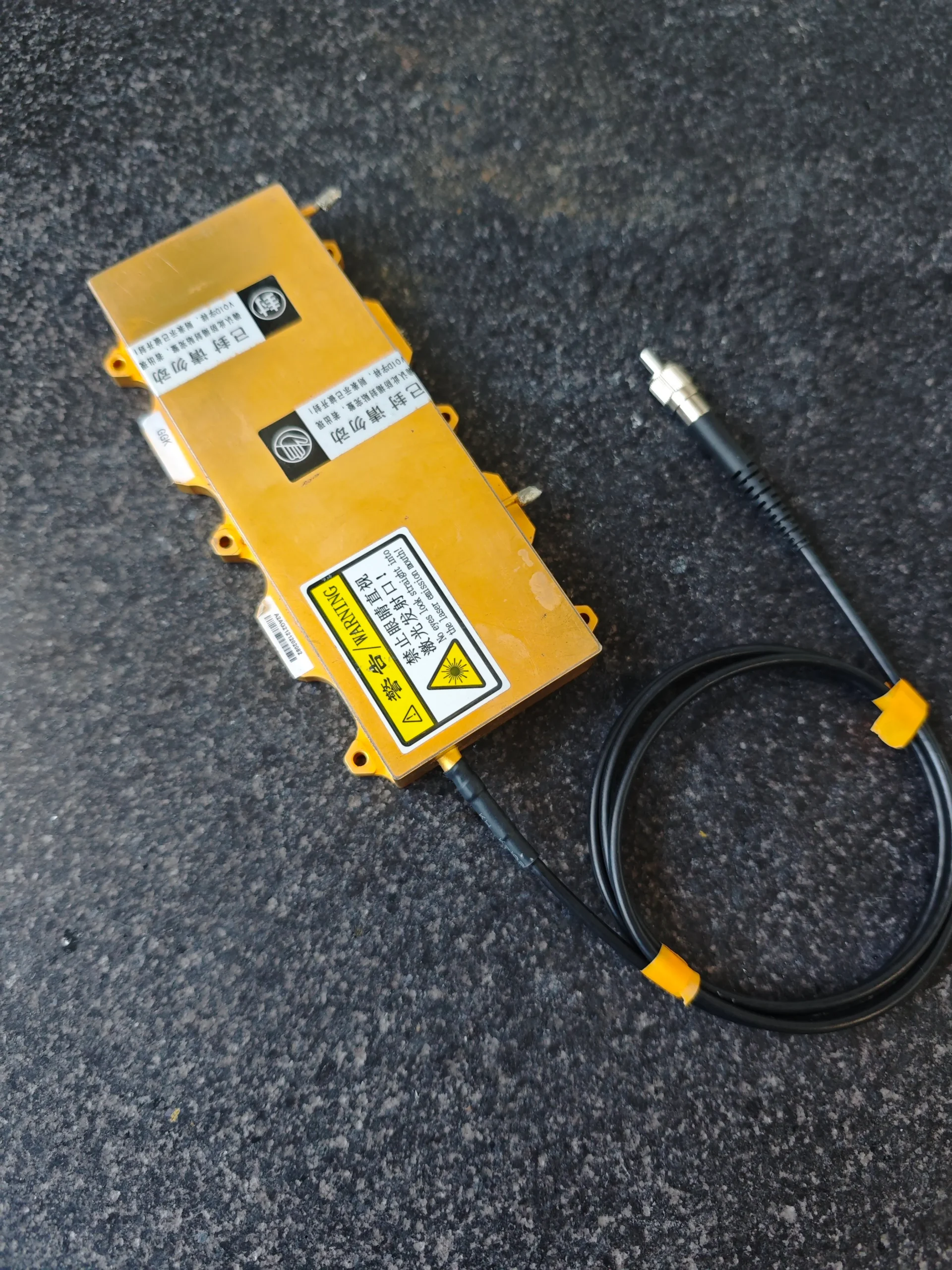

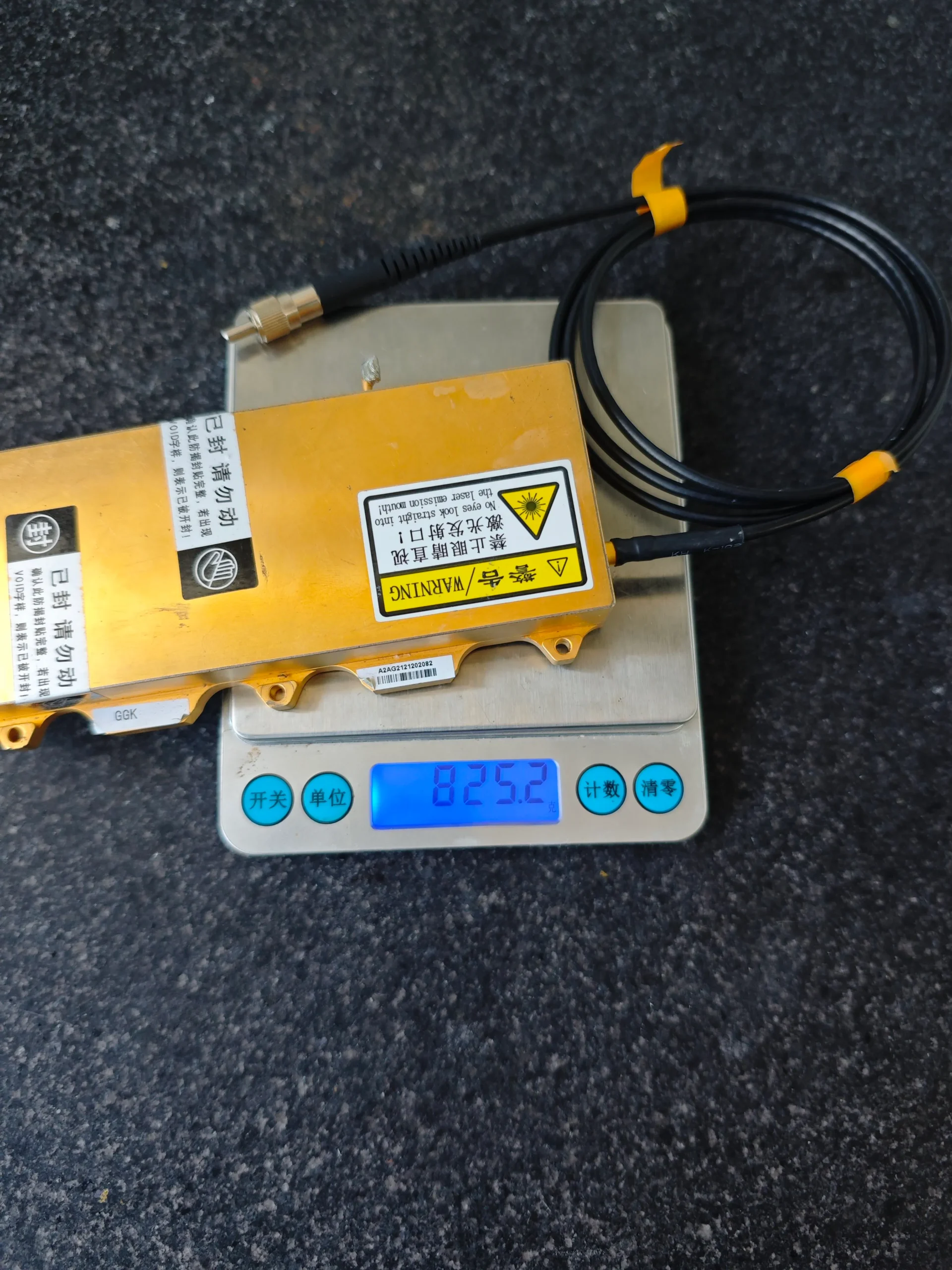

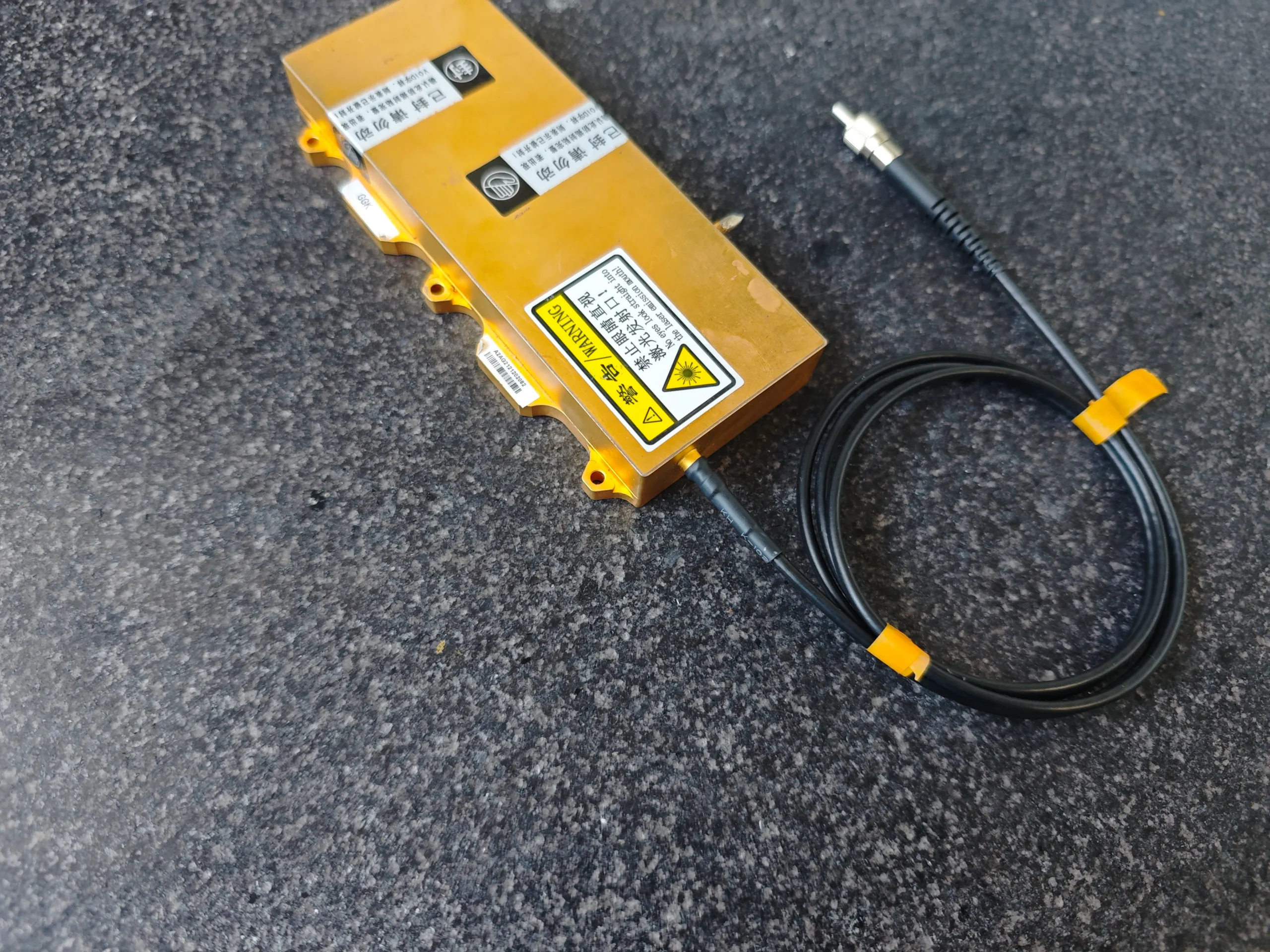

High-Power 300W 90-Degree Fiber-Coupled Laser Module – Portable Laser Pen System
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$122.00
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
A specialized 300W laser module featuring an integrated 90-degree output connector, designed for portable high-power laser applications. This compact system combines industrial-grade power output with convenient portability, featuring built-in battery operation and rapid deployment capabilities. Ideal for field applications, demonstrations, and specialized laser processing where traditional stationary systems are impractical.
Technical Specifications
| Optical Performance | Electrical & Power | Physical & Mechanical |
|---|---|---|
| Output Power: 300W Continuous Wave | Power Source: Integrated Li-ion battery pack | Dimensions: 180mm × 80mm × 60mm |
| Wavelength: 1064nm (or 915nm optional) | Battery Capacity: 200Wh (3-4 hours operation) | Weight: 1.8 kg (complete system) |
| Beam Quality: M² < 15 | Charging Time: 2 hours (fast charging) | Housing: Anodized aluminum alloy |
| Fiber Configuration: 200/220μm | Operating Voltage: 24V DC internal | Cooling: Passive + active fan cooling |
| Connector Type: 90-degree angled output | Power Consumption: < 350W at full power | Protection Rating: IP40 (splash resistant) |
| Numerical Aperture: 0.22 NA | Control Interface: Touch panel + physical buttons | Mounting Options: Handheld or tripod mount |
| Power Stability: < ±5% per battery charge | Safety Features: Key switch, emergency stop | Display: OLED status screen |
| Beam Divergence: < 100 mrad | Charging Port: USB-C PD 65W | Indicators: Power, temperature, battery |
| Spectral Width: < 5nm FWHM | Additional Outputs: 5V USB for accessories | Carrying Case: Included with handle |
| Performance Characteristics | Battery Specifications | Optical Interface |
|---|---|---|
| Rise Time: < 500ms to full power | Battery Type: Lithium-ion high-power cells | 90° Connector: SMA905 or FC/APC angled |
| Modulation Capability: PWM/analog control | Cell Configuration: 6S2P (22.2V nominal) | Output Angle: 90° fixed or adjustable |
| Maximum Runtime: 4 hours (eco mode) | Cycle Life: > 500 full cycles | Fiber Length: 1.5m standard |
| Continuous Operation: 2 hours at 300W | BMS Protection: Overcharge/discharge, thermal | Fiber Protection: Reinforced bend relief |
| Standby Time: 48 hours | Replacement: User-replaceable battery pack | Beam Delivery: Integrated collimation optional |
| Heat Management: Automatic power throttling | Charging Temperature: 0°C – 45°C | Focus Adjustment: Manual or fixed focus |
| Environmental Rating: -10°C to 40°C operation | Storage Temperature: -20°C to 60°C | Safety Shutter: Manual or electrically operated |
Key Features & Applications
| Portable High-Power Applications | Field & Demonstration Use | Specialized Processing |
|---|---|---|
| Portable material cutting and welding | Educational demonstrations and shows | Medical device field service |
| On-site repair and maintenance work | Trade show exhibitions and displays | Aerospace field maintenance |
| Remote location processing | Scientific research in field conditions | Emergency response cutting tools |
| Mobile manufacturing operations | Film and entertainment special effects | Military and defense applications |
| Artistic installations and performances | Outdoor advertising and displays | Law enforcement breaching tools |
| Technical Advantages | User Convenience Features | Safety & Compliance |
|---|---|---|
| True cordless operation (no power cord) | One-button operation with presets | Class 4 laser safety compliance |
| Rapid deployment (< 1 minute setup) | Intuitive touchscreen interface | Integrated safety interlock system |
| Compact, lightweight design | Multiple power level presets | Automatic shutdown protections |
| No external cooling required | Battery level indicators and warnings | Key-operated master switch |
| Integrated diagnostics and monitoring | Charging status display | Beam block/shutter mechanism |
| Ruggedized for field conditions | Carrying handle and shoulder strap option | Audible and visual warning signals |
| Multiple mounting configurations | Protective storage case included | Emergency stop button |
| Universal charging compatibility | Accessory mounting points | Temperature monitoring and limiting |
SKU Configuration
Power & Wavelength Options
• SKU-PEN-300W-1064: 300W, 1064nm, standard laser pen configuration
• SKU-PEN-200W-915: 200W, 915nm, optimized for material absorption
• SKU-PEN-150W-VIS: 150W, 532nm (green), visible output version
• SKU-PEN-400W-PRO: 400W, high-power professional edition
Battery & Runtime Packages
• SKU-BATT-STANDARD: Standard battery (200Wh, 2-4 hours)
• SKU-BATT-EXTENDED: Extended battery (400Wh, 4-8 hours)
• SKU-BATT-RAPID: Rapid charge battery (150Wh, 1.5 hour charge)
• SKU-BATT-QUAD: Quad battery pack with hot-swap capability
Optical Output Configurations
• SKU-OPT-90FIXED: Fixed 90-degree output connector
• SKU-OPT-ADJUST: Adjustable angle output (0-120 degrees)
• SKU-OPT-COLLIMATED: Integrated collimation optics
• SKU-OPT-FOCUS: Manual focusing head attachment
Complete System Packages
• SKU-KIT-BASIC: Laser pen + battery + basic charger
• SKU-KIT-PRO: Complete kit with case, accessories, spare battery
• SKU-KIT-INDUSTRIAL: Ruggedized version with field service tools
• SKU-KIT-DEMO: Demonstration package with safety accessories
Accessory Sets
• SKU-ACC-CARRY: Professional carrying case and harness
• SKU-ACC-CHARGER: Rapid charger and power bank
• SKU-ACC-SAFETY: Complete safety kit (glasses, enclosure, signs)
• SKU-ACC-OPTICS: Beam delivery and focusing accessories
• SKU-ACC-MOUNT: Tripod, clamp, and mounting solutions
Operation & Maintenance
Setup & Operation
• Initial Setup: Insert battery, power on, select operating mode
• Normal Operation: Adjust power level, aim output, engage laser
• Safety Procedures: Always wear protective eyewear, establish safety perimeter
• Shutdown: Power off, remove battery for extended storage
Charging & Power Management
• Use provided 65W USB-C charger for optimal performance
• Battery fully charges in approximately 2 hours
• Monitor battery level via OLED display or LED indicators
• Store batteries at 50% charge for long-term storage
Maintenance Requirements
• Clean optical surfaces weekly with approved materials
• Check battery contacts monthly for corrosion
• Inspect fiber connections for damage or looseness
• Update firmware via USB connection when available
Troubleshooting Common Issues
• Low power output: Check battery level, clean optics
• Overheating: Reduce power level, ensure ventilation
• Connection issues: Inspect connectors, reseat if necessary
• Charging problems: Verify charger, check charging port
Quality Assurance
Testing & Certification
• Each unit undergoes full power characterization
• Battery performance and safety testing
• Environmental testing (temperature, humidity, vibration)
• Laser safety classification verification
• Quality certifications: CE, RoHS, FCC compliant
Performance Validation
• Power output verified at multiple battery levels
• Runtime testing under various operating conditions
• Beam quality and stability measurements
• Charging system performance validation
• Durability and drop testing
Documentation Provided
• Complete user manual with safety guidelines
• Performance test certificate
• Battery specifications and safety data
• Charging instructions and best practices
• Warranty and service information
Package Contents
Standard Package Includes:
• 300W Laser Pen Main Unit • 200Wh Rechargeable Battery Pack
• 65W USB-C Fast Charger • 1.5m Fiber Optic Cable with 90° Connector
• Basic Safety Eyewear • User Manual and Quick Start Guide
• Protective Carrying Case • Cleaning Cloth and Basic Tools
Optional Accessories Available:
• Additional Battery Packs • Vehicle Charging Adapter
• Professional Safety Enclosure • Beam Delivery Optics Set
• Tripod and Mounting System • Field Service Tool Kit
• Custom Carrying Solutions • Extended Warranty Coverage
Support & Service
Technical Support
• Online knowledge base and tutorials • Video operation guides
• Email and phone technical support • Community user forum
• Firmware updates and enhancements • Application notes and guides
Service Options
• 12-month comprehensive warranty • Battery replacement program
• Expedited repair services • Calibration and recertification
• On-site training available • Priority technical support
Ordering Information
• Standard units ship within 3-5 business days • Custom configurations: 7-10 days
• Worldwide shipping with full tracking • Volume discounts available
• Educational and institutional pricing • Rental and demo units available
This portable high-power laser system enables professional laser applications in field conditions without stationary power infrastructure. Perfect for demonstrations, field service, mobile manufacturing, and specialized applications requiring cordless operation.
