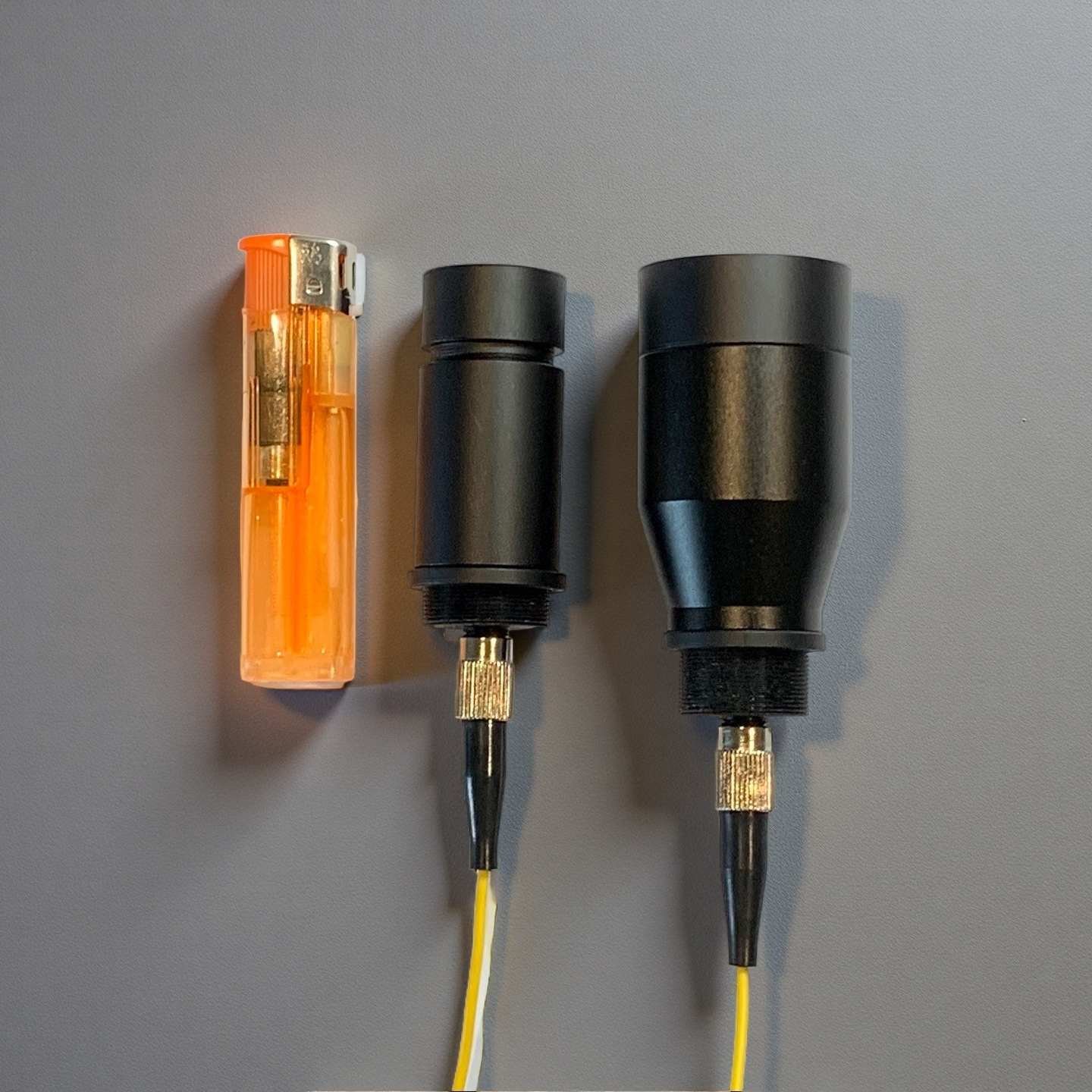

FC interface, SMA905 interface, D80 interface, optical fiber focusing lens, adjustable focal length

Model Examples:

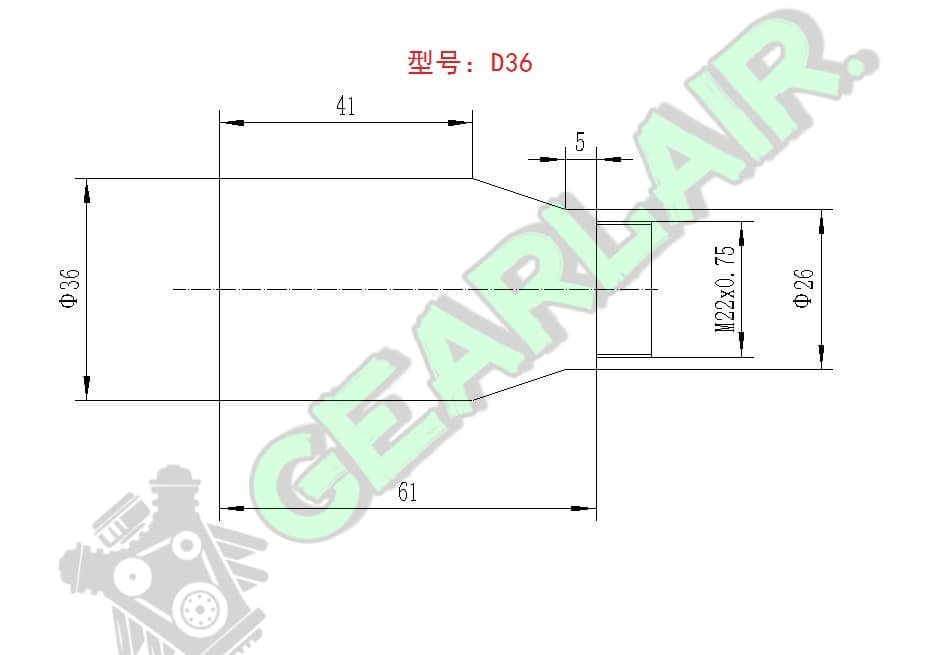

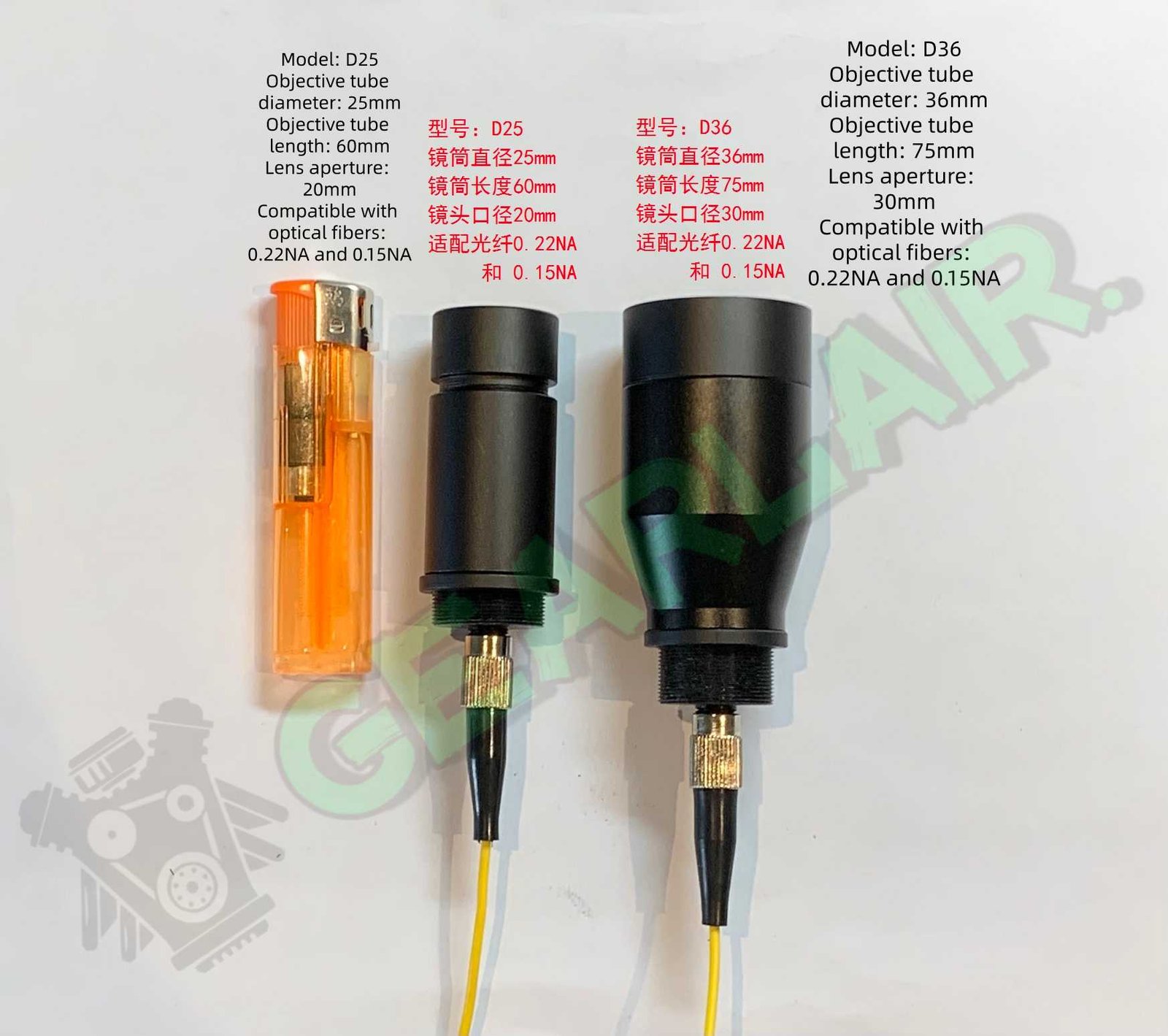

1. D36-F60-800-1064-SMA905 (Standard Collimator)

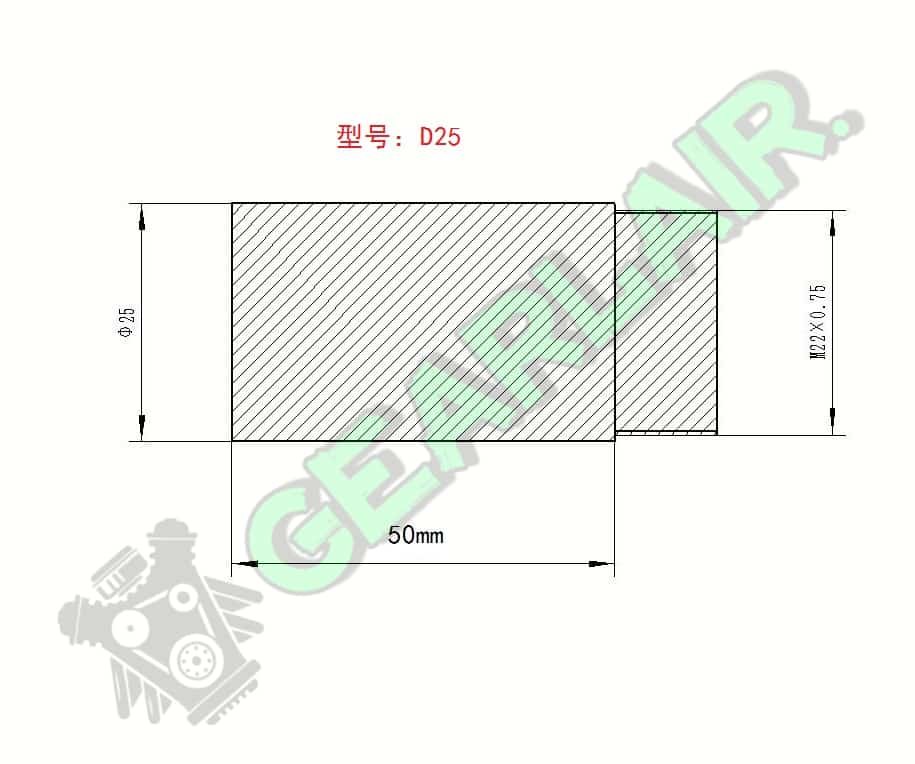

2. D25-QF60-800-1064-SMA905 (Quartz Collimator, Q for Quartz)

3. D36-QF200-800-1064-SMA905 (Long Focal Length Quartz Collimator)

2. Product Detail Page Design Framework

1. Core Headline (Top Banner)

“FlexiFocus Pro: Precision Focus, Unlimited Possibilities”
A modular beam expansion and focusing system designed for high-precision laser processing. Supports broad spectrum operation from UV to NIR, meeting your most demanding application needs.

2. Key Features (Icon-Based Presentation)

• Broad Wavelength Compatibility

  • Icon: 🌈

  • Text: Supports multiple wavelengths from 450nm to 1550nm (custom), enabling one device to cover diverse applications.

• Modular Design

  • Icon: 🔧

  • Text: Mix and match beam expanders and collimators freely. Unified interfaces (SMA905, etc.) and flexible focal length options (30mm – 600mm).

• High-Precision Optics

  • Icon: ⚡

  • Text: Features high-LIDT Quartz collimators as standard, ensuring stability and long life under high-power laser operation.

• Adjustable Spot Size

  • Icon: ●→◎

  • Text: The beam expander adjusts the fiber output spot from 10mm to 20mm, enabling a极小 (extremely small) focused spot with high energy density.

3. Detailed Product Specifications Table

4. Application Scenarios (Visual Showcase)

• Scenario 1: Precision Laser Marking

  • Visual Suggestion: Show a finely marked QR code or logo on metal.

  • Caption: “Paired with short focal length collimators (e.g., F30/F60) for crisp marking of micro-features.”

• Scenario 2: Flexible Processing

  • Visual Suggestion: Depict a laser head integrated with a multi-axis robot for 3D surface processing.

  • Caption: “Modular design allows for easy integration into automated production lines for complex path machining.”

• Scenario 3: High-Power Welding

  • Visual Suggestion: Show a welded battery tab.

  • Caption: “Quartz collimators are ideal for high-power applications like welding, offering superior durability.”

5. Call to Action & Ordering Information

Title: Configure Your Solution

Text: “Please specify your required Fiber Connector and Desired Focal Length when ordering. Default configuration is SMA905 connector with 90mm focal length.”

Wavelength Note: “Standard models cover 450-1064nm. 1550nm capability is available as a custom option (may affect lead time and price).”
