Custom 114W 915nm Fiber-Coupled Laser Pump Source – 200μm Core, SMA905 Connector
17
People watching this product now!
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$267.00
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
The Custom 114W 915nm Fiber-Coupled Laser Pump Source is a professional-grade laser diode module designed for scientific research, fiber laser system integration, and optical experimentation. It delivers a stable 114W infrared output at 915nm, optimized for pumping 1064nm infrared and 532nm green laser systems. This custom-built unit features a 1m fiber output (200μm core) with an SMA905 connector, ensuring precise, low-loss energy delivery for your optical system. It is intended for use by trained professionals in controlled lab or industrial environments.
Core Features
- High-Efficiency Pumping: 915nm wavelength is the industry standard for pumping 1064nm and 532nm laser systems, offering high absorption efficiency.
- Fiber-Coupled Delivery: 1m multimode fiber (200μm core) with an SMA905 copper air-gap connector ensures low-loss energy transfer.
- Gold-Plated Thermal Interface: High-thermal-conductivity gold-plated copper housing ensures efficient heat dissipation for continuous operation.
- Custom-Built Reliability: Each unit undergoes rigorous testing to ensure stable output (114W nominal) and optimal thermal performance.
- Modification-Friendly: Optional collimating lens upgrades are available for custom integration.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Custom 114W 915nm Fiber-Coupled Laser Pump Source |
| Wavelength | 915nm ±1nm (infrared) |

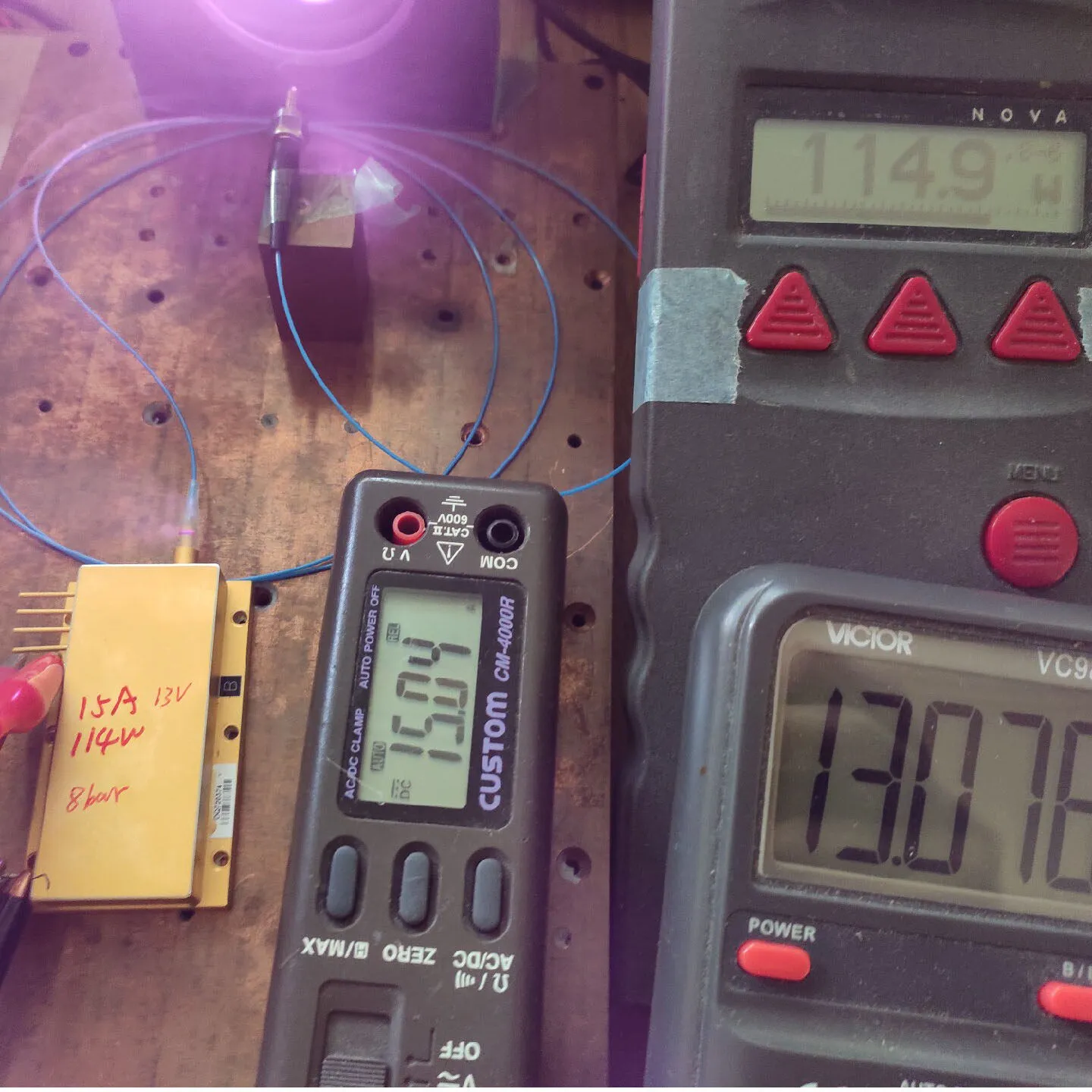

| Power Output | 114W (nominal; full power tested) |
| Fiber Core Diameter | 200μm (multimode) |
| Fiber Length | 1m |
| Connector Type | SMA905 copper air-gap connector |
| Maximum Current | 15A |
| Maximum Voltage | 13V |
| Housing Material | Gold-plated copper (high thermal conductivity) |
| Primary Applications | Pumping 1064nm/532nm laser systems, scientific research, optical experimentation |
| Condition | Custom-built and tested (as-new performance) |
| Operation Requirement | Trained laser professionals only (requires thermal management expertise) |
SKU Details
| SKU | Configuration | Price |
|---|---|---|
| PUMP-114W-915-CUSTOM | 114W 915nm Laser Pump Source + 1m Fiber Output | $399.99 |
| PUMP-114W-KIT | Module + Thermal Compound + Power Cable | $429.99 |
| PUMP-114W-UPGRADE | Module + Collimating Lens Upgrade | $449.99 |
Why Choose This Custom Pump Source?
- Trusted Performance: Built with high-quality components and tested to deliver stable, reliable output for critical applications.
- Precision Delivery: The SMA905 connector and 200μm core fiber ensure low-loss energy transfer to your laser system.
- Efficient Cooling: The gold-plated thermal interface ensures stable performance even during continuous operation.
- Flexible Integration: Optional upgrades allow you to customize the module for your specific laser system requirements.
Important Safety & Usage Notes
- Operator Training: This module must be handled and operated by trained laser professionals familiar with high-power diode safety protocols.
- Thermal Management: A robust heat sink and active cooling system are required for continuous operation to prevent overheating (keep temperature ≤35°C).
- Laser Safety: Always wear appropriate laser safety goggles (OD 4+ for 915nm) when operating this module. Never point the beam at people, animals, or reflective surfaces.
- Custom Terms: This is a custom-built, as-is unit. It is tested for functional performance but sold without return or exchange.
- Regulatory Compliance: Adhere to local laser safety regulations (e.g., FDA, CE) for your application. This module is not intended for consumer or recreational use.
